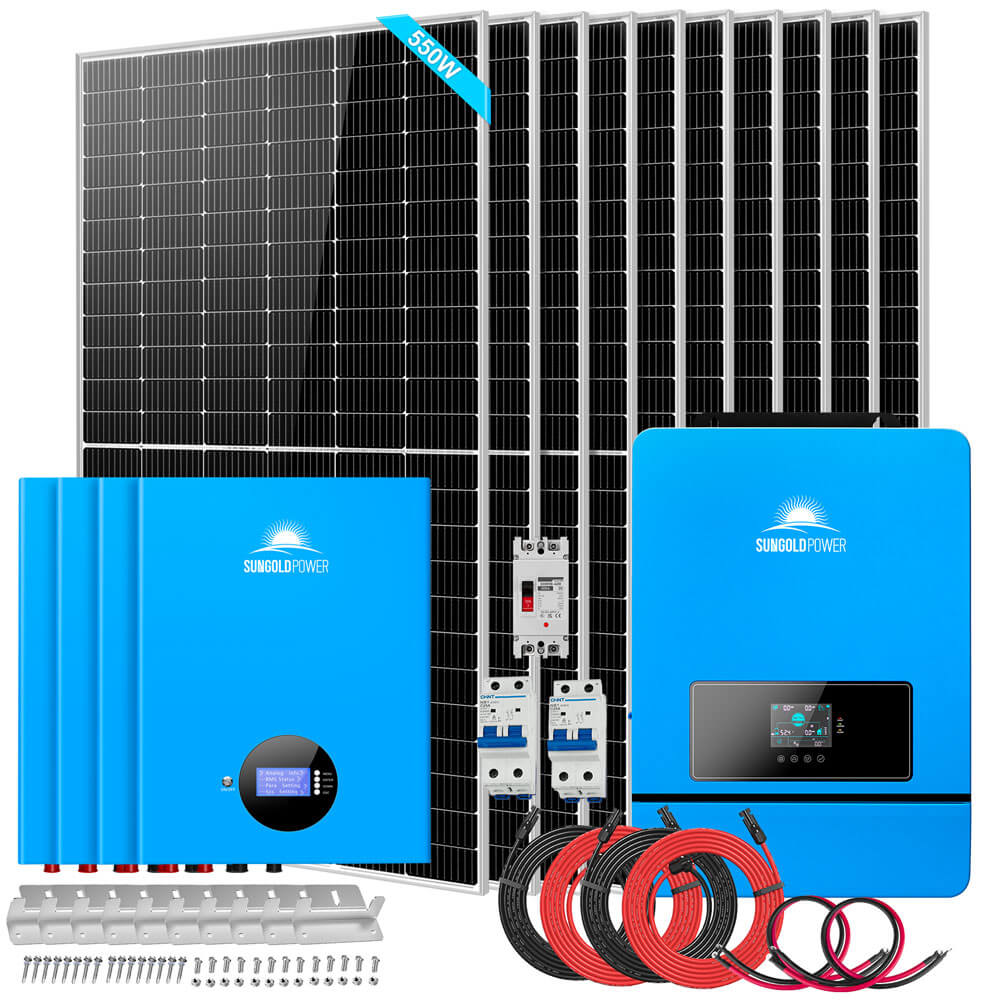

Ten solar panels, inverter, four PowerWall batteries, cables, and hardware included with Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 5500W Solar Panel Off-Grid Solar Kit

Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 5500W Solar Panel Off-Grid Solar Kit

SKU SGM-10K20
Save $3,072.00
$12,289.00
$9,217.00
Freedom Room product specialist

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Power Remote Properties With the Sun Gold Power 5500W Off Grid Solar Panel Kit

Built for whole-home off-grid power, the Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 5500W Solar Panel Off-Grid Solar Kit pairs a single expandable 10,000W split-phase inverter with wall-mounted PowerWall lithium batteries for dependable, space-saving energy storage.

Ten 550W monocrystalline panels and four 100Ah 51.2V PowerWall batteries deliver 20.48kWh of storage and 10,000W of split-phase output, with the inverter expandable up to six units in parallel for growing energy needs.

What's Included:

Specifications

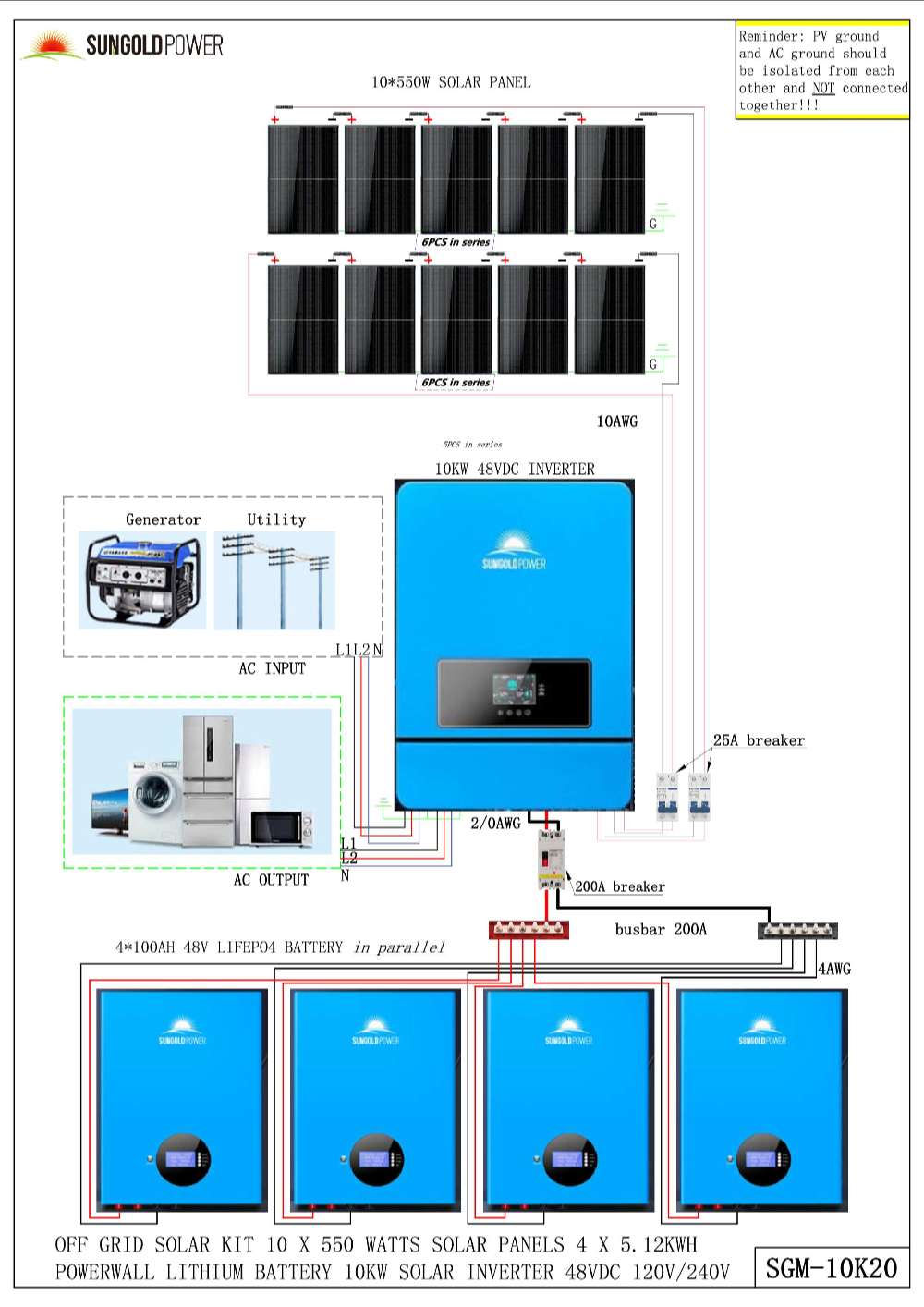

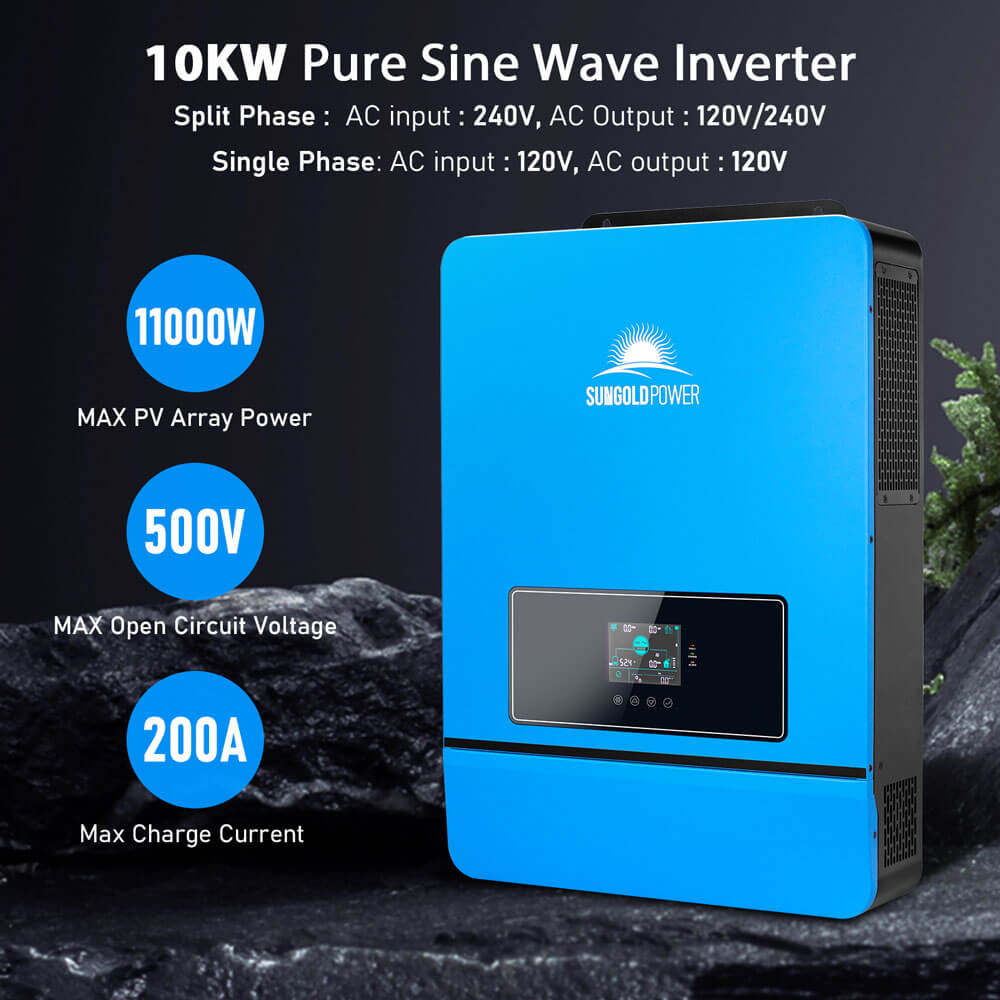

  • Inverter Configuration: 1 x 10,000W 48V Split-Phase Inverter (Expandable Up to 6 Units in Parallel)
  • System Voltage: 48VDC
  • AC Output: 120V/240V Split Phase

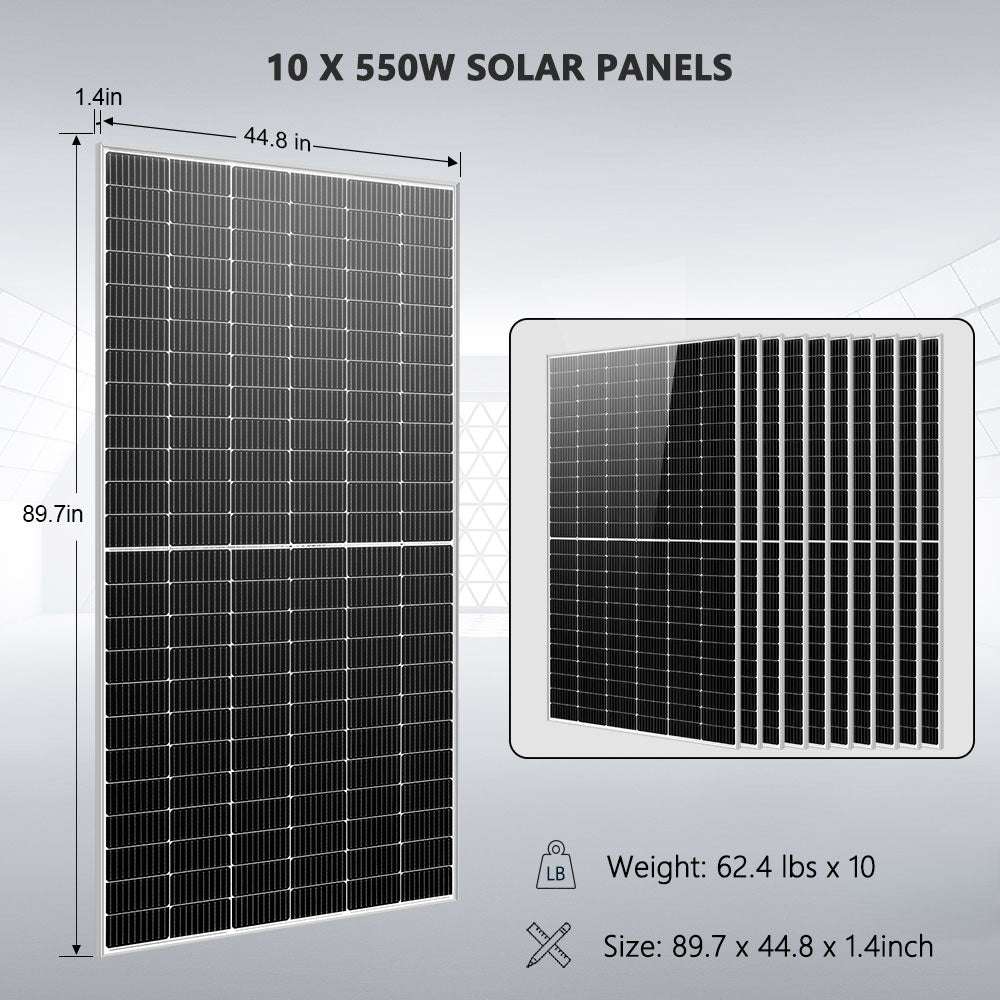

  • Solar Panels: 10 x 550W Monocrystalline Solar Panels
  • Total Solar Array Power: 5,500W

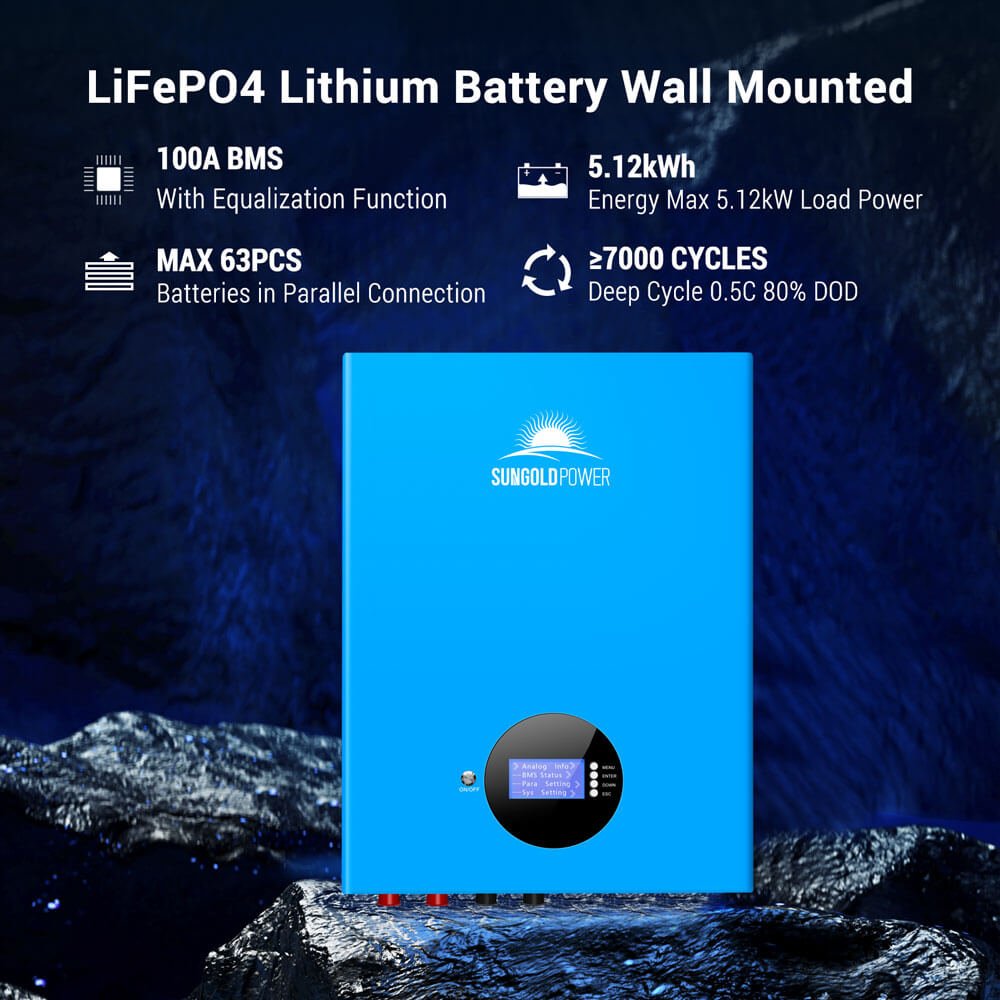

  • Battery Configuration: 4 x 100Ah 51.2V PowerWall (Wall-Mounted) LiFePO4 Batteries
  • Total Battery Capacity: 20.48kWh
  • Battery Format: Wall-Mounted PowerWall Design (Space-Saving, Not Rack-Mounted)
  • Solar Extension Cable: 2 Sets x 50 ft for Inverter PV Input
  • Mounting Hardware: 10 Sets of Mounting Z-Brackets
  • DC Breaker: 1 x 200A
  • PV Breaker: 2 x 25A
  • Connection Cable: 2 Sets x 2/0 AWG Cable for Breaker-to-Battery or Inverter Connection
  • Estimated Daily Energy Production: Approximately 20-21kWh (estimate based on the 5,500W array and 4 hours of sunlight, minus system losses)

Features

  • Single 10,000W inverter delivers full split-phase 120V/240V output and expands up to six units in parallel as needs grow.
  • Space-saving wall-mounted PowerWall batteries free up floor space compared to rack or cabinet battery systems.
  • Four 100Ah 51.2V PowerWall lithium batteries provide 20.48kWh of usable energy storage.
  • Ten 550W monocrystalline solar panels generate a 5,500W solar array for daily recharging.
  • Split-phase output supports both 120V and 240V household and workshop equipment.
  • Included mounting Z-brackets simplify secure solar panel installation.
  • A 200A DC breaker and dual 25A PV breakers support safe, code-ready system connections.
  • Heavy-duty 2/0 AWG cabling handles the higher current loads of this large-scale configuration.
  • Parallel-expandable inverter design allows the system to scale well beyond 10,000W as energy needs grow.
  • Complete off-grid starter package eliminates the guesswork of matching components.

Why Choose It?

This large-capacity kit combines a single expandable 10,000W inverter with 20.48kWh of wall-mounted PowerWall battery storage and a 5,500W solar array for serious off-grid power. Its space-saving PowerWall design and parallel-expandable inverter make it especially well suited to installations where floor space for a battery rack is limited or where power needs may grow over time.

Recommended For

  • Whole-home off-grid living
  • Large cabins and remote homes
  • Workshops and light commercial buildings
  • Properties with limited floor space for battery racks
  • Expandable off-grid solar systems

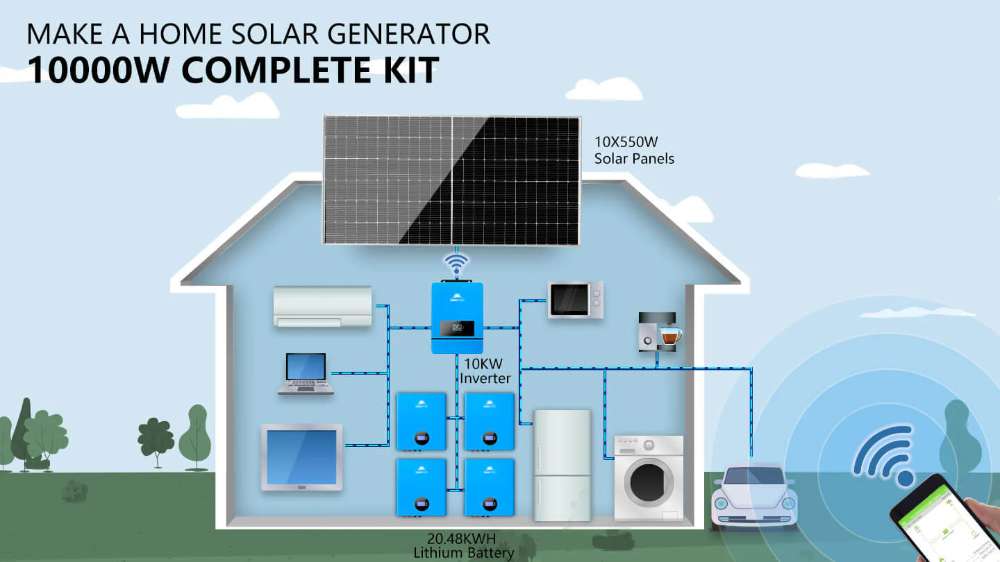

Comfortably Powers

  • Central air conditioners
  • Well pumps
  • Refrigerators and freezers
  • Full kitchen appliance loads
  • LED lighting throughout a home
  • TVs, laptops, and desktop computers
  • Power tools and workshop equipment

Where It Falls Short:

This is a large-scale off-grid kit, so it requires meaningful installation space and planning rather than a simple plug-and-play setup. It's designed exclusively for off-grid use rather than grid-tied operation.

  • Requires ground or roof space for a ten-panel solar array.
  • Requires wall space to mount all four PowerWall battery units.
  • Off-grid only; not designed for grid-tied interconnection.
  • Fixed component count; higher energy needs require purchasing additional batteries, panels, or paralleled inverters separately.
  • Installation involves multiple major components, including the inverter, breakers, and heavy-gauge wiring.
  • Estimated daily energy production is a sunlight-dependent estimate, not a guaranteed output.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
