Sun Gold Power 10000W 48V Split Phase Solar Inverter

Name: Sun Gold Power 10000W 48V Split Phase Solar Inverter
Brand: Sun Gold Power
SKU: SPH10048P
Price: 1580.00 USD
Availability: InStock

SKU SPH10048P

Save $395.00

$1,975.00

$1,580.00

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Invest in Sun Gold Power 10000W Solar Inverter for Long Term Performance

Sun Gold Power 10000W 48V Split Phase Solar Inverter is a hybrid solar inverter built for off-grid homes, whole-home backup power, and large residential energy systems. It combines reliable power conversion with flexible solar and battery integration.

This pure sine wave inverter features dual MPPT solar charge controllers, a built-in inverter charger, split-phase output, WiFi monitoring, parallel expansion, and broad battery compatibility. Its time-slot charging and multiple operating modes help maximise solar energy while delivering dependable backup power when you need it most.

What's Included:

1 x Sun Gold Power 10000W 48V Split Phase Solar Inverter
1 x Warranty card
1 x USB Communication Cable
1 x Parallel COM cable
WiFi Box
Cable lugs and screws
User Manual
UL1741 Certification

Specifications

Continuous Power: 10,000W
Surge Power: 20,000W
DC Input Voltage: 48V DC (40–60V DC)
DC Input: 48V battery system
AC Output Voltage: 120V/240V split phase or 120V single phase
Output Frequency: 50/60Hz
Waveform: Pure sine wave
Maximum Efficiency: 92%
MPPT Tracking Efficiency: 99.9%
Battery Charger Rating: 200A maximum
Maximum Charging Current: 200A

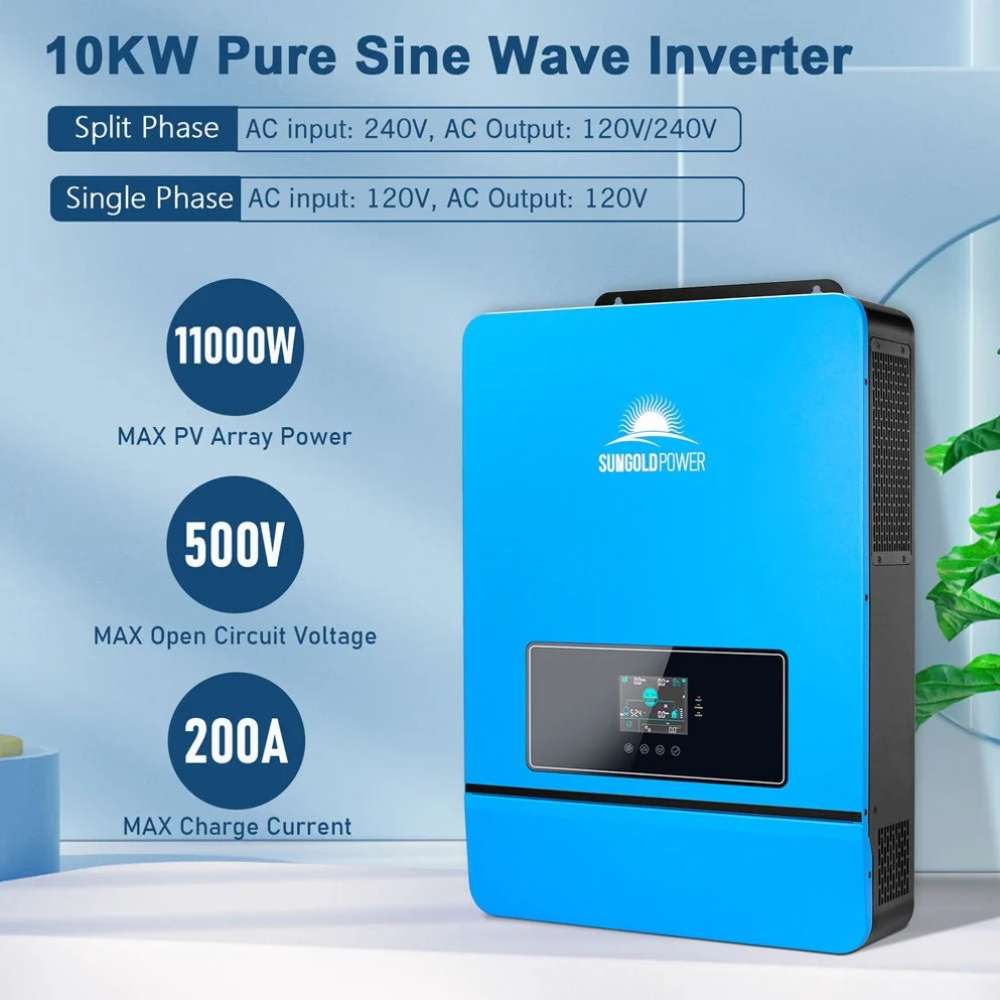

Maximum PV Array Power: 11,000W
Maximum Open Circuit Voltage: 500V DC per MPPT input
MPPT Solar Charge Controller: Dual MPPT controllers
Battery Compatibility: AGM, Sealed Lead Acid, Gel, Flooded, LiFePO4, and User-defined 48V batteries
Generator Compatibility: Supported
Parallel Capability: Up to 6 units
Motor Load Capacity: 6HP
Certification: UL 1741 by ETL

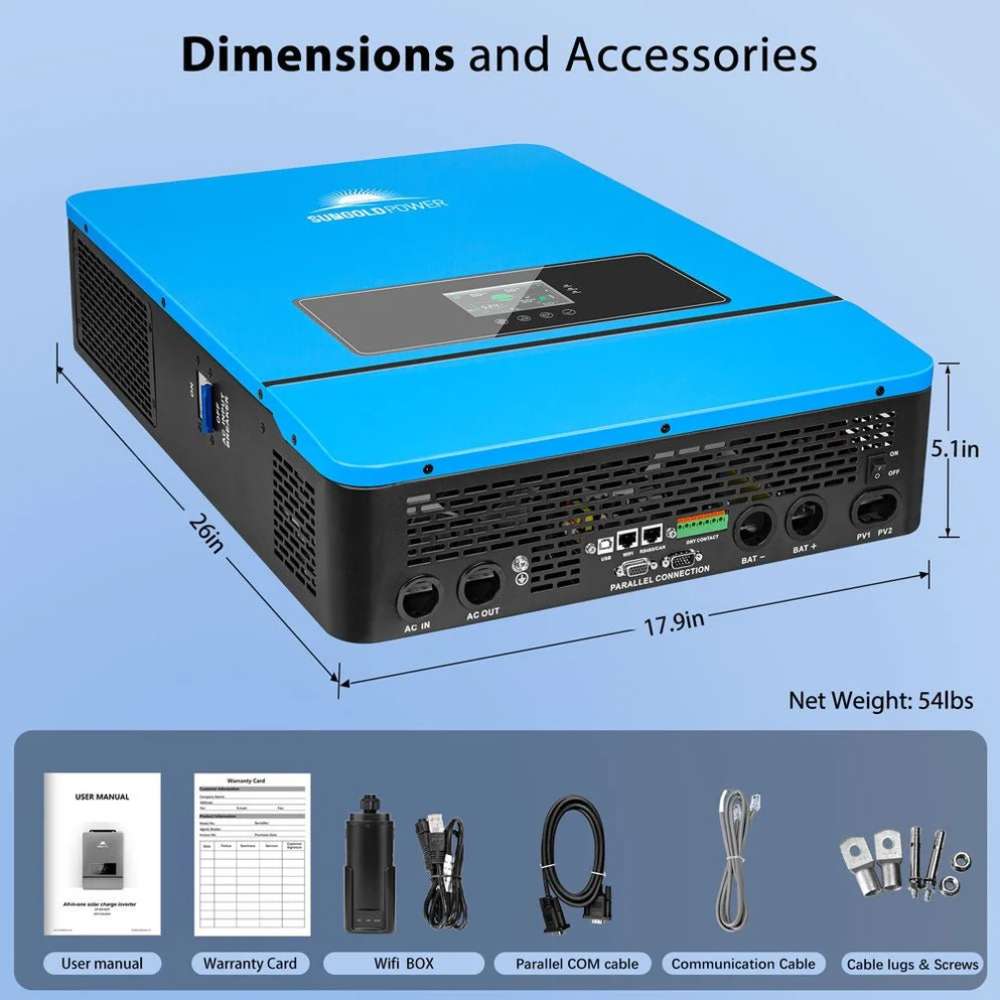

Dimensions: 26 × 17.9 × 5.1 in
Net Weight: 54 lbs

Features

Pure sine wave output protects sensitive electronics.
Hybrid operation supports solar, battery, grid, and generator.
Dual MPPT controllers maximise solar energy harvest.
Split-phase output powers 120V and 240V appliances.

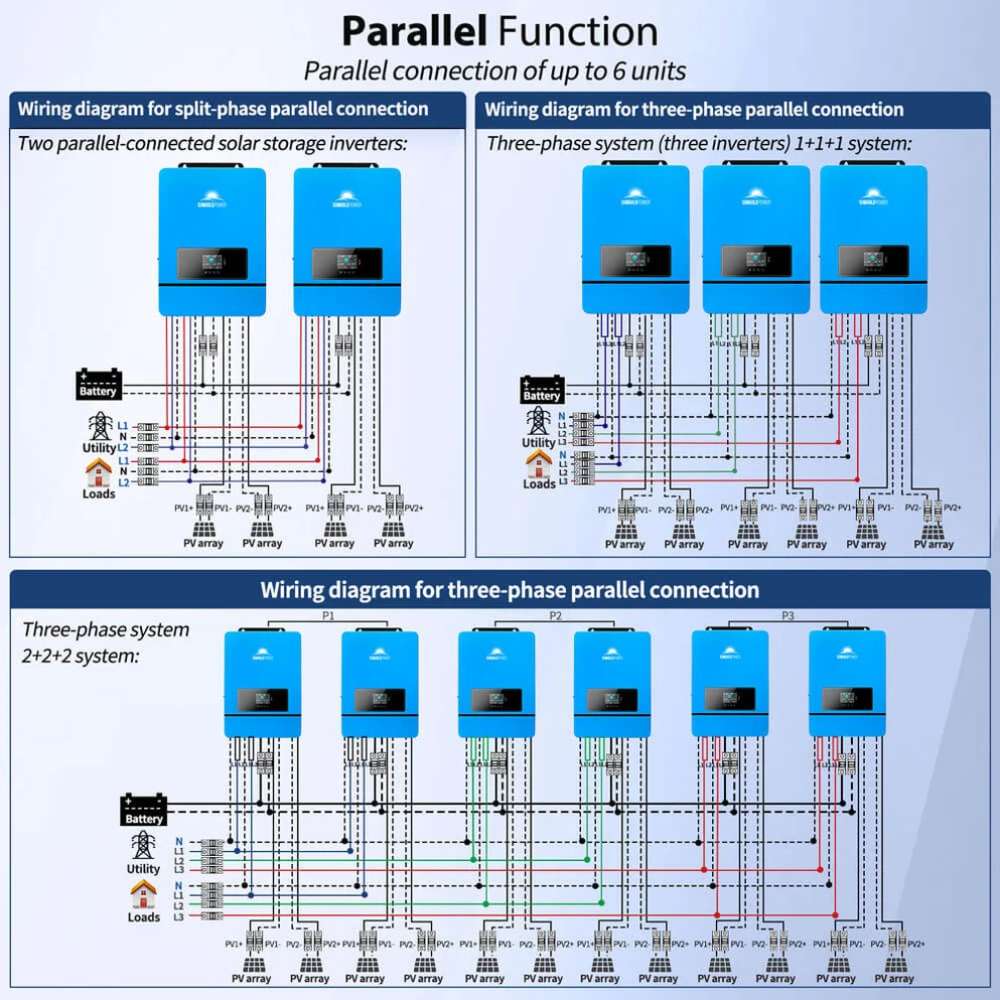

Supports parallel operation with up to six units.
Built-in WiFi enables remote system monitoring.

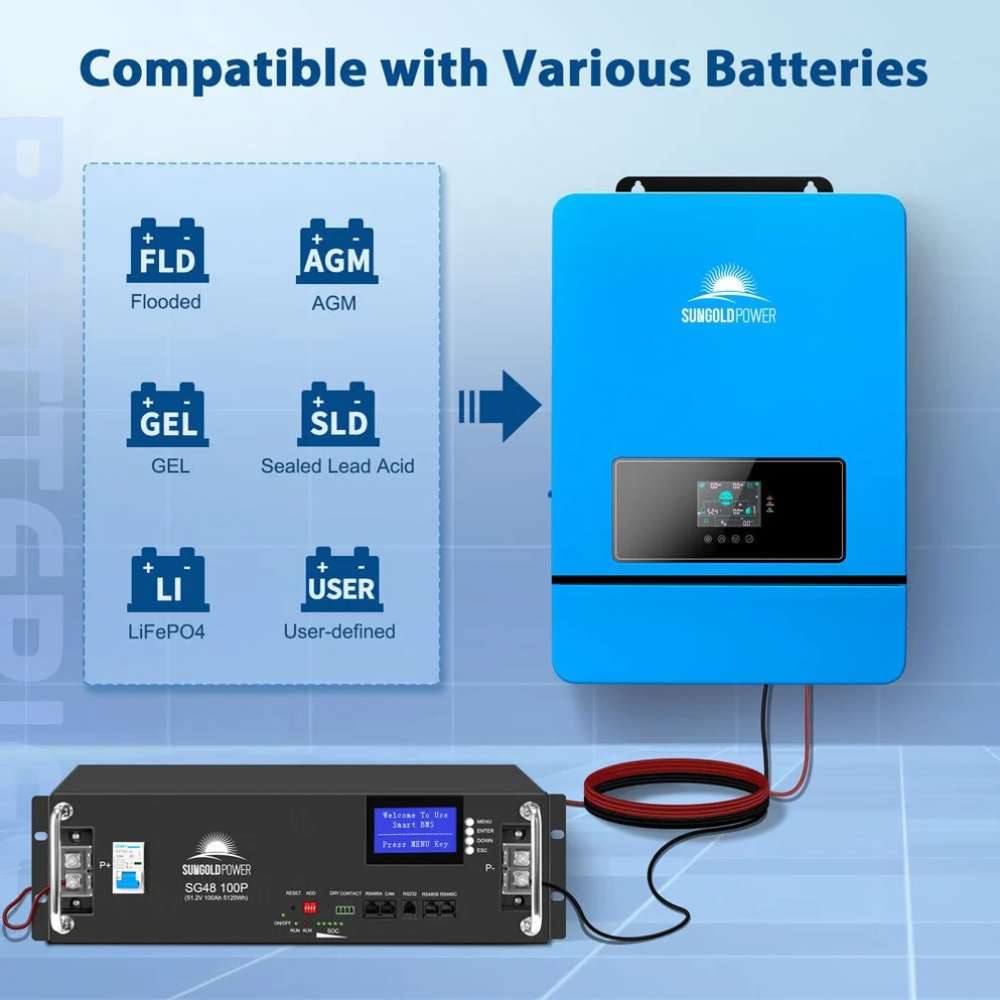

Compatible with multiple 48V battery types.

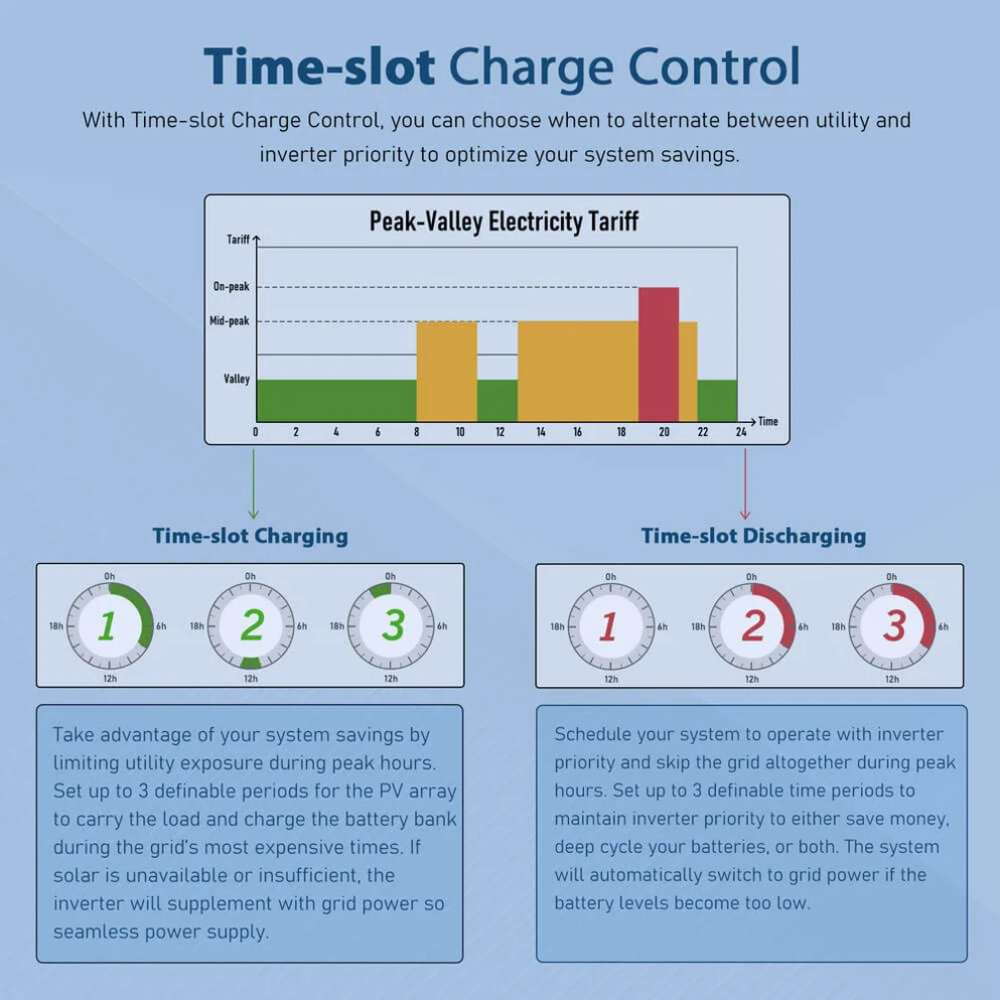

Time-slot charging helps reduce electricity costs.
Time-slot discharging improves energy management.

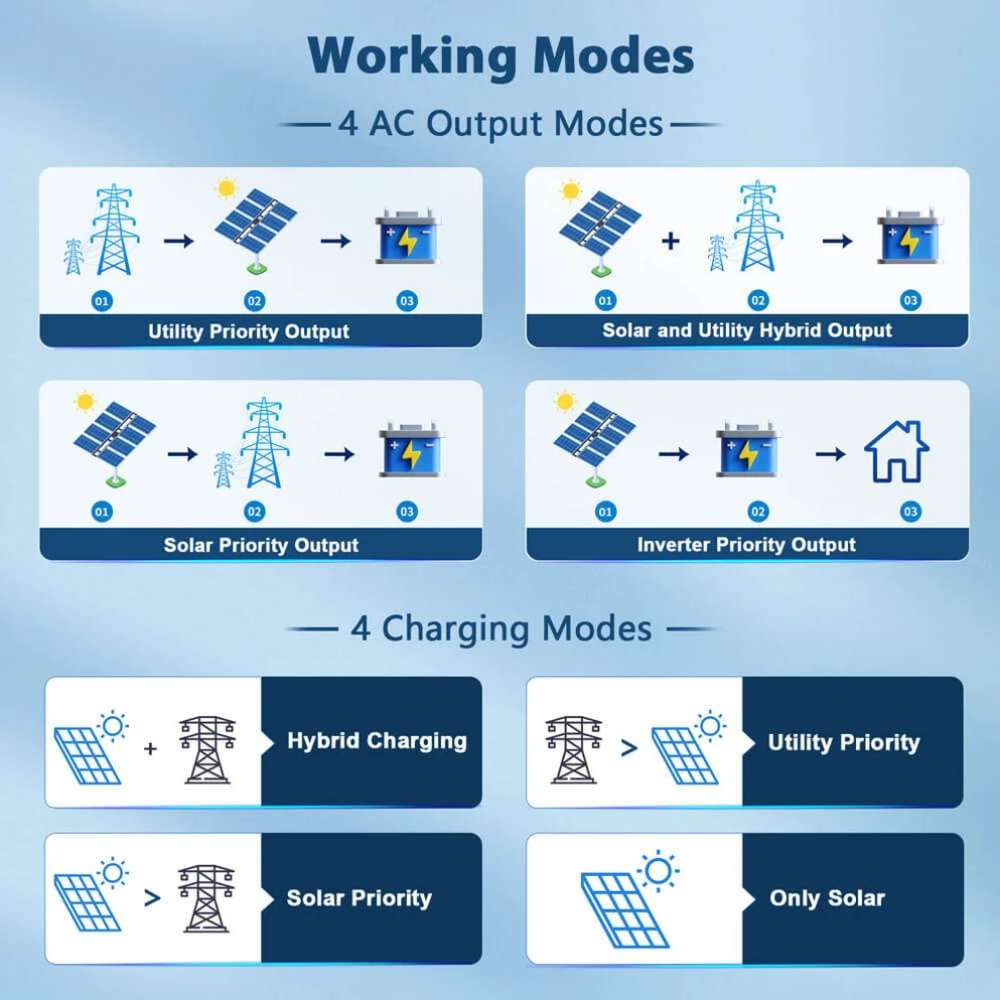

Four charging modes fit different power needs.
Four output modes provide flexible operation.

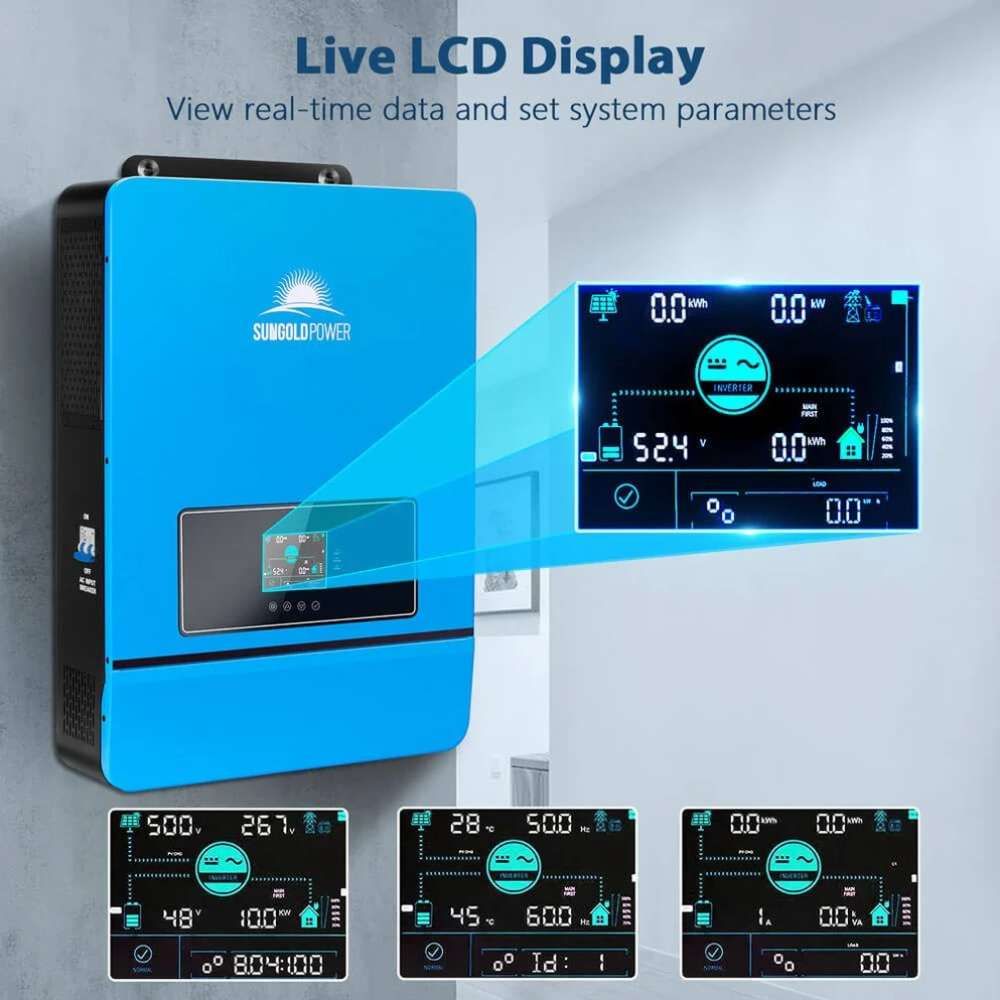

LCD display offers clear system monitoring.
Works with generators for dependable backup power.
Supports motor loads up to 6HP.
UL 1741 certified for reliable performance.

Why Choose It?

Sun Gold Power 10kW 48V Split Phase Solar Inverter combines high output with flexible energy management. It supports solar, battery, grid, and generator power for dependable operation.

Recommended For

Off-grid homes
Whole-home backup systems
Residential solar installations
Workshops
Garages
Small farms
Remote properties
Battery storage systems
Generator-assisted power systems
Split-phase 120V/240V applications

Comfortably Powers

Refrigerators and freezers
Air conditioners within rated capacity
Well pumps up to 6HP
Washing machines
Dryers
Electric water pumps
Power tools
Home lighting
TVs and entertainment systems
Desktop computers and laptops
WiFi routers and networking equipment
Kitchen appliances
Microwave ovens
Coffee makers
Multiple household appliances at the same time

Where It Falls Short:

This inverter is designed for 48V battery systems only. It also requires external batteries and solar panels to operate as a complete energy system.

Compatible only with 48V battery banks.
External batteries are not included.
Solar panels are not included.
Limited to 10,000W continuous output.
Supports a maximum of 20,000W surge power.
Requires installation for split-phase 120V/240V systems.
Best suited for stationary installations rather than portable use.
WiFi monitoring requires the included WiFi module.
Parallel expansion requires additional compatible inverter units.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
