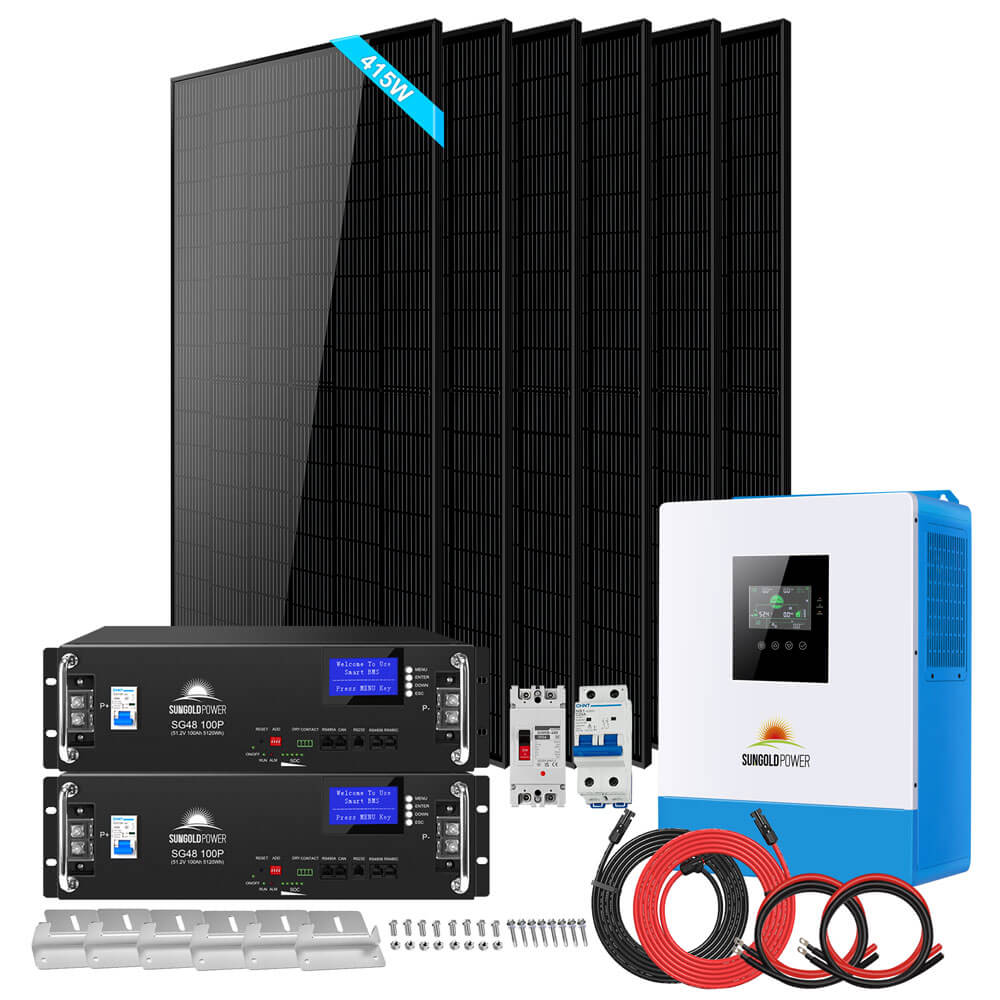

All-in-one system view of Sun Gold Power 5000W 48VDC 120V LiFePO4 10.24KWH Lithium Battery 2490W Solar Panel Off-Grid Solar Kit including inverter, batteries, solar panels, cables, and accessories.

Sun Gold Power 5000W 48VDC 120V LiFePO4 10.24KWH Lithium Battery 2490W Solar Panel Off-Grid Solar Kit

SKU SGR-5KE
Save $1,594.00
$6,376.00
$4,782.00
Freedom Room product specialist

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Get More Energy Storage With the Sun Gold Power 10.24KWH Off Grid Solar Kit

Sun Gold Power 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 2490W Solar Panel Off-Grid Solar Kit is a compact off-grid solar kit built for cabin owners, tiny home owners, and workshop operators who need dependable single-voltage backup power without relying on the utility grid.

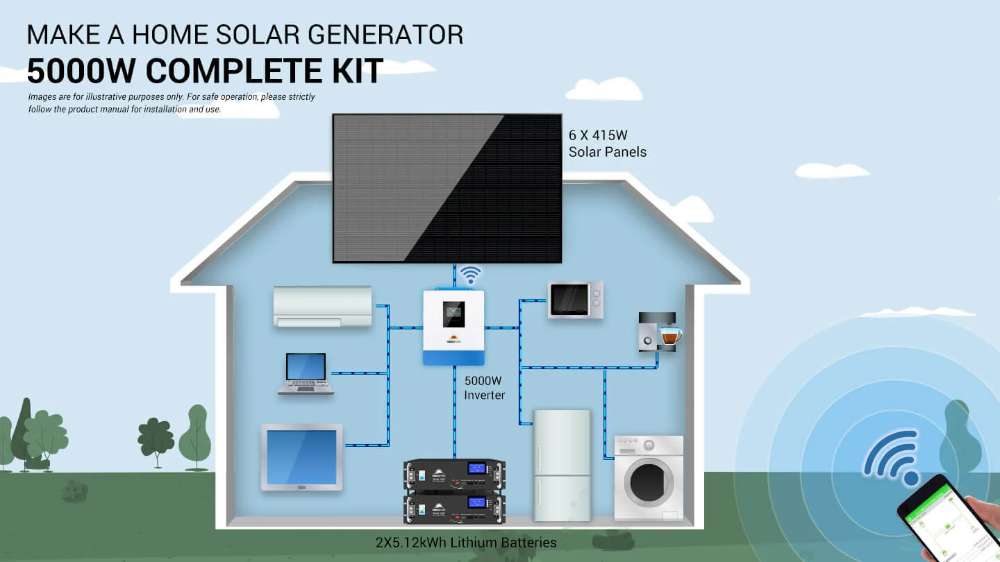

This off-grid solar kit with battery storage pairs a 5000W 48V WiFi-enabled inverter with 10.24kWh of lithium battery capacity and a 2,490W monocrystalline solar array, all matched components built to work together as one complete off-grid solar power kit. The built-in WiFi module lets you monitor system performance remotely, and every part is expandable so you can add batteries or panels later for even more reliable, long-term energy independence.

What's Included:

Specifications

  • Product Type: Off Grid Solar Kits

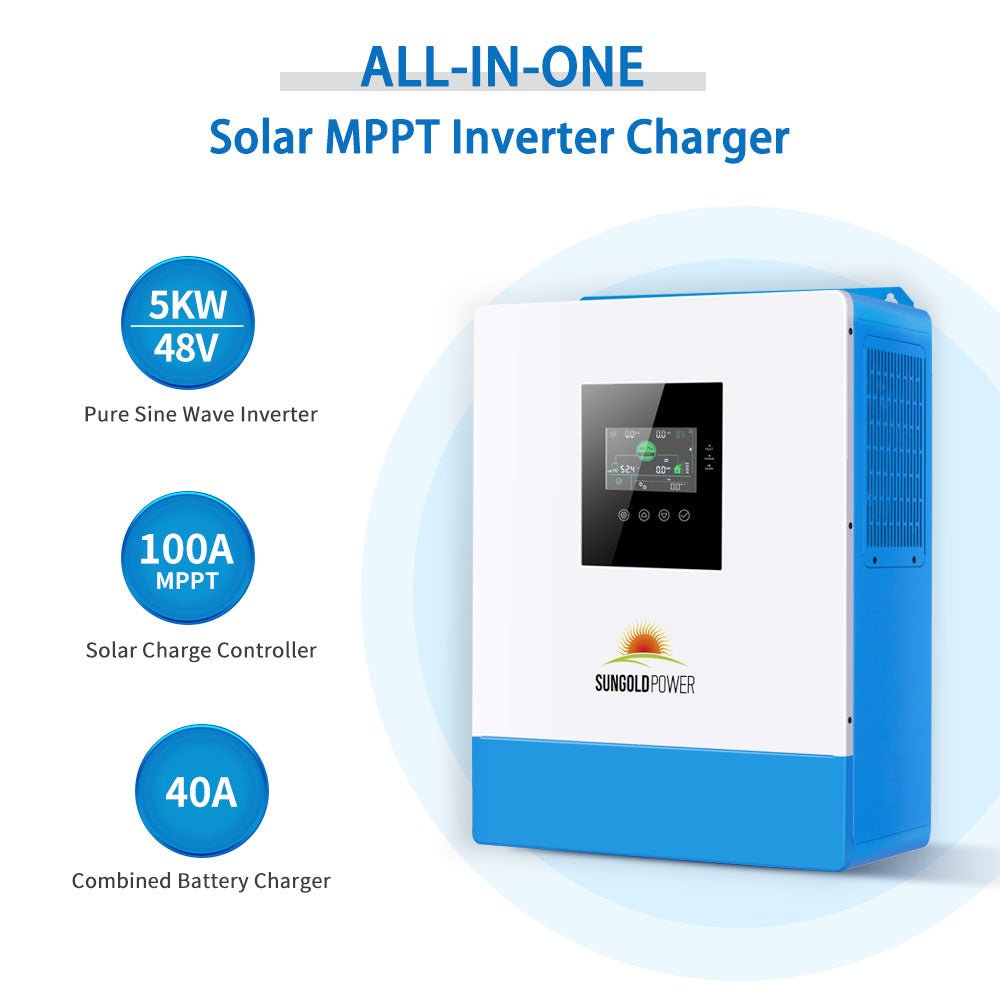

  • Inverter Output Power: 5,000W Continuous
  • System Voltage: 48VDC
  • AC Output Voltage: 120V (Single Voltage, Not Split-Phase)
  • Built-In Monitoring: WiFi Module
  • Battery Chemistry: LiFePO4 Lithium
  • Total Battery Capacity: 10.24kWh

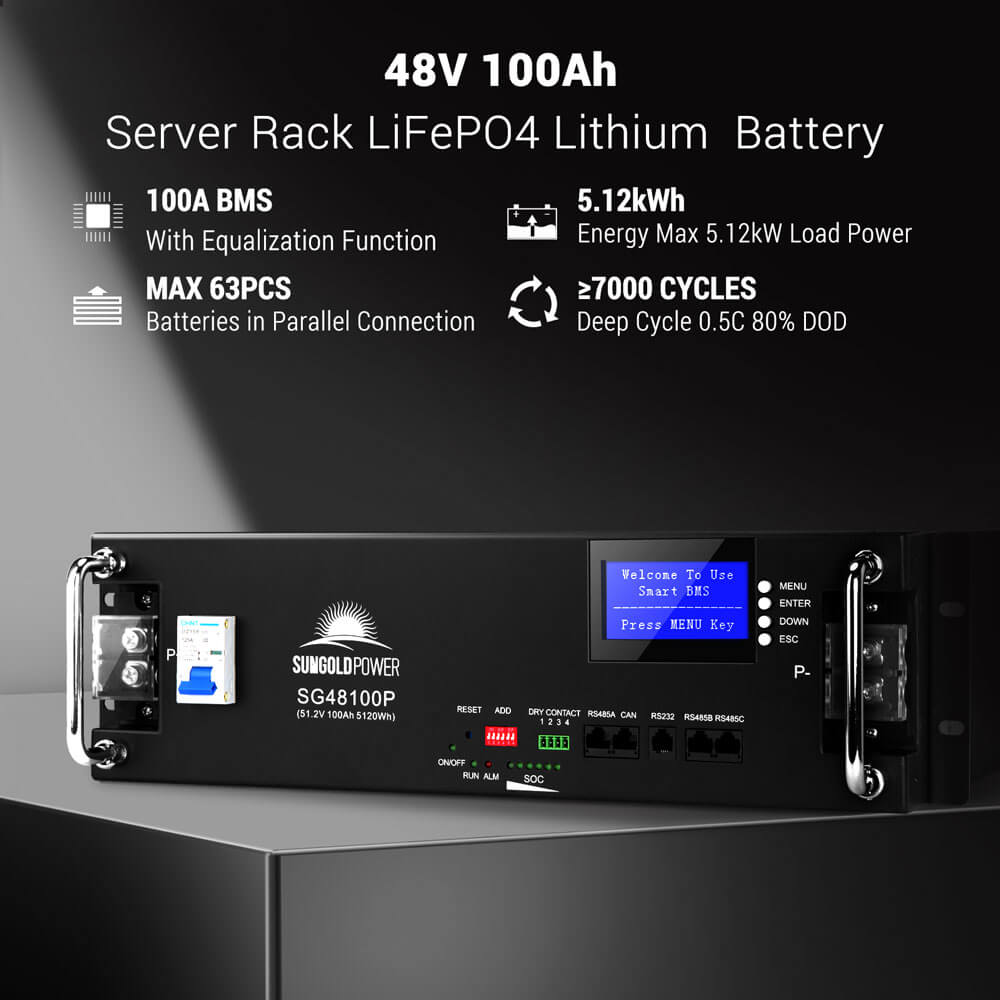

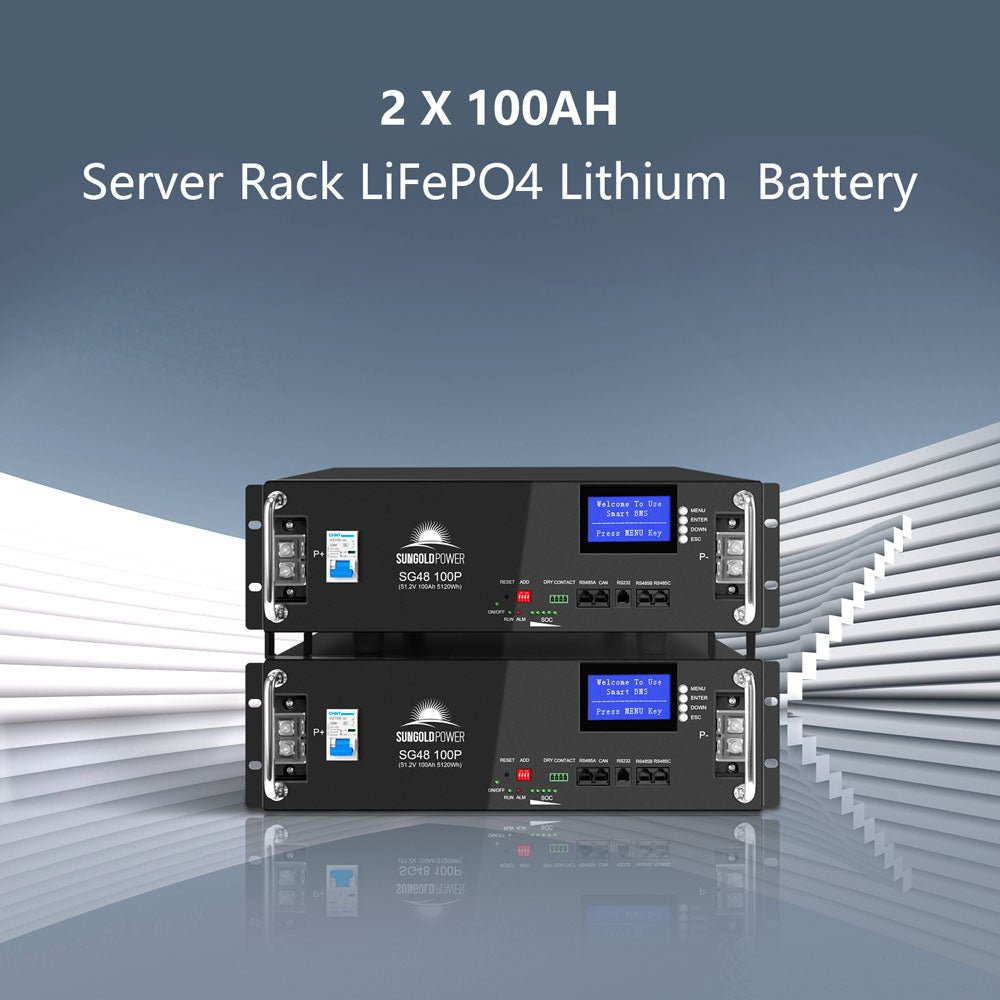

  • Battery Configuration: 2 x 100Ah 51.2V LiFePO4 Batteries
  • Solar Panel Quantity: 6 Panels

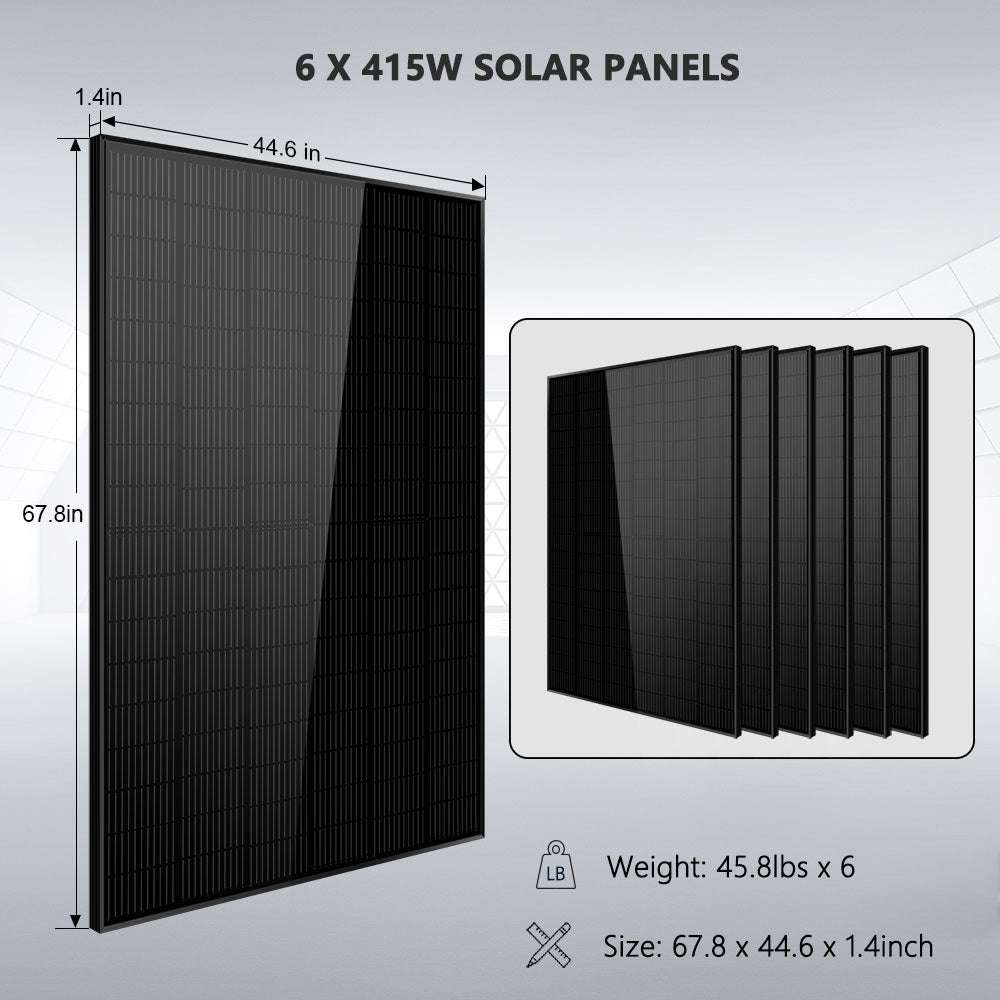

  • Solar Panel Power: 415W Each, Monocrystalline
  • Total Solar Array Power: 2,490W
  • DC Breaker: 200A
  • PV Breaker: 25A
  • Breaker Cable: 4 AWG (2 Sets, Breaker to Battery or Inverter)
  • Mounting Hardware: 6 Sets of Z-Brackets
  • Solar Extension Cable: 50 Feet (Inverter PV Input)
  • Estimated Daily Energy Production: Approximately 9-10kWh, an estimate based on a 2,490W array x 4 peak sun-hours minus system losses; not a manufacturer-published figure

Features

  • Complete off grid solar kit with everything needed to start.
  • Built-in WiFi module enables remote system monitoring from your phone.
  • 10.24kWh lithium battery storage enables real energy independence.
  • Six monocrystalline panels power a full 2,490W solar array.
  • Compact two-battery design keeps installation simple and space-efficient.
  • Includes breakers and cables for a straightforward system installation.
  • Mounting hardware included for fast, secure solar panel installation.
  • A trusted entry-level off grid solar kit for cabins and workshops.
  • Compact 48V design fits smaller spaces than larger split-phase kits.
  • Engineered as a reliable off grid solar power kit for single-voltage loads.

Why Choose It?

Sun Gold Power 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 2490W Solar Panel Off-Grid Solar Kit delivers a complete off grid solar kit built around 10.24kWh of lithium battery storage and a WiFi-enabled 5000W inverter. Its compact, single-voltage design makes it a solid mid-size 48V kit for cabins, tiny homes, workshops, and backup power for 120V loads.

Recommended For

  • Cabins and tiny homes
  • Workshops and outbuildings
  • Small to mid-size backup power needs
  • RVs and mobile living
  • Weekend off-grid retreats
  • Single-voltage 120V power needs

Comfortably Powers

  • Refrigerators and freezers
  • LED lighting throughout the home
  • Televisions and computers
  • Kitchen appliances
  • Power tools
  • WiFi routers and networking equipment
  • 120V well pumps
  • Chargers and small electronics

Where It Falls Short:

This 5000W off grid solar kit is engineered exclusively for off-grid use rather than grid-tied installations. Its single-voltage 120V output and fixed component count also limit which appliances it can run and how far the system can be expanded compared to larger split-phase 48V kits.

  • Built for off-grid systems only, not grid-tied setups.
  • Outputs 120V only; it does not support 240V and cannot run 240V appliances such as electric dryers, electric ranges, or 240V well pumps.
  • Fixed at six solar panels and two battery units; expansion requires separate purchases.
  • Single inverter is limited to 5,000W continuous output.
  • Daily solar output depends on available sunlight and site conditions.
  • Installation involves multiple components: inverter, batteries, breakers, and wiring.
  • Does not include a backup generator or automatic AC input transfer switch.
  • Estimated daily energy production is a calculated estimate, not a manufacturer-published figure.
