Sun Gold Power 10240Wh 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery

Name: Sun Gold Power 10240Wh 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery
Brand: Sun Gold Power
SKU: SG48200T
Price: 2390.00 USD
Availability: InStock

SKU SG48200T

Save $683.00

$3,073.00

$2,390.00

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Build a Smarter Battery Energy Storage System With Sun Gold Power

Sun Gold Power 10240Wh 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery is a high-capacity LiFePO4 battery built for homes, off-grid systems, and dependable solar battery backup.

This lithium battery combines expandable energy storage, intelligent battery management, real-time LCD monitoring, and broad inverter compatibility to deliver a durable solar power storage battery that stands out as a scalable off-grid solar battery solution.

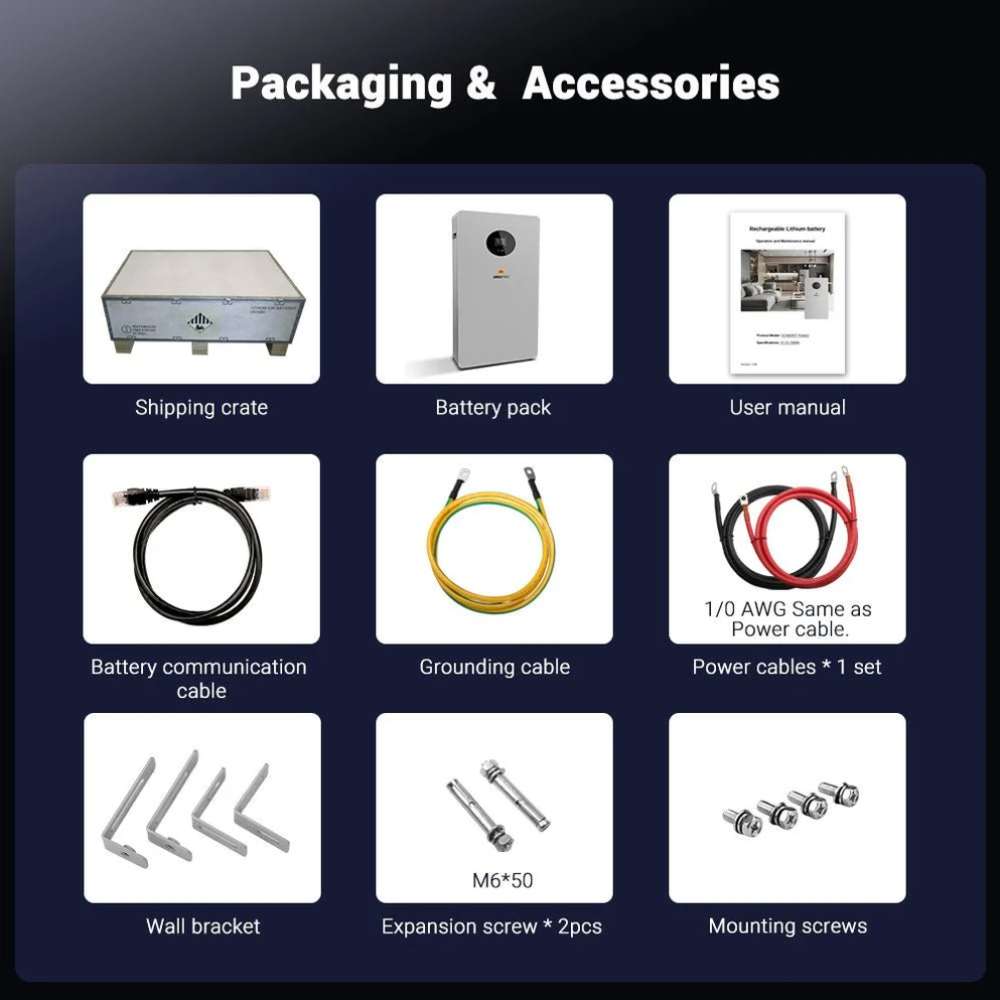

What's Included:

1 x Sun Gold Power 10240Wh 51.2V 200Ah Wall-Mounted LiFePO4 Lithium Battery
1 x Battery Communication Cable
1 x Grounding Cable
2 x Power Cables
1 x Wall-Mounted Bracket
2 x Battery Wall-Mounted Brackets
2 x Wall-Mounted Limit Brackets
2 x Floor-to-Wall Fixed Brackets
2 x M6 × 50 Expansion Screws
User Manual
UL1973 Certification

Specifications

Battery Type: LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.24kWh (10,240Wh)
Usable Energy: 9.84kWh
Maximum Voltage Range: 44.8V–57.6V
Charge Voltage: 56.0V
Float Charge Voltage: 54.6V
Standard Charge Current: ≤100A
Maximum Charge Current: 140A
Standard Discharge Current: ≤100A
Maximum Continuous Discharge Current: 140A
Communication Ports: CAN, RS485
Installation Type: Wall Mounted
Dimensions: 535 × 944 × 173 mm (21.1 × 37.2 × 6.8 in)
Weight: 90 kg (198.4 lb)

Features

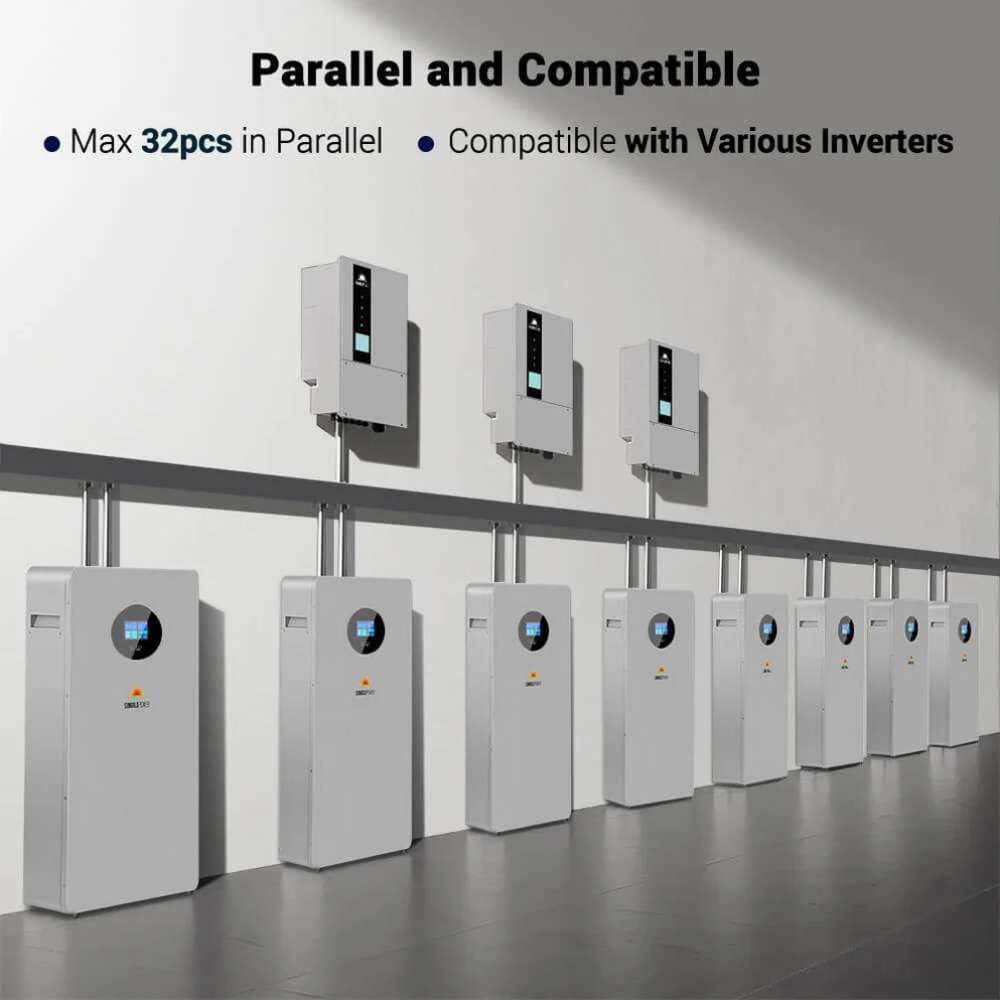

Supports up to 32 batteries for expandable energy storage.
Built-in BMS protects against common electrical faults.
LiFePO4 chemistry delivers high safety and stability.
Automatic cell balancing helps extend battery life.
Built-in pre-charge circuit reduces inrush current.
Automatic addressing simplifies multi-battery installations.

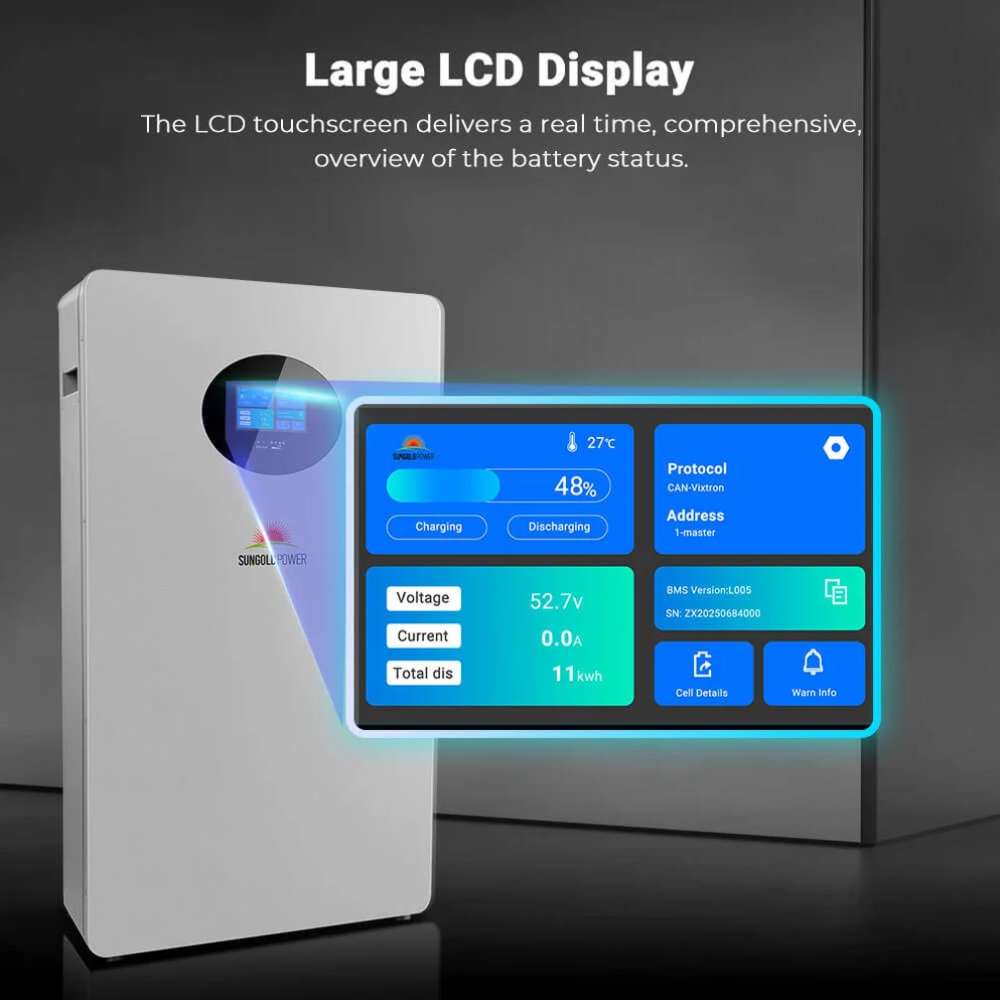

LCD screen displays battery status at a glance.
CAN and RS485 communication support compatible inverters.
Multiple mounting brackets fit different installation needs.
Supports up to 96% depth of discharge for backup use.

Why Choose It?

This wall-mounted LiFePO4 battery provides high-capacity energy storage for residential solar systems. Its expandable design supports growing backup power needs.

Recommended For

Home solar systems
Residential energy storage
Solar battery backup
Off-grid homes
Backup power systems
Whole-home energy storage
Hybrid solar installations
Expandable battery banks

Where It Falls Short:

This lithium battery requires a compatible inverter to supply AC power. It is designed for fixed wall-mounted installation.

Does not function as a standalone power source without an inverter.
Intended for wall-mounted installation only.
Requires compatible CAN or RS485 communication for supported inverter integration.
Parallel expansion is limited to a maximum of 32 batteries.
Installation requires mounting hardware and proper electrical connections.
Best suited for stationary residential or commercial energy storage rather than portable use.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
