Complete Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 4980W Solar Panel Off-Grid Solar Kit with panels, batteries, dual inverters, breakers, cables, and mounting hardware

Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 4980W Solar Panel Off-Grid Solar Kit

SKU SGM-10M2T
Save $3,137.00
$12,547.00
$9,410.00
Freedom Room product specialist

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Find Reliable Off Grid Energy With the Sun Gold Power 48V Solar System Kit

Built for whole-home off-grid power, Sun Gold Power 10000W 48VDC 120V/240V 20.48KWH Lithium Battery 4980W Solar Panel Off-Grid Solar Kit pairs two paralleled 5000W WiFi-enabled split-phase inverters with wall-mounted PowerWall lithium batteries for dependable, space-saving energy storage.

Twelve 415W monocrystalline panels and four 100Ah 51.2V PowerWall batteries deliver 20.48kWh of storage and 10,000W of split-phase output, giving large homes, cabins, and workshops room to grow without dedicating floor space to a battery rack.

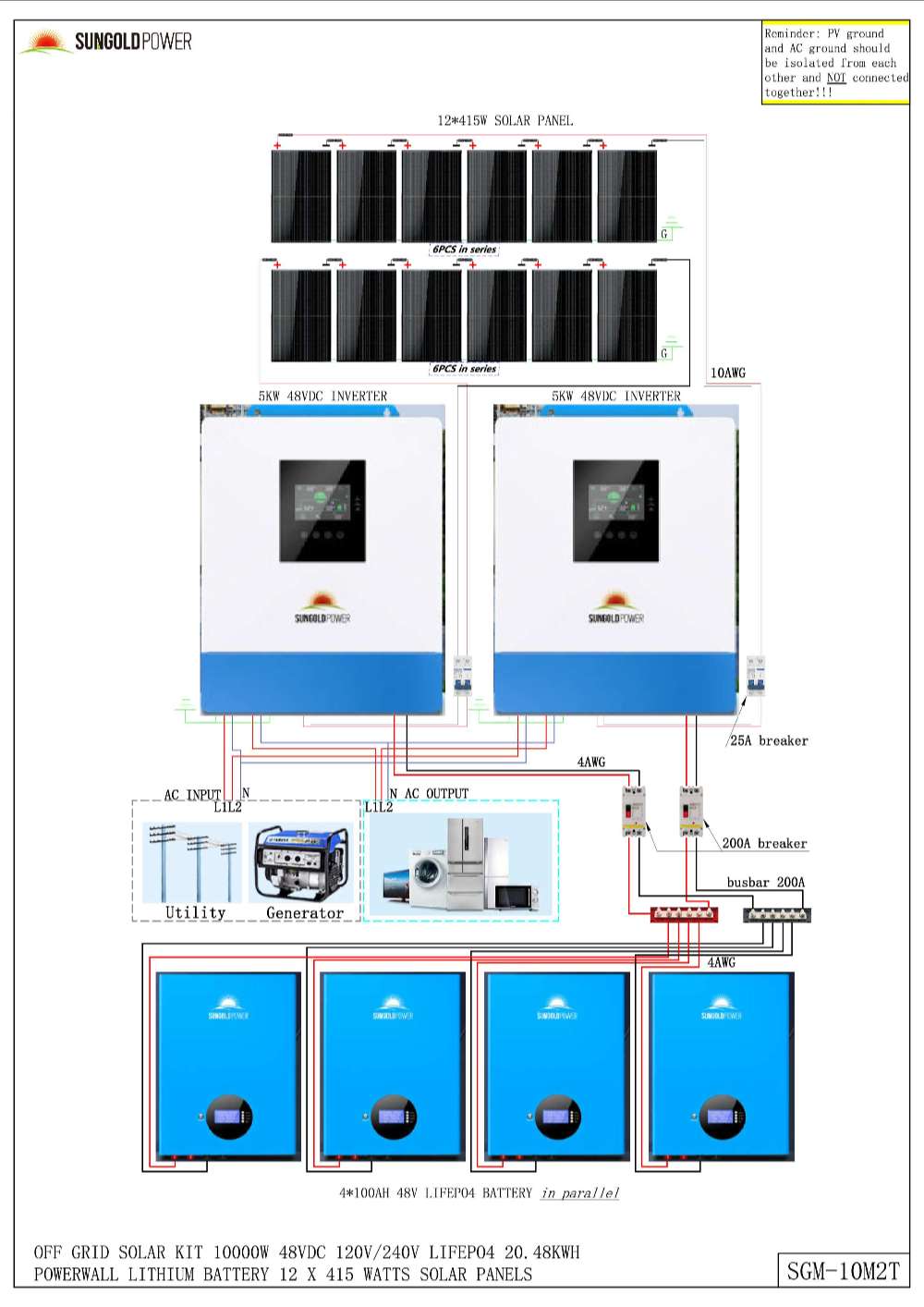

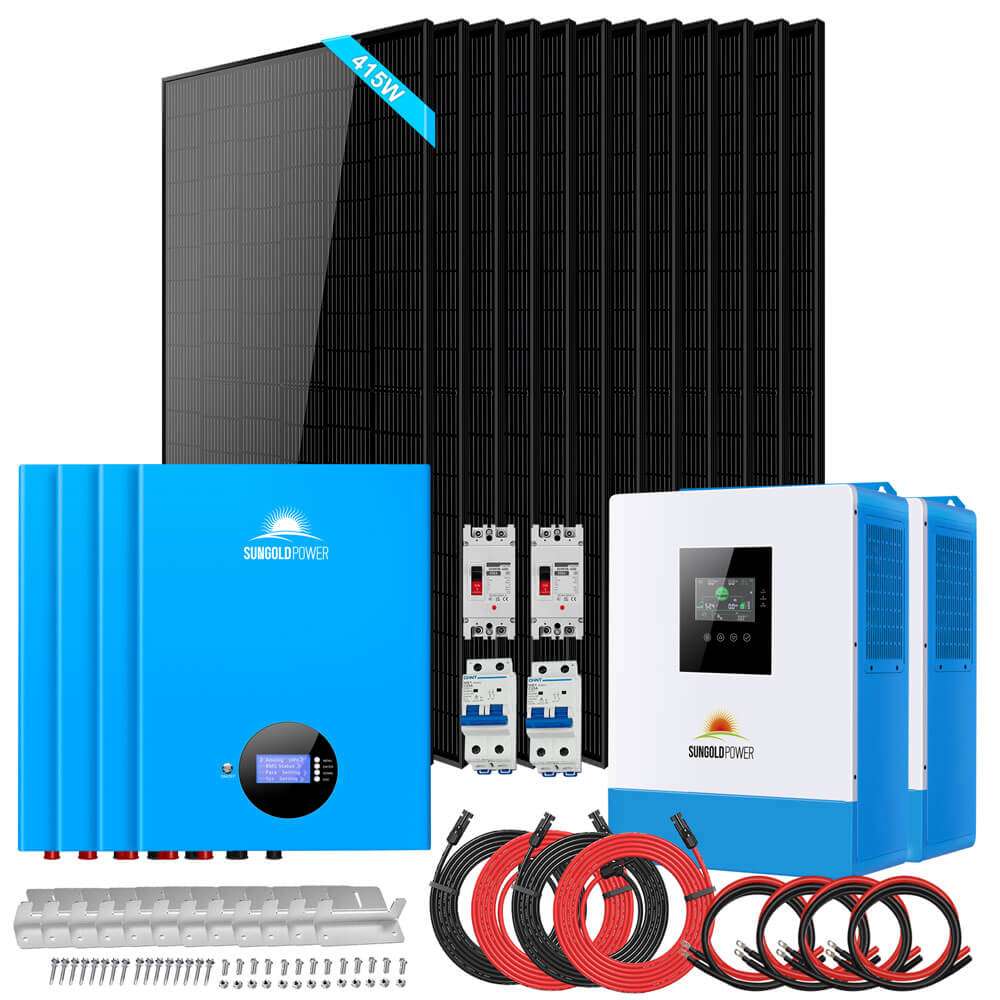

What's Included:

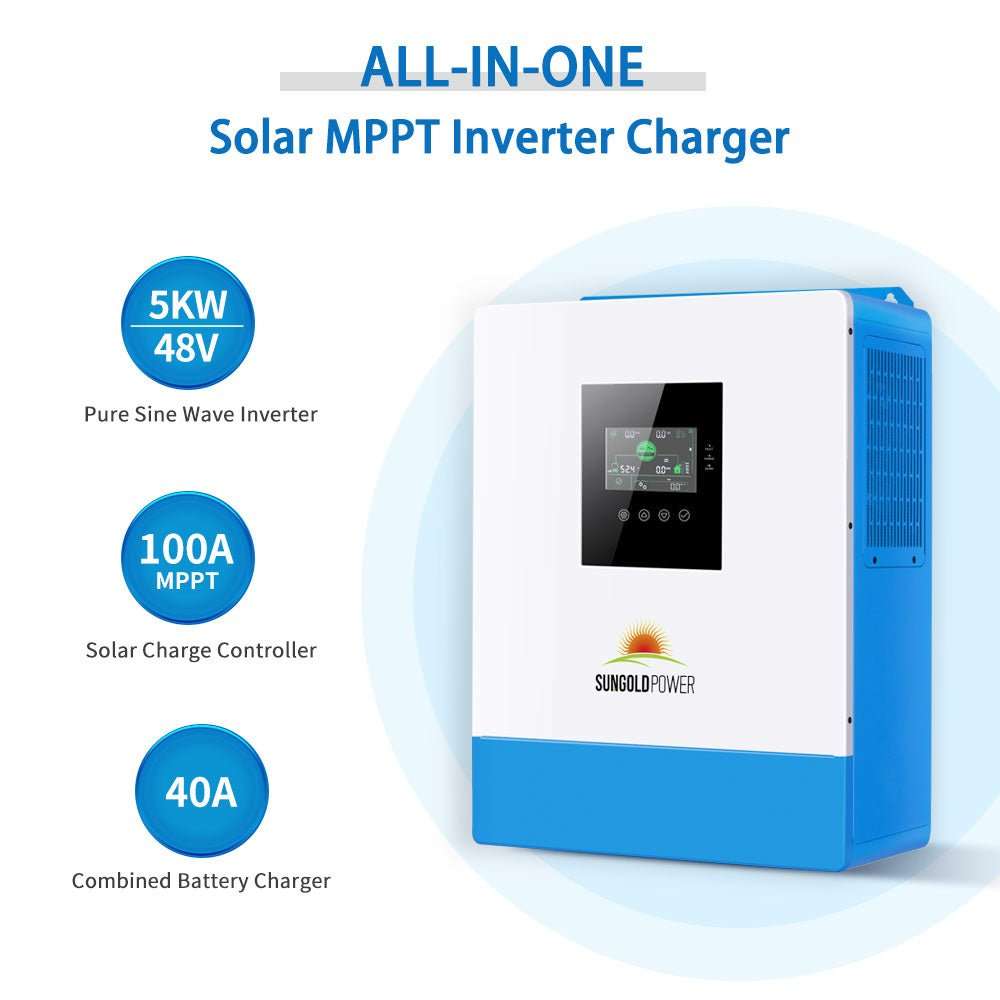

  • 2 x 5000 Watt 48V DC 120V/240V AC Output Inverters with WiFi Module (Paralleled for 10,000W Total, Split-Phase)

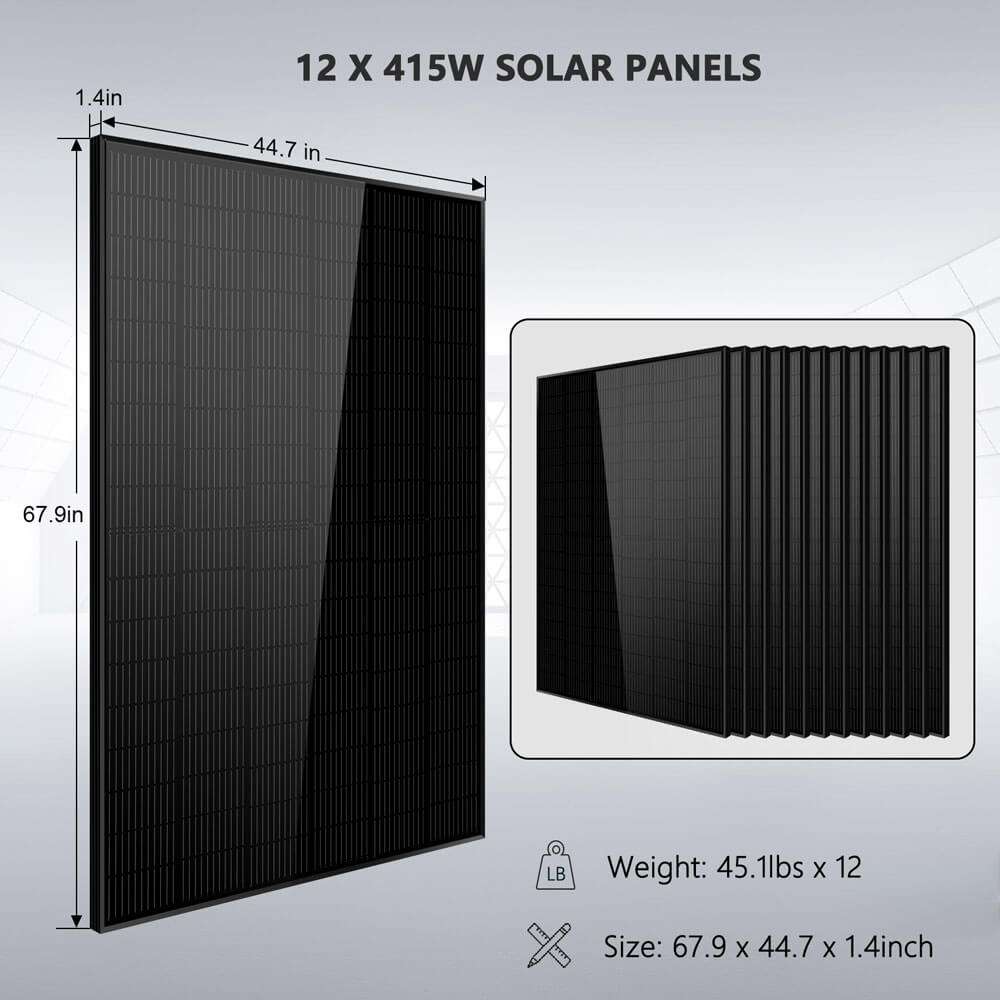

  • 12 x 415 Watt Monocrystalline Solar Panels

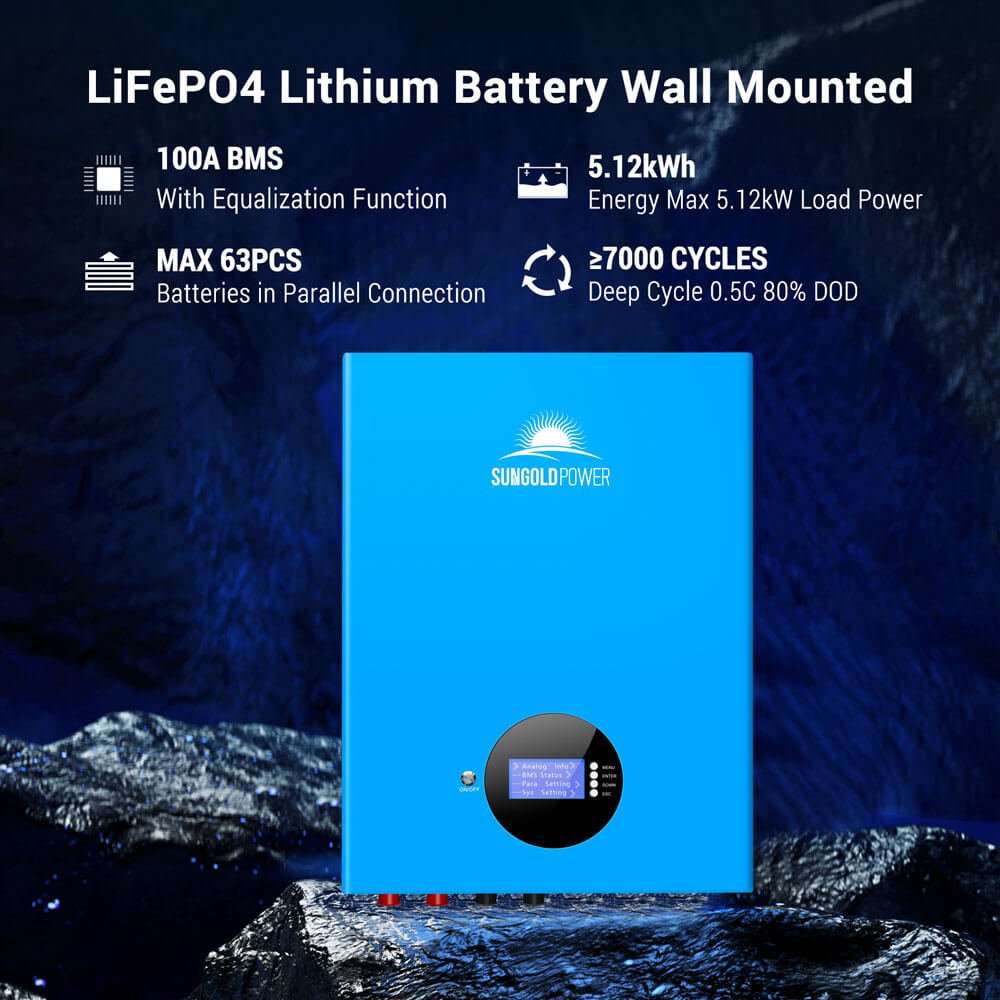

  • 4 x 100AH 51.2V PowerWall Lithium Batteries
  • 2 Sets x 50 Feet, Solar Extension Cables-Inverter PV input
  • 12 Sets x Mounting Z-Brackets
  • 2 x 200A DC Breakers
  • 2 x 25A PV Breakers
  • 4 Sets x 4 AWG Cables (Breaker to Battery or Inverter Connection)

Specifications

  • Inverter Configuration: 2 x 5000W 48V WiFi-Enabled Split-Phase Inverters, Paralleled for 10,000W Total Output
  • System Voltage: 48VDC
  • AC Output: 120V/240V Split Phase
  • Solar Panels: 12 x 415W Monocrystalline Solar Panels
  • Total Solar Array Power: 4,980W
  • Battery Configuration: 4 x 100Ah 51.2V PowerWall (Wall-Mounted) LiFePO4 Batteries
  • Total Battery Capacity: 20.48kWh
  • Battery Format: Wall-Mounted PowerWall Design (Space-Saving, Not Rack-Mounted)
  • Monitoring: Built-In WiFi Module on Each Inverter for Remote App-Based Monitoring
  • Solar Extension Cable: 2 Sets x 50 ft for Inverter PV Input
  • Mounting Hardware: 12 Sets of Mounting Z-Brackets
  • DC Breaker: 2 x 200A
  • PV Breaker: 2 x 25A
  • Connection Cable: 4 Sets x 4 AWG Cable for Breaker-to-Battery or Inverter Connection
  • Estimated Daily Energy Production: Approximately 18-19kWh (estimate based on the 4,980W array and 4 hours of sunlight, minus system losses)

Features

  • Dual paralleled 5000W WiFi-enabled inverters combine for a full 10,000W of split-phase 120V/240V output.
  • Built-in WiFi modules on both inverters enable remote monitoring and control from a smartphone app.
  • Space-saving wall-mounted PowerWall batteries free up floor space compared to rack or cabinet battery systems.
  • Four 100Ah 51.2V PowerWall lithium batteries provide 20.48kWh of usable energy storage.
  • Twelve 415W monocrystalline solar panels generate a 4,980W solar array for daily recharging.
  • Split-phase output supports both 120V and 240V household and workshop equipment.
  • Included mounting Z-brackets simplify secure solar panel installation.
  • Dual 200A DC breakers and 25A PV breakers support safe, code-ready system connections.
  • Expandable design allows additional PowerWall batteries and solar panels as energy needs grow.
  • Complete off-grid starter package eliminates the guesswork of matching components.

Why Choose It?

This large-capacity kit combines two paralleled 5000W WiFi-enabled inverters with 20.48kWh of wall-mounted PowerWall battery storage and a 4,980W solar array for serious off-grid power. Its space-saving PowerWall design and remote WiFi monitoring make it especially well suited to installations where floor space for a battery rack is limited.

Recommended For

  • Whole-home off-grid living
  • Large cabins and remote homes
  • Workshops and light commercial buildings
  • Properties with limited floor space for battery racks
  • Expandable off-grid solar systems

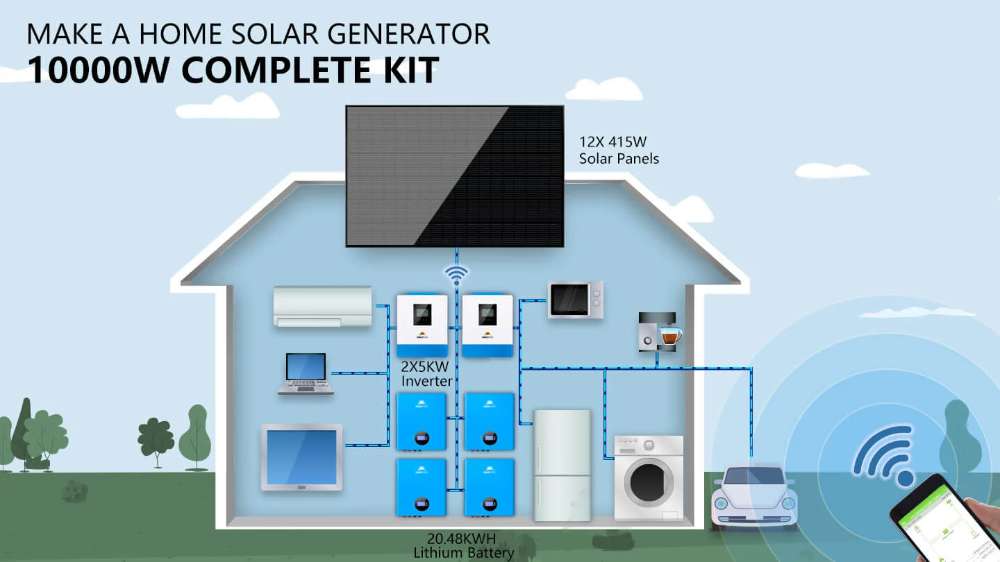

Comfortably Powers

  • Central air conditioners
  • Well pumps
  • Refrigerators and freezers
  • Full kitchen appliance loads
  • LED lighting throughout a home
  • TVs, laptops, and desktop computers
  • Power tools and workshop equipment

Where It Falls Short:

This is a large-scale off-grid kit, so it requires meaningful installation space and planning rather than a simple plug-and-play setup. It's designed exclusively for off-grid use rather than grid-tied operation.

  • Requires ground or roof space for a twelve-panel solar array.
  • Requires wall space to mount all four PowerWall battery units.
  • Off-grid only; not designed for grid-tied interconnection.
  • Fixed component count; higher energy needs require purchasing additional batteries and panels separately.
  • Installation involves multiple major components, including dual inverters, breakers, and heavy-gauge wiring.
  • WiFi monitoring requires a stable internet connection for remote access features.
  • Estimated daily energy production is a sunlight-dependent estimate, not a guaranteed output.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
