Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC indoor and outdoor mini split system components

Senville 9000 BTU Ceiling Cassette AC/Heat - SENA/09HF/IC

Save $260.00
$1,529.99
$1,269.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 9000 BTU Ceiling Cassette Air Conditioner is a climate control appliance that functions as both a cooling unit and a heat pump. This mini split air conditioner is designed for ceiling installation and is identified by model number SENA/09HF/IC. Available configurations include an optional installation kit in lengths of 16 feet, 25 feet, or 50 feet. It is a functional choice for homeowners seeking a recessed heating and cooling solution with professional installation quote options available.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Upgrade Your HVAC With The Senville 9000 BTU Heat Pump System

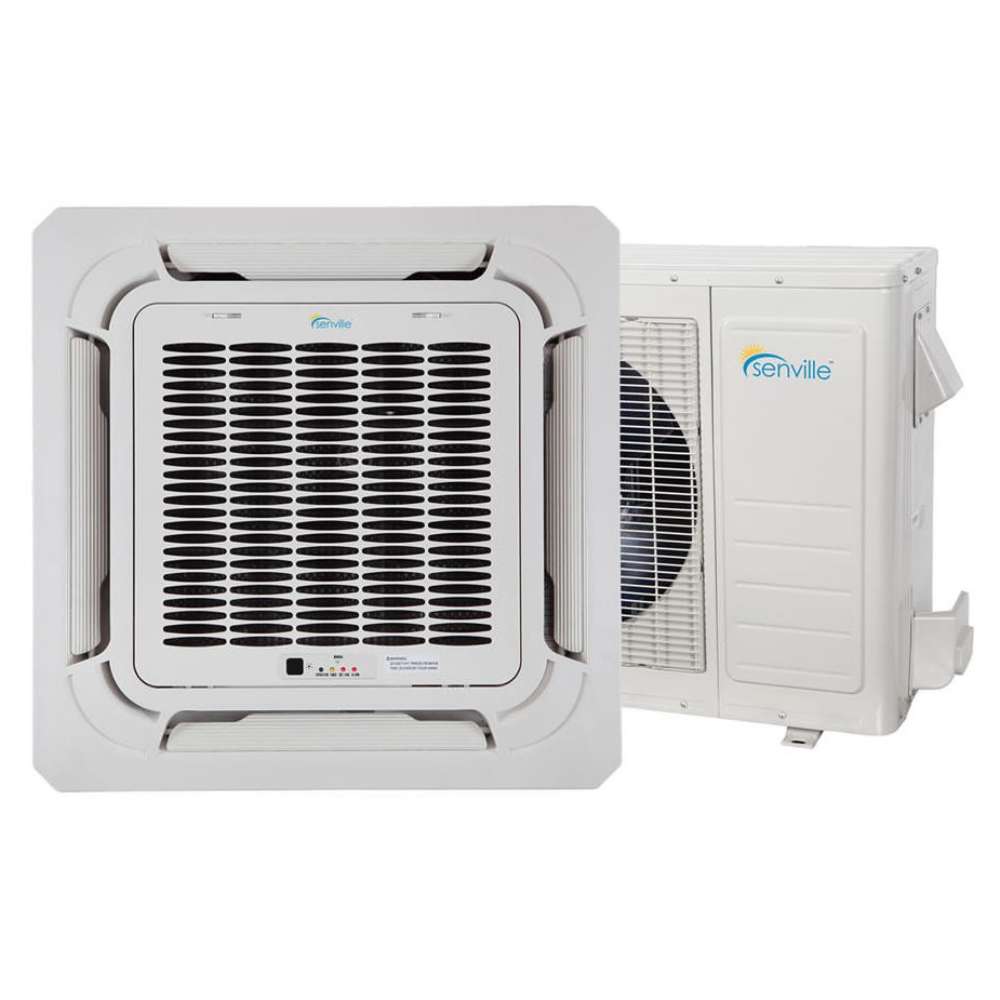

Senville 9000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/09HF/IC is a compact ceiling cassette AC system made for efficient cooling and heating. This 9000 BTU HVAC system helps keep small rooms comfortable while saving wall space with its ceiling-mounted design. It includes an indoor cassette, outdoor condenser, remote control, and installation kit for a cleaner setup.

What's Included?

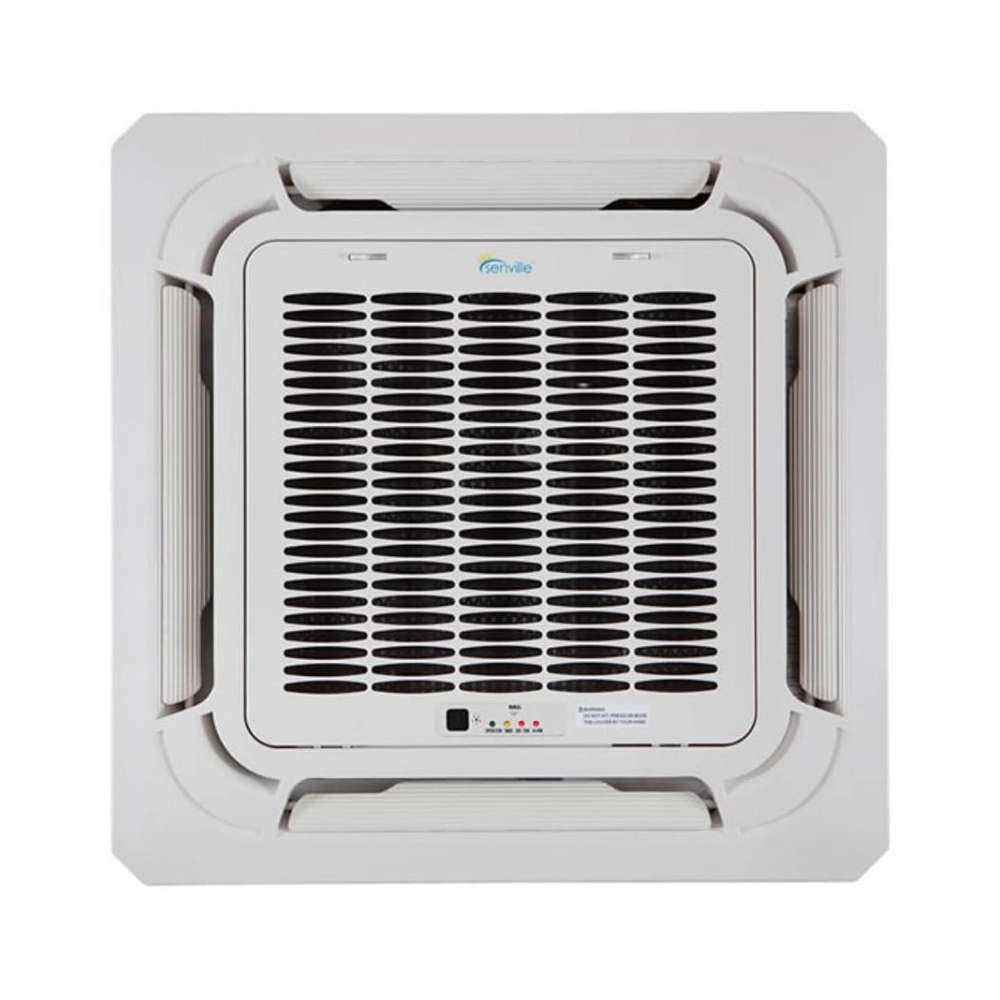

  • Indoor Unit (Ceiling Cassette)
  • Outdoor Unit

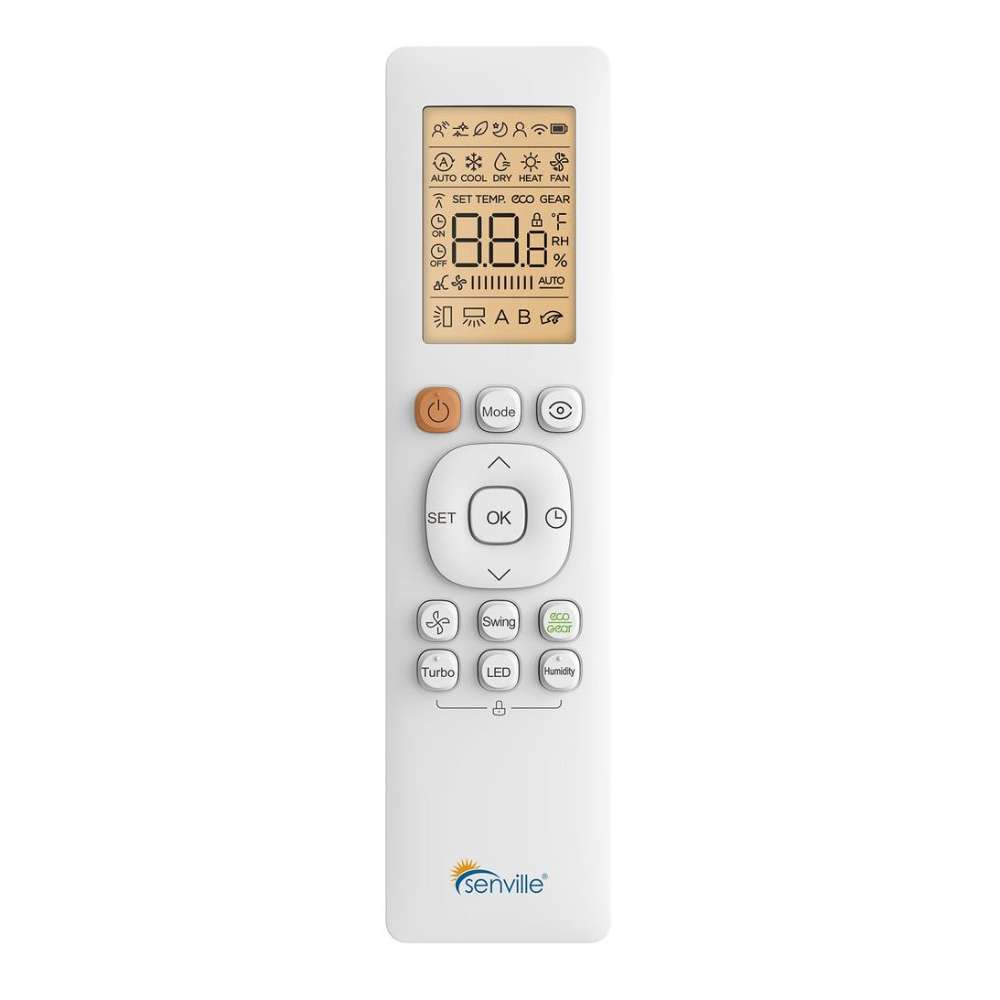

  • Wireless Remote Control

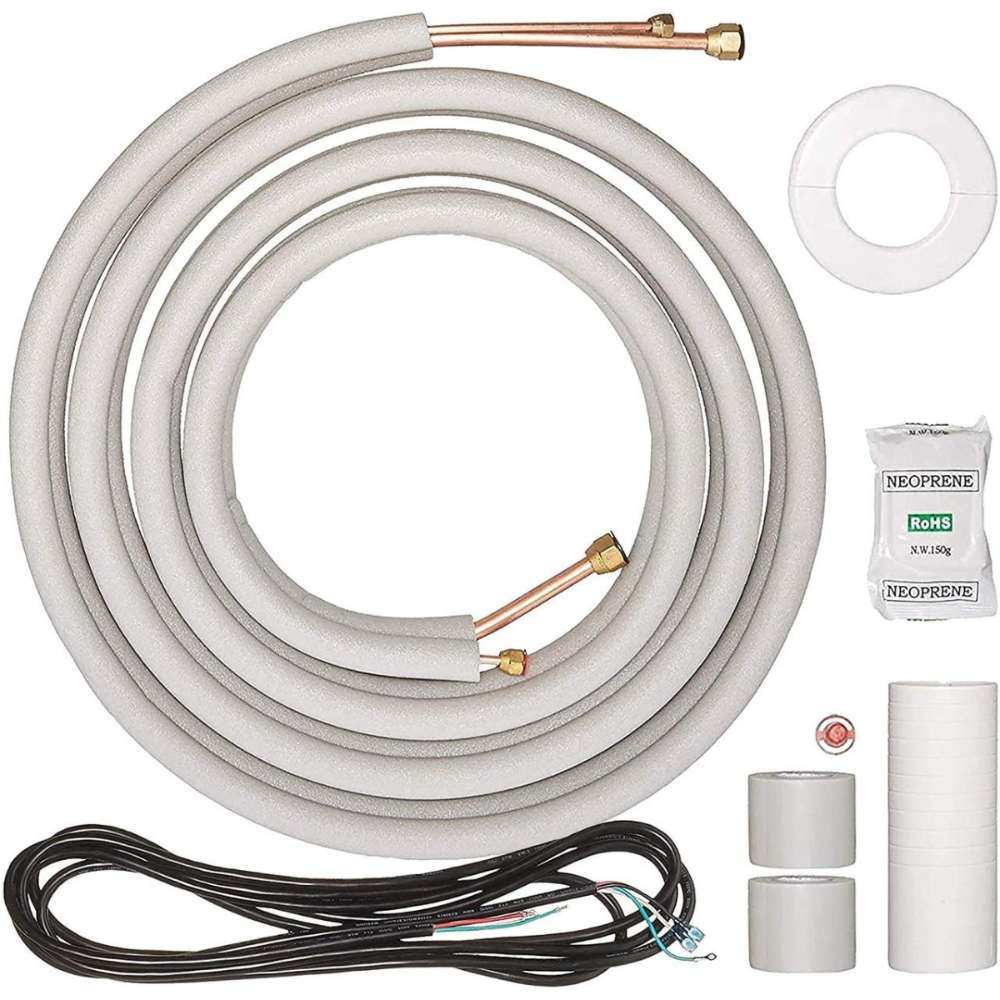

  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty

Technical Specs

  • Style: Ceiling Cassette Mini Split AC With Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 22.6
  • EER2: 14
  • Cooling Capacity (BTU): 9000
  • Cooling Range (BTU): 3700~13600
  • Cooling Input Range (W): 200~1150
  • Cooling Current Range (A): 1.6~5.1
  • Heating Capacity (BTU): 10000
  • Heating Range (BTU): 5100~15700
  • Heating Input Range (W): 285~1330
  • Heating Current Range (A): 1.5~5.9
  • HSPF2-4: 12.1
  • HSPF2-5: 9.3
  • COP W/W: 4
  • Minimum Circuit Ampacity (A): 15
  • Max. Fuse (A): 15
  • Indoor Air Flow (Turbo/H/M/L) CFM: 353.2 / 312.0 / 264.9 / 182.5
  • Indoor Noise Level (Turbo/H/M/L) dB: 42.5 / 40.0 / 37.5 / 26.0
  • Indoor Dimensions (WxDxH) (in.): 22.44 x 22.44 x 9.65
  • Indoor Weight: 35.27 Lbs.
  • Moisture Removal (L/H): 0.88
  • Outdoor Air Flow (Max) CFM: 1471.5
  • Outdoor Noise Level dB: 55
  • Outdoor Dimensions (WxDxH) (in.): 31.69 x 12.99 x 21.81
  • Outdoor Weight: 72.75 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge oz: R454B
  • Refrigerant Pre-charge: 25 Ft.
  • Connection Wiring: 14*4 AWG
  • Thermostat Type: Remote Control
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 22.6 SEER2 Efficiency: High-efficiency mini split heat pump helps lower energy bills with up to 40% annual energy savings.
  • ENERGY STAR Certified: ENERGY STAR-certified heating and cooling system delivers reliable comfort with reduced energy consumption.
  • Cold Climate Heating: Cold climate heat pump provides dependable heating in temperatures as low as -30°C (-22°F).
  • Ultra-Quiet Performance: Whisper-quiet ceiling cassette air conditioner is ideal for bedrooms, offices, and commercial spaces.
  • Smart WiFi Control: Amazon Alexa compatible mini split AC allows remote control, scheduling, and temperature adjustments through the app.
  • Built-In Diagnostics: Self-diagnostics and leak detection help maintain peak HVAC performance and simplify maintenance.
  • 10-Year Compressor Warranty: Long-term warranty coverage includes a 10-year compressor warranty and 5-year parts warranty.
  • Installation Kit Included: Complete ductless mini split system includes installation accessories for professional setup.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
