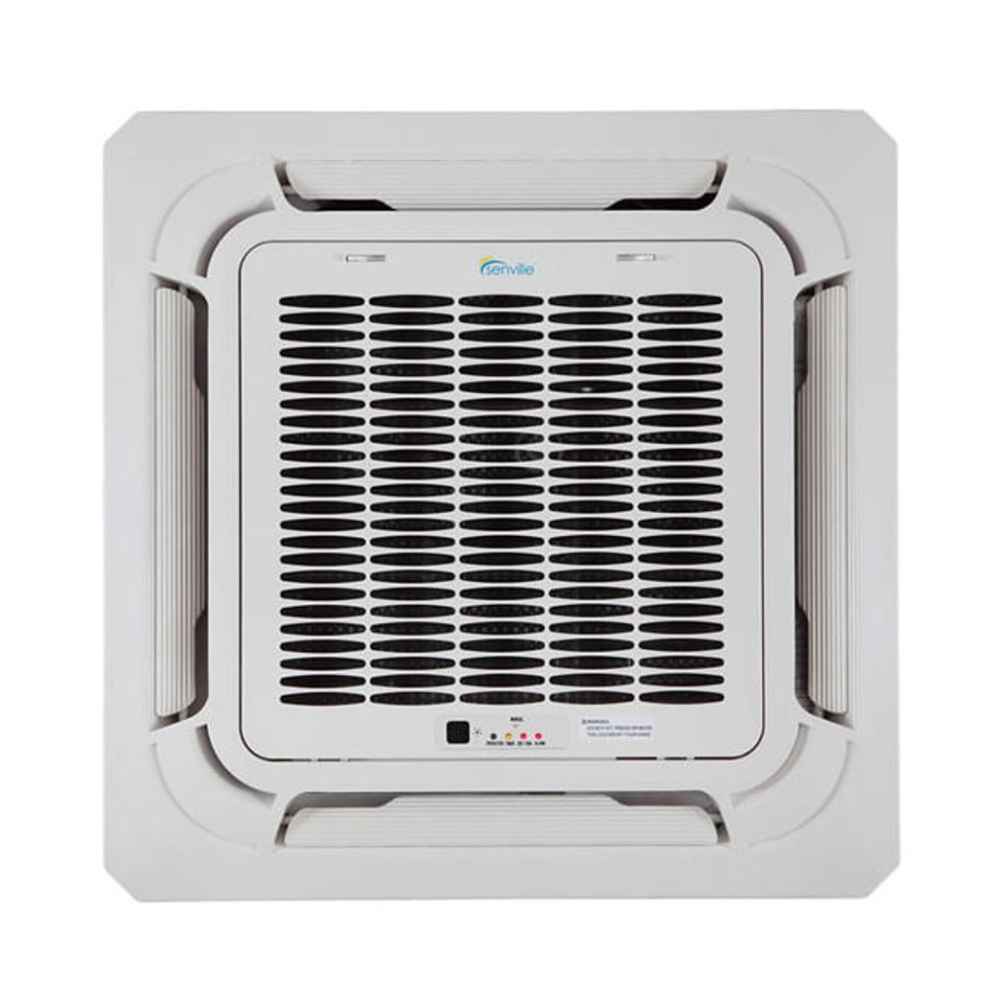

Complete set with three indoor ceiling cassette units and an outdoor condenser for Senville 36000 BTU Tri-Zone Mini Split Air Conditioner - Heat Pump - SENA36HFTIC

Senville 36000 BTU Tri-Zone Mini Split Air Conditioner - SENA/36HF/TIC

Sold out
$3,479.00
$2,899.99
$50 OFF SAVE

TAP CODE TO APPLY $50 OFF

SENVILLE50

No typing needed. It's applied at checkout.

Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Energy Savings You’ll Feel on Your Bill and in Your Home

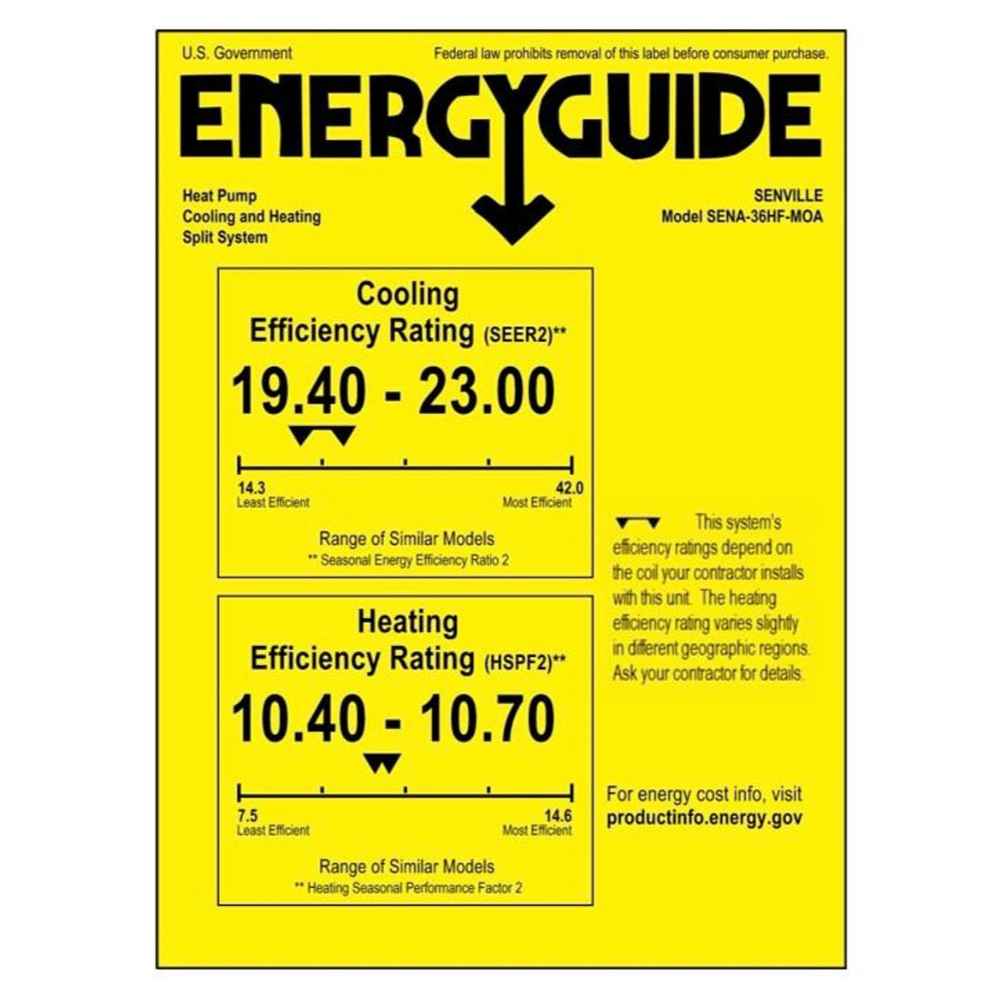

Senville 36000 BTU Tri-Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/TIC delivers powerful heating and cooling for up to three separate rooms with one efficient system. Featuring a high SEER2 rating of up to 23 and HSPF2 up to 10.7, this AC system and heater ensures energy savings while maintaining whisper-quiet operation.

What's Included?

  • 5 Indoor Units (9,000 BTU each)

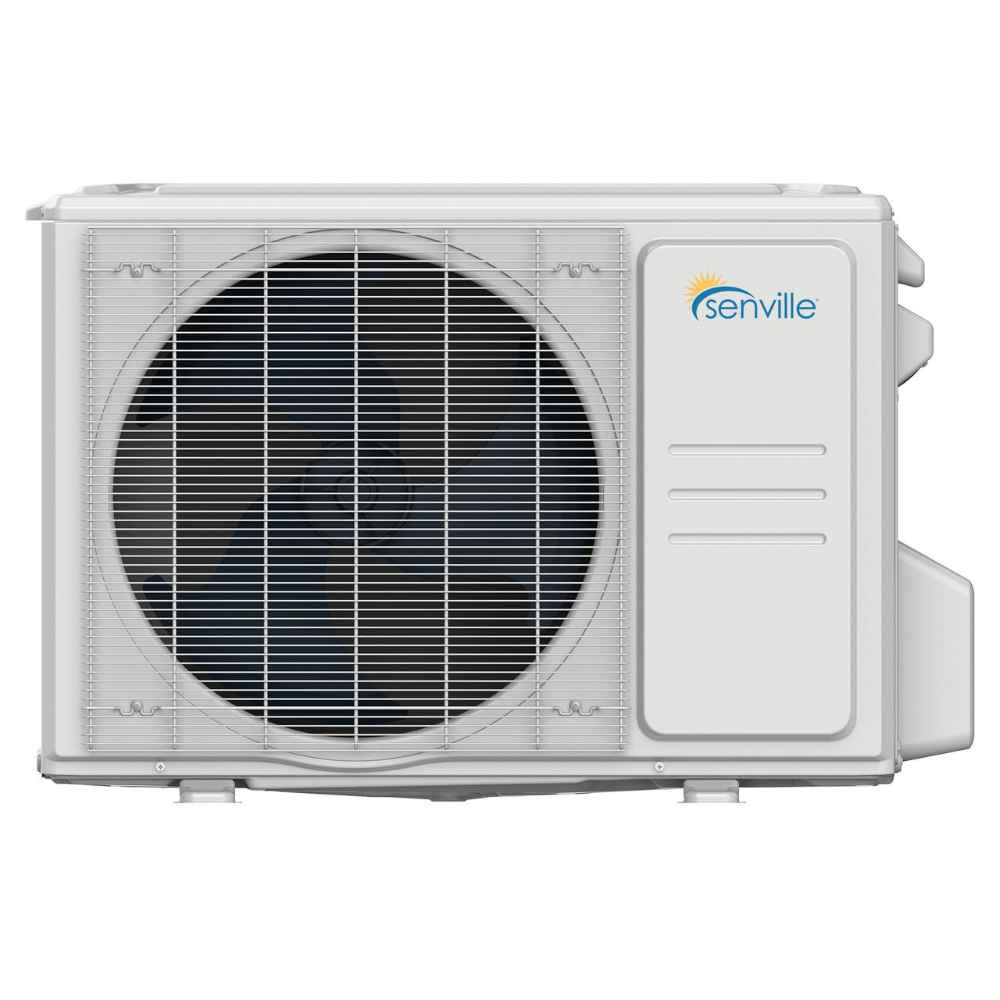

  • Outdoor Unit

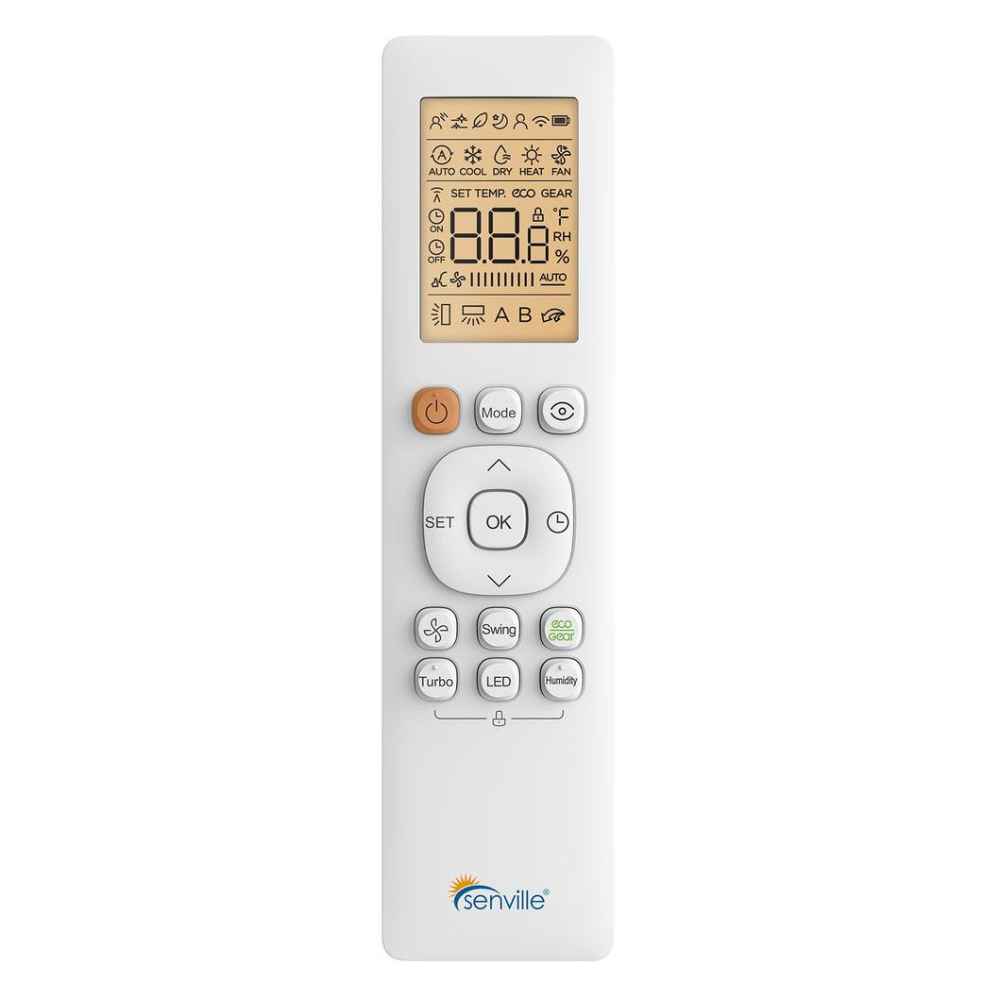

  • Wireless Remote Controls
  • WiFi USB Kit

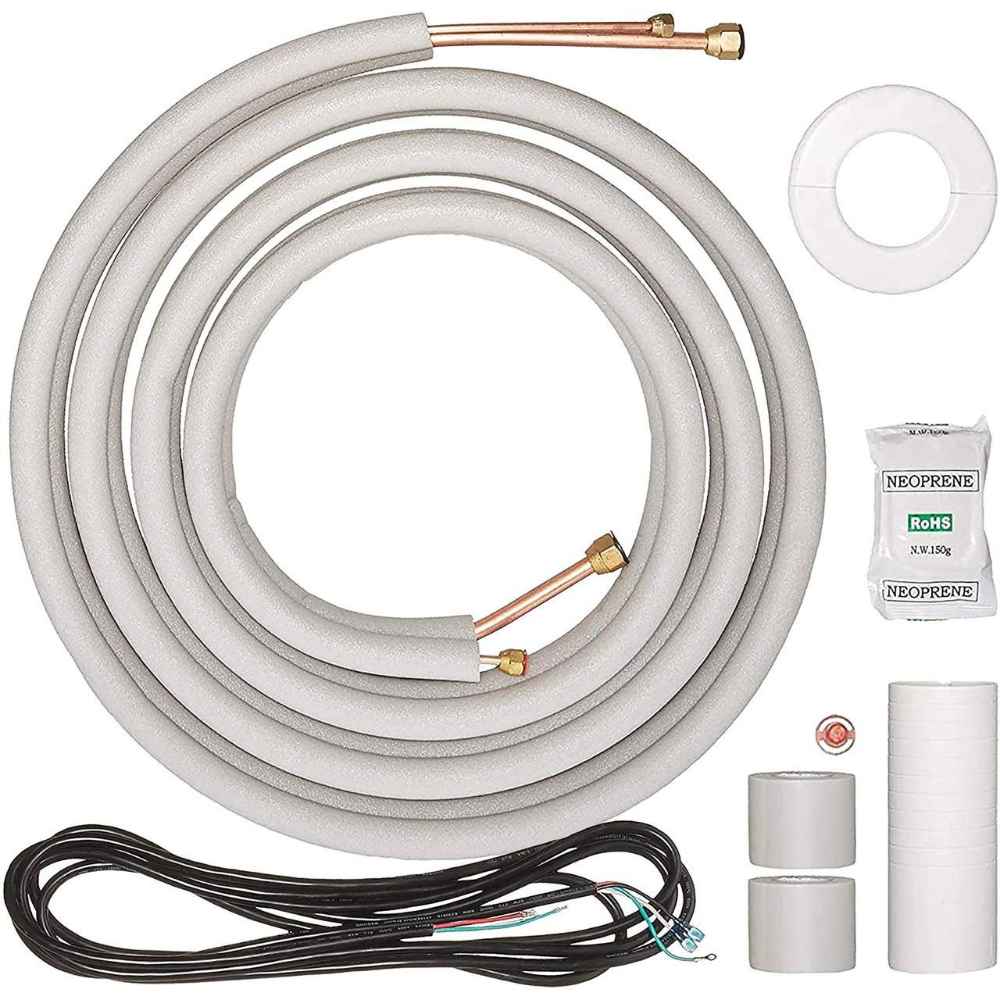

  • 16 ft. Installation Kits (x5)
  • Indoor-Outdoor Wiring Harness
  • Installation Manual

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Number of Zones: 2-4
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 23
  • EER2: 13
  • Cooling Capacity (BTU): 36000
  • Cooling Range (BTU): 9000~43000
  • Cooling Input Range (W): 600~4000
  • Cooling Current  Range (A): 5.2~17.8
  • Heating Capacity: 36000
  • Heating Range (BTU): 10000~44000
  • Heating Input Range (W): 600~3750
  • Heating Current Range (A): 5.2~16.6
  • HSPF2-4: 10.7
  • HSPF2-5: 8.5
  • COP W/W: 4
  • Minimum Circuit Ampacity (A): 37
  • Max. Fuse (A): 40
  • Outdoor Air Flow (Max) CFM: 3037.2
  • Outdoor Noise Level dB: 65
  • Outdoor Dimensions (WxDxH) (in.): 38.58 x 16.34 x 38.39
  • Outdoor Weight: 211.86 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 134.04 oz
  • Refrigerant Pre-charge: 100 Ft.
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 23 SEER Efficiency: Enjoy top-tier energy savings with a 23 SEER rating, keeping your home comfortable while lowering utility bills.
  • Heat Pump (Up to -30°C / -22°F): Stay warm even in extreme cold with a powerful heat pump designed to operate efficiently in freezing temperatures.
  • Whisper Technology (Ultra Quiet): Relax in peace with ultra-quiet operation that won’t disturb sleep, work, or conversation.
  • Refrigerant Leak Detection: Rest easy with built-in leak detection that alerts you to potential issues before they become costly problems.
  • Self-Cleaning Mode: Maintain fresh, clean airflow with an automatic cleaning mode that helps prevent dust and mold buildup.
  • Self-Diagnosis System: Save time and hassle with an intelligent system that quickly identifies issues for faster maintenance and repairs.
  • Vertical Swing Function: Enjoy even air distribution throughout the room with a vertical swing feature that ensures consistent comfort.
  • Built-In De-humidification Function: Reduce excess humidity and improve air quality with a built-in dehumidifier that keeps your space fresh and comfortable.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
