Full setup of the Senville 36000 BTU Quad Zone Mini Split Air Conditioner - Heat Pump - SENA36HFQ

Senville 36000 BTU Quad Zone Mini Split Air Conditioner - SENA/36HF/Q

Save $319.01
$3,519.00
$3,199.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 36000 BTU Quad Zone Mini Split Air Conditioner is a multi-zone climate control appliance featuring a heat pump for both cooling and heating. This SENA/36HF/Q model supports four indoor units with various BTU combinations, including four 9000 BTU units or mixed configurations with 12000 BTU and 18000 BTU heads. Each system includes four installation kits available in 16ft or 25ft lengths to accommodate different room layouts. It is designed for homeowners who need to regulate temperatures in four separate spaces using a single outdoor condenser.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

4 Rooms. 1 System. Total Comfort.

Senville 36000 BTU Quad Zone Mini Split Air Conditioner - Heat Pump - SENA/36HF/Q delivers powerful heating and cooling to four separate zones. With ENERGY STAR certification, Alexa-enabled smart control, and efficient performance even in temperatures as low as -22°F, this AC and heater system is built for both convenience and energy savings.

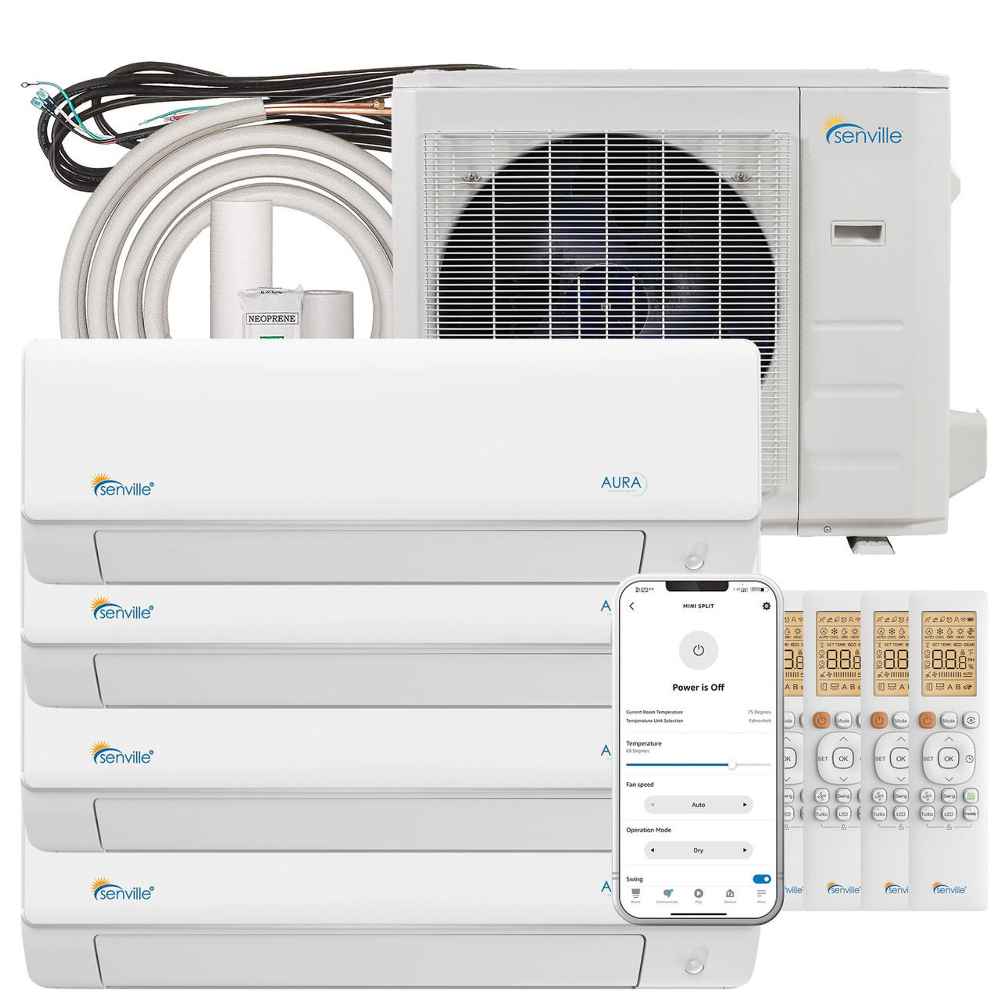

What's Included?

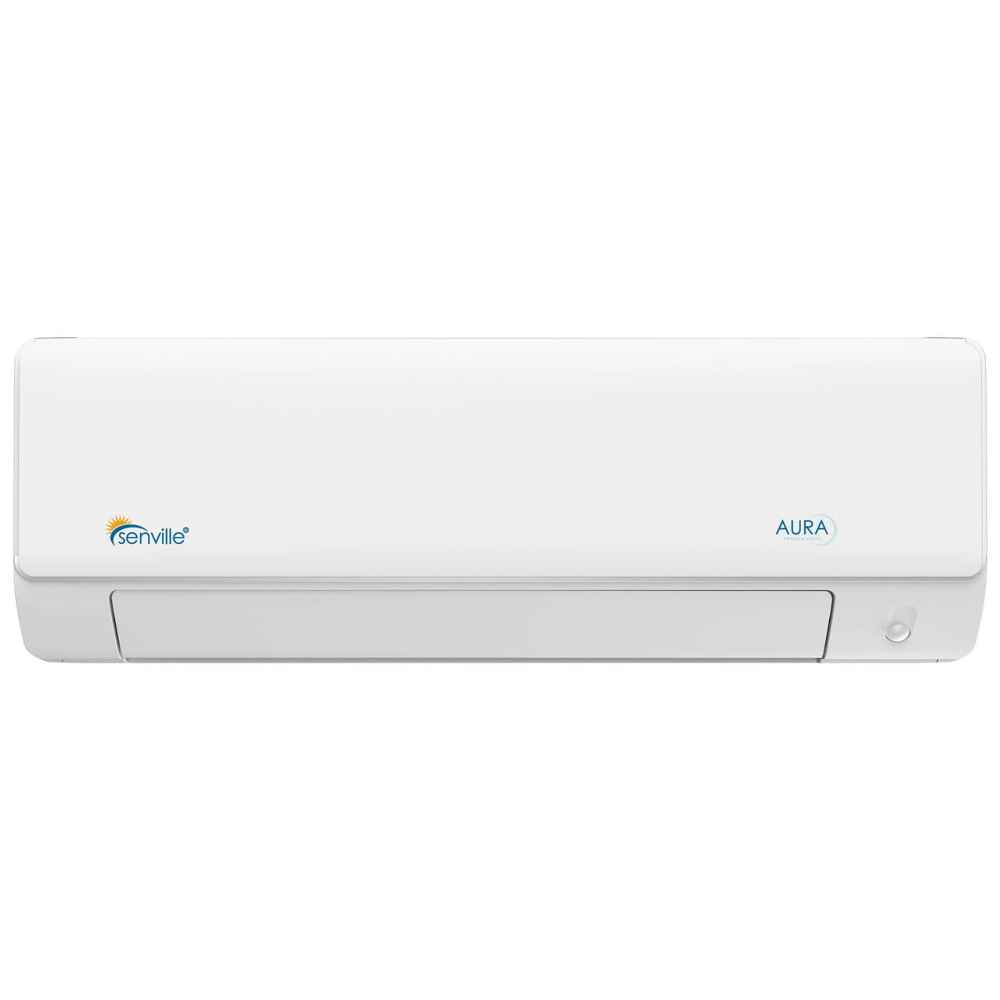

  • 4 Indoor Units (various BTU combinations)
  • Outdoor Unit

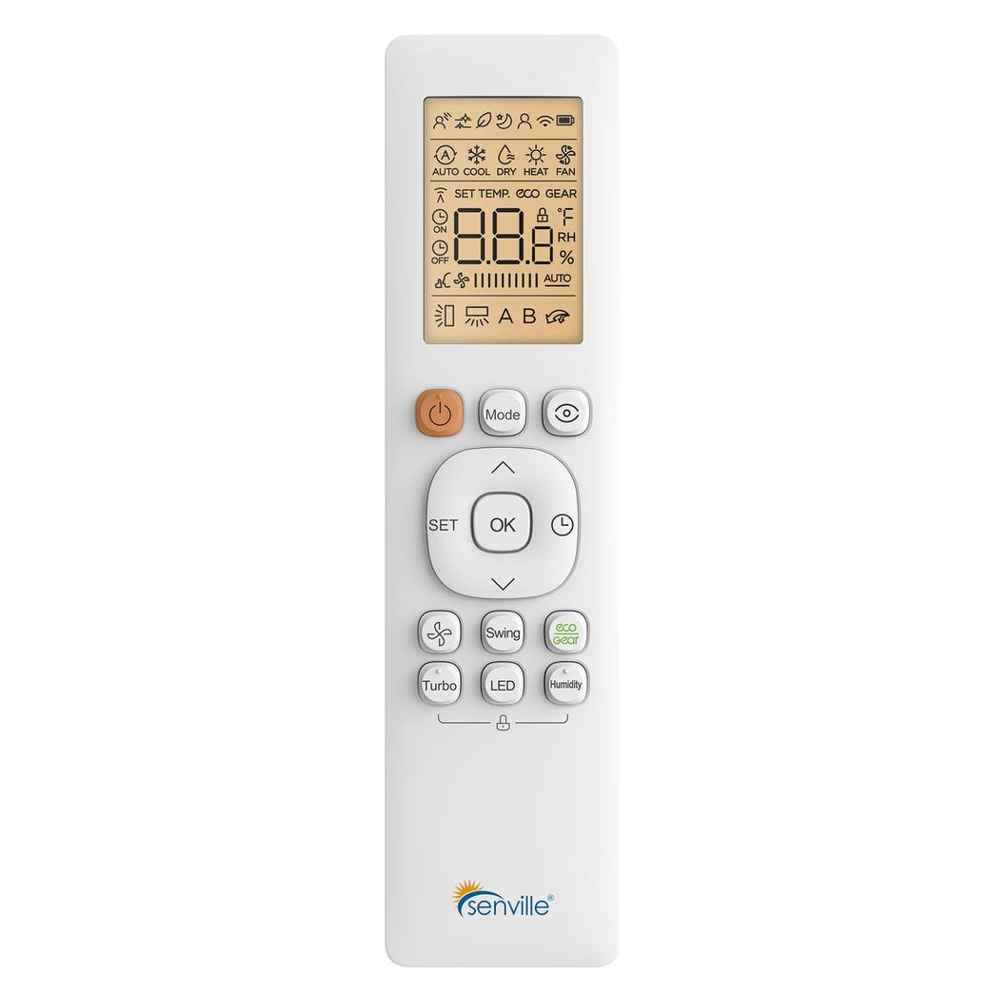

  • Wireless Remote Controls
  • Alexa USB Kit

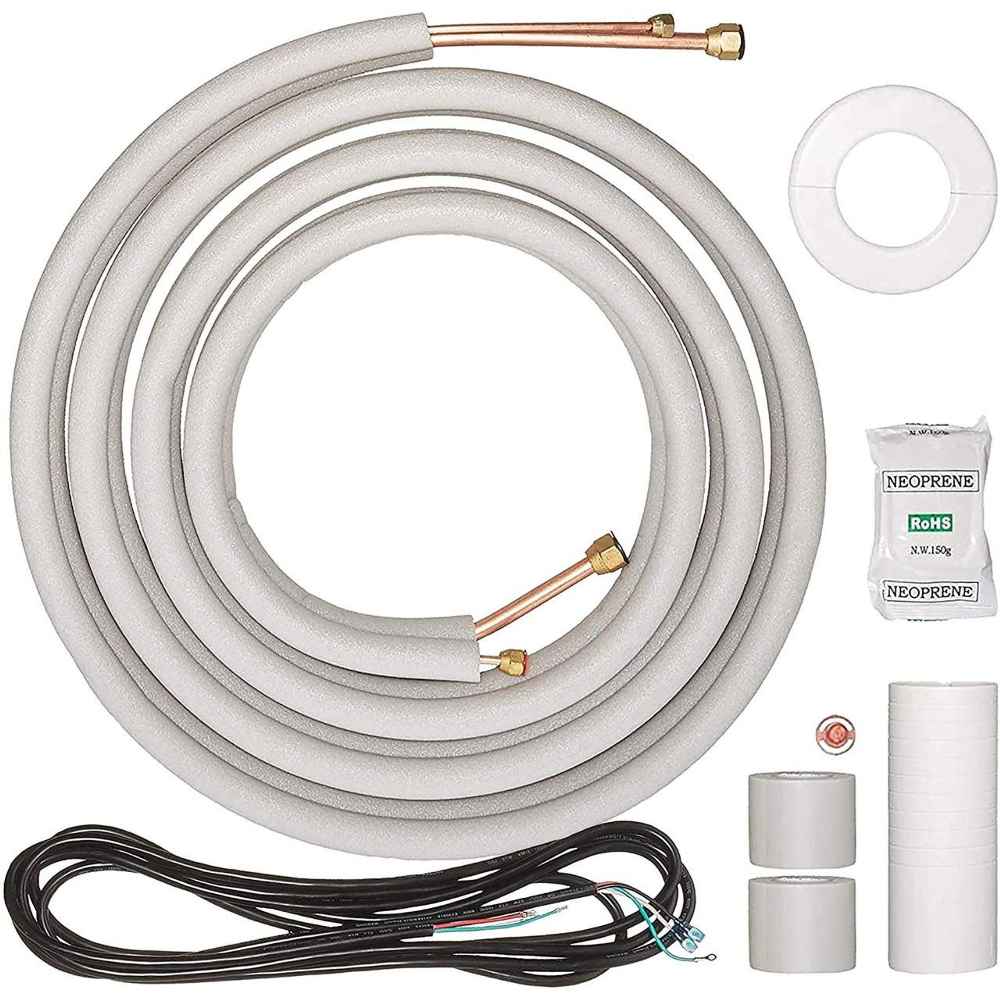

  • 16 ft. Installation Kits (x4)
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Number of Zones: 4
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187–253

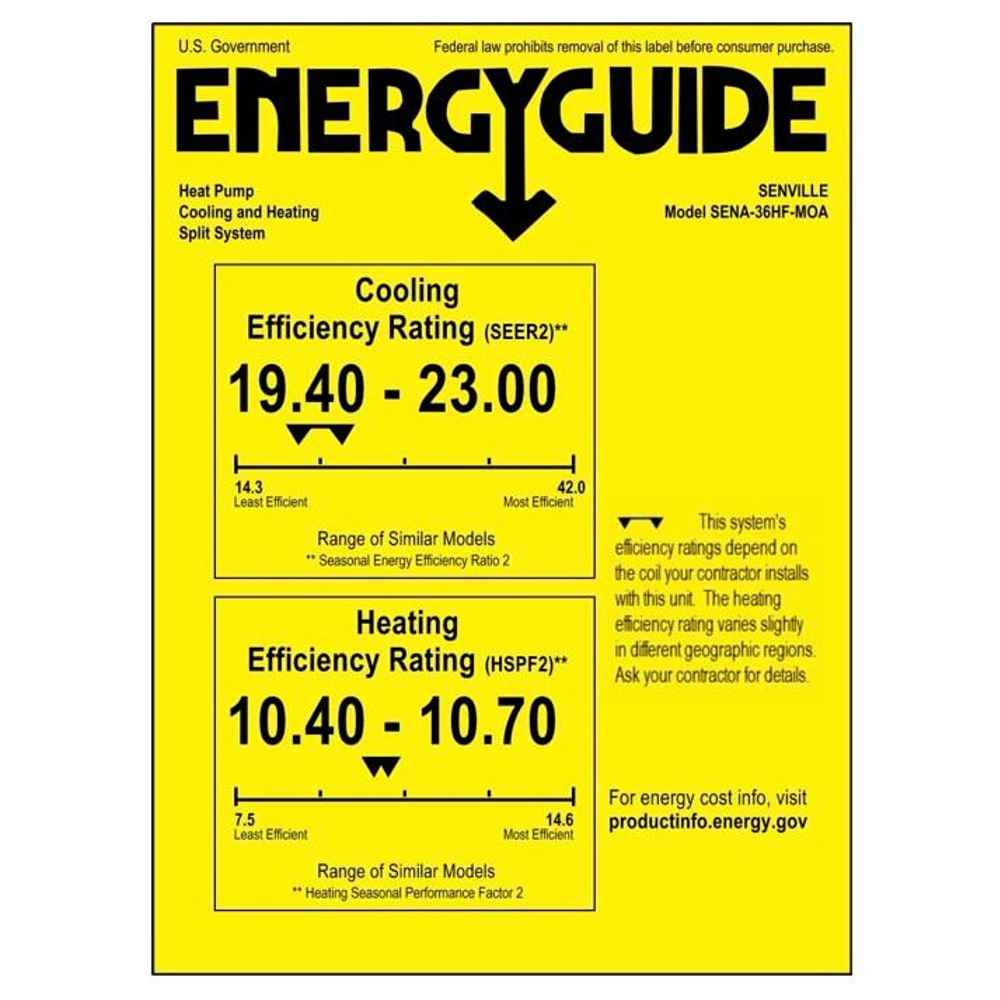

  • SEER2: 23
  • EER2: 13
  • Cooling Capacity (BTU): 36,000
  • Cooling Range (BTU): 9,000~43,000
  • Cooling Input Range (W): 600~4000
  • Cooling Current Range (A): 5.2~17.8
  • Heating Capacity (BTU): 36,000
  • Heating Range (BTU): 10,000~44,000
  • Heating Input Range (W): 600~3750
  • Heating Current Range (A): 5.2~16.6
  • HSPF2-4: 10.7
  • HSPF2-5: 8.5
  • COP W/W: 4
  • Minimum Circuit Ampacity (A): 37
  • Max. Fuse (A): 40
  • Outdoor Air Flow (Max) CFM: 3037.2
  • Outdoor Noise Level dB: 65
  • Outdoor Dimensions (WxDxH) (in.): 38.58 x 16.34 x 38.39
  • Outdoor Weight: 211.86 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 134.04 oz
  • Refrigerant Pre-charge: 100 Ft.
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 21.3 SEER2 High Efficiency: This unit offers excellent energy savings with its 21.3 SEER2 rating, helping reduce monthly utility costs without compromising comfort.
  • DC Inverter Technology: It adjusts power use automatically for faster temperature control, quieter operation, and long-term efficiency.
  • Multi-Zone Coverage: Ideal for spaces between 450–750 sq. ft. per zone, making it perfect for homes with multiple rooms or small offices.
  • Cold Climate Ready: Capable of heating even when temperatures drop to -15°C (5°F), so you stay warm through harsh winters.
  • All-in-One Functionality: Includes air conditioning, heating, fan, turbo, and dehumidifier modes to give you full control over indoor air quality.
  • Smart Comfort: Works with Alexa for easy voice or app-based control across all zones, even when you're away from home.
  • Professional Installation Required: Ensures optimal performance, warranty protection, and system reliability for years to come.

Documentations & Certifications

  • ENERGY STAR Certified
  • Green Energy Pledge Friendly

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
