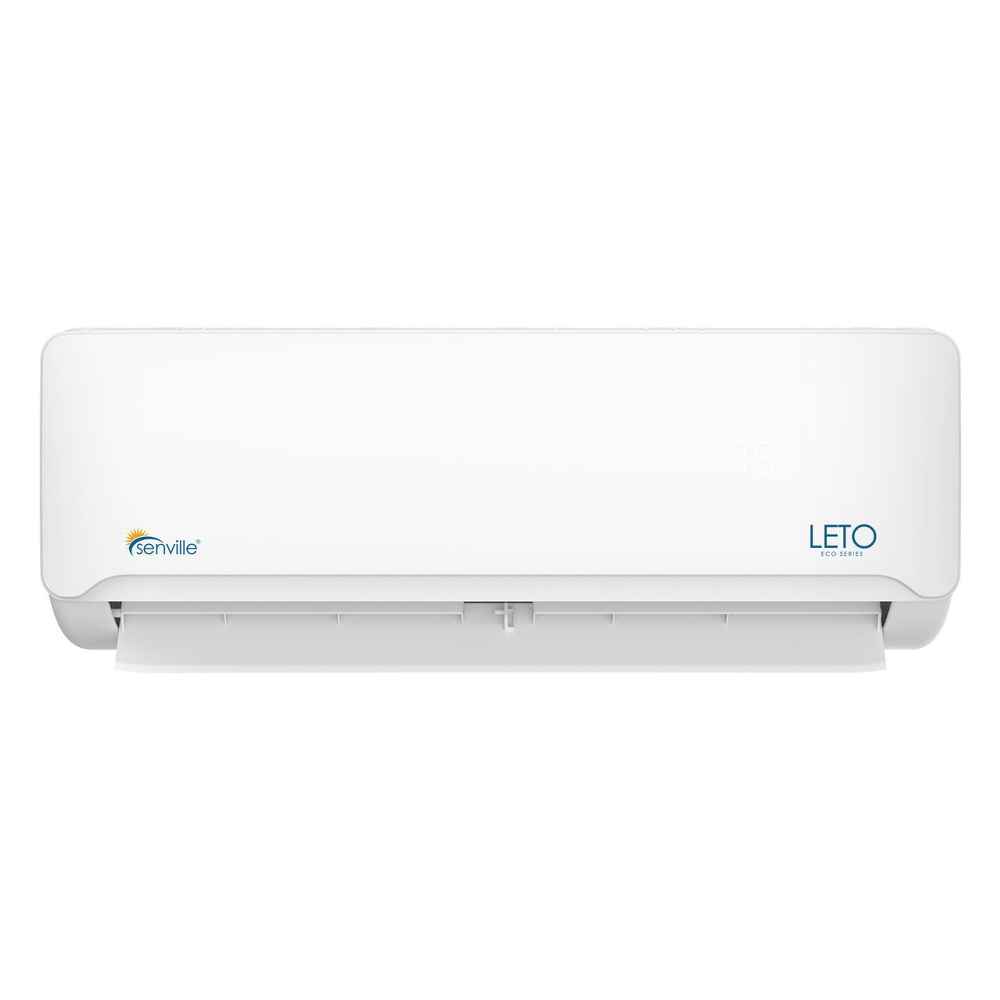

Senville 36000 BTU Mini Split Air Conditioner - Heat Pump - SENL/36CD

The Senville 36000 BTU Mini Split Air Conditioner is a climate control appliance that functions as both an air conditioner and a heat pump. Identified by model number SENL/36CD, this system provides 36,000 BTU of cooling and heating capacity for residential or commercial spaces. The unit is available with several installation kit options, including 16-foot, 25-foot, and 50-foot lengths, or it can be purchased without a kit. Customers can also choose to include a request for an installation quote at the time of purchase. This system is perfect for users who need a high-capacity heating and cooling solution with flexible installation requirements.

Senville 36000 BTU Mini Split Air Conditioner - Heat Pump - SENL/36CD is a powerful 4-in-1 system that offers cooling, heating, dehumidifying, and fan functions. This AC ductless system features a high-efficiency inverter compressor with up to 18 SEER2 and 8.5 HSPF2, ensuring energy savings without sacrificing performance.

Key specs

• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253

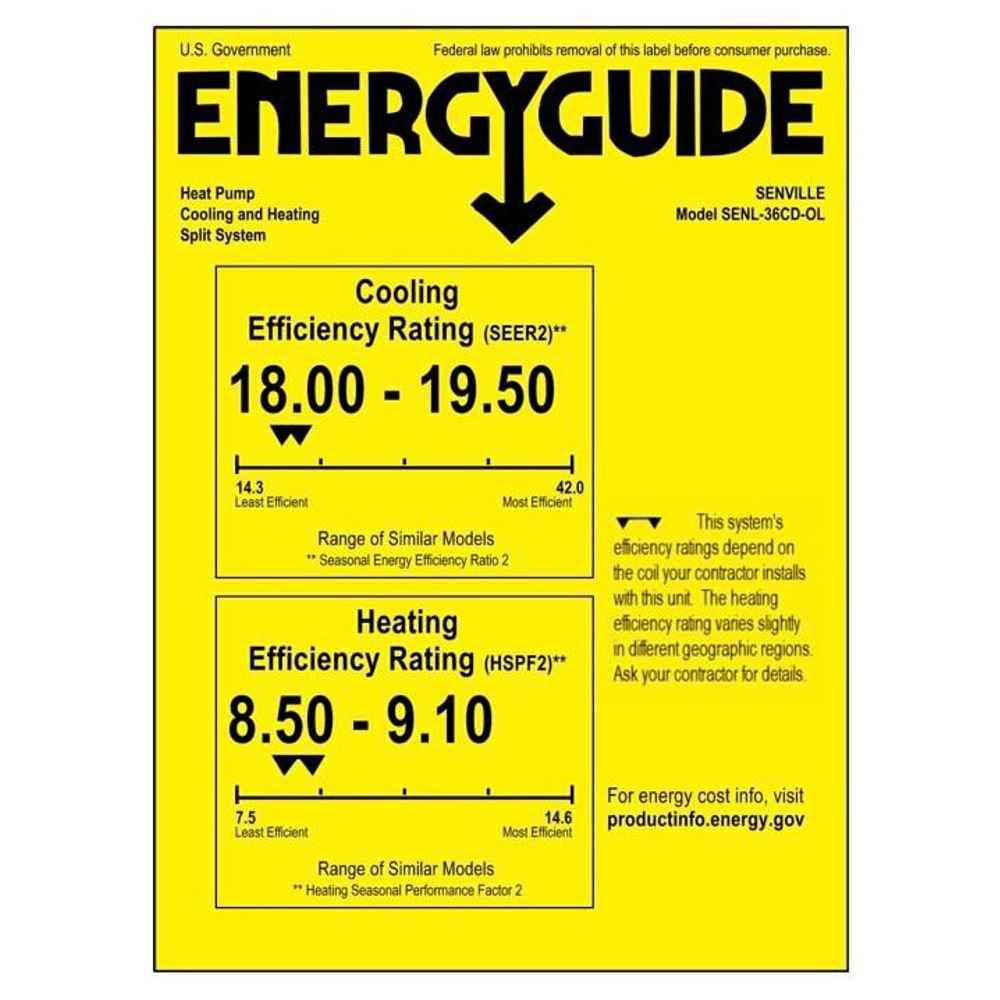

• SEER2: 18
• EER2: 9
• Cooling Capacity (BTU): 36000
• Cooling Range (BTU): 2900~36200
• Cooling Input Range (W): 380~4140
• Cooling Current Range (A): 2.9~18
• Heating Capacity (BTU): 36000
• Heating Range (BTU): 3600~36600
• Heating Input Range (W): 445~3950
• Heating Current Range (A): 3.0~17.2
• HSPF2-4: 8.5
• HSPF2-5: 6.8
• COP W/W: 2.82
• Minimum Circuit Ampacity (A): 33
• Max. Fuse (A): 35
• Indoor Air Flow (Turbo/H/M/L) CFM: 882.9 / 732.8 / 518.0 / 400.2
• Indoor Noise Level (Turbo/H/M/L) dB: 56.5 / 50.5 / 44.5 / 34
• Indoor Dimensions (WxDxH) (in.): 49.57 x 11.10 x 14.25
• Indoor Weight: 40.34 lbs.
• Moisture Removal (L/H): 4.9
• Outdoor Air Flow (Max) CFM: 2235.3
• Outdoor Noise Level dB: 61.4
• Outdoor Dimensions (WxDxH) (in.): 37.24 x 16.14 x 31.89
• Outdoor Weight: 142.86 lbs.
• Refrigerant Type: R454B
• Refrigerant Pre-charge: 25 ft.
• Connection Wiring: 14*4 AWG

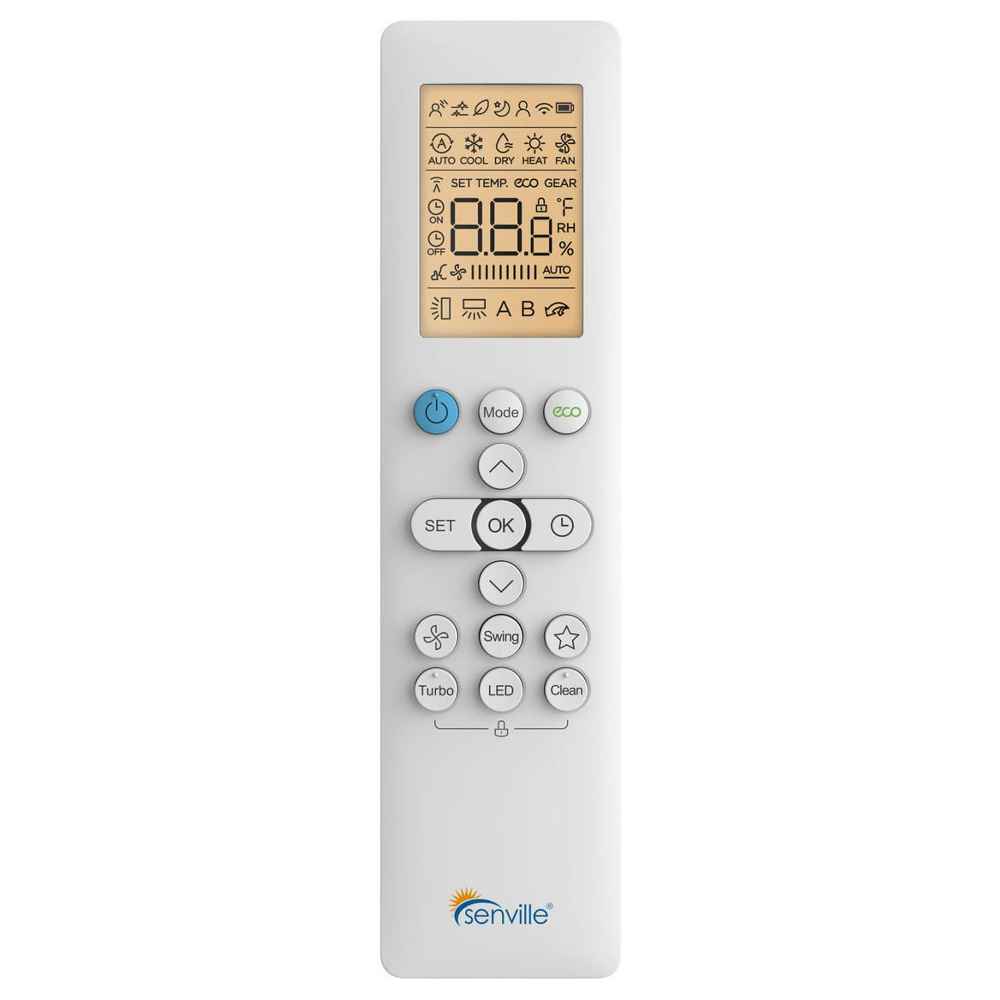

• Thermostat Type: Remote Control
• Alexa: Enabled
• Warranty: 5 Years Compressor / 5 Years Parts

Features

• 18 SEER2 High Efficiency: This unit delivers impressive energy efficiency, helping you save on utility bills while maintaining powerful performance.

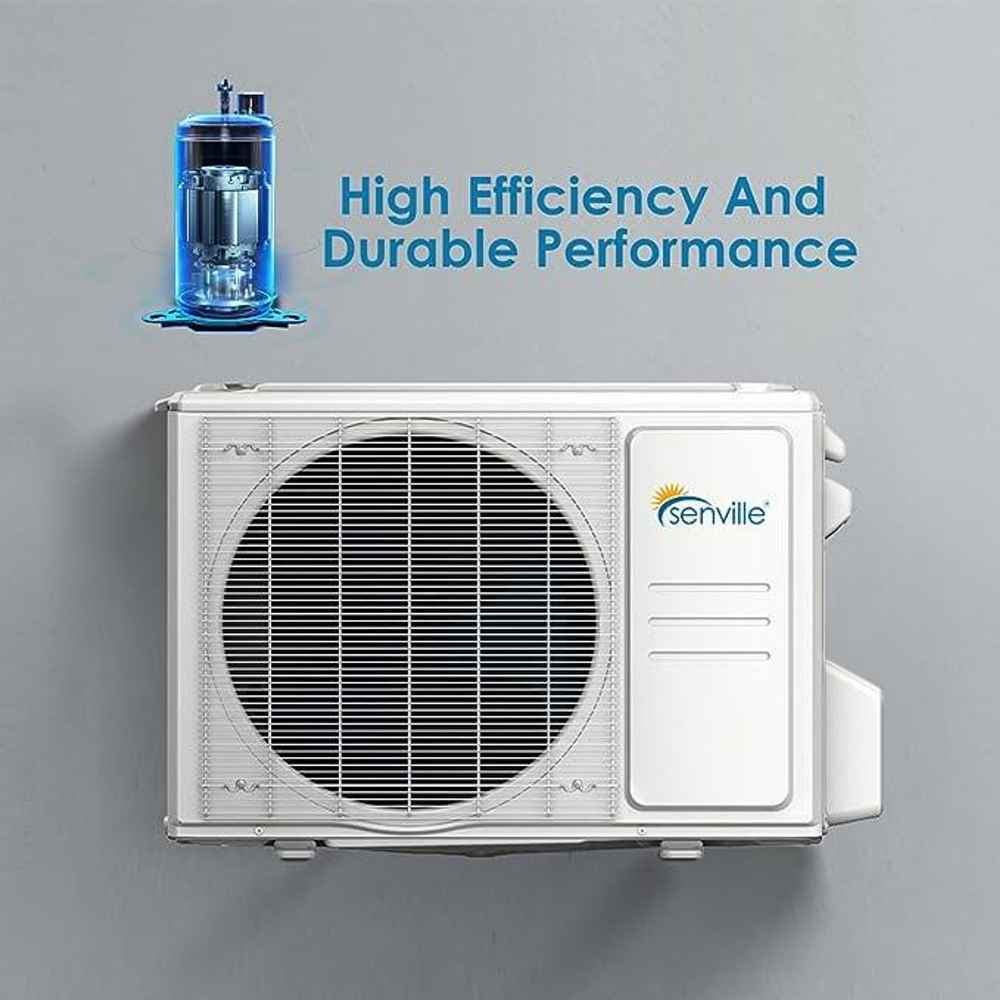

• DC Inverter Technology: It adjusts power use based on real-time demand, offering faster cooling and heating with less energy waste.
• Ideal for 1250–1800 sq. ft.: Designed for larger areas, it’s perfect for open spaces, multiple rooms, or oversized living areas.
• Heating down to -15°C (5°F): Built to handle cold climates, it provides reliable heat even in freezing winter conditions.
• 4-in-1 Functionality: Enjoy cooling, heating, dehumidifying, and fan modes all in one unit, giving you complete year-round comfort.
• Smart Climate Control: With Alexa compatibility and Wi-Fi connectivity, you can control your home’s temperature from anywhere using your phone or voice.
• Whisper-Quiet Operation: Enjoy a peaceful indoor environment while the system works silently in the background.
• Professional Installation: Designed for expert setup, it ensures optimal performance and longer-lasting reliability from day one.

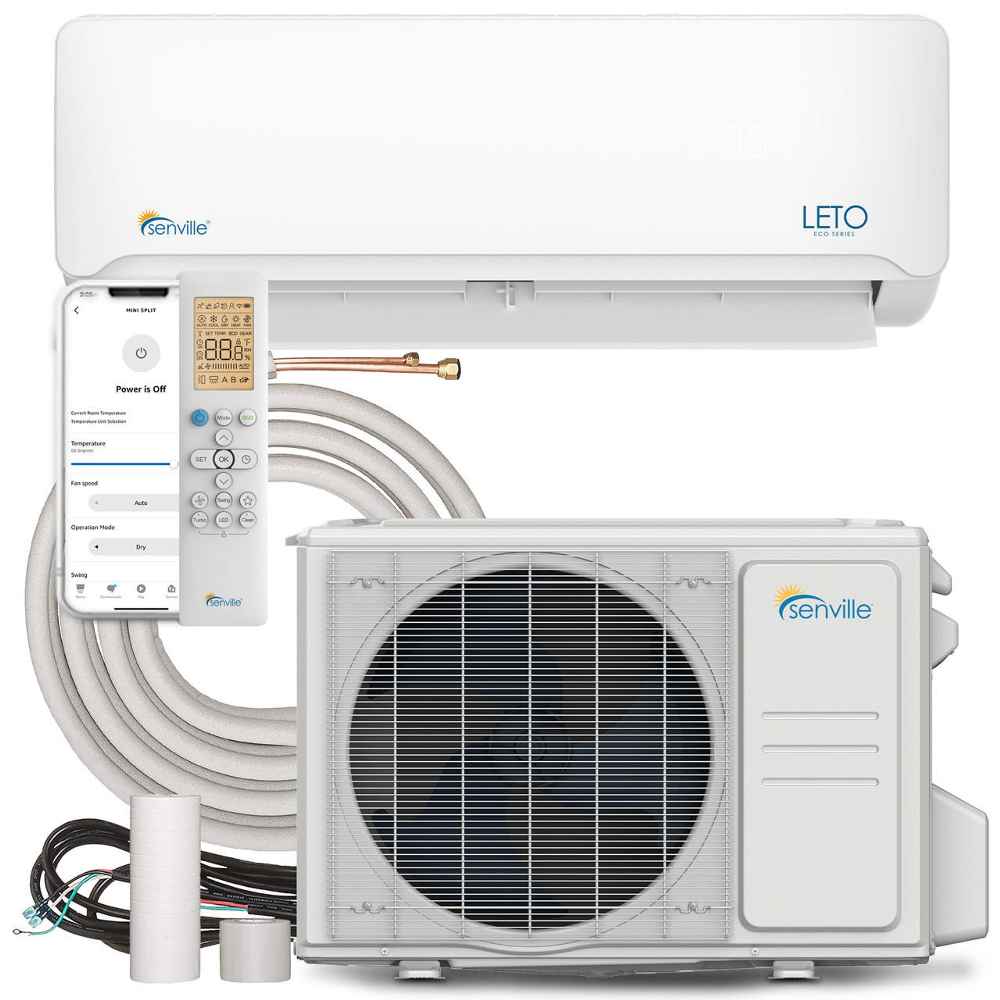

What's included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Alexa USB Kit
• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 5-Year Compressor / 5-Year Parts Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
