Senville 36000 BTU Central AC/Heat - SENDC-36HF

The Senville 36000 BTU Central Air Conditioner is a mini split air conditioner and heat pump system designed for climate control. This SENDC-36HF model offers multiple configuration options, including auxiliary heater capacities of 10KW, 15KW, or 20KW, as well as a version with no auxiliary heater. Installation kits are available in 16ft and 50ft lengths to accommodate different building layouts. This unit is suitable for homeowners seeking a high capacity central heating and cooling solution with professional installation quote options.

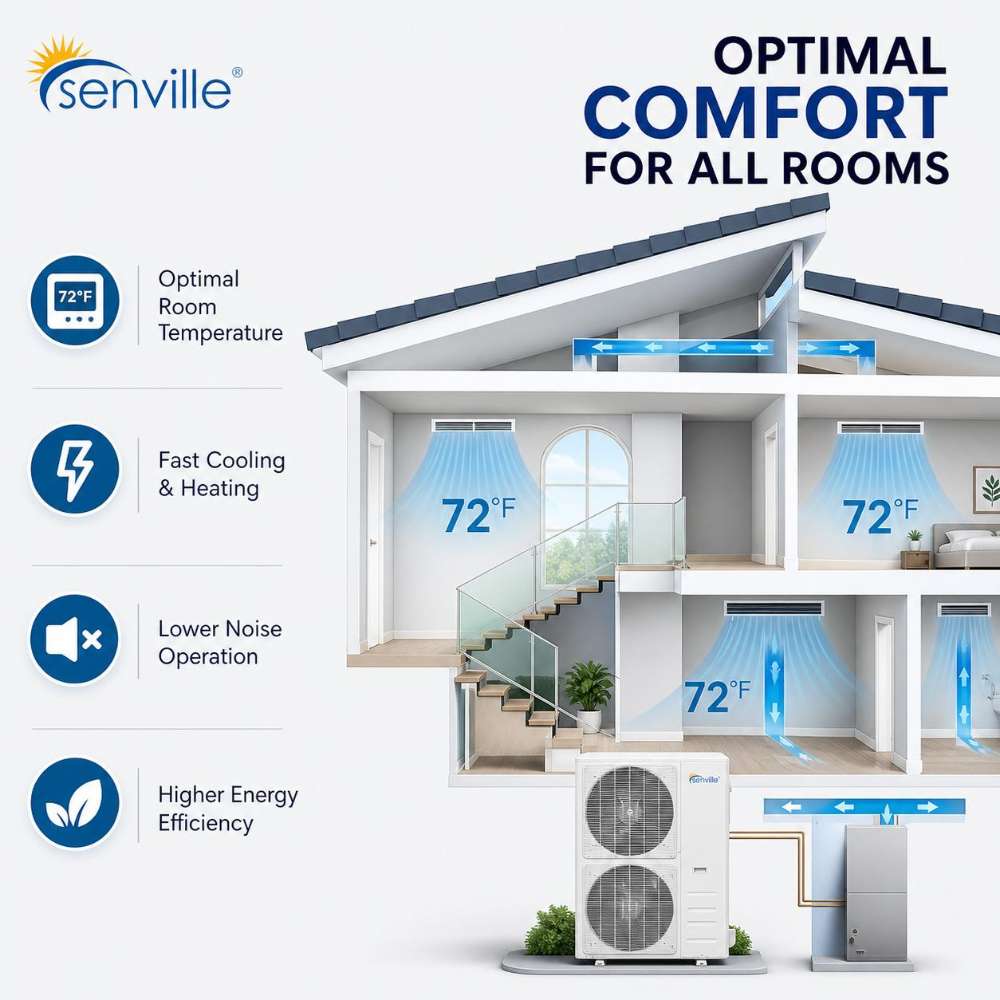

Senville 36000 BTU Central Air Conditioner - Heat Pump - SENDC-36HF is a strong choice for whole-home heating and cooling. This 36,000 BTU central air conditioner and heat pump system is designed for efficient year-round comfort in larger spaces. It includes an indoor air handler, outdoor condenser, thermostat, and remote for easy control.

Key specs

• Style: Central Air Conditioner with Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253

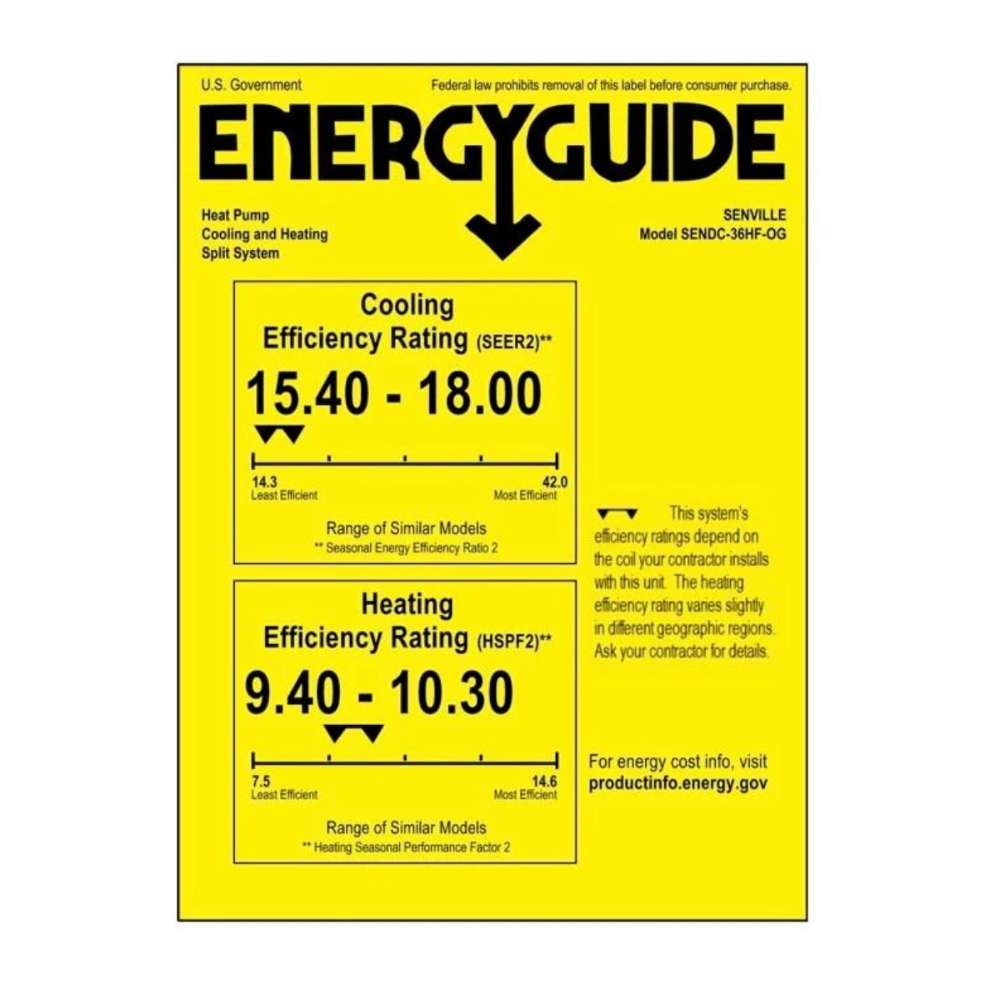

• SEER2: 17.4
• EER2: 11.7
• Cooling (Range): 13000~47400
• Input (W): 3673 (462-5700)
• Rated current A: 15.97
• Heating (Range): 11000~57200
• Input (W): 3448 (593-5700)
• Rated Current (A): 15
• HSPF2-4: 10.3
• HSPF2-5: 7.8
• COP W/W: 3.36
• Minimum Circuit Ampacity (A): 41
• Max. Fuse (A): 50

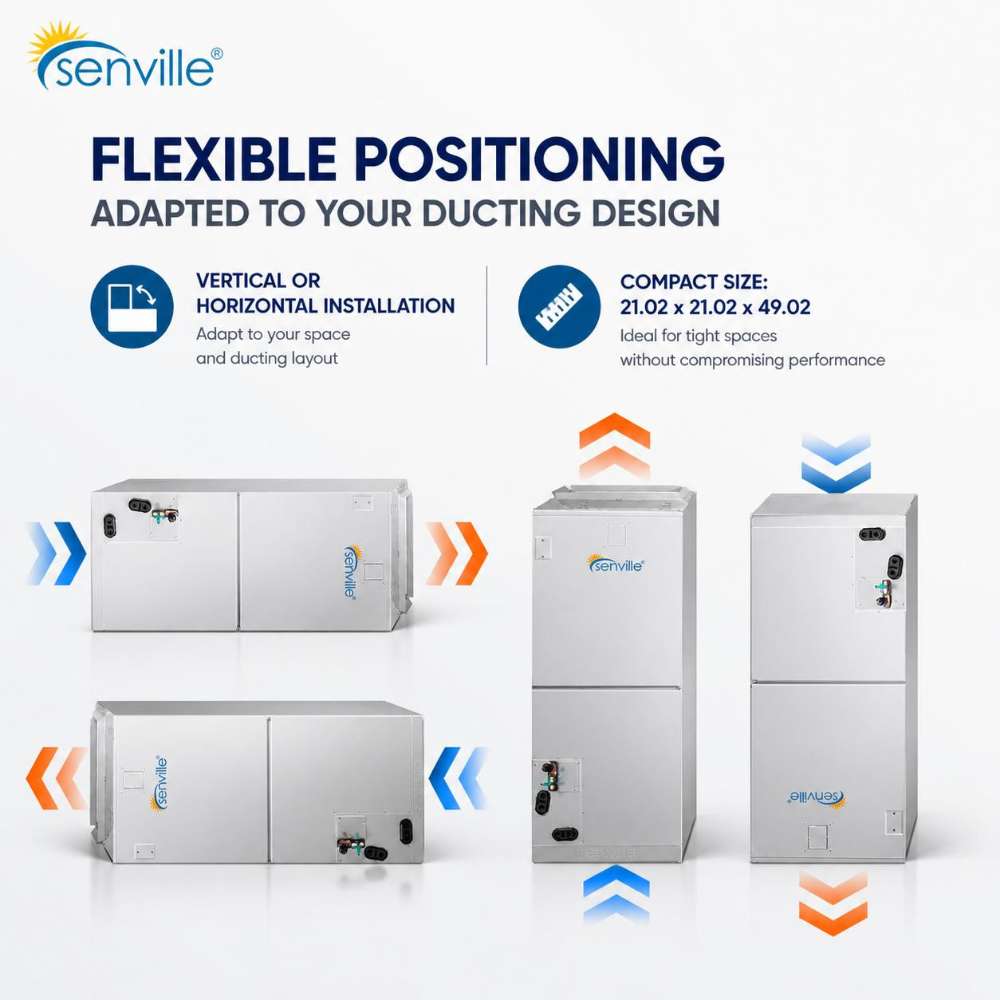

• Indoor Dimensions (WxDxH) (in.): 21.02x21.02x49.02
• Indoor Unit Weight (lbs.): 129.19
• Indoor Air Flow (H/M/L) CFM: 1188/1082/970
• Indoor Noise Level (H/M/L) dB: 45/43/41
• Outdoor Dimensions (WxDxH) (in.): 38.58x16.34x38.39
• Outdoor Weight (lbs.): 227
• Outdoor Noise Level dB: 64
• Outdoor Air flow (Max) CFM: 4500
• Refrigerant Type: R454B / 165.79 Oz
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14AWG*2 Stranded, Shielded
• Thermostat Type: Wall Remote
• Warranty: 10 Years Compressor / 5 Years Parts
• Certifications: Energy Star, UL, AHRI, NEEP

Features

• Maximum Energy Efficiency: Advanced inverter technology and a variable-speed compressor reduce energy waste and improve HVAC performance.
• Powerful Central Cooling: The 36,000 BTU air conditioning system cools spaces up to 1,400 square feet quickly and efficiently.
• Extreme Cold Heating: Inverter heat pump technology delivers reliable heating performance in temperatures down to -22°F.
• Long-Term Durability: High-quality construction with a 10-year compressor warranty and 5-year parts warranty supports lasting performance.
• Energy Saving HVAC System: Efficient heating and cooling technology helps lower energy costs while maintaining indoor comfort year-round.

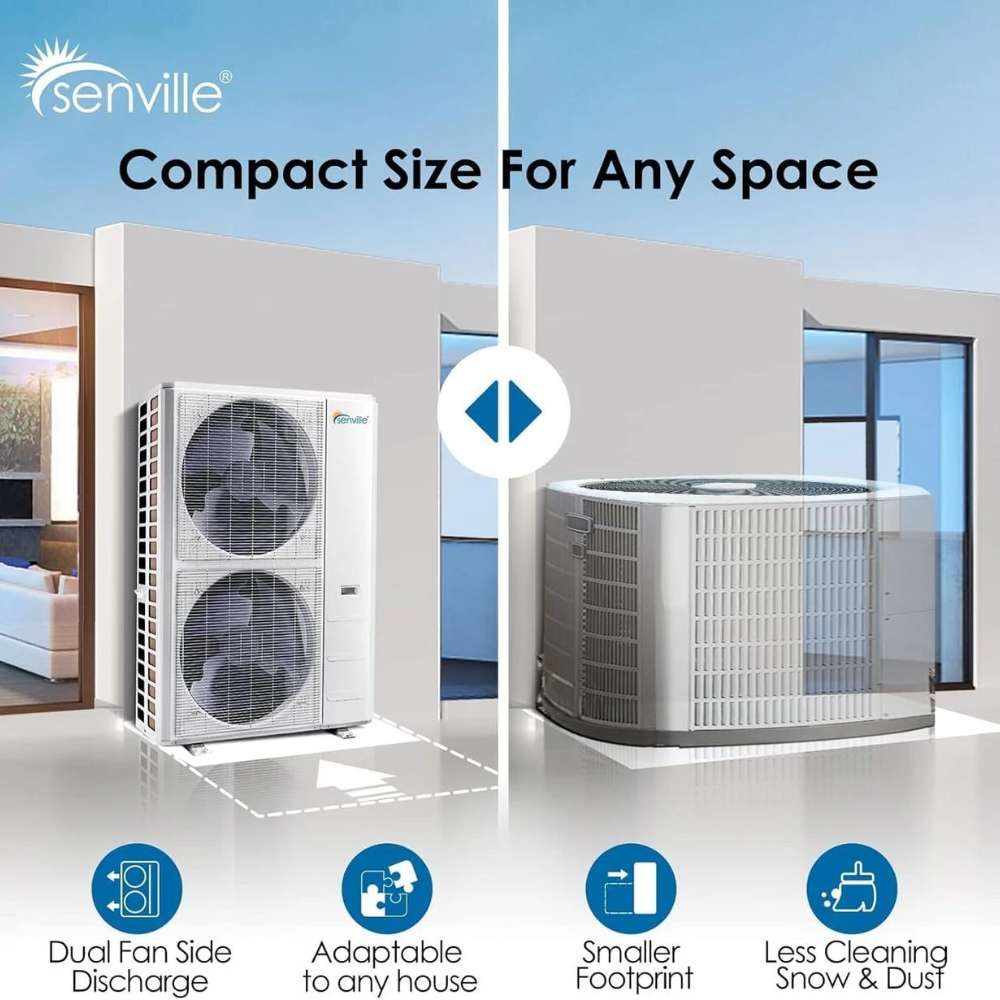

• Compact Outdoor Unit: Side-discharge condenser design saves outdoor space without sacrificing cooling and heating power.

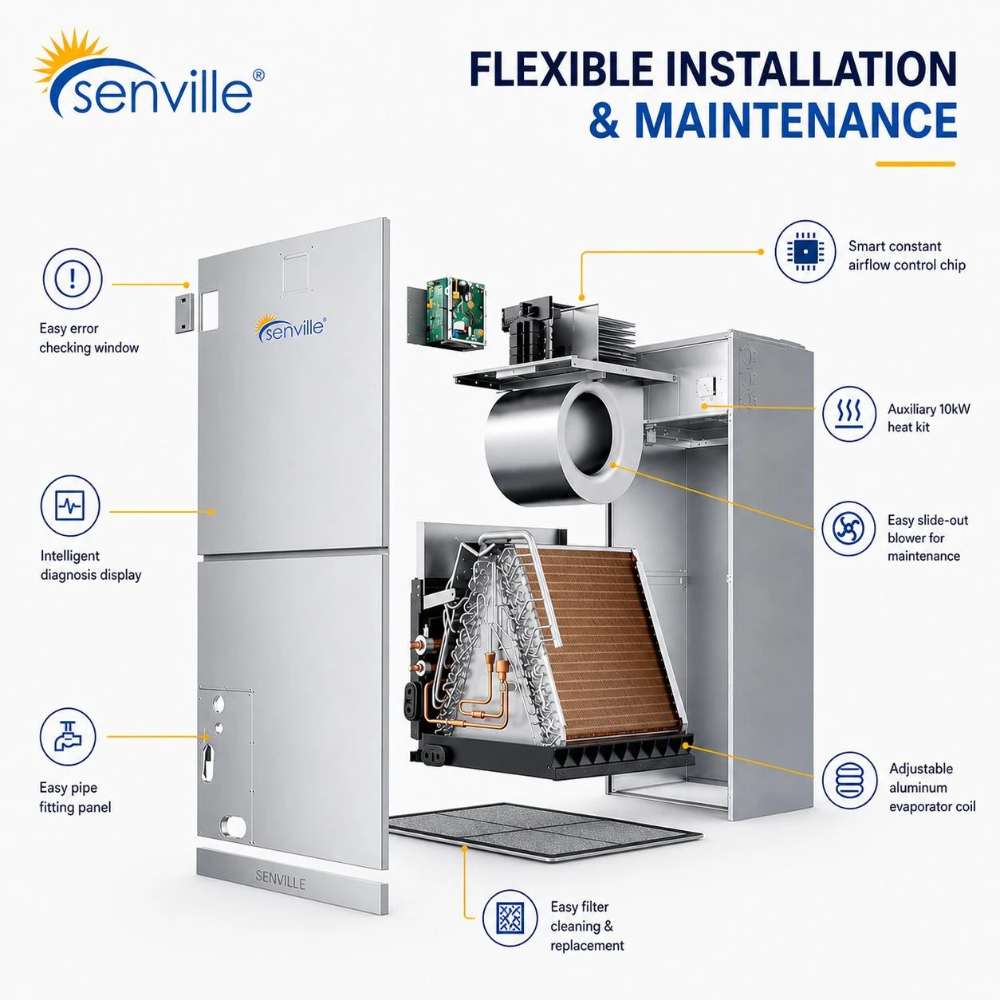

• Professional Installation Ready: Central heat pump system includes an installation kit for streamlined HVAC setup by licensed professionals.

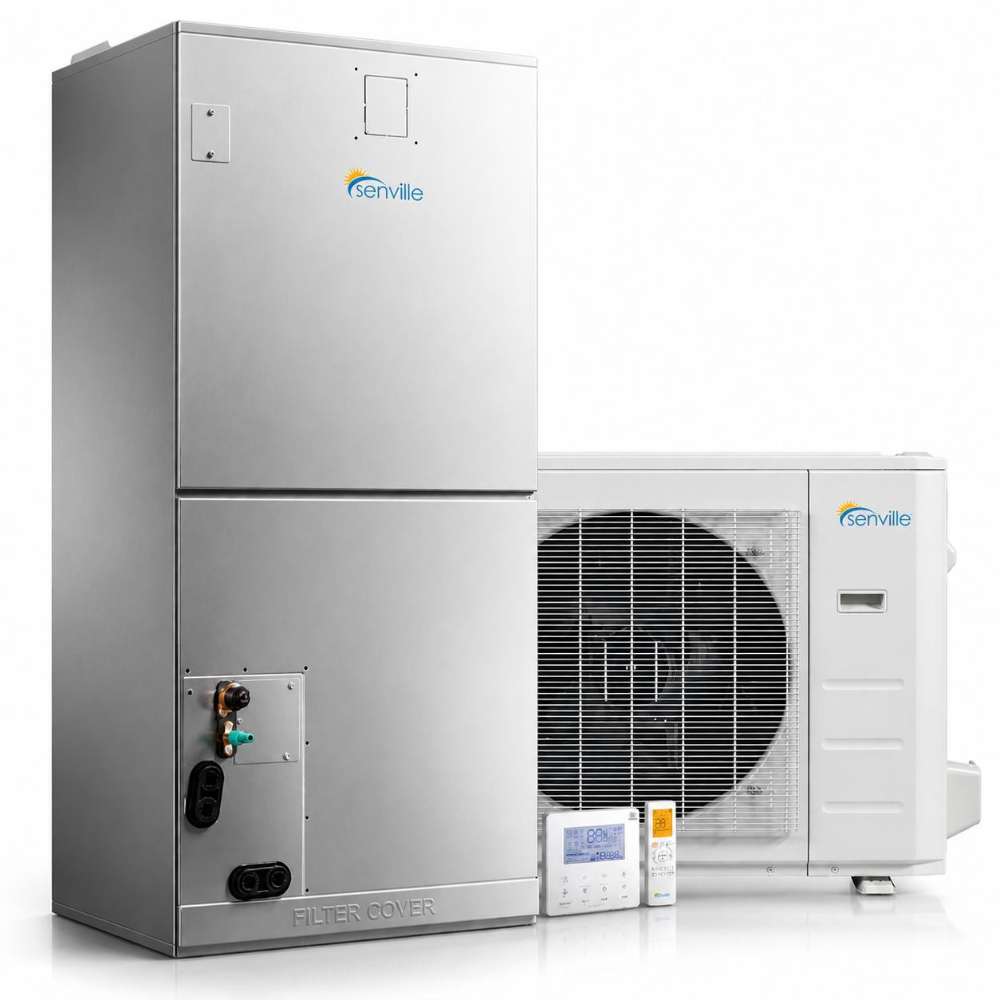

What's included

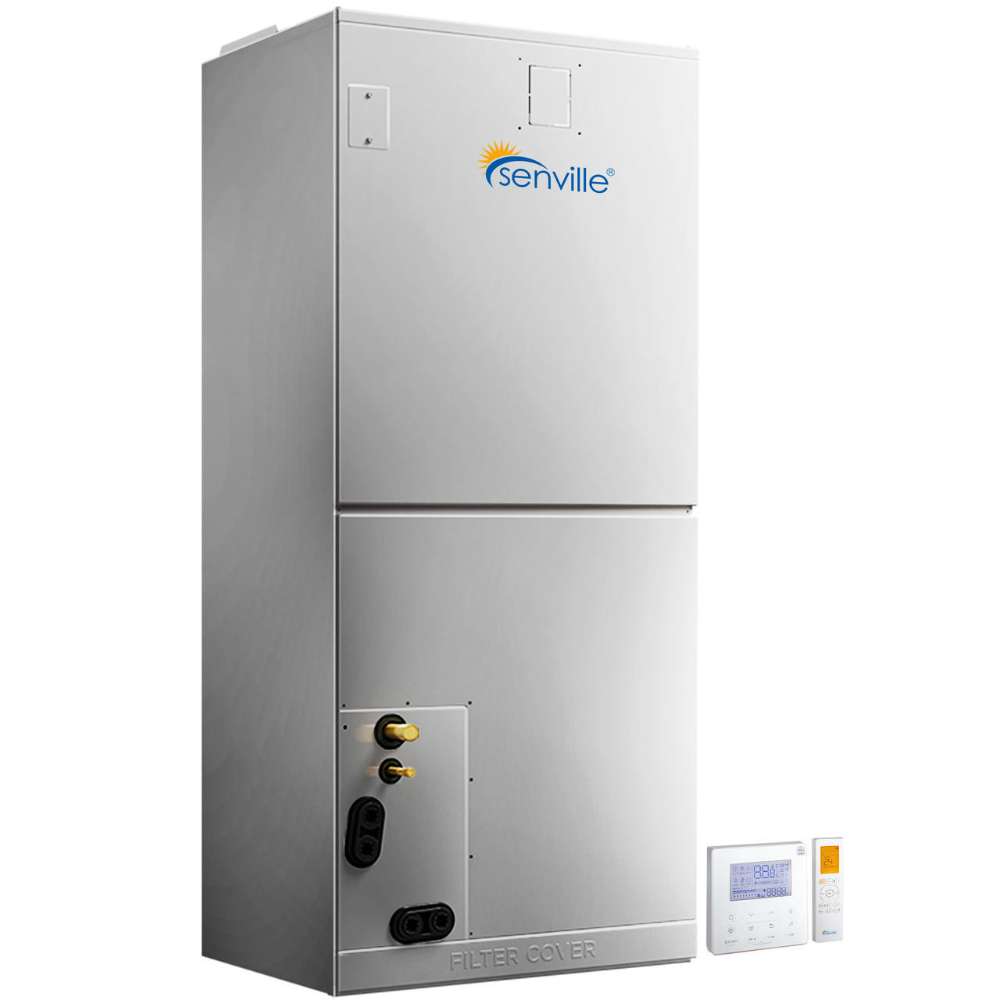

• Indoor air handler unit
• Outdoor condenser unit
• Wall thermostat controller
• Remote control
• Installation kit (16 ft. or 50 ft. option available)

Options

• Auxilliary Heater: None, 10KW, 15KW, 20KW
• Installation Kit: 16ft, 50ft
