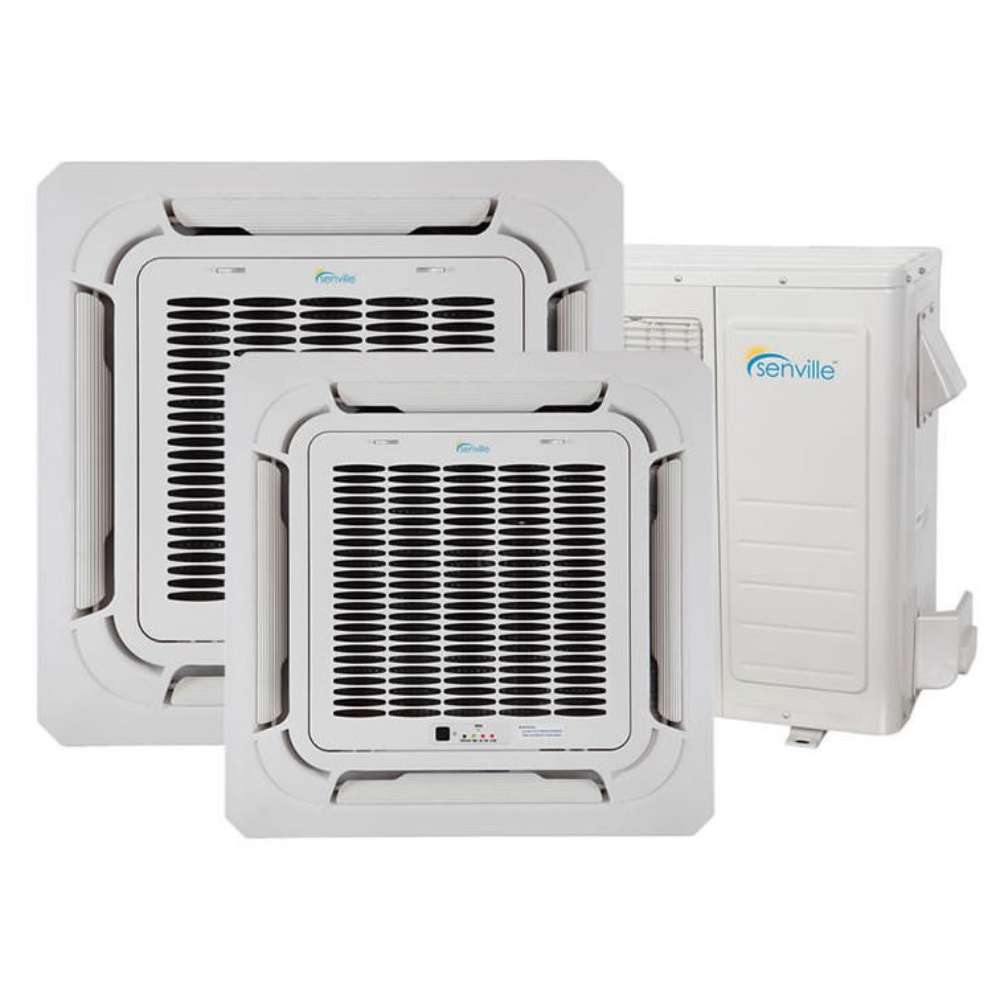

Senville 28000 BTU Dual Zone Ceiling Air Conditioner - Heat Pump - SENA/30HF/DIC dual-zone system with two ceiling cassettes and one condenser

Senville 28000 BTU Dual Zone Ceiling AC/Heat - SENA/30HF/DIC

Save $480.00
$2,879.99
$2,399.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

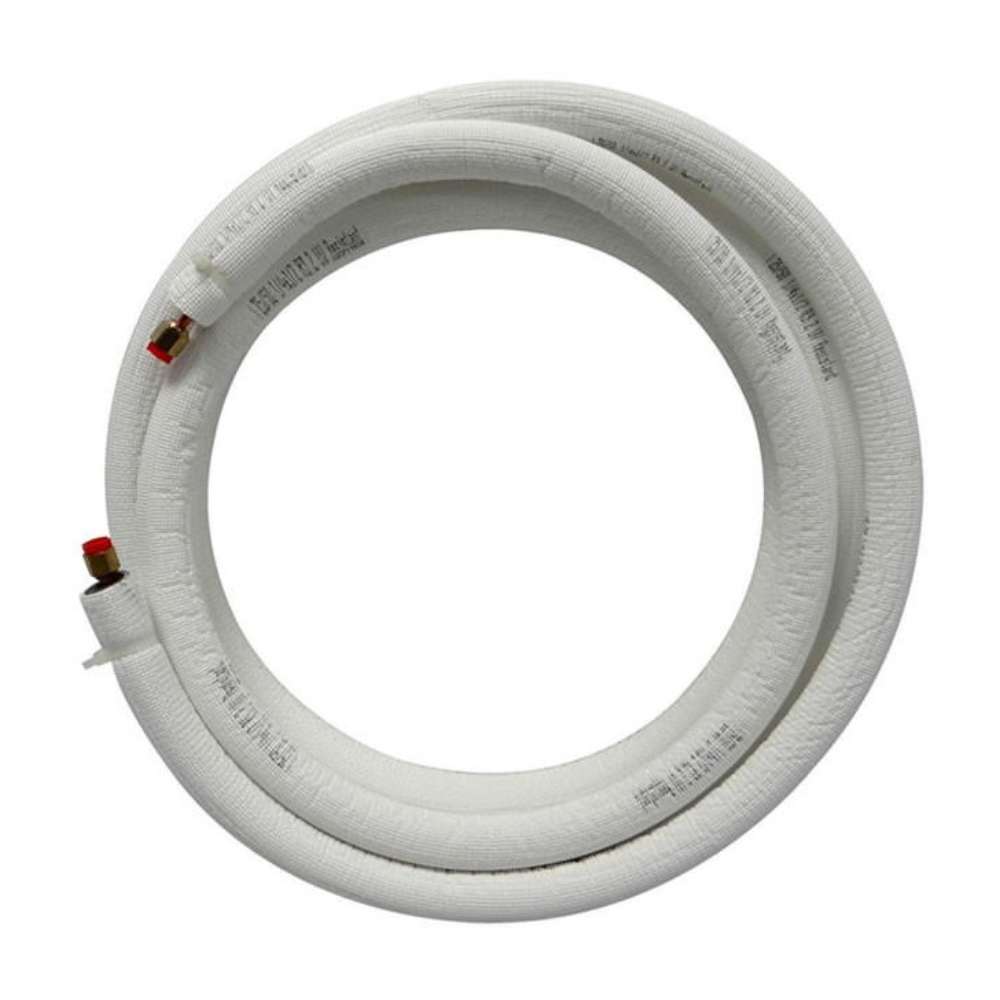

The Senville 28000 BTU Dual Zone Ceiling Air Conditioner is a multi-zone climate control system featuring a built-in heat pump for both cooling and heating. This mini split air conditioner offers two indoor unit combinations, allowing for either two 12000 BTU units or a split of 9000 BTU and 18000 BTU units. Installation kits are available in lengths of 16 feet, 25 feet, or 50 feet to accommodate different building layouts. This system is designed for homeowners who need to regulate temperatures in two separate rooms using a single outdoor condenser.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Stay Comfortable Year Round With Senville 28K Dual Zone Heating And Cooling

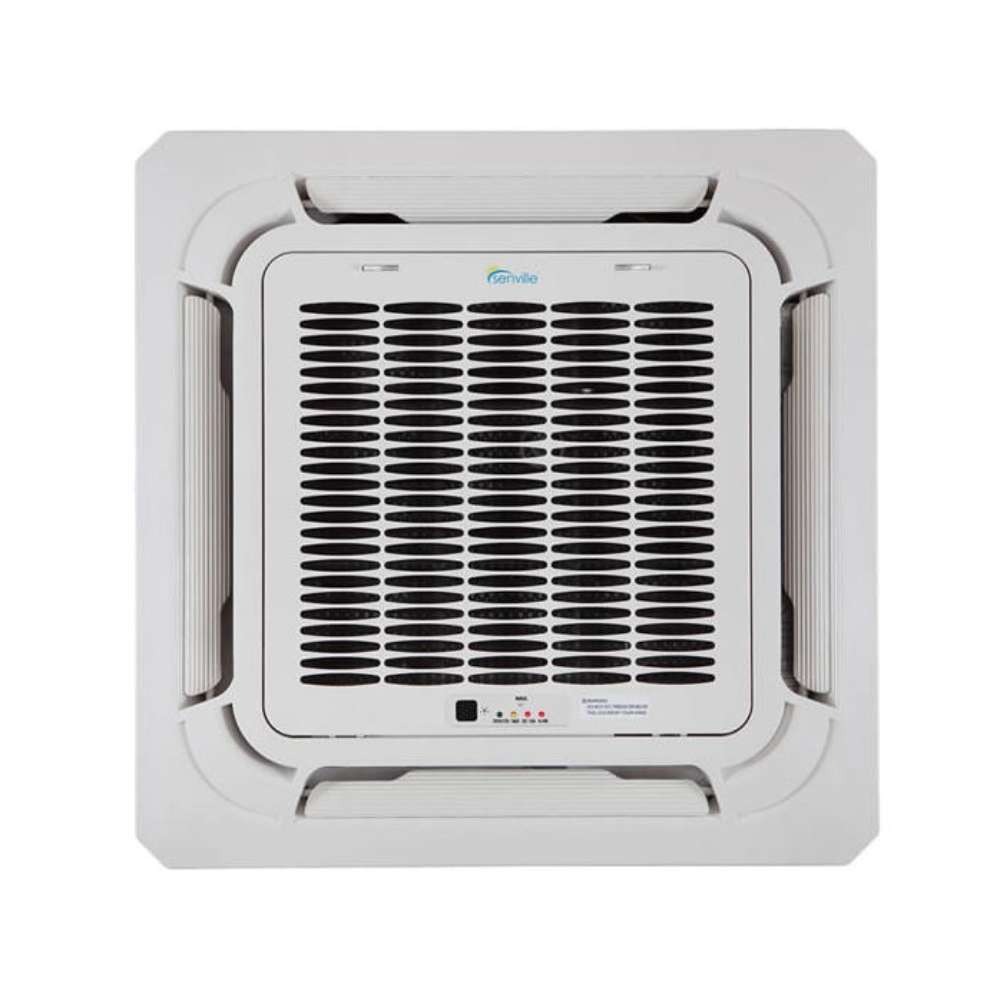

Senville 28000 BTU Dual Zone Ceiling Air Conditioner - Heat Pump - SENA/30HF/DICF is a powerful ceiling cassette AC system built for cooling and heating two zones. This 28000 BTU HVAC system offers year-round comfort with efficient temperature control and a clean, space-saving ceiling design. It's a practical choice for homes, offices, or larger rooms that need reliable heating and cooling without bulky wall units.

What's Included?

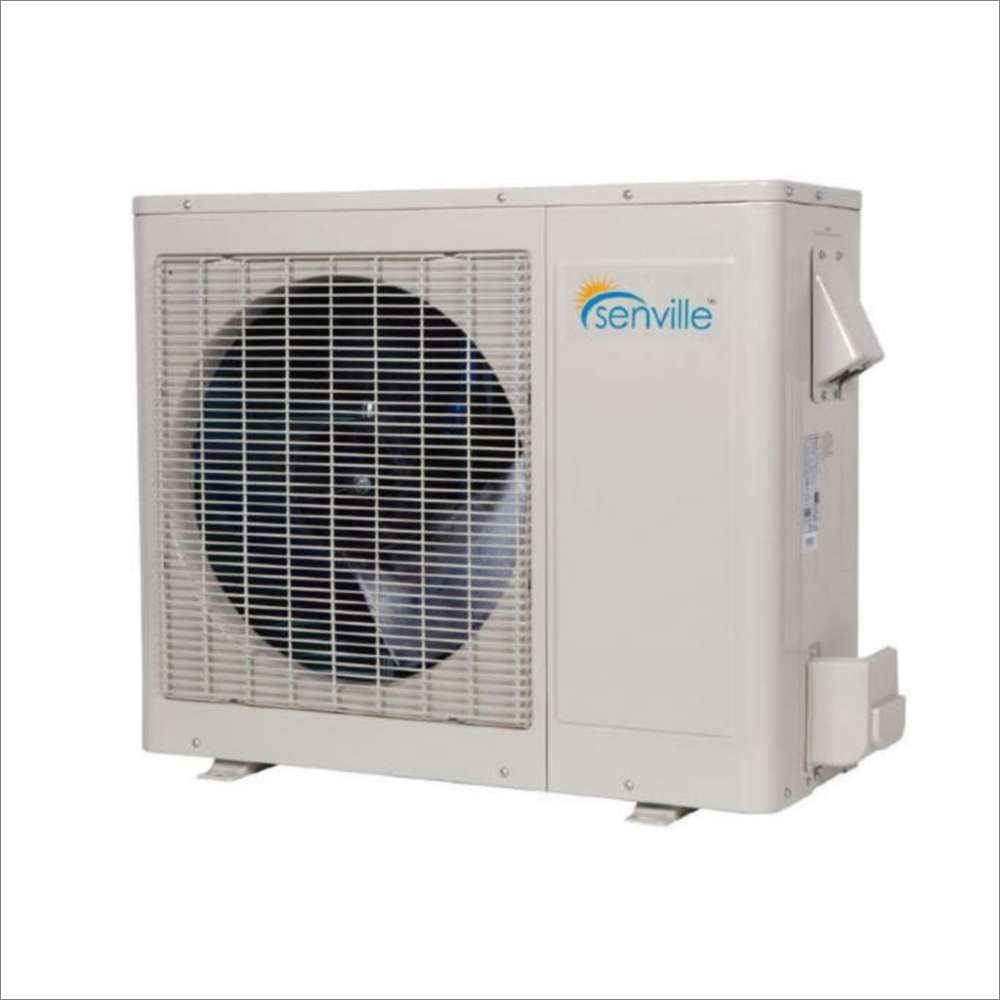

  • Outdoor Unit
  • Wireless Remote Controls
  • WiFi USB Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Number of Zones: 2-3
  • Power Supply: (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 23
  • EER2: 12.5
  • Cooling Capacity (BTU): 27000
  • Cooling Range (BTU): 7200~37000
  • Cooling Input Range (W): 500~3620
  • Cooling Current  Range (A): 4~16
  • Heating Capacity (BTU): 27000
  • Heating Range (BTU): 8400~36000
  • Heating Input Range (W): 500~3400
  • Heating Current Range (A): 4~15
  • HSPF2-4: 10.5
  • HSPF2-5: 8.5
  • COP W/W: 3.8
  • Minimum Circuit Ampacity (A): 30
  • Max. Fuse (A): 35
  • Outdoor Air Flow (Max) CFM: 2148.4
  • Outdoor Noise Level dB: 61
  • Outdoor Dimensions (WxDxH) (in.): 37.24 x 16.14 x 31.89
  • Outdoor Weight: 168.43 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 120.61 oz
  • Refrigerant Pre-charge: 75 Ft.
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 23 SEER Efficiency: Up to 23 SEER delivers energy-efficient heating and cooling while helping reduce utility costs.
  • Cold Climate Heat Pump: Heat pump performance provides reliable heating in temperatures down to -30C (-22F).
  • Energy Star Certified: Energy Star certification supports lower energy usage without sacrificing indoor comfort.
  • Ultra Quiet Operation: Whisper Technology keeps noise levels low for bedrooms, offices, and living spaces.
  • Refrigerant Leak Detection: Built-in leak detection helps protect the HVAC system and maintain peak performance.
  • Advanced Inverter Technology: Inverter compressor technology improves efficiency and delivers consistent room temperatures.
  • Vertical Air Swing: Vertical swing function distributes airflow evenly for better whole-room comfort.
  • Built-In Dehumidifier: Dehumidification mode helps remove excess humidity for a fresher indoor environment.

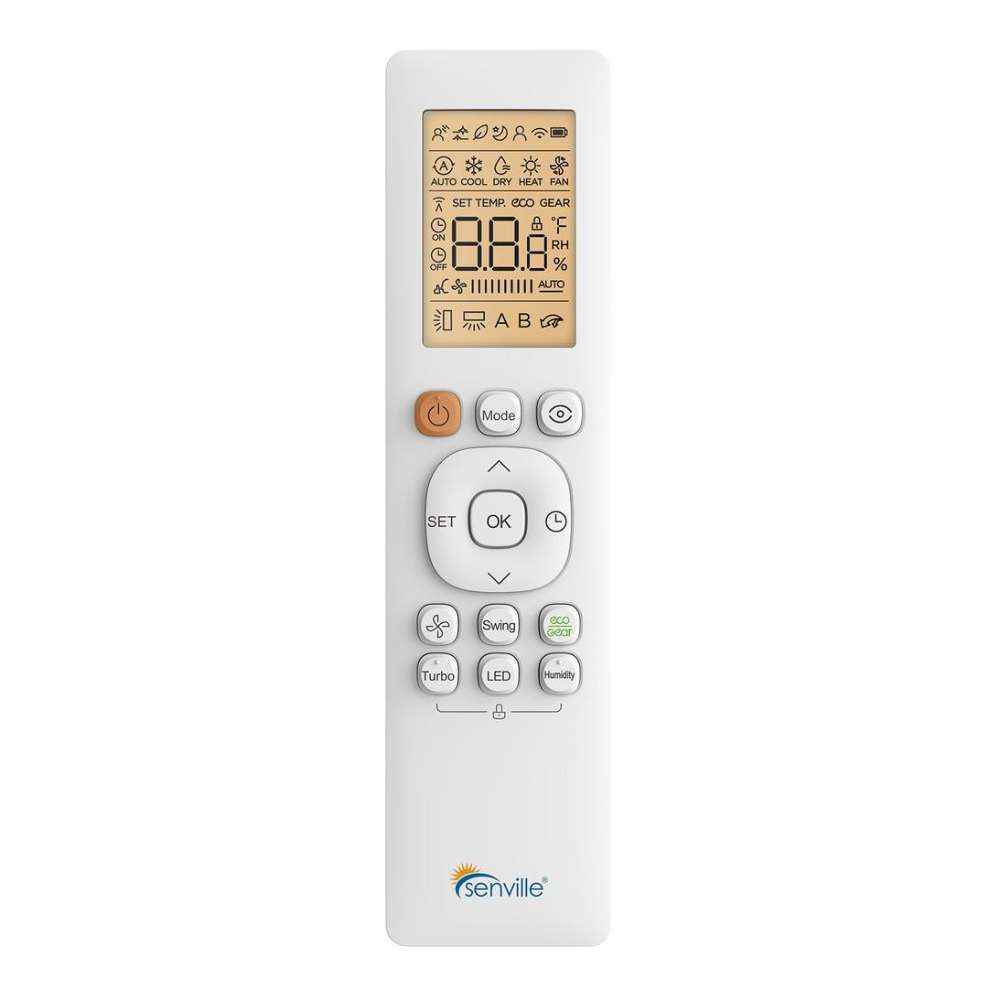

  • Follow Me Remote Control: Remote thermostat sensor adjusts temperatures based on your location for personalized comfort.
  • Low Ambient Cooling: Cooling operation remains effective in temperatures as low as -30C (-22F).
  • Self-Cleaning Function: Self-cleaning mode reduces moisture buildup and supports cleaner system performance.
  • PTC Heat Belt And Pan Heater: Integrated heat belt and pan heater help prevent freezing during cold-weather operation.
  • Bucket-Free Outdoor Unit: Bucket-free condenser design reduces maintenance and simplifies outdoor installation.
  • Self-Diagnosis System: Self-diagnostic technology quickly identifies system issues for easier troubleshooting.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
