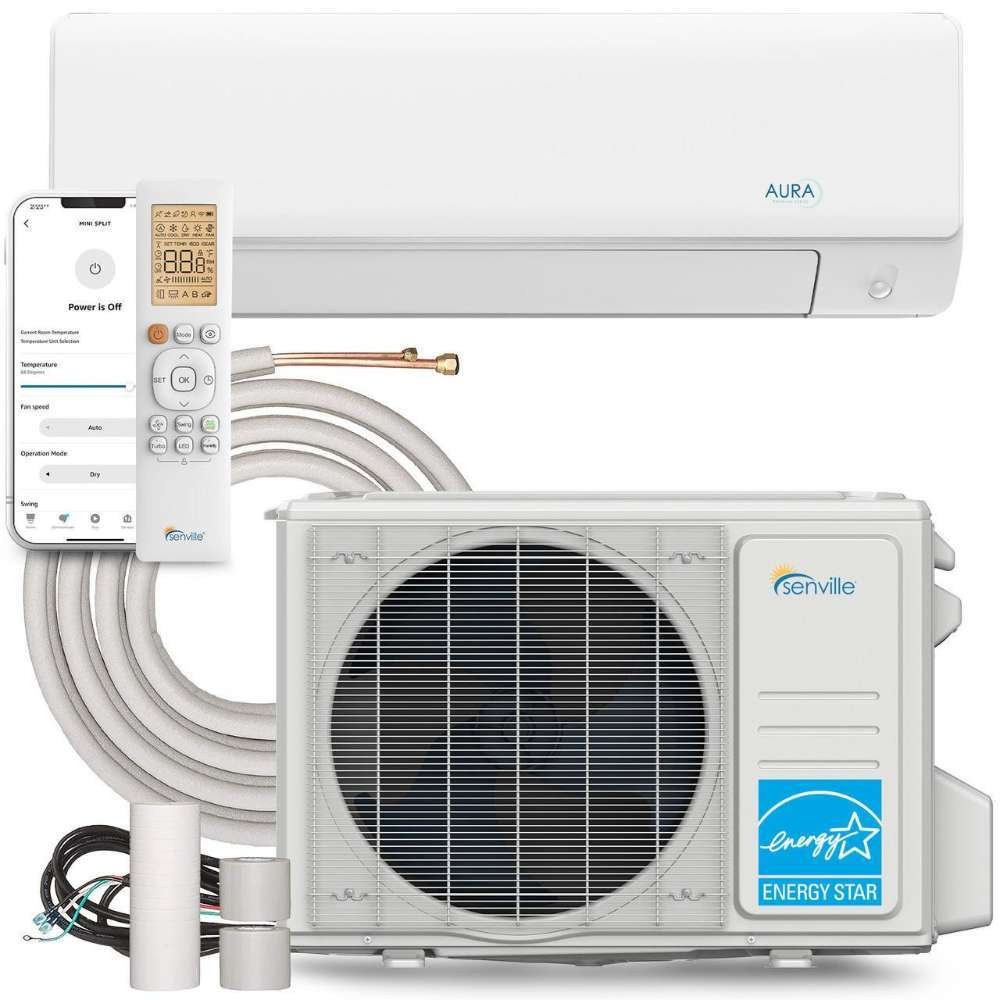

Senville 24000 BTU Mini Split Air Conditioner - Heat Pump - ELITE Series complete mini split system with indoor and outdoor units

Senville 24000 BTU Mini Split Air Conditioner - ELITE Series

Save $420.00
$2,489.99
$2,069.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 24000 BTU Mini Split Air Conditioner is a climate control appliance from the ELITE Series that functions as both an air conditioner and a heat pump. This household unit is available with multiple installation kit lengths, including 16ft, 25ft, and 50ft options, or can be purchased without a kit. It is a versatile choice for homeowners who need a high-capacity heating and cooling system with professional installation quote options.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Find Better Comfort With Senville Mini Split Cooling And Heating System

Senville 24000 BTU Mini Split Air Conditioner - Heat Pump - ELITE Series is a strong cooling and heating system for year-round home comfort. This ductless mini split AC offers 24000 BTU power, efficient heat pump performance, quiet operation, and smart controls. It is a good choice for larger rooms, open spaces, or homes that need reliable heating and cooling without bulky ductwork.

What's Included?

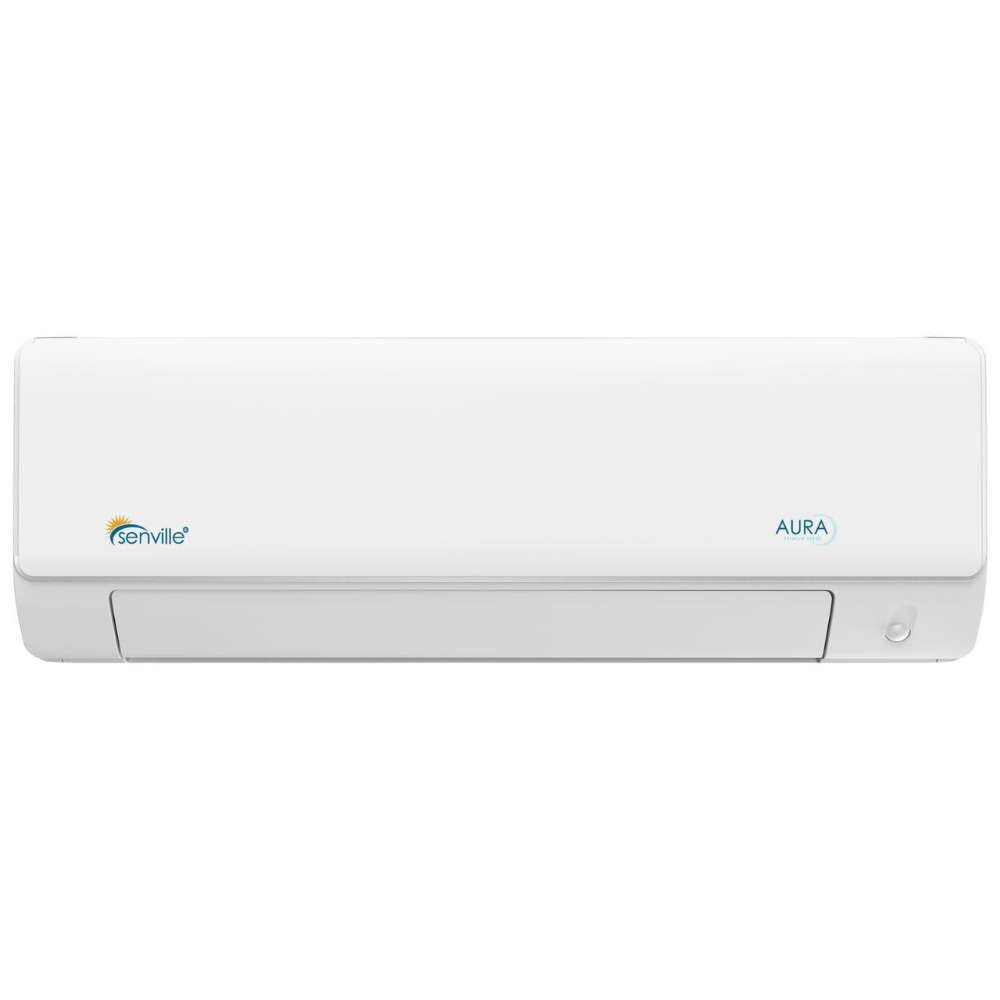

  • Indoor Unit

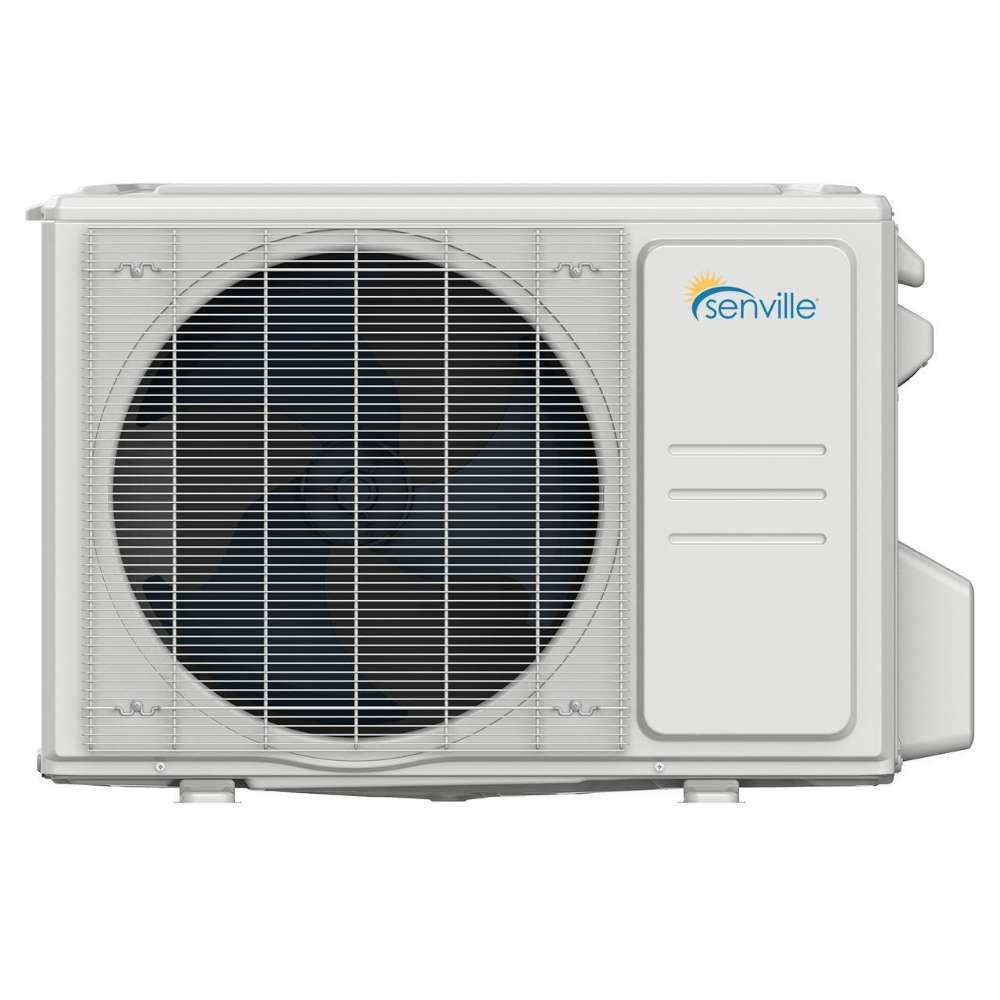

  • Outdoor Unit

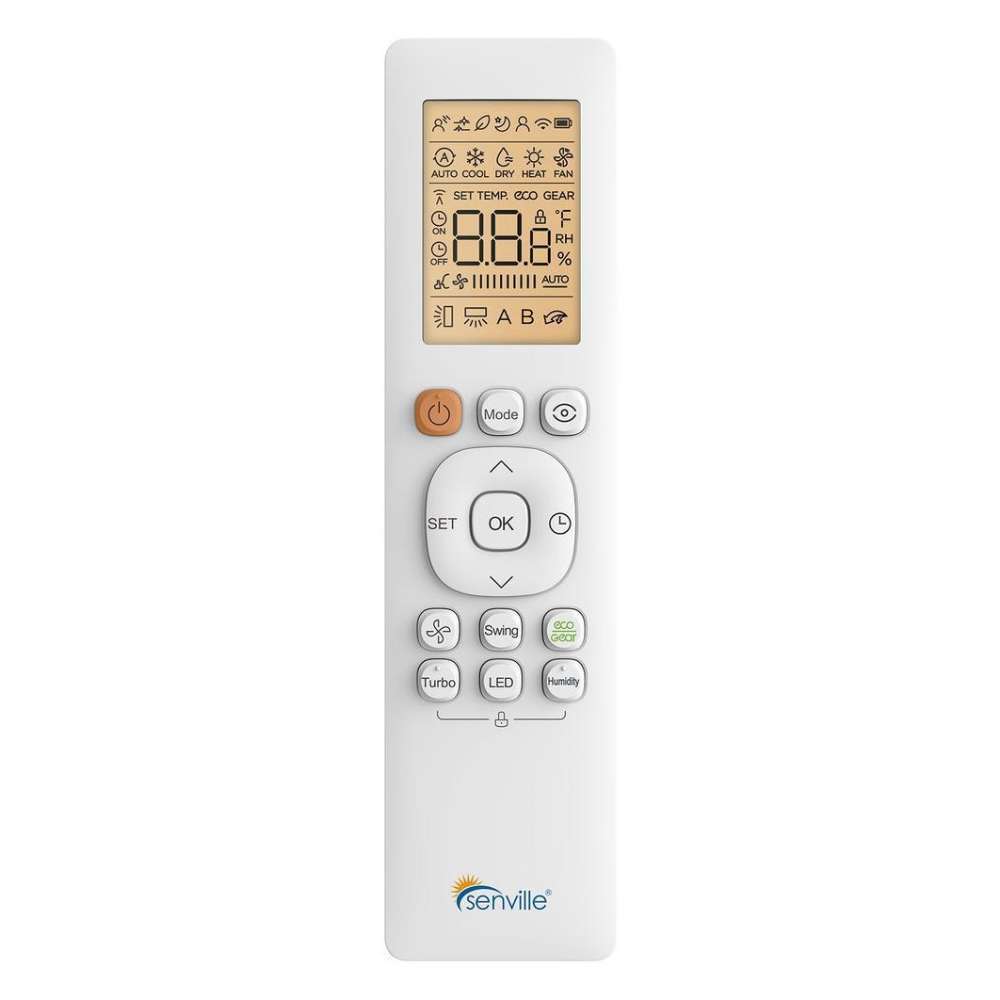

  • Wireless Remote Control
  • Alexa USB Kit

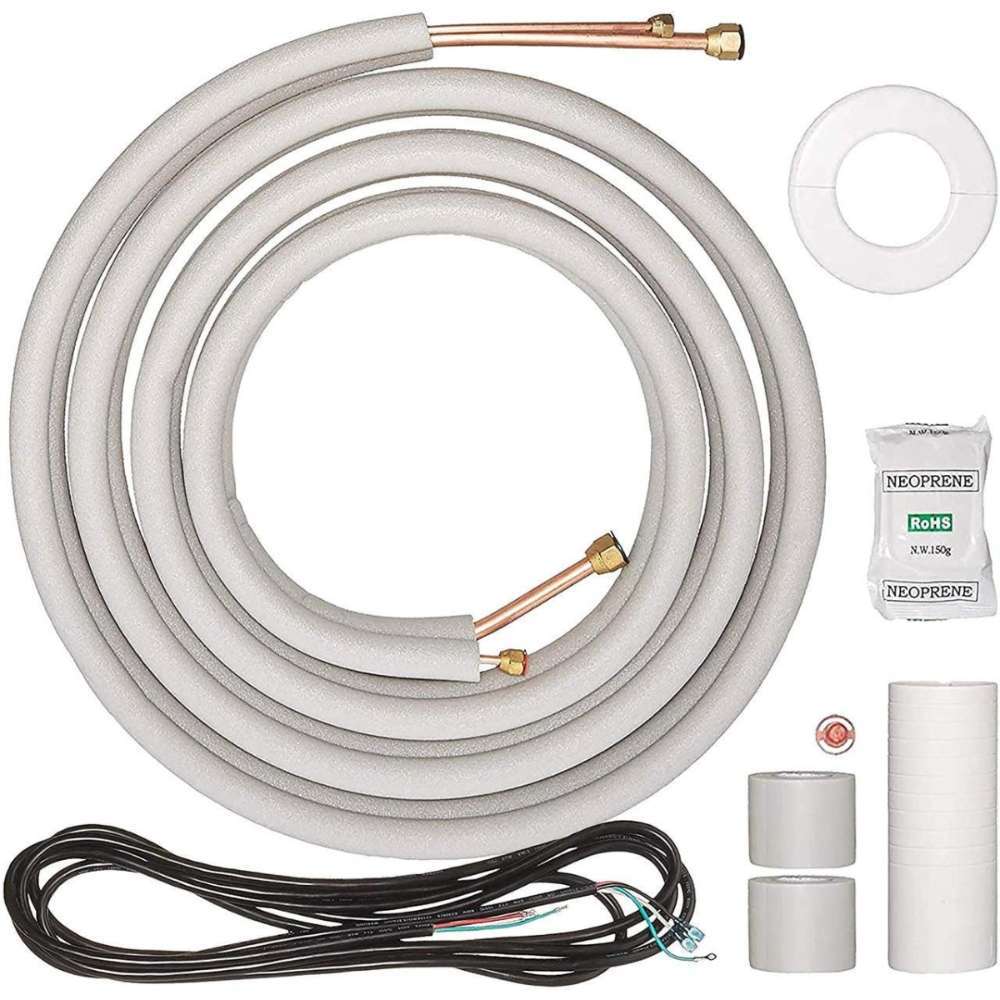

  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187–253

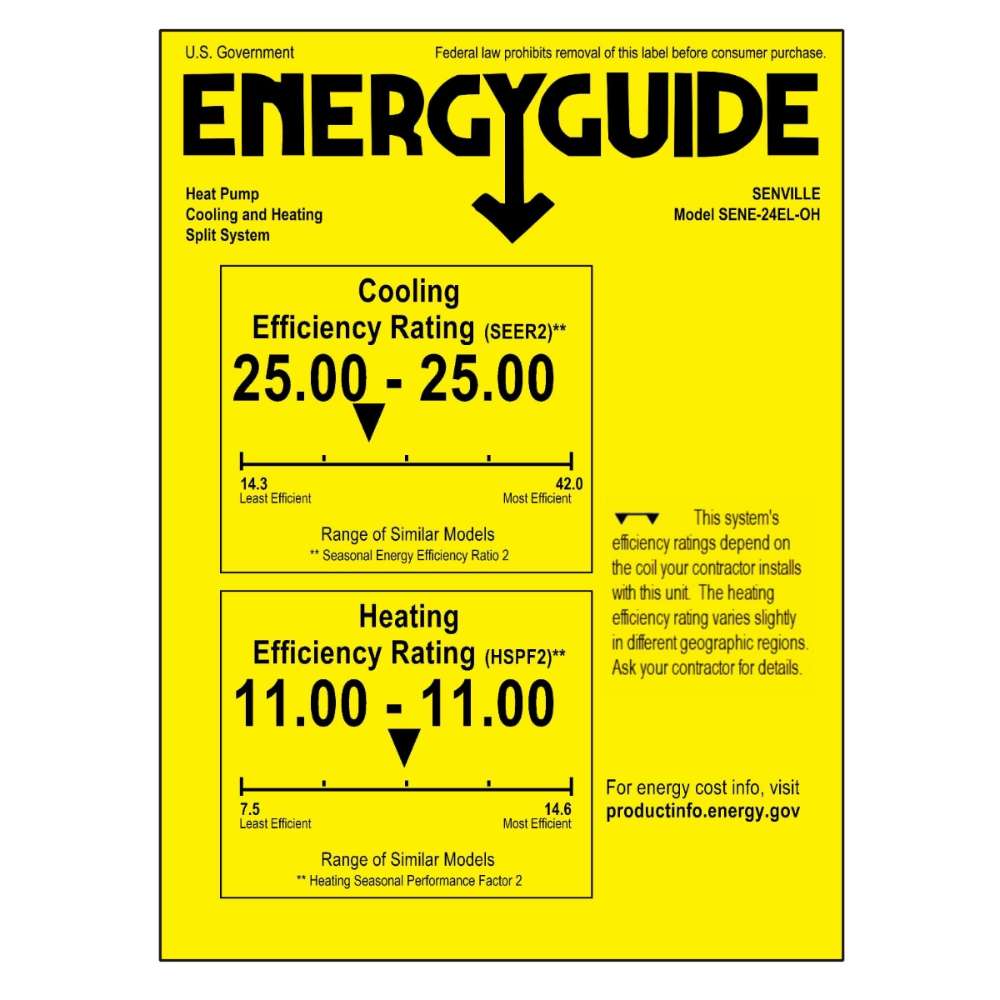

  • SEER2: 24.0
  • EER2: 11.0
  • Cooling Capacity (BTU): 24000
  • Cooling Range (BTU): 7300~26000
  • Cooling Input Range (W): 140~2100
  • Cooling Current Range (A): 1.1~9.5
  • Heating Capacity (BTU): 24000
  • Heating Range (BTU): 7300~25000
  • Heating Input Range (W): 380~1980
  • Heating Current Range (A): 2.1~8.8
  • HSPF2-4: 15
  • HSPF2-5: 12.4
  • COP W/W: 4.10
  • Minimum Circuit Ampacity (A): 24.0
  • Max. Fuse (A): 25
  • Indoor Air Flow (Turbo/H/M/L) CFM: 912.3 / 618.0 / 412.0 / 317.8
  • Indoor Noise Level (Turbo/H/M/L) dB: 56 / 47 / 41 / 33 / 30
  • Indoor Dimensions (WxDxH): 46.85 x 11.20 x 14.59 in
  • Indoor Weight: 64.2 lbs
  • Moisture Removal (L/H): 1.2
  • Outdoor Air Flow (Max) CFM: 2235
  • Outdoor Noise Level dB: 62.0
  • Outdoor Dimensions (WxDxH): 37.24 x 16.14 x 31.89 in
  • Outdoor Weight: 130.29 lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 63.49 oz
  • Refrigerant Pre-charge: 30 ft
  • Connection Wiring: 14*4 AWG
  • Thermostat Type: Remote Control
  • Alexa: Enabled
  • Warranty: 10 Years Compressor / 10 Years Parts

Features

  • Elite Series Efficiency: Elite Series mini split delivers 24000 BTU cooling and heating with high-efficiency inverter technology.
  • 24.0 SEER2 Performance: ENERGY STAR certified heat pump helps lower utility bills with efficient year-round climate control.
  • Cold Climate Heating: Ductless heat pump provides reliable heating in temperatures as low as -22°F (-30°C).
  • Alexa Smart Control: WiFi-enabled mini split supports Alexa voice control and remote app management from anywhere.
  • Ultra-Quiet Comfort: Low-noise air conditioning system creates a comfortable environment for bedrooms, offices, and living spaces.
  • Large Room Coverage: 24000 BTU mini split system efficiently heats and cools spaces from 1000 to 1500 square feet.
  • Smart Scheduling: Smart home integration allows custom schedules and temperature adjustments for improved energy savings.
  • Built-In Diagnostics: Self-diagnostic and leak detection features help maintain peak HVAC performance and simplify maintenance.
  • 10-Year Warranty: Backed by a 10-year compressor warranty and 10-year parts coverage for long-term reliability.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
