Senville 18000 BTU Mini Split AC/Heat - ELITE Series

The Senville 18000 BTU Mini Split Air Conditioner is a climate control appliance from the ELITE Series that functions as both an air conditioner and a heat pump. This household unit is available with multiple installation kit lengths including 16ft, 25ft, and 50ft options, or it can be purchased without a kit. Buyers can also choose to include a request for an installation quote at the time of purchase. This system is designed for homeowners who need a high-capacity heating and cooling solution for specific indoor zones.

Senville 18000 BTU Mini Split Air Conditioner - Heat Pump - ELITE Series is a ductless heating and cooling system built for year-round comfort. This 18000 BTU mini split heat pump offers efficient cooling, reliable heating, quiet operation, and smart control for easy use. It's a strong choice for bedrooms, living rooms, garages, and other medium-sized spaces that need steady temperature control.

Key specs

• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187–253
• SEER2: 25.6
• EER2: 15.0
• Cooling Capacity (BTU): 18000
• Cooling Range (BTU): 12600~27900
• Cooling Input Range (W): 940~2280
• Cooling Current Range (A): 3.2~8.5
• Heating Capacity (BTU): 20000
• Heating Range (BTU): 9700~29700
• Heating Input Range (W): 325~2440
• Heating Current Range (A): 2.8~10.2
• HSPF2-4: 16.2
• HSPF2-5: 10.0
• COP W/W: 4.40
• Minimum Circuit Ampacity (A): 24.9
• Max. Fuse (A): 25
• Indoor Air Flow (Turbo/H/M/L) CFM: 812 / 618 / 412 / 318
• Indoor Noise Level (Turbo/H/M/L) dB: 54.5 / 43.5 / 32.7 / 27
• Indoor Dimensions (WxDxH): 46.85 x 11.02 x 13.46 in
• Indoor Weight: 43.65 lbs
• Moisture Removal (L/H): 1.1
• Outdoor Air Flow (Max) CFM: 2235
• Outdoor Noise Level dB: 57
• Outdoor Dimensions (WxDxH): 37.24 x 16.14 x 31.89 in
• Outdoor Weight: 130.29 lbs
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge: R454B / 63.45 oz
• Refrigerant Pre-charge: 25 ft
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Alexa: Enabled
• Warranty: 10 Years Compressor / 10 Years Parts

Features

• Elite Series Performance: High-efficiency 18000 BTU mini split delivers powerful heating, cooling, and quiet year-round comfort.
• 25.6 SEER2 Efficiency: ENERGY STAR certified heat pump helps lower energy bills by up to 56% annually.

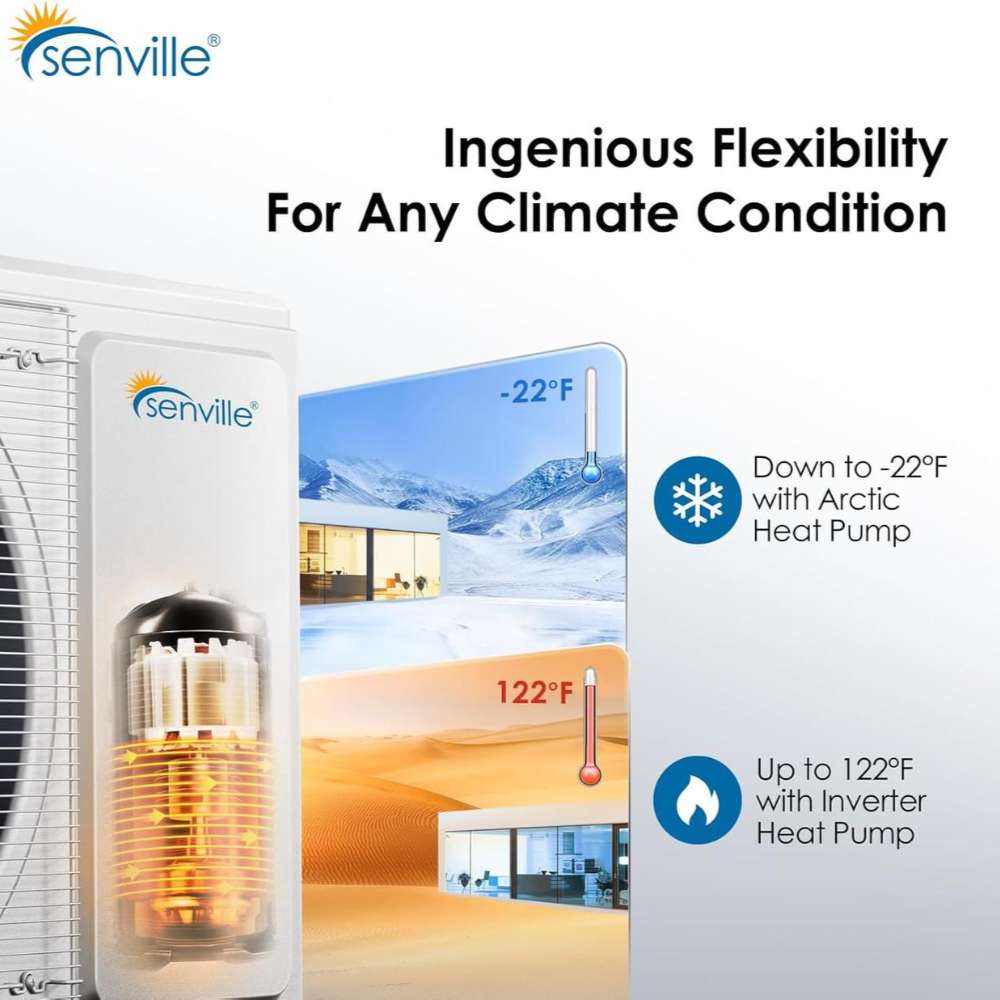

• Cold Climate Heating: Ductless heat pump provides reliable heating in temperatures as low as -22°F.
• Alexa Smart Control: Control your mini split AC with Alexa voice commands or the mobile app.
• Ultra-Quiet Operation: Whisper-quiet cooling and heating system is ideal for bedrooms, offices, and living spaces.
• Large Room Coverage: 18000 BTU air conditioner efficiently heats and cools spaces from 750 to 1000 square feet.
• Smart Home Compatibility: Alexa-enabled HVAC system supports scheduling, remote control, and energy-saving automation.
• Self-Diagnostics System: Built-in diagnostics and leak detection help maintain peak HVAC performance.
• Professional Installation: Certified installation ensures optimal efficiency, safety, and warranty protection.
• 10-Year Warranty: Backed by a 10-year compressor and parts warranty for long-term peace of mind.

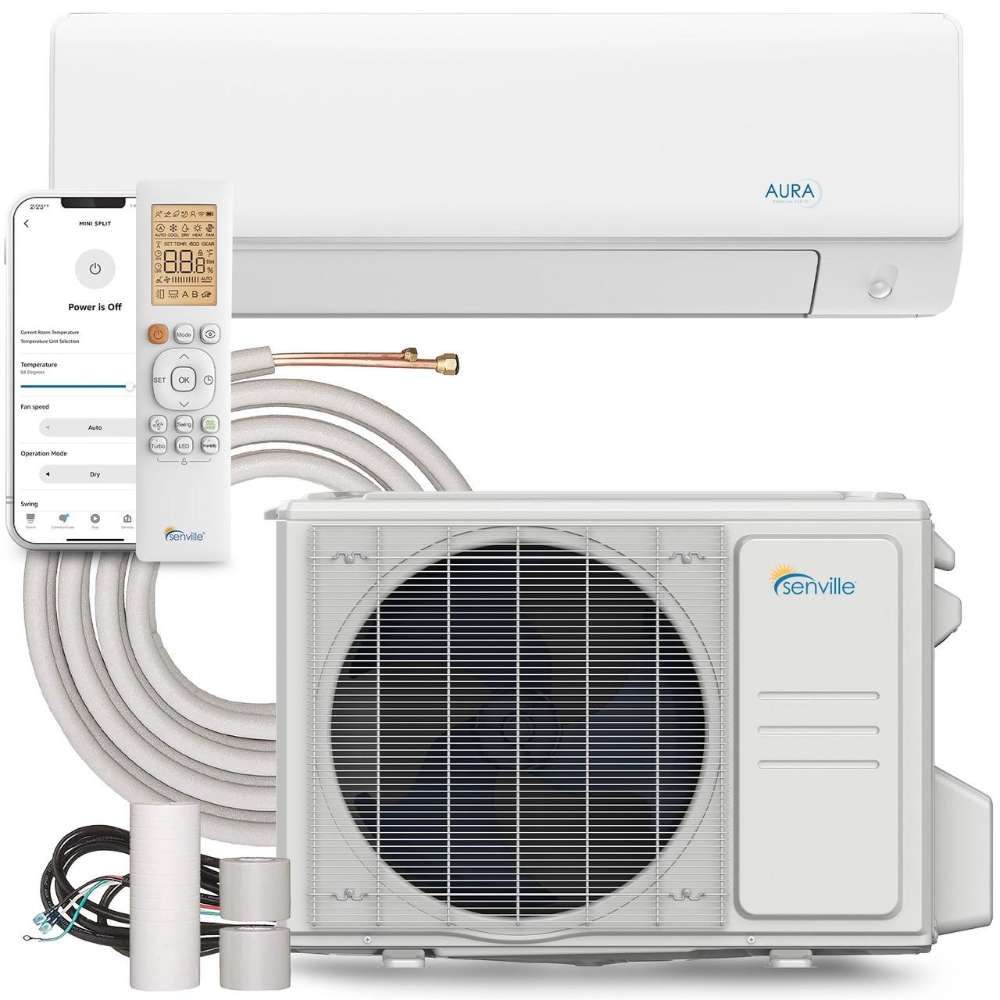

What's included

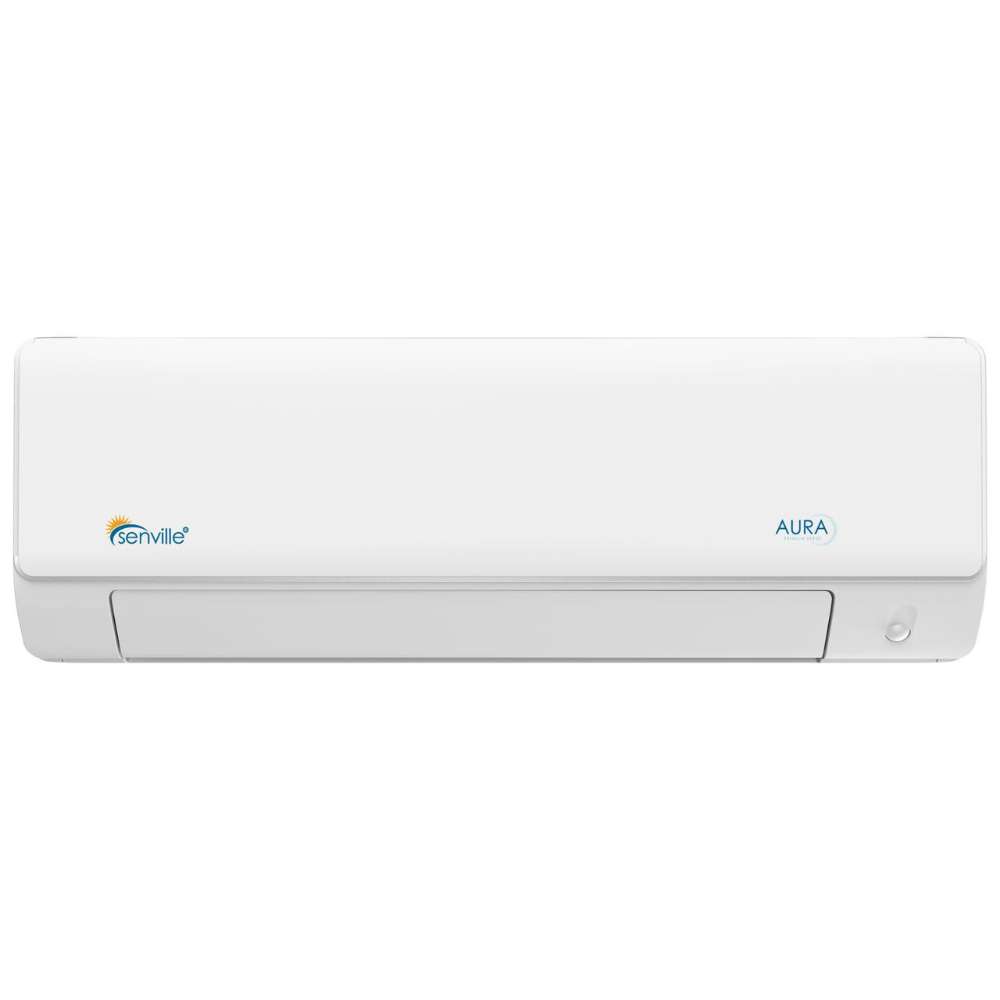

• Indoor Unit

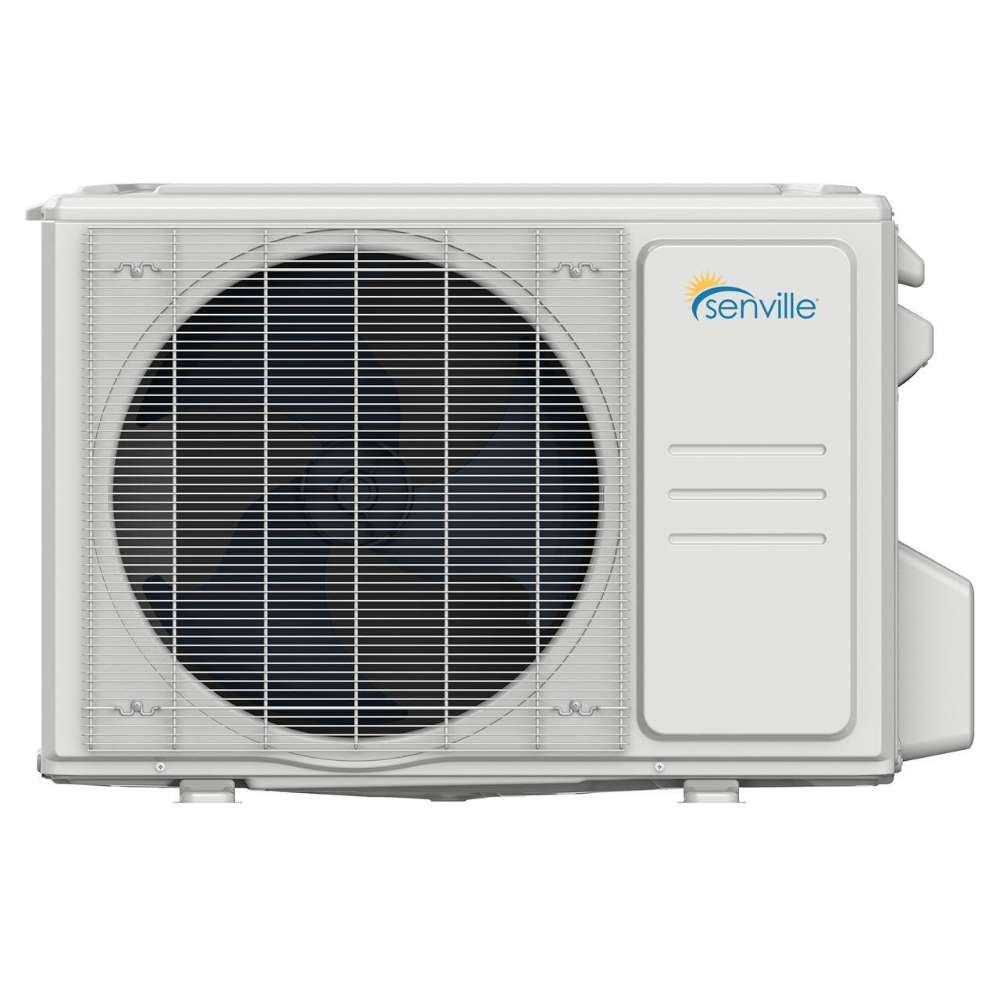

• Outdoor Unit

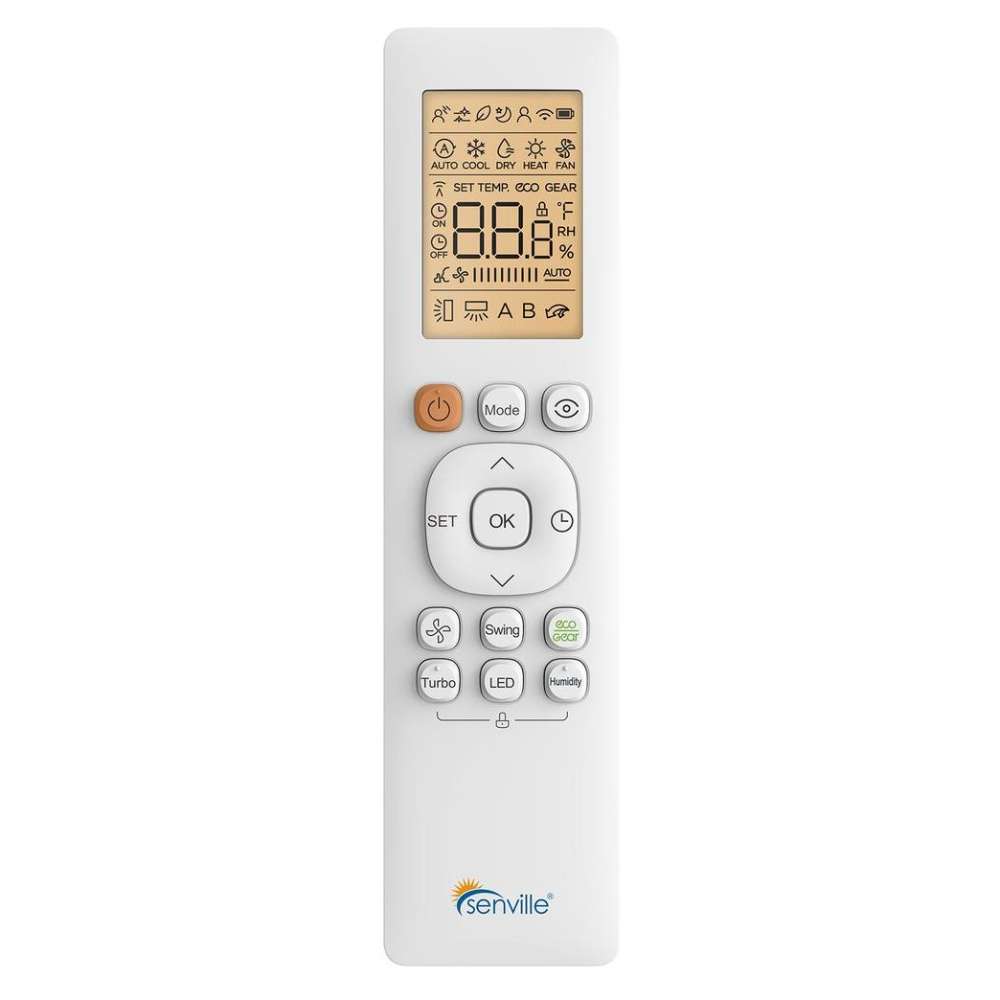

• Wireless Remote Control
• Alexa USB Kit
• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
