ACiQ 36000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $496.49
$2,199.00
$1,702.51
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 2,000 square feet.

Large Single Areas:

  • Open-concept living rooms
  • Master suites
  • Studio apartments
  • Retail or office spaces

Light Commercial & Residential Applications:

  • Workshops
  • Restaurants
  • Server rooms
  • Large basements or rec rooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Get High-Capacity, High-Efficiency Comfort With the ACiQ 36000 BTU 20 SEER2 Mini Split

ACiQ 36000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a heating and cooling system for whole floors, open-concept homes, and large garages up to 2,000 square feet. It delivers 36,000 BTU of cooling and heating with a 20 SEER2 rating and an 8.1 HSPF2 rating. The condenser is rated to heat at outdoor temperatures down to -4°F and cool in outdoor temperatures up to 127°F. Built-in WiFi control lets you manage this ductless mini split from a compatible device. It runs on 208/230V power and includes a pre-charged 16 ft line set, with a 6-year compressor and 4-year parts warranty after online registration.

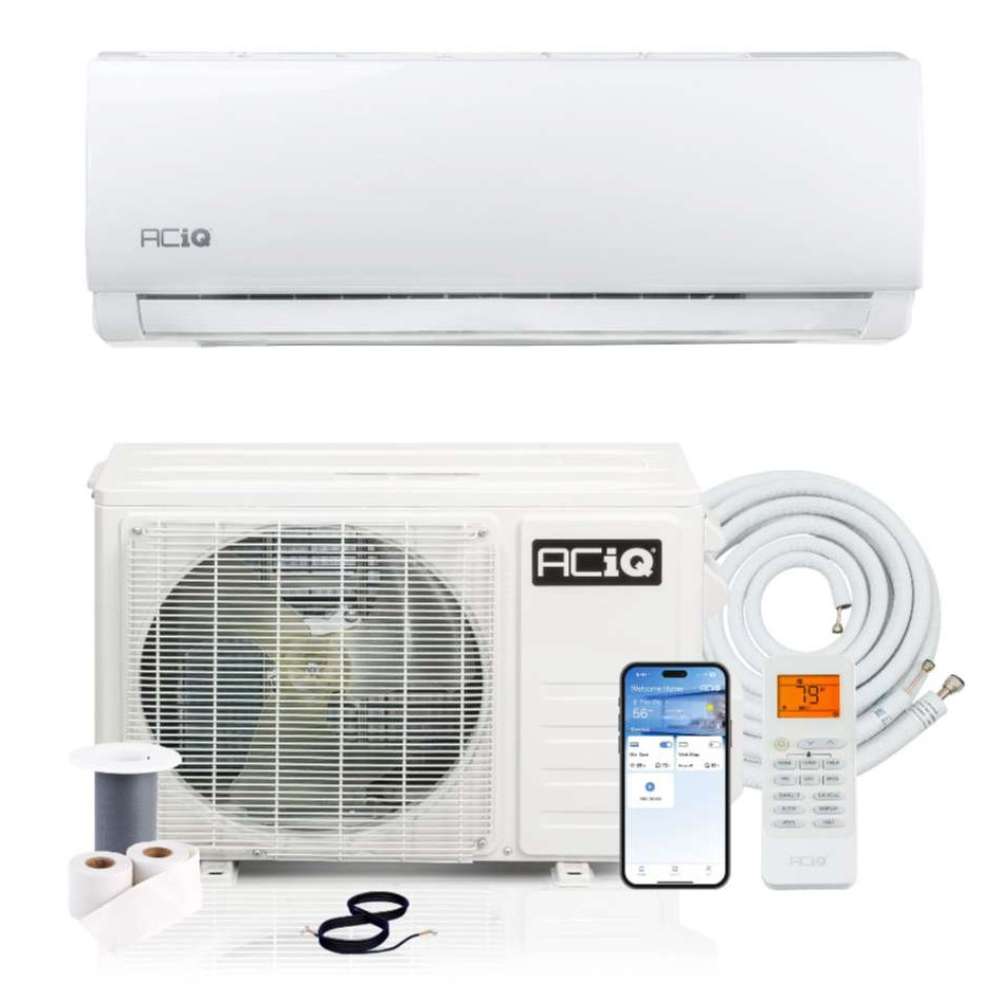

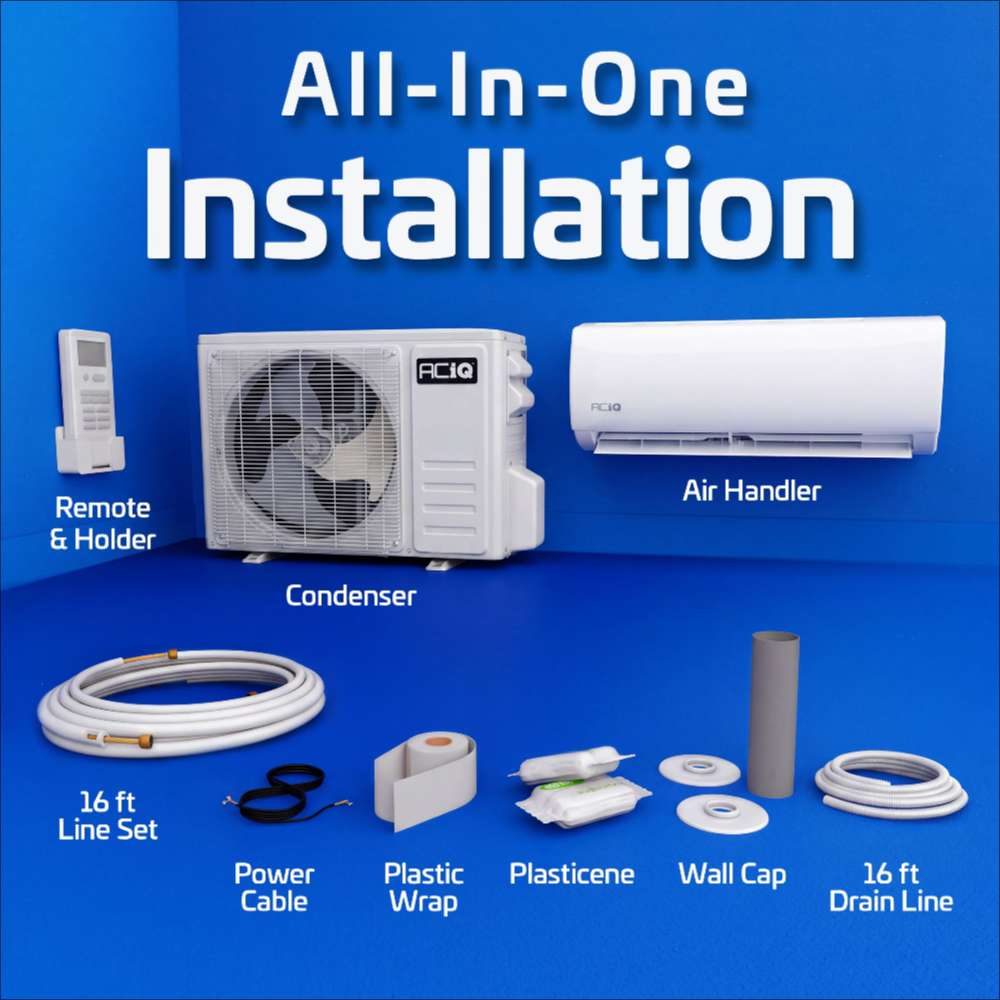

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

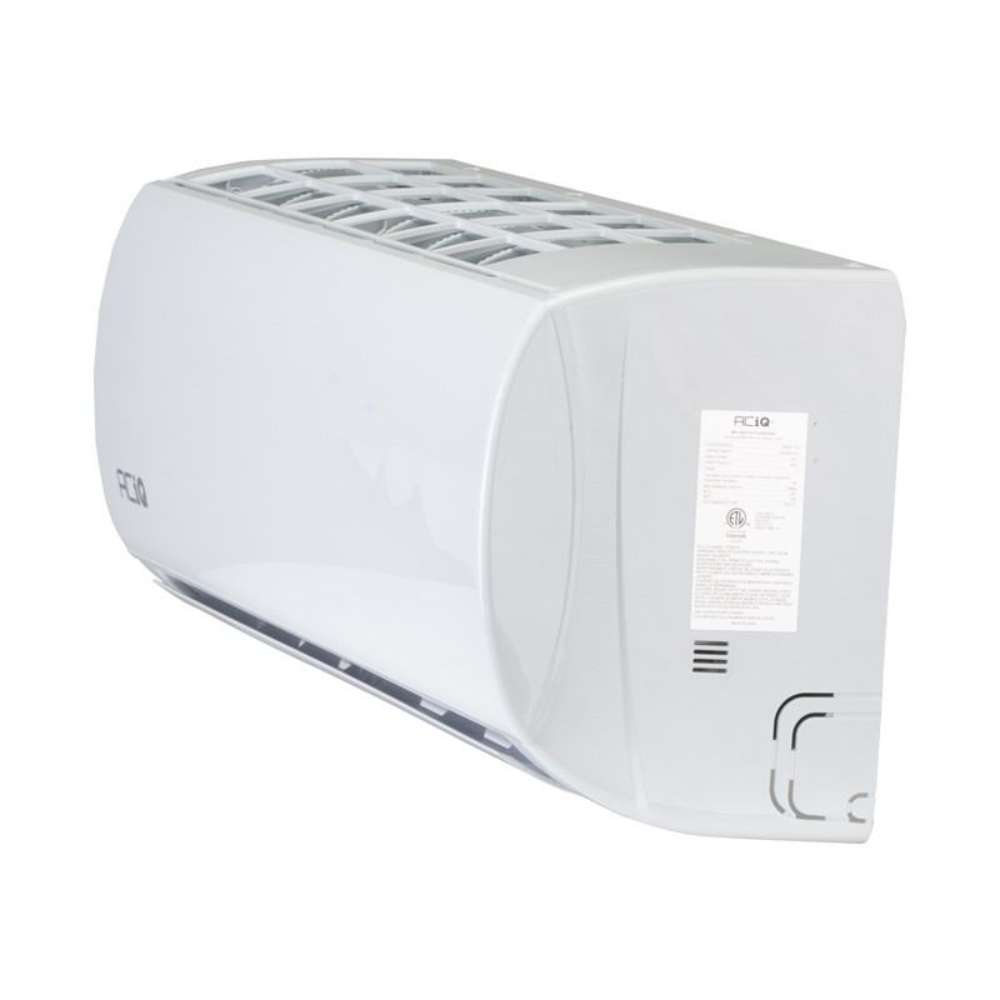

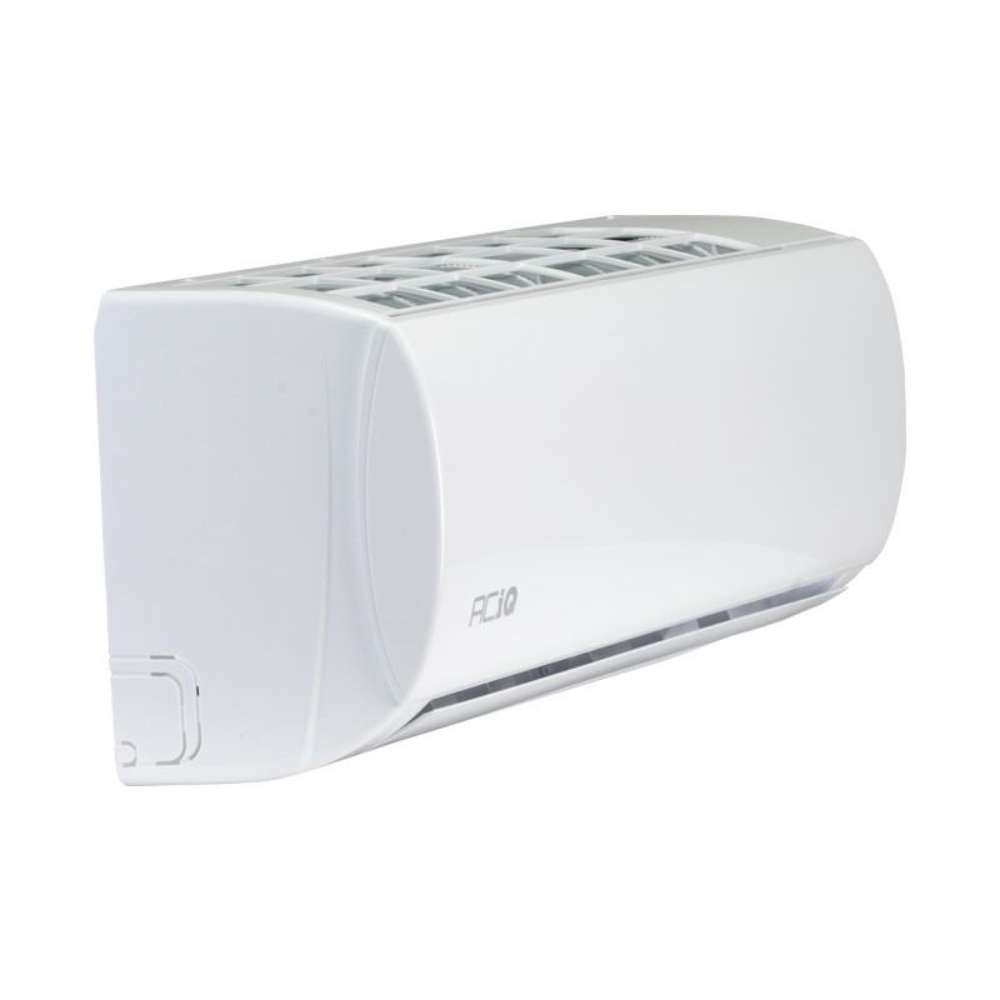

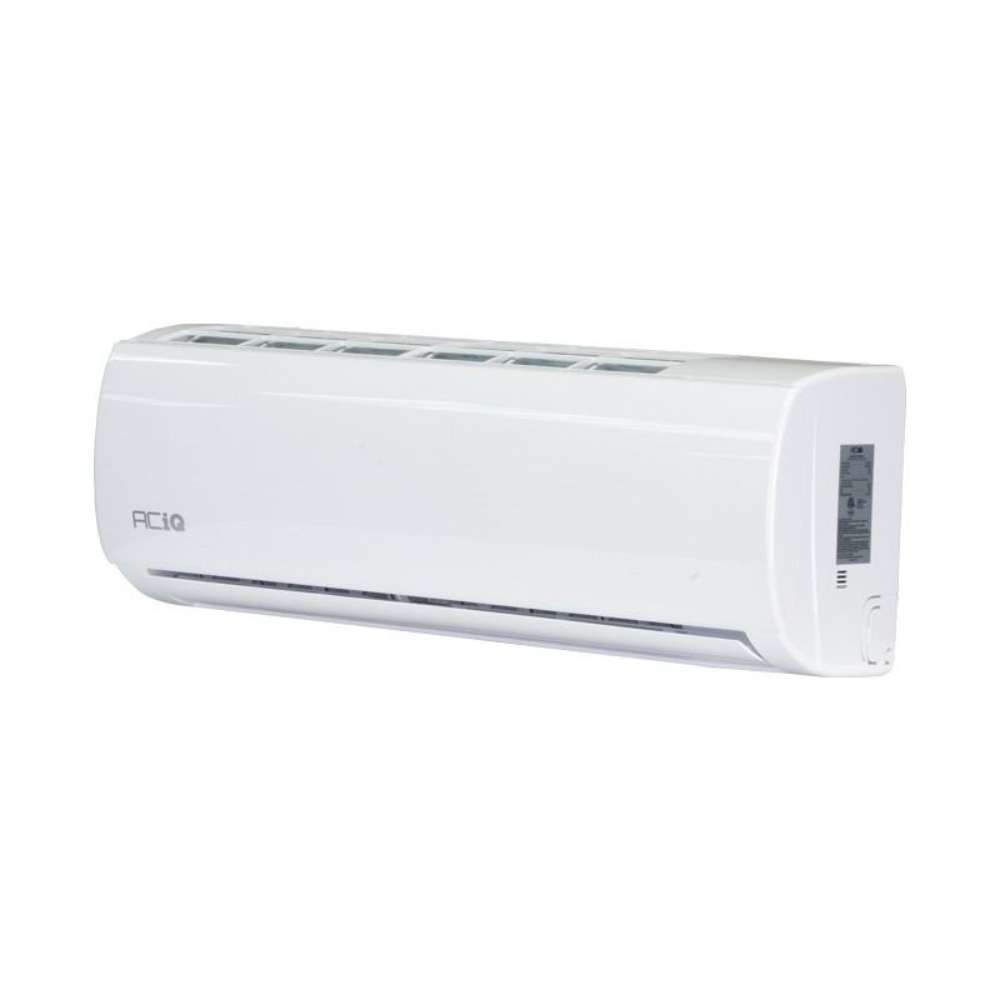

Air Handler Specs

  • Weight: 48.5 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACiQ-K36W-HP230, ACIQ-K36W-W-HP230B
  • UPC: 810175551999
  • Controller: Included
  • Cooling BTU: 36,000 BTU
  • Heating BTU: 36,000 BTU
  • Maximum CFM: 847 Turbo / 705 High / 588 Medium / 470 Low
  • Decibel Level: 37–54 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 5/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 36,000 BTU / 3 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

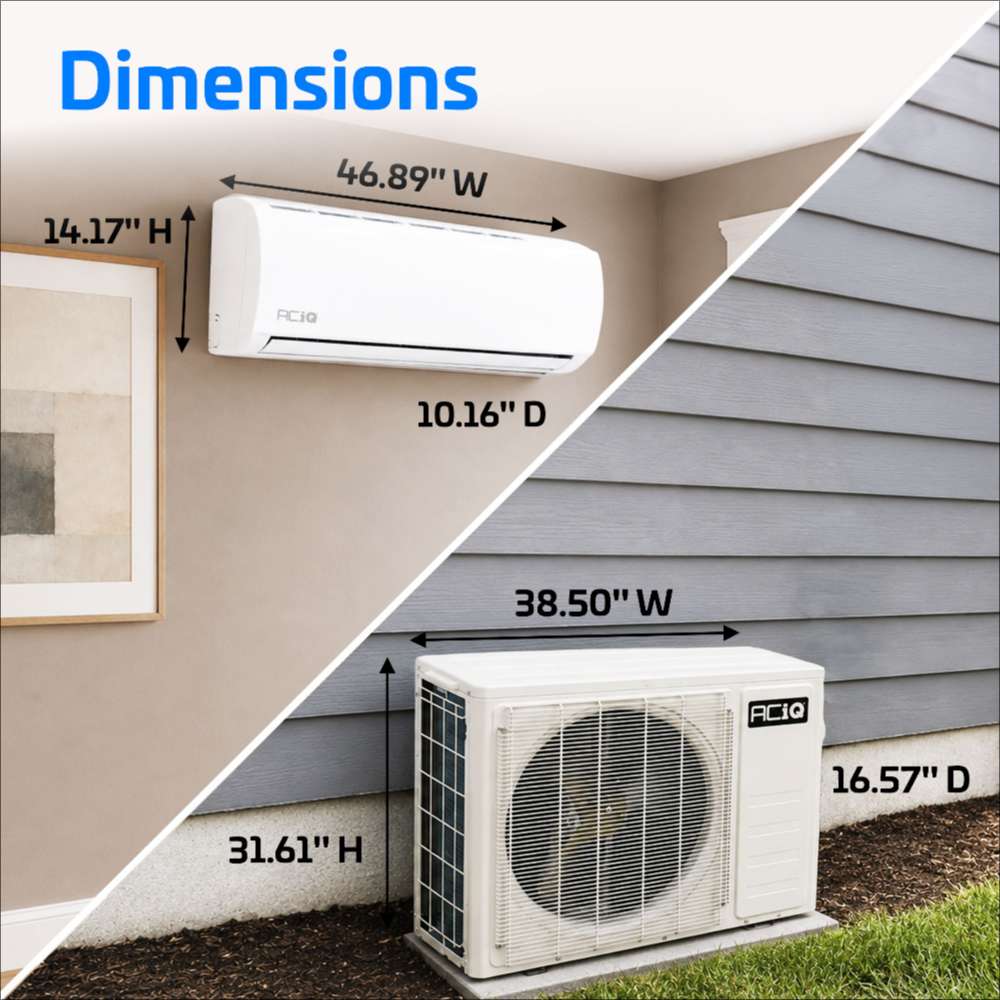

  • Height: 14.17"
  • Width: 46.89"
  • Depth: 10.16"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

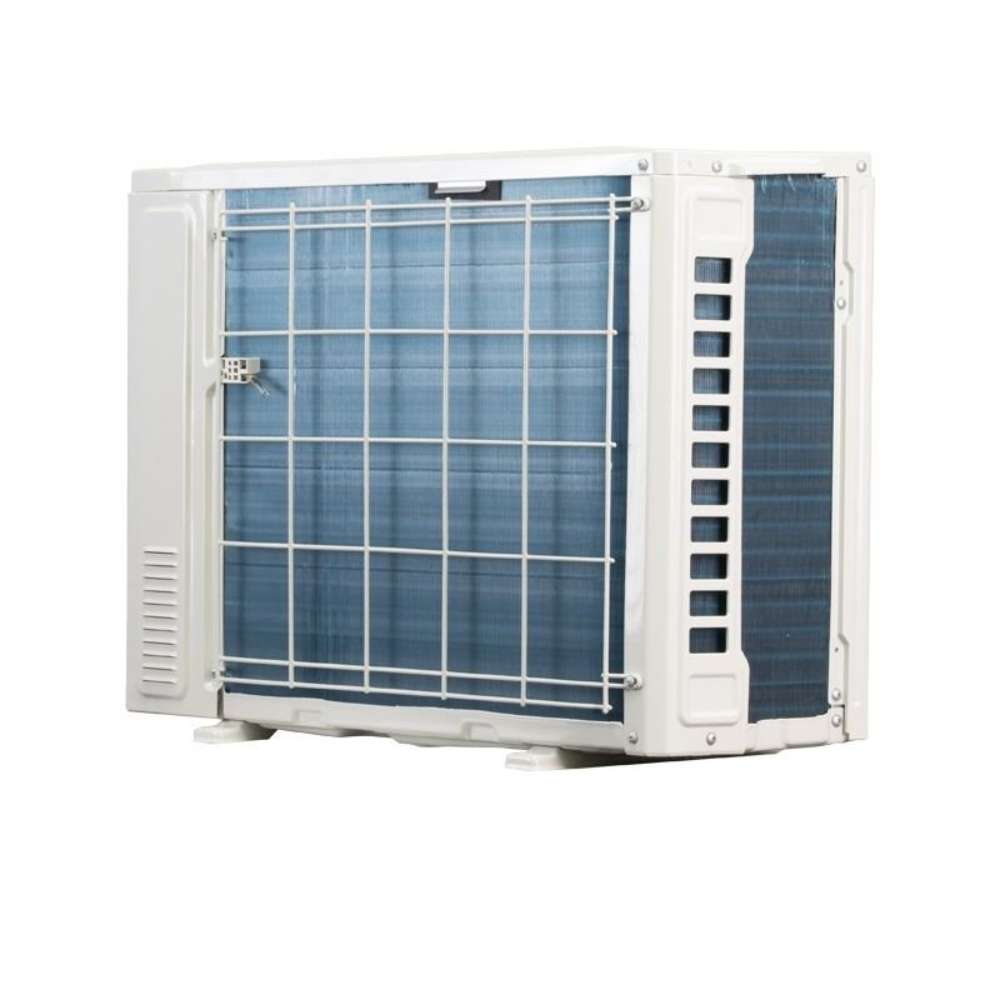

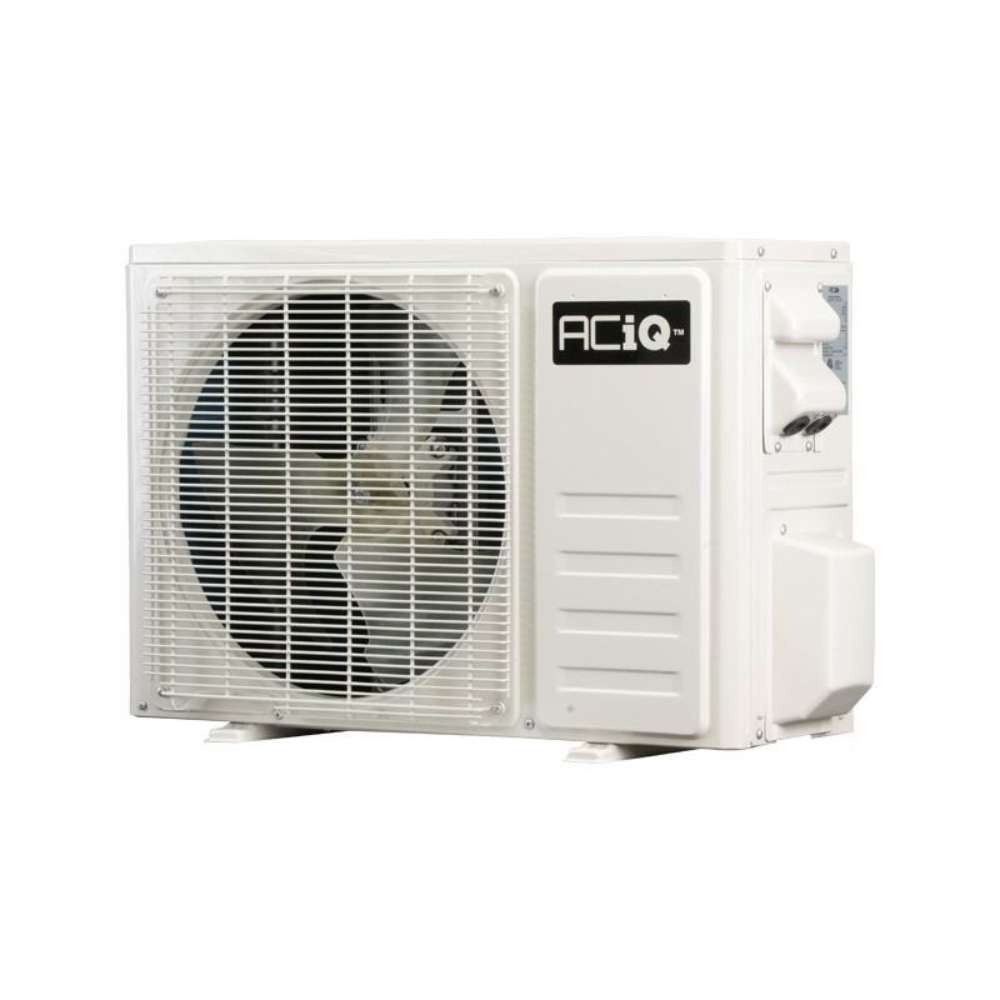

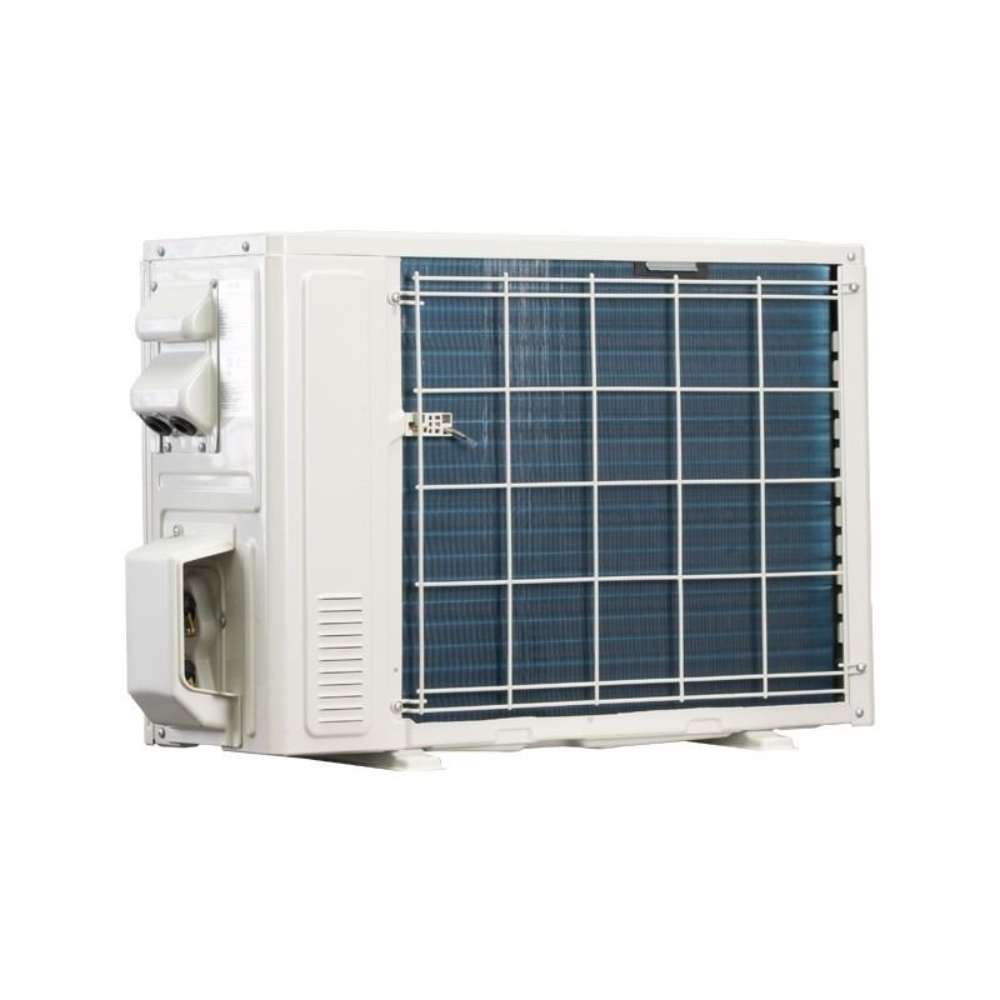

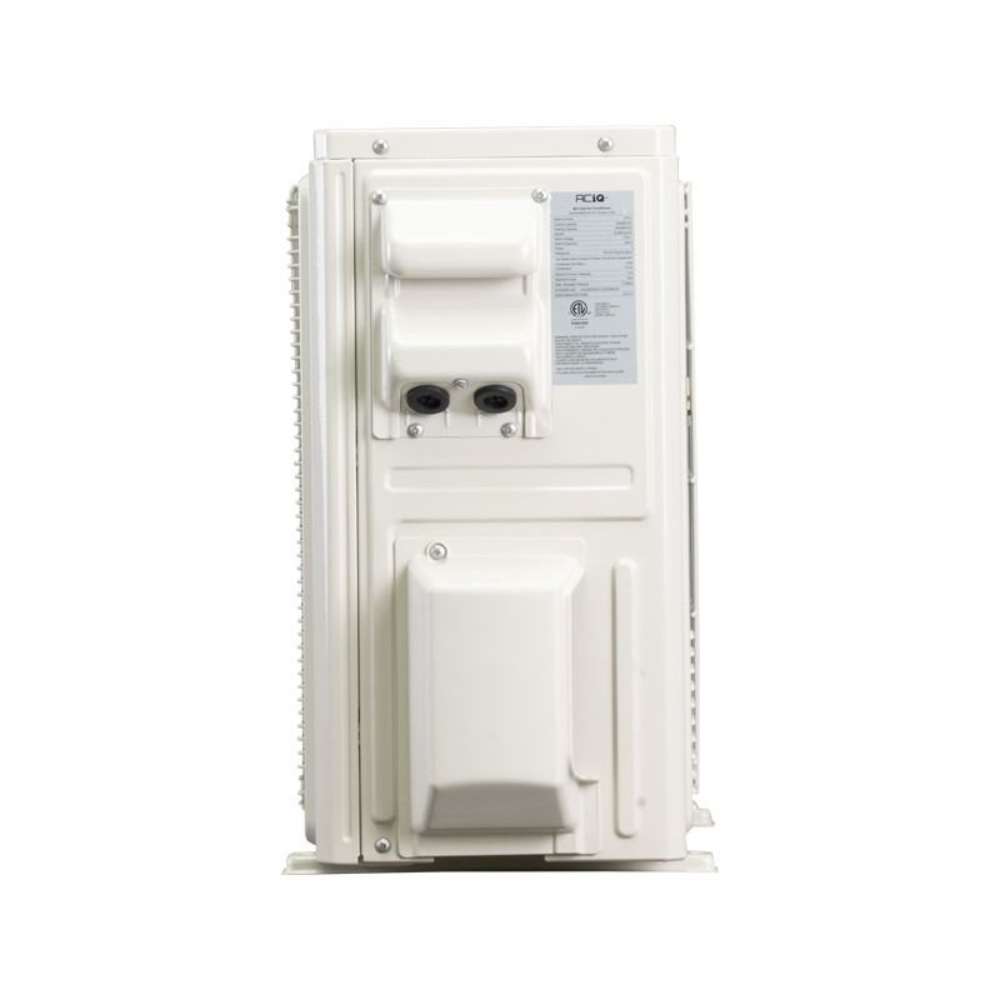

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.6 lbs, pre-charged for 16 ft line set
  • Weight: 122.4 lbs
  • AHRI Certificate Number: 218451499, 218157781
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K36Z-HP230B
  • UPC: 810175552132
  • Cooling BTU: 36,000 BTU
  • Heating BTU: 36,000 BTU
  • Decibel Level: 63 dBA
  • Refrigerant: R32
  • HSPF2: 8.1
  • SEER2 Efficiency: 20
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 5/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 35 Amps
  • Min. Breaker Size: 22 Amps
  • BTU/Tonnage: 36,000 BTU / 3 Ton
  • Outdoor Heating Temperature Range: -4°F to 75°F
  • Outdoor Cooling Temperature Range: 5°F to 127°F
  • Zone Compatibility: Single Zone
  • Height: 31.61"
  • Width: 38.50"
  • Depth: 16.57"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Provides 36,000 BTU of cooling and heating for spaces up to 2,000 square feet.
  • 20 SEER2 and 8.1 HSPF2 ratings help reduce energy use year-round.
  • Rated to heat at outdoor temperatures down to -4°F and cool up to 127°F.
  • Suited to whole floors, open-concept homes, workshops, and light commercial spaces.
  • Built-in WiFi lets you change temperature and modes from a compatible smart device.
  • I FEEL temperature sensing and Auto Mode help keep comfort even across a large area.
  • Turbo Mode speeds up heating or cooling when temperatures swing.
  • ECO Mode helps save energy during everyday use.
  • Multi-directional airflow moves conditioned air through wide, open spaces.
  • PureClean air sterilization and Self-Clean mode help keep the indoor unit cleaner.
  • Registering online adds a 6-year compressor warranty and a 4-year parts warranty.
