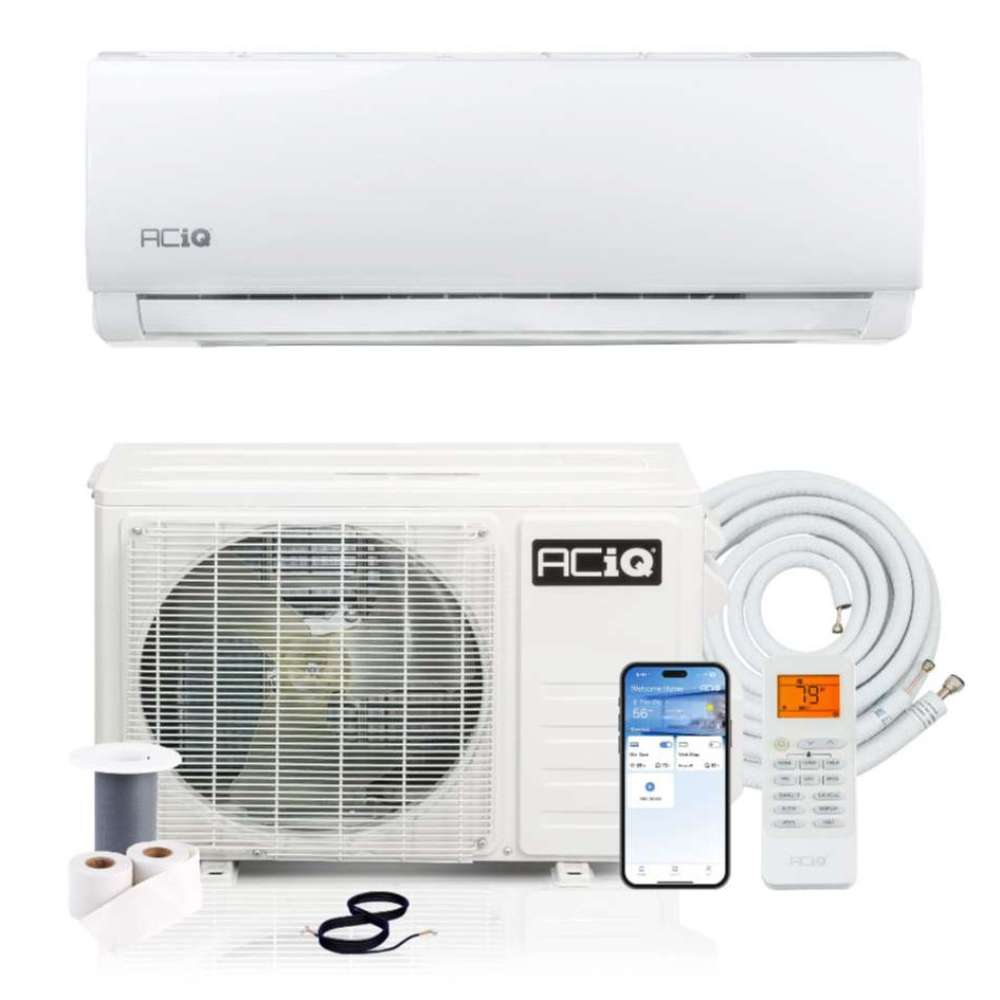

Complete ACiQ 36000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System kit laid out with the white wall unit on top, condenser, coiled white line set, remote and phone app below

ACiQ 36000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $447.94
$2,050.00
$1,602.06
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 2,000 square feet.

Large Single Areas:

  • Open-concept living rooms
  • Master suites
  • Studio apartments
  • Retail or office spaces

Light Commercial & Residential Applications:

  • Workshops
  • Restaurants
  • Server rooms
  • Large basements or rec rooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Heat and Cool Up to 2,000 Sq. Ft. With the ACiQ 36000 BTU 17 SEER2 Mini Split

ACiQ 36000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a high-capacity wall mounted mini split for spaces up to 2,000 square feet. It suits open-concept living rooms, whole floors, large garages, workshops, and light commercial spaces. The system delivers 35,000 BTU of cooling and 35,400 BTU of heating with a 17 SEER2 efficiency rating. Built-in WiFi control lets you adjust it from a compatible device, and the 208/230V condenser provides heating at outdoor temperatures down to 5°F. It ships with a pre-charged 16 ft line set and installation accessories, backed by a 6-year compressor and 4-year parts warranty with online registration.

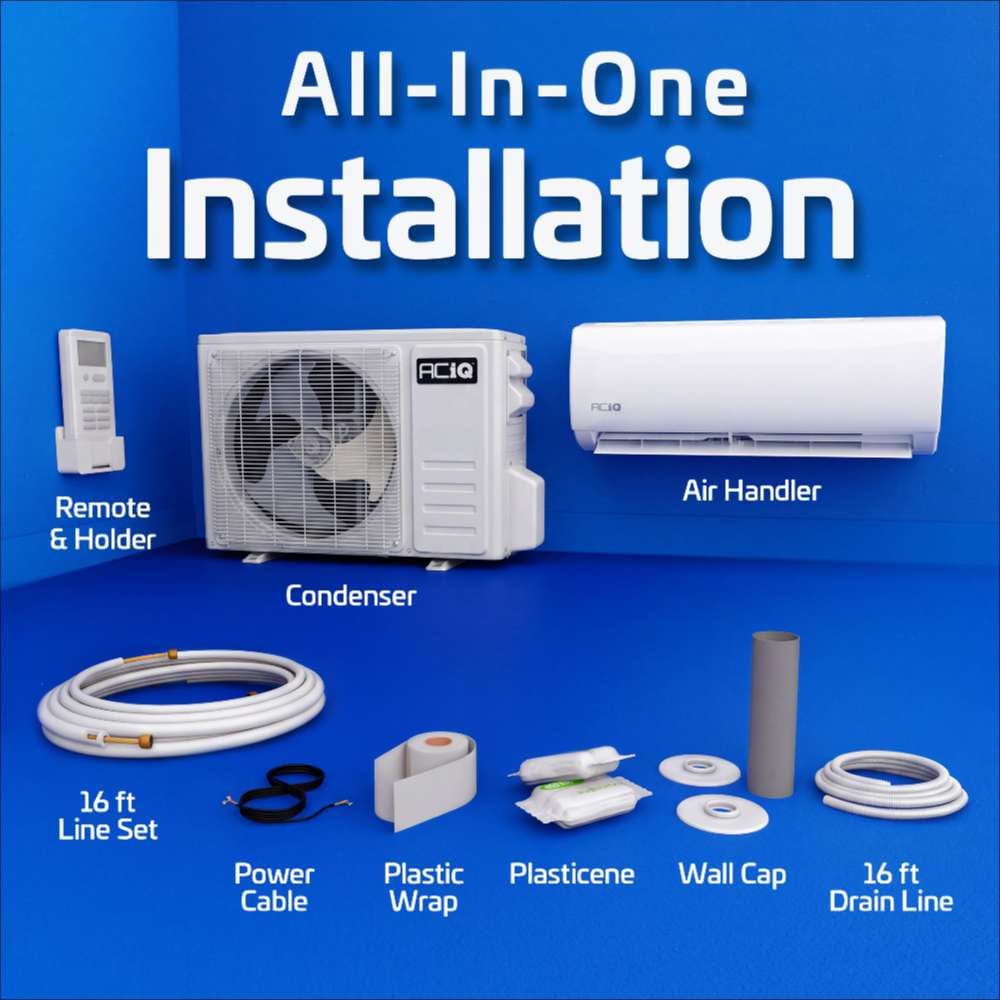

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

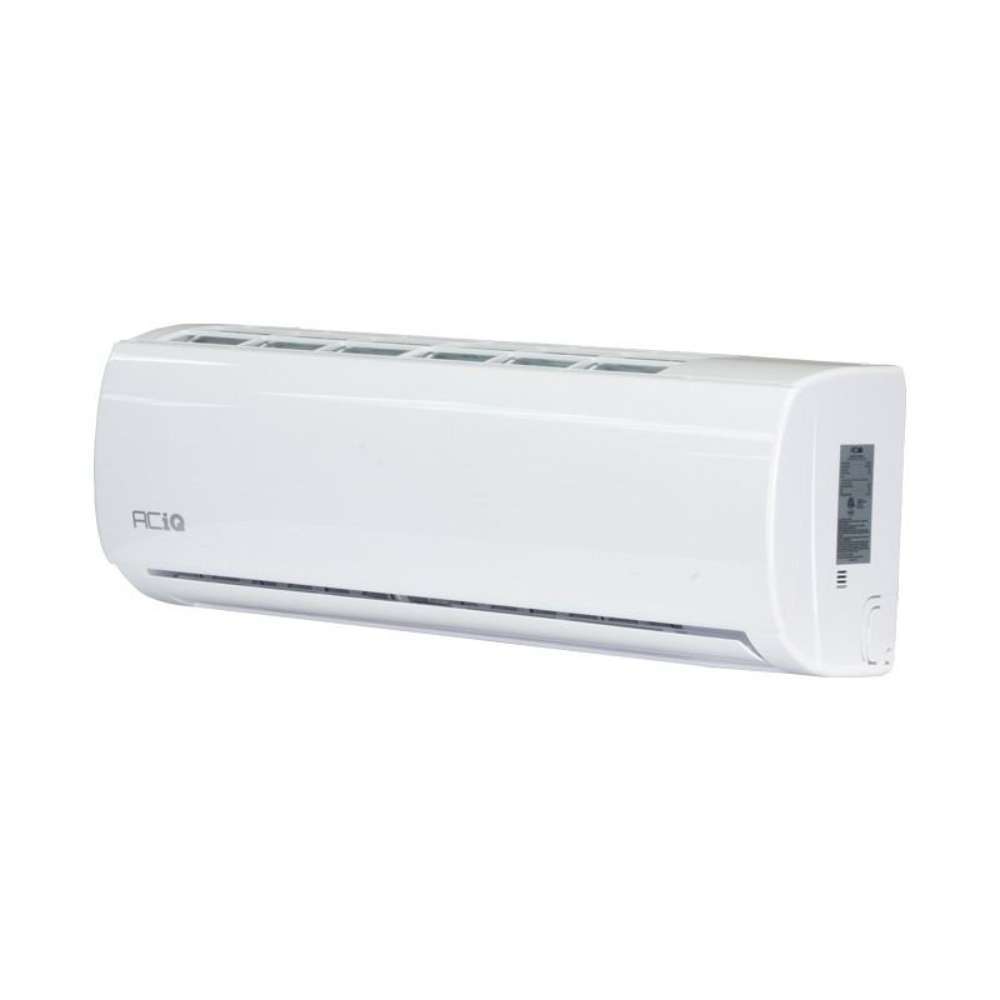

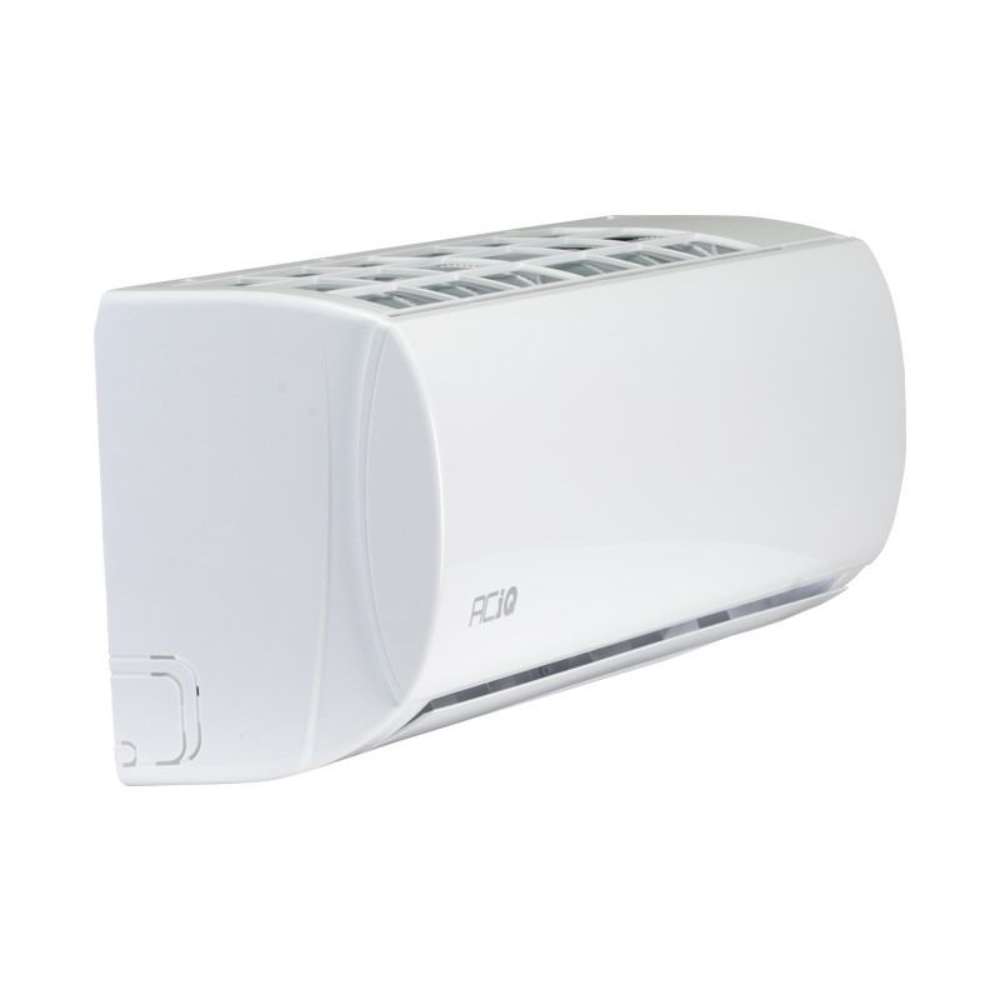

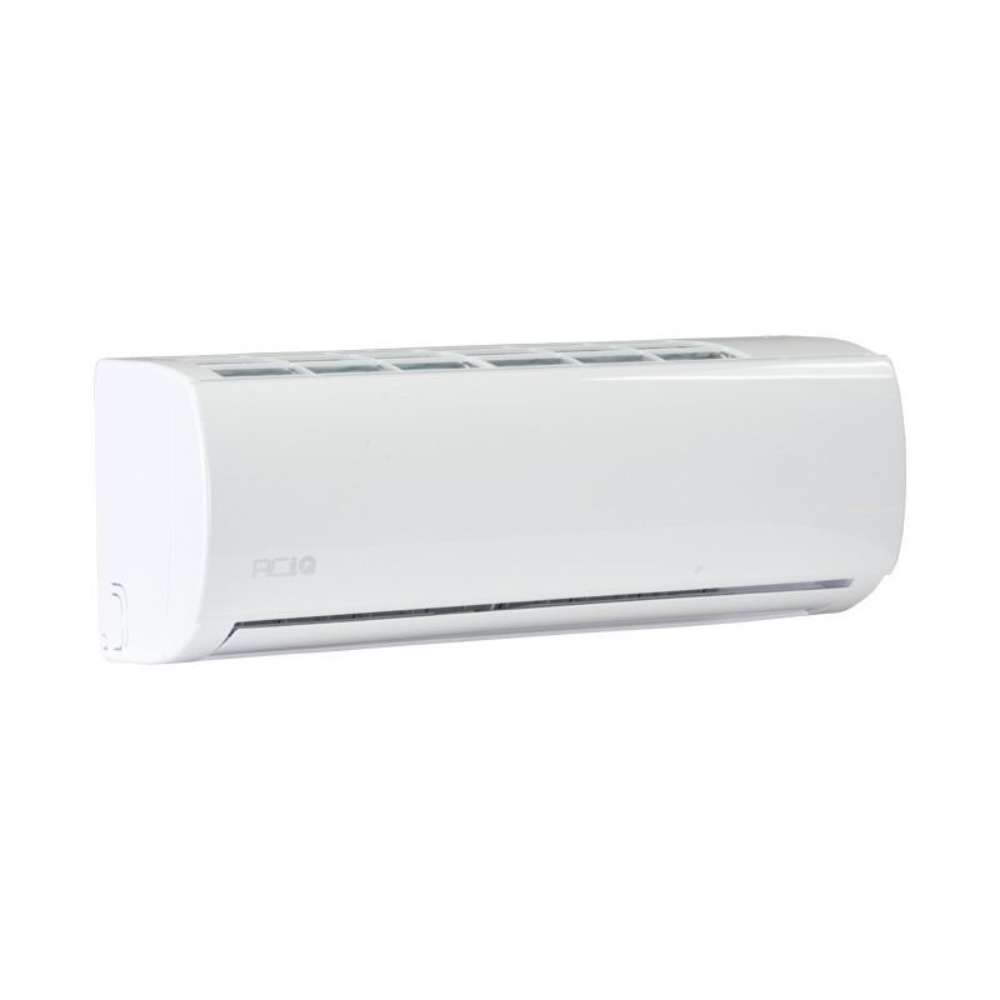

Air Handler Specs

  • Weight: 46.3 lbs
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553825
  • Controller: Included
  • Cooling BTU: 35,000 BTU
  • Heating BTU: 35,400 BTU
  • Maximum CFM: 882 Turbo / 741 High / 564 Medium / 458 Low
  • Decibel Level: 39–55 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 5/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 36,000 BTU / 3 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

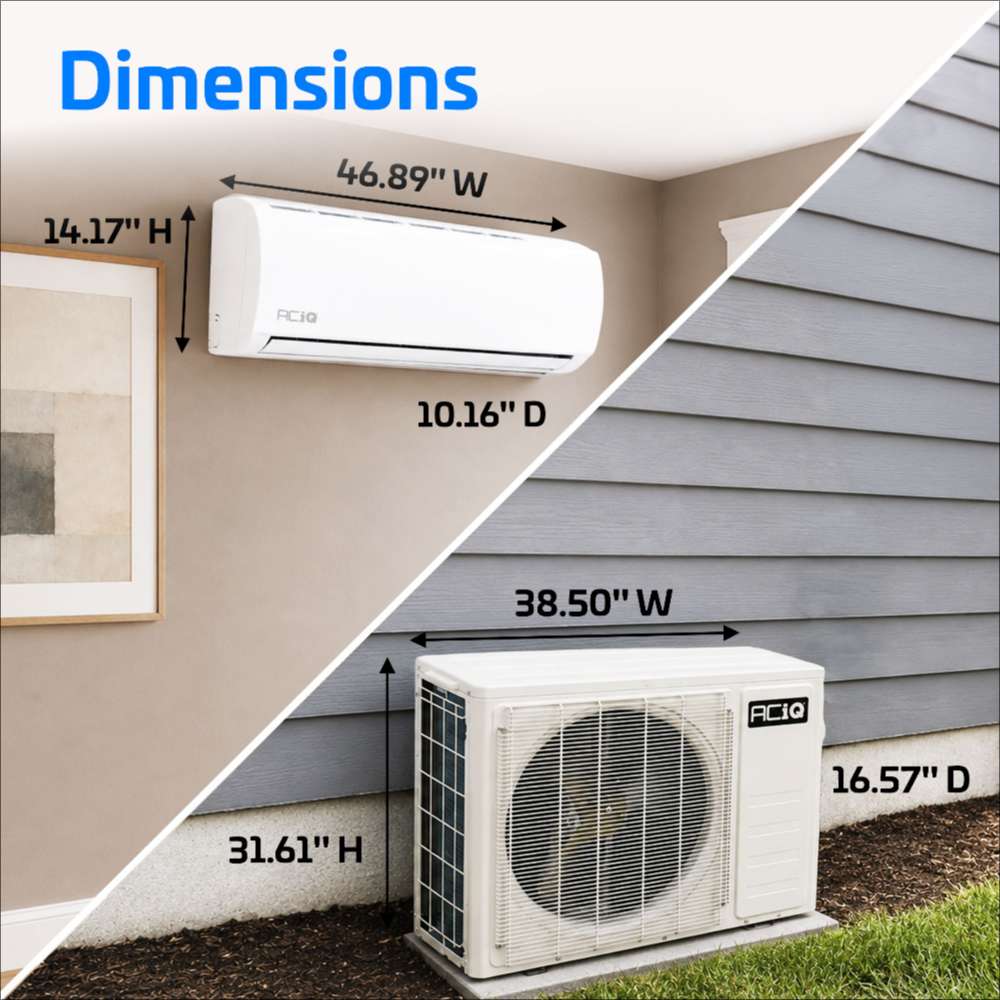

  • Height: 14.17"
  • Width: 46.89"
  • Depth: 10.16"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

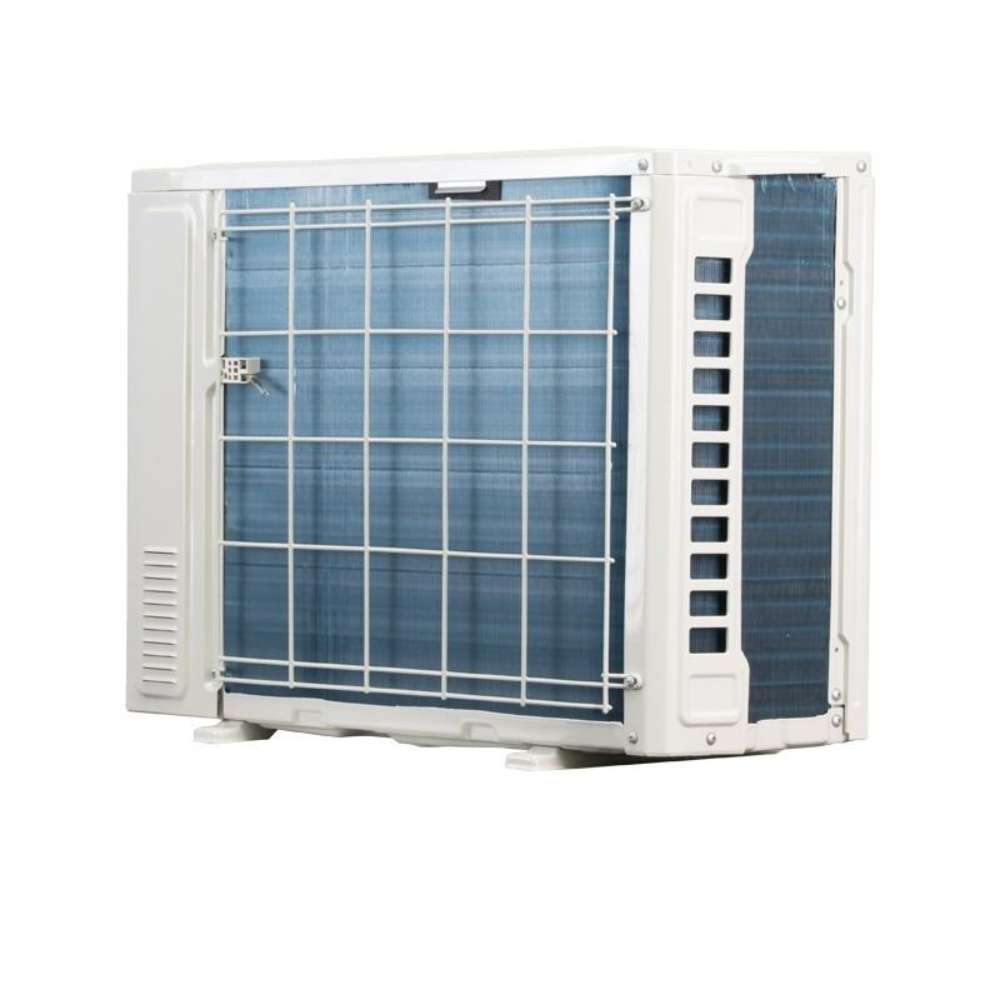

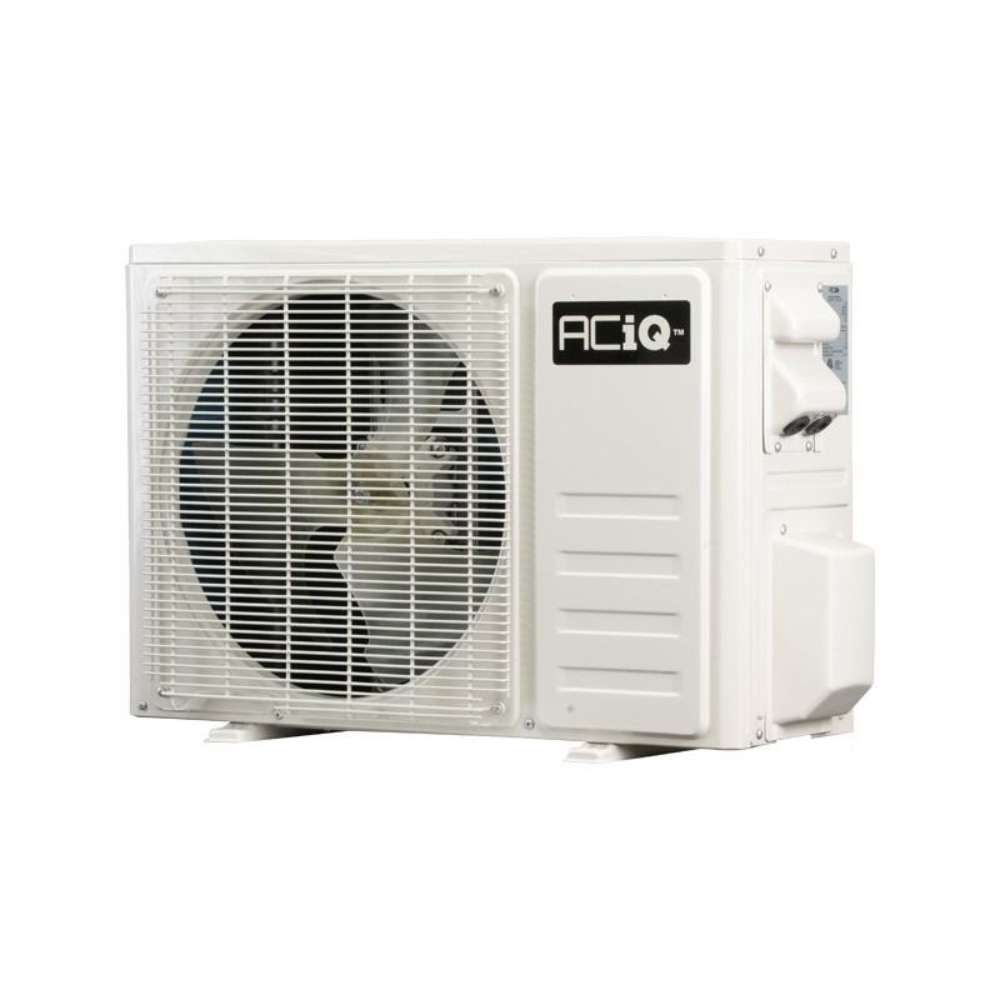

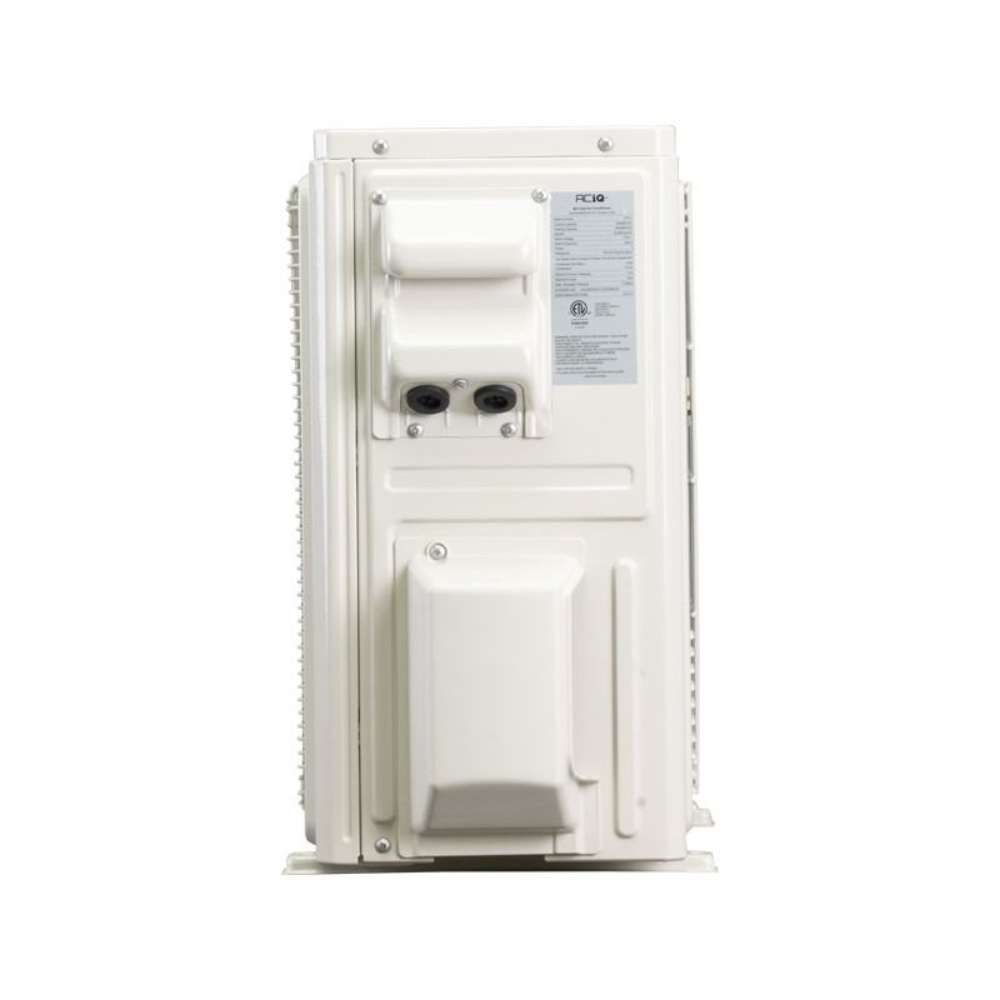

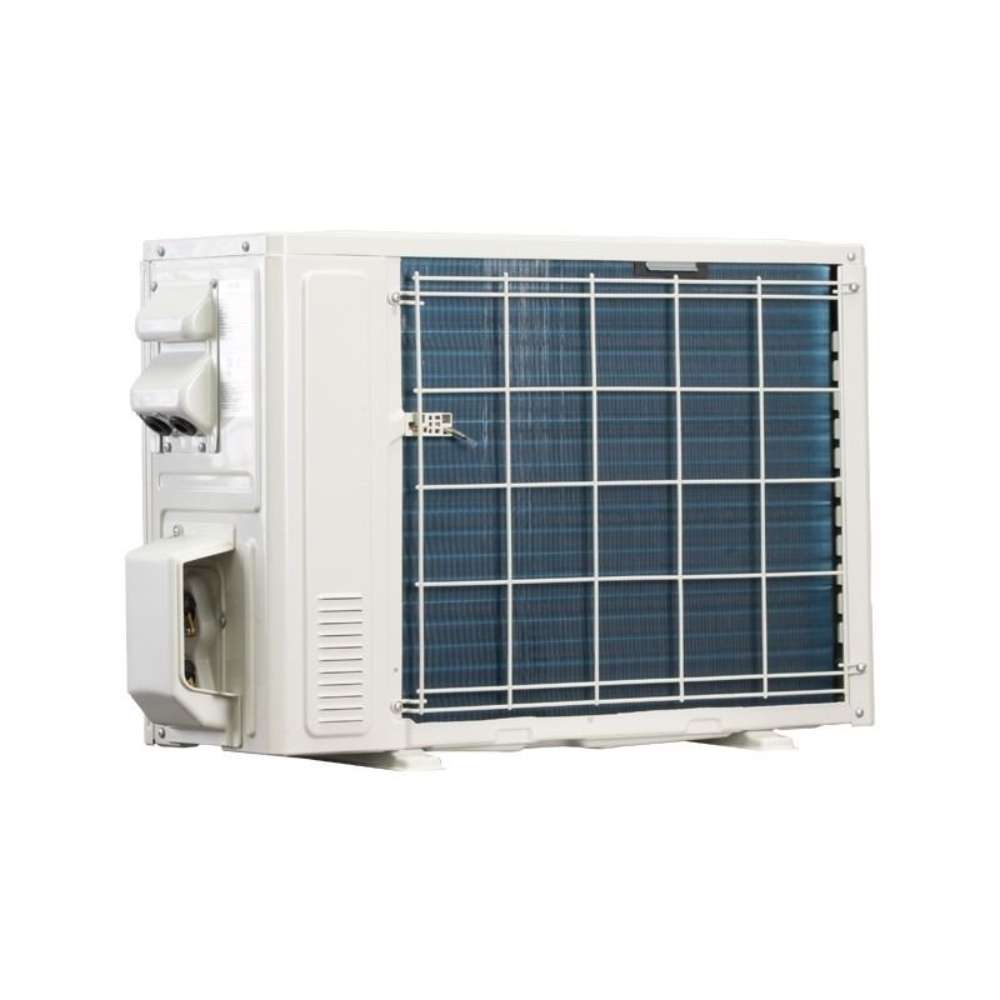

Heat Pump Condenser Specs

  • Refrigerant Charge: 3.5 lbs, pre-charged for 16 ft line set
  • Weight: 122.4 lbs
  • AHRI Certificate Number: 218045393
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553870
  • Cooling BTU: 35,000 BTU
  • Heating BTU: 35,400 BTU
  • Decibel Level: 63 dBA
  • Refrigerant: R32
  • HSPF2: 7.5
  • SEER2 Efficiency: 17
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 5/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 35 Amps
  • Min. Breaker Size: 23 Amps
  • BTU/Tonnage: 36,000 BTU / 3 Ton
  • Outdoor Heating Temperature Range: 5°F to 86°F
  • Outdoor Cooling Temperature Range: 53.6°F to 122°F
  • Zone Compatibility: Single Zone
  • Height: 31.61"
  • Width: 38.50"
  • Depth: 16.57"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Delivers 35,000 BTU cooling and 35,400 BTU heating for spaces up to 2,000 square feet.
  • Suited to open-concept homes, large garages, workshops, and light commercial spaces.
  • 17 SEER2 efficiency helps manage energy costs in a large area.
  • Heats at outdoor temperatures down to 5°F and cools up to 122°F outside.
  • Built-in WiFi lets you adjust settings from a compatible smart device.
  • Auto Mode and I FEEL sensing keep comfort consistent throughout the space.
  • Turbo Mode brings a large area to temperature faster.
  • ECO Mode lowers energy use during everyday operation.
  • Multi-directional airflow helps distribute air evenly over a wide area.
  • PureClean air sterilization and optional Self-Clean mode help cut down on maintenance.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.
