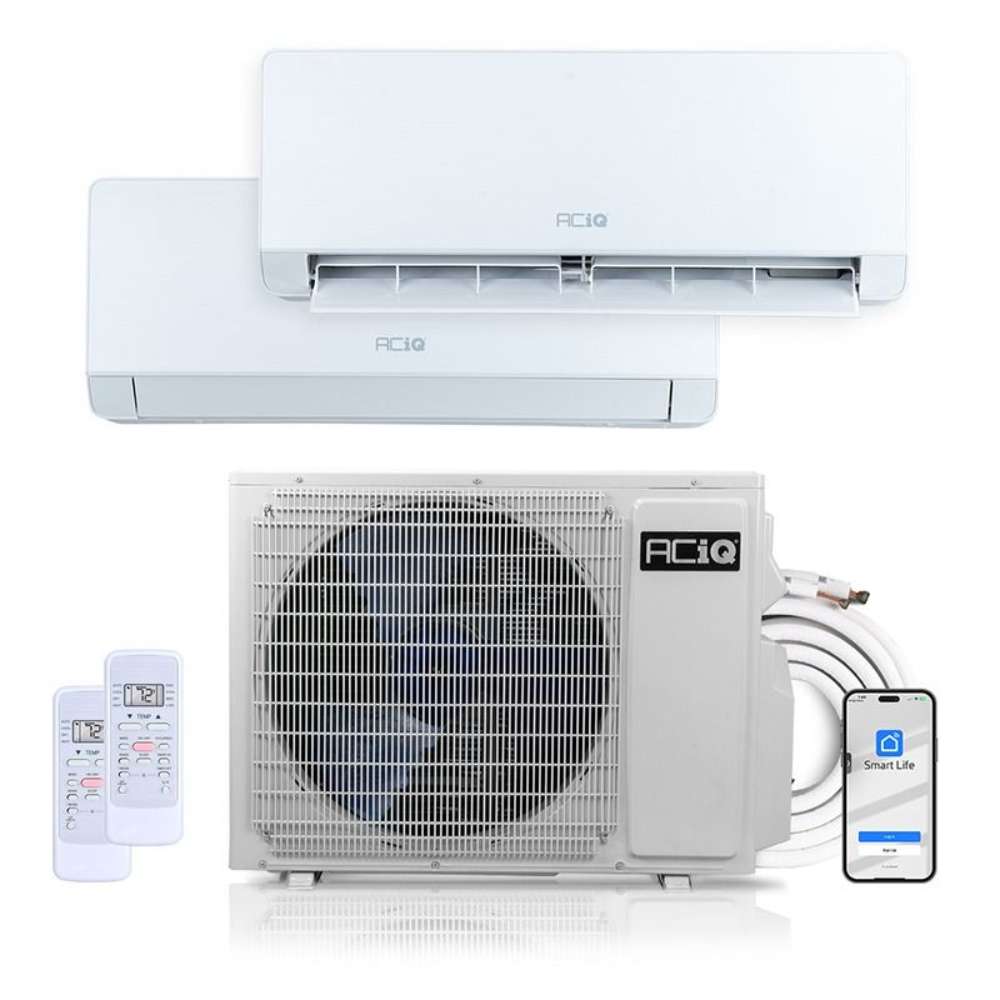

Complete 2 zone bundle with two wall units, an outdoor condenser, two remotes, a line set, and a phone app for the ACiQ 24000 BTU Essentials 23 SEER2 2 Zone Wall Mount Mini Split Heat Pump System

ACiQ 24000 BTU Essentials 23 SEER2 2 Zone Wall Mount Mini Split Heat Pump System

Save $402.89
$2,409.00
$2,006.11
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

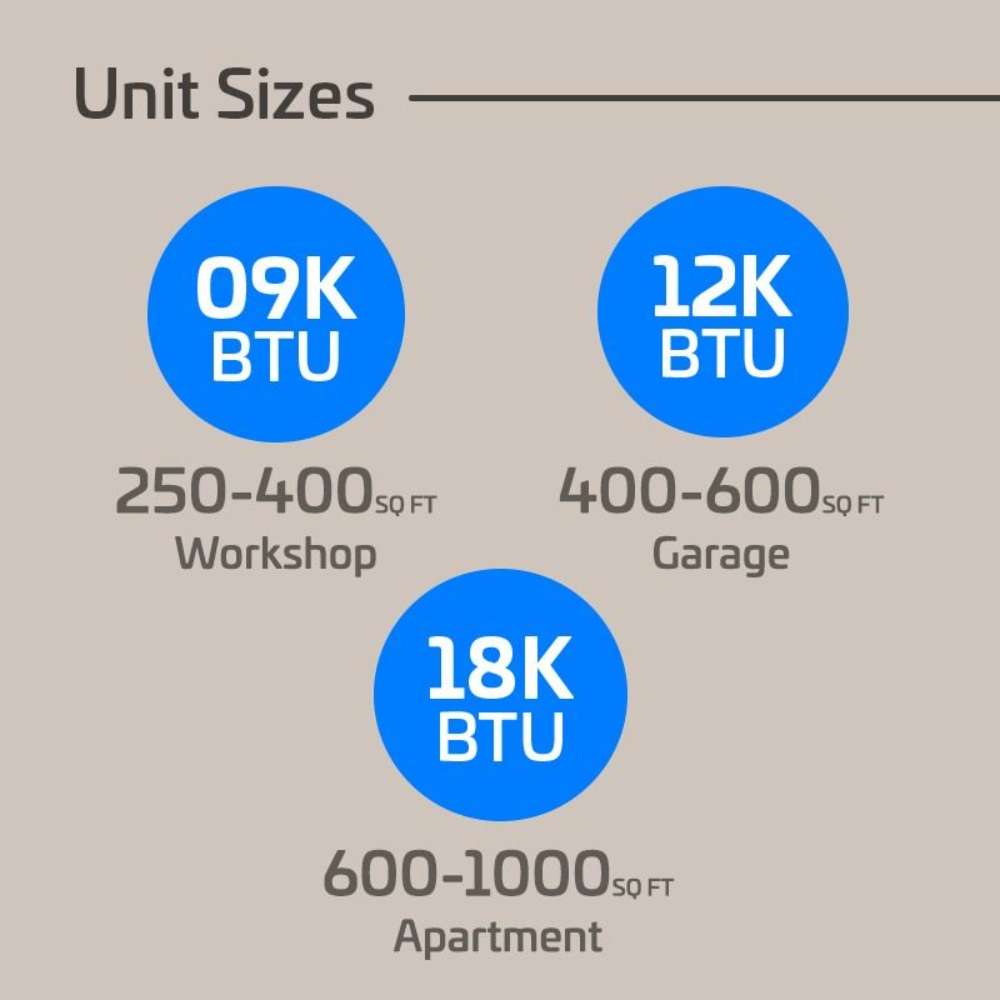

Designed to heat and cool two rooms from one outdoor condenser. Pick the air handler size for each room:

  • 9,000 BTU for rooms of about 250–400 square feet (Zone 1)
  • 12,000 BTU for rooms of about 400–600 square feet (Zone 1 or Zone 2)
  • 18,000 BTU for rooms of about 600–1,000 square feet (Zone 2)

Available Pairings:

  • 9k + 12k: a bedroom and a living room
  • 9k + 18k: a home office and an open living area
  • 12k + 12k: two similar-sized bedrooms or offices
  • 12k + 18k: a master suite and a large family room

Supplemental Home Locations:

  • Workshops
  • Garages
  • Basements
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Comfort in Two Rooms With the ACiQ 24000 BTU 23 SEER2 2 Zone Mini Split

ACiQ 24000 BTU Essentials 23 SEER2 2 Zone Wall Mount Mini Split Heat Pump System is a multi zone mini split that heats and cools two rooms from one outdoor condenser. Choose a 9,000 BTU or 12,000 BTU air handler for Zone 1 and a 12,000 BTU or 18,000 BTU air handler for Zone 2 to match rooms from 250 to 1,000 square feet. A 23 SEER2 rating and Energy Star certification help keep energy costs down, and the condenser is rated to heat at outdoor temperatures as low as -13°F. Built-in WiFi control and quiet indoor operation from 34 dBA keep both rooms comfortable without disrupting your day. It runs on 208/230V power, includes a 15 ft line set for each zone, and comes with a 6-year compressor and 4-year parts warranty after online registration.

What's Included?

  • 24,000 BTU Essentials Multi Zone Condenser
  • Zone 1: 9,000 BTU or 12,000 BTU White Wall Mount Air Handler (based on selected size)
  • Zone 2: 12,000 BTU or 18,000 BTU White Wall Mount Air Handler (based on selected size)

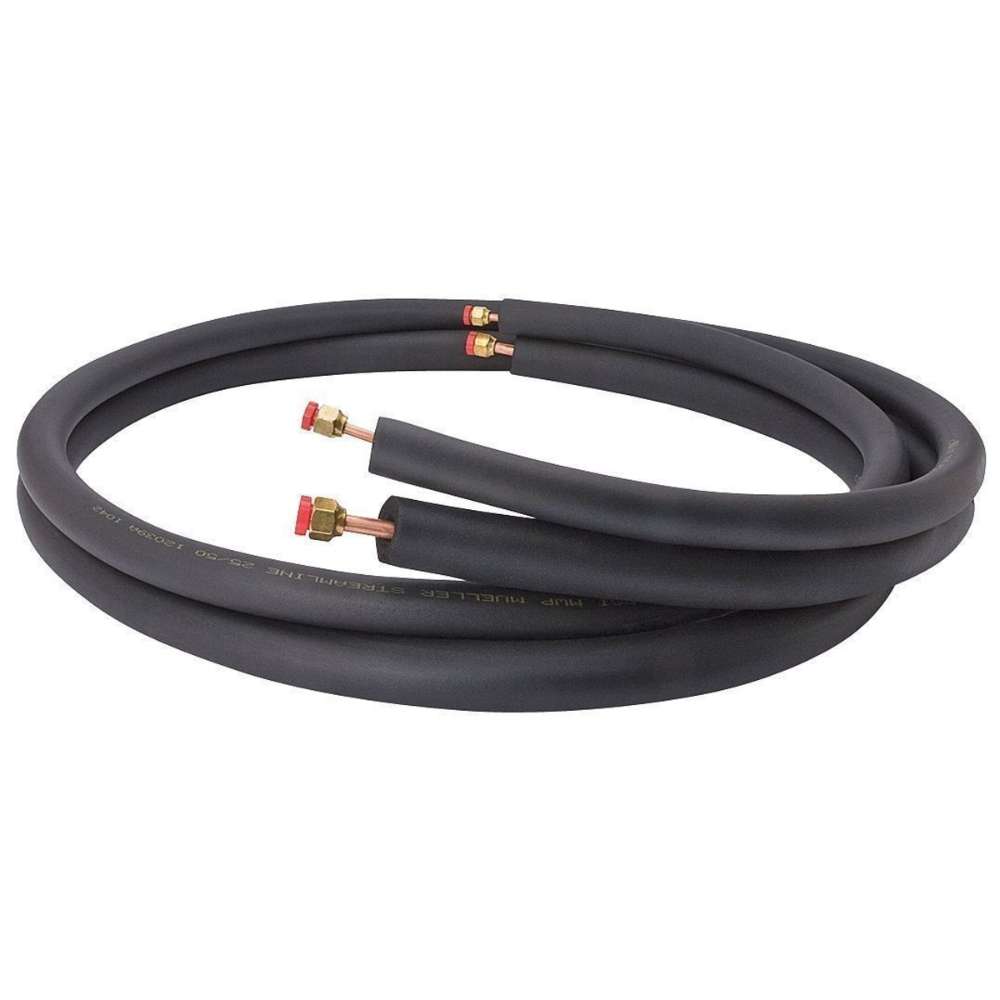

  • 15 ft Line Set for Zone 1
  • 15 ft Line Set for Zone 2

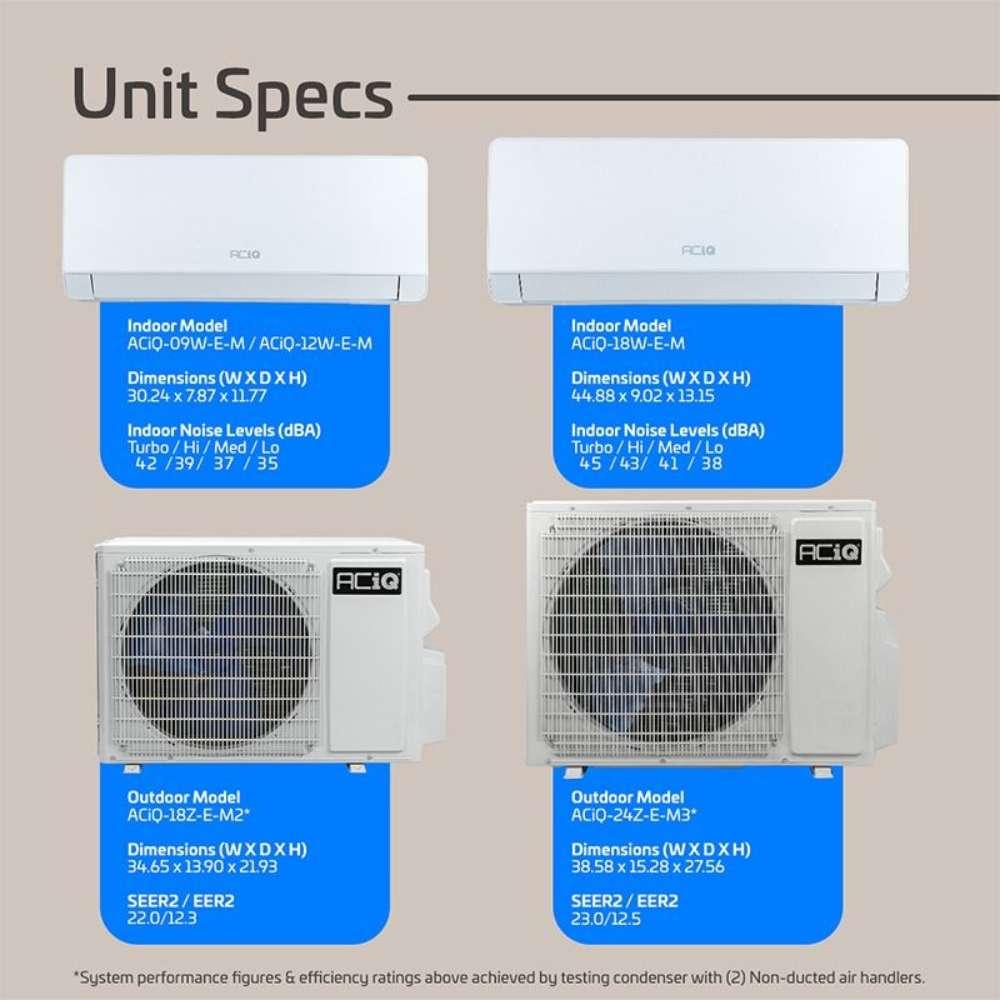

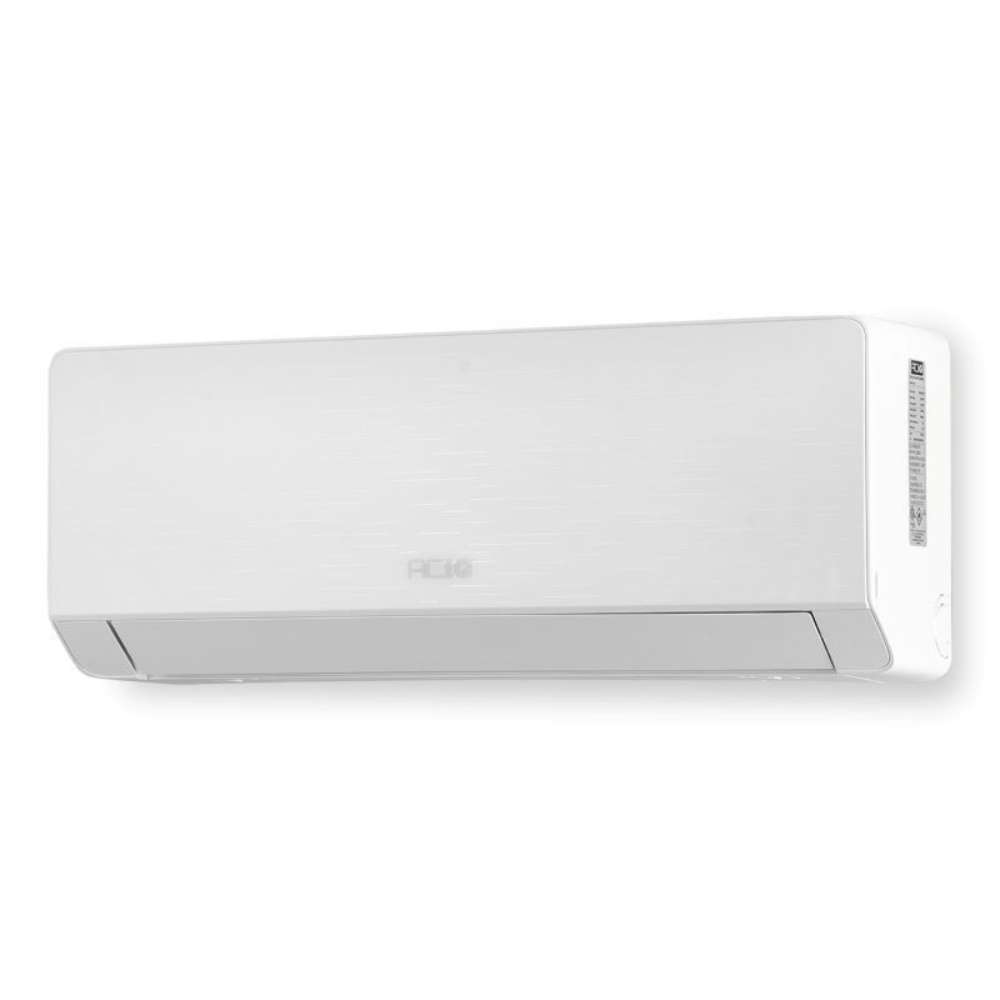

Air Handler Specs

  • Weight: 22.05 lbs
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553535 (9k) | 810175553542 (12k)
  • Controller: Wired Included
  • Cooling BTU: 9,100 BTU (9k) | 12,000 BTU (12k)
  • Heating BTU: 10,000 BTU (9k) | 12,300 BTU (12k)
  • Maximum CFM: 353 Turbo / 335 High / 282 Medium / 247 Low
  • Decibel Level: 34–42 dBA (9k) | 35–42 dBA (12k)
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 9,000 BTU / 0.75 Ton (9k) | 12,000 BTU / 1 Ton (12k)
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Multi Zone (9k) | Multi Zone, Single Zone (12k)
  • Height: 11.77"
  • Width: 30.24"
  • Depth: 7.87"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Air Handler Specs

  • Weight: 22.05 lbs (12k) | 37.48 lbs (18k)
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553542 (12k) | 810175553559 (18k)
  • Controller: Wired Included (12k)
  • Cooling BTU: 12,000 BTU (12k) | 18,000 BTU (18k)
  • Heating BTU: 12,300 BTU (12k) | 18,000 BTU (18k)
  • Maximum CFM: 353 Turbo / 335 High / 282 Medium / 247 Low (12k) | Up to 647 CFM (18k)
  • Decibel Level: 35–42 dBA (12k) | As low as 38 dBA (18k)
  • Electric Heat: Heat Pump (18k)
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8" (12k) | 1/2" (18k)
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 12,000 BTU / 1 Ton (12k) | 18,000 BTU / 1.5 Ton (18k)
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Multi Zone, Single Zone
  • Height: 11.77" (12k) | 13.15" (18k)
  • Width: 30.24" (12k) | 44.88" (18k)
  • Depth: 7.87" (12k) | 9.02" (18k)
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

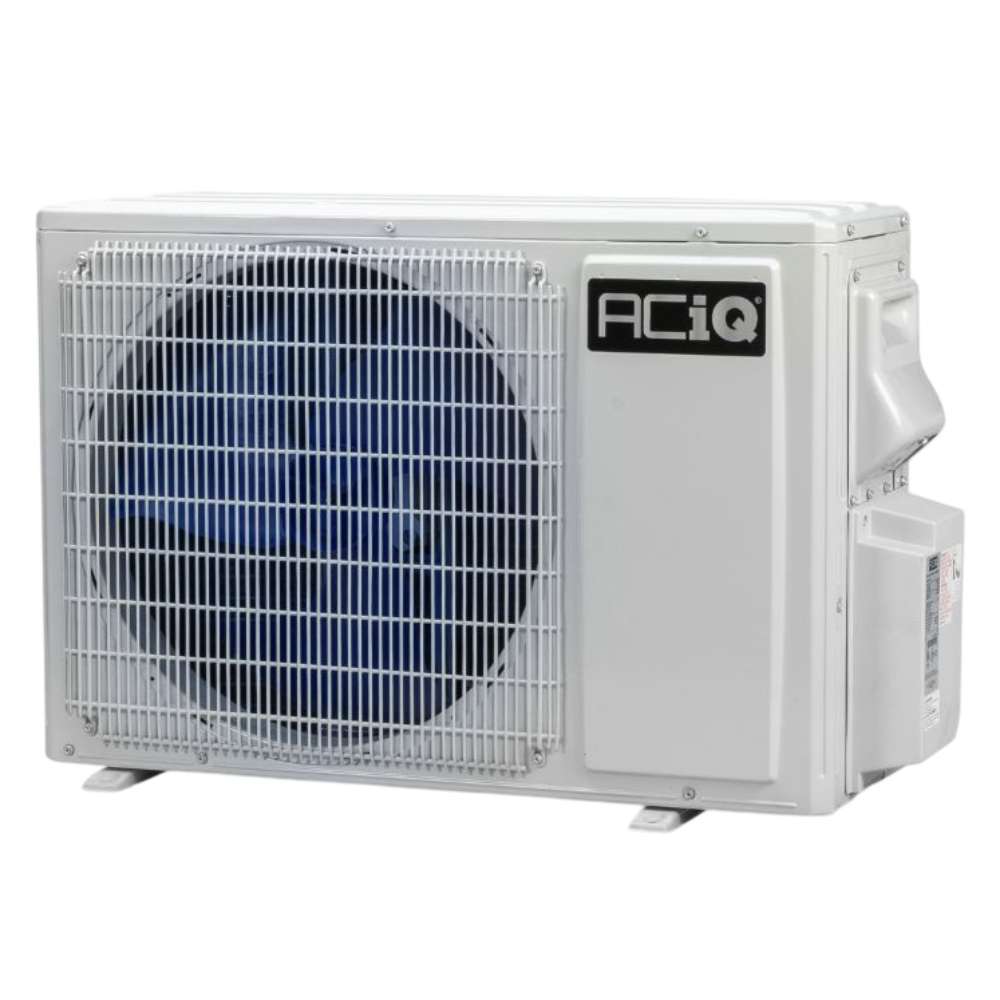

Heat Pump Condenser Specs

  • Refrigerant Charge: 3.2 lbs, pre-charged for 74 ft line set
  • Weight: 109.1 lbs
  • AHRI Certificate Number: 217751655, 217751646, 217751637
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553528
  • Cooling BTU: 24,000 BTU
  • Heating BTU: 24,000 BTU
  • Decibel Level: 67 dBA
  • Energy Star: Yes
  • Refrigerant: R32
  • HSPF2: 8.5
  • SEER2 Efficiency: 23
  • EER2: 12.5
  • Compressor Type: Rotary
  • Liquid Line: 1/4" (4), 3/8" (1)
  • Suction Line: 3/8" (3), 1/2" (1), 5/8" (1)
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 30 Amps
  • Min. Breaker Size: 20 Amps
  • BTU/Tonnage: 24,000 BTU / 2 Ton
  • Outdoor Heating Temperature Range: -13°F to 75°F
  • Outdoor Cooling Temperature Range: -13°F to 125°F
  • Zone Compatibility: Multi Zone
  • Height: 27.56"
  • Width: 38.58"
  • Depth: 15.28"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Heats and cools two separate rooms from a single 24,000 BTU outdoor condenser.
  • Four air handler pairings: 9k + 12k, 9k + 18k, 12k + 12k, or 12k + 18k.
  • 9,000 BTU air handlers suit rooms of 250–400 sq ft, 12,000 BTU air handlers suit 400–600 sq ft, and 18,000 BTU air handlers suit 600–1,000 sq ft.
  • 23 SEER2, 12.5 EER2, and 8.5 HSPF2 ratings with Energy Star certification help lower energy use.
  • Rated to heat at outdoor temperatures down to -13°F and cool up to 125°F.
  • Built-in WiFi lets you control the system from a compatible smart device.
  • I Feel temperature sensing keeps the room at the temperature you feel at the remote.
  • Turbo Mode brings a room to its set temperature faster.
  • Eco Mode helps reduce energy use during everyday operation.
  • Sleep Mode and Mute keep the indoor units quiet at night, with operation as low as 34 dBA.
  • Programmable timers let you schedule heating and cooling around your day.
  • Uses R32 refrigerant.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.
