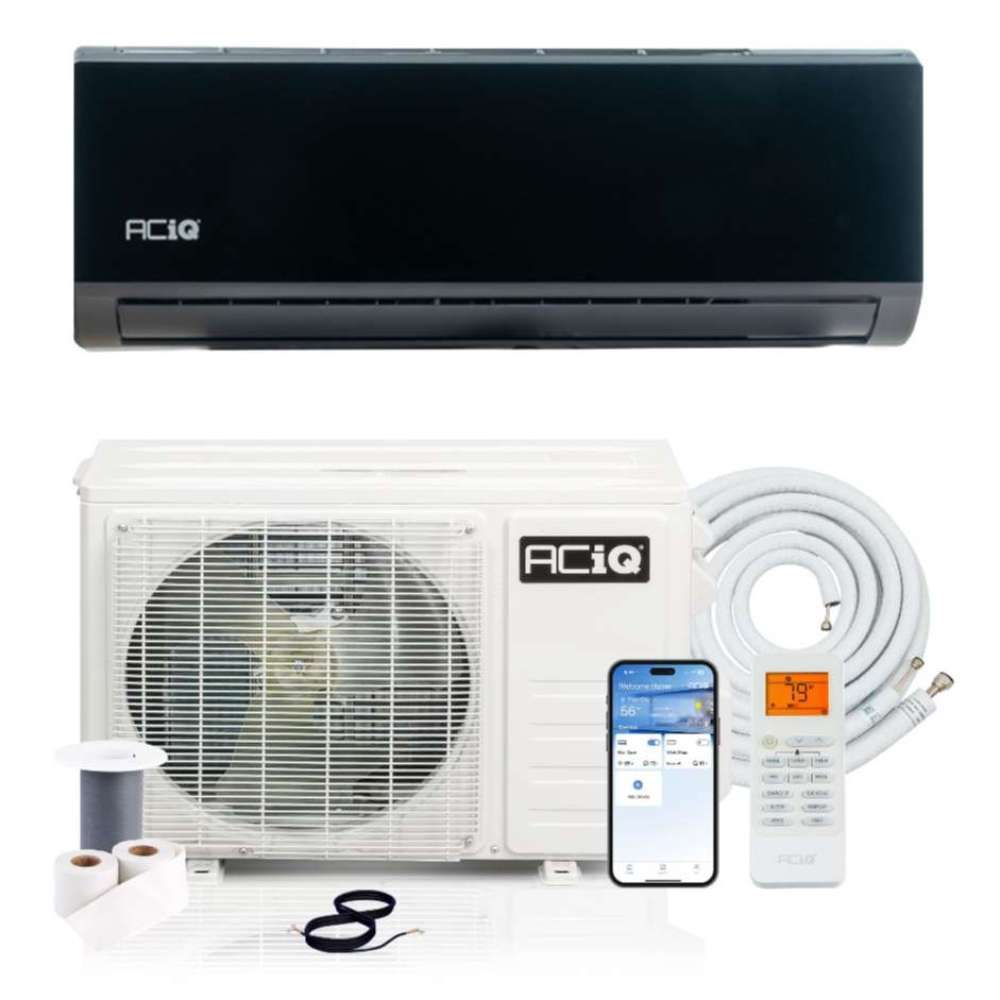

ACiQ 24000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System package with a glossy black wall unit, white condenser, line set, orange-screen remote and app phone

ACiQ 24000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $303.80
$1,789.00
$1,485.20
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 1,500 square feet.

Single Room Applications:

  • Large living rooms
  • Master bedrooms
  • Studios or apartments
  • Open office areas

Supplemental Home Locations:

  • Basements
  • Workshops
  • Sunrooms
  • Converted garages
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Power Up Large-Space Comfort With the ACiQ 24000 BTU 20 SEER2 Mini Split

ACiQ 24000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a mini split heat pump built for large living rooms, basements, and small homes up to 1,500 square feet. A 20 SEER2 rating and a 10.5 EER2 rating help control energy costs across a big space. The condenser is rated to heat at outdoor temperatures down to -4°F and to cool in outdoor temperatures up to 127°F. Built-in WiFi control lets you manage this energy efficient HVAC system from a compatible device. A pre-charged 16 ft line set is included, and online registration adds a 6-year compressor and 4-year parts warranty.

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

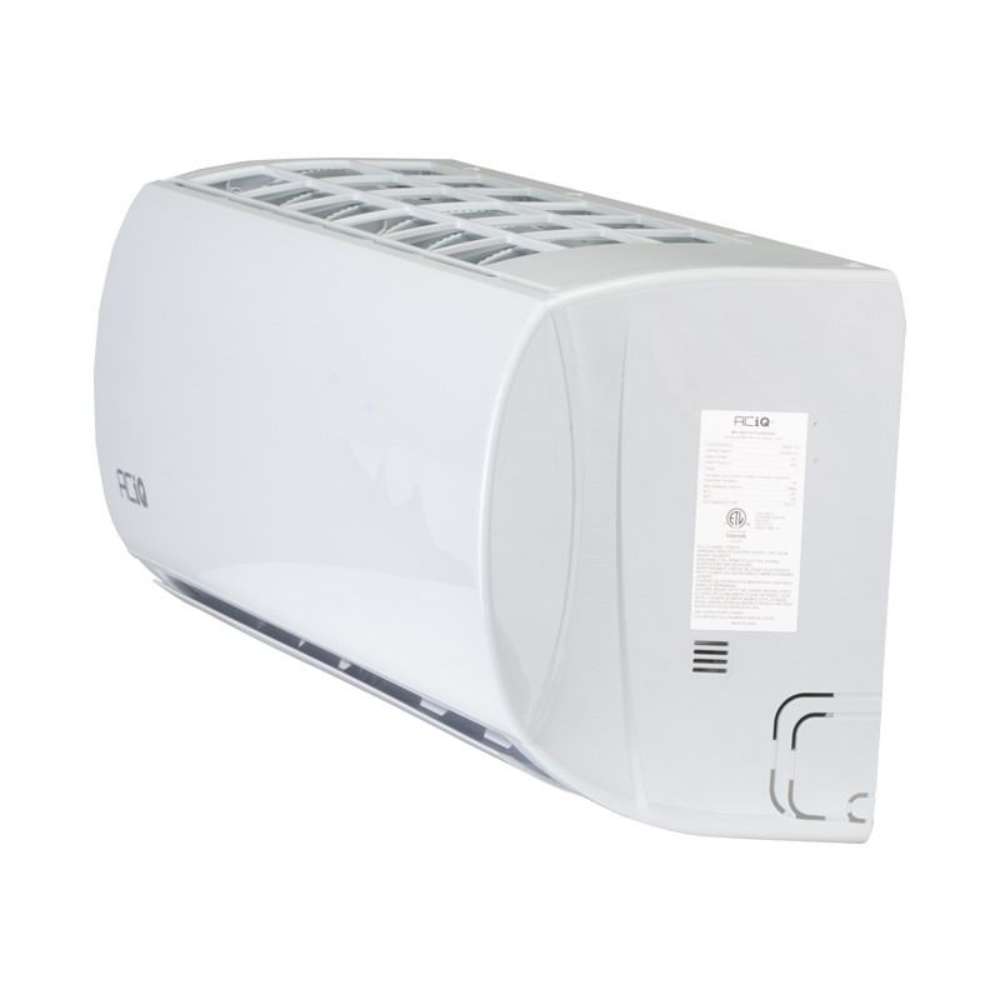

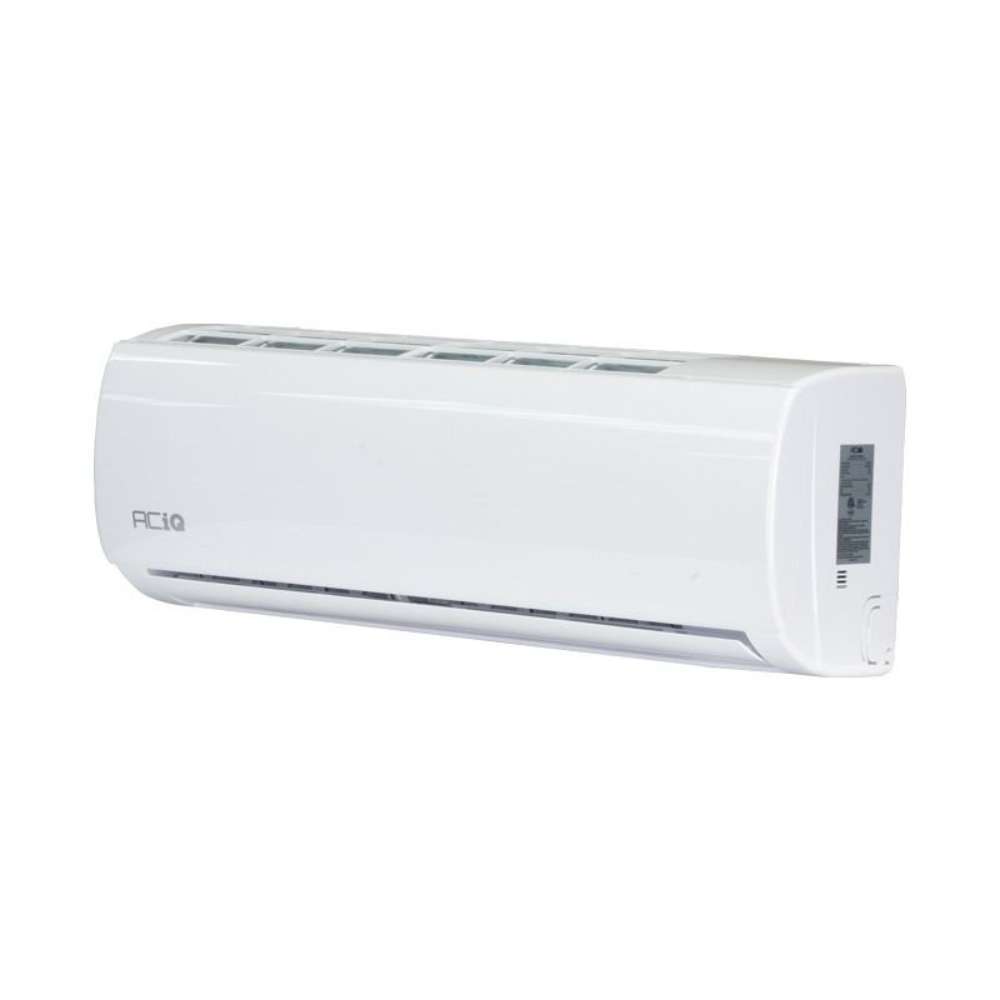

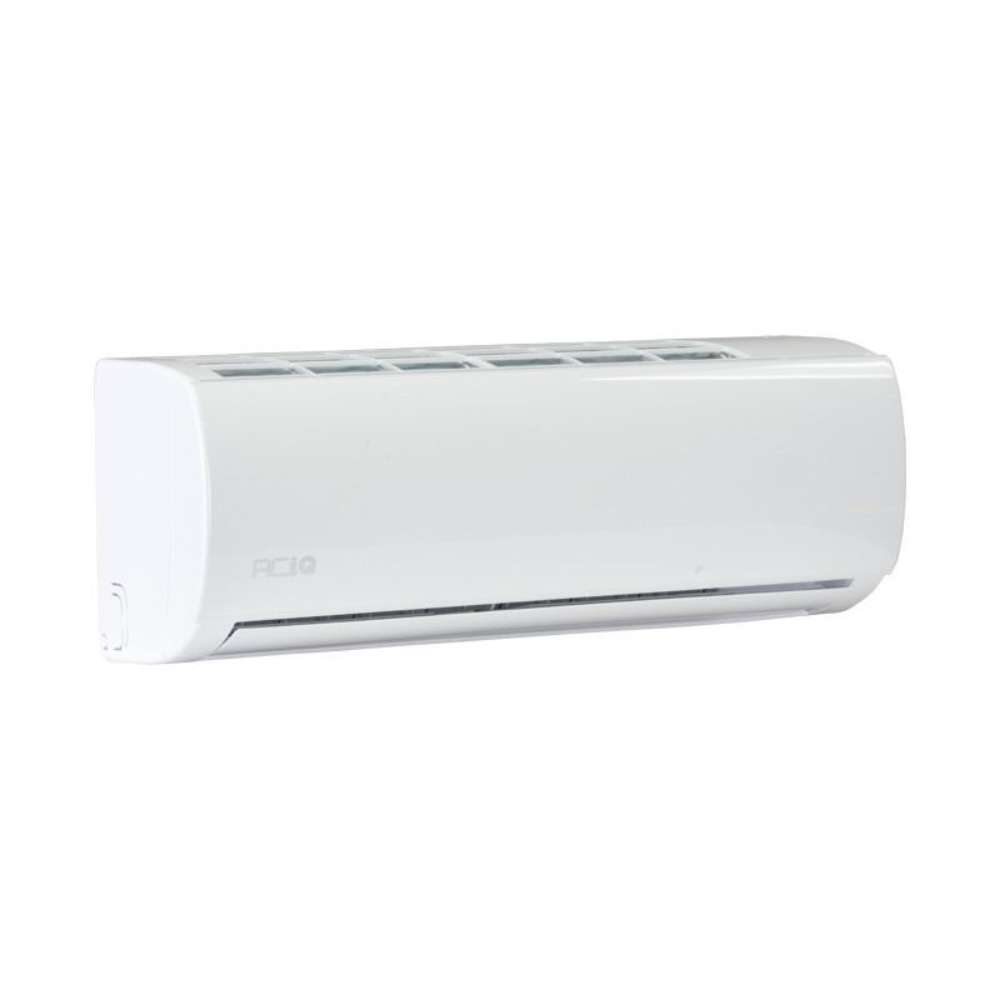

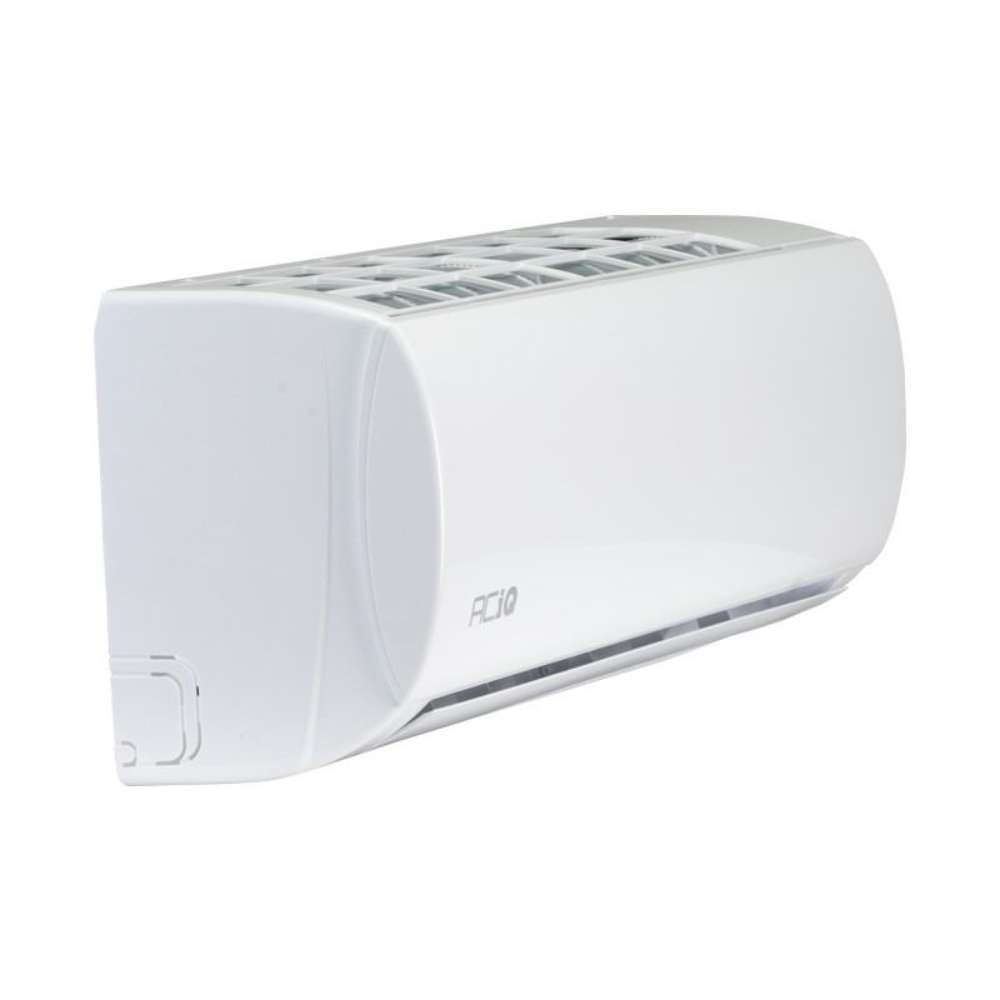

Air Handler Specs

  • Weight: 33.7 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K24W-W-HP230B
  • UPC: 810175551982
  • Controller: Included
  • Cooling BTU: 24,000 BTU
  • Heating BTU: 24,000 BTU
  • Maximum CFM: 647 Turbo / 575 High / 517 Medium / 423 Low
  • Decibel Level: 34–51 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 24,000 BTU / 2 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

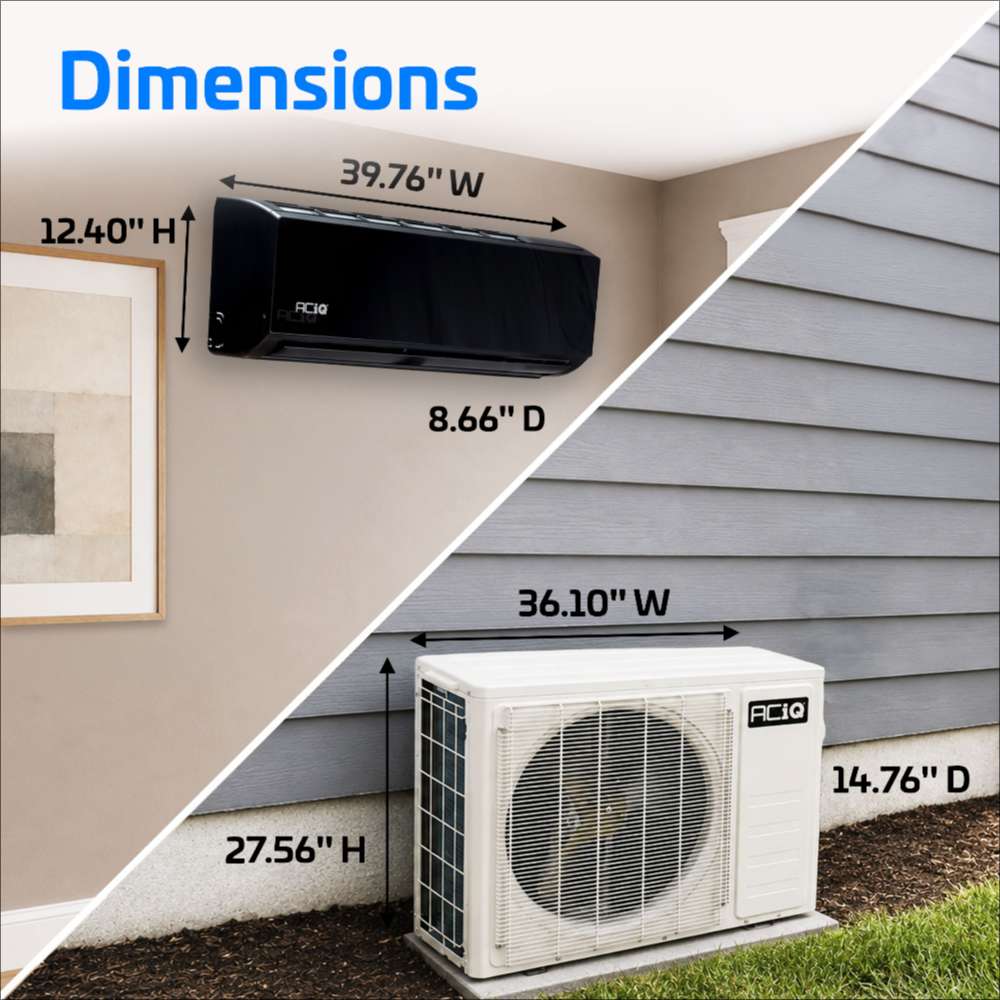

  • Height: 12.40"
  • Width: 39.76"
  • Depth: 8.66"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

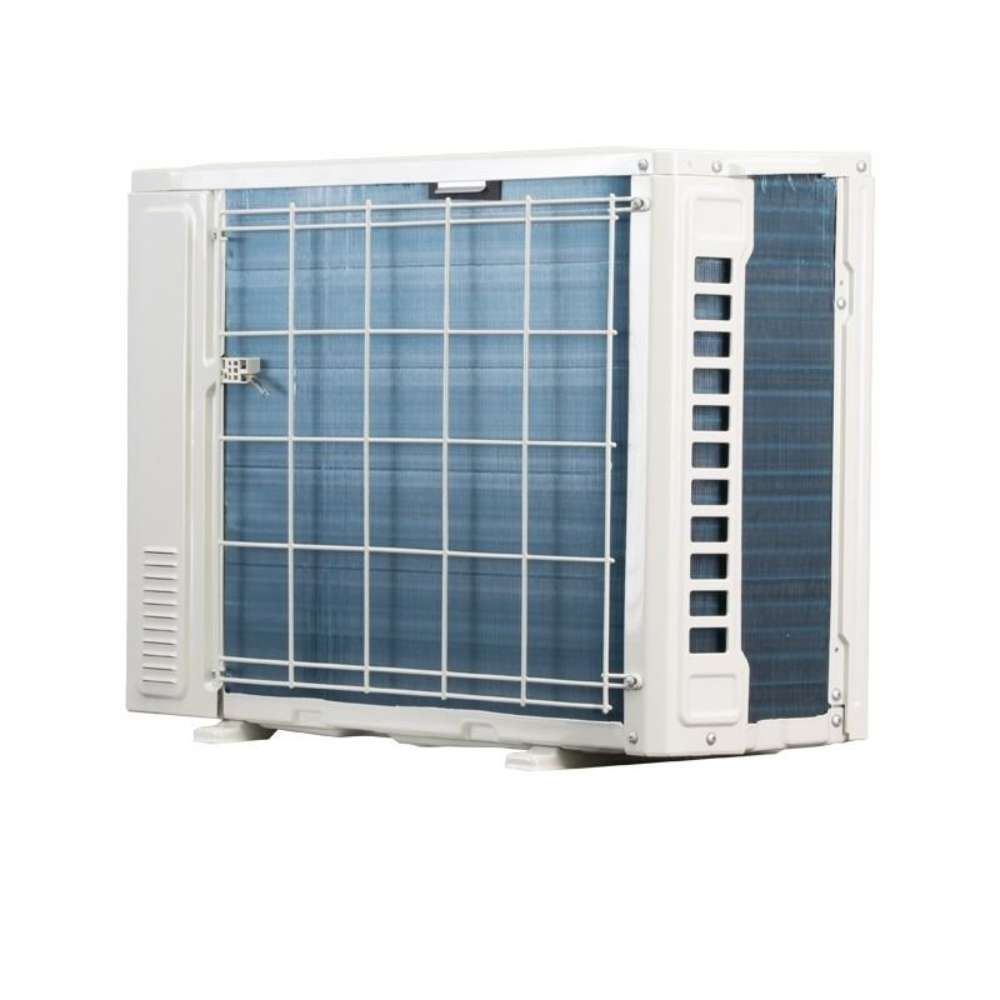

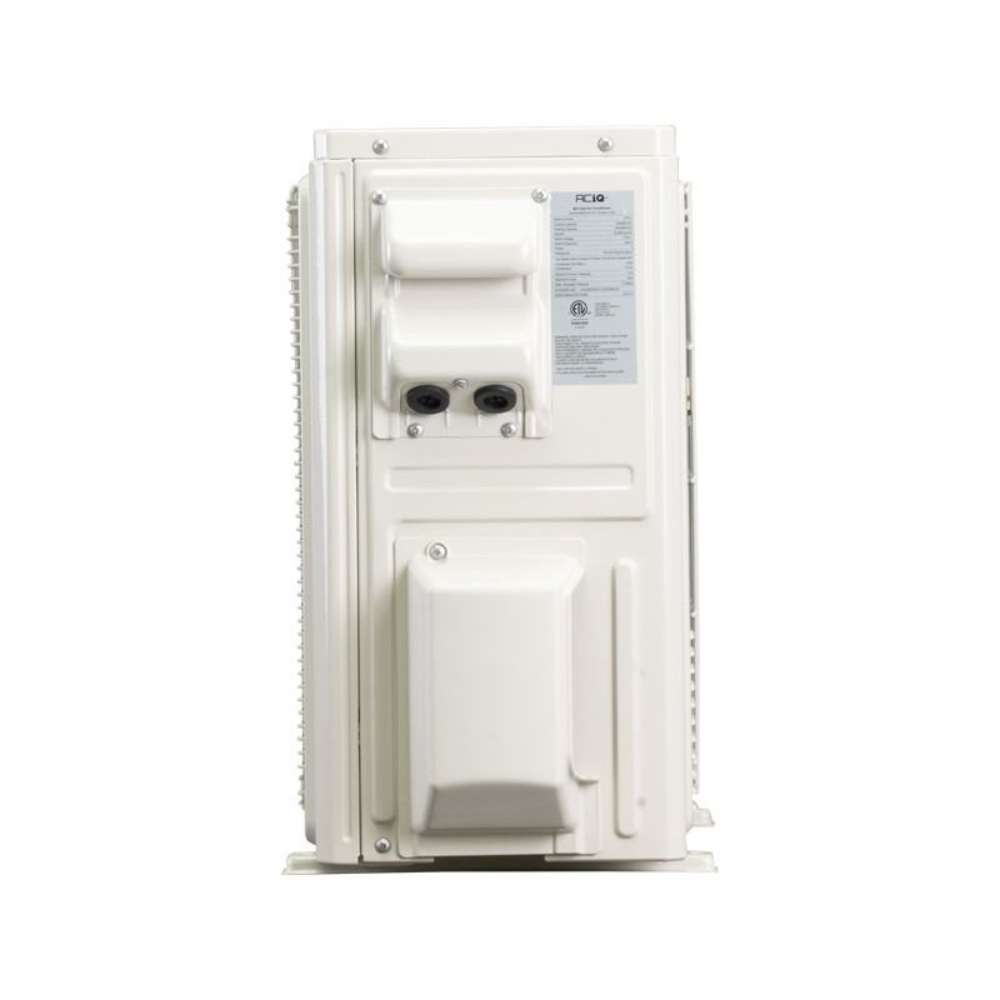

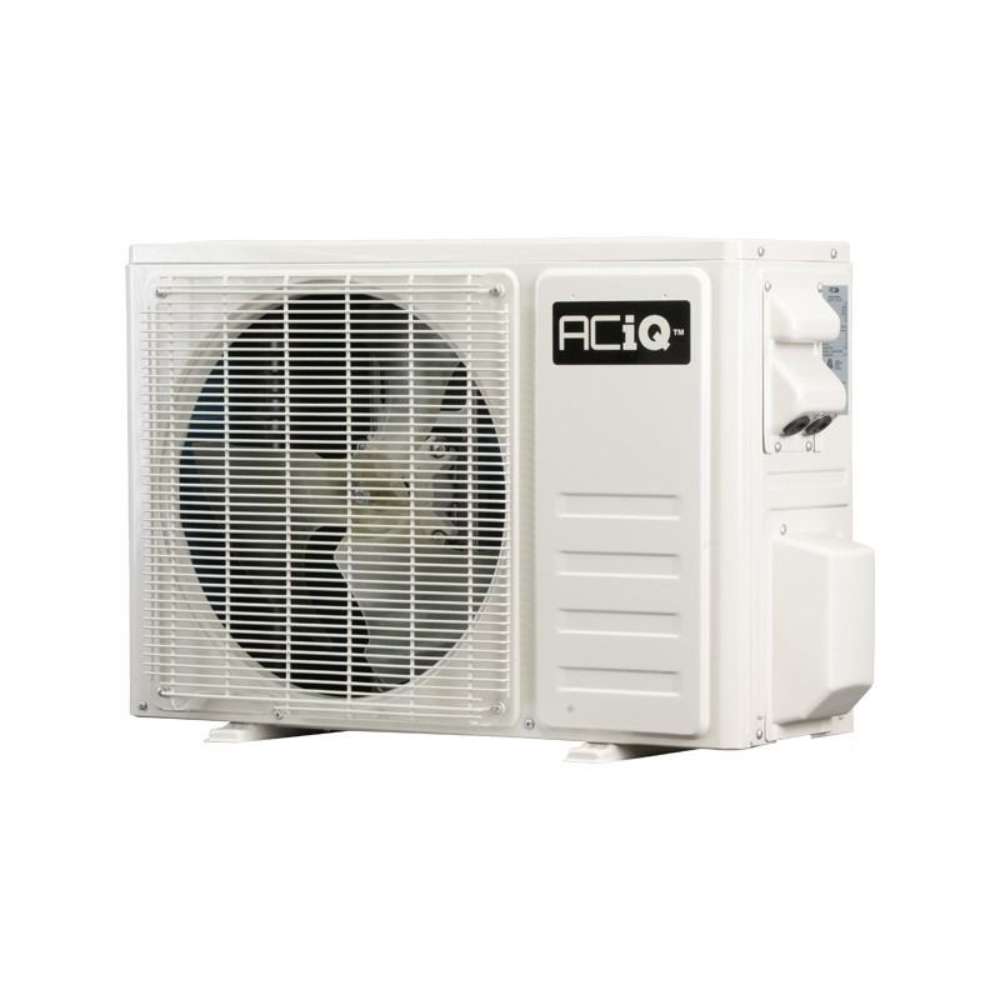

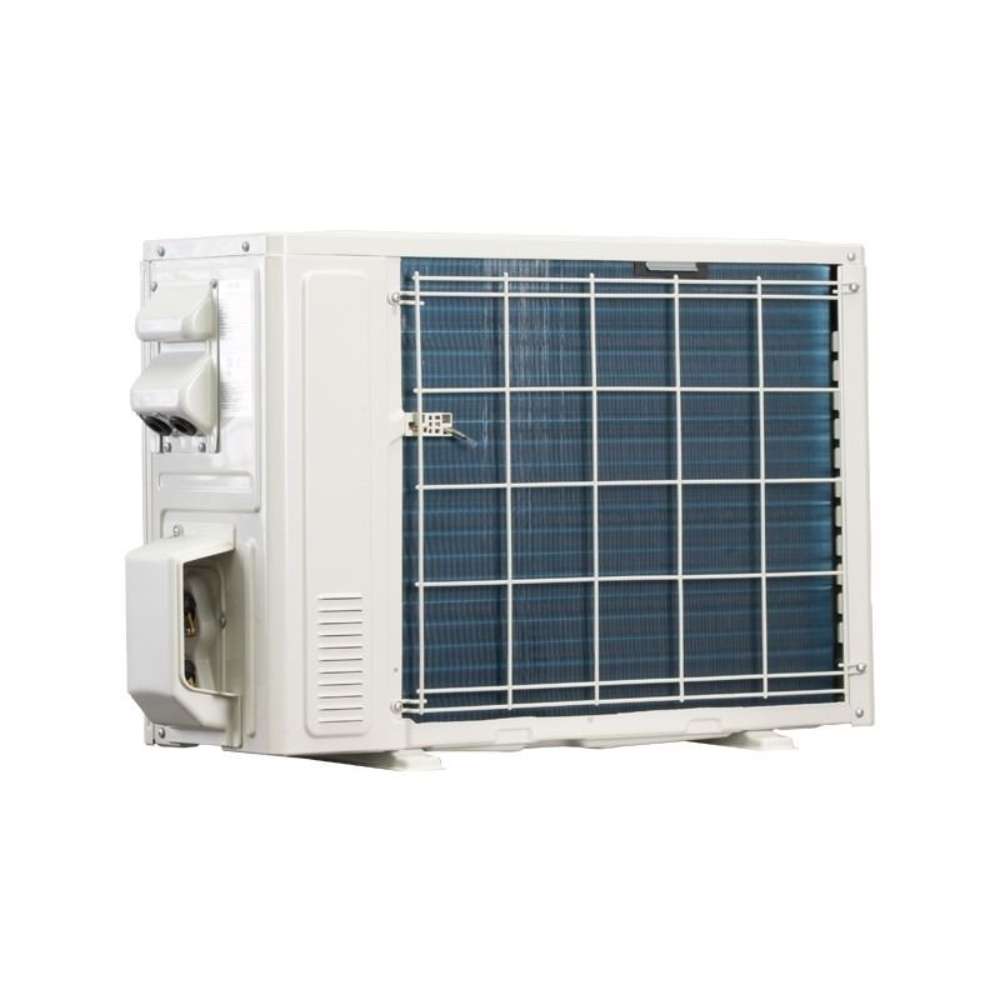

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.6 lbs, pre-charged for 16 ft line set
  • Weight: 103.6 lbs
  • AHRI Certificate Number: 218451498, 218157780
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K24Z-HP230B
  • UPC: 810175552125
  • Cooling BTU: 24,000 BTU
  • Heating BTU: 24,000 BTU
  • Decibel Level: 60 dBA
  • Refrigerant: R32
  • HSPF2: 8.1
  • SEER2 Efficiency: 20
  • EER2: 10.5
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 30 Amps
  • Min. Breaker Size: 20 Amps
  • BTU/Tonnage: 24,000 BTU / 2 Ton
  • Outdoor Heating Temperature Range: -4°F to 75°F
  • Outdoor Cooling Temperature Range: 5°F to 127°F
  • Zone Compatibility: Single Zone
  • Height: 27.56"
  • Width: 36.10"
  • Depth: 14.76"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Delivers 24,000 BTU of cooling and heating for spaces up to 1,500 square feet.
  • 20 SEER2 and 10.5 EER2 ratings help keep energy use low.
  • Keeps heating at outdoor temperatures down to -4°F and cooling up to 127°F.
  • Built-in WiFi gives you control from a compatible smart device.
  • I FEEL temperature sensing and Auto Mode keep large rooms at a steady temperature.
  • Turbo Mode provides faster heating or cooling on extreme days.
  • ECO Mode helps save energy without sacrificing comfort.
  • Multi-directional airflow spreads conditioned air through open living areas.
  • PureClean air sterilization and Self-Clean mode help maintain a healthier indoor environment.
  • Sleep Mode and MUTE reduce noise when quiet matters.
  • Registering online adds a 6-year compressor warranty and a 4-year parts warranty.

Documents

About ACiQ Mini Split Systems

ACiQ is a heating and cooling brand focused on smart, energy-efficient HVAC solutions for homes, offices, and commercial spaces.

Its product range includes ductless mini-splits, central air conditioners, heat pumps, furnaces, inverter systems, rooftop units, and PTACs, all designed to deliver reliable comfort, quiet operation, and strong value. ACiQ also incorporates advanced features such as variable-speed technology, Wi-Fi connectivity, and cold-climate performance to support efficient year-round heating and cooling.
