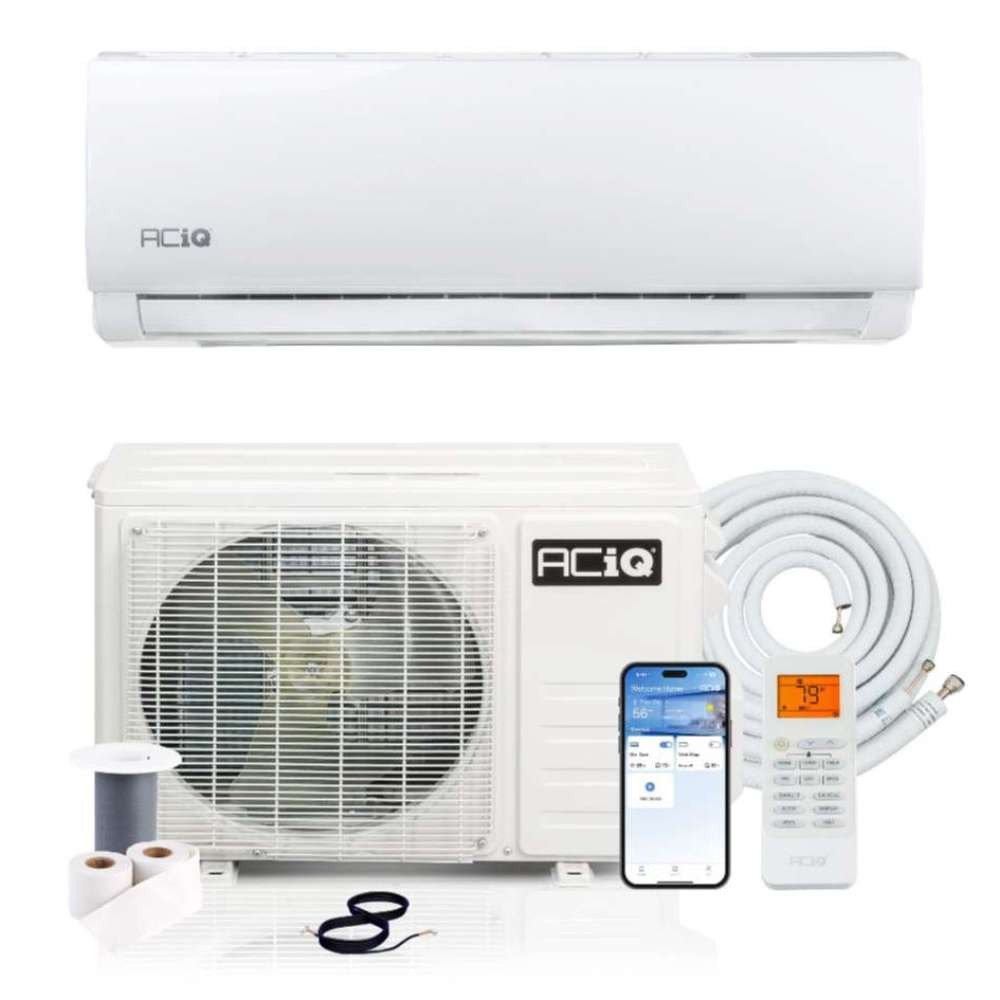

ACiQ 24000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System package with a white wall unit, outdoor condenser, line set coil, orange-screen remote and phone showing the app

ACiQ 24000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $238.83
$1,309.00
$1,070.17
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 1,500 square feet.

Single Room Applications:

  • Large living rooms
  • Master bedrooms
  • Studios or apartments
  • Open office areas

Supplemental Home Locations:

  • Basements
  • Workshops
  • Sunrooms
  • Converted garages
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Bring Whole-Room Comfort to Bigger Spaces With the ACiQ 24000 BTU 17 SEER2 Mini Split

ACiQ 24000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a mini split for small house layouts, large basements, and lofts up to 1,500 square feet. It delivers 23,000 BTU of cooling and 22,400 BTU of heating with a 17 SEER2 efficiency rating. Built-in WiFi control makes it simple to adjust this ductless air conditioner from a compatible device. The 208/230V condenser provides heating at outdoor temperatures down to 5°F. It includes a pre-charged 16 ft line set and installation accessories, plus a 6-year compressor and 4-year parts warranty with online registration.

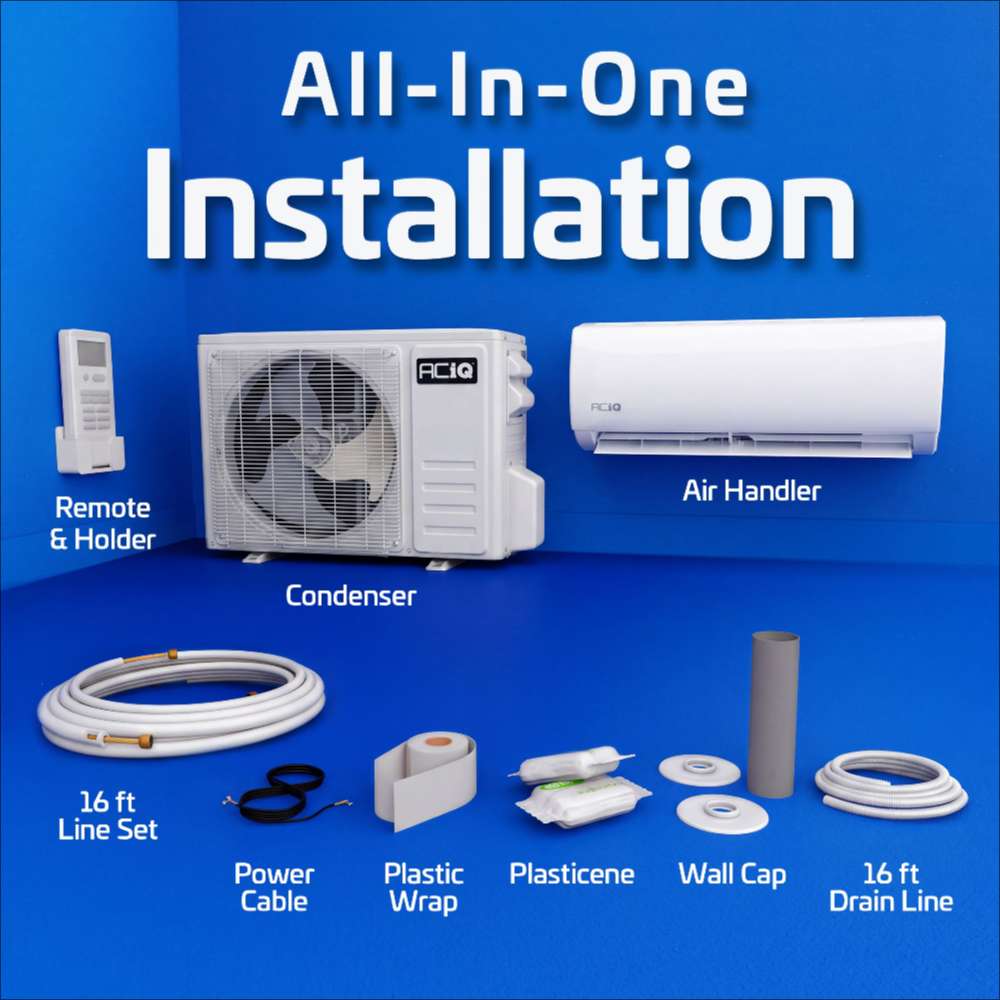

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

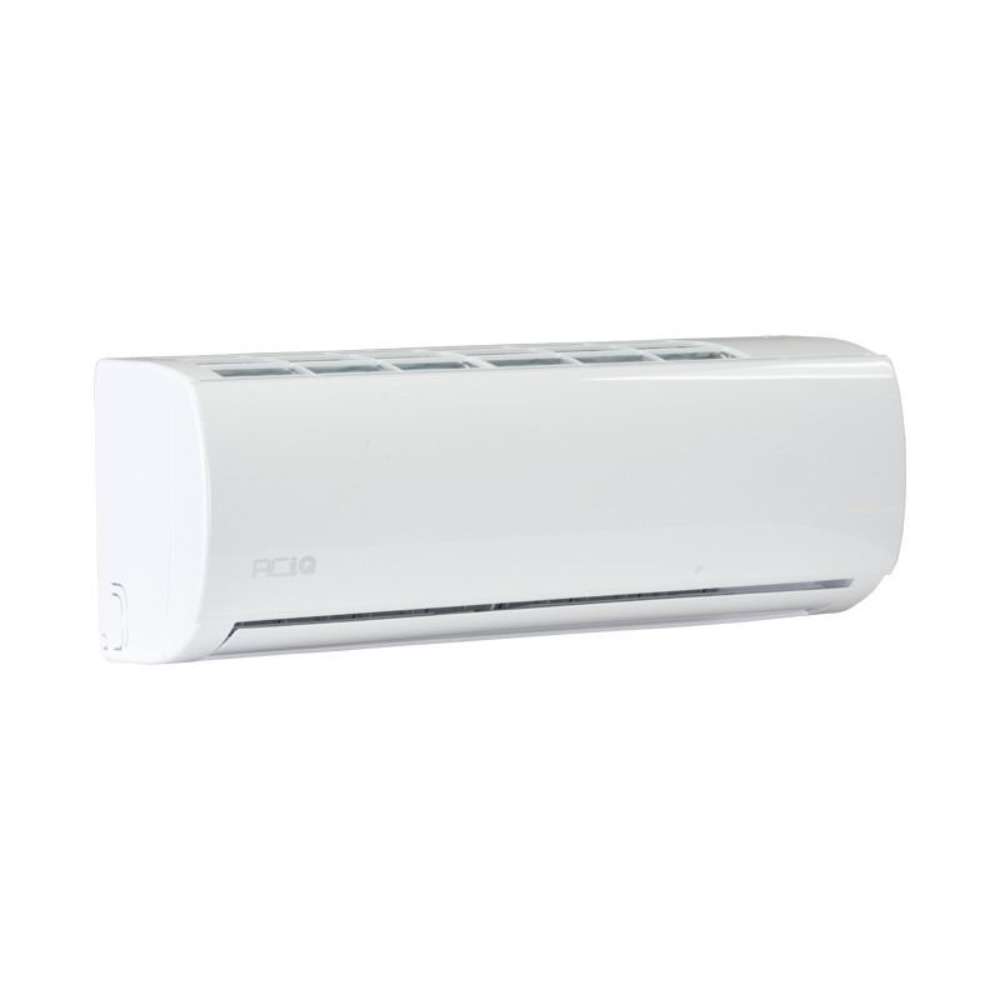

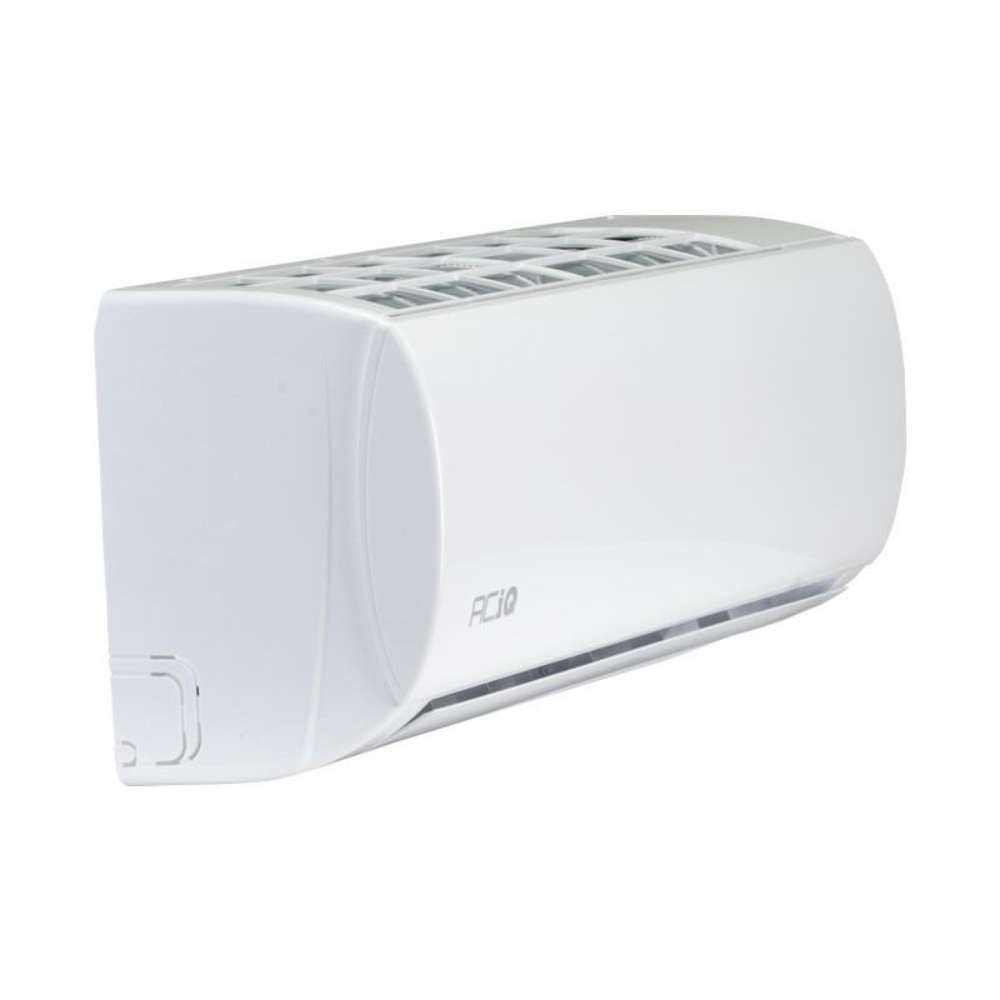

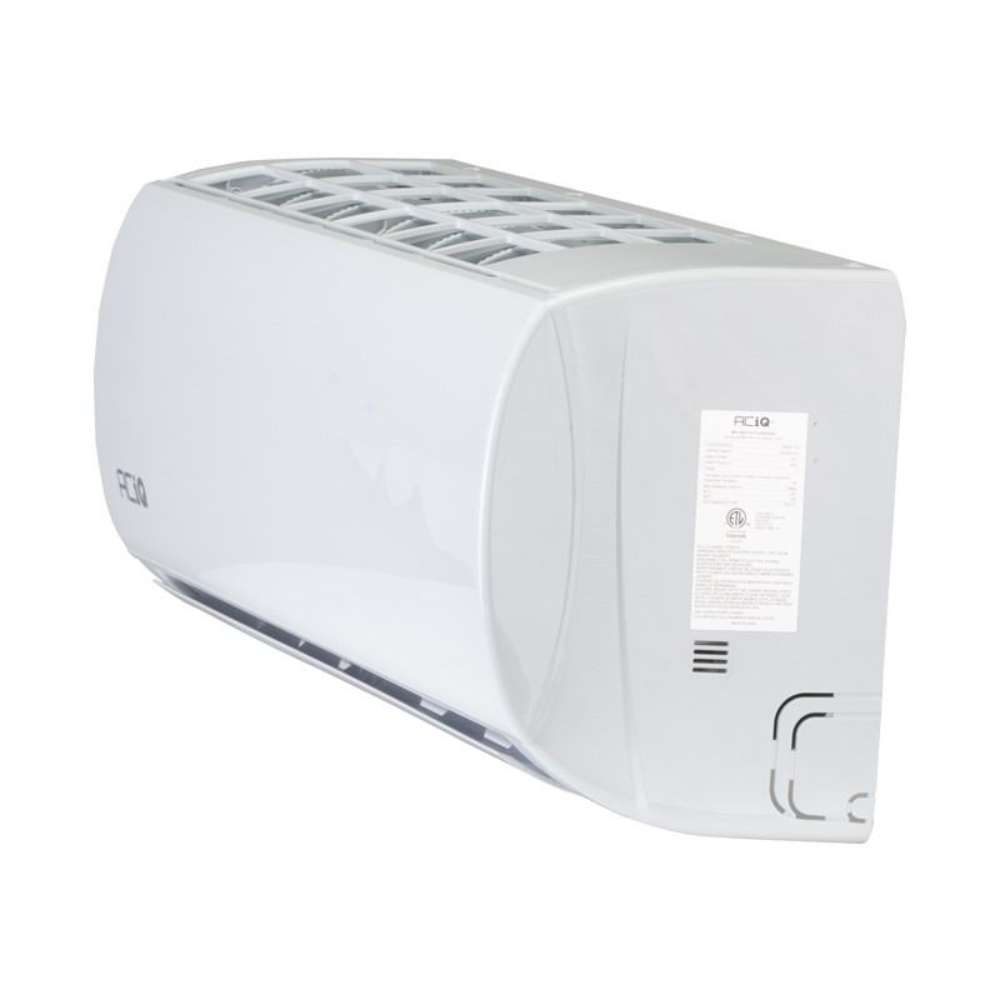

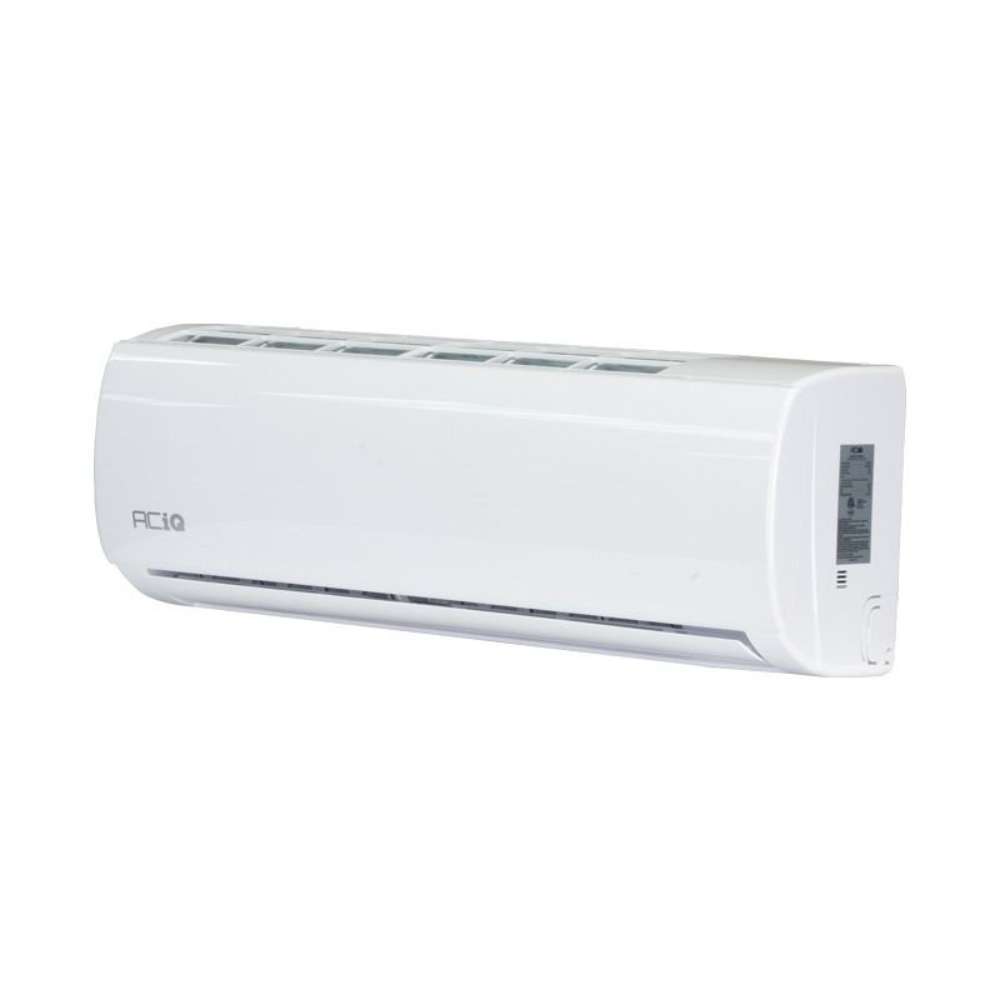

Air Handler Specs

  • Weight: 33.07 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACiQ-K24W-HP230
  • UPC: 810175553818
  • Controller: Included
  • Cooling BTU: 23,000 BTU
  • Heating BTU: 22,400 BTU
  • Maximum CFM: 676 Turbo / 629 High / 505 Medium / 412 Low
  • Decibel Level: 37–50 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 24,000 BTU / 2 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

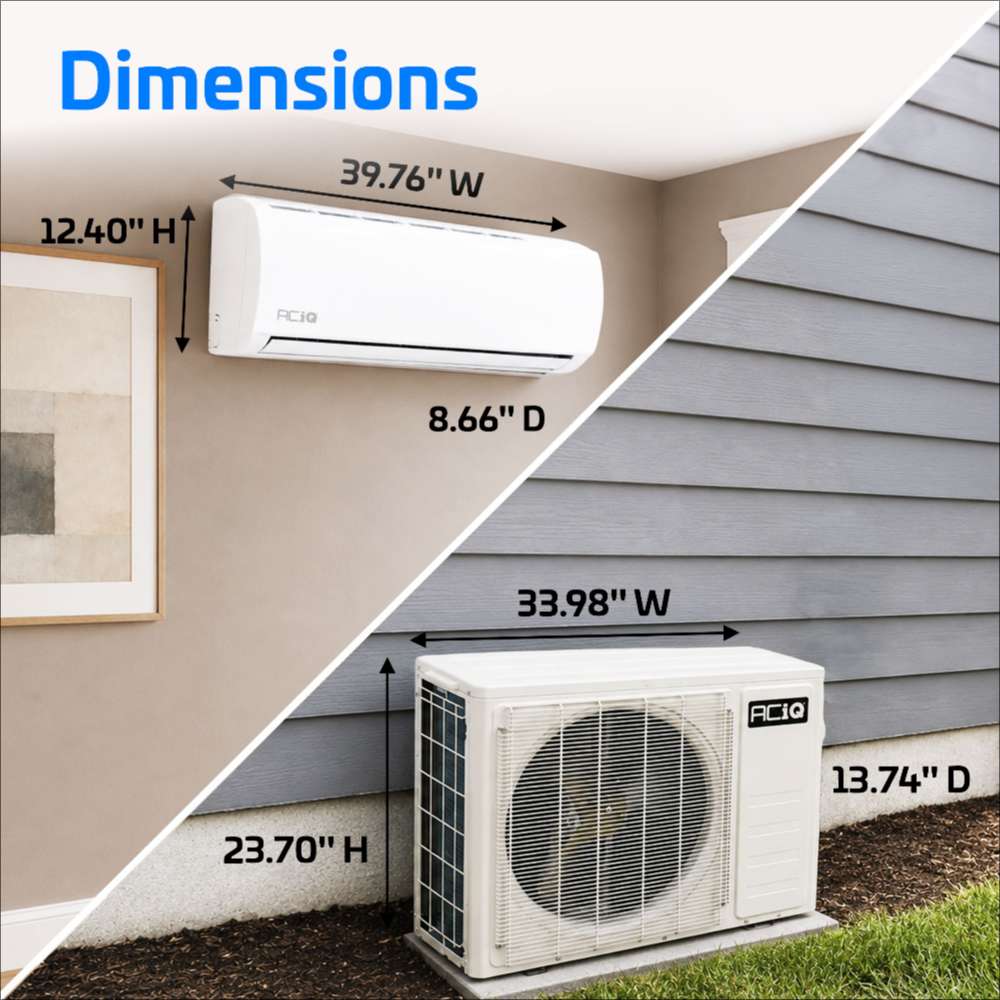

  • Height: 12.40"
  • Width: 39.76"
  • Depth: 8.66"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

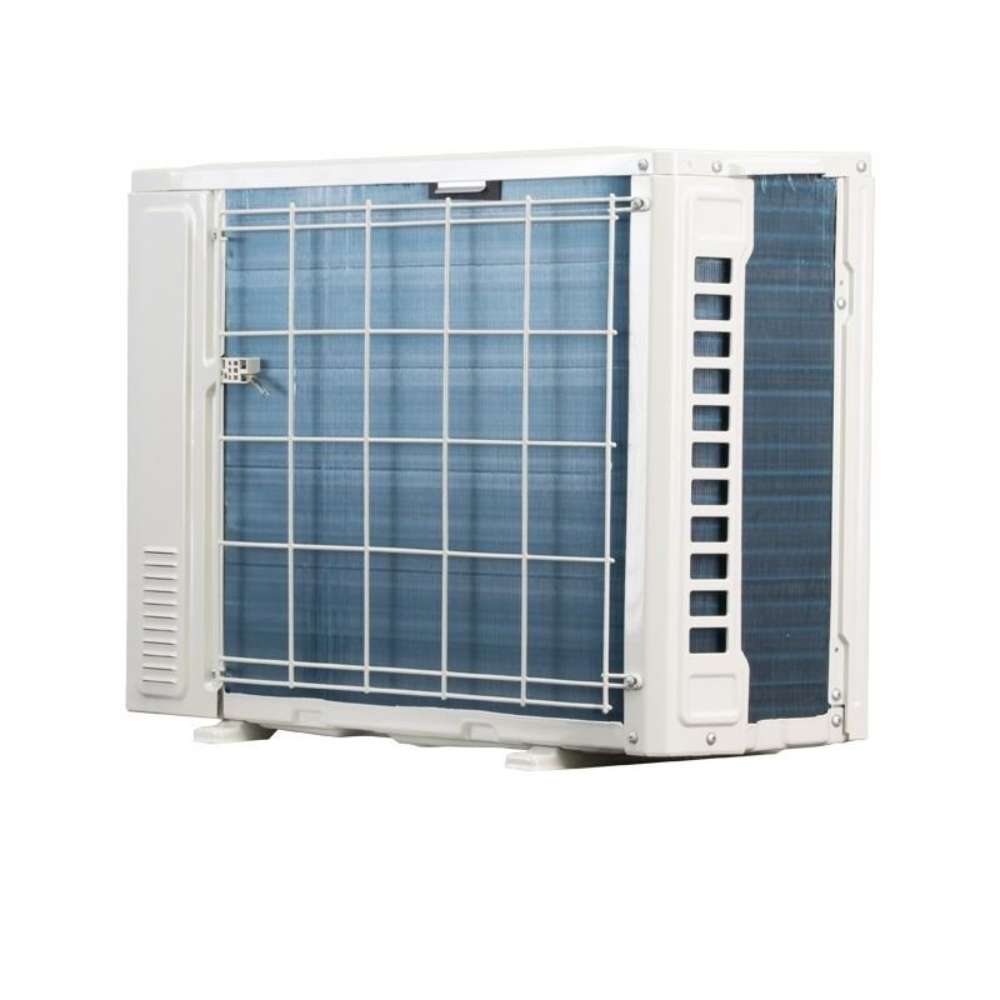

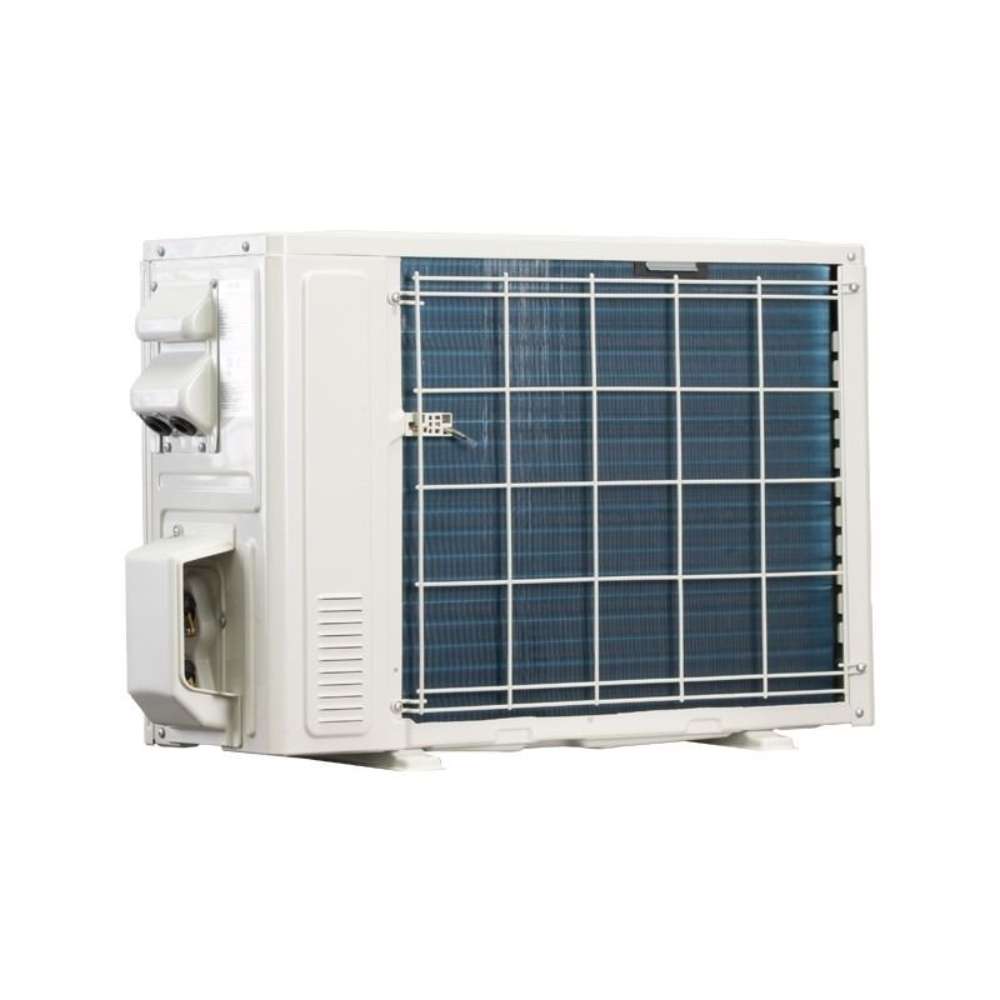

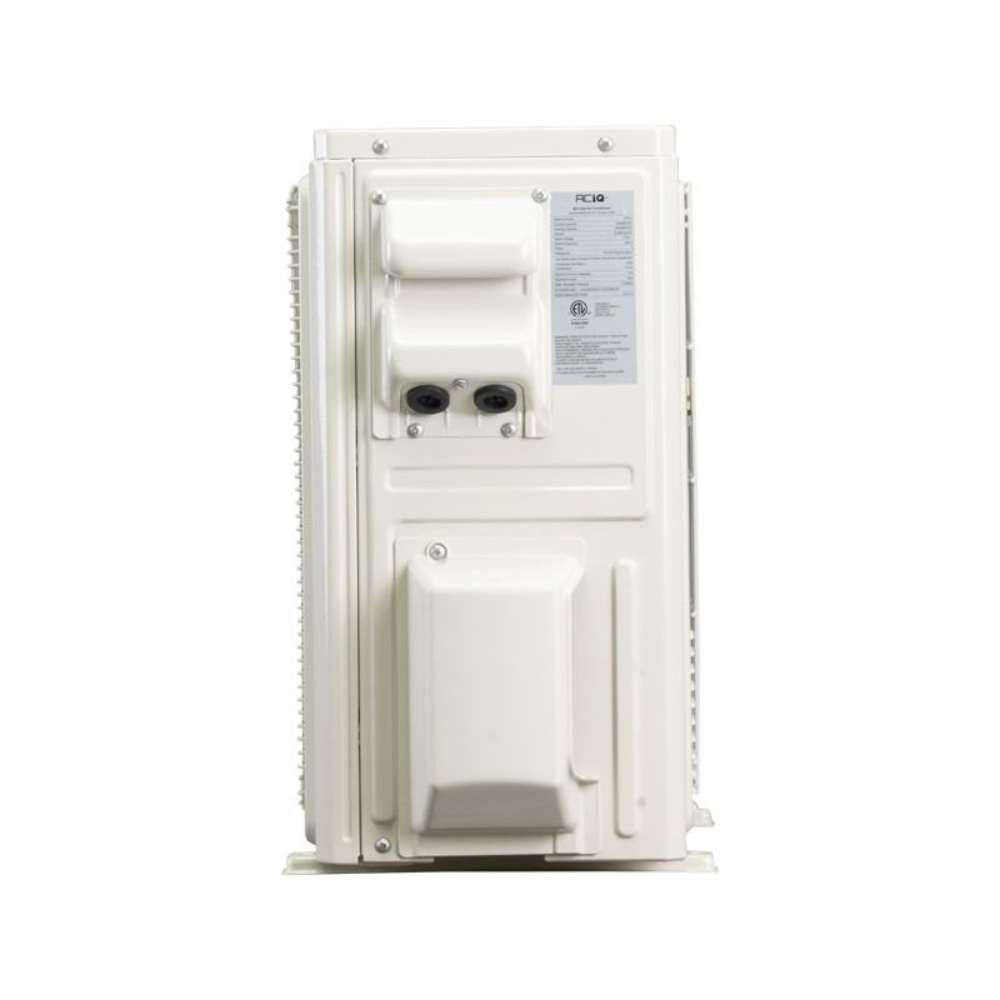

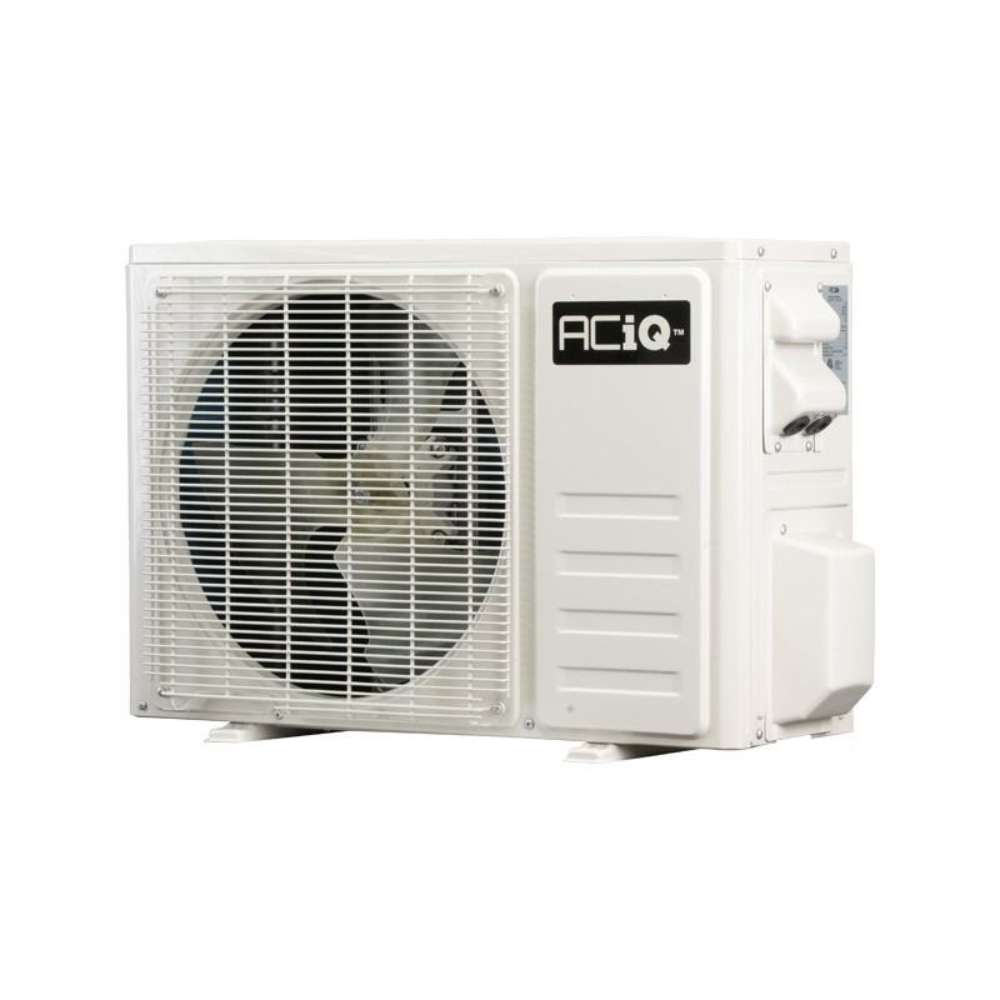

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.3 lbs, pre-charged for 16 ft line set
  • Weight: 81.57 lbs
  • AHRI Certificate Number: 218045392
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553863
  • Cooling BTU: 23,000 BTU
  • Heating BTU: 22,400 BTU
  • Decibel Level: 56 dBA
  • Refrigerant: R32
  • HSPF2: 8.5
  • SEER2 Efficiency: 17
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 25 Amps
  • Min. Breaker Size: 17 Amps
  • BTU/Tonnage: 24,000 BTU / 2 Ton
  • Outdoor Heating Temperature Range: 5°F to 86°F
  • Outdoor Cooling Temperature Range: 53.6°F to 122°F
  • Zone Compatibility: Single Zone
  • Height: 23.70"
  • Width: 33.98"
  • Depth: 13.74"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Delivers 23,000 BTU cooling and 22,400 BTU heating for spaces up to 1,500 square feet.
  • Suited to large living rooms, master bedrooms, studios, and open office areas.
  • 17 SEER2 efficiency helps keep the cost of conditioning a large space down.
  • Heats at outdoor temperatures down to 5°F.
  • Built-in WiFi lets you set temperature and modes from a compatible smart device.
  • Auto Mode and I FEEL sensing keep comfort consistent across the room.
  • Turbo Mode helps a large space heat up or cool down faster.
  • ECO Mode reduces energy use during normal operation.
  • Multi-directional airflow distributes air evenly through open layouts.
  • PureClean air sterilization and optional Self-Clean mode help simplify upkeep.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.
