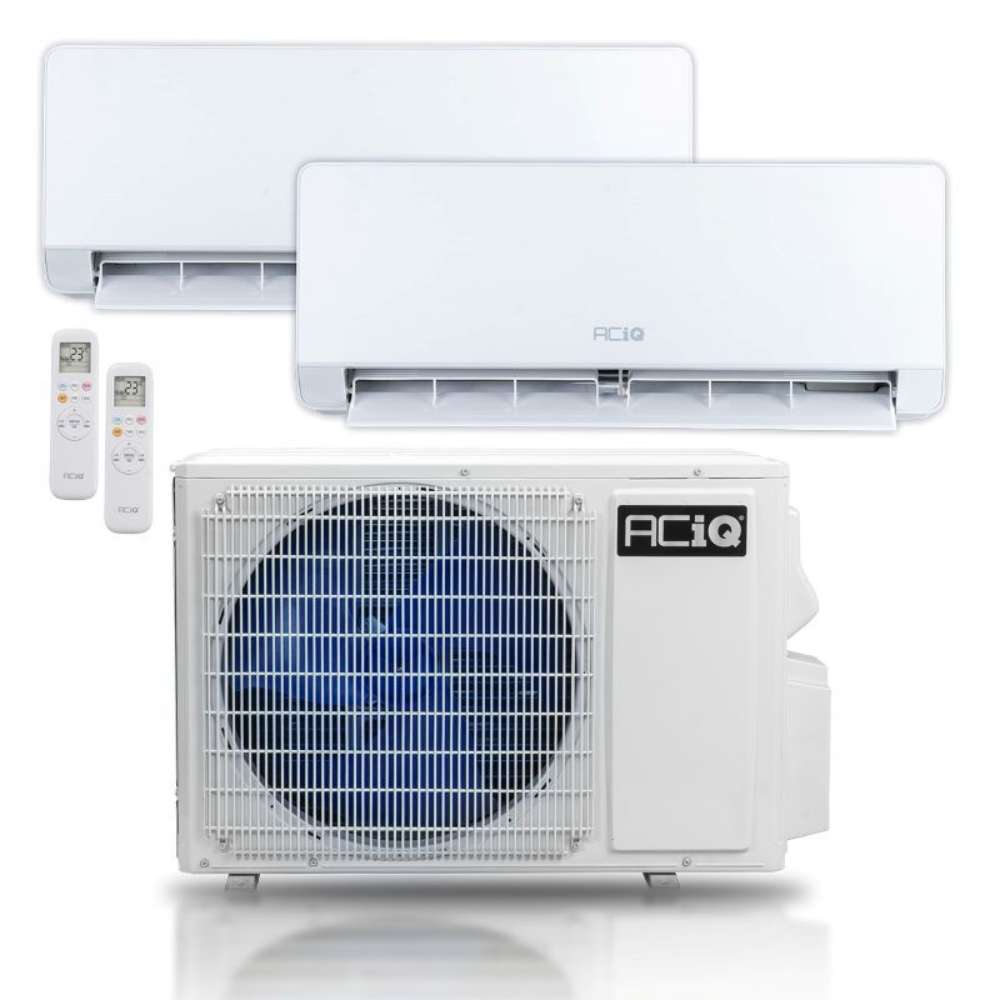

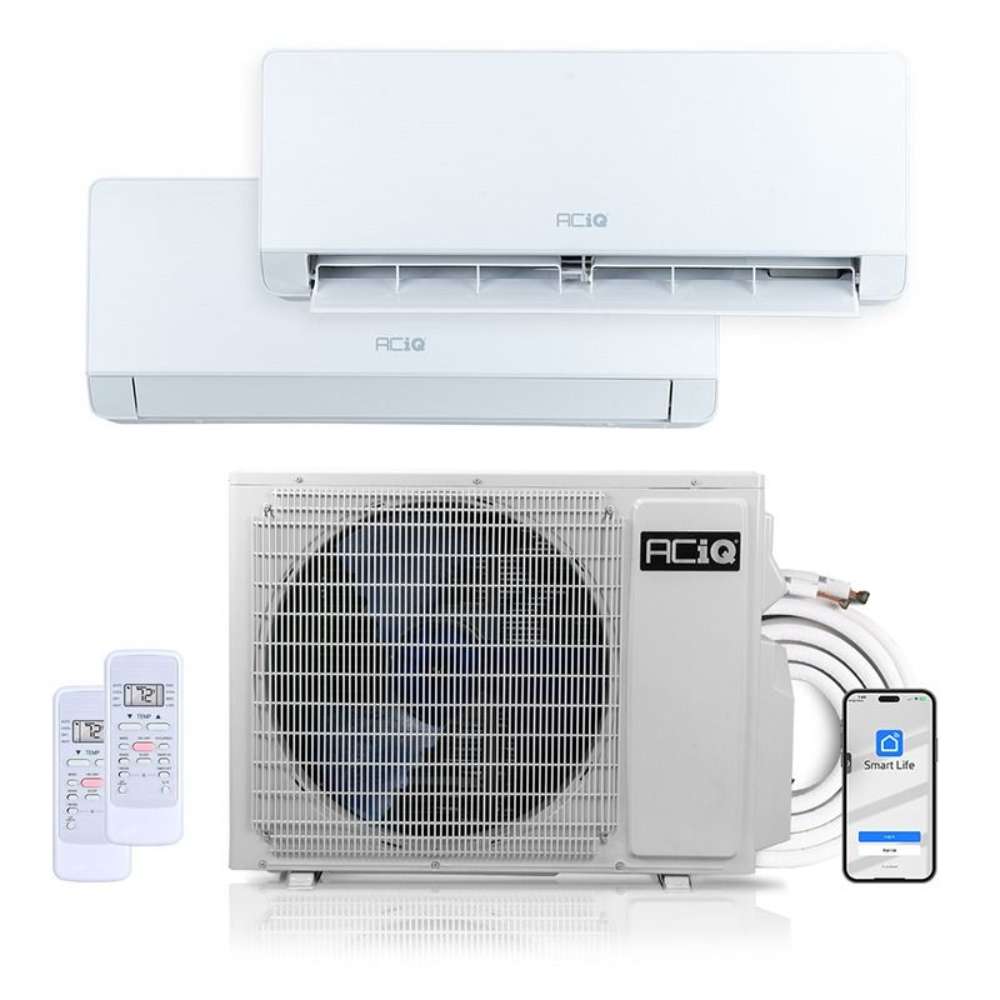

Two white wall mount air handlers, two remote controls, and an outdoor condenser make up the ACiQ 18000 BTU Essentials 22 SEER2 2 Zone Wall Mount Mini Split Heat Pump System

ACiQ 18000 BTU Essentials 22 SEER2 2 Zone Wall Mount Mini Split Heat Pump System

Save $310.06
$1,839.00
$1,528.94
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed to heat and cool two rooms from one outdoor condenser, with a 9,000 BTU air handler for rooms of about 250–400 square feet and a 12,000 BTU air handler for rooms of about 400–600 square feet.

Two-Room Applications:

  • A bedroom and a living room
  • A home office and a guest room
  • Two bedrooms
  • An in-law suite and a main living area

Supplemental Home Locations:

  • Workshops
  • Garages
  • Basements
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Comfort in Two Rooms With the ACiQ 18000 BTU 22 SEER2 Multi Zone Mini Split

ACiQ 18000 BTU Essentials 22 SEER2 2 Zone Wall Mount Mini Split Heat Pump System is a multi-zone mini-split that heats and cools two rooms from one outdoor condenser. It pairs a 9,000 BTU air handler for rooms of 250 to 400 square feet with a 12,000 BTU air handler for rooms of 400 to 600 square feet. A 22 SEER2 rating and Energy Star certification help keep energy costs down, and the condenser is rated to heat at outdoor temperatures as low as -13°F. Built-in WiFi and the included remotes make it easy to adjust each room, while the indoor units run as quietly as 34 dBA. It runs on 208/230V power and comes with a 6-year compressor and 4-year parts warranty after online registration.

What's Included?

  • 18,000 BTU Essentials Multi Zone Condenser

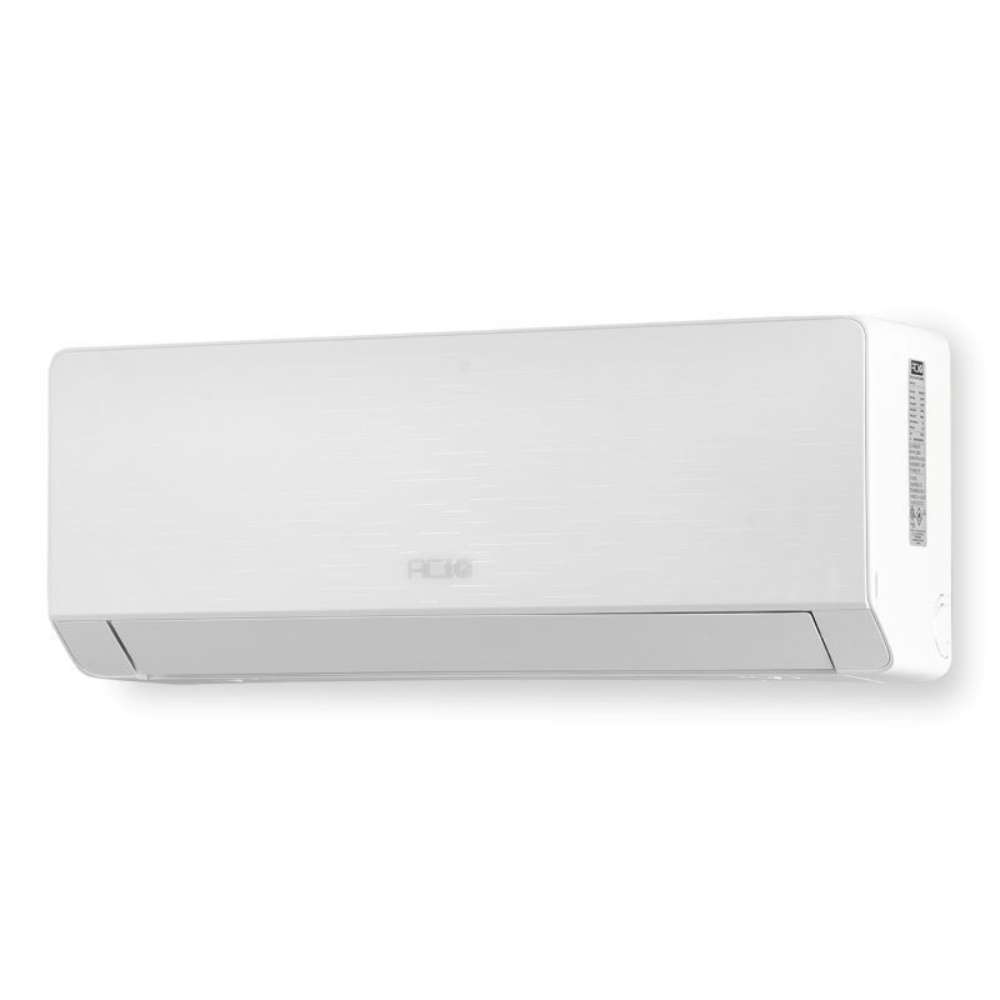

  • Zone 1: 9,000 BTU White Wall Mount Air Handler
  • Zone 2: 12,000 BTU White Wall Mount Air Handler
  • 2 Remote Controls

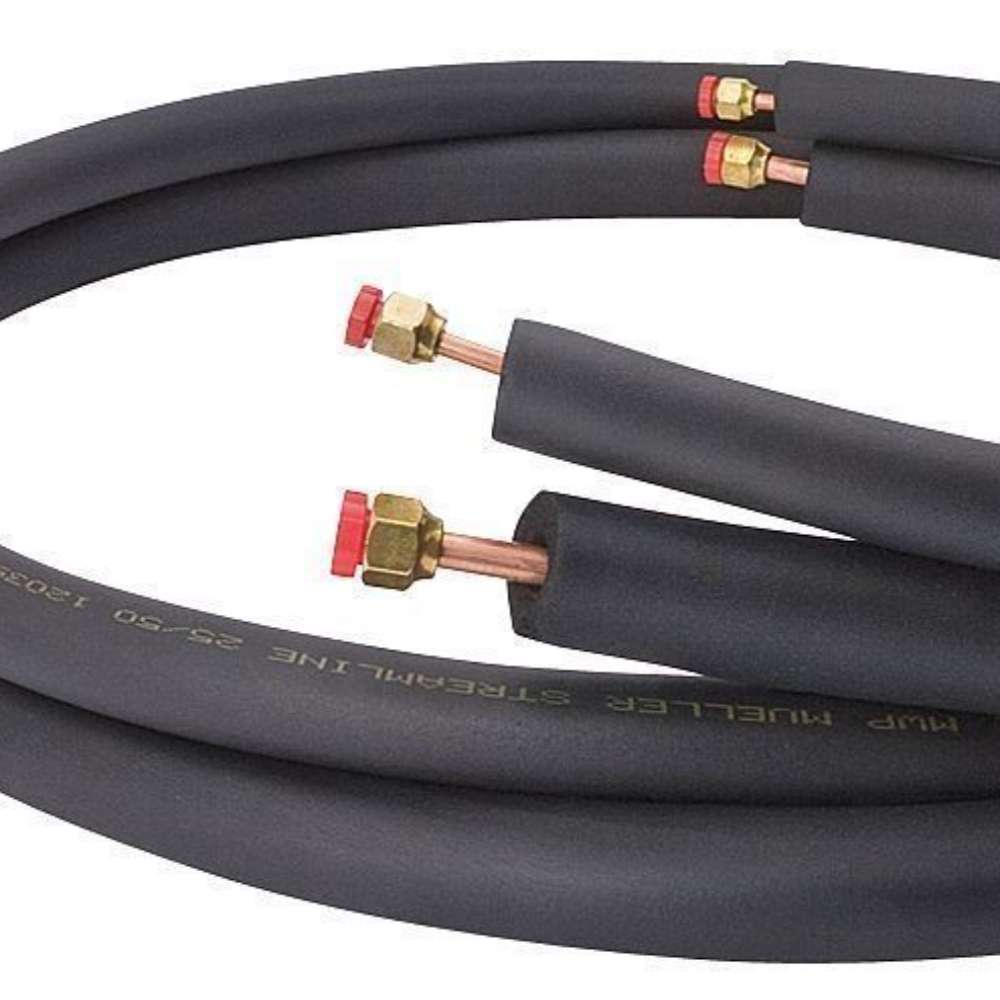

  • 15 ft Line Set

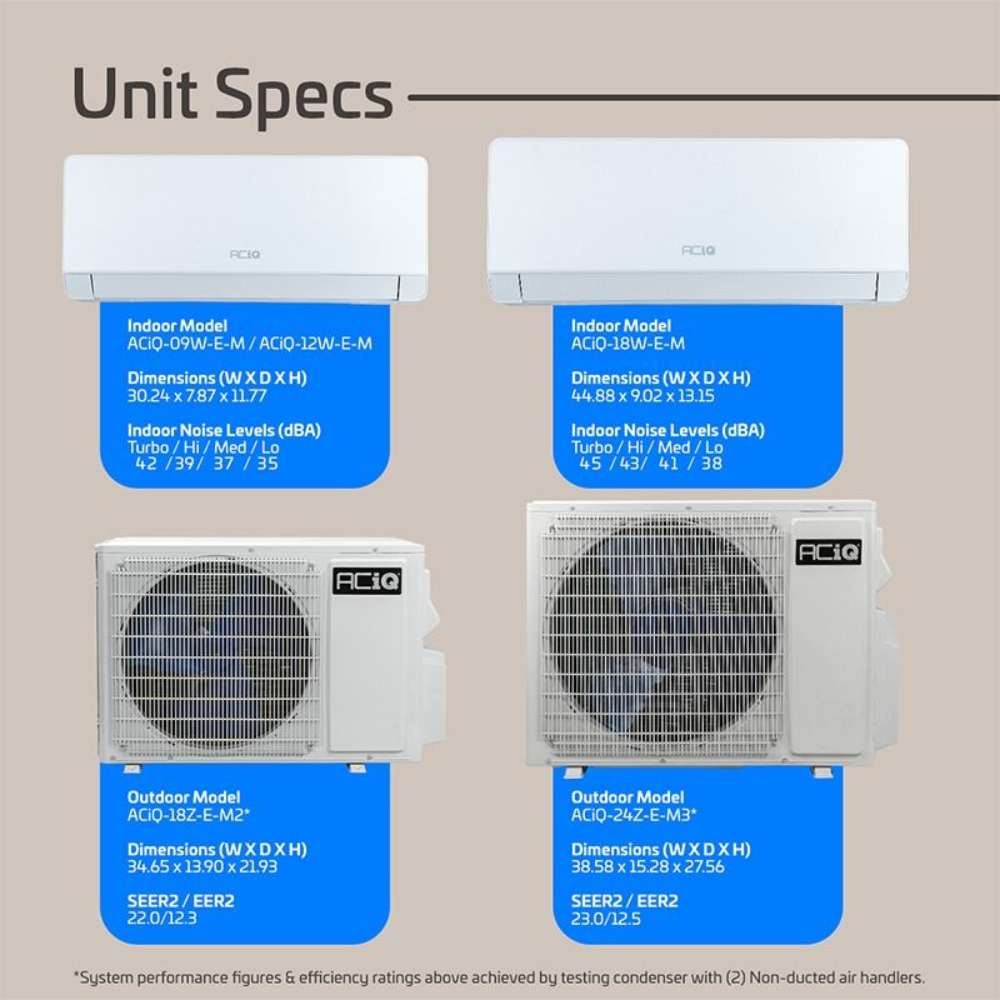

Air Handler Specs

  • Weight: 22.05 lbs
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553535
  • Controller: Wired Included
  • Cooling BTU: 9,100 BTU
  • Heating BTU: 10,000 BTU
  • Maximum CFM: 353 Turbo / 335 High / 282 Medium / 247 Low
  • Decibel Level: 34–42 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 9,000 BTU / 0.75 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Multi Zone
  • Height: 11.77"
  • Width: 30.24"
  • Depth: 7.87"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Air Handler Specs

  • Weight: 22.05 lbs
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553542
  • Controller: Wired Included
  • Cooling BTU: 12,000 BTU
  • Heating BTU: 12,300 BTU
  • Maximum CFM: 353 Turbo / 335 High / 282 Medium / 247 Low
  • Decibel Level: 35–42 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 12,000 BTU / 1 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Multi Zone, Single Zone
  • Height: 11.77"
  • Width: 30.24"
  • Depth: 7.87"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.4 lbs, pre-charged for 49 ft line set
  • Weight: 80.5 lbs
  • AHRI Certificate Number: 217751654, 217751645, 217751636
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553511
  • Cooling BTU: 17,700 BTU
  • Heating BTU: 18,000 BTU
  • Decibel Level: 64 dBA
  • Energy Star: Yes
  • Refrigerant: R32
  • HSPF2: 8.0
  • SEER2 Efficiency: 22
  • EER2: 12.3
  • Compressor Type: Rotary
  • Liquid Line: 1/4" (4)
  • Suction Line: 3/8" (3), 1/2" (1)
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 20 Amps
  • Min. Breaker Size: 15 Amps
  • BTU/Tonnage: 18,000 BTU / 1.5 Ton
  • Outdoor Heating Temperature Range: -13°F to 75°F
  • Outdoor Cooling Temperature Range: -13°F to 125°F
  • Zone Compatibility: Multi Zone
  • Height: 21.93"
  • Width: 34.65"
  • Depth: 13.90"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Heats and cools two separate rooms from a single 18,000 BTU outdoor condenser.

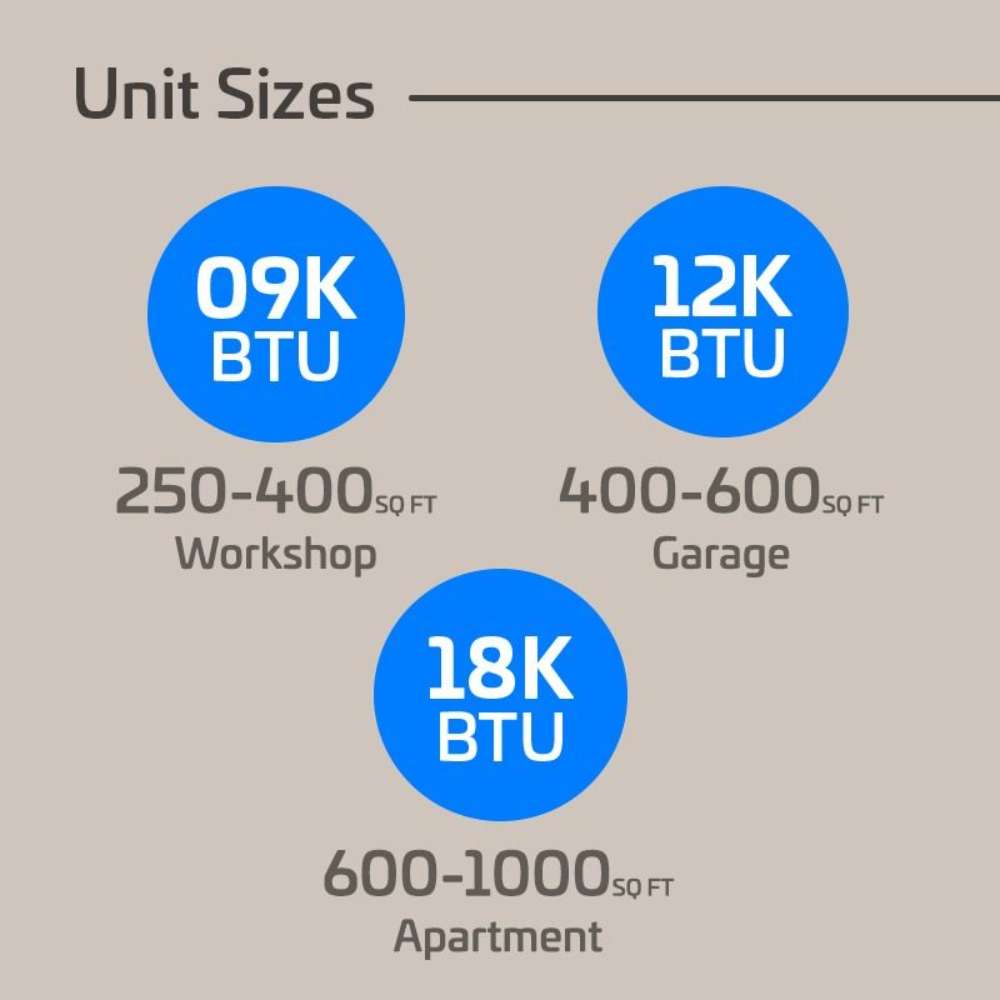

  • Includes a 9,000 BTU air handler for 250–400 sq ft and a 12,000 BTU air handler for 400–600 sq ft.
  • 22 SEER2, 12.3 EER2, and 8.0 HSPF2 ratings with Energy Star certification help lower energy use.
  • Rated to heat at outdoor temperatures down to -13°F and cool up to 125°F.
  • Built-in WiFi lets you control the system from a compatible smart device.
  • I Feel temperature sensing keeps the room at the temperature you feel at the remote.
  • Turbo Mode brings a room to its set temperature faster.
  • Eco Mode helps reduce energy use during everyday operation.
  • Sleep Mode and Mute keep the indoor units quiet at night, with operation as low as 34 dBA.
  • Programmable timers let you schedule heating and cooling around your day.
  • Uses R32 refrigerant.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.
