Full system for ACiQ 18000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System with the indoor unit, condenser, remote, smartphone app, line set and installation accessories

ACiQ 18000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $182.91
$999.00
$816.09
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 1,000 square feet.

Single Room Applications:

  • Bedrooms
  • Guest rooms
  • Home offices
  • In-law suites

Supplemental Home Locations:

  • Attics
  • Basements
  • Garages
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Cover Up to 1,000 Sq. Ft. With the ACiQ 18000 BTU 17 SEER2 Mini Split

ACiQ 18000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a ductless mini split that heats and cools spaces up to 1,000 square feet. It suits larger bedrooms, living areas, and finished basements, with a 17 SEER2 rating to help control energy costs. Built-in WiFi control lets you manage the system from a compatible device, and the indoor unit operates as quietly as 32 dBA. The condenser runs on 208/230V power and provides heating at outdoor temperatures down to 5°F. A pre-charged 16 ft line set and installation accessories come in the box, backed by a 6-year compressor and 4-year parts warranty with online registration.

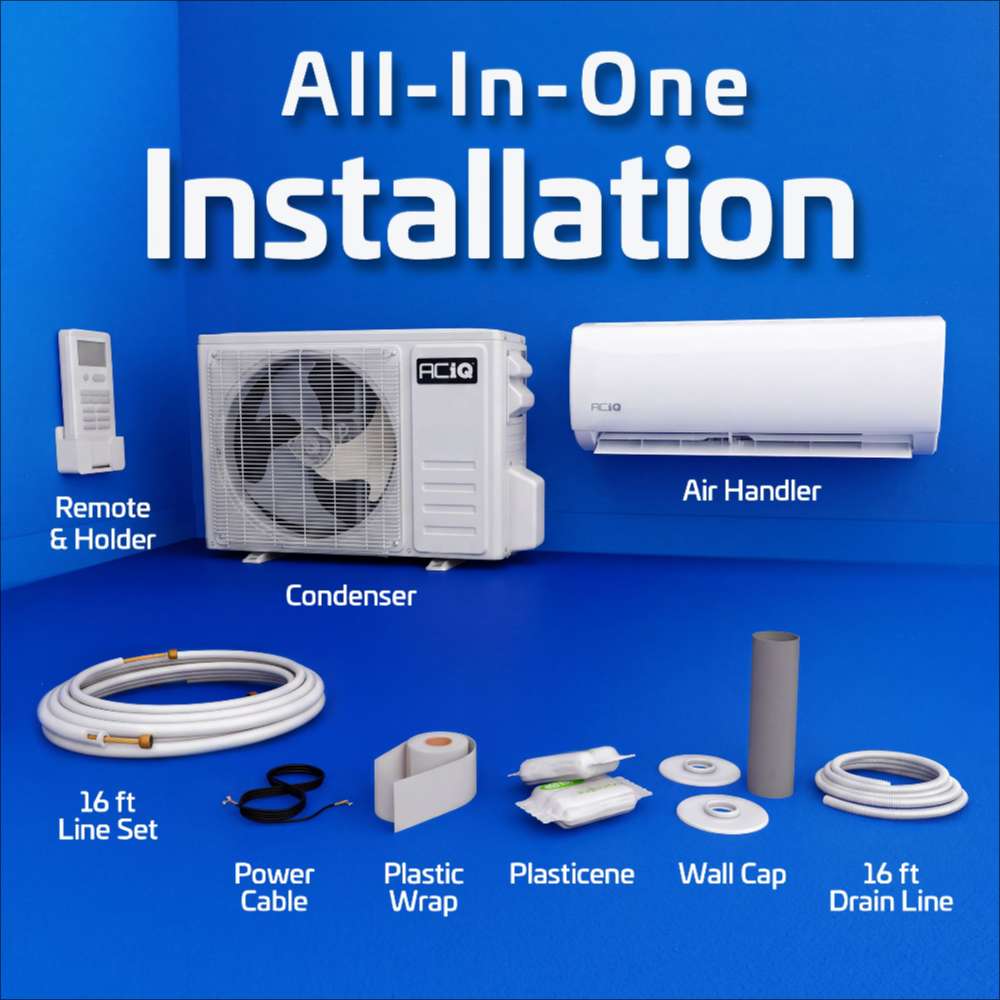

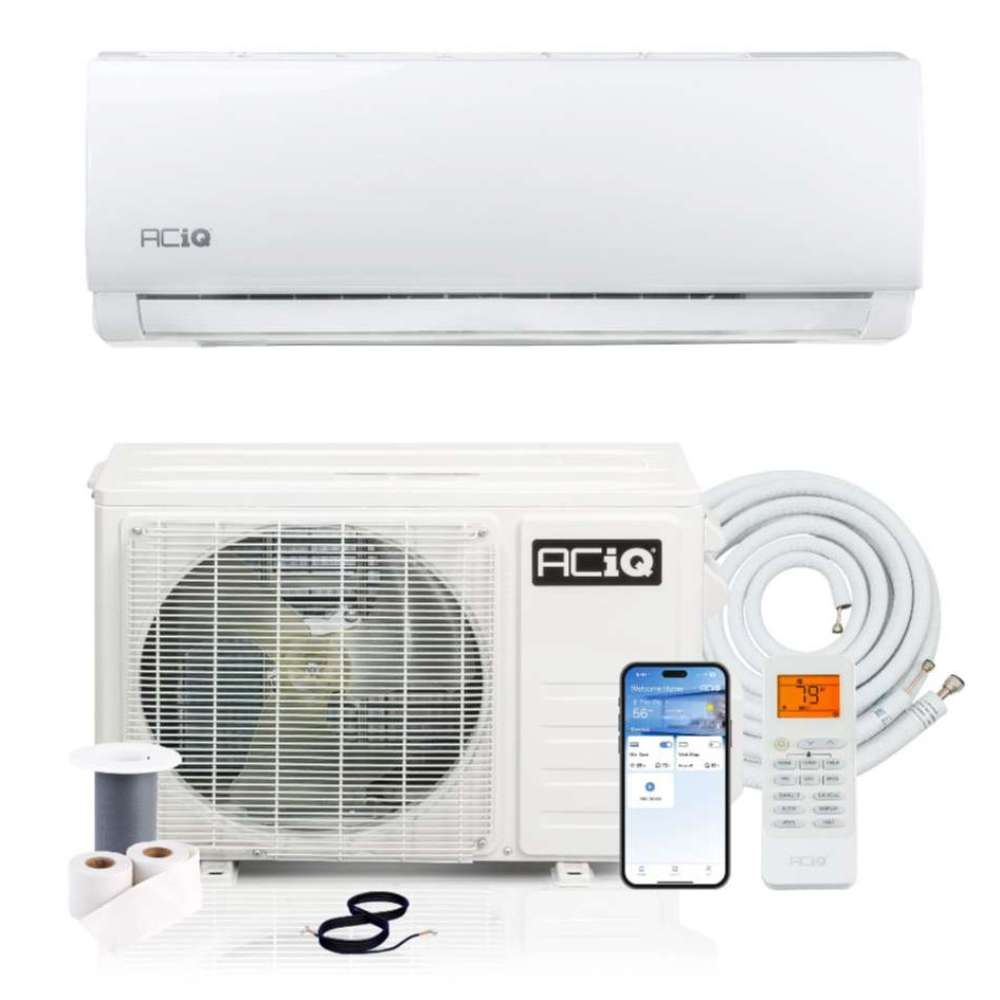

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

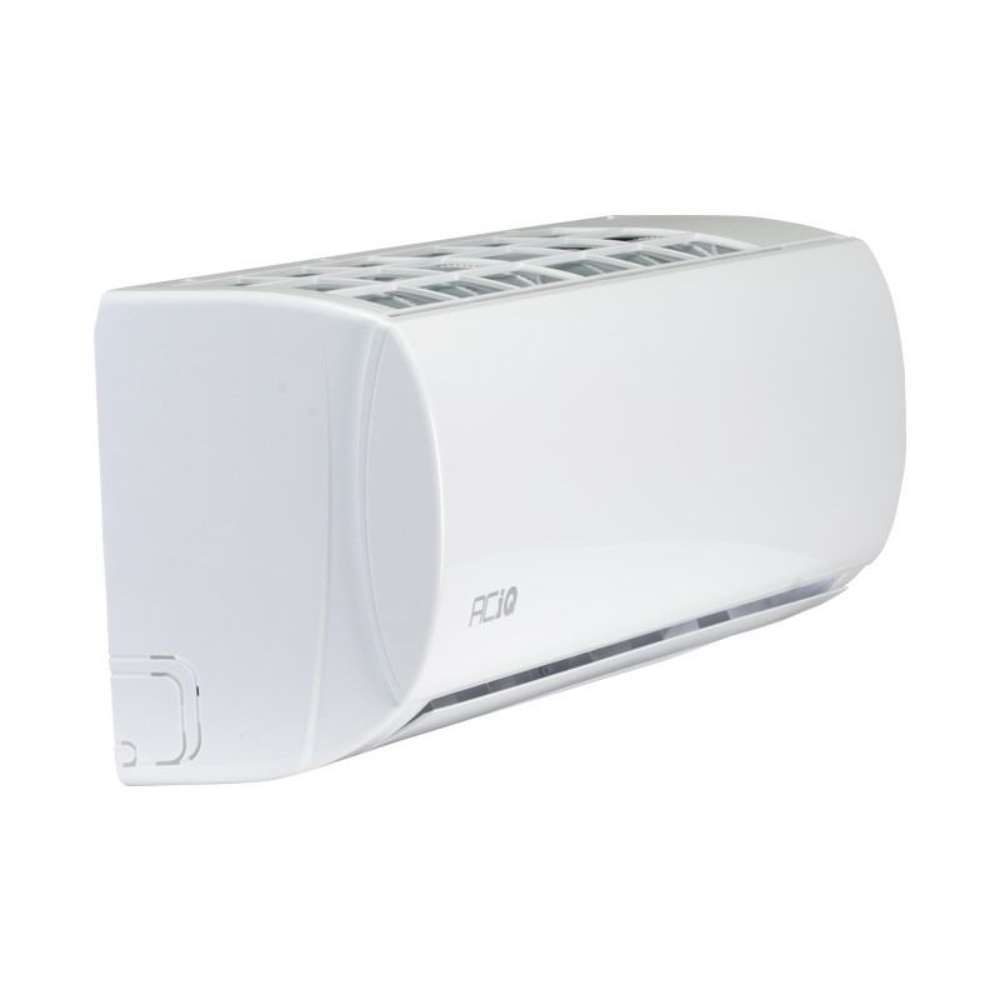

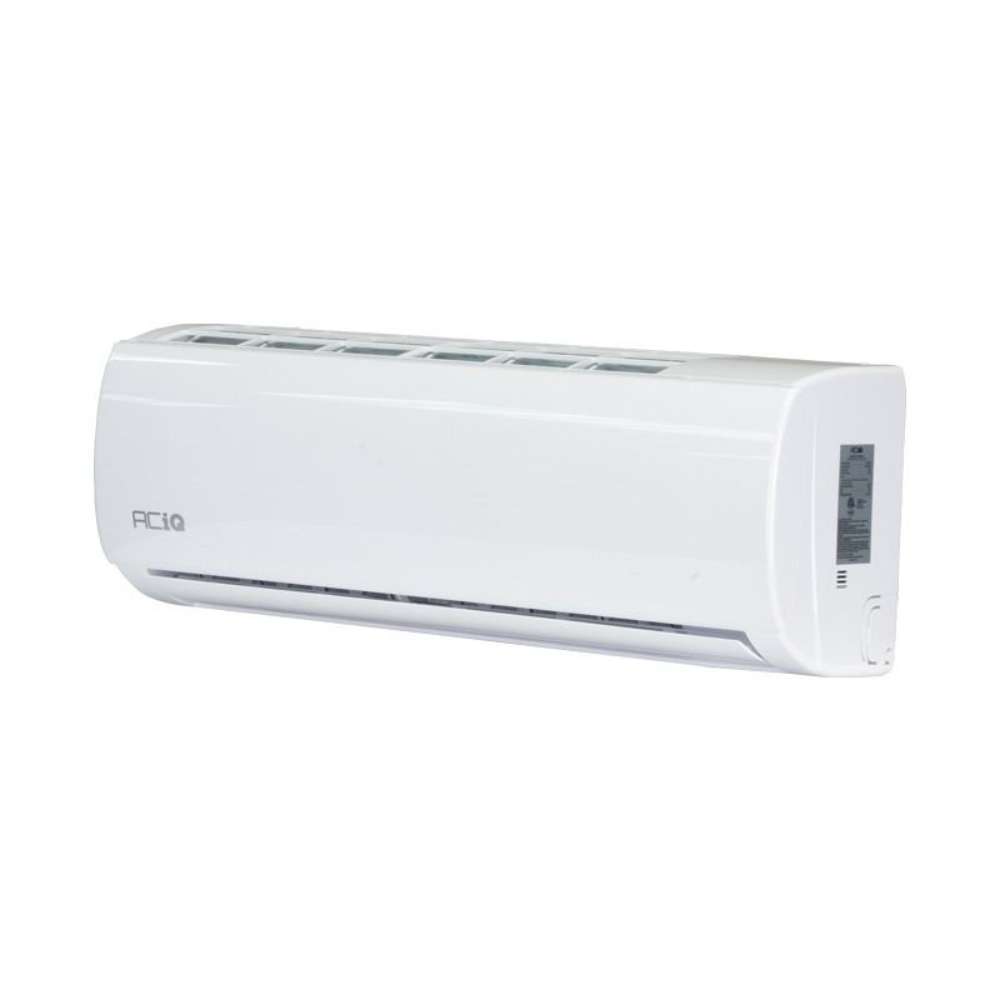

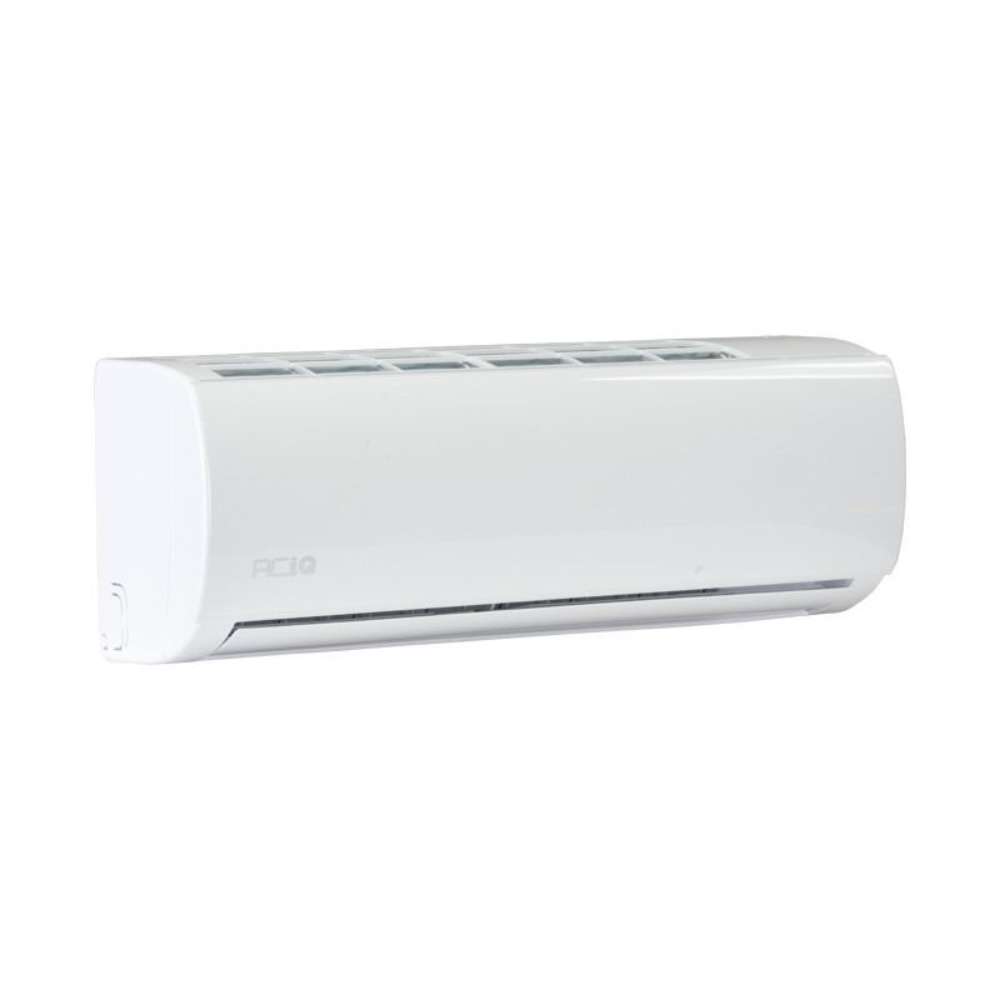

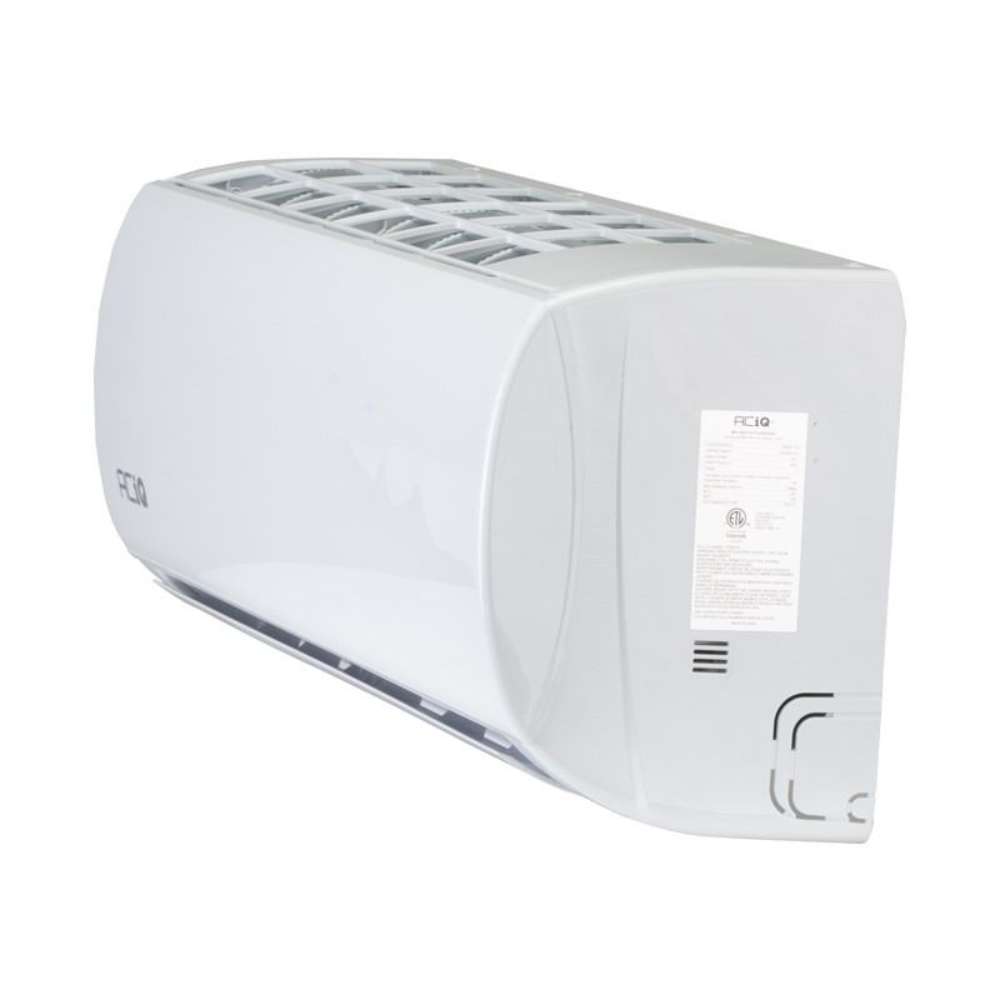

Air Handler Specs

  • Weight: 27.56 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACiQ-K18W-HP230
  • UPC: 810175551975
  • Controller: Included
  • Cooling BTU: 17,000 BTU
  • Heating BTU: 16,500 BTU
  • Maximum CFM: 412 Turbo / 364 High / 294 Medium / 235 Low
  • Decibel Level: 32–49 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 18,000 BTU / 1.5 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

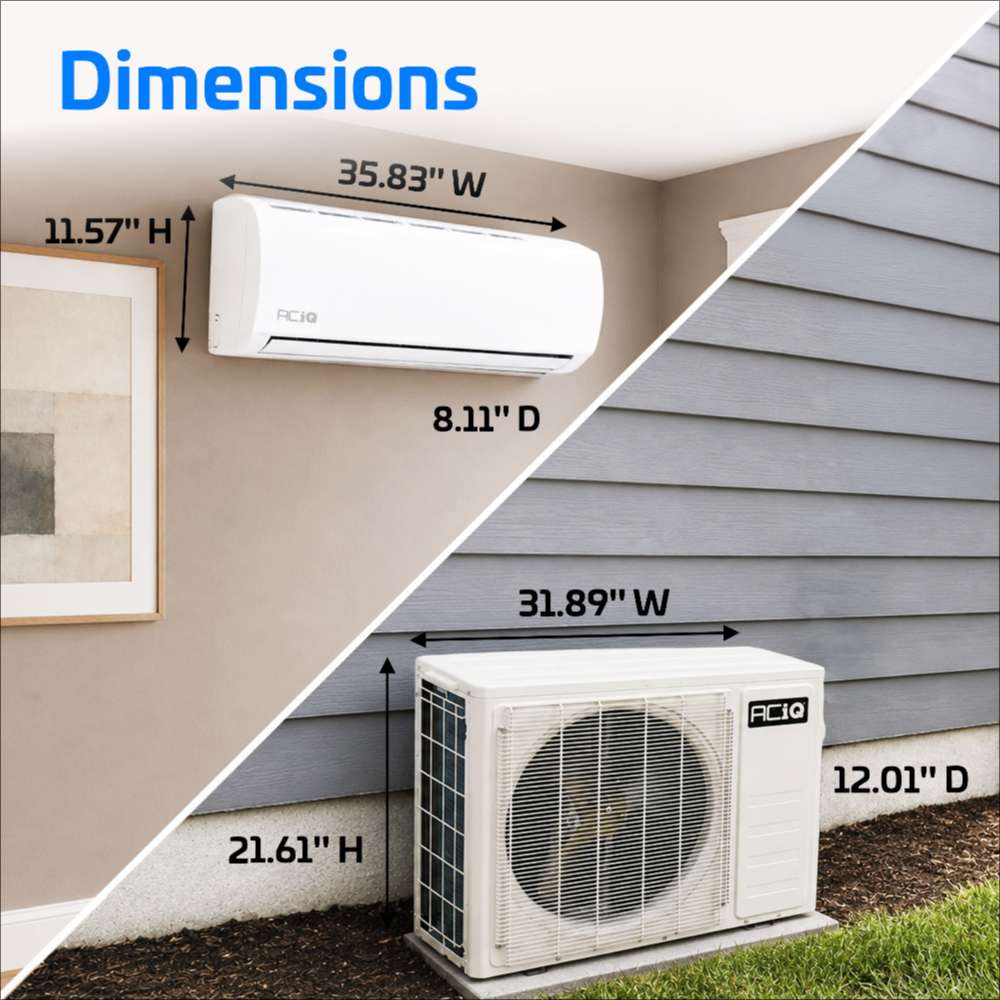

  • Height: 11.57"
  • Width: 35.83"
  • Depth: 8.11"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

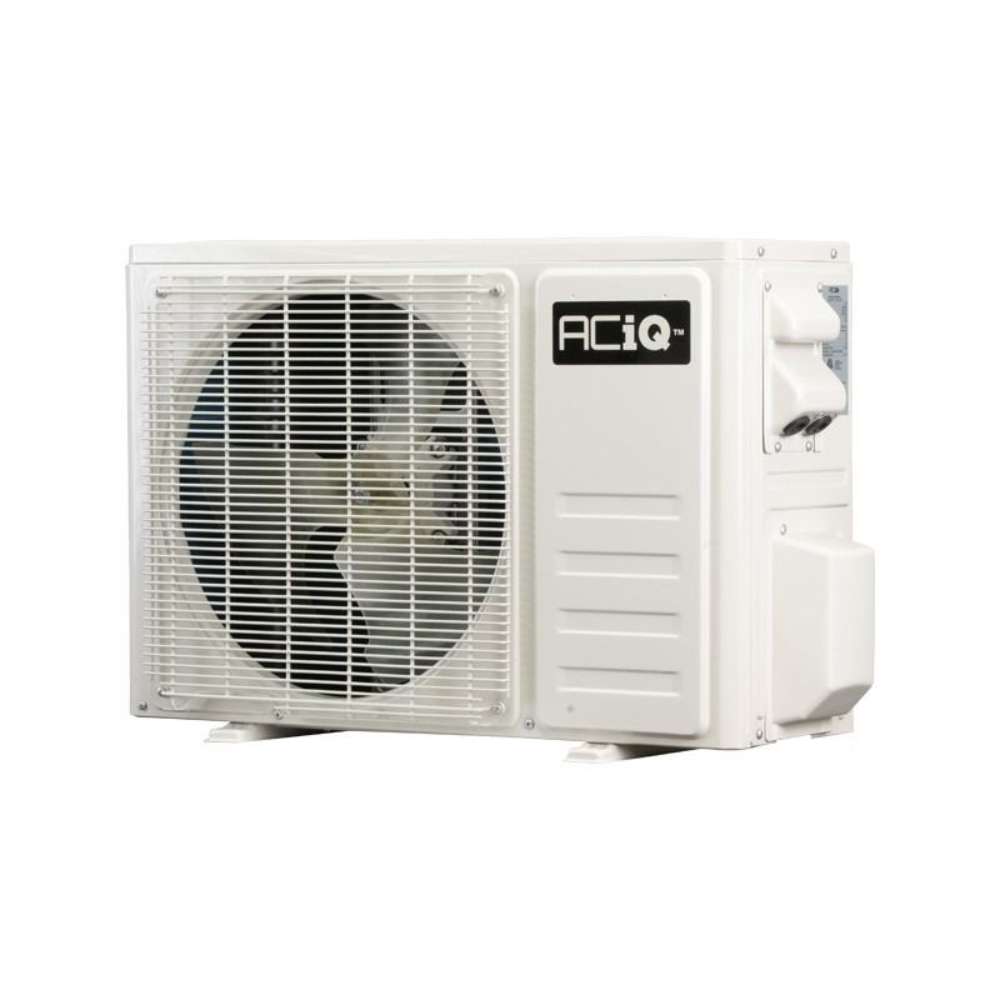

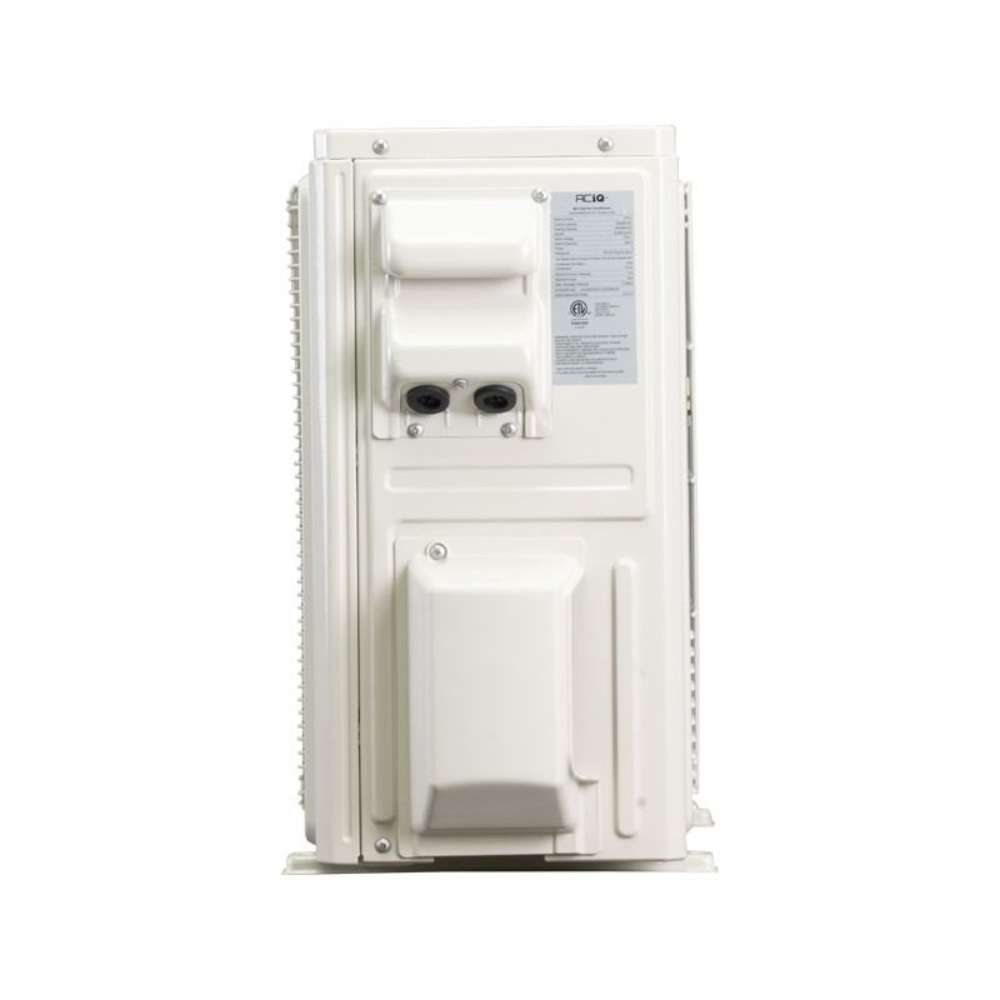

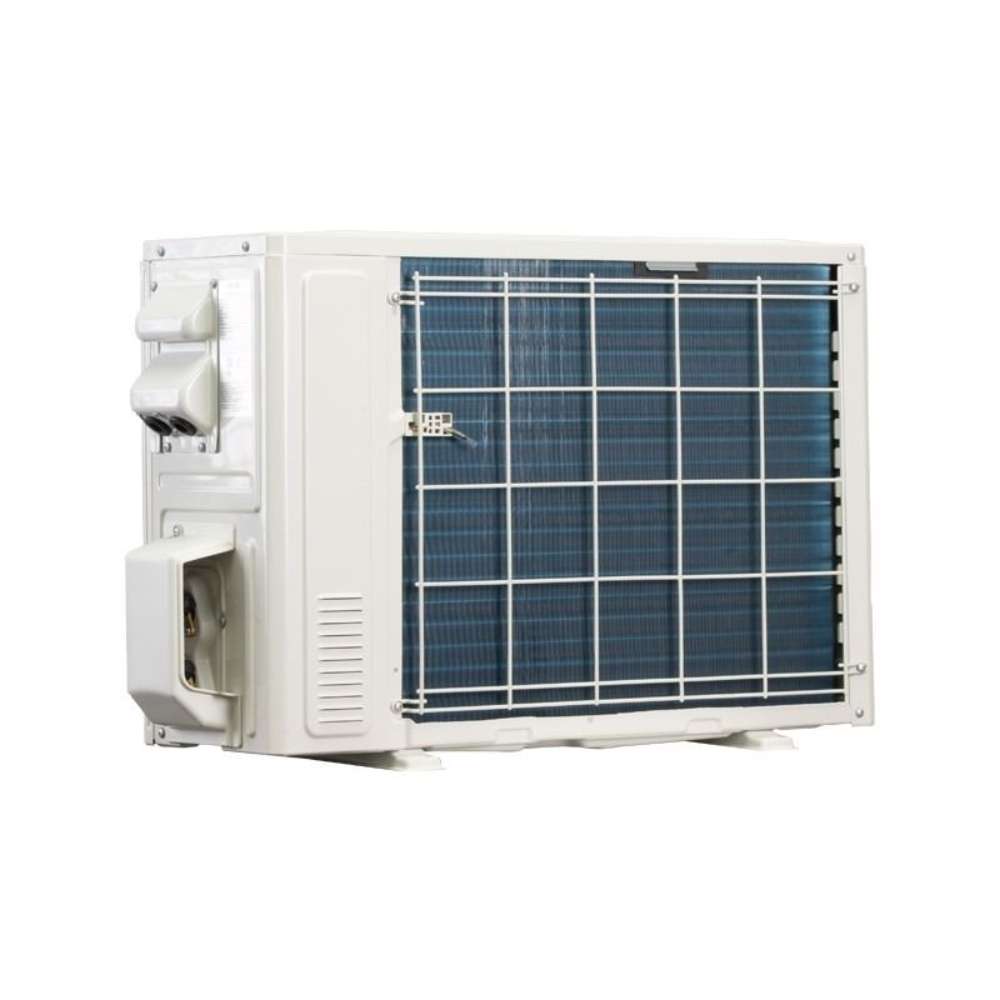

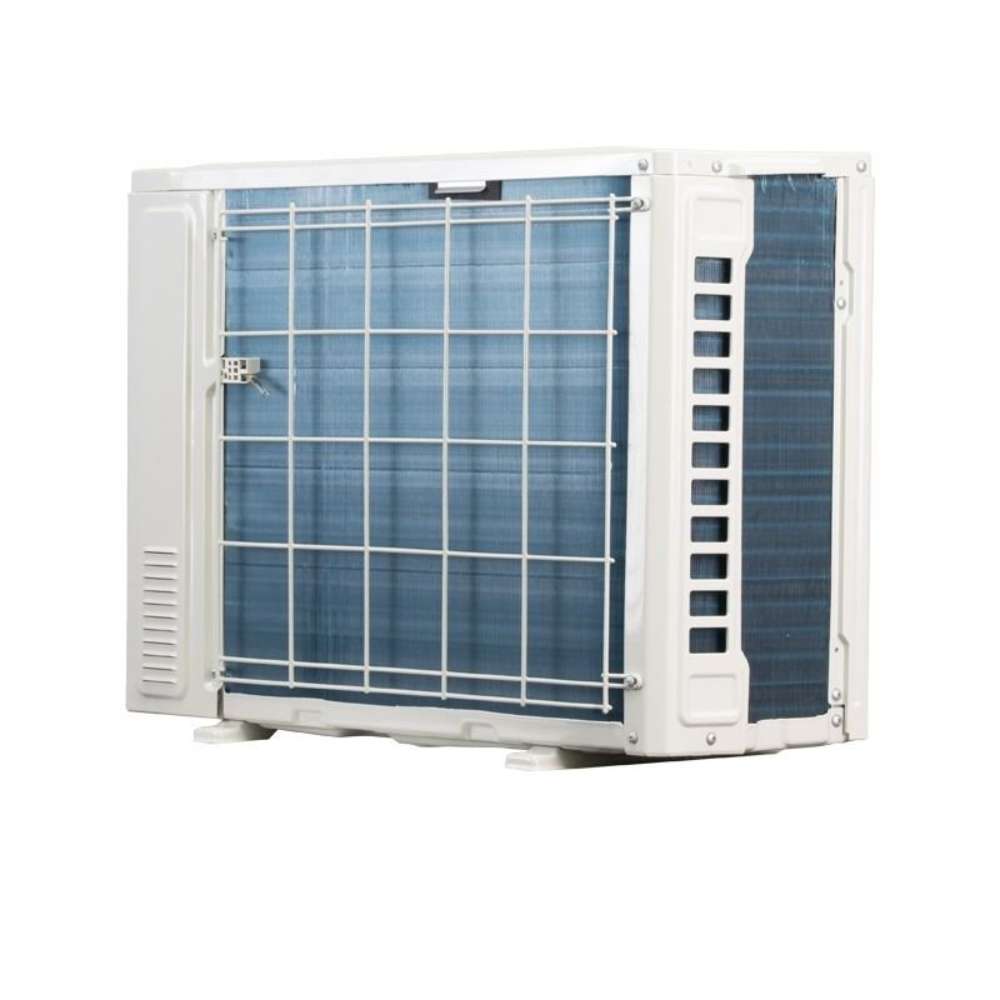

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.6 lbs, pre-charged for 16 ft line set
  • Weight: 69.44 lbs
  • AHRI Certificate Number: 218045391
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553856
  • Cooling BTU: 17,000 BTU
  • Heating BTU: 16,500 BTU
  • Decibel Level: 57 dBA
  • Refrigerant: R32
  • HSPF2: 7.2
  • SEER2 Efficiency: 17
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 20 Amps
  • Min. Breaker Size: 12 Amps
  • BTU/Tonnage: 18,000 BTU / 1.5 Ton
  • Outdoor Heating Temperature Range: 5°F to 86°F
  • Outdoor Cooling Temperature Range: 53.6°F to 122°F
  • Zone Compatibility: Single Zone
  • Height: 21.61"
  • Width: 31.89"
  • Depth: 12.01"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Delivers 17,000 BTU cooling and 16,500 BTU heating for spaces up to 1,000 square feet.

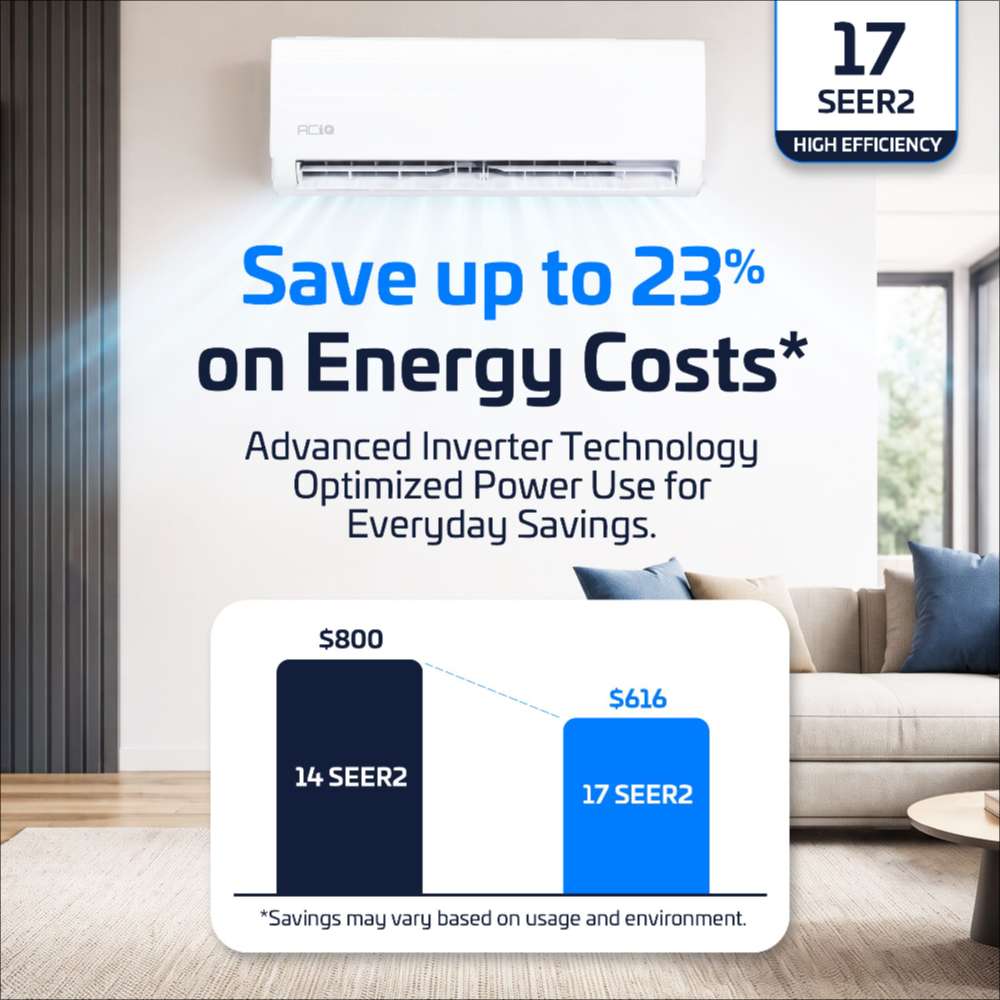

  • 17 SEER2 efficiency helps keep utility bills manageable in a larger room.
  • Heats at outdoor temperatures down to 5°F and cools up to 122°F outside.
  • Built-in WiFi puts temperature and mode control on a compatible smart device.
  • Auto Mode and I FEEL sensing fine-tune output for consistent comfort.
  • Turbo Mode speeds up heating or cooling when the room needs a fast change.
  • ECO Mode helps reduce power use during everyday operation.
  • Multi-directional airflow moves air across the whole space more evenly.
  • PureClean air sterilization and optional Self-Clean mode help reduce maintenance.
  • Sleep Mode, MUTE, and quiet operation keep noise to a minimum.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.

Documents

About ACiQ Mini Split Systems

ACiQ is a heating and cooling brand focused on smart, energy-efficient HVAC solutions for homes, offices, and commercial spaces.

Its product range includes ductless mini-splits, central air conditioners, heat pumps, furnaces, inverter systems, rooftop units, and PTACs, all designed to deliver reliable comfort, quiet operation, and strong value. ACiQ also incorporates advanced features such as variable-speed technology, Wi-Fi connectivity, and cold-climate performance to support efficient year-round heating and cooling.
