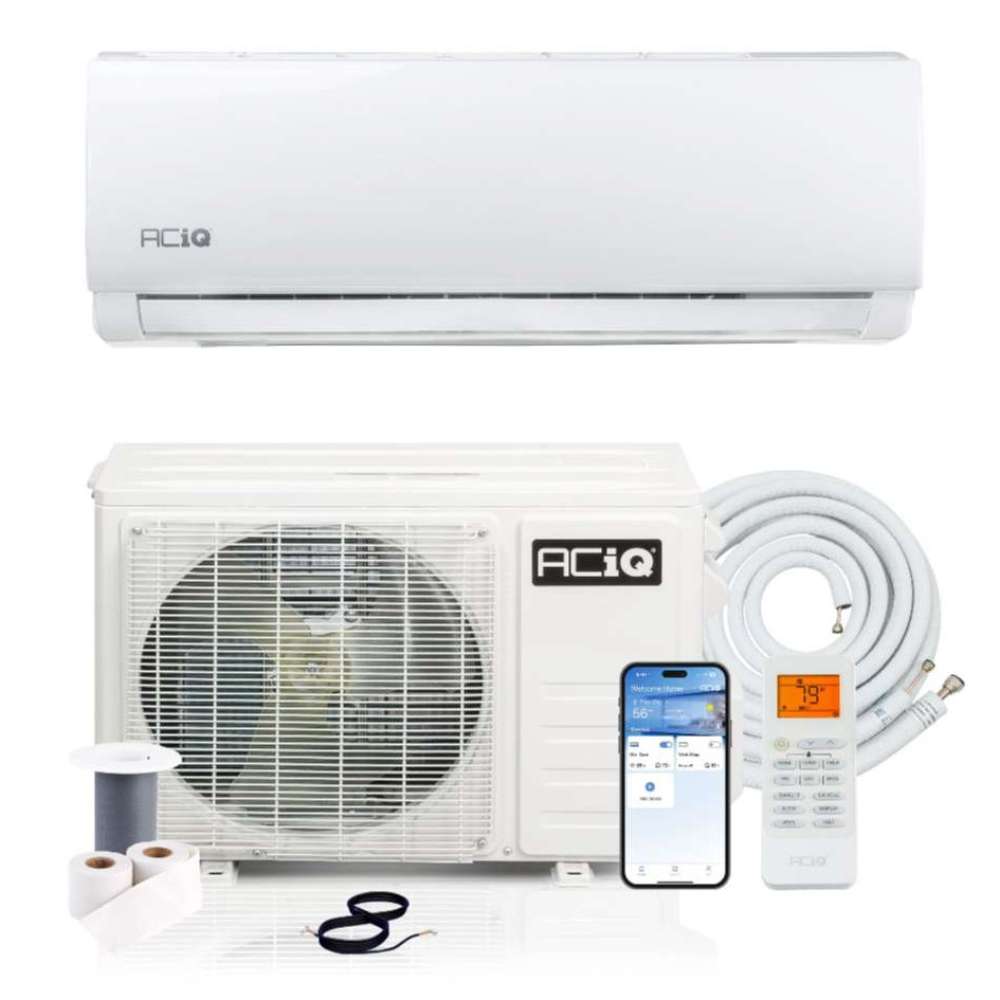

Complete package for ACiQ 12000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System, including the indoor unit, condenser, remote, phone app, line set and install accessories

ACiQ 12000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $231.05
$1,099.00
$867.95
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 400 square feet.

Single Room Applications:

  • Bedrooms
  • Guest rooms
  • Home offices
  • In-law suites

Supplemental Home Locations:

  • Attics
  • Basements
  • Garages
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Upgrade Your Room With the High-Efficiency ACiQ 12000 BTU 20 SEER2 Mini Split

ACiQ 12000 BTU Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a mini split heat pump for single rooms up to 600 square feet. A 20 SEER2 rating and an 8.5 HSPF2 heating rating make it one of the more efficient choices for bedrooms, offices, and sunrooms. Built-in WiFi control and an indoor unit rated as low as 28 dBA pair convenient ductless heating and cooling with quiet operation. It comes in 115V and 208/230V versions, and the 208/230V condenser is rated to heat at outdoor temperatures down to -4°F. A pre-charged 16 ft line set and installation accessories are included, with a 6-year compressor and 4-year parts warranty after online registration.

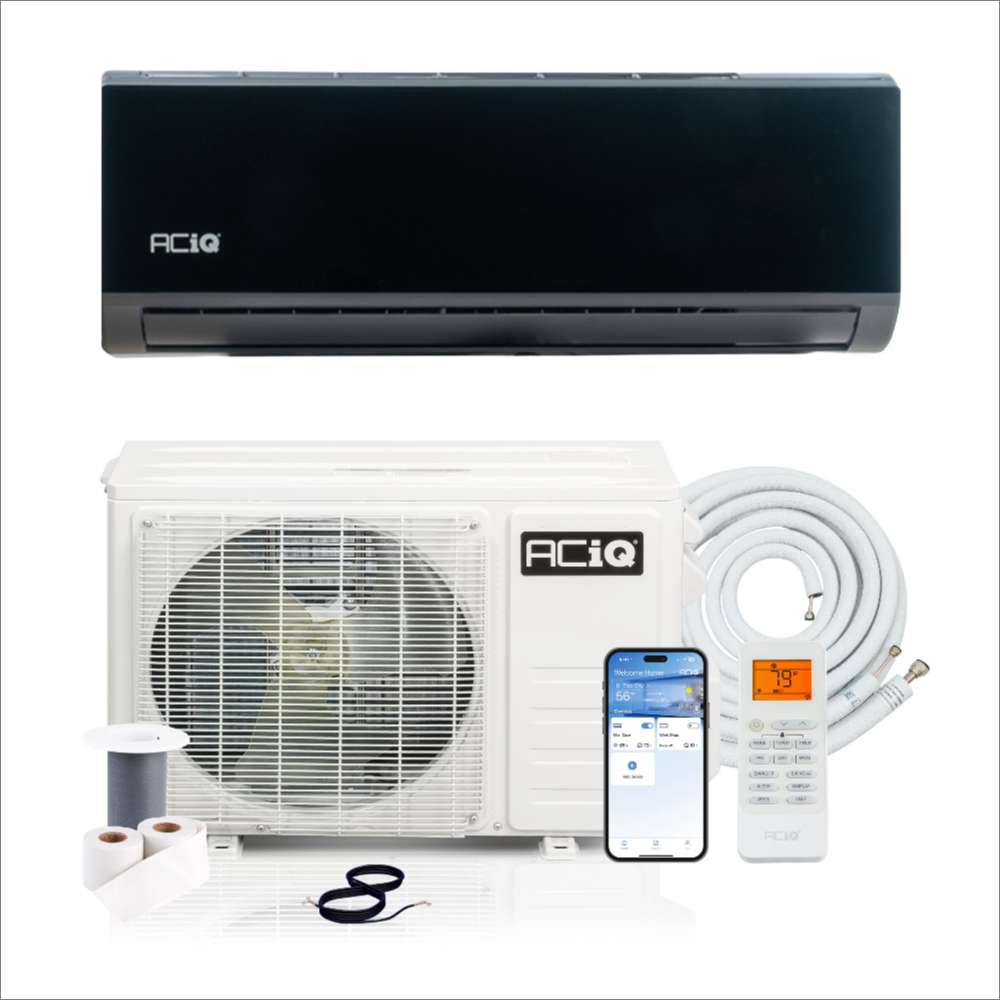

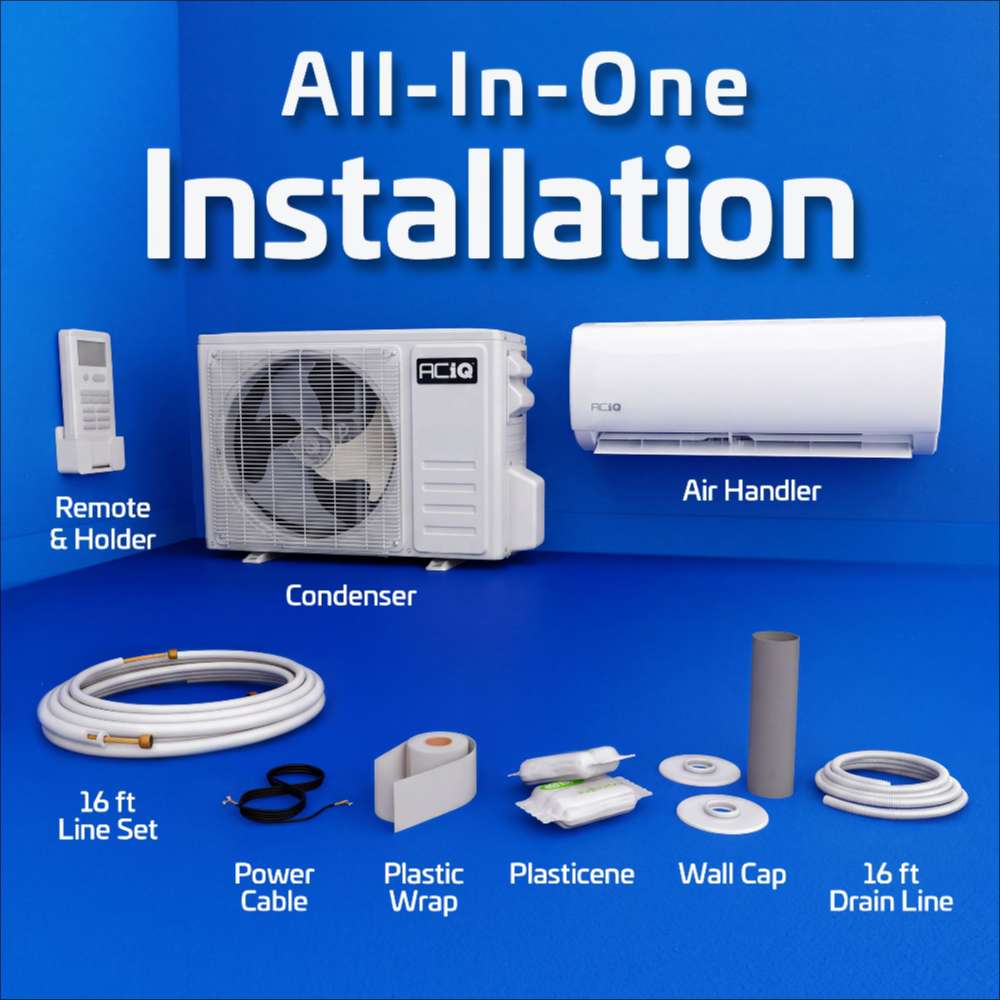

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

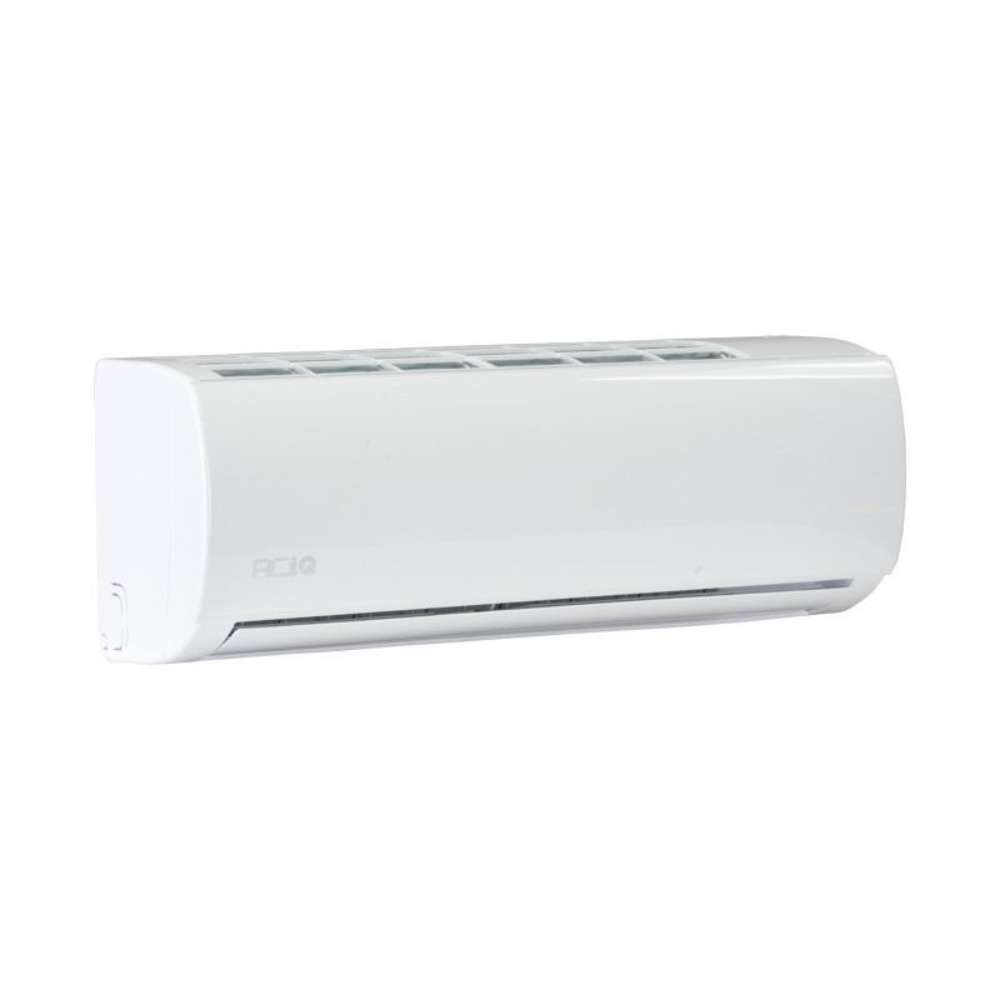

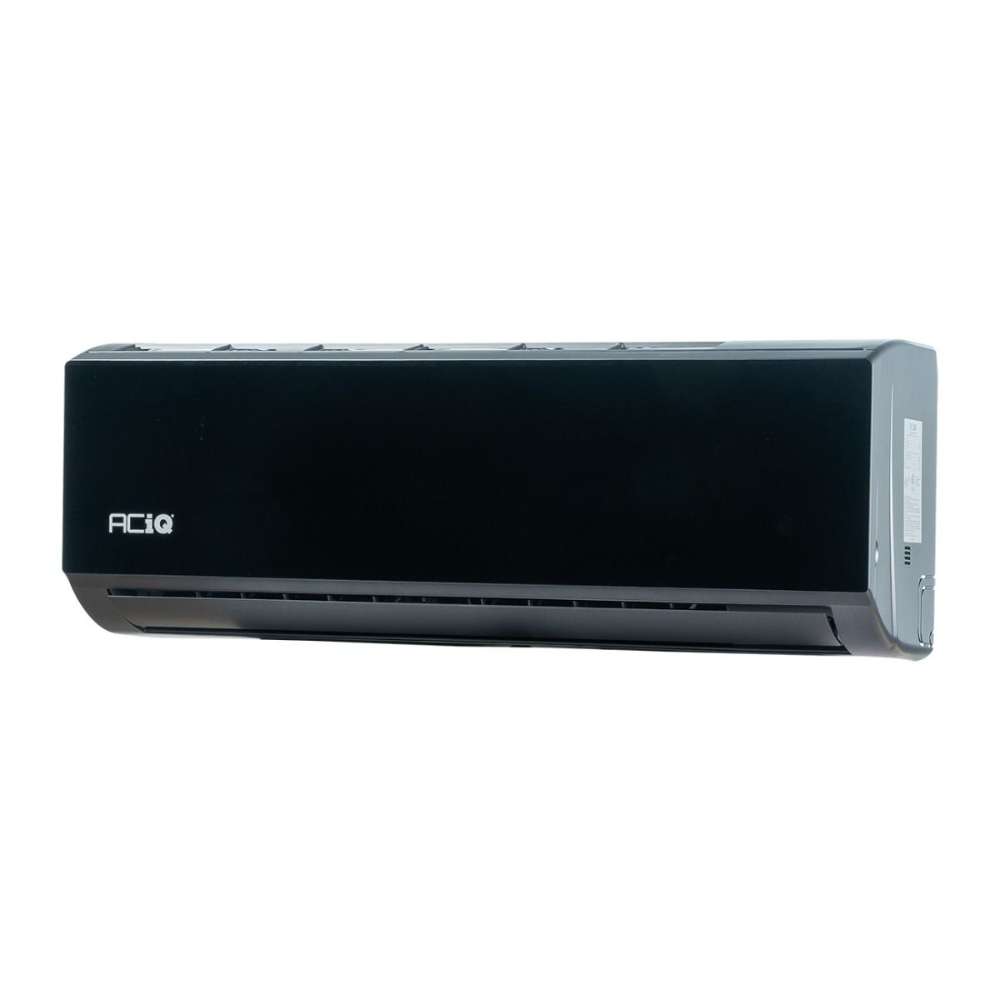

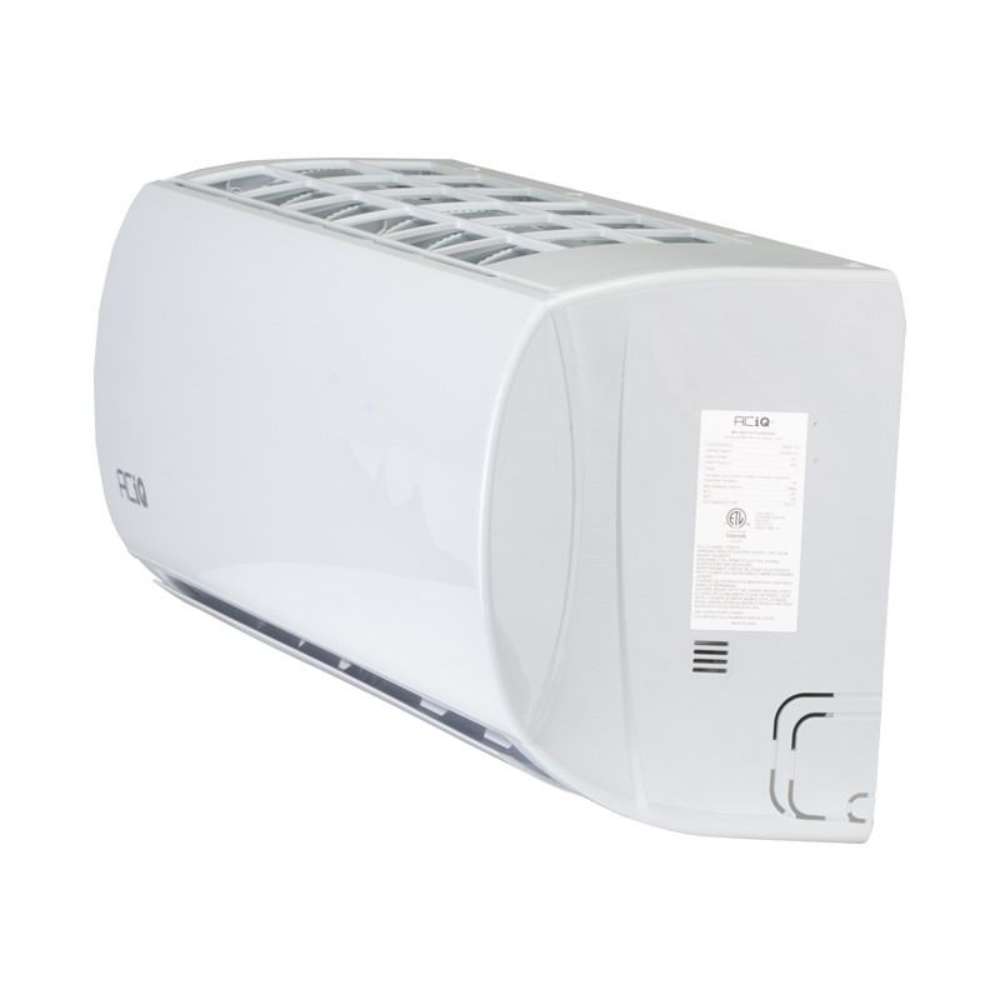

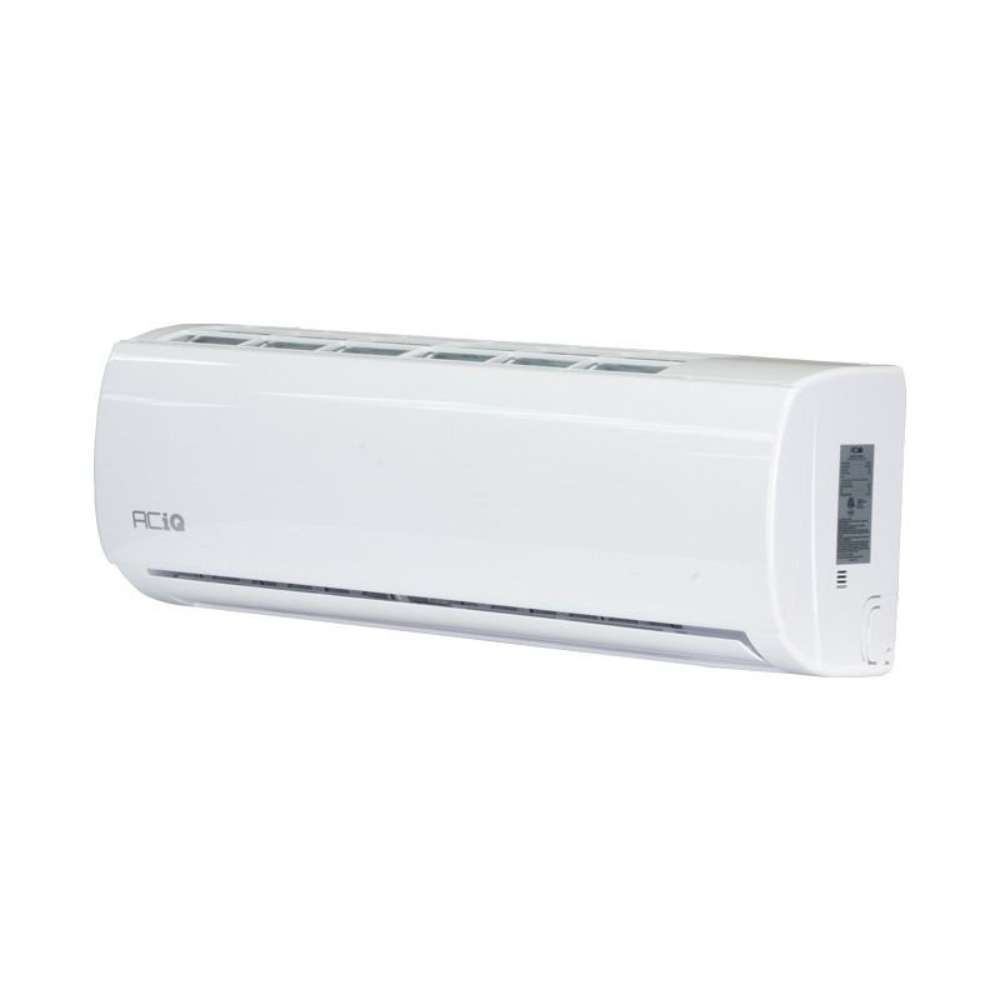

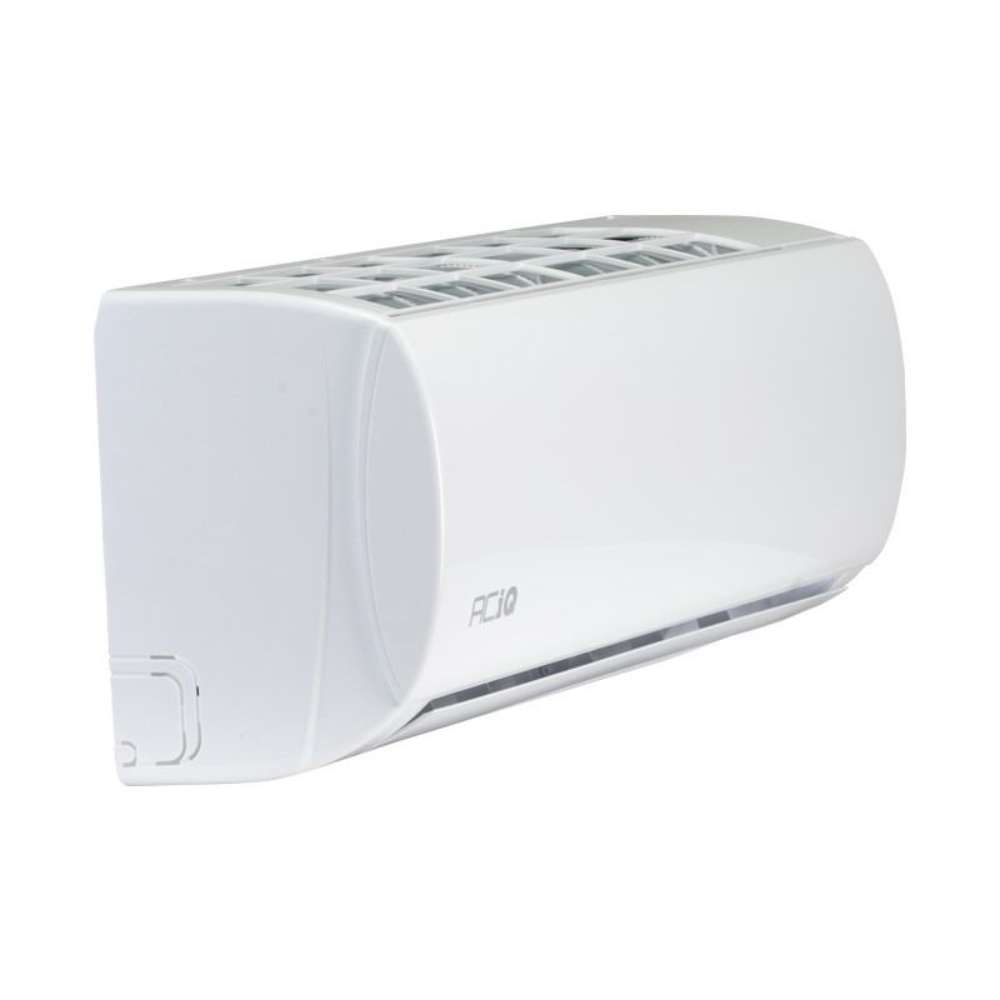

Air Handler Specs

  • Weight: 26.5 lbs (115V) | 24.3 lbs (208/230V)
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K12W-W-HP115B (115V) | ACIQ-K12W-W-HP230B (208/230V)
  • UPC: 810175551944 (115V) | 810175551968 (208/230V)
  • Controller: Included
  • Cooling BTU: 12,000 BTU
  • Heating BTU: 12,000 BTU
  • Maximum CFM: 342 Turbo / 270 High / 235 Medium / 200 Low
  • Decibel Level: 28–45 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 115V or 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 12,000 BTU / 1 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

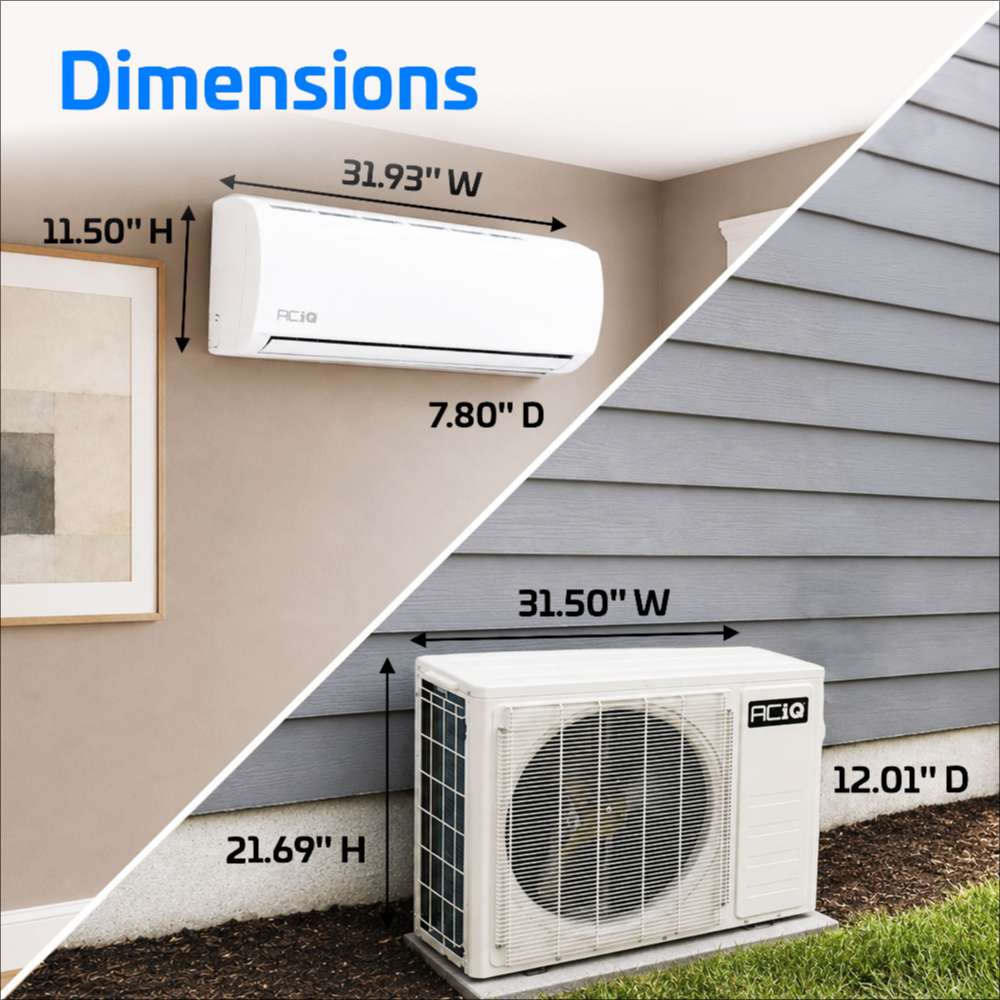

  • Height: 11.50"
  • Width: 31.93"
  • Depth: 7.99" (115V) | 7.80" (208/230V)
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

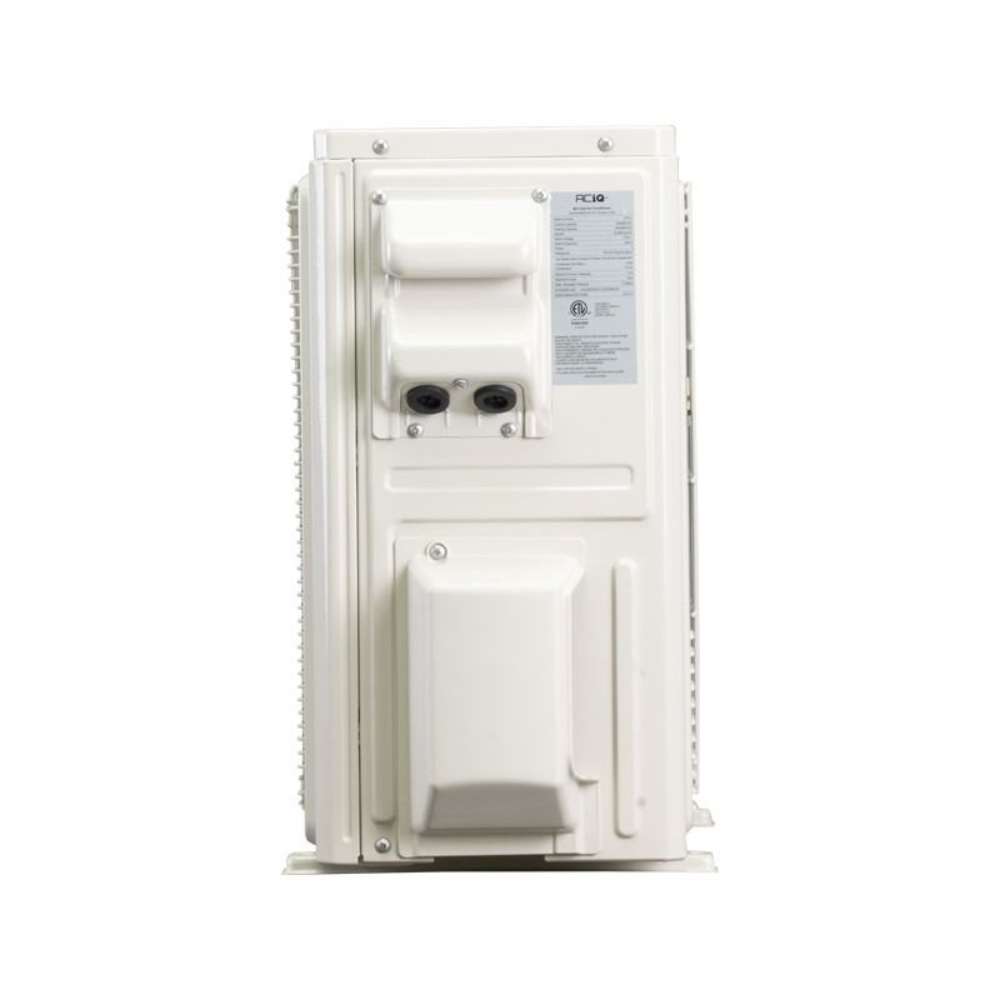

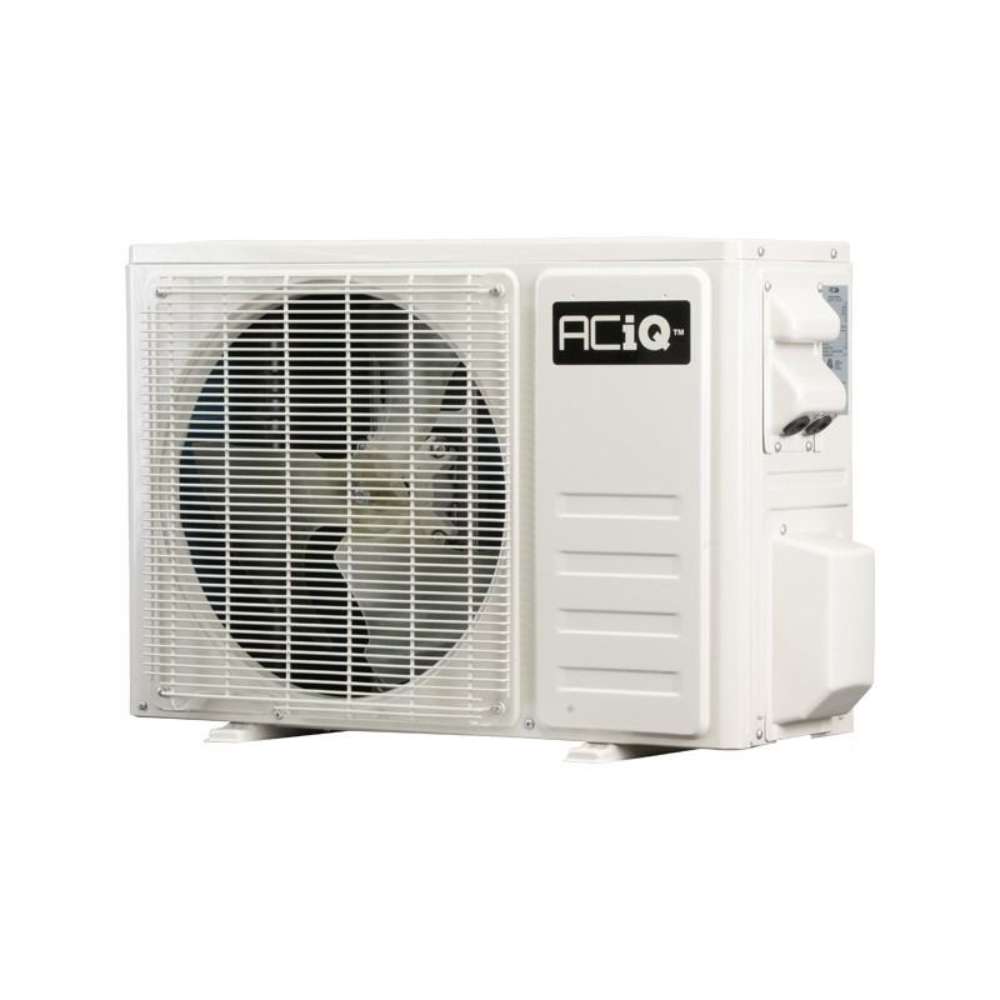

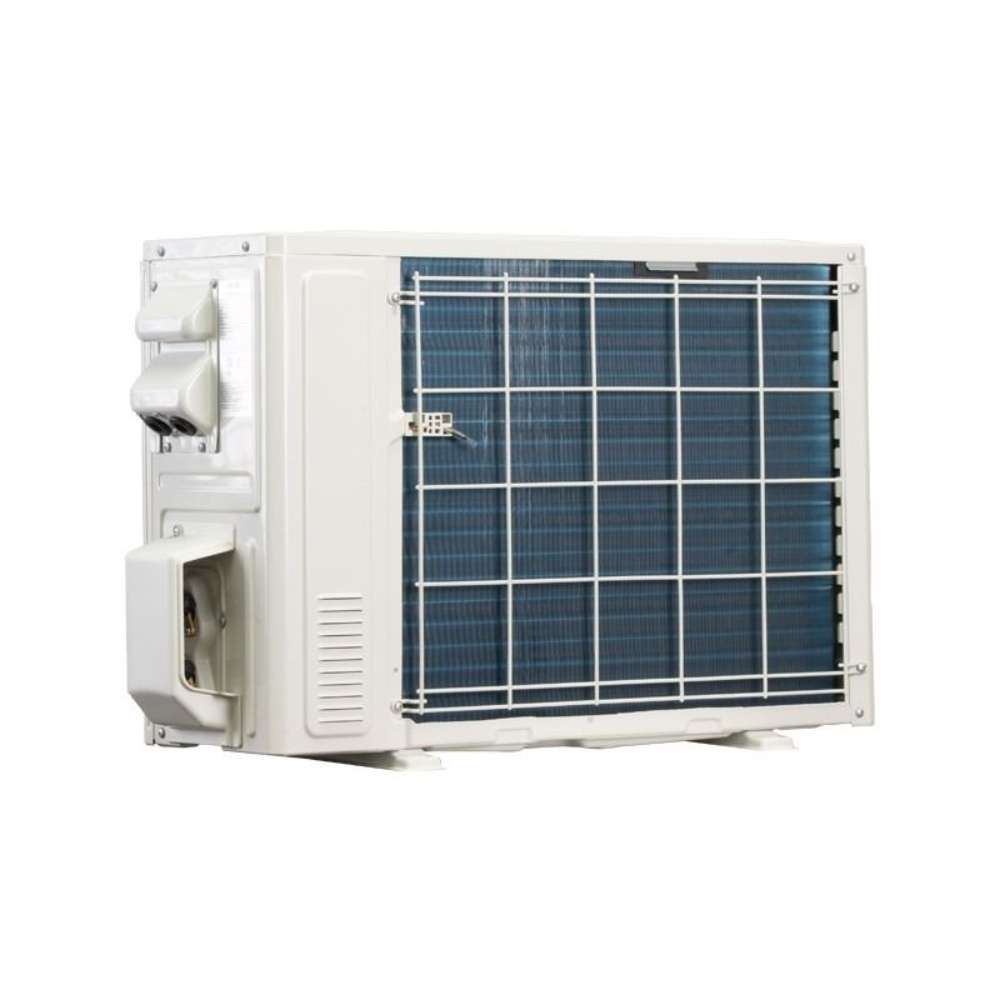

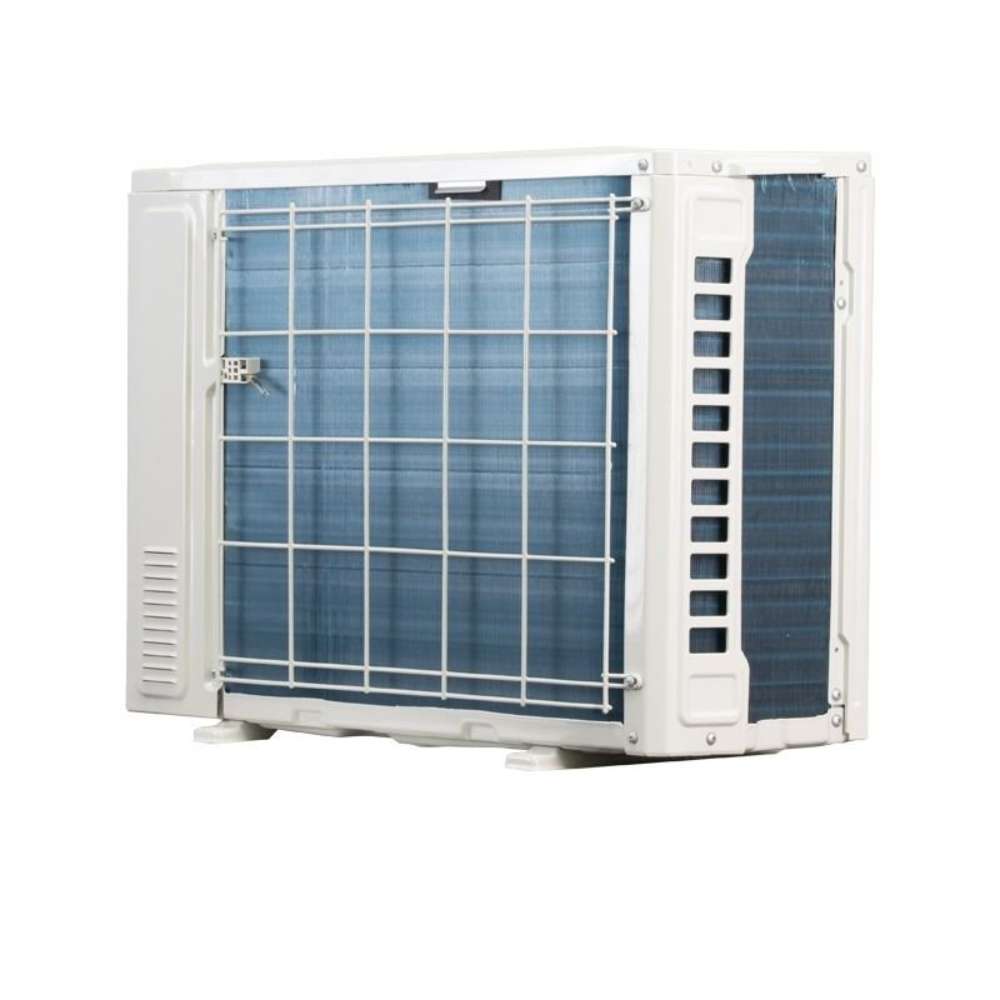

Heat Pump Condenser Specs

  • Refrigerant Charge: 1.3 lbs, pre-charged for 16 ft line set
  • Weight: 63.9 lbs (115V) | 62.8 lbs (208/230V)
  • AHRI Certificate Number: 218451495, 218157784 (115V) | 218451496, 218157785 (208/230V)
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K12Z-HP115B (115V) | ACIQ-K12Z-HP230B (208/230V)
  • UPC: 810175552088 (115V) | 810175552101 (208/230V)
  • Cooling BTU: 12,000 BTU
  • Heating BTU: 12,000 BTU
  • Decibel Level: 55 dBA
  • Refrigerant: R32
  • HSPF2: 8.5
  • SEER2 Efficiency: 20
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 115V or 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 25 Amps (115V) | 15 Amps (208/230V)
  • Min. Breaker Size: 17 Amps (115V) | 11 Amps (208/230V)
  • BTU/Tonnage: 12,000 BTU / 1 Ton
  • Outdoor Heating Temperature Range: -4°F to 75°F (115V) | -4°F to 86°F (208/230V)
  • Outdoor Cooling Temperature Range: 5°F to 127°F
  • Zone Compatibility: Single Zone
  • Height: 21.69"
  • Width: 31.50"
  • Depth: 12.01"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Handles cooling and heating for single rooms up to 600 square feet.
  • 20 SEER2 and 8.5 HSPF2 ratings help lower energy use in both summer and winter.
  • Keeps heating at outdoor temperatures as low as -4°F.
  • Choose 115V or 208/230V to suit your electrical setup.
  • Built-in WiFi gives you control of temperature and settings from a compatible smart device.
  • I FEEL temperature sensing and Auto Mode keep the room at the temperature you actually feel.
  • Turbo Mode delivers a quick burst of heating or cooling when you need it.
  • ECO Mode saves energy without giving up comfort.
  • Multi-directional airflow circulates air evenly for fewer hot or cold spots.
  • PureClean air sterilization and Self-Clean mode support a cleaner indoor environment.
  • Quiet indoor operation with Sleep Mode and MUTE suits bedrooms and home offices.
  • Registering online adds a 6-year compressor warranty and a 4-year parts warranty.
