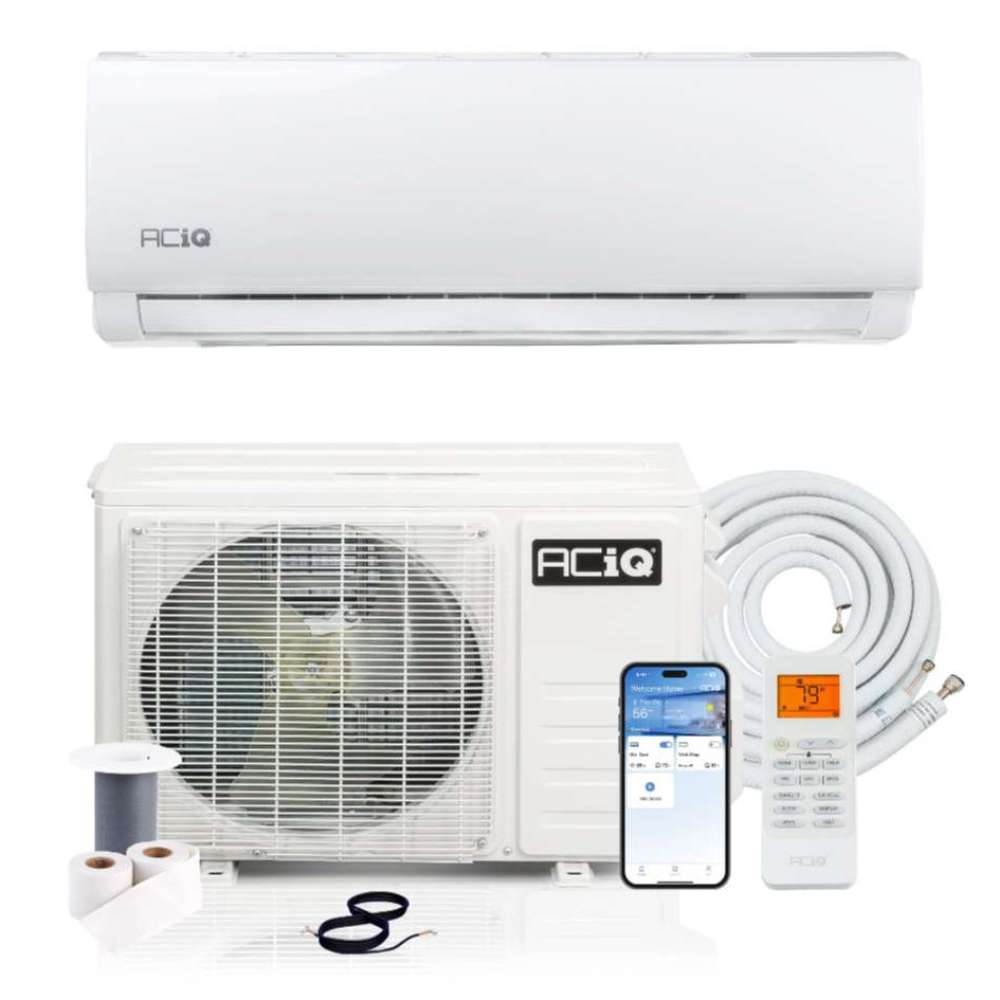

ACiQ 12000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is shown with its indoor unit, condenser, remote, smartphone controls, line set and installation accessories

ACiQ 12000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $146.50
$750.00
$603.50
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 600 square feet.

Single Room Applications:

  • Bedrooms
  • Guest rooms
  • Home offices
  • In-law suites

Supplemental Home Locations:

  • Attics
  • Basements
  • Garages
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Keep Bedrooms Comfortable Year-Round With the ACiQ 12000 BTU 17 SEER2 Mini Split

ACiQ 12000 BTU Essentials 17 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a wall mounted mini split that cools and heats rooms up to 600 square feet. Its 17 SEER2 rating supports efficient year-round comfort in bedrooms, guest rooms, home offices, and in-law suites. Built-in WiFi control lets you adjust the ductless mini split from a compatible device, and the indoor unit runs as quietly as 33 dBA on the 208/230V model. The system is offered in 115V and 208/230V versions and ships with a pre-charged 16 ft line set, mounting hardware, and installation accessories. Registering online adds a 6-year compressor warranty and a 4-year parts warranty.

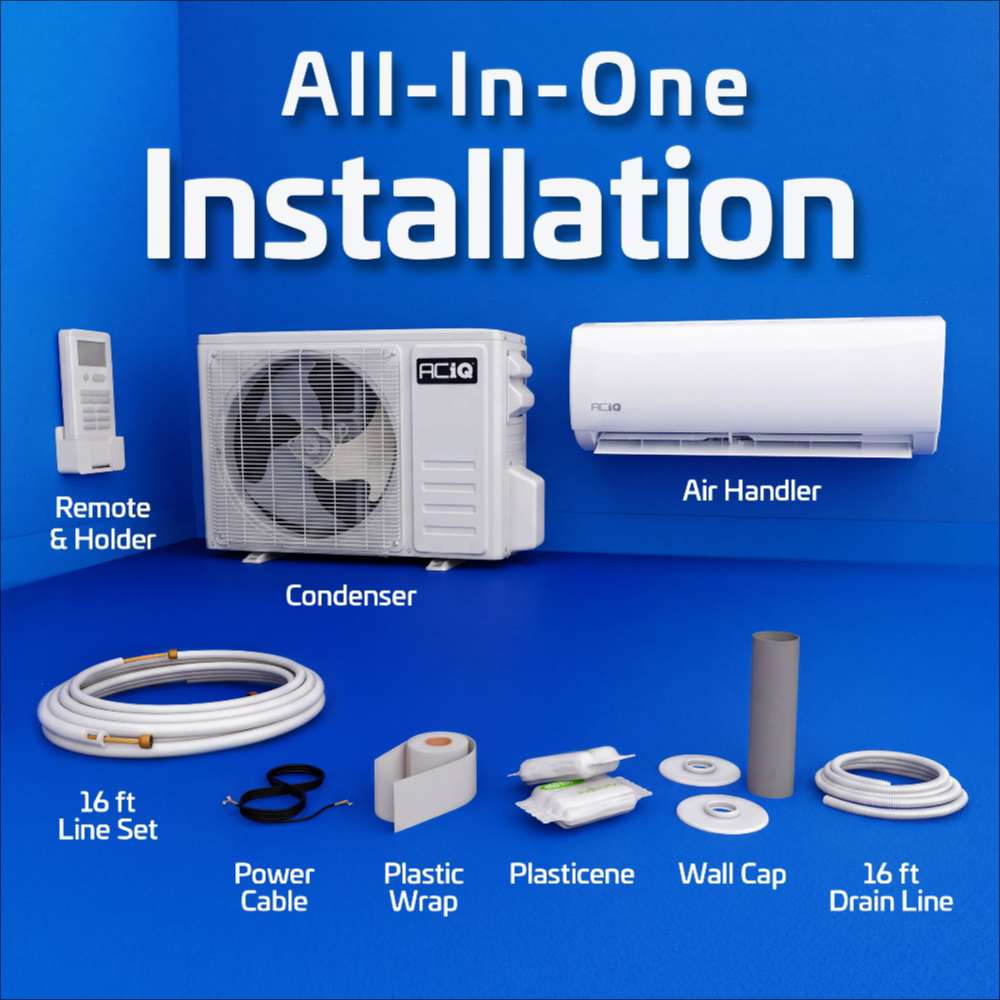

What's Included?

  • Air Handler
  • Condenser
  • Remote Control
  • Remote Holder
  • 16 ft Line Set
  • 16 ft Drain Line
  • Power Cable
  • Wall Cap
  • Plastic Wrap
  • Plasticene
  • Mounting Hardware

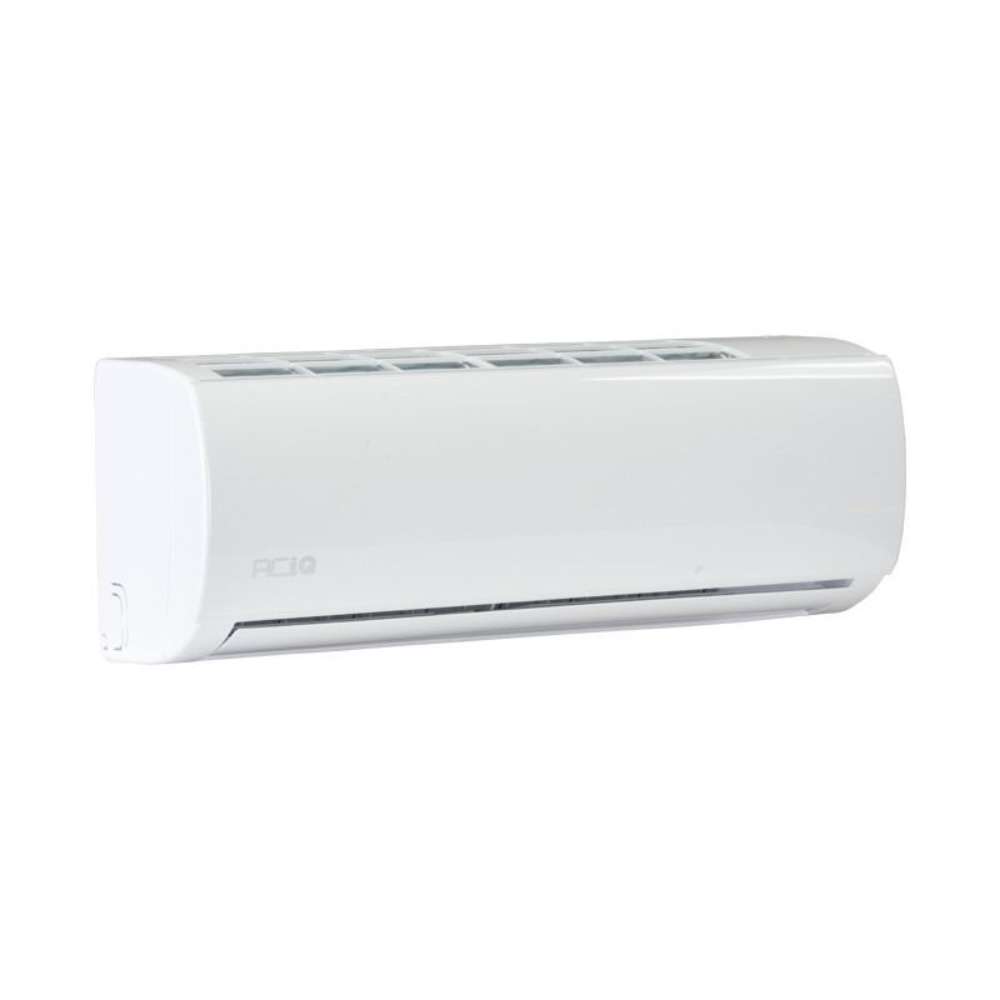

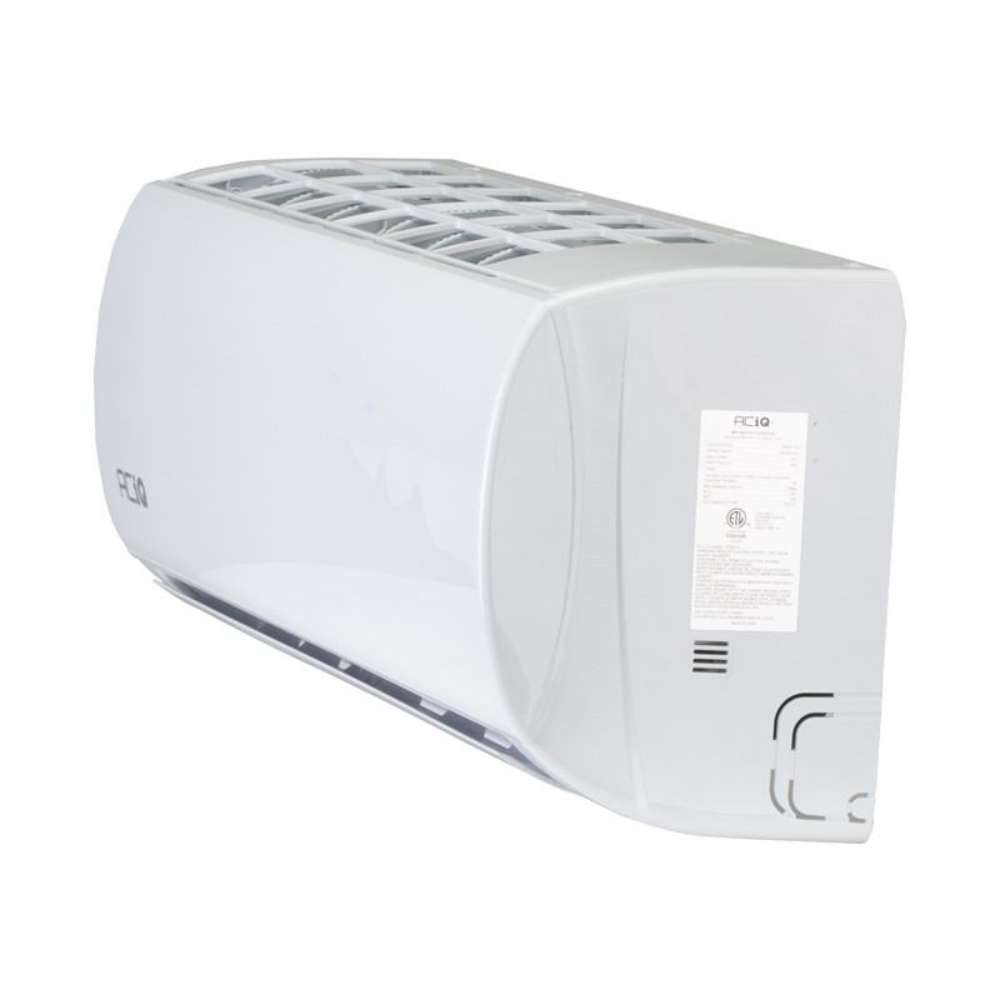

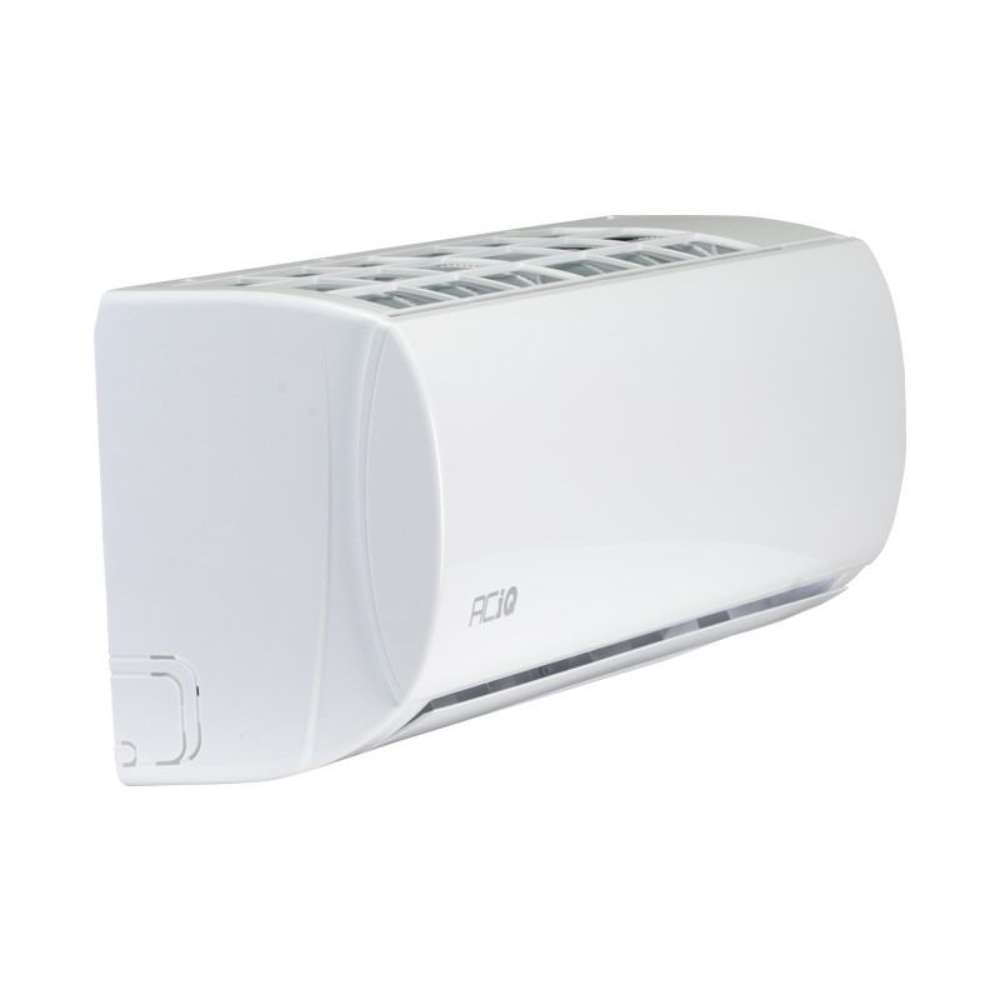

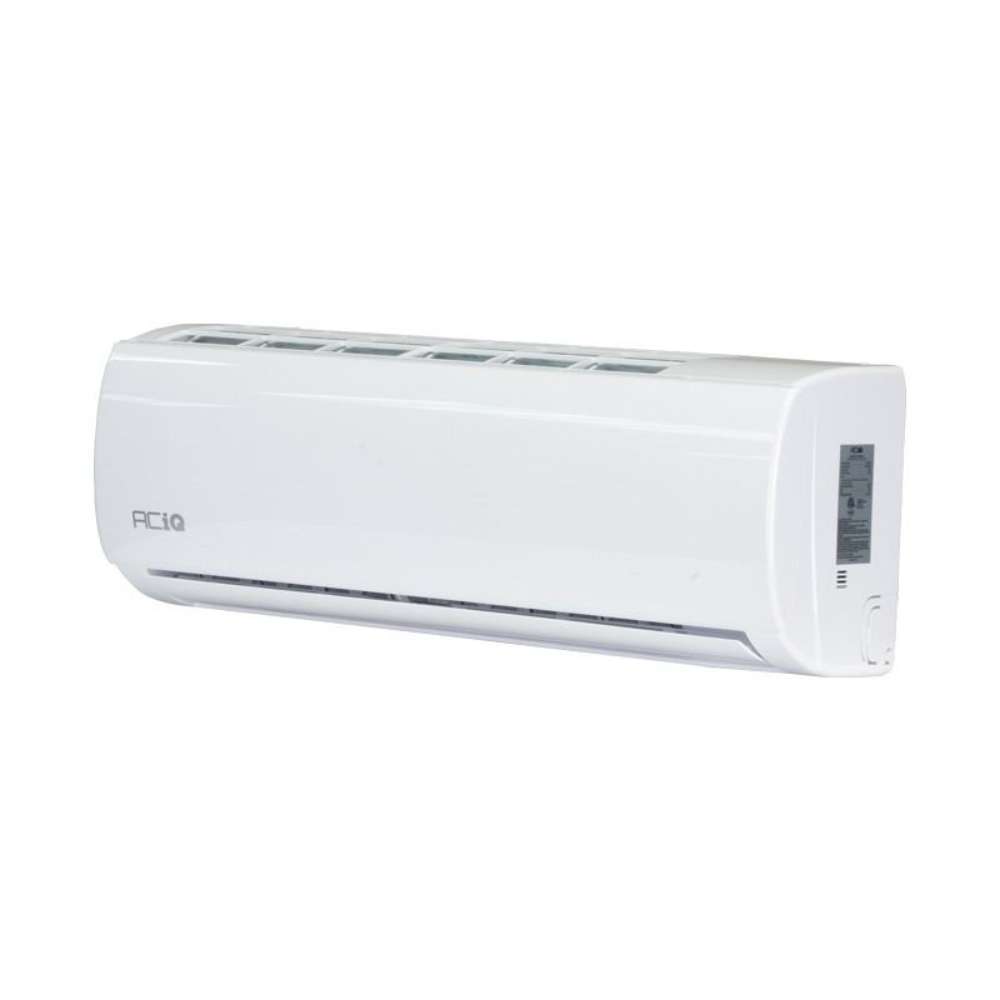

Air Handler Specs

  • Weight: 20.94 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACiQ-KE12W-HP115 (115V)
  • UPC: 810175553788 (115V) | 810175553795 (208/230V)
  • Controller: Included
  • Cooling BTU: 11,500 BTU (115V) | 12,000 BTU (208/230V)
  • Heating BTU: 11,500 BTU (115V) | 12,000 BTU (208/230V)
  • Maximum CFM: 276 Turbo / 265 High / 241 Medium / 224 Low (115V) | 294 Turbo / 264 High / 235 Medium / 206 Low (208/230V)
  • Decibel Level: 29–43 dBA (115V) | 33–45 dBA (208/230V)
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 115V or 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 12,000 BTU / 1 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

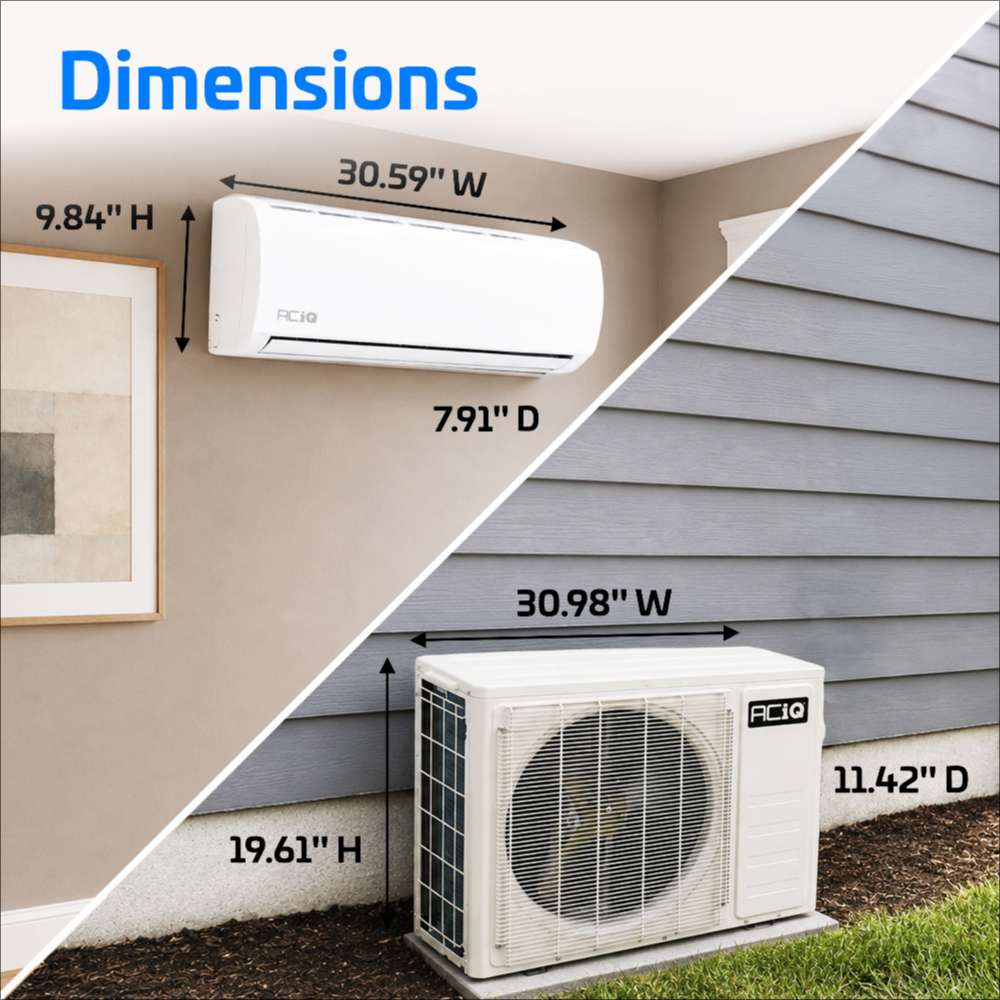

  • Height: 9.84"
  • Width: 30.59"
  • Depth: 7.91"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

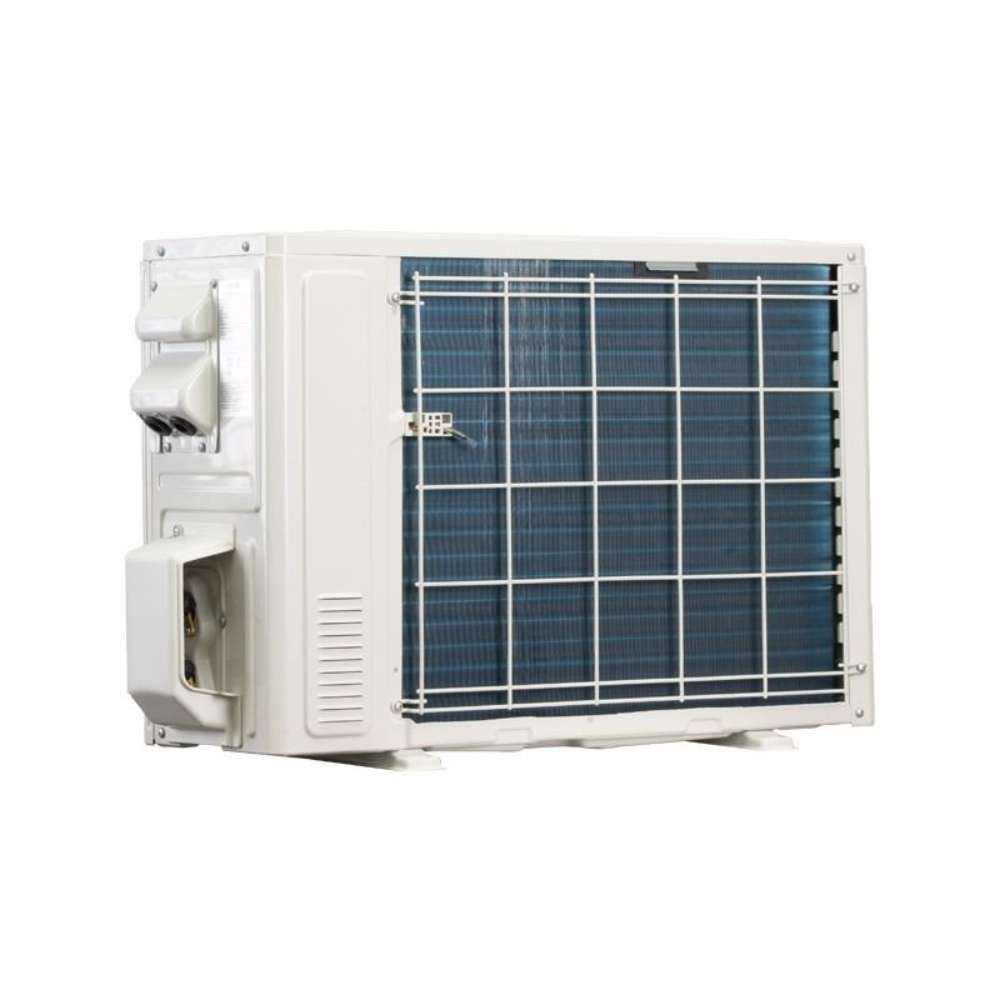

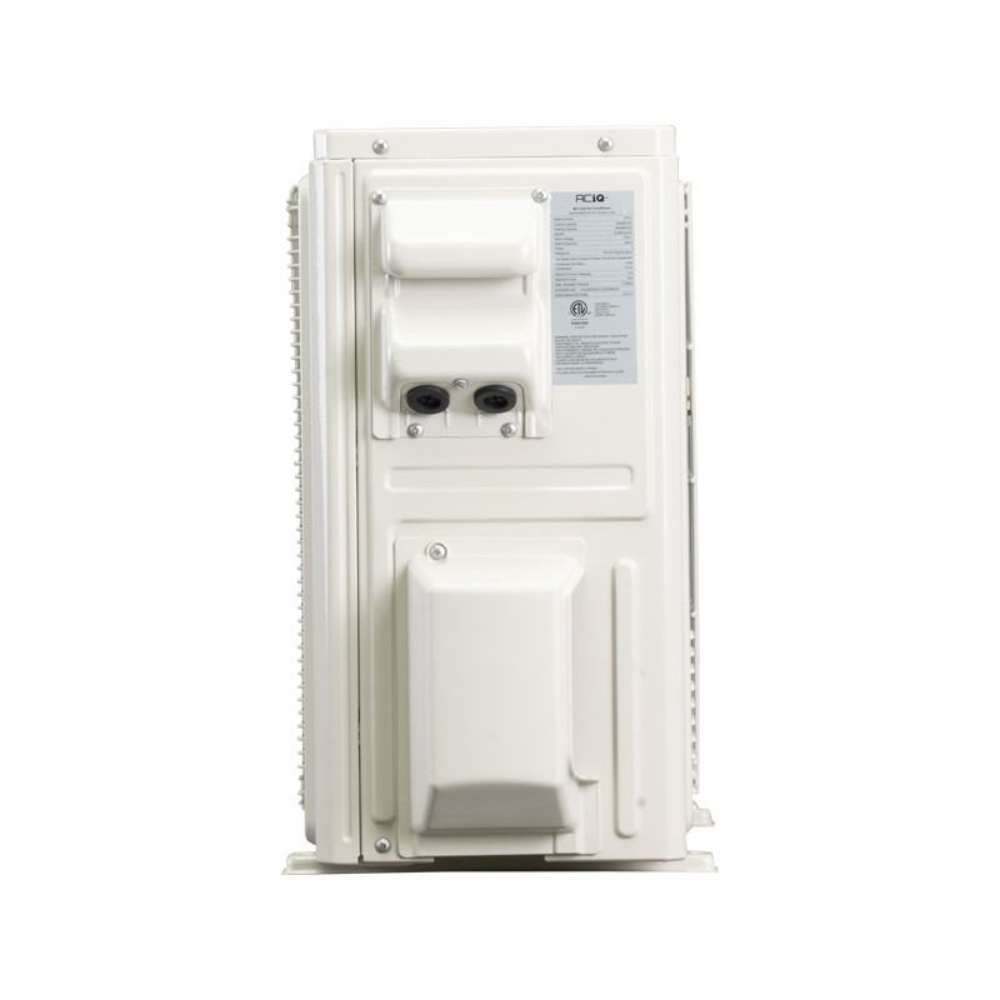

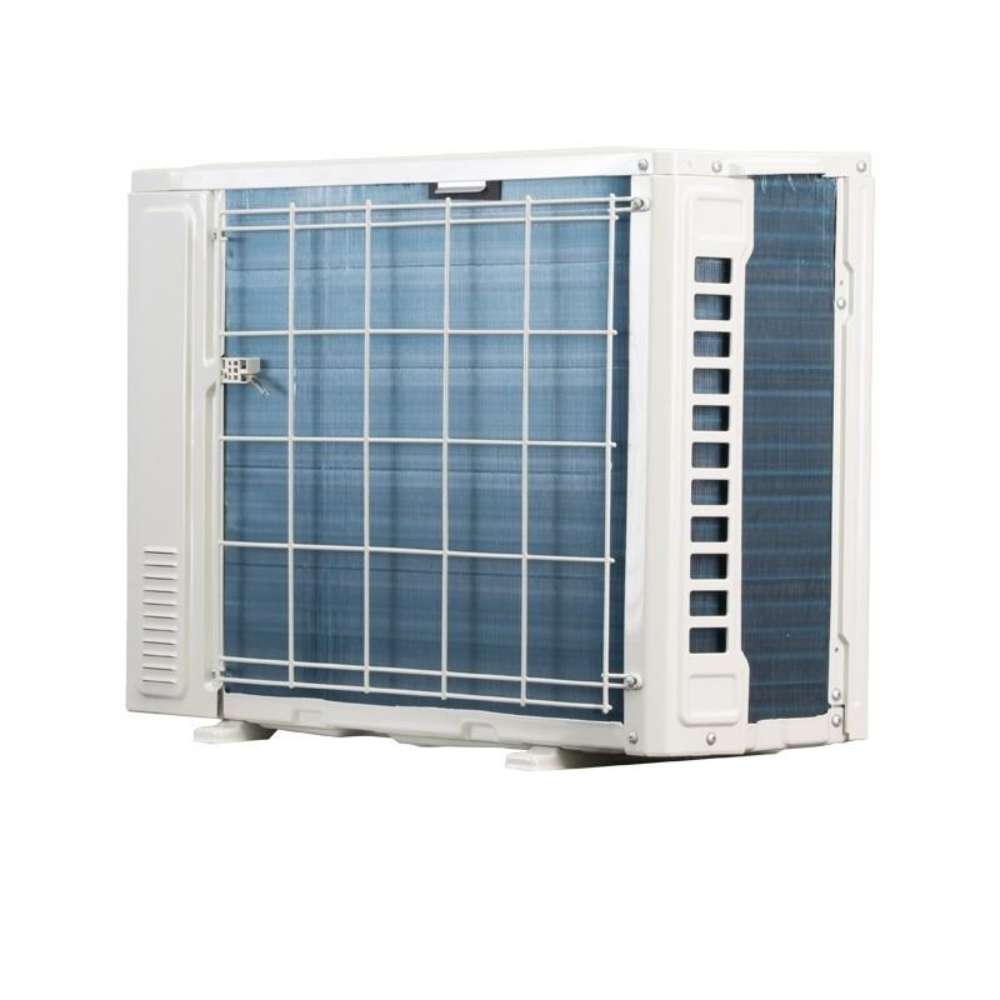

Heat Pump Condenser Specs

  • Refrigerant Charge: 2.6 lbs, pre-charged for 16 ft line set
  • Weight: 61.73 lbs
  • AHRI Certificate Number: 218045389 (115V) | 218045390 (208/230V)
  • Brand/Manufacturer: ACiQ
  • UPC: 810175553832 (115V) | 810175553849 (208/230V)
  • Cooling BTU: 11,500 BTU
  • Heating BTU: 11,500 BTU
  • Decibel Level: 53 dBA (115V) | 55 dBA (208/230V)
  • Refrigerant: R32
  • HSPF2: 8.1 (115V) | 7.1 (208/230V)
  • SEER2 Efficiency: 17
  • EER2: 9.5
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 115V or 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 25 Amps (115V) | 15 Amps (208/230V)
  • Min. Breaker Size: 17 Amps (115V) | 11 Amps (208/230V)
  • BTU/Tonnage: 12,000 BTU / 1 Ton
  • Outdoor Heating Temperature Range: 5°F to 86°F
  • Outdoor Cooling Temperature Range: 53.6°F to 122°F
  • Zone Compatibility: Single Zone
  • Height: 19.61"
  • Width: 30.98"
  • Depth: 11.42"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Cools and heats rooms up to 600 square feet, making it a good fit for bedrooms and home offices.
  • 17 SEER2 efficiency helps keep monthly energy costs in check.
  • Built-in WiFi lets you change temperature and modes from a compatible smart device.
  • Available in 115V or 208/230V to match the power supply in your home.
  • Auto Mode and I FEEL temperature sensing adjust output to keep the room at a steady temperature.
  • Turbo Mode reaches your set temperature faster when the room is too hot or too cold.
  • ECO Mode trims energy use while still keeping the space comfortable.
  • Multi-directional airflow spreads conditioned air more evenly across the room.
  • PureClean air sterilization and optional Self-Clean mode help keep the indoor unit fresh with less upkeep.
  • Sleep Mode, MUTE, and quiet operation make it easy to rest or work nearby.
  • Programmable timers, Dry Mode, Child Lock, and LED display control add everyday convenience.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.
