Sun Gold Power High Voltage 11400W Hybrid Split Phase Inverter with APS Transmitter

Name: Sun Gold Power High Voltage 11400W Hybrid Split Phase Inverter with APS Transmitter
Brand: Sun Gold Power
SKU: SG11.4KHB-HV
Price: 1990.00 USD
Availability: InStock

SKU SG11.4KHB-HV

Save $569.00

$2,559.00

$1,990.00

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Choose Clean Energy With the Sun Gold Power Hybrid Solar Inverter

Designed for residential solar systems and whole-home backup, the Sun Gold Power High Voltage 11400W Hybrid Split Phase Inverter with APS Transmitter combines high-voltage operation with split-phase output for dependable on-grid and off-grid energy management.

This solar inverter integrates advanced battery storage, Bluetooth/WiFi monitoring, cloud management, generator compatibility, and an APS transmitter for rapid shutdown, delivering a smarter backup power inverter and inverter charger solution than conventional off-grid inverter systems.

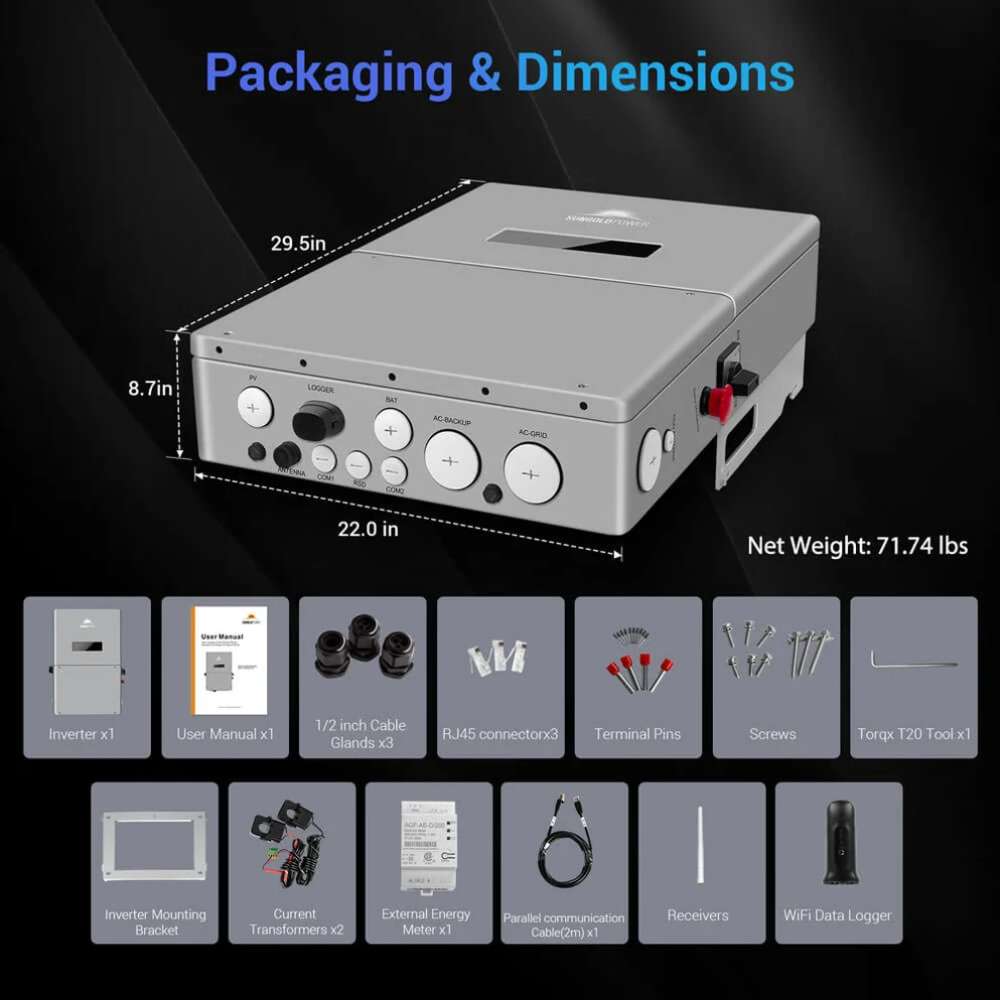

What's Included:

1 x Sun Gold Power High Voltage 11400W Hybrid Split Phase Inverter with APS Transmitter
3 x 1/2-Inch Cable Glands
3 x RJ45 Connectors
1 x Set of Terminal Pins
Screws
1 x Torx T20 Tool
1 x Inverter Mounting Bracket
2 x Current Transformers
1 x External Energy Meter
1 x 2m Parallel Communication Cable
1 x Receiver
1 x WiFi Data Logger
User Manual

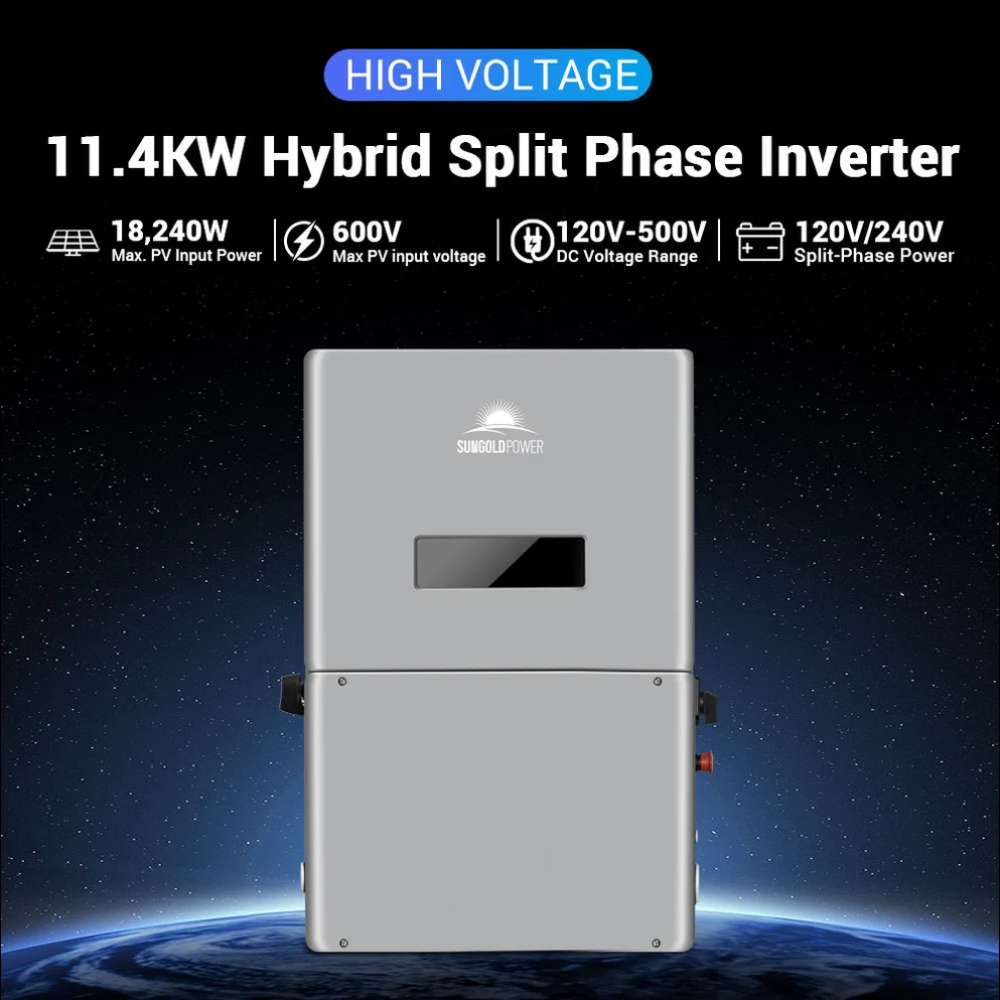

Specifications

Continuous Power: 11,400W
Recommended Max PV Power: 18,240W
DC Input: 80–550V MPPT voltage range
Maximum DC Input Voltage: 600V
Maximum Input Current: 16A per string
MPPT Configuration: 4 MPPTs, 1 string per MPPT
Battery Compatibility: High-voltage lithium-ion batteries
Battery Voltage Range: 120–500V DC
Maximum Charging Current: 50A charge/discharge
Battery Communication: CAN / RS485
AC Output Voltage: 240V split phase
Continuous AC Output Current: 47.5A
Frequency: 60Hz
Grid Input Voltage Range: 211–264V
Maximum Grid Input Current: 71.3A
Grid Frequency Range: 58.8–61.2Hz
THDi: Less than 3%
Parallel Capability: Up to 3 inverters
Monitoring: Bluetooth, WiFi, Ethernet, and Cloud Platform support

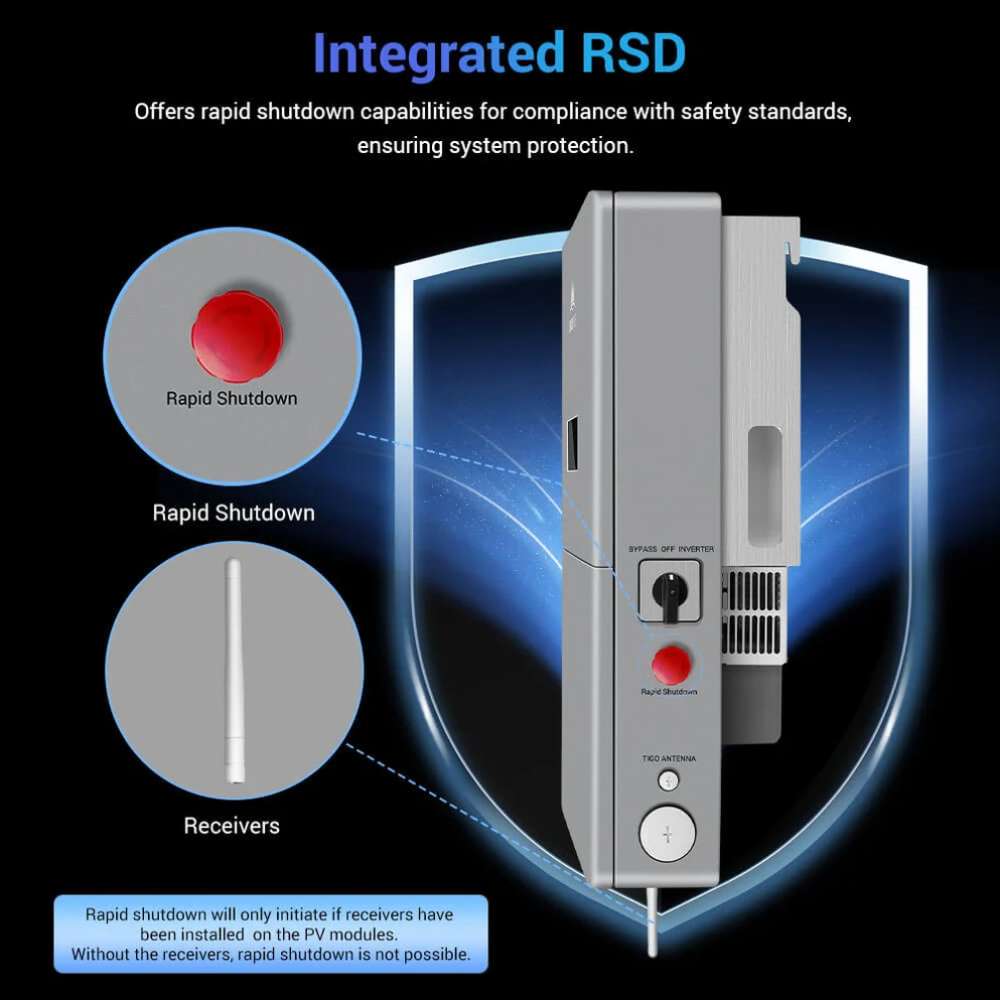

Rapid Shutdown: Integrated APS transmitter with rapid shutdown support

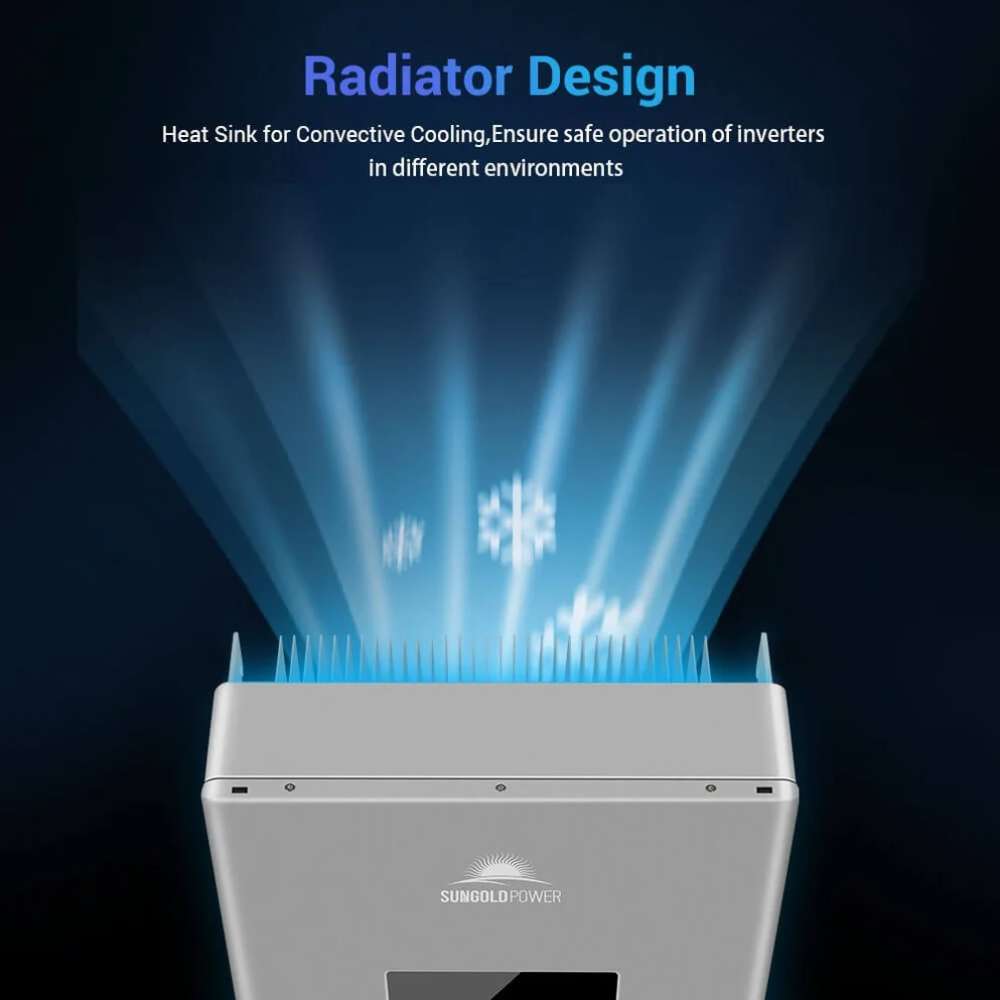

Cooling: Passive heat sink cooling
Dimensions: 29.5 × 22.0 × 8.7 in
Net Weight: 71.74 lb

Features

Supports on-grid, off-grid, and hybrid solar applications.
Delivers split-phase 120V and 240V AC output.
Works with high-voltage lithium-ion batteries.
Optimises self-consumption with battery energy storage.
Provides reliable backup power during grid outages.
Supports AC and DC coupling configurations.
Connect up to three inverters in parallel.
Enables generator integration during utility outages.
Supports remote monitoring through the cloud platform.
Allows remote firmware updates and troubleshooting.
Includes an APS transmitter for rapid shutdown.
Integrates seamlessly with complete solar energy systems.

Why Choose It?

Sun Gold Power High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter is built for high-voltage residential solar systems with reliable backup capability. It combines hybrid operation, split-phase output, battery storage support, and smart remote monitoring in one unit.

Recommended For

Whole-home backup systems
Residential solar installations
Hybrid solar power systems
Off-grid homes
Grid-tied homes with battery storage
High-voltage lithium battery systems
Backup power applications
Workshops and garages
Small farms
Remote properties
Solar energy storage systems
Generator-assisted solar systems

Comfortably Powers

Refrigerators and freezers
LED lighting circuits
WiFi routers and networking equipment
Desktop computers and laptops
Televisions and entertainment systems
Microwave ovens
Coffee makers
Washing machines
Dishwashers
Electric water pumps
Window air conditioners
Mini-split air conditioners
Power tools
Kitchen appliances
Multiple household loads simultaneously

Where It Falls Short:

This hybrid solar inverter is designed for high-voltage residential solar systems. It is best suited for compatible battery systems and professional installation.

Requires a high-voltage lithium battery with a 120–500V operating range.
Not designed for 48V or other low-voltage battery banks.
Requires split-phase 120/240V electrical systems for intended operation.
Supports up to three units in parallel, limiting expansion beyond that.
Designed for lithium battery communication through CAN or RS485 for full functionality.
Requires high-voltage PV strings within the specified MPPT operating range.
Passive cooling means adequate installation clearance is needed for proper heat dissipation.
Advanced features such as cloud monitoring, Bluetooth, WiFi, and Ethernet require network setup to use remotely.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
