Sun Gold Power 12000W All-in-One Off-Grid Solar Inverter

Name: Sun Gold Power 12000W All-in-One Off-Grid Solar Inverter
Brand: Sun Gold Power
SKU: FR12K-B
Price: 1950.00 USD
Availability: InStock

SKU FR12K-B

Save $607.00

$2,557.00

$1,950.00

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

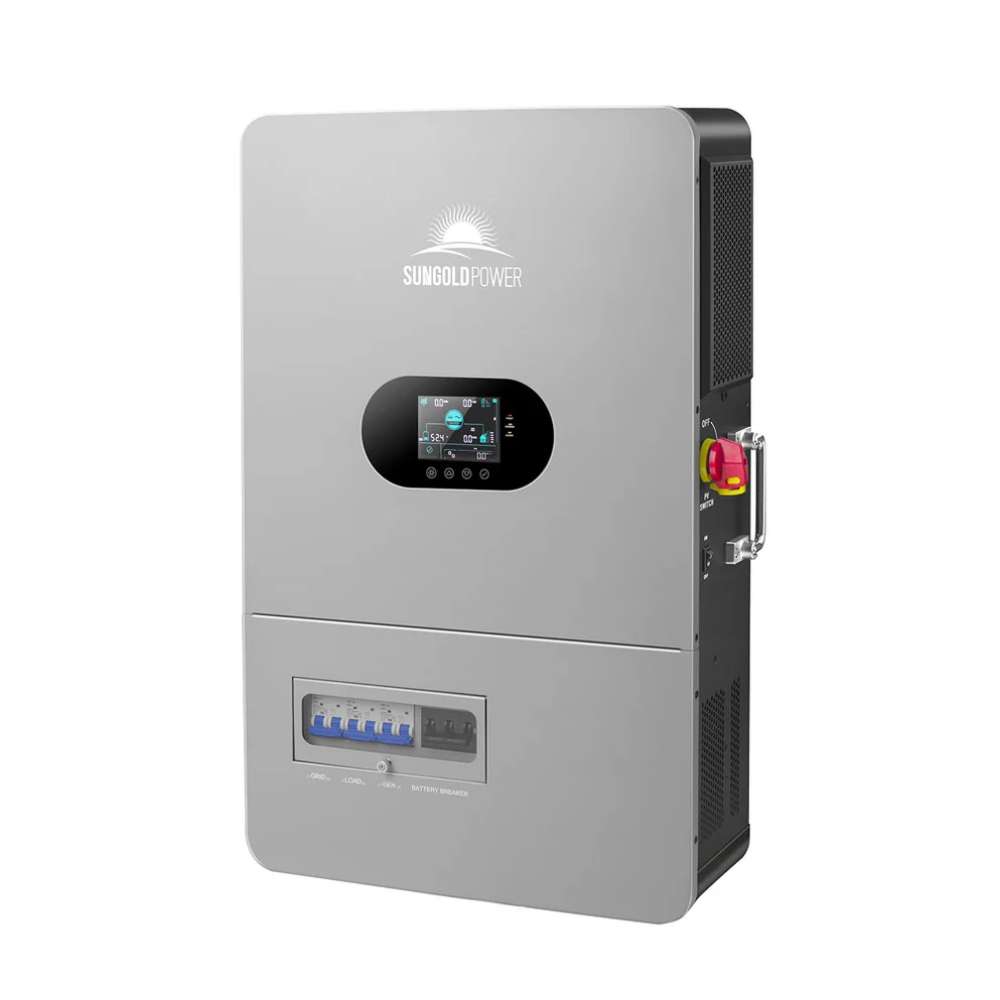

Power Your Home With the Sun Gold Power 12KW Off-Grid Solar Inverter

Sun Gold Power 12000W All-in-One Off-Grid Solar Inverter provides dependable solar and backup power for homes, workshops, and small businesses.

Dual MPPT charging, split-phase output, generator support, WiFi monitoring, and six-unit parallel capability deliver flexible control, safer operation, and room for future expansion.

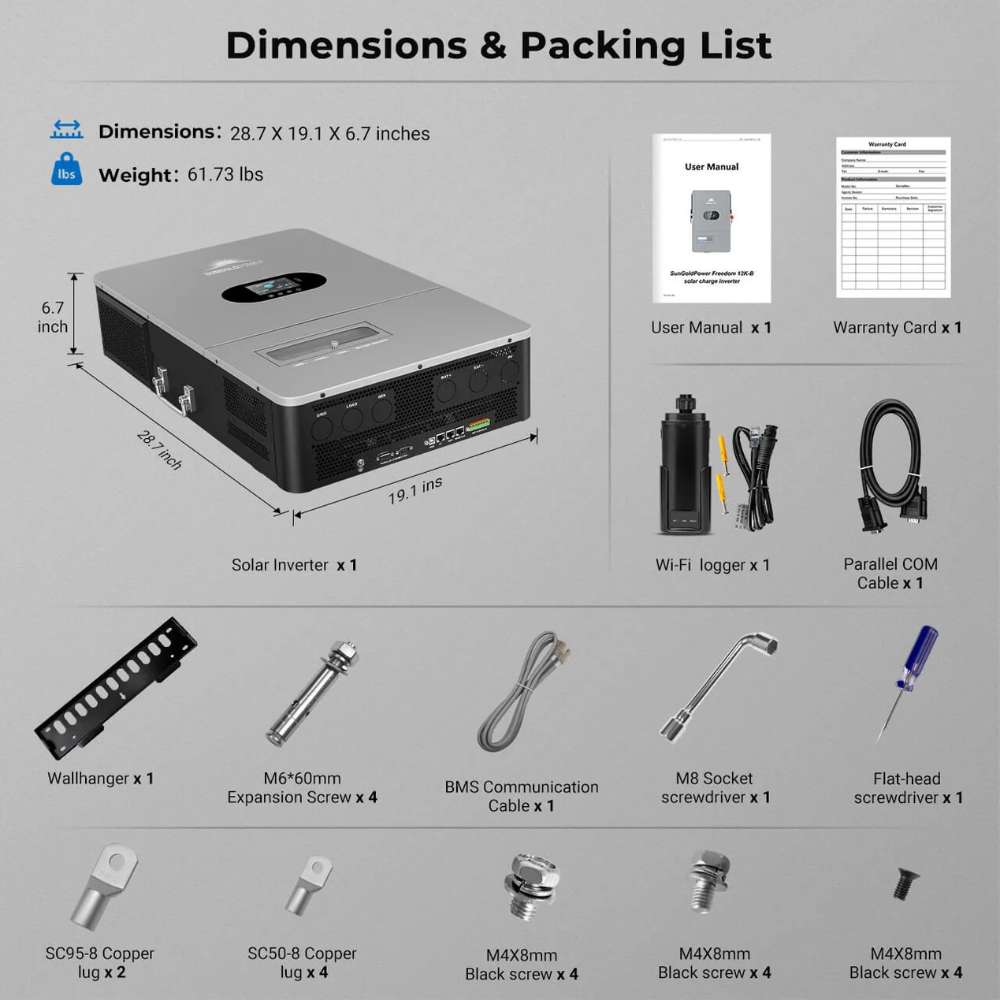

What's Included:

1 x Sun Gold Power 12000W All-in-One Off-Grid Solar Inverter
1 x Warranty Card
1 x WiFi Logger
1 x Parallel COM Cable
1 x Wall Hanger
4 x M6 × 60 mm Expansion Screws
1 x BMS Communication Cable
1 x M8 Socket Screwdriver
1 x Flat-Head Screwdriver
2 x SC95-8 Copper Lugs
4 x SC50-8 Copper Lugs
12 x M4 × 8 mm Black Screws
User Manual

Specifications

Continuous Power: 12,000W
Surge Power: 24,000W
DC Input Voltage: 48V DC (40–60V DC)
DC Input: 48V battery system
AC Output Voltage: 120V single-phase / 120V 240V split-phase
Waveform: Pure sine wave

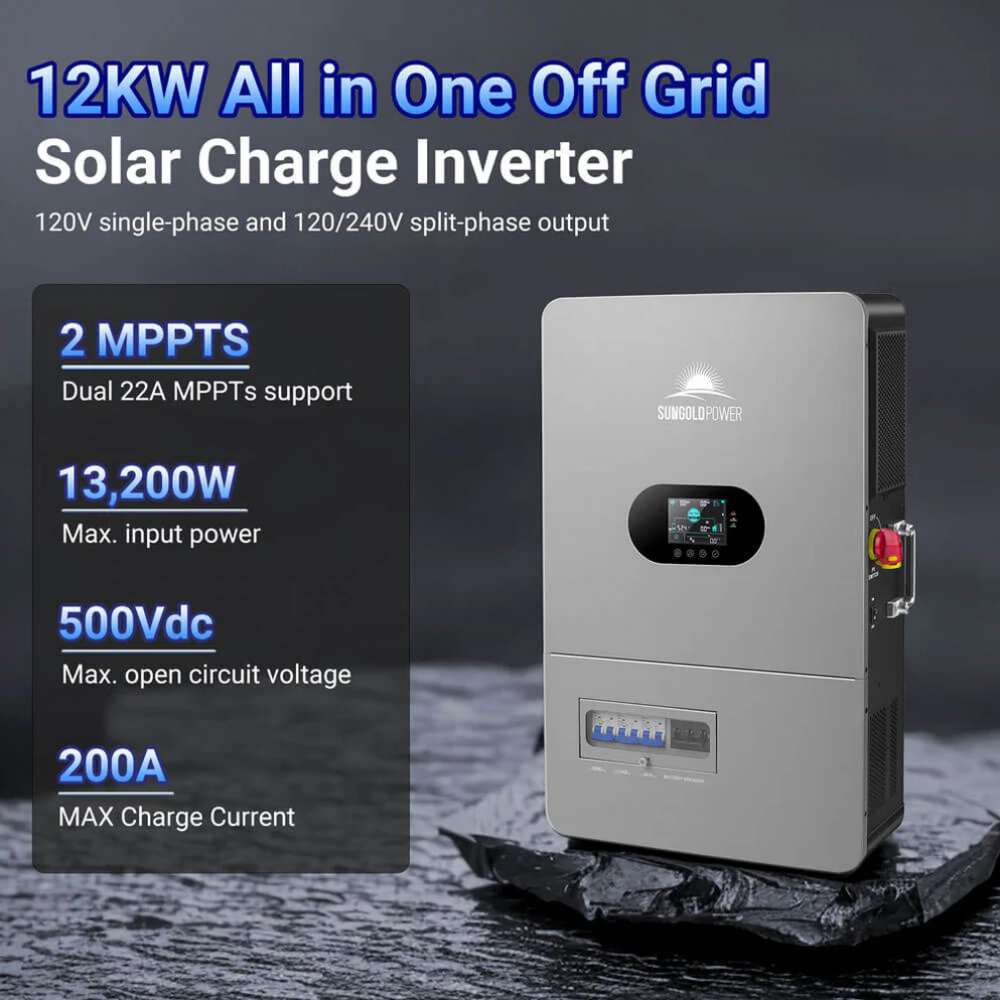

Maximum PV Input Power: 13,200W
MPPT Trackers: Dual 22A MPPT
Maximum PV Open Circuit Voltage: 500V DC
Maximum Charging Current: 200A
Grid/Generator Charging Current: 120A
Output Frequency: 50Hz / 60Hz

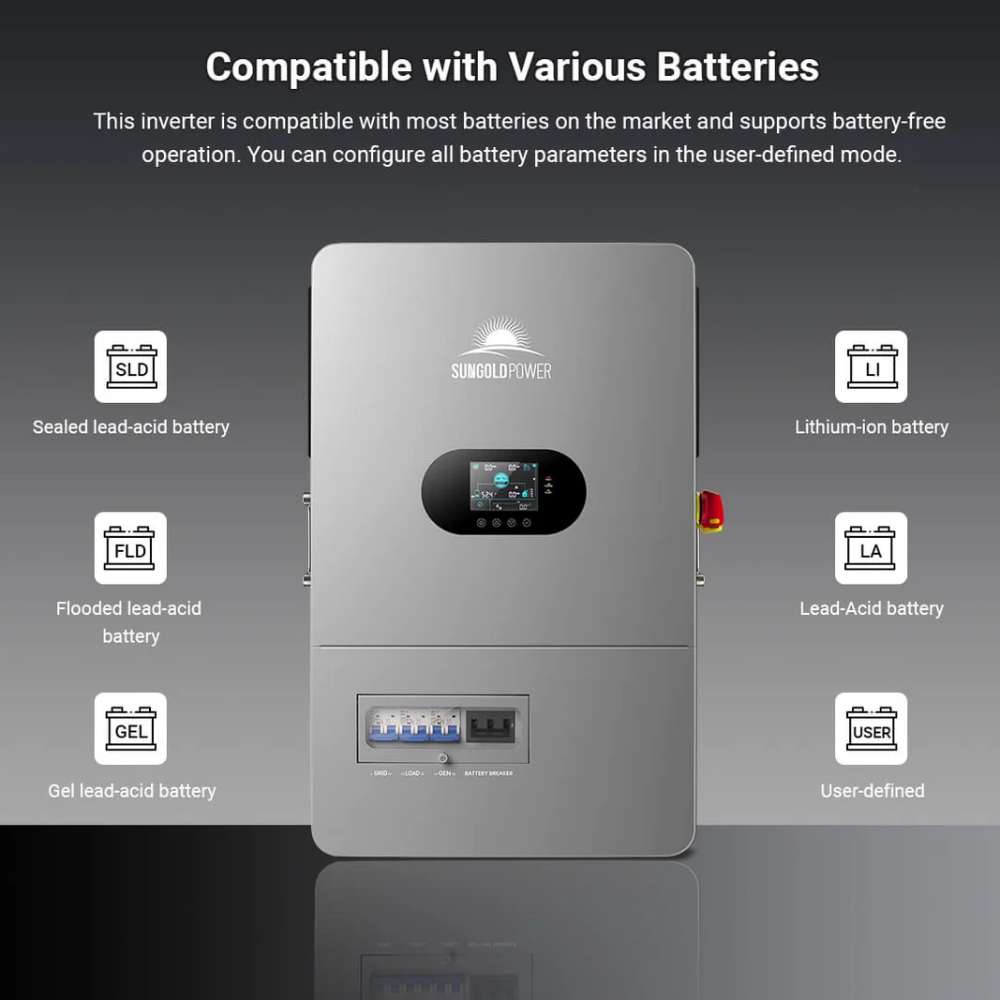

Battery Compatibility: Lithium-ion, sealed lead-acid, flooded lead-acid, gel lead-acid, lead-acid, and user-defined batteries

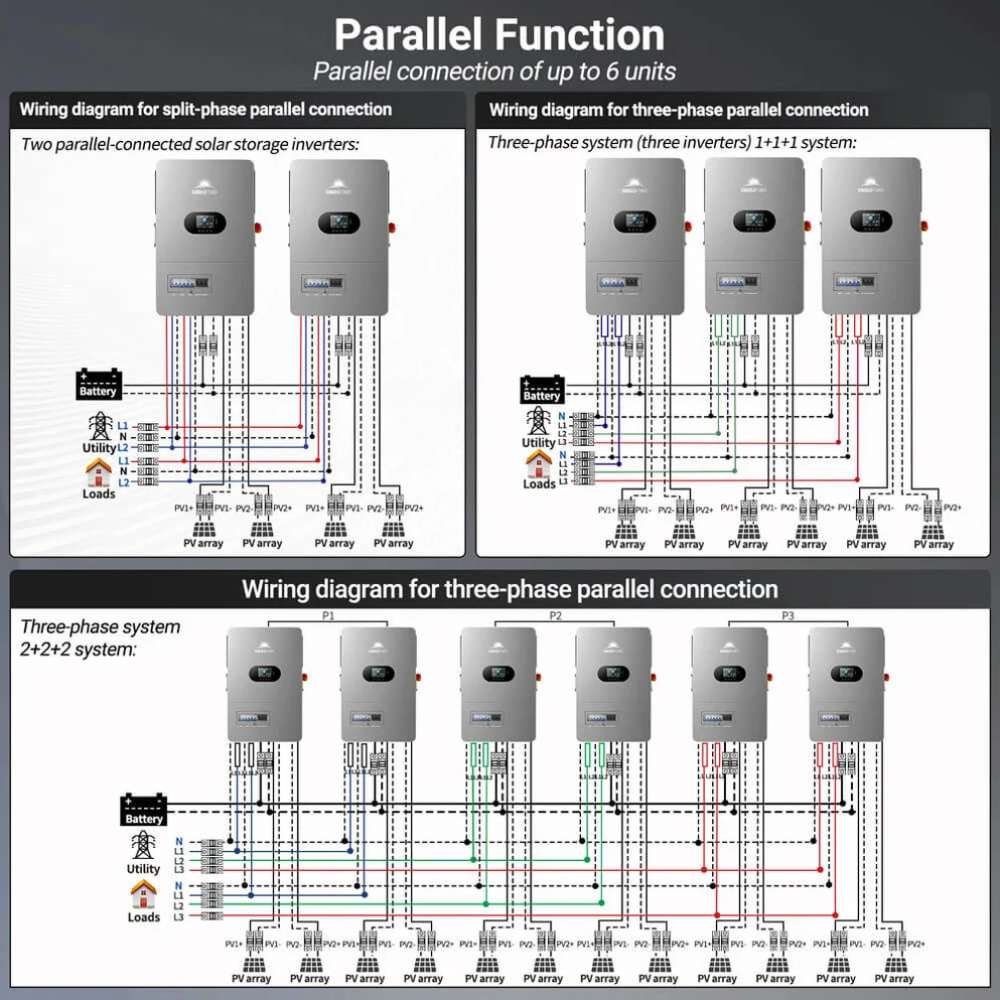

Parallel Capability: Up to 6 units
Generator Compatibility: Independent generator input port
Display: LCD HD display
Monitoring: Built-in WiFi monitoring

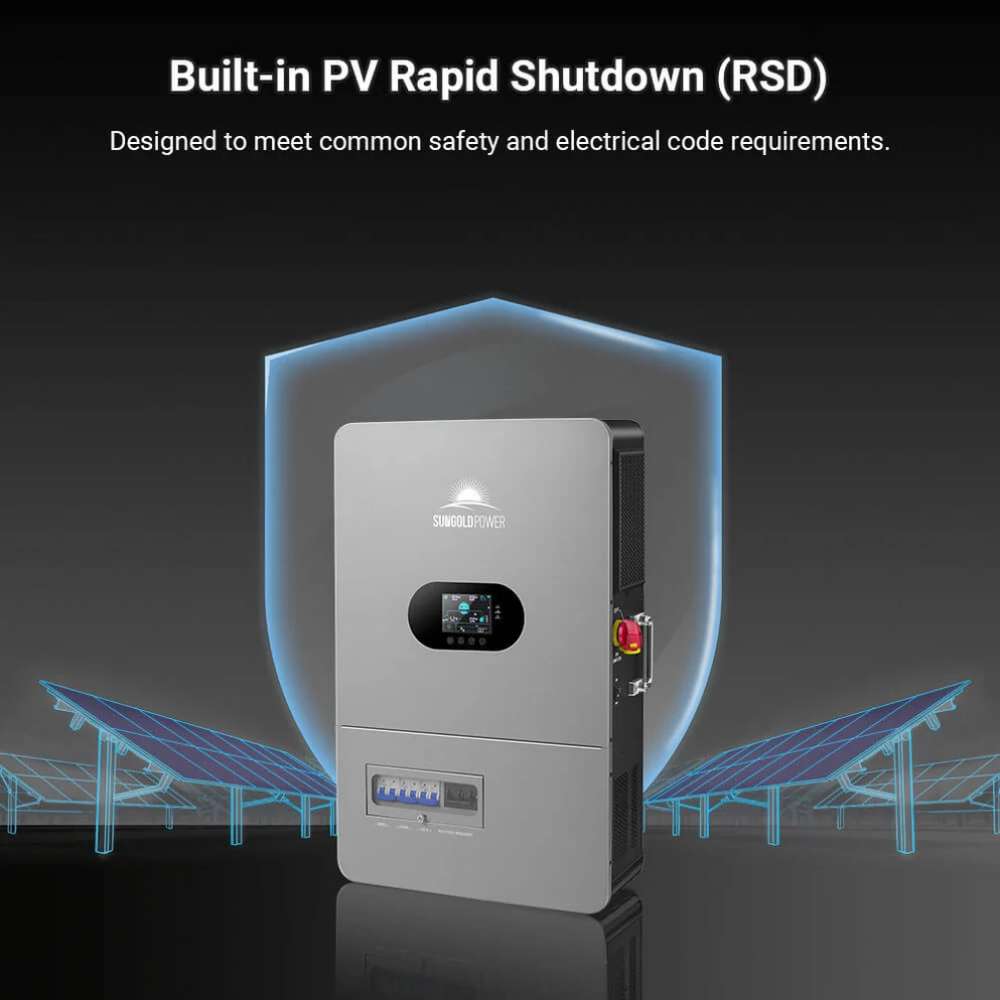

Protection: Built-in PV Rapid Shutdown (RSD)

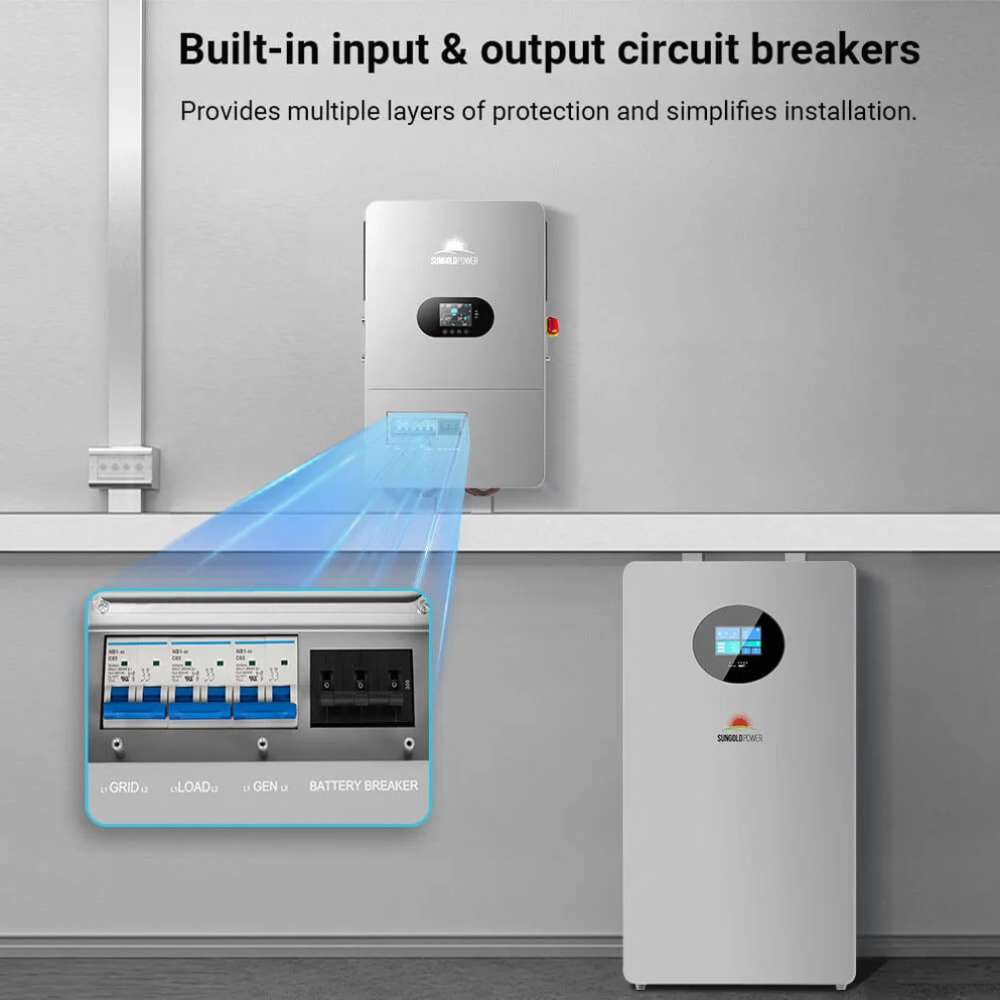

Circuit Protection: Built-in input and output circuit breakers
Dimensions: 28.7 × 19.1 × 6.7 in
Weight: 61.73 lb

Features

Pure sine wave output powers sensitive electronics safely.
Dual MPPTs maximize solar energy harvesting.

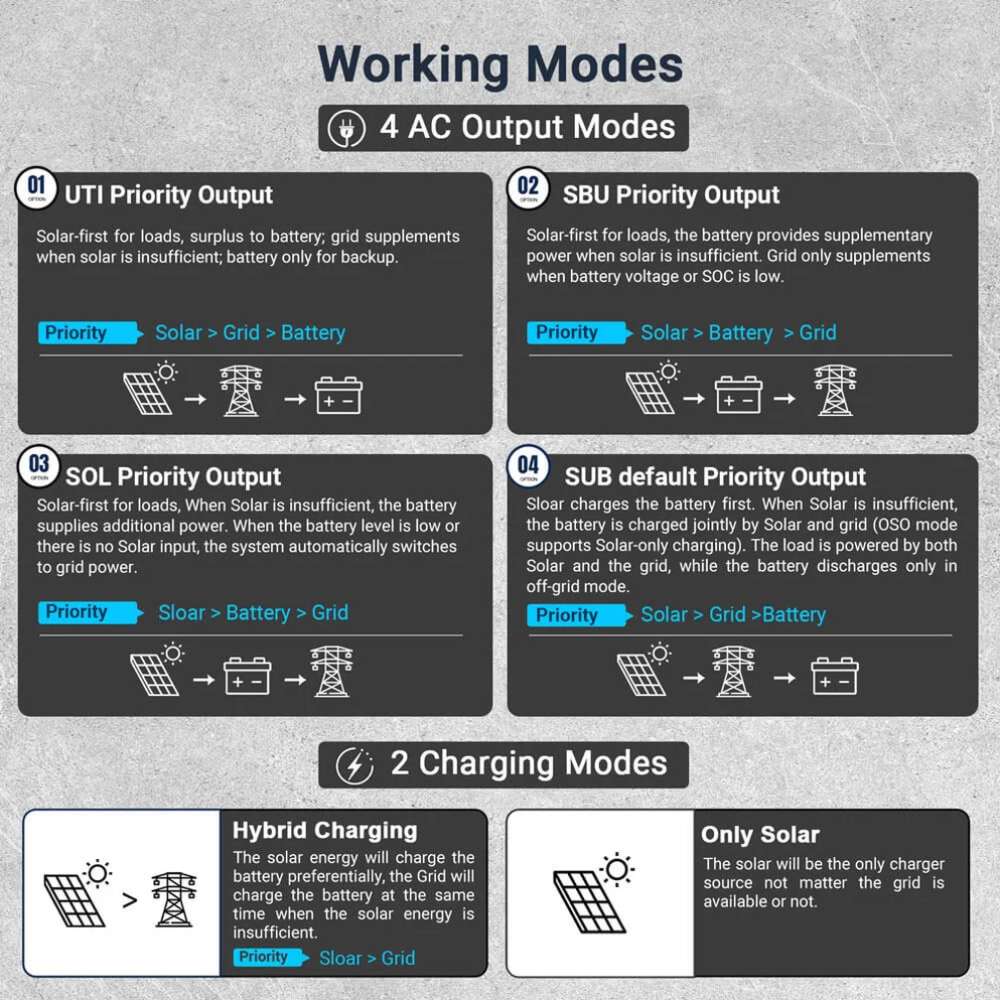

Supports PV-only and hybrid charging modes.
Split-phase output powers 120V and 240V loads.
Connect up to six units in parallel.

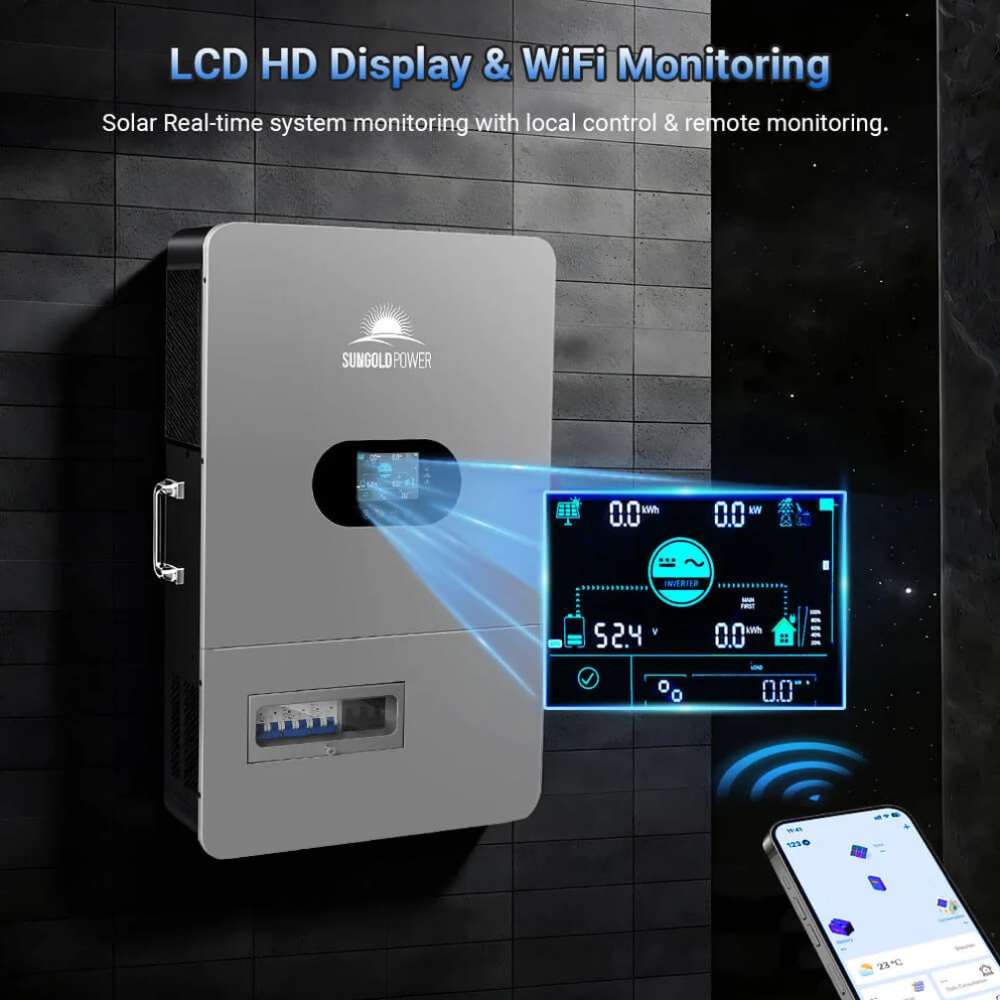

Built-in WiFi enables remote system monitoring.
Independent generator port adds flexible backup options.
Generator port supports a second load output.
Built-in PV rapid shutdown improves system safety.
LCD display provides clear system information.
Works with lithium and lead-acid batteries.
Built-in circuit breakers simplify installation and protection.

Why Choose It?

Sun Gold Power 12000W All-in-One Off-Grid Solar Inverter is built for dependable off-grid power and flexible energy storage. Dual MPPT charging and split-phase output support efficient whole-property operation.

Recommended For

Off-grid homes
Whole-home backup systems
Solar energy systems
Workshops
Garages
Small businesses
Agricultural buildings
Battery storage systems
Remote properties
Users with lithium or lead-acid battery banks

Comfortably Powers

Refrigerators and freezers
LED lighting circuits
WiFi routers and networking equipment
Desktop computers and laptops
TVs and home entertainment systems
Microwave ovens
Coffee makers
Washing machines
Dishwashers
Well pumps
Power tools
Air compressors
Electric water pumps
Multiple household appliances at the same time
120V and 240V residential loads

Where It Falls Short:

This inverter is designed specifically for off-grid solar systems. It also requires a 48V battery bank for operation.

Requires a 48V battery system and is not compatible with 12V or 24V batteries.
Intended for off-grid installations rather than grid-tied operation.
Maximum parallel expansion is limited to six units.
Requires wall mounting due to its installation design.
Battery bank is not included.
Solar panels are not included.
Maximum PV input voltage is limited to 500V DC.
Supports only compatible lithium and lead-acid battery types.
WiFi monitoring requires the included WiFi logger.
Designed for 120V/240V split-phase output and may not suit other AC voltage standards.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
