Senville 9000 BTU Mini Split Air Conditioner - ELITE Series

The Senville 9000 BTU Mini Split Air Conditioner is a climate control appliance from the ELITE Series that functions as both an air conditioner and a heat pump. This system is available with multiple installation kit lengths including 16ft, 25ft, and 50ft options, or it can be purchased without a kit. Customers can also choose to include a request for an installation quote at the time of purchase. This unit is designed for homeowners who need a versatile heating and cooling solution for individual rooms or small living spaces.

Senville 9000 BTU Mini Split Air Conditioner - Heat Pump - ELITE Series is a compact heating and cooling system for bedrooms, offices, and small living spaces. It features a 9000 BTU mini split AC, heat pump function, inverter technology, smart control, and quiet operation for year-round comfort. The Energy Star design helps support efficient cooling and heating while keeping operating costs lower.

Key specs

• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187–253

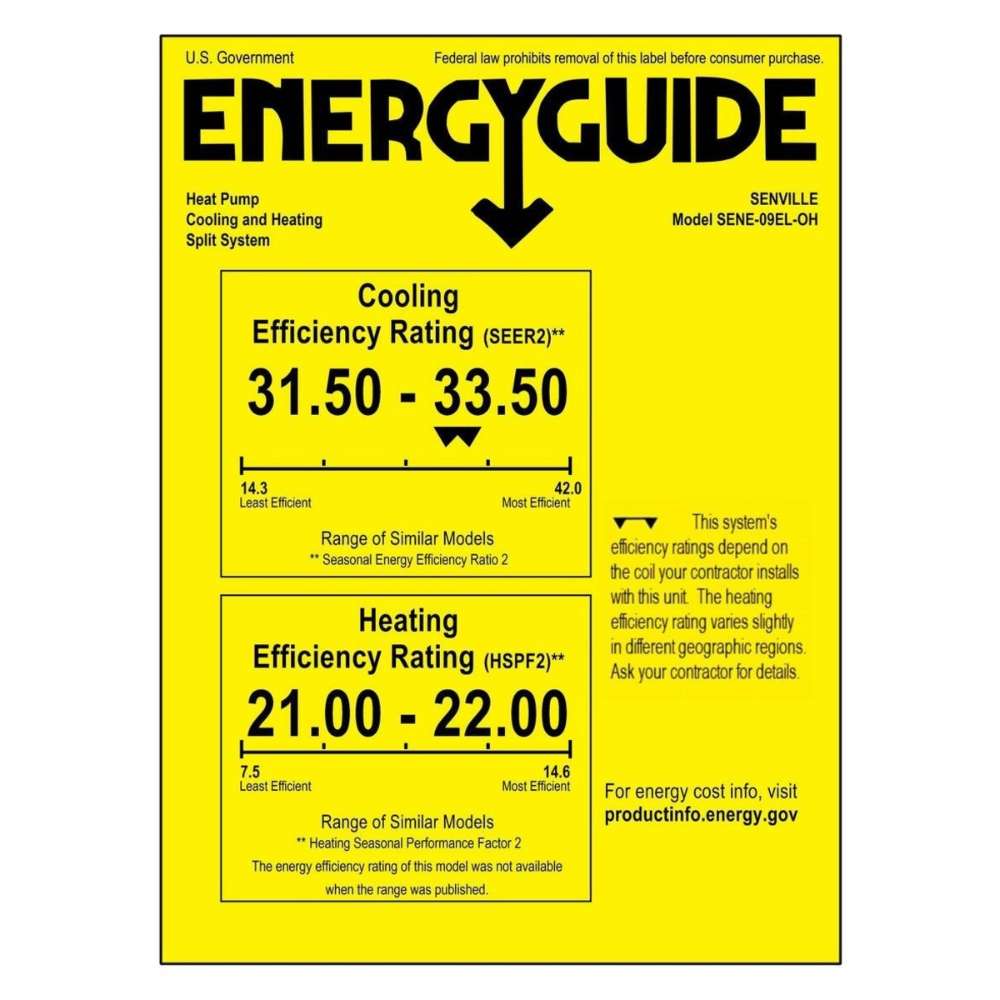

• SEER2: 33.3
• EER2: 17.0
• Cooling Capacity (BTU): 9000
• Cooling Range (BTU): 3100~16500
• Cooling Input Range (W): 180~1380
• Cooling Current Range (A): 1.2~6.2
• Heating Capacity (BTU): 12000
• Heating Range (BTU): 4100~17200
• Heating Input Range (W): 200~1585
• Heating Current Range (A): 1.1~7.2
• HSPF2-4: 22.0
• HSPF2-5: 16.0
• COP W/W: 3.60
• Minimum Circuit Ampacity (A): 3.0
• Max. Fuse (A): 15
• Indoor Air Flow (Turbo/H/M/L) CFM: 559.2 / 423.8 / 211.9 / 153.0
• Indoor Noise Level (Turbo/H/M/L) dB: 41.5 / 41.5 / 33 / 23
• Indoor Dimensions (WxDxH): 40.04 x 9.53 x 12.56 in
• Indoor Weight: 28.22 lb
• Moisture Removal (L/H): 0.5

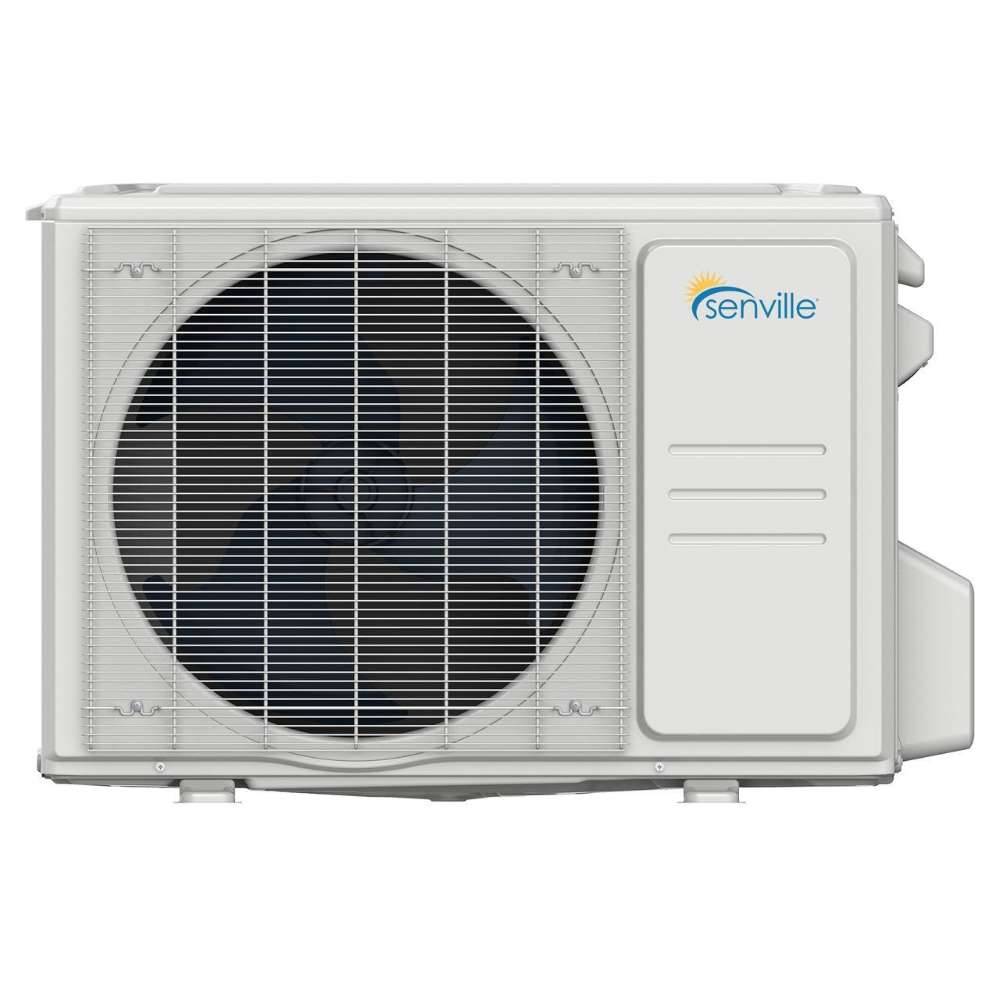

• Outdoor Air Flow (Max) CFM: 1470.6
• Outdoor Noise Level dB: 57
• Outdoor Dimensions (WxDxH): 35.04 x 13.46 x 26.50 in
• Outdoor Weight: 99.65 lb
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge: R454B / 44.09 oz
• Refrigerant Pre-charge: 25 ft
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Alexa: Enabled
• Warranty: 10 Years Compressor / 10 Years Parts

Features

• Elite Series Performance: High-efficiency 9000 BTU mini split delivers powerful cooling, reliable heating, and quiet year-round comfort.
• 33.3 SEER2 Energy Efficiency: ENERGY STAR certified ductless mini split helps lower energy bills by up to 58% annually.
• Cold Climate Heating: Advanced heat pump provides dependable heating in temperatures down to -22°F (-30°C).
• Alexa Smart Control: WiFi-enabled mini split works with Alexa for hands-free voice control and remote access.
• Ultra-Quiet Operation: Low-noise air conditioning system creates a peaceful environment for bedrooms and home offices.
• Ideal Room Coverage: Efficient heating and cooling system is designed for spaces between 100 and 450 square feet.
• Smart Scheduling: Mobile app control allows custom temperature schedules for greater comfort and energy savings.
• Self-Diagnostics Protection: Built-in leak detection and diagnostic system helps maintain peak HVAC performance.
• 10-Year Warranty Coverage: Backed by a 10-year compressor warranty and 10-year parts warranty for lasting confidence.

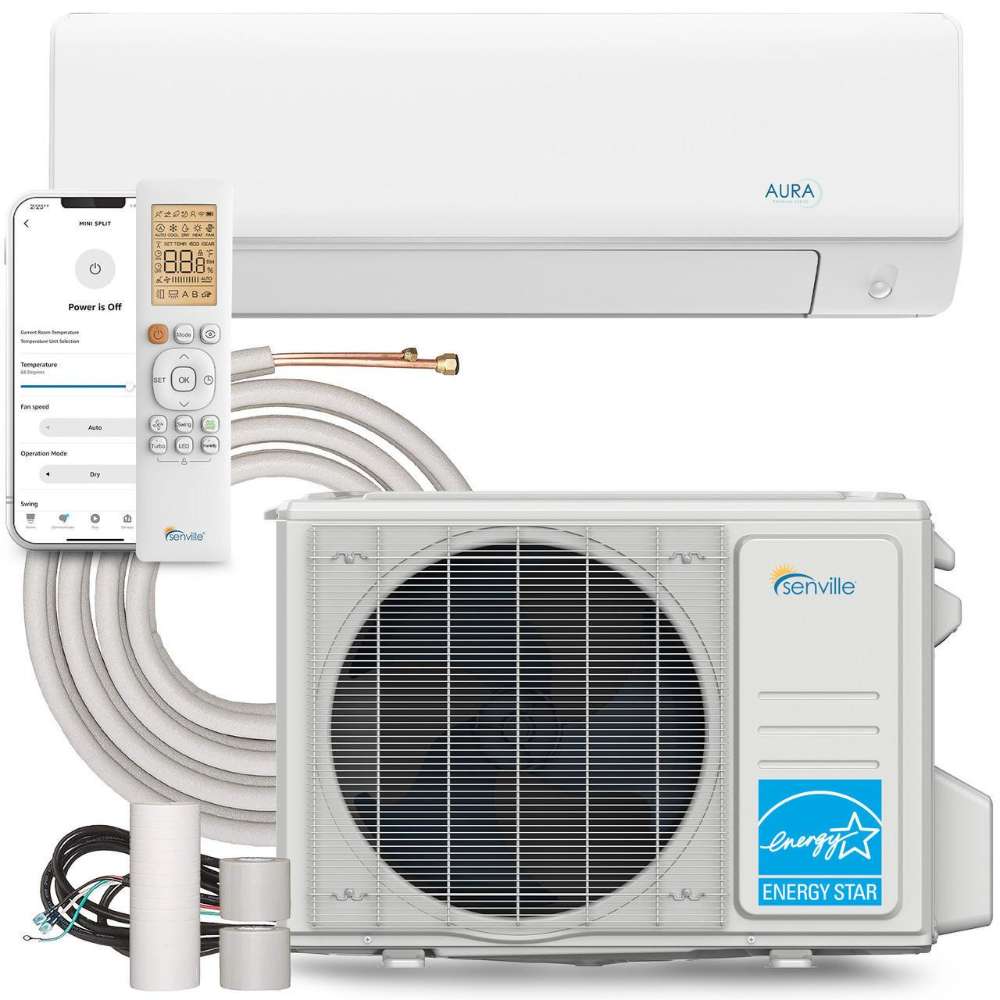

What's included

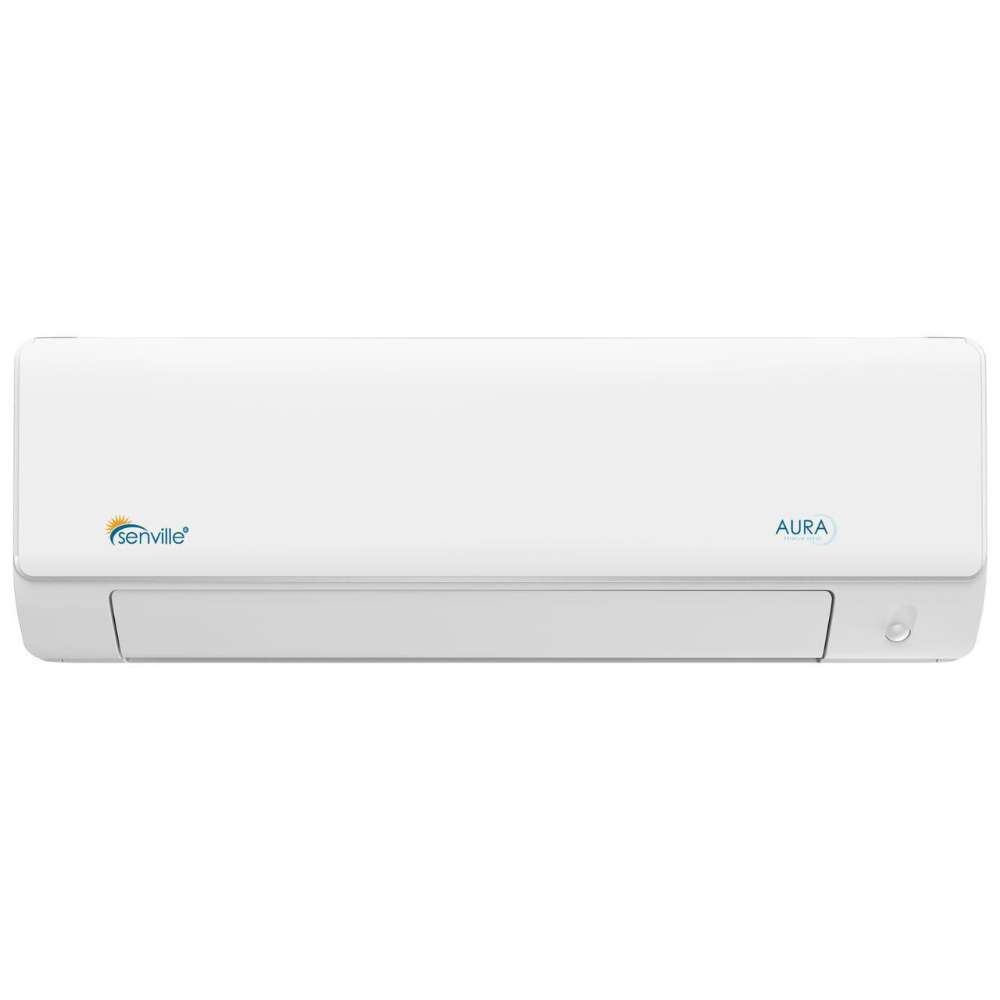

• Indoor Unit
• Outdoor Unit

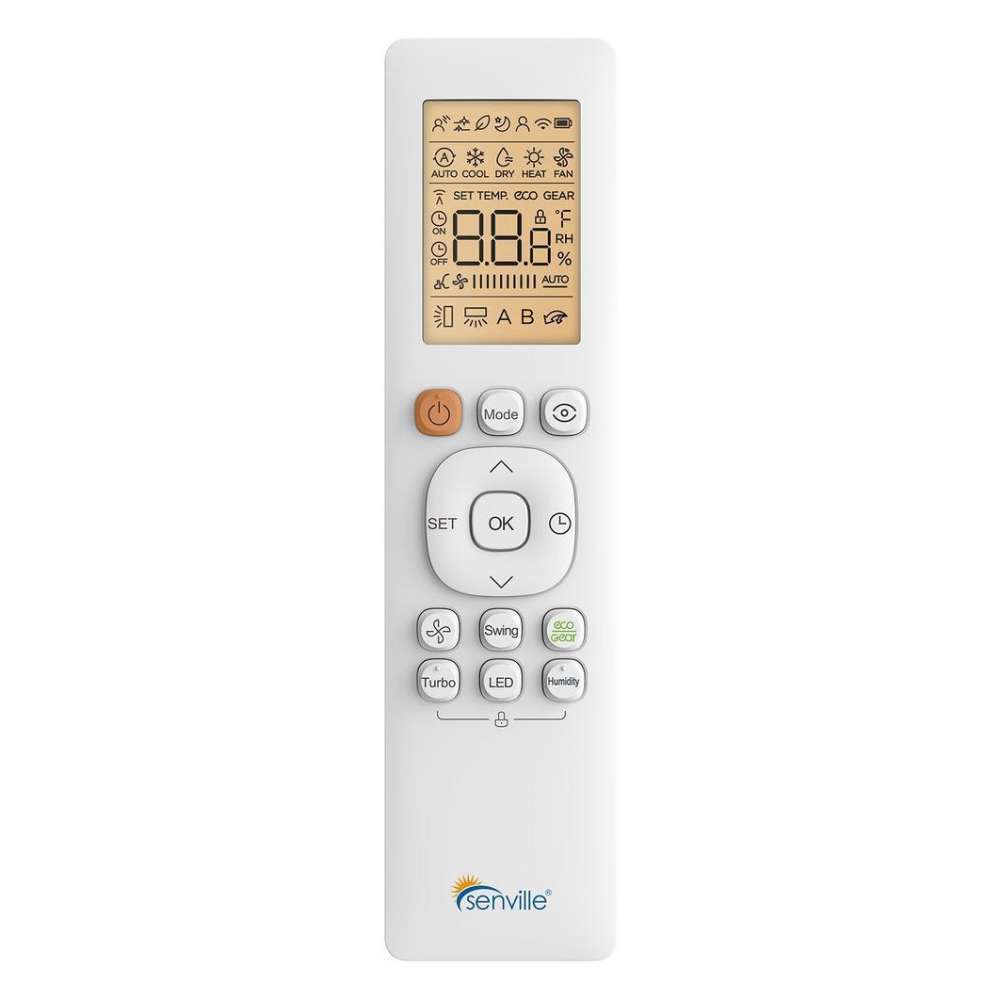

• Wireless Remote Control
• Alexa USB Kit

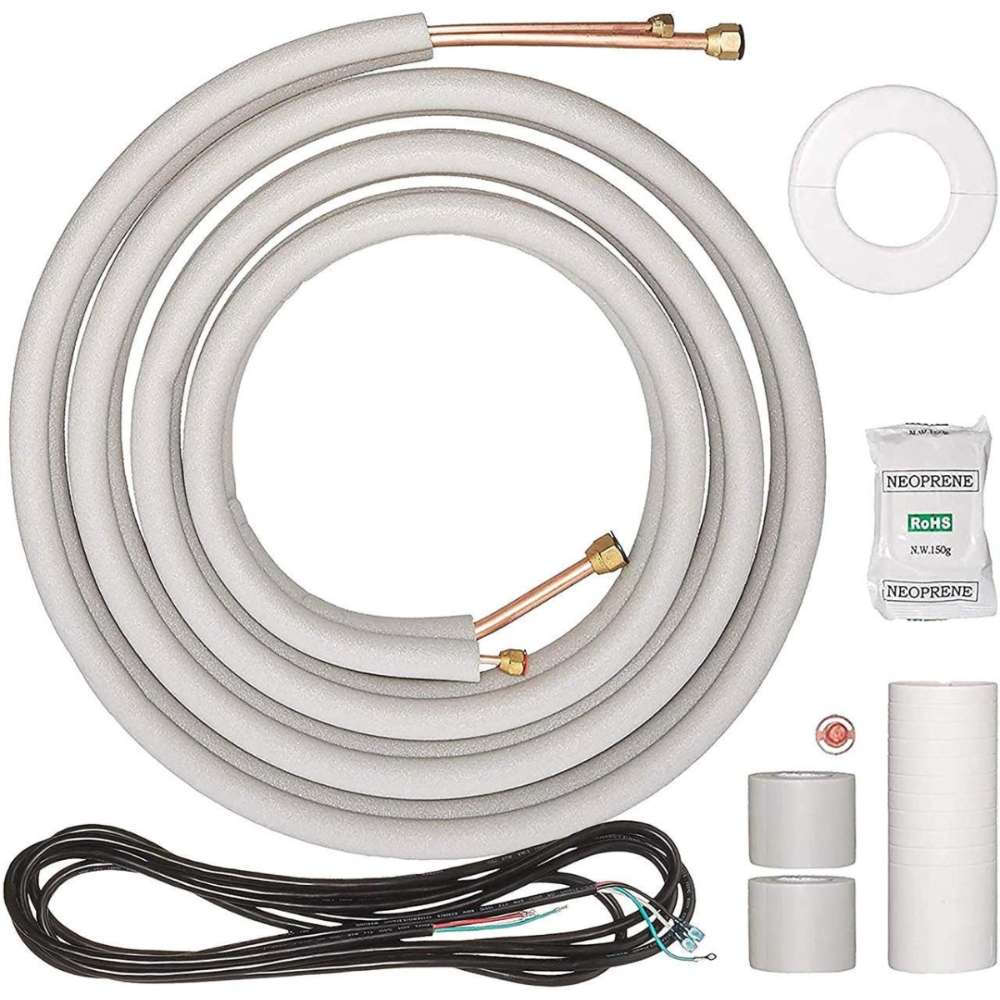

• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
