Senville 9000 BTU 1-Way Cassette AC/Heat - SENA-09HF-1WC

The Senville 9000 BTU 1-Way Cassette Air Conditioner is a mini split air conditioner and heat pump system designed for climate control. This SENA-09HF-1WC model provides both cooling and heating functions for residential or commercial spaces. Available configurations include an optional installation kit in lengths of 16 feet, 25 feet, or 50 feet. It is a functional solution for users who require a ceiling-mounted temperature management system with flexible installation piping options.

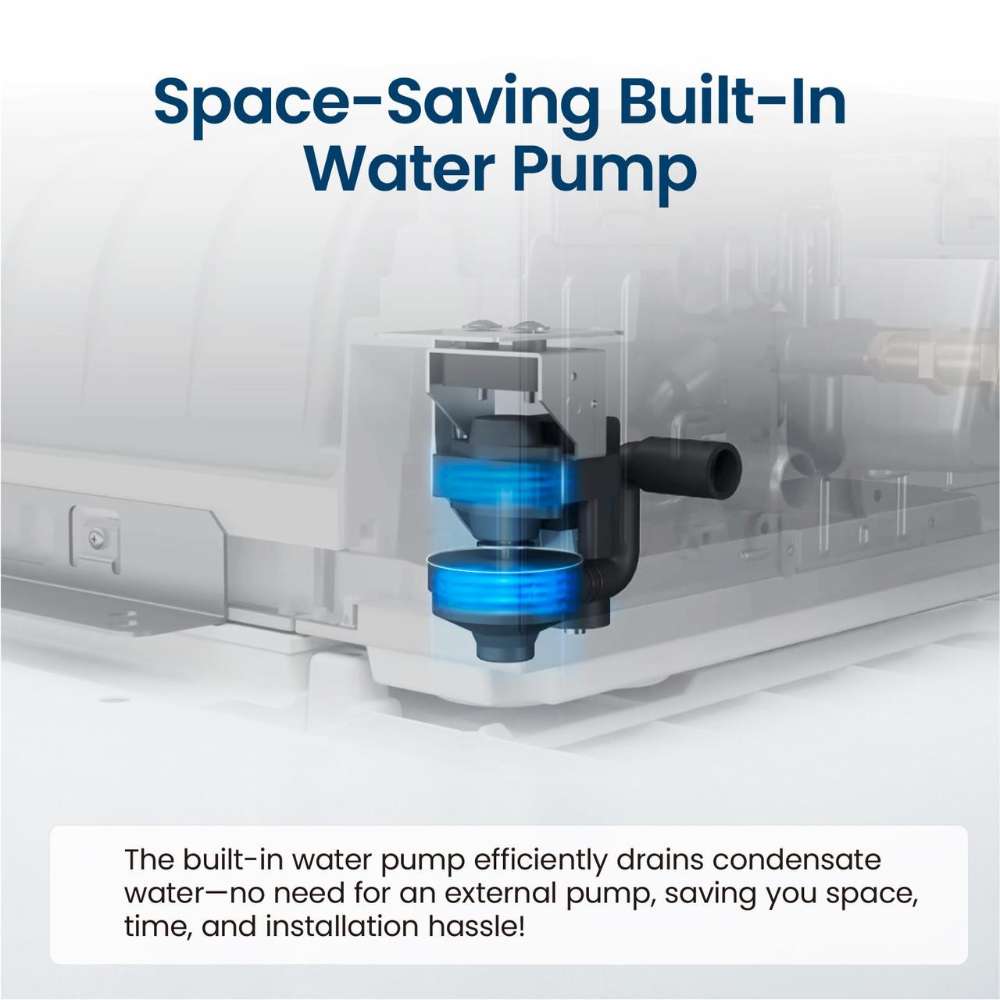

Senville 9000 BTU 1-Way Cassette Air Conditioner - Heat Pump - SENA-09HF-1WC is a compact ceiling cassette mini split made for efficient cooling and heating. This 9000 BTU HVAC system uses an inverter heat pump to help keep rooms comfortable in every season. Its 1-way cassette design saves wall space, while the built-in pump and drop-down panel make installation and maintenance easier.

Key specs

• Power Supply (V, Ph, Hz): 208/230V, 60Hz, 1Ph
• Cooling Capacity (BTU/h): 9000

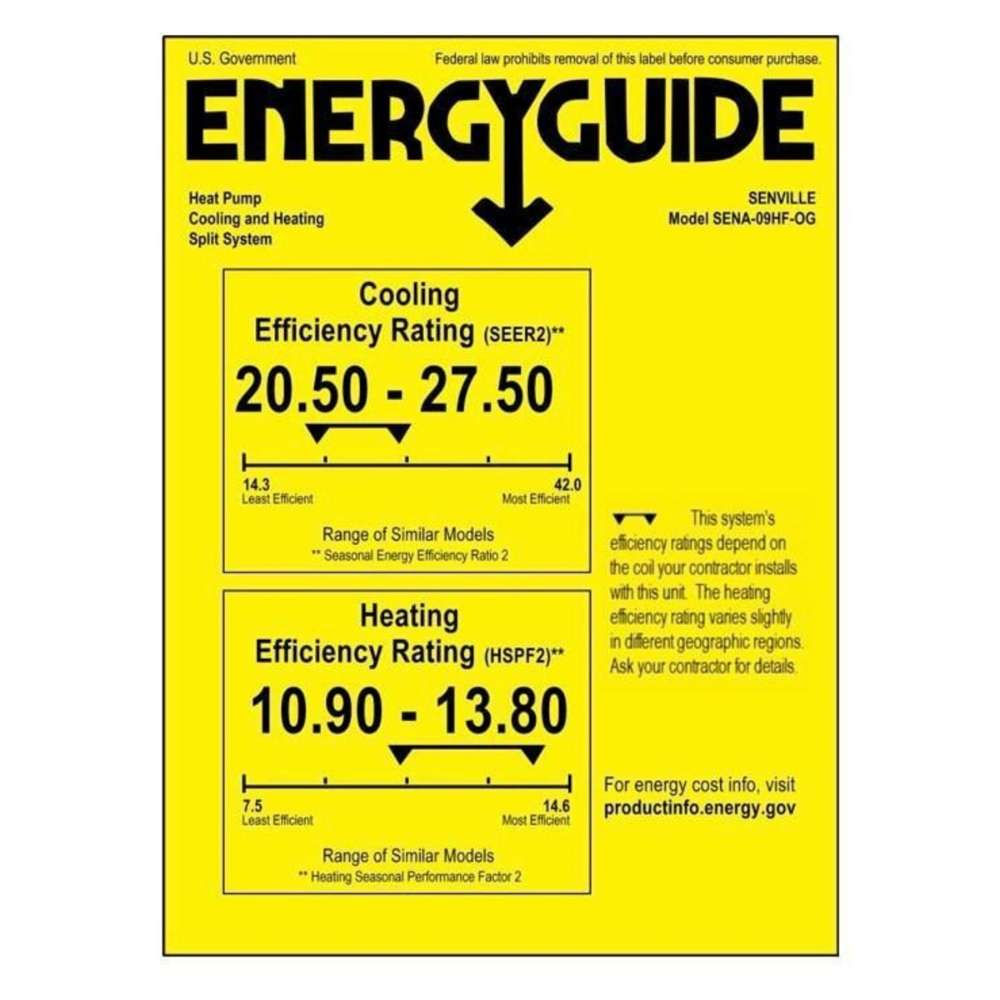

• SEER2: 24.0
• EER2: 14.6
• Heating Capacity (BTU/h): 10900
• HSPF2-4: 12.1
• COP (w/w): 3.71
• Liquid Line (inch): 1/4"
• Gas Line (inch): 3/8"
• Indoor Dimensions (WxDxH): 50.31 x 13.19 x 8.98
• Outdoor Dimensions (WxDxH): 31.69 x 12.99 x 21.81

Features

• 24.0 SEER2 Efficiency: High-efficiency mini split delivers powerful cooling and heating while helping lower energy costs.
• Heating Down To -22°F (-30°C): Cold climate heat pump provides reliable heating performance even in extreme winter temperatures.
• ENERGY STAR Certified: ENERGY STAR certified AC system helps maximize comfort while improving energy efficiency.
• Whisper Technology (Ultra Quiet): Ultra-quiet ceiling cassette keeps rooms comfortable without distracting operating noise.
• Refrigerant Leak Detection: Built-in leak detection helps protect the HVAC system and maintain peak performance.
• Inverter Technology: Advanced inverter technology delivers consistent temperatures and improved energy savings.
• Self-Cleaning Mode: Self-cleaning function helps reduce buildup inside the indoor unit for easier maintenance.
• Vertical Swing & Follow Me Remote: Smart airflow control and Follow Me remote direct comfort exactly where needed.
• Low Ambient Cooling (-22°F/-30°C): Low ambient cooling supports year-round operation in cold-weather environments.
• PTC Heat Belt & Pan, Bucket-Free Design: Heated drain pan and bucket-free design improve winter reliability and simplify condensate management.
• Self Diagnosis System: Self-diagnosis technology quickly identifies system issues for faster troubleshooting and maintenance.

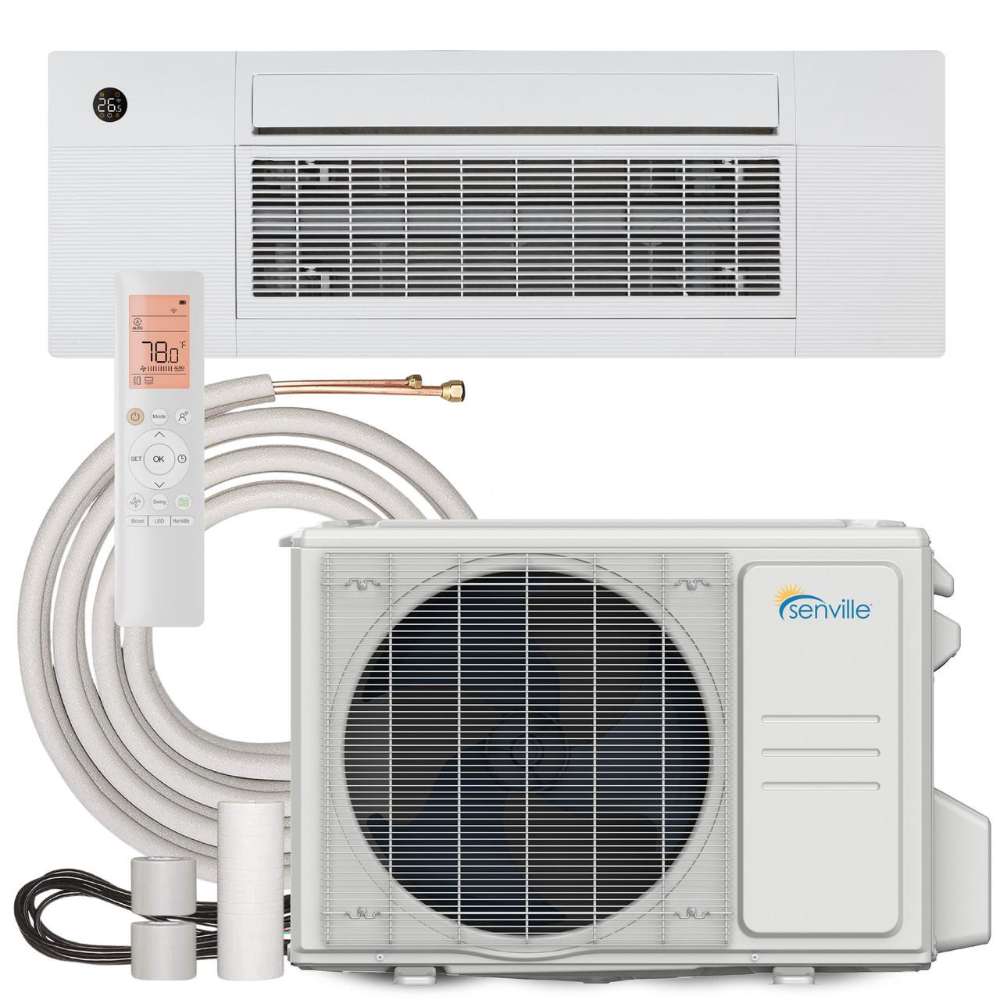

What's included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
