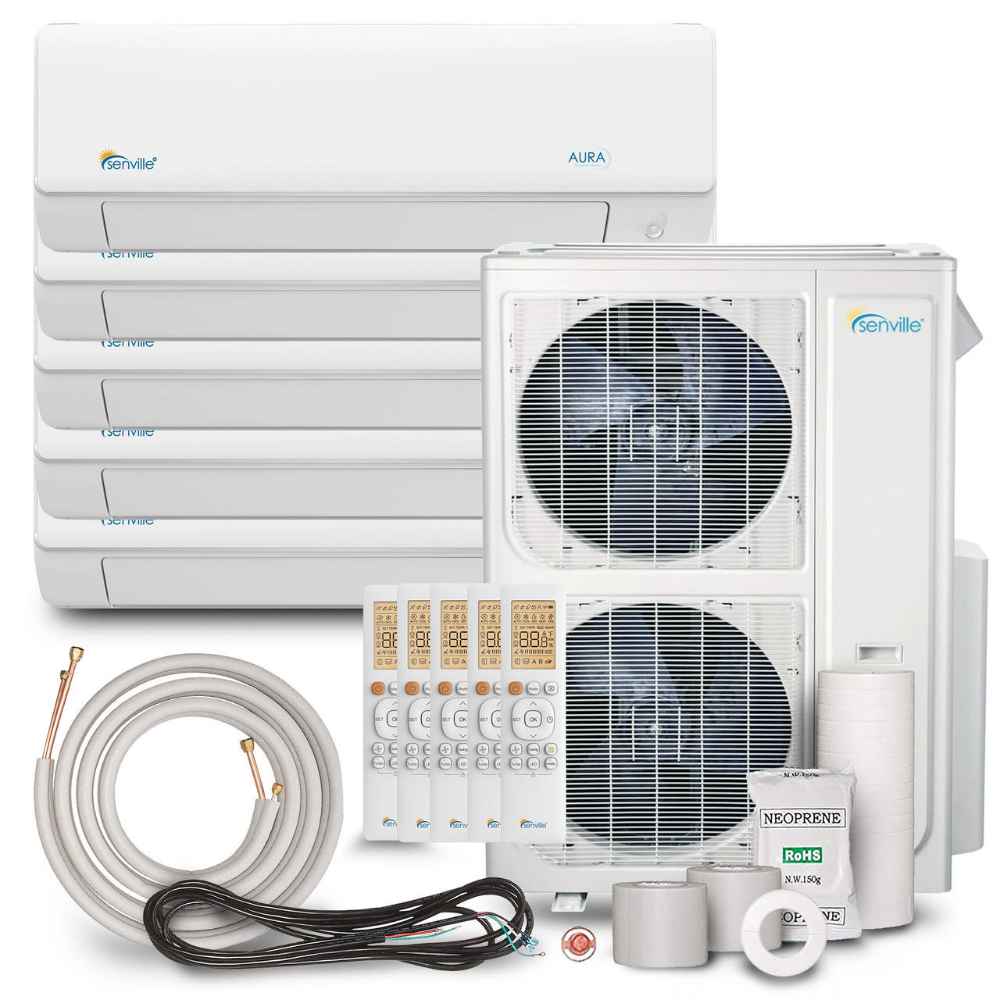

Full system package with indoor units, outdoor unit, remotes, and installation accessories for Senville 48000 BTU Five Zone Mini Split Air Conditioner - Heat Pump - SENA48HFF

Senville 48000 BTU Five Zone Mini Split Air Conditioner - SENA/48HF/F

Sold out
$5,084.00
$4,499.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 48000 BTU Five Zone Mini Split Air Conditioner is a multi-zone climate control system that functions as both an air conditioner and a heat pump. This SENA/48HF/F model features an indoor combination of five 9000 BTU units to provide cooling and heating across five distinct areas. Each system includes five installation kits, with options for 16ft lines or upgraded 25ft lines for one to five of the zones. It is a comprehensive solution for homeowners or contractors looking to manage the temperature in five separate rooms using a single outdoor condenser.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Smart Comfort That Listens to Alexa and Follows Your Command

Senville 48000 BTU Five Zone Mini Split Air Conditioner - Heat Pump - SENA/48HF/F delivers powerful, energy-efficient cooling and heating for up to five rooms with independent climate control. With smart features like Alexa compatibility, wide temperature range performance from -22°F to 122°F, and Energy Star certification, this cooling and heating system is built for reliability, flexibility, and ultimate home comfort.

What's Included?

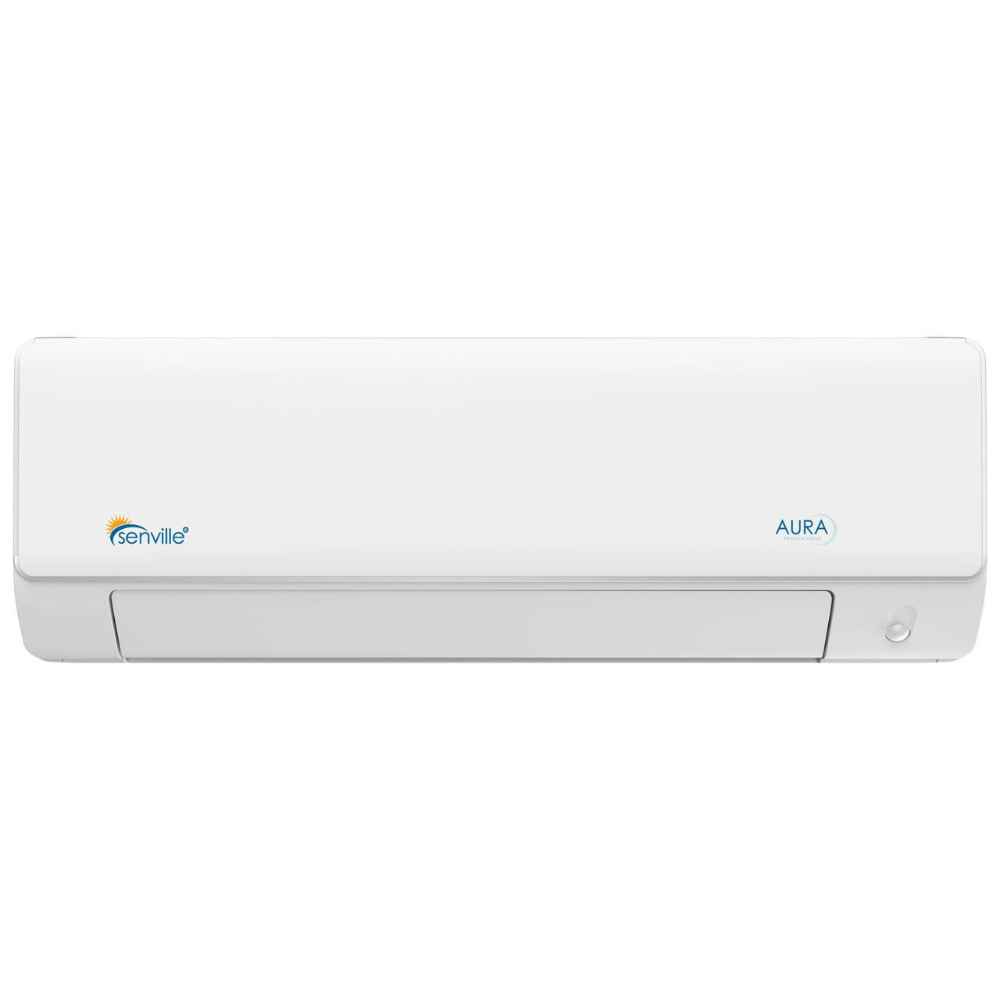

  • 5 Indoor Units (9,000 BTU each)

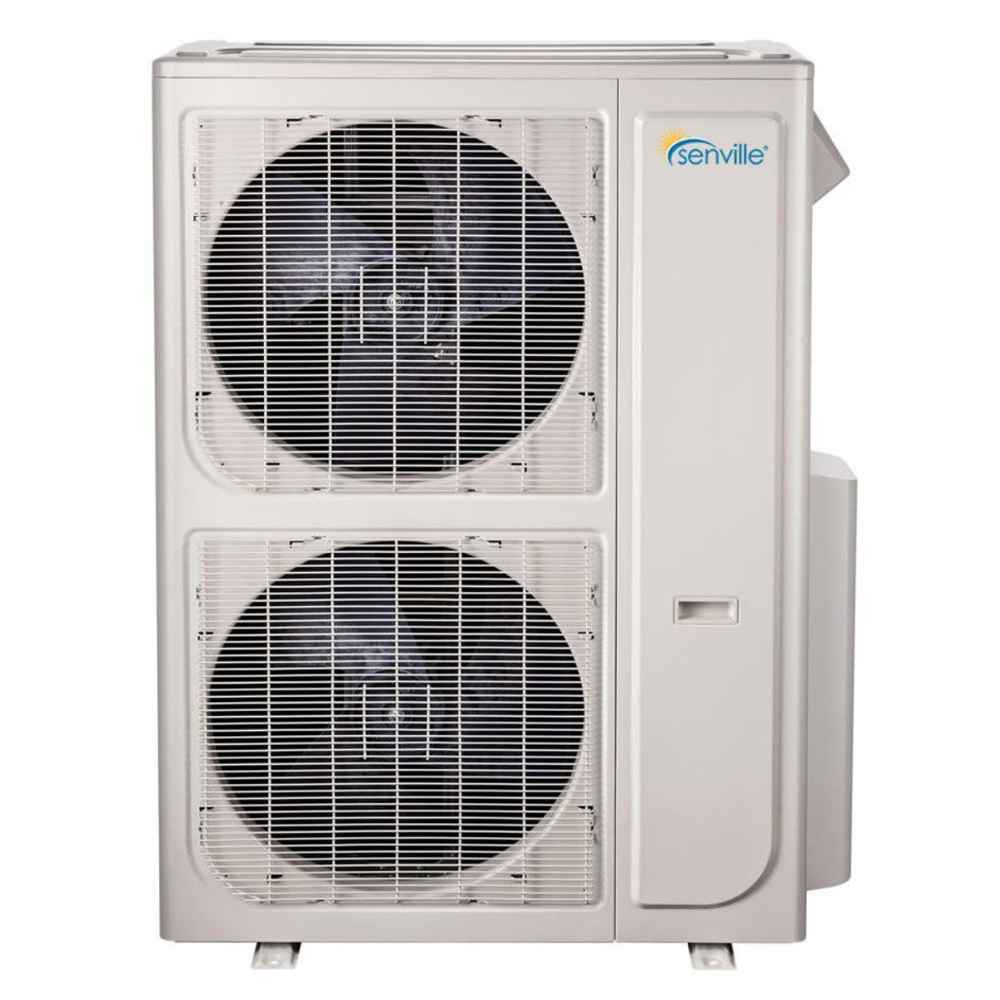

  • Outdoor Unit

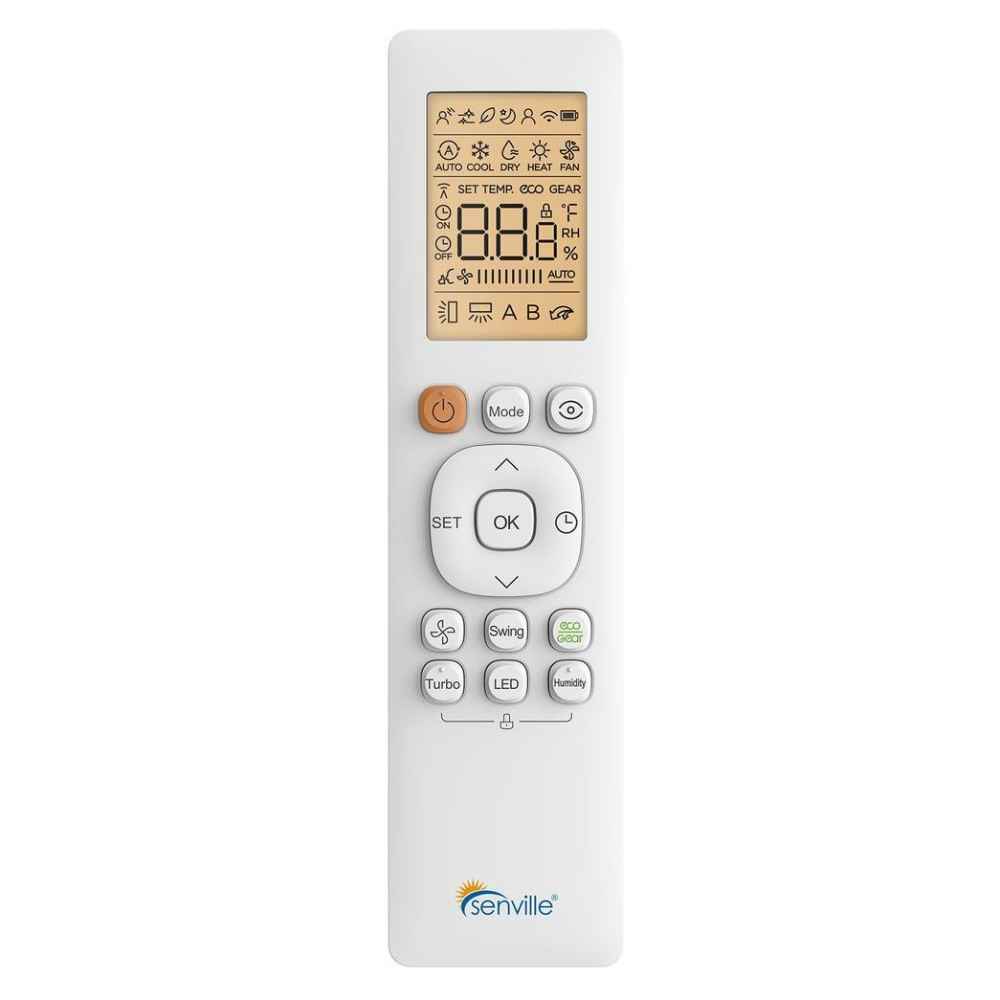

  • Wireless Remote Controls
  • WiFi USB Kit
  • 16 ft. Installation Kits (x5)
  • Indoor-Outdoor Wiring Harness
  • Installation Manual

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Number of Zones: 2-5
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 23
  • EER2: 12
  • Cooling Capacity (BTU): 47000
  • Cooling Range (BTU): 12000~57000
  • Cooling Input Range (W): 800~5400
  • Cooling Current Range (A): 7~24
  • Heating Capacity (BTU): 49000
  • Heating Range (BTU): 13000~57000
  • Heating Input Range (W): 800~5200
  • Heating Current Range (A): 7~23
  • HSPF2-4: 11
  • HSPF2-5: 9
  • COP W/W: 3.7
  • Minimum Circuit Ampacity (A): 37
  • Max. Fuse (A): 40
  • Outdoor Air Flow (Max) CFM: 4502.8
  • Outdoor Noise Level dB: 65
  • Outdoor Dimensions (WxDxH) (in.): 37.48 x 16.34 x 52.48
  • Outdoor Weight: 246.47 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 151.68
  • Refrigerant Pre-charge: 125 Ft.
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

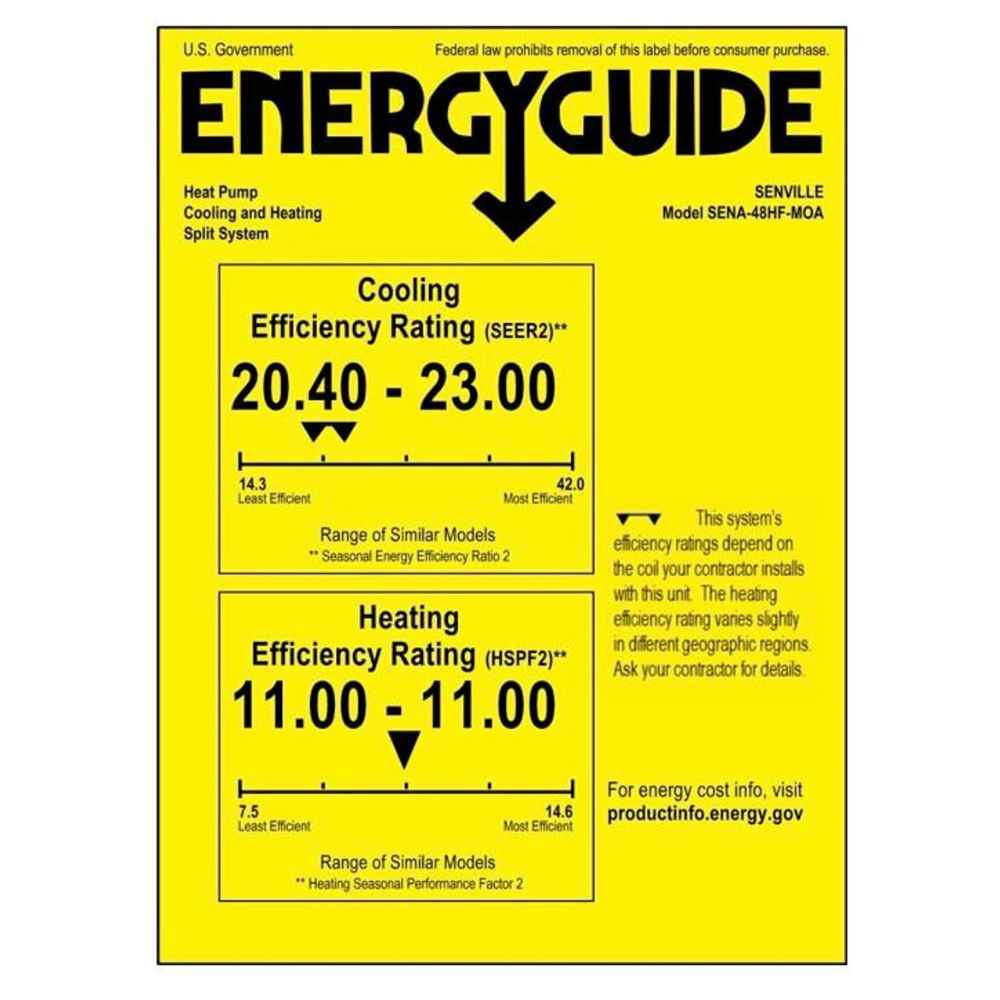

  • 23 SEER2 ENERGY STAR: This system offers high energy efficiency with a 23 SEER2 rating, saving you money on utility bills while delivering powerful performance.
  • WiFi Enabled Smart Control: Built-in WiFi allows you to control your comfort from anywhere using the Senville app or voice commands with Alexa.
  • Recommended for 2000–2500 sq. ft.: With 48,000 BTUs of power, it’s ideal for large homes, providing reliable heating and cooling across multiple rooms.
  • Heating Down to -30°C (-22°F): The advanced heat pump ensures your home stays warm even in extreme winter conditions.
  • Professional Installation: Designed for expert installation, this system guarantees proper setup for maximum performance and long-lasting durability.
  • Diagnostics & Leak Detection: Equipped with self-diagnostics, it detects issues like refrigerant leaks early, keeping your system safe and efficient.
  • Five Zone Comfort: Independent climate control in up to five rooms allows everyone to have their preferred temperature simultaneously.

Documentations & Certifications

  • ENERGY STAR Certified
  • Green Energy Pledge Friendly

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
