Senville 48000 BTU Dual Zone Mini Split Air Conditioner - SENA/48HF/D

The Senville SENA/48HF/D is a dual zone mini split air conditioner and heat pump system with a total capacity of 48000 BTU. This climate control appliance features an indoor combination of two 24000 BTU units to manage temperature in multiple rooms. Installation kit options range from 16 feet to 50 feet, with various upgrades available for one or two kits depending on the layout requirements. It is a functional solution for homeowners who need a high-capacity heating and cooling system for two distinct indoor spaces.

Senville 48000 BTU Dual Zone Mini Split Air Conditioner - Heat Pump - SENA/48HF/D delivers powerful, energy-efficient heating and cooling for spaces up to 2,500 sq. ft. With a 23 SEER2 ENERGY STAR rating, this ductless AC system offers smart savings, WiFi-enabled control, and reliable performance even in extreme temperatures as low as -22°F.

Key specs

• Style: Ductless Mini Split AC With Heat Pump
• Number of Zones: 2-5
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253

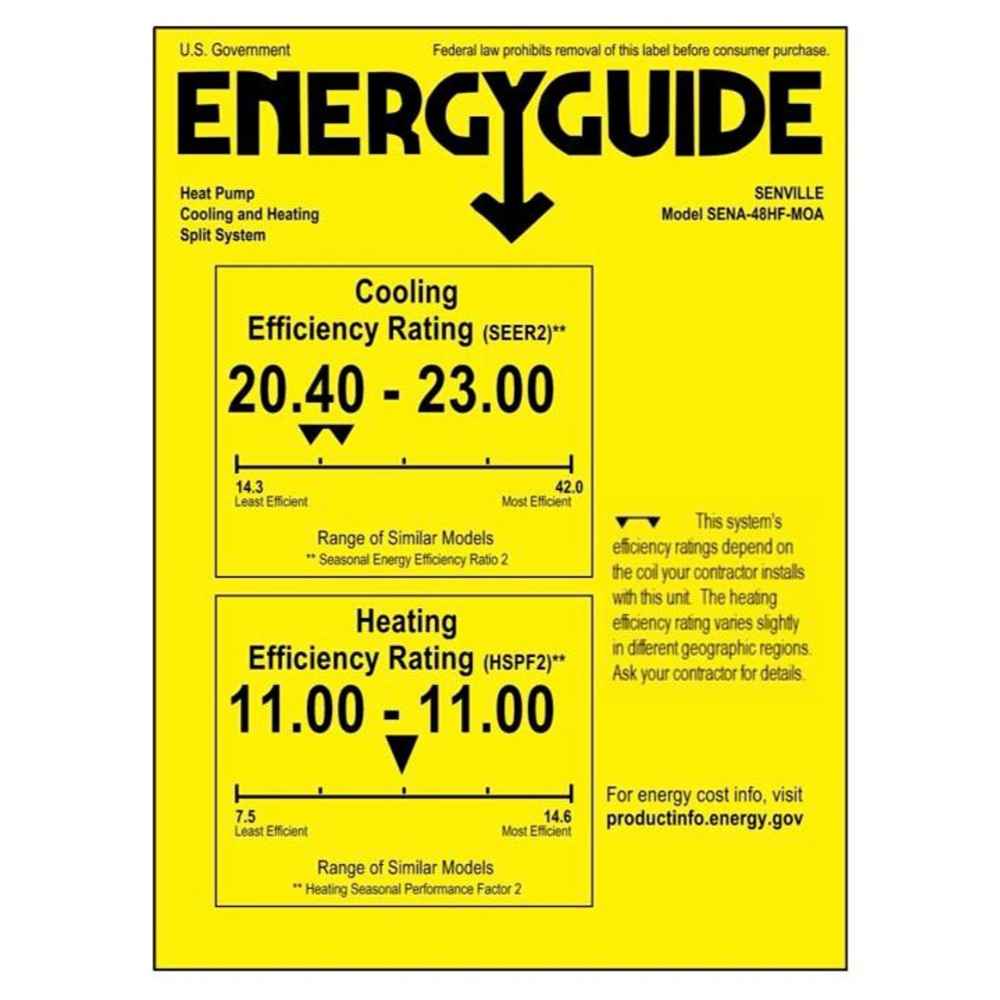

• SEER2: 23
• EER2: 12
• Cooling Capacity (BTU): 47000
• Cooling Range (BTU): 12000~57000
• Cooling Input Range (W): 800~5400
• Cooling Current Range (A): 7~24
• Heating Capacity (BTU): 49000
• Heating Range (BTU): 13000~57000
• Heating Input Range (W): 800~5200
• Heating Current Range (A): 7~23
• HSPF2-4: 11
• HSPF2-5: 9
• COP W/W: 3.7
• Minimum Circuit Ampacity (A): 37
• Max. Fuse (A): 40
• Outdoor Air Flow (Max) CFM: 4502.8
• Outdoor Noise Level dB: 65
• Outdoor Dimensions (WxDxH) (in.): 37.48 x 16.34 x 52.48
• Outdoor Weight: 246.47 Lbs
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge: R454B / 151.68
• Refrigerant Pre-charge: 125 Ft.
• Warranty: 10 Years Compressor / 5 Years Parts

Features

• 23 SEER2 ENERGY STAR Efficiency: This unit is built to save you money on every bill with an impressive 23 SEER2 rating. It’s ENERGY STAR certified.
• WiFi Enabled Smart Control: Control your comfort from anywhere with built-in WiFi. Connect to Alexa or your smartphone and adjust temperatures without ever getting off the couch.
• Recommended for 2000–2500 sq. ft.: Perfect for larger homes, this system easily covers up to 2,500 square feet.
• Heating Down to -30°C (-22°F): It’s engineered to provide reliable heating performance all the way down to -22°F.
• Quiet Dual Zone Comfort: With whisper-quiet operation, you can enjoy peaceful sleep or relaxation while both zones stay perfectly climate-controlled.
• Professional Installation: Designed for expert setup, this system ensures peak performance and long-term reliability when installed by a certified technician.
• Diagnostics & Leak Detection: Advanced self-diagnostics and leak detection keep your system running smoothly. It alerts you to issues early, protecting your investment and avoiding costly repairs.

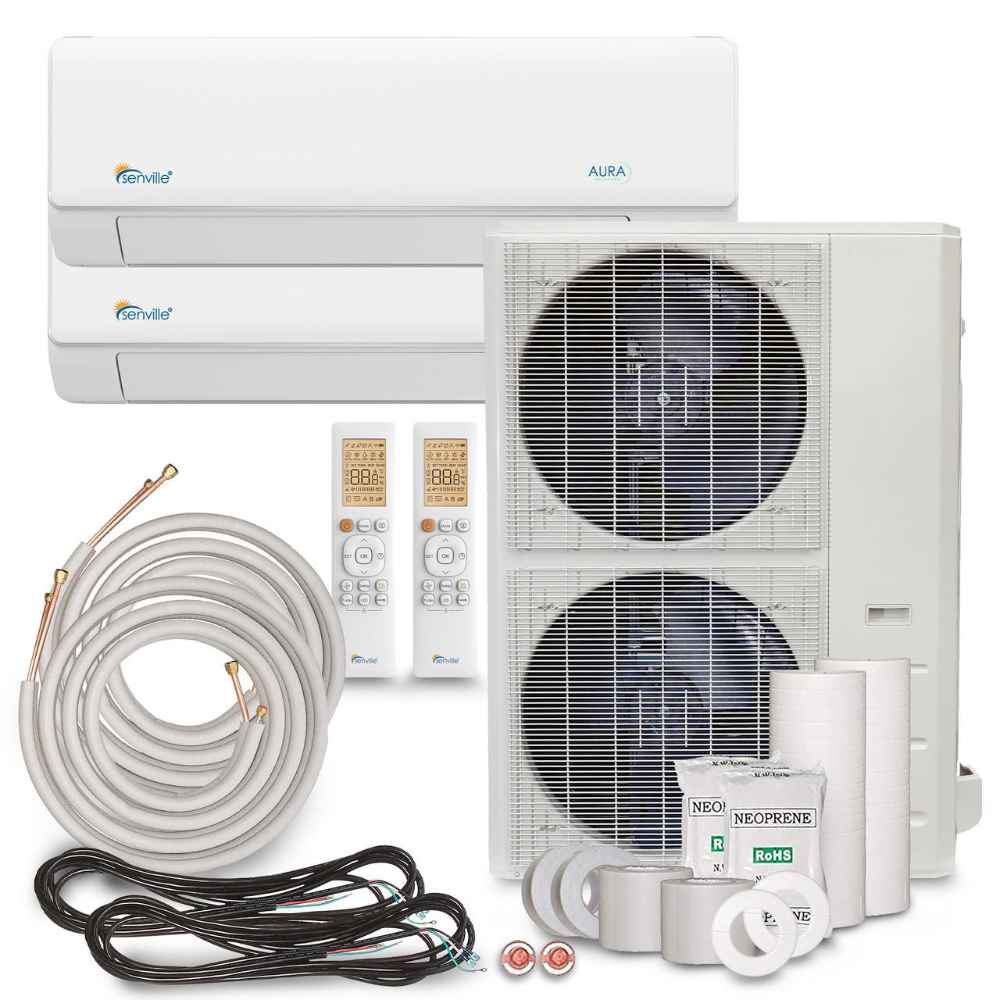

What's included

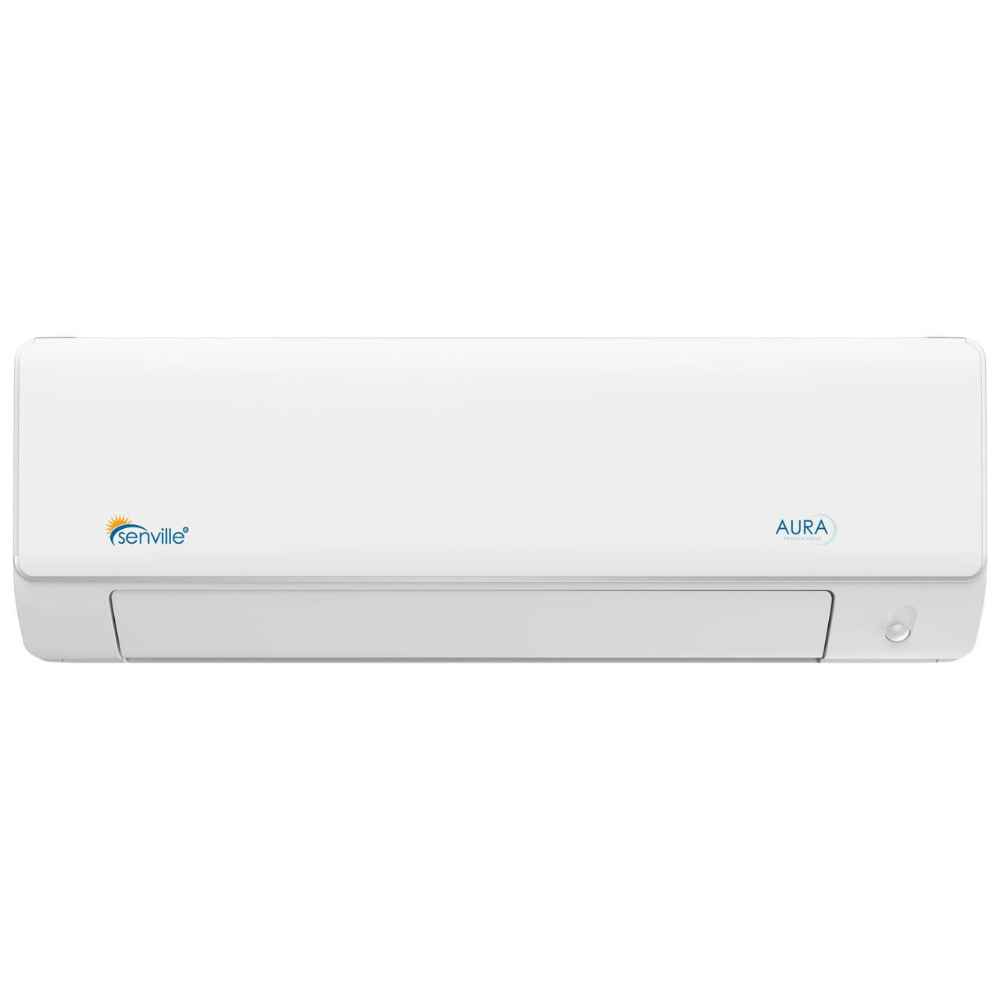

• 2 Indoor Units (24,000 BTU each)

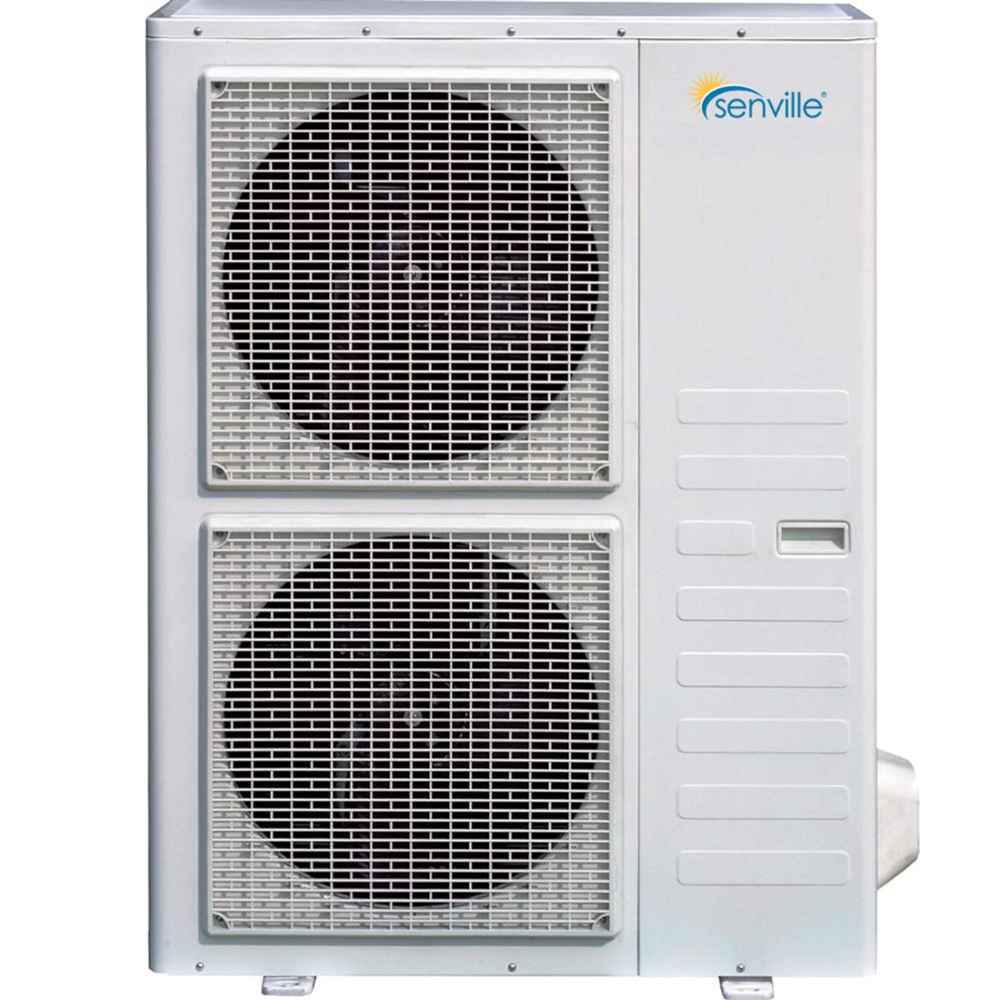

• Outdoor Unit

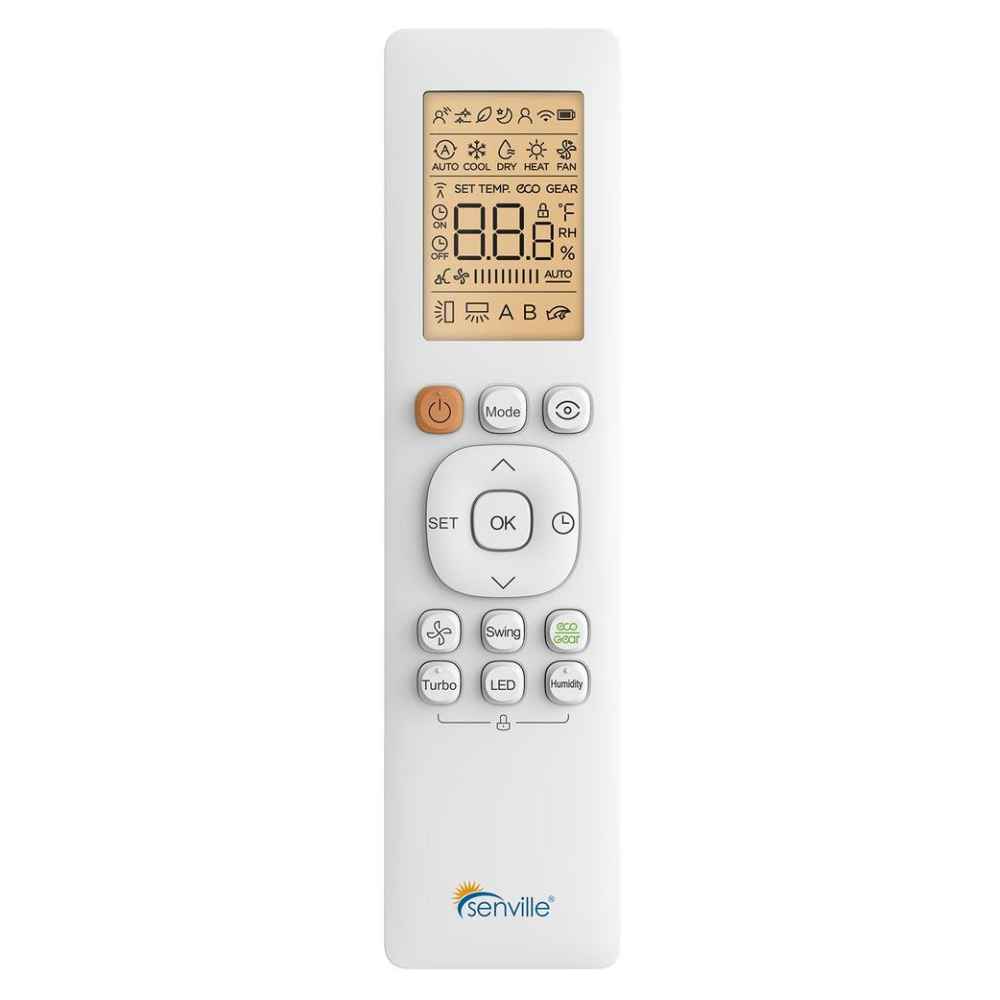

• Wireless Remote Controls
• WiFi USB Kit
• 16 ft. Installation Kits (x2)
• Indoor-Outdoor Wiring Harness
• Installation Manual

Options

• Indoor Combination: 24000 BTU / 24000 BTU
• Installation Kit: 16ft, 25ft (Upgrade 1 Kit), 25ft (Upgrade 2 Kits), 35ft (Upgrade 1 Kit), 35ft (Upgrade 2 Kits), 50ft (Upgrade 1 Kit), 50ft (Upgrade 2 Kits)
