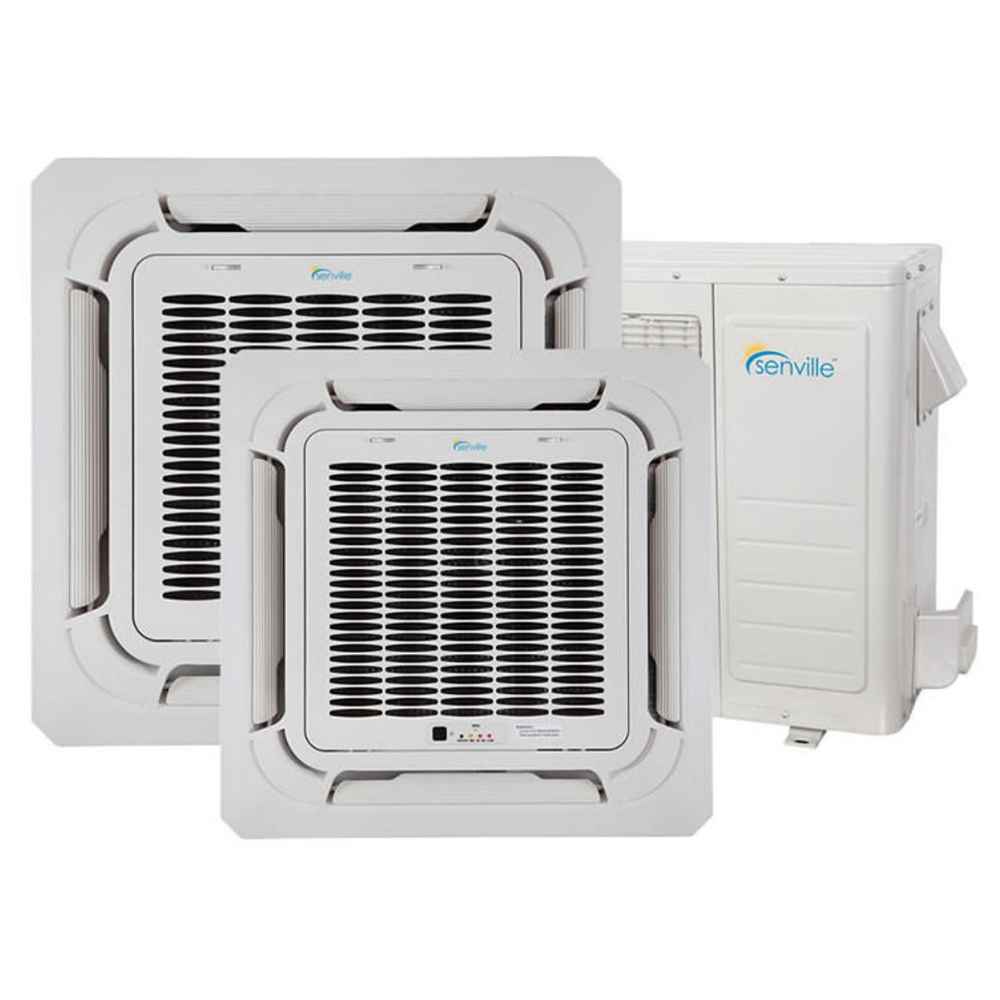

Two white square ceiling cassette indoor units alongside the outdoor unit of Senville 36000 BTU Dual Zone Mini Split Air Conditioner - SENA36HFDIC

Senville 36000 BTU Dual Zone Mini Split - SENA/36HF/DIC

Sold out
$3,629.00
$2,999.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 36000 BTU Dual Zone Mini Split Air Conditioner is a climate control appliance designed to manage temperatures in two separate areas. This SENA/36HF/DIC model features an indoor combination of two 18000 BTU units powered by a single outdoor condenser. It is available with multiple installation kit lengths including 16-foot, 25-foot, and 50-foot options, with the ability to upgrade one or two kits depending on the layout requirements. This system is perfect for homeowners who need to provide cooling and heating to two distinct rooms using a multi-zone configuration.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

36,000 BTUs of Cooling and Heating Efficiency in One System

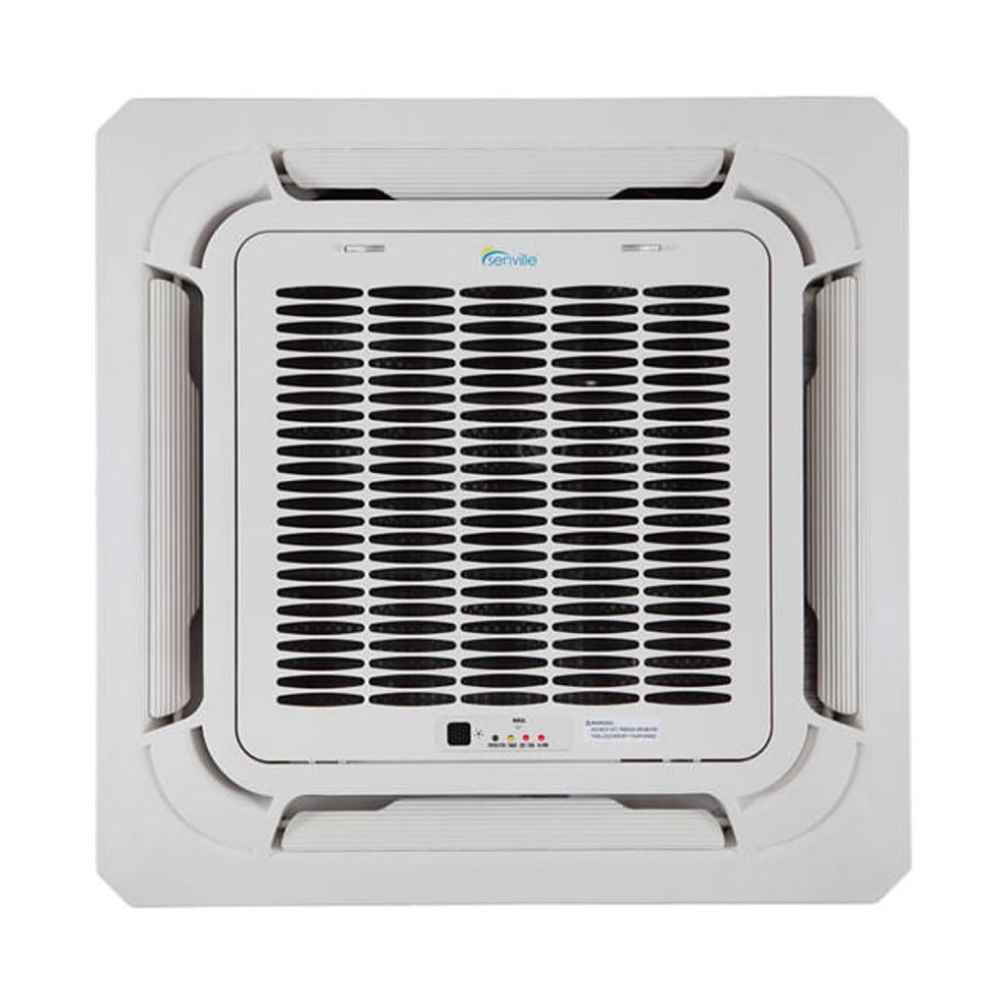

Senville 36000 BTU Dual Zone Mini Split Air Conditioner - SENA/36HF/DIC delivers powerful heating and cooling for two separate areas with efficiency and ease. Designed with advanced inverter technology, dual ceiling cassette units, and a user-friendly remote, it’s a dependable choice for maintaining customized climate control in your home or business.

What's Included?

  • 4 Indoor Units (12,000 BTU each)

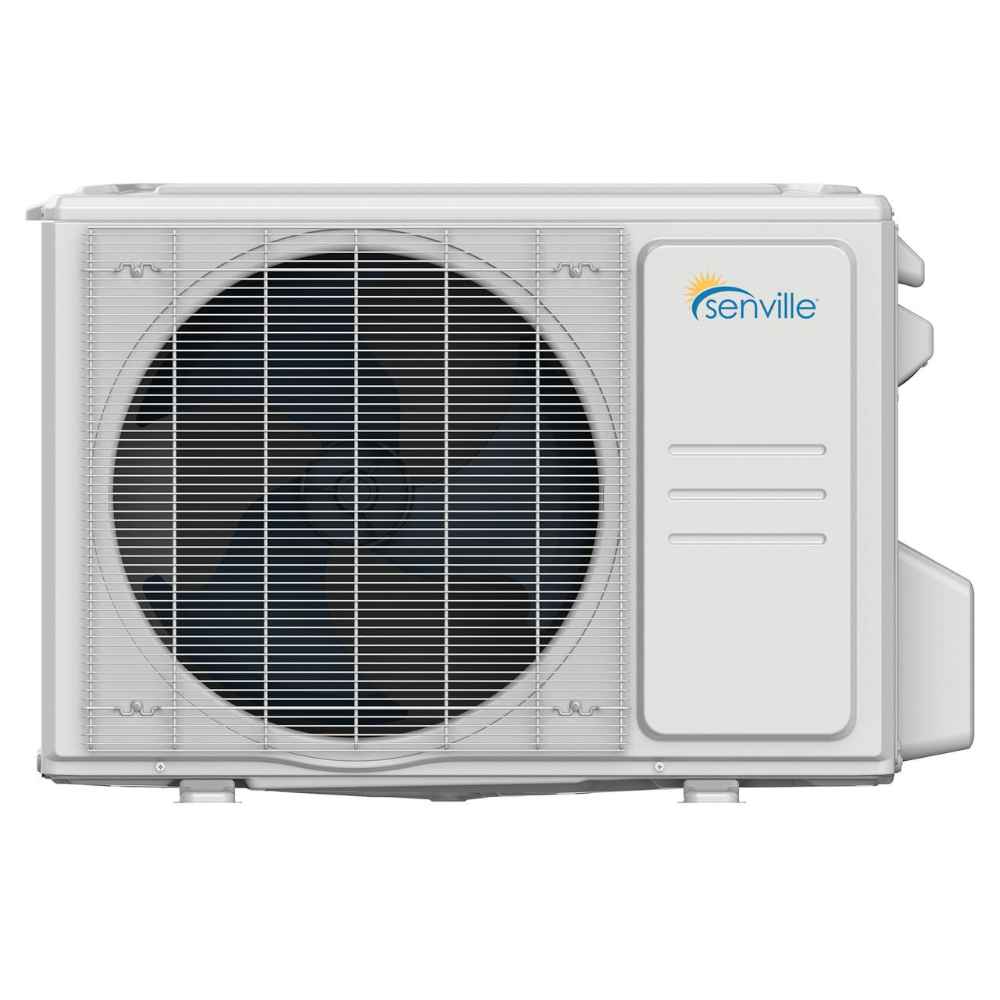

  • Outdoor Unit

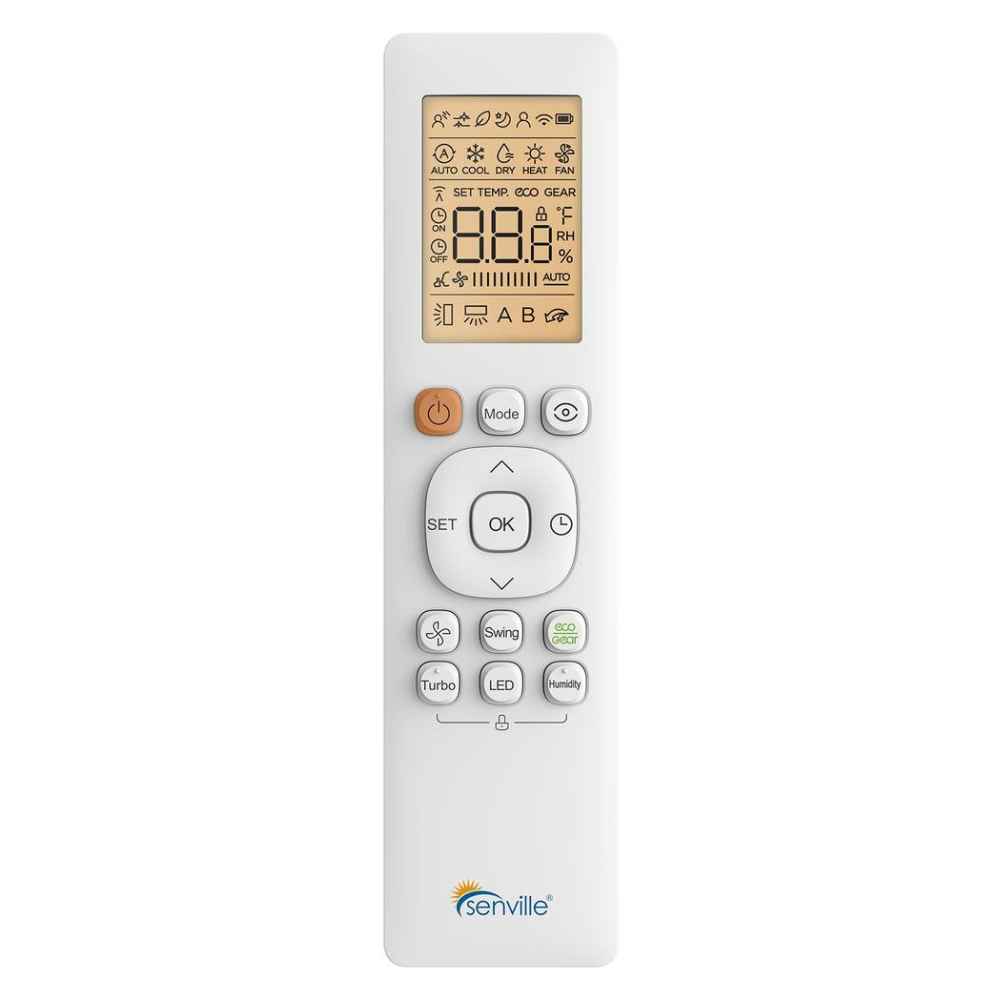

  • Wireless Remote Controls
  • WiFi USB Kit

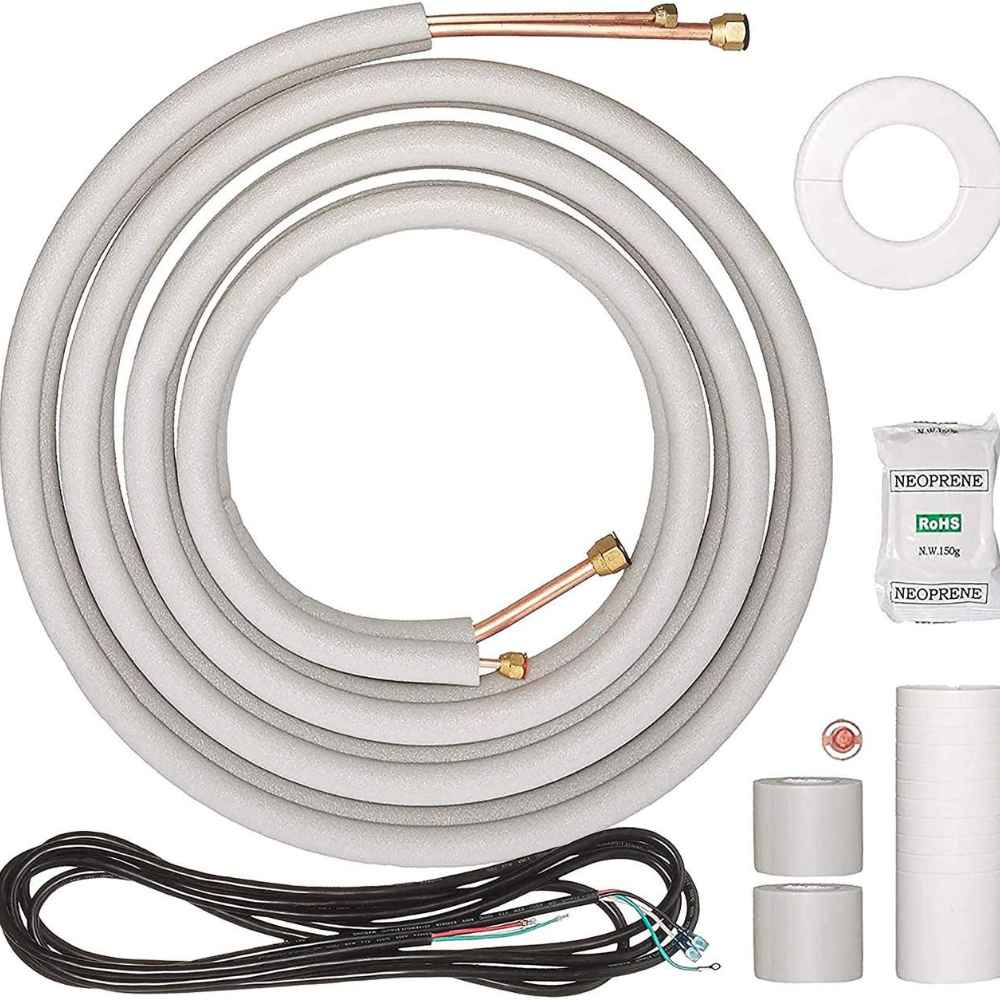

  • 16 ft. Installation Kits (x4)
  • Indoor-Outdoor Wiring Harness
  • Installation Manual

Technical Specs

  • Style: Ductless Mini Split AC With Heat Pump
  • Number of Zones: 2-4
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 23
  • EER2: 13
  • Cooling Capacity (BTU): 36000
  • Cooling Range (BTU): 9000~43000
  • Cooling Input Range (W): 600~4000
  • Cooling Current  Range (A): 5.2~17.8
  • Heating Capacity: 36000
  • Heating Range (BTU): 10000~44000
  • Heating Input Range (W): 600~3750
  • Heating Current Range (A): 5.2~16.6
  • HSPF2-4: 10.7
  • HSPF2-5: 8.5
  • COP W/W: 4
  • Minimum Circuit Ampacity (A): 37
  • Max. Fuse (A): 40
  • Outdoor Air Flow (Max) CFM: 3037.2
  • Outdoor Noise Level dB: 65
  • Outdoor Dimensions (WxDxH) (in.): 38.58 x 16.34 x 38.39
  • Outdoor Weight: 211.86 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge: R454B / 134.04 oz
  • Refrigerant Pre-charge: 100 Ft.
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 23 SEER2: Enjoy superior energy efficiency with a high SEER2 rating of up to 23, saving money on energy bills while keeping your space comfortable.
  • Refrigerant Leak Detection: Built-in sensors automatically detect refrigerant leaks, ensuring safety, protecting the system, and giving you peace of mind.
  • Inverter Technology: Advanced inverter technology allows the unit to adjust power smoothly, providing consistent comfort while reducing energy use.
  • Silver Ion Filter (Anti-Microbial): The anti-microbial filter helps eliminate bacteria and allergens, keeping your air cleaner and healthier to breathe.
  • Built-In De-humidification Function: Control excess moisture in the air with a built-in dehumidifier that prevents dampness and enhances indoor comfort.
  • Self-Cleaning Mode: The self-cleaning function prevents dirt and mold buildup inside the unit, ensuring long-lasting performance and cleaner airflow.
  • Bucket Free Outdoor Design: The outdoor unit is engineered with a bucket-free design that prevents messy water accumulation and simplifies maintenance.
  • Self-Diagnosis System: The self-diagnosis feature alerts you to potential issues, making troubleshooting quick and easy while extending the life of the system.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
