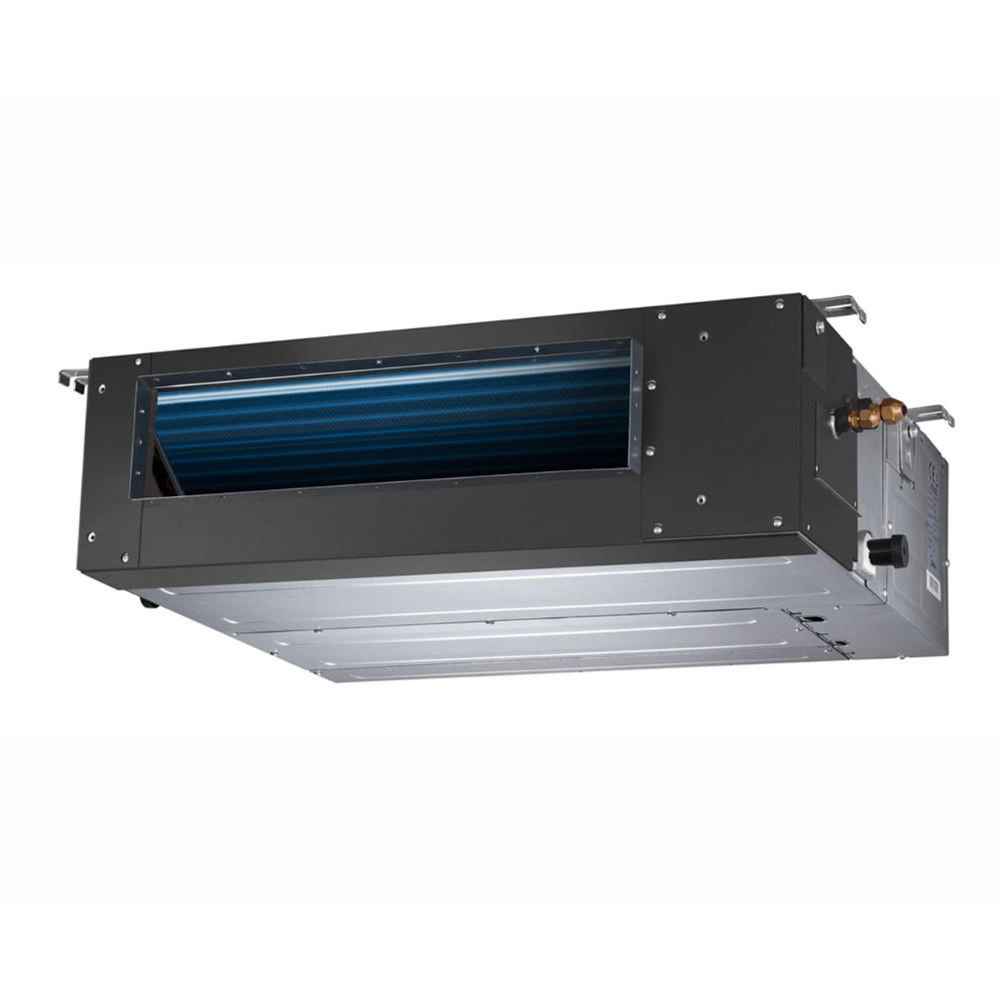

Senville 24000 BTU Concealed Duct Air Conditioner - SENA/24HF/ID

The Senville 24000 BTU Concealed Duct Air Conditioner is a climate control appliance that functions as both an air conditioner and a heat pump. This SENA/24HF/ID model features a concealed duct design for integrated household installation. Available options include installation kits in lengths of 16 feet, 25 feet, or 50 feet, with the choice to request a professional installation quote. It is a suitable choice for homeowners seeking a high-capacity mini split system to manage indoor temperatures year-round.

Senville 24000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA/24HF/ID delivers powerful year-round comfort with both cooling and heating in one discreet system. Designed for efficiency, this ducted AC system boasts a high SEER2 rating up to 19 and HSPF2 up to 11.7, helping reduce energy costs while maintaining consistent performance.

Key specs

• Style: Concealed Duct Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253
• SEER2: 19
• EER2: 12
• Cooling Capacity (BTU): 24000
• Cooling Range (BTU): 5000~28000
• Cooling Input Range (W): 870~2410
• Cooling Current Range (A): 4.~10.6
• Heating Capacity (BTU): 26000
• Heating Range (BTU): 7300~31400
• Heating Input Range (W): 440~2480
• Heating Current Range (A): 2.4~11
• HSPF2-4: 11.7
• HSPF2-5: 9.3
• COP W/W: 3.81
• Minimum Circuit Ampacity (A): 25
• Max. Fuse (A): 25
• Indoor Air Flow (Turbo/H/M/L) CFM: 853.5 / 706.3 / 618.0 / 500.3
• Indoor Noise Level (H/M/L) dBL: 40.0 / 37.0 / 35 / 29.5
• Indoor Dimensions (WxDxH) (in.): 39.37 x 29.53 x 9.65
• Indoor Weight: 80.47 Lbs.
• Moisture Removal (L/H): 2.03
• Outdoor Air Flow (Max) CFM: 2236.7
• Outdoor Noise Level dB: 61.5
• Outdoor Dimensions (WxDxH) (in.): 37.24 x 16.14 x 31.89
• Outdoor Weight: 130.29 Lbs
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge oz: R454B / 63.49
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Wired Control
• Warranty: 10 Years Compressor / 5 Years Parts

Features

• 19 SEER2 ENERGY STAR: This unit delivers exceptional efficiency with a 19 SEER2 rating, helping you save on energy bills while keeping your home comfortable.
• Ultra-Quiet Operation: Designed to run quietly in the background, it ensures a peaceful environment without the distraction of loud fans or buzzing.
• Heating Down to -30°C (-22°F): Even in extreme cold, this system provides reliable heating performance, making it perfect for harsh winter climates.
• Professional Installation: Built for secure, long-lasting performance, the unit is designed for professional installation to guarantee top efficiency and reliability.
• Diagnostics & Leak Detection: Advanced features include built-in diagnostics and leak detection, giving you peace of mind with early alerts and easy maintenance.
• Concealed Duct Design: Its low-profile duct system blends seamlessly into ceilings and walls, offering comfort without disrupting your home’s style.
• Year-Round Comfort: With both cooling and heating in one system, you enjoy consistent climate control no matter the season.

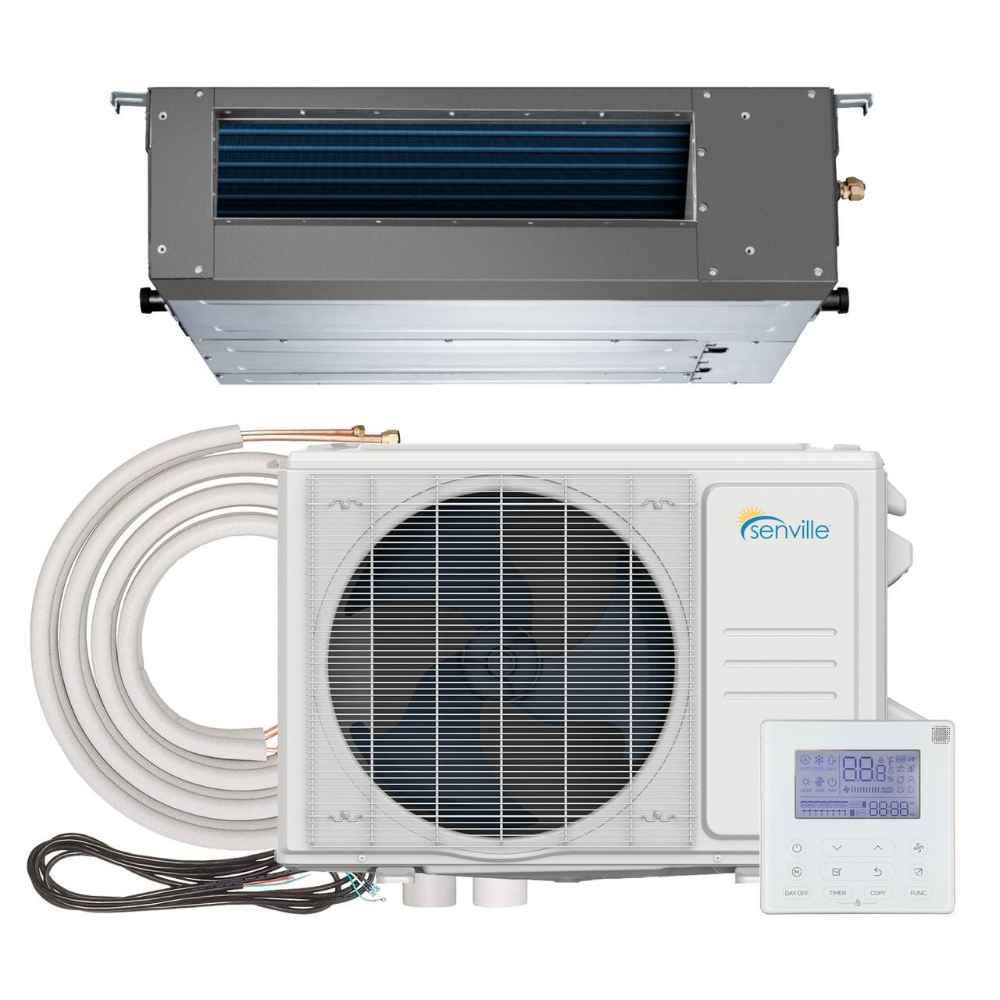

What's included

• Indoor Unit

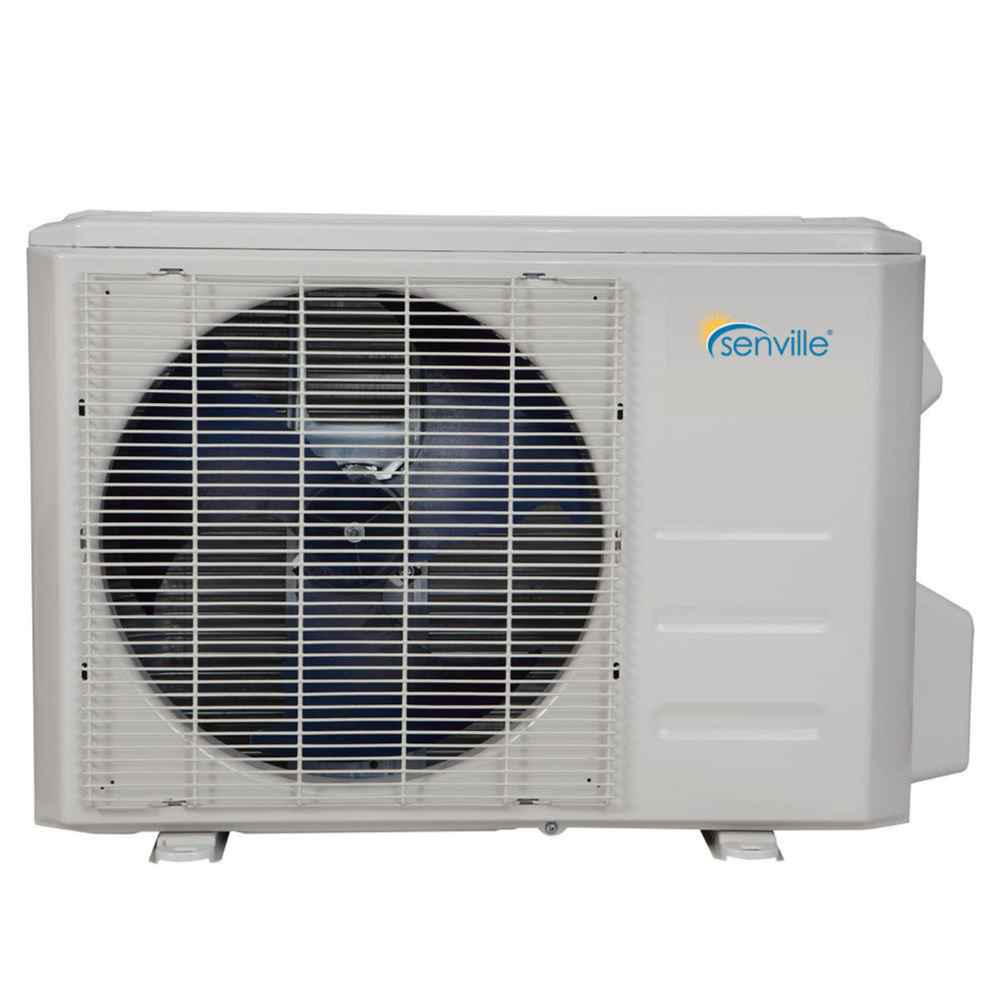

• Outdoor Unit
• Wireless Remote Control
• Alexa USB Kit
• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
