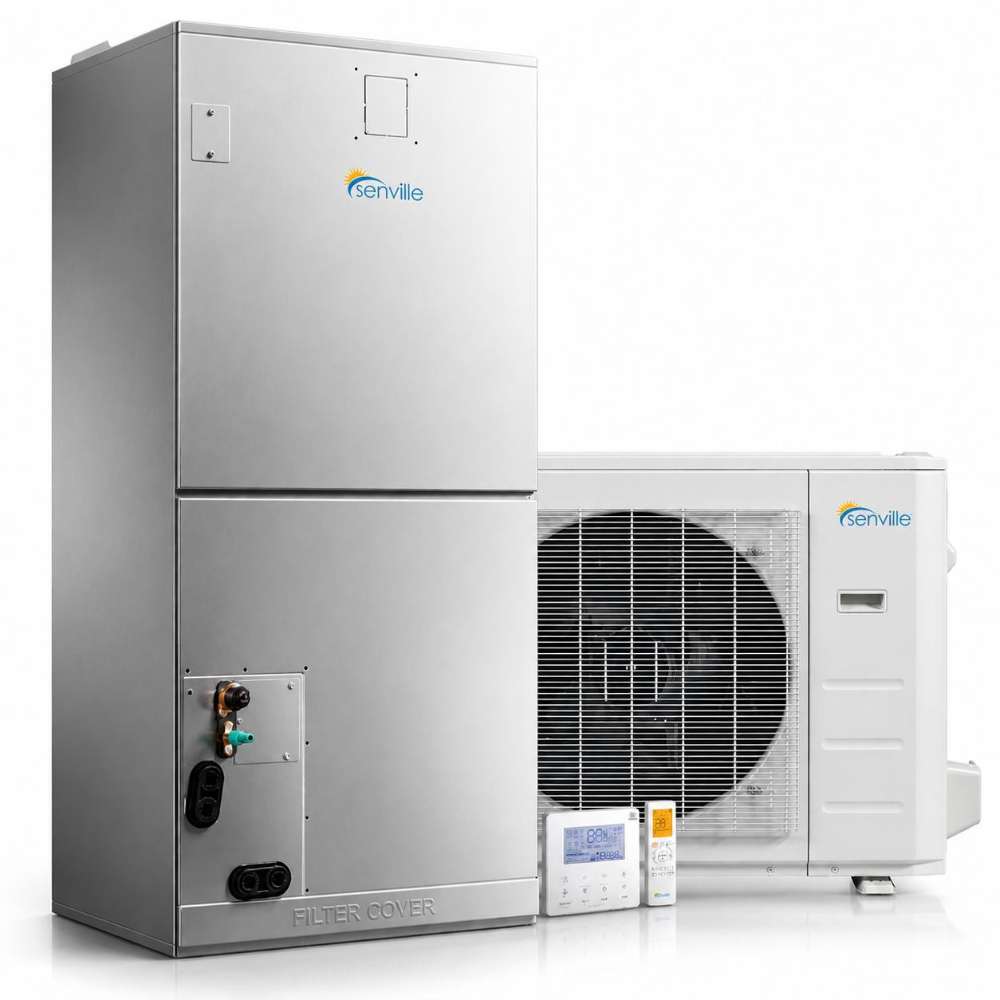

Senville 24000 BTU Central Air Conditioner Heat Pump System - SENDC-24HF includes the indoor air handler, outdoor condenser, and controls

Senville 24000 BTU Central Air Conditioner Heat Pump System SENDC-24HF

Save $510.00
$3,059.99
$2,549.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 24000 BTU Central Air Conditioner Heat Pump System, model SENDC-24HF, is a climate control appliance designed for heating and cooling. This mini split air conditioner system offers customizable configurations, including optional auxiliary heaters in 5KW or 10KW capacities. Installation kits are available in lengths of 16 feet or 50 feet to accommodate different building layouts. It is a comprehensive solution for homeowners requiring a high-capacity central air system with flexible installation and heating components.
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Senville Heating And Cooling System Helps Lower Energy Costs

Senville 24000 BTU Central Air Conditioner Heat Pump System - SENDC-24HF is a practical central HVAC system for year-round home comfort. This 24,000 BTU cooling and heating system uses heat pump technology to help cool your home in summer and provide efficient heat in colder months. The compact air handler and outdoor condenser make it a strong choice for homes that need reliable climate control without a bulky setup.

What's Included?

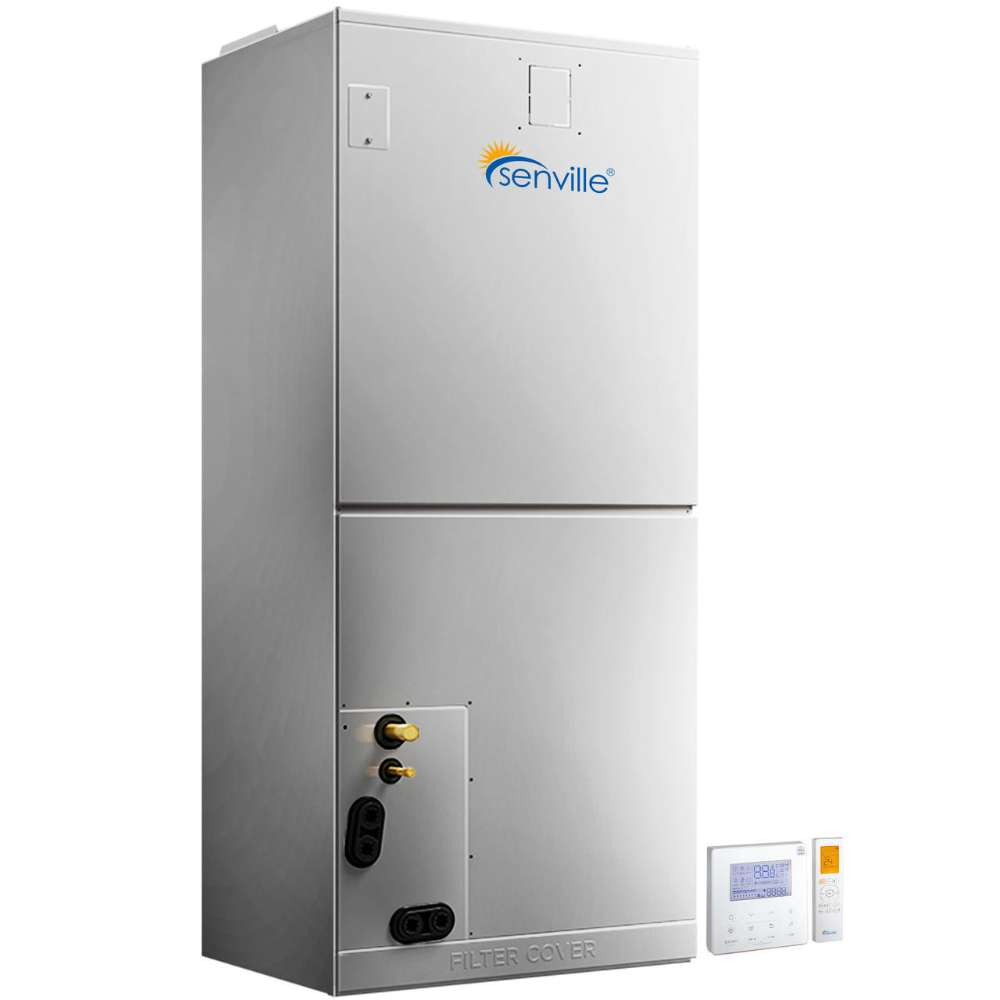

  • Indoor air handler
  • Outdoor condenser unit
  • Installation kit: 16 ft. or 50 ft. option

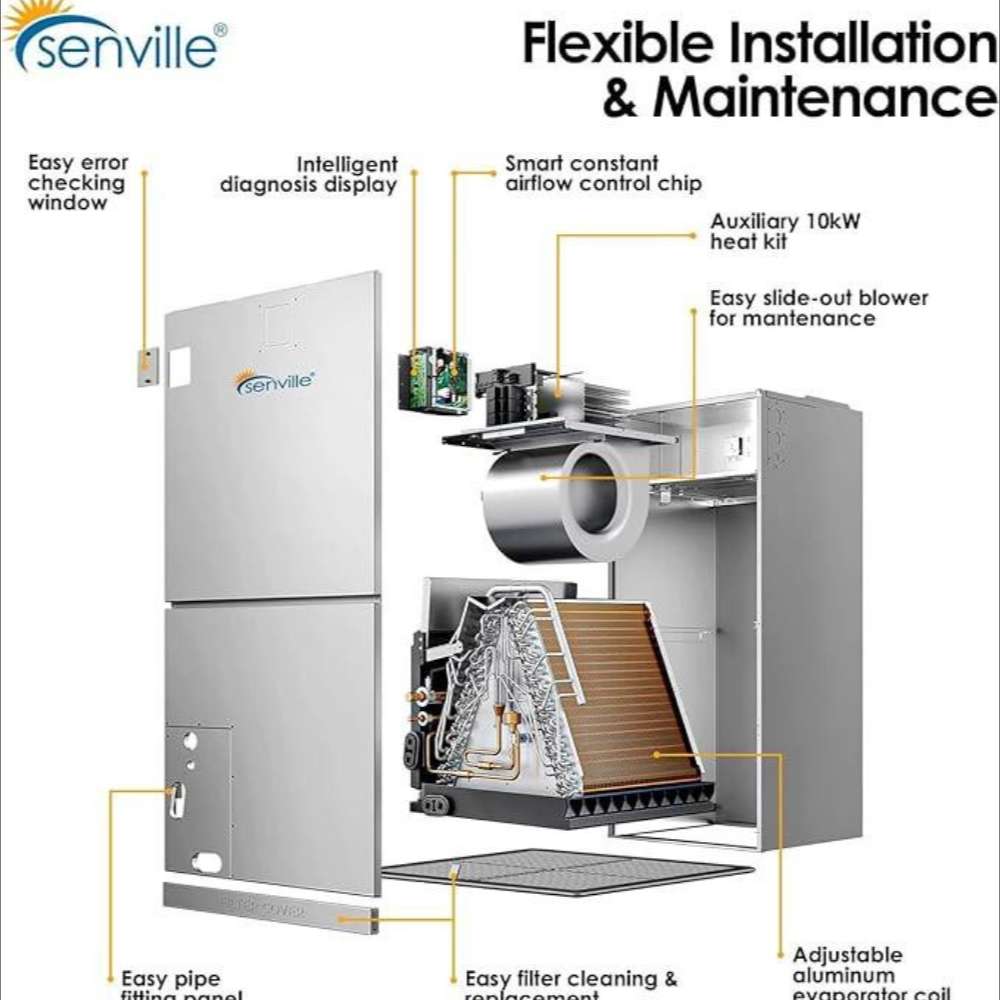

  • Auxiliary heater option: none, 5KW, or 10KW

Technical Specs

  • Style: Central Air Conditioner with Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • SEER2: 18.3
  • EER2: 11.7
  • Cooling Capacity (Range) BTU: 7,200 ~ 27,000
  • Cooling Input (W): 1,965 (530 ~ 2,870)
  • Cooling Current (A): 11.0 (3.4 ~ 12.6)
  • Heating Capacity (Range) BTU: 7,100 ~ 30,000
  • Heating Input (W): 2,112 (440 ~ 2,730)
  • Heating Current (A): 9.5 (2.40 ~ 12.0)
  • HSPF2-4: 10
  • HSPF2-5: 8
  • COP (W/W): 3.33
  • Minimum Circuit Ampacity (A): 19 (Outdoor)
  • Max. Fuse (A): 20 (Outdoor)

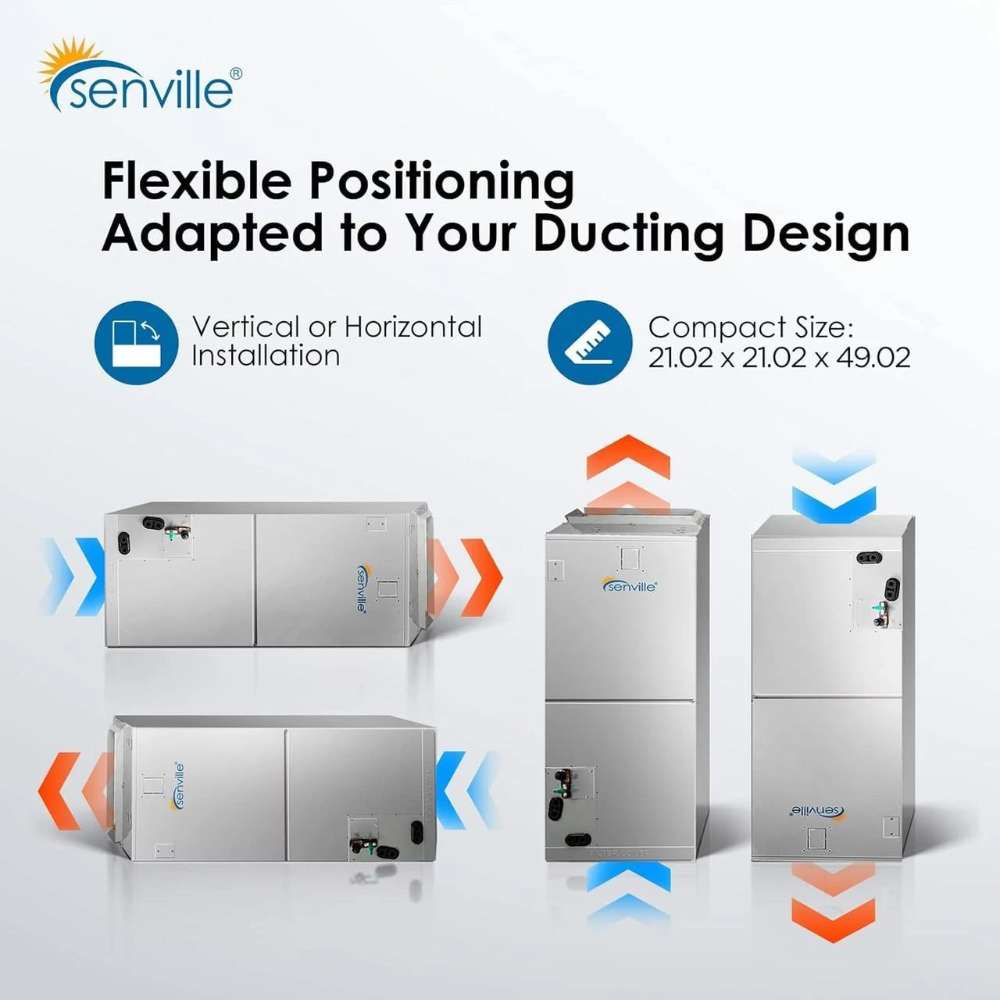

  • Indoor Dimensions (WxDxH) (in.): 21.02 x 17.52 x 45.00
  • Indoor Unit Weight (lbs.): 46.4 (Net)
  • Indoor Air Flow (H/M/L) CFM: 824 / 759 / 695
  • Indoor Noise Level (H/M/L) dB: 44 / 42 / 28
  • Outdoor Dimensions (WxDxH) (in.): 35.04 x 13.46 x 26.50
  • Outdoor Weight (lbs.): 102.29 (Net)
  • Outdoor Noise Level dB: 60
  • Outdoor Air Flow (Max) CFM: 3000
  • Refrigerant Type / Charge: R-454B / 74.08 oz (2.1 kg)
  • Connection / Communication Wiring: AWG 20-2
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • Inverter Technology: Advanced inverter technology improves energy efficiency while maintaining consistent indoor temperatures.
  • All-Season Comfort: This 24,000 BTU heat pump system delivers reliable heating and cooling for year-round home comfort.
  • Cold Climate Performance: Built for low ambient temperatures, this central heat pump system provides dependable winter heating.
  • Ultra-Quiet Operation: Quiet HVAC performance makes this ducted air conditioner ideal for bedrooms, offices, and living areas.
  • Eco-Friendly Refrigerant: The SENDC-24HF uses R-454B refrigerant for efficient cooling with a lower environmental impact.

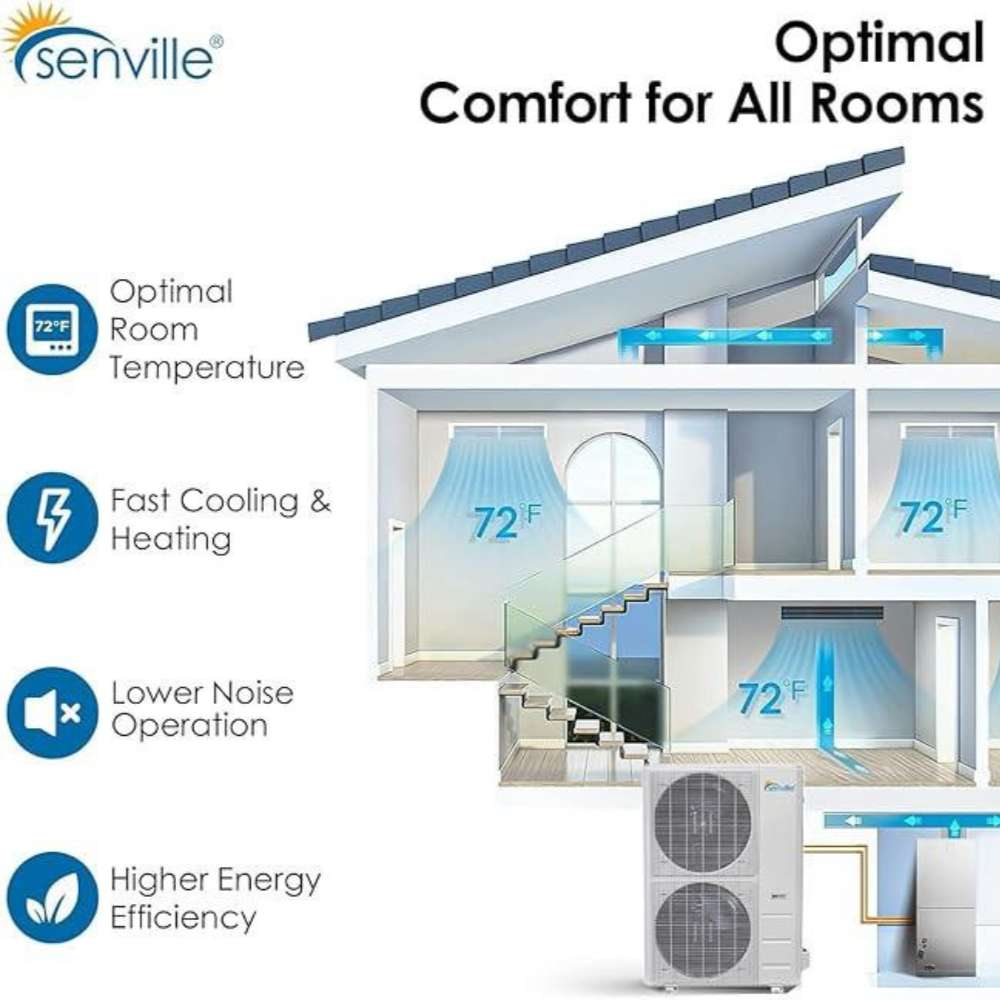

  • Balanced Airflow Coverage: Designed for medium-size homes, this central air conditioning system delivers steady airflow and comfort.
  • Energy Efficient HVAC System: Senville central air and heat pump technology helps reduce energy use and monthly utility costs.
  • Long-Term Warranty Protection: A 10-year compressor warranty and 5-year parts warranty provide added HVAC system reliability.
