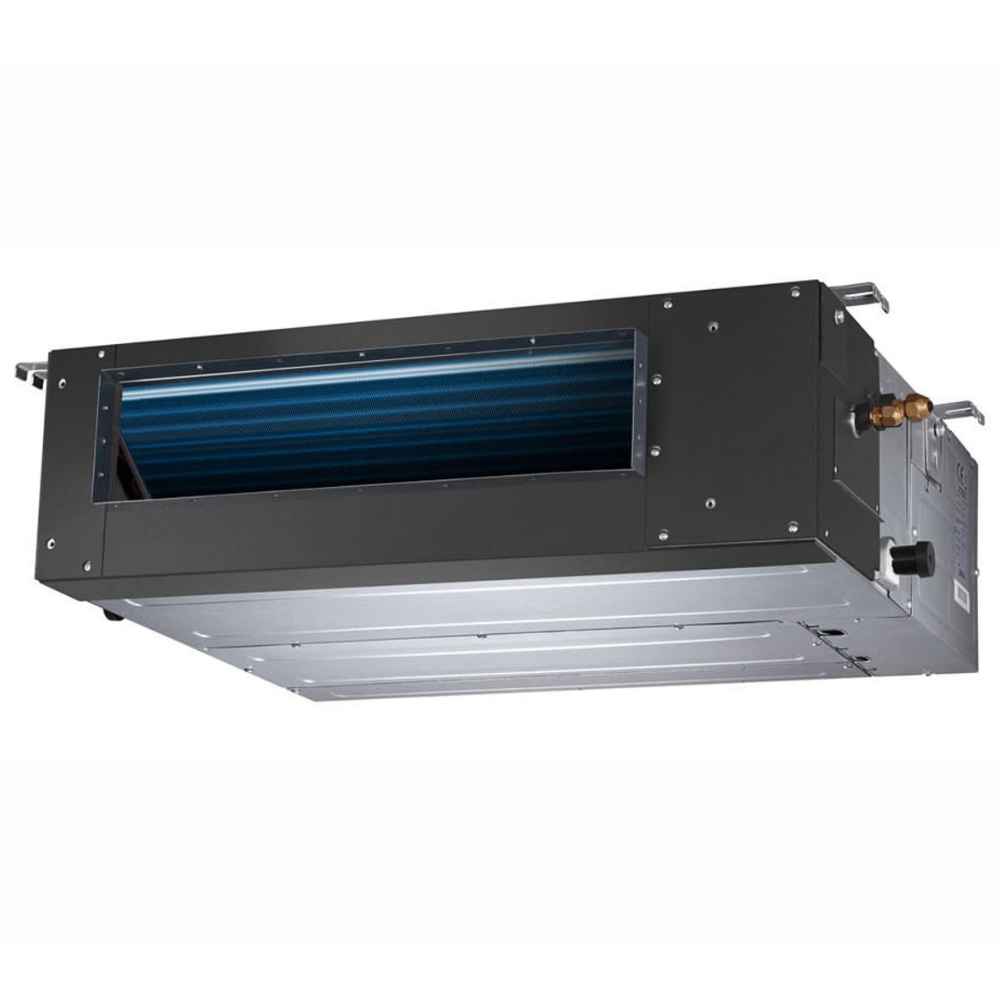

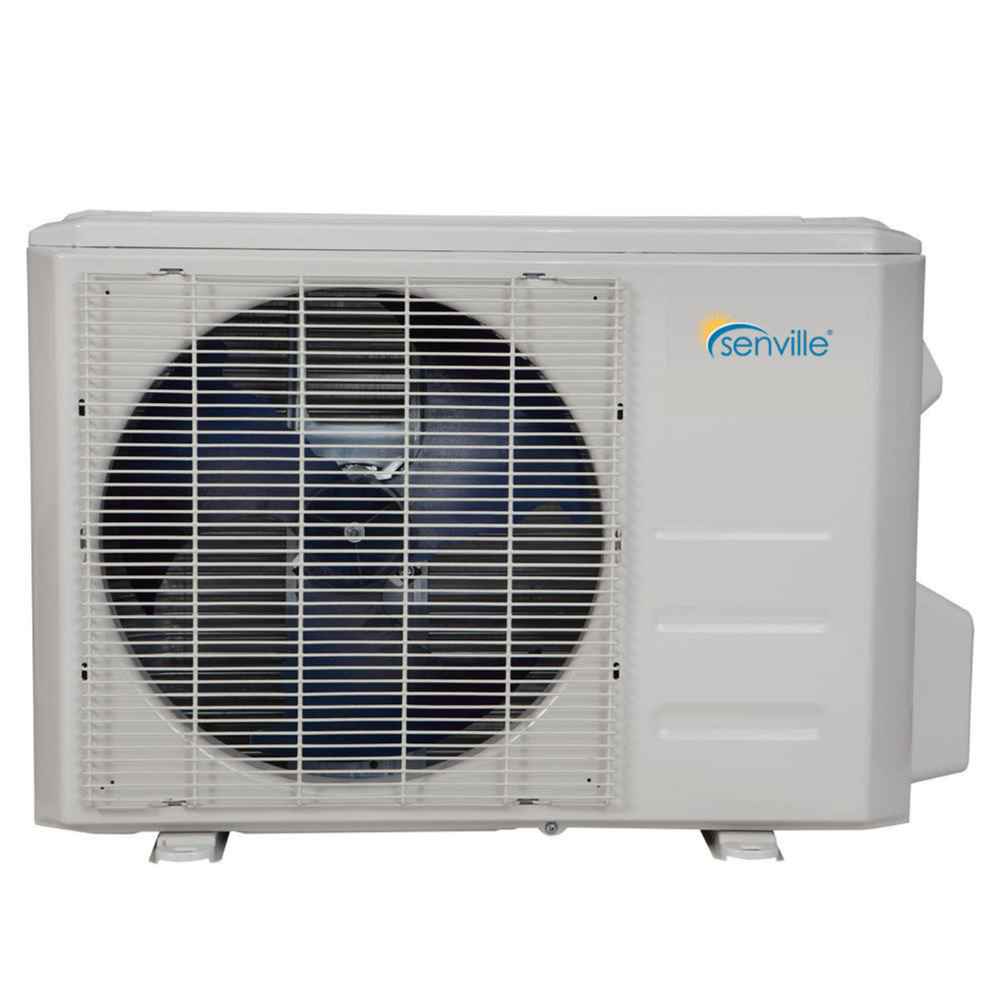

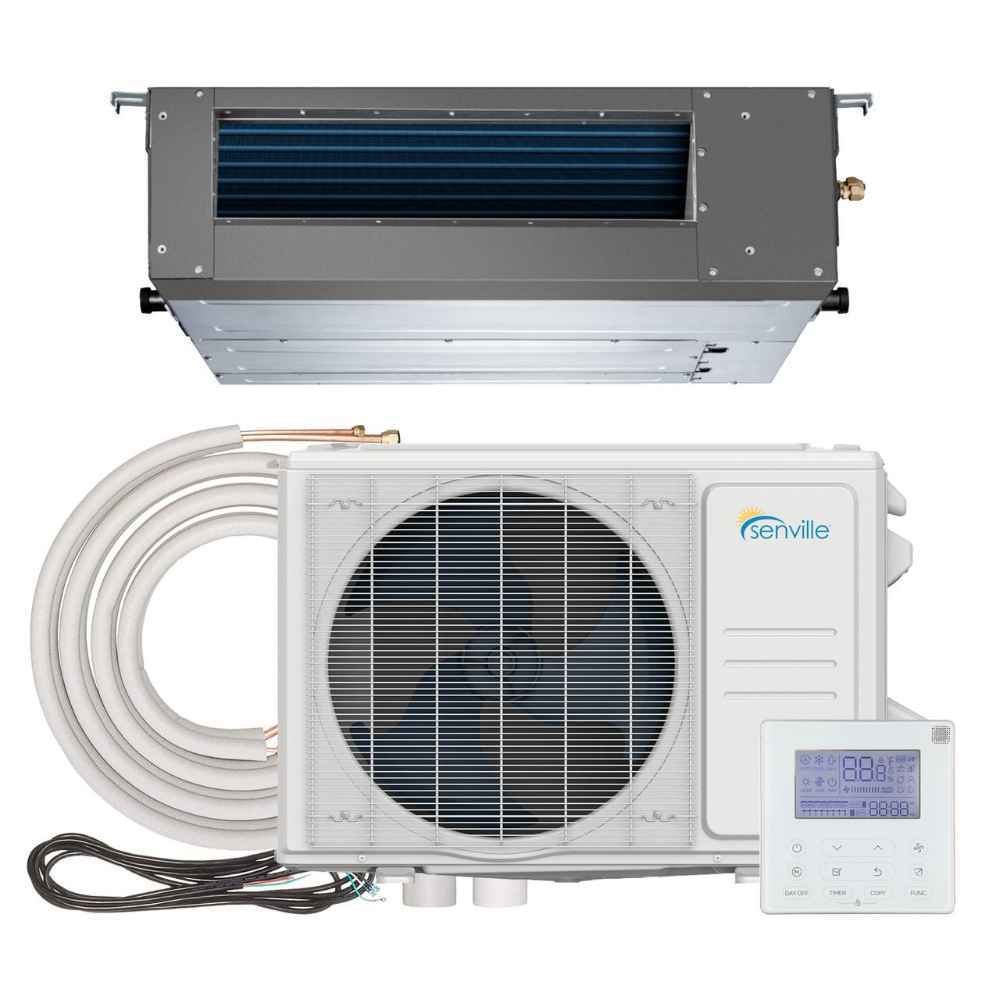

Full system of the Senville 18000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA18HFID, including the indoor duct unit, outdoor unit, connecting pipes, and wall-mounted digital control

Senville 18000 BTU Concealed Duct Air Conditioner - SENA/18HF/ID

Sold out
$1,649.00
$1,499.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 18000 BTU Concealed Duct Air Conditioner is a climate control appliance that functions as both an air conditioner and a heat pump. This SENA/18HF/ID model features a concealed duct design for integrated installation within a home or garden space. The unit is available with several installation kit options, including 16-foot, 25-foot, and 50-foot lengths, or it can be purchased without a kit. It is a versatile choice for homeowners who require a high-capacity mini split system for year-round temperature regulation.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Your All-Season Comfort, Concealed With Style

Senville 18000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA/18HF/ID delivers powerful heating and cooling while staying hidden with its discreet ducted design. Featuring an impressive SEER2 rating of up to 21.7 and HSPF2 up to 12.4, this AC system offers energy-efficient comfort all year long.

What's Included?

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Alexa USB Kit
  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty

Technical Specs

  • Style: Concealed Duct Mini Split AC With Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 18
  • EER2: 12
  • Cooling Capacity (BTU): 17000
  • Cooling Range (BTU): 6500~18800
  • Cooling Input Range (W): 310~1750
  • Cooling Current Range (A): 2.3~8
  • Heating Capacity (BTU): 19000
  • Heating Range (BTU): 8900~22000
  • Heating Input Range (W): 550~2250
  • Heating Current Range (A): 3.8~12
  • HSPF2-4: 10.5
  • HSPF2-5: 9
  • COP W/W: 3.37
  • Minimum Circuit Ampacity (A): 19
  • Max. Fuse (A): 20
  • Indoor Air Flow (Turbo/H/M/L) CFM: 600.4 / 559.2 / 500.3 / 441.4
  • Indoor Noise Level (Turbo/H/M/L) dB: 40 / 39 / 38 / 32
  • Indoor Dimensions (WxDxH) (in.): 34.65 x 26.54 x 8.27
  • Indoor Weight: 54.45 Lbs.
  • Outdoor Air Flow (Max) CFM: 1764.7
  • Outdoor Noise Level dB: 59
  • Outdoor Dimensions (WxDxH) (in.): 35.04 x 13.46 x 26.50
  • Outdoor Weight: 99.87 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge oz: R454B / 55.38
  • Refrigerant Pre-charge: 25 Ft.
  • Connection Wiring: 14*4 AWG
  • Thermostat Type: Wired Control
  • Alexa: Enabled
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 18 SEER2 ENERGY STAR: Enjoy energy savings with its high-efficiency SEER2 rating, delivering powerful performance while lowering electricity costs.
  • Ultra-Quiet Operation: Stay comfortable without the noise, as this unit runs quietly in the background for a peaceful environment.
  • Heating Down to -30°C (-22°F): Designed for extreme climates, it reliably provides warmth even in freezing winter conditions.
  • Professional Installation: This system requires expert installation, ensuring proper setup, safety, and maximum efficiency.
  • Diagnostics & Leak Detection: Built-in monitoring helps detect issues early, protecting your system and saving on costly repairs.
  • Concealed Duct Design: With a hidden setup, it delivers comfort without bulky equipment taking up space in your home.
  • Year-Round Comfort: Enjoy both cooling in the summer and heating in the winter, making it a complete climate solution.

Documentations & Certifications

  • ENERGY STAR Certified
  • Green Energy Pledge Friendly

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
