Run Your Solar System Using Sun Gold Power 8KW Inverter Charger

Sun Gold Power 8000W 48V Split Phase Solar Inverter is a hybrid solar inverter built for off-grid homes, whole-home backup, and battery storage systems requiring dependable split-phase power.

This pure sine wave inverter combines an inverter charger, dual MPPT solar charging, WiFi monitoring, parallel expansion, battery compatibility, and smart charging modes to deliver efficient, reliable backup power with flexible energy management.

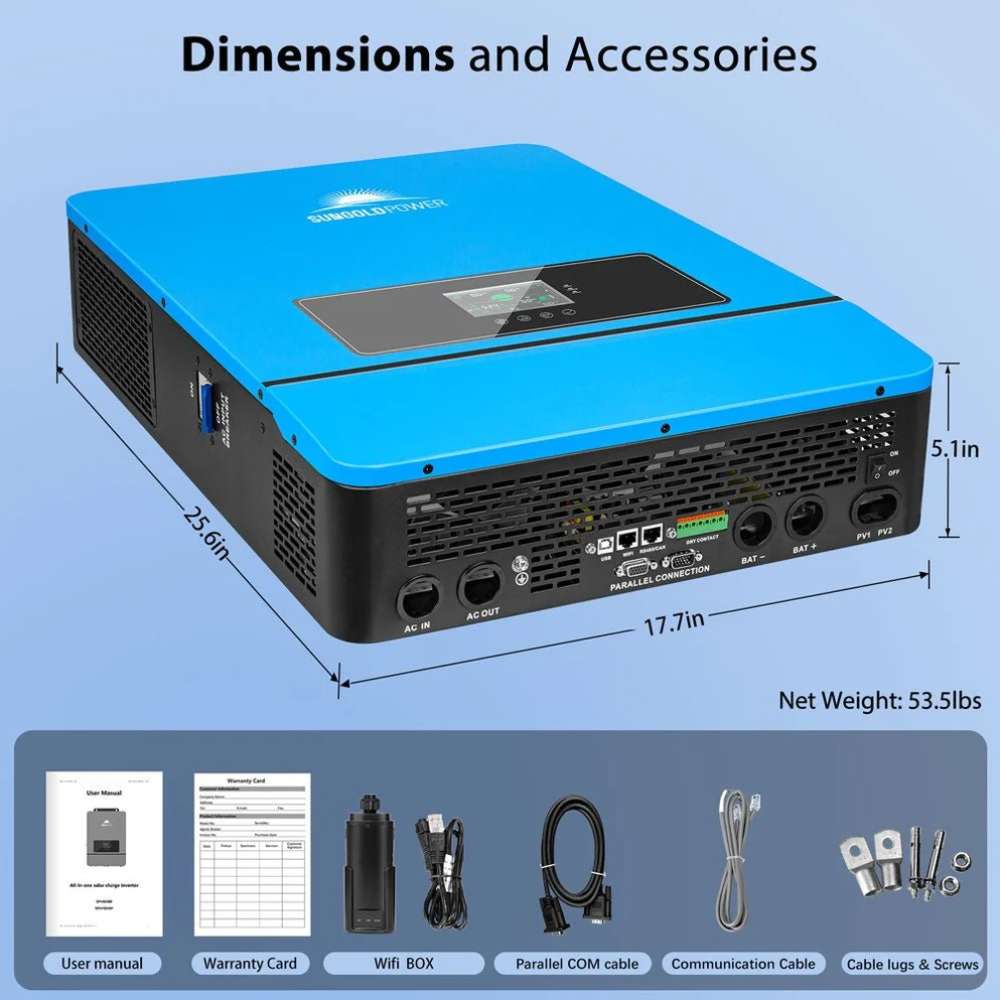

What's Included:

1 x Sun Gold Power 8000W 48V Split Phase Solar Inverter
1 x Warranty card
1 x USB Communication Cable
1 x Parallel COM cable
WiFi module
Cable lugs and screws
User Manual
UL1741 Certification

Specifications

Continuous Power: 8,000W
Surge Power: 16,000W
DC Input Voltage: 48V DC (40–60V DC)
DC Input: 48V battery system
AC Output Voltage: 120V/240V split phase or 120V single phase
Waveform: Pure sine wave
Maximum Efficiency: 92% battery inverter efficiency
MPPT Tracking Efficiency: 99.9%
Battery Charger Rating: 200A max MPPT charging current, 100A max mains/generator charging current
Maximum Charging Current: 180A hybrid charging current
Transfer Switch: 10ms typical transfer time
Frequency: 50/60Hz

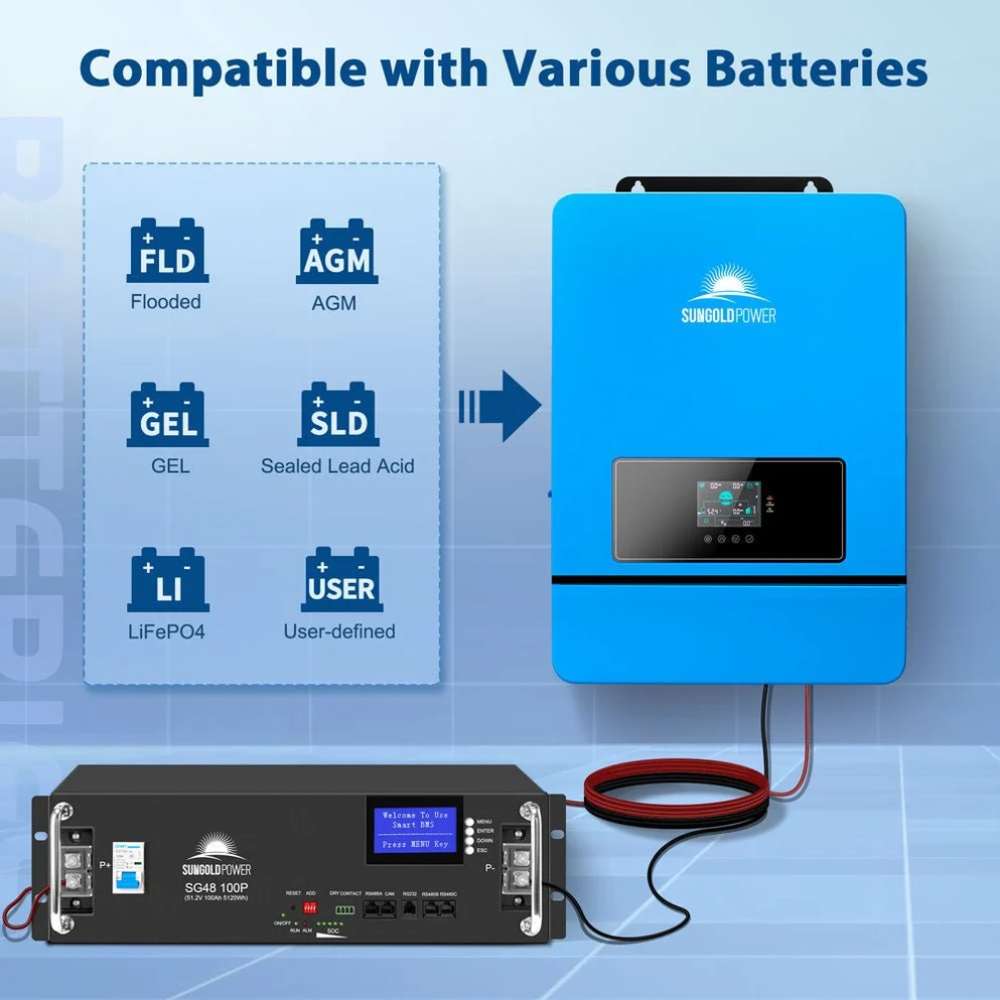

Battery Compatibility: Li-ion, AGM, Sealed Lead Acid, Gel, Flooded, and User Defined batteries

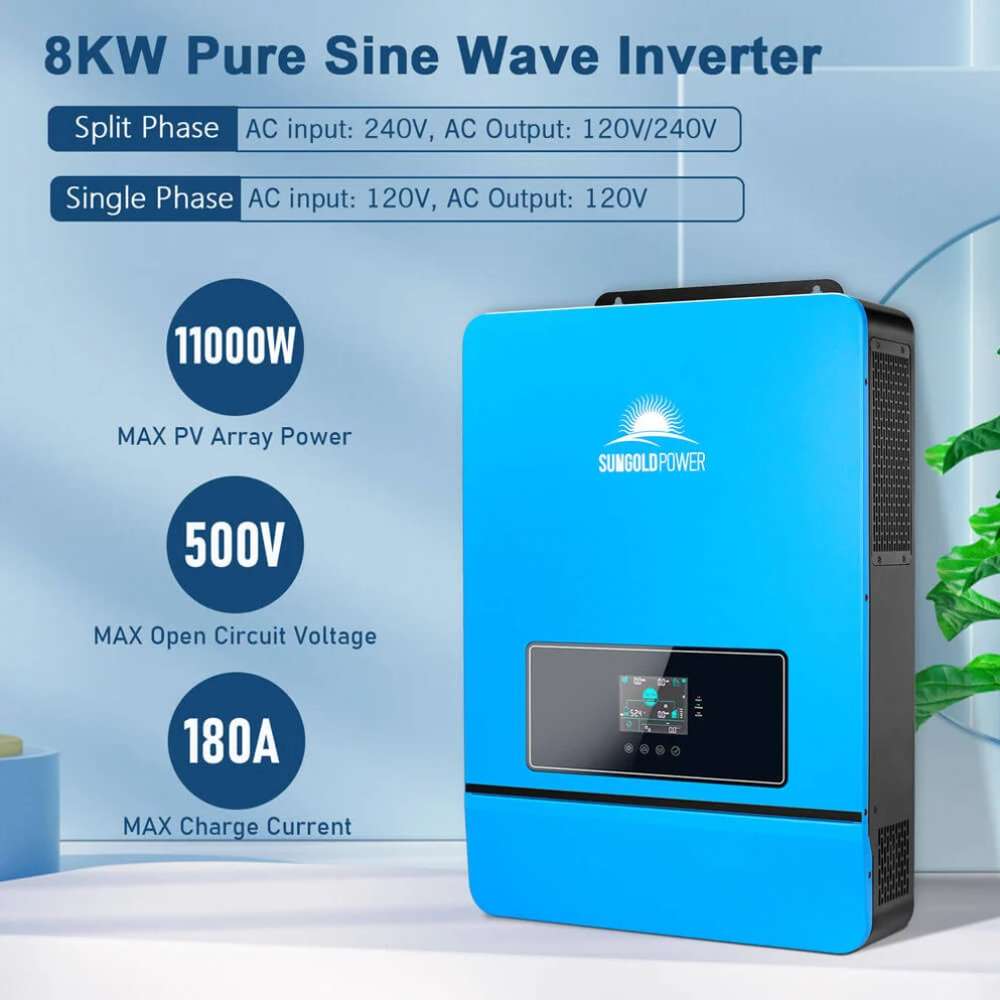

Maximum PV Array Power: 11,000W
Maximum PV Open Circuit Voltage: 500V DC
MPPT Trackers: 2

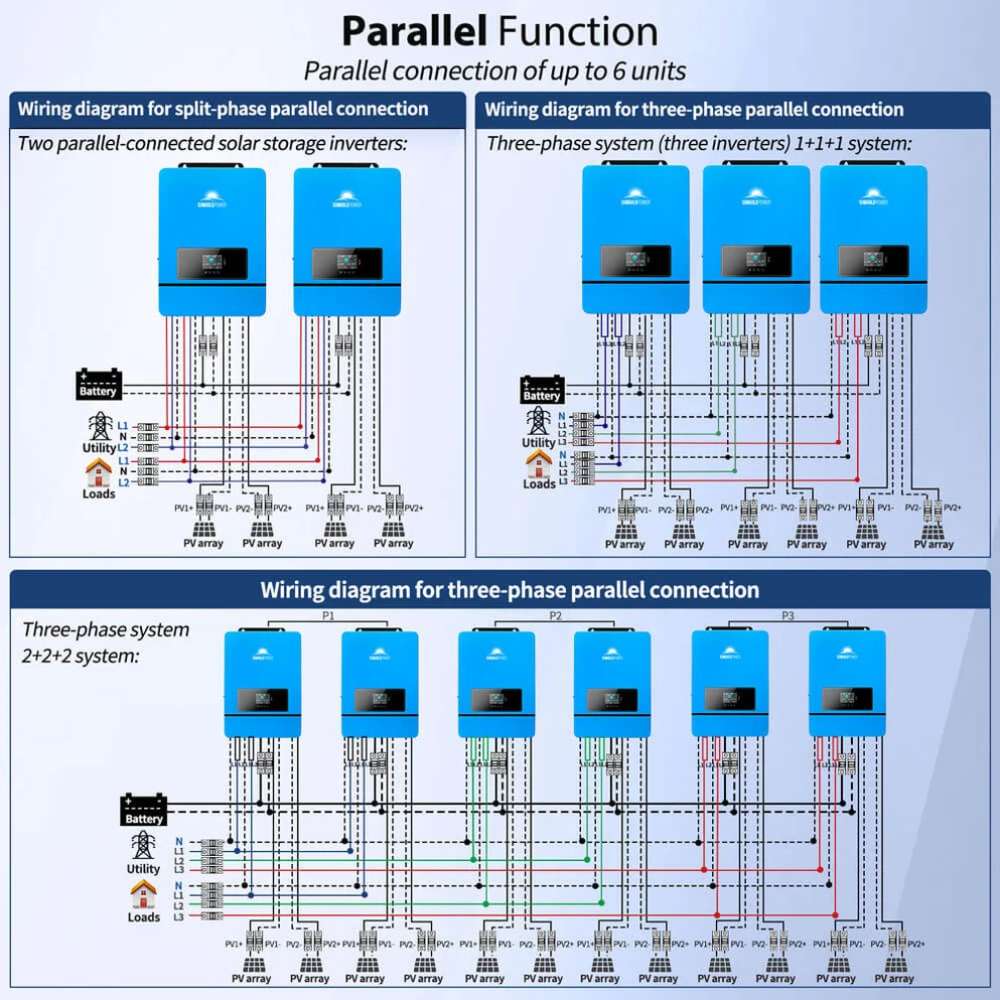

Parallel Capability: Up to 6 units
Motor Load Capacity: 5HP
Protection Rating: IP20 (Indoor Only)
Dimensions: 17.7 × 25.6 × 5.1 in
Weight: 53.5 lb

Features

Pure sine wave output protects sensitive electronics.
Hybrid operation supports solar, battery, grid, and generator.
Dual MPPT controllers maximise solar energy harvest.
Split-phase output powers 120V and 240V loads.
Parallel up to six units for system expansion.
Built-in WiFi enables remote system monitoring.
Supports multiple battery types for greater flexibility.
Smart charging modes optimise battery performance.

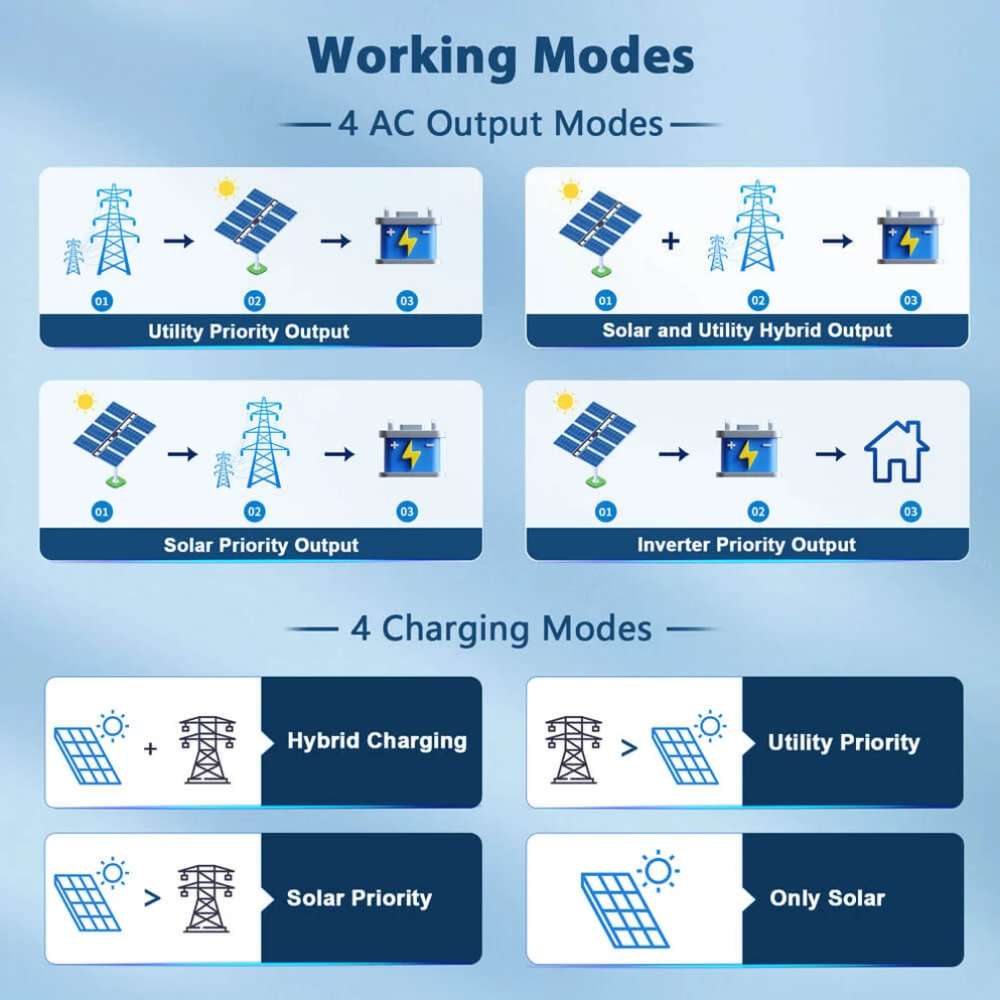

Programmable operating modes suit different energy needs.

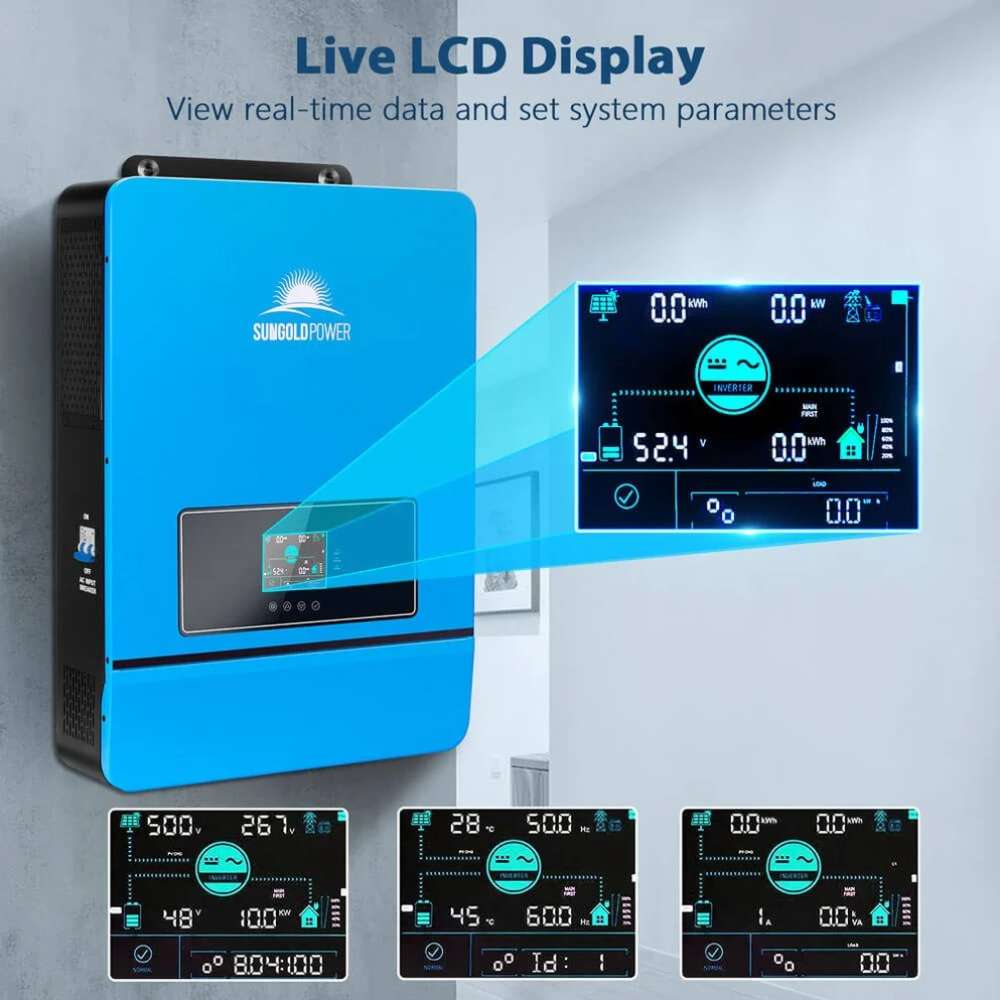

LCD touchscreen provides clear system monitoring.
Generator-compatible for reliable backup charging.
Built-in protections help safeguard the entire system.

Why Choose It?

Sun Gold Power 8KW 48V Split Phase Solar Inverter delivers reliable split-phase power for off-grid and backup systems. Its dual MPPT design, WiFi monitoring, and parallel capability provide flexible energy management.

Recommended For

Off-grid homes
Whole-home backup systems
Solar battery storage systems
Remote cabins
Tiny homes
Workshops
Farms
Residential solar installations
Generator-assisted backup systems
Expandable solar power systems

Comfortably Powers

Refrigerators and freezers
LED lighting
Televisions
Desktop computers
Laptops
WiFi routers and networking equipment
Microwaves
Washing machines
Power tools
Well pumps within rated capacity
Air compressors within rated capacity
Kitchen appliances
Ceiling fans
Coffee makers
Multiple household loads simultaneously within the 8,000W continuous rating

Where It Falls Short:

This inverter is designed for fixed 48V battery systems. It also requires indoor installation.

Supports only 48V battery banks.
Rated for 8,000W continuous output, limiting larger loads.
Indoor use only with an IP20 enclosure.
Requires compatible external batteries to operate.
Installation is more complex than plug-and-play backup units.
Parallel expansion requires additional compatible inverter units.
WiFi monitoring is included, but internet access is needed for remote monitoring.
Designed for split-phase systems, which may not suit every electrical setup.
