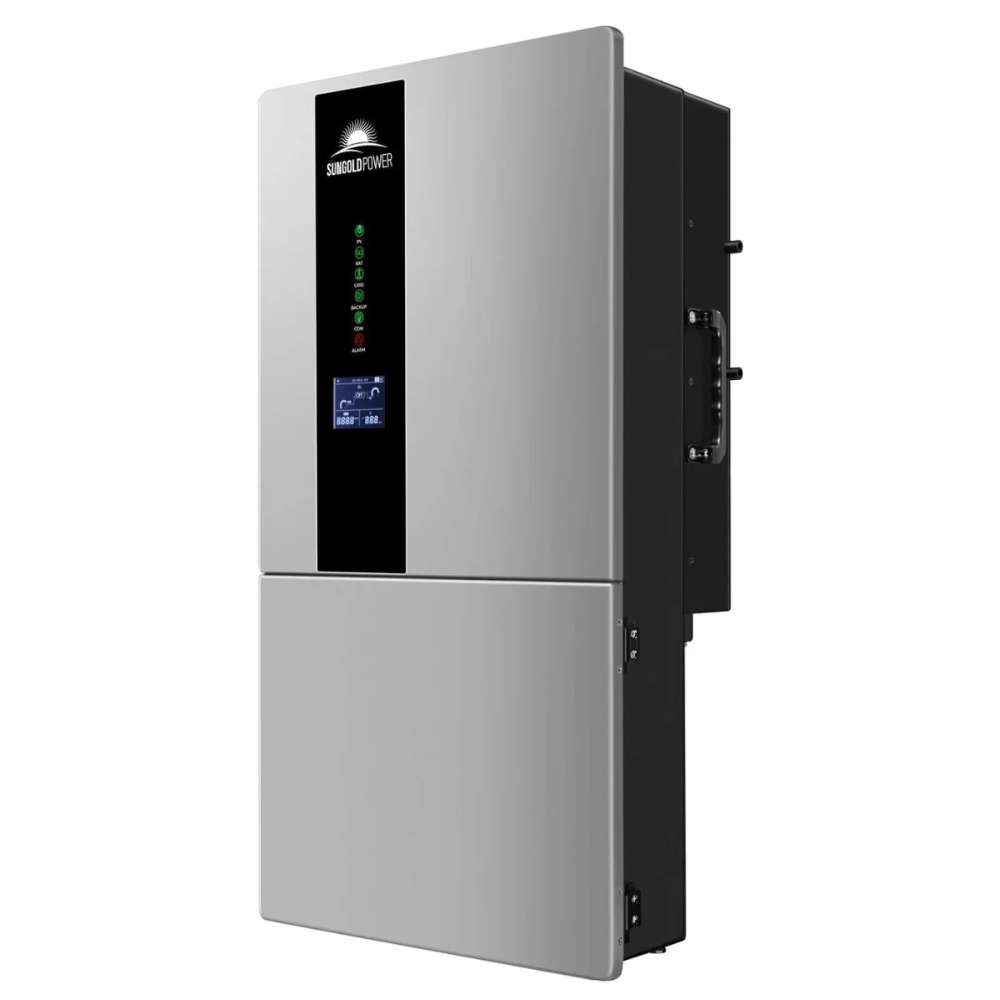

Sun Gold Power 7600W Hybrid Inverter 48V Split Phase

Name: Sun Gold Power 7600W Hybrid Inverter 48V Split Phase
Brand: Sun Gold Power
SKU: SGN7.6K1HB-48
Price: 2450.00 USD
Availability: OutOfStock

SKU SGN7.6K1HB-48

Sold out

$3,150.00

$2,450.00

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Power Your Solar Investment With Sun Gold Power 7600W Split Phase Inverter

Sun Gold Power 7600W Hybrid Inverter 48V Split Phase is a hybrid solar inverter designed for residential solar systems, whole-home backup, and off-grid applications, combining solar, battery, and grid power in one intelligent energy solution.

Its pure sine wave inverter performance, split-phase output, parallel expansion, LCD display, mobile app monitoring, and battery backup capabilities help deliver dependable power, making it a versatile solar inverter, inverter charger, and backup power inverter for growing energy needs.

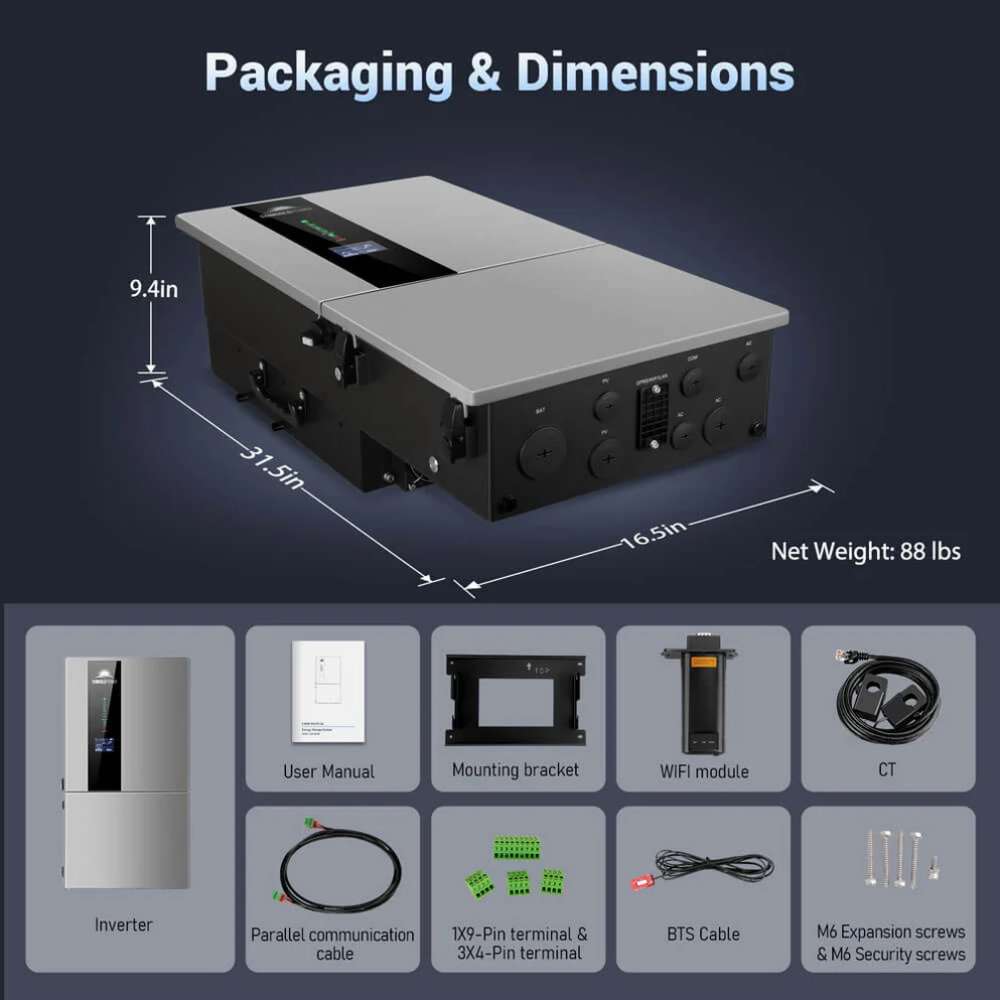

What's Included:

1 x Sun Gold Power 7600W Hybrid Inverter 48V Split Phase
1 x Mounting bracket
1 x CT cable
1 x Parallel communication cable
1 x WiFi Module
1 x 9-pin terminal
3 x 4-pin terminals
1 x BTS cable
M6 expansion screws
M6 security screws
User Manual
UL1741 Certification

Specifications

Continuous Power: 7,600W
Surge Power: 15,200VA
DC Input Voltage: 48V DC
DC Input: 40V to 64V battery voltage range
AC Output Voltage: 120/240V split phase or 208V 2/3 phase AC
Waveform: Pure sine wave
Solar Charger Type: MPPT

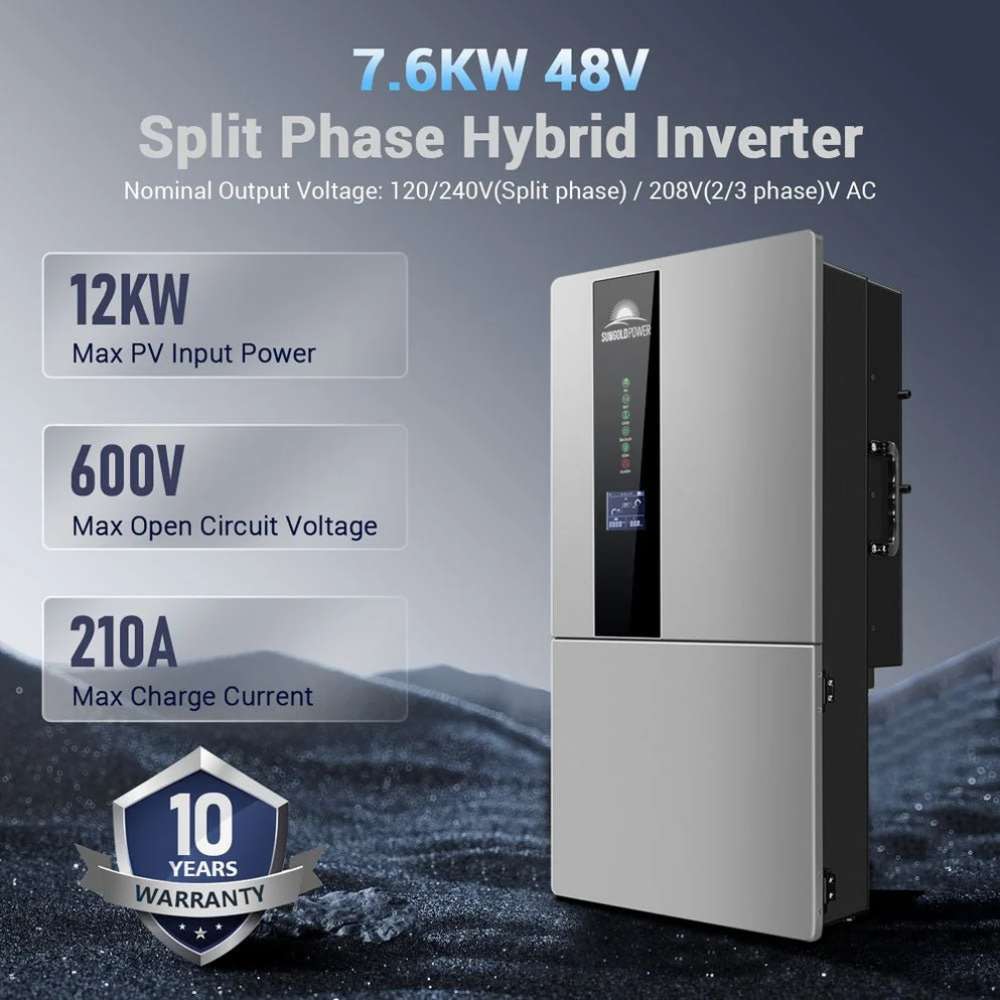

Maximum PV Input Power: 12,000W
MPPT Voltage Range: 70V to 540V DC
Maximum PV Open Circuit Voltage: 600V DC
Maximum Charging Current: 210A
Maximum Discharge Current: 180A
Frequency: 50Hz / 60Hz
Battery Compatibility: Lithium-ion and lead-acid batteries
Parallel Capability: Up to 9 units
Communication: RS485, CAN for BMS, DRM/RS485 for meter, optional WiFi/LAN
Protection Rating: IP65 / NEMA 3R
Dimensions: 16.5 × 31.5 × 9.4 in (420 × 800 × 240 mm)
Net Weight: 88 lb (40 kg)

Features

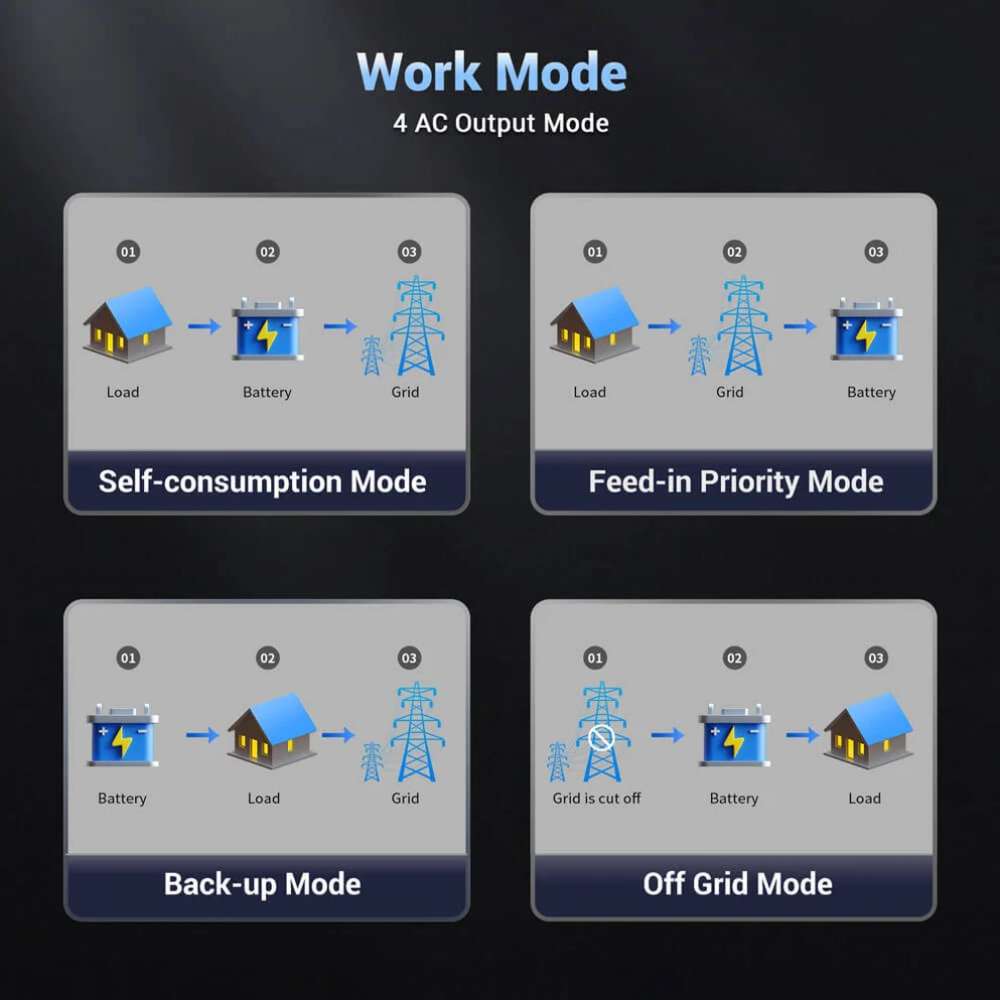

Supports grid-tie, off-grid, and hybrid operation.
Stores excess solar energy in batteries.
Feeds surplus power back to the grid.
Provides backup power during grid outages.
Supports advanced AC coupling with smart loads.

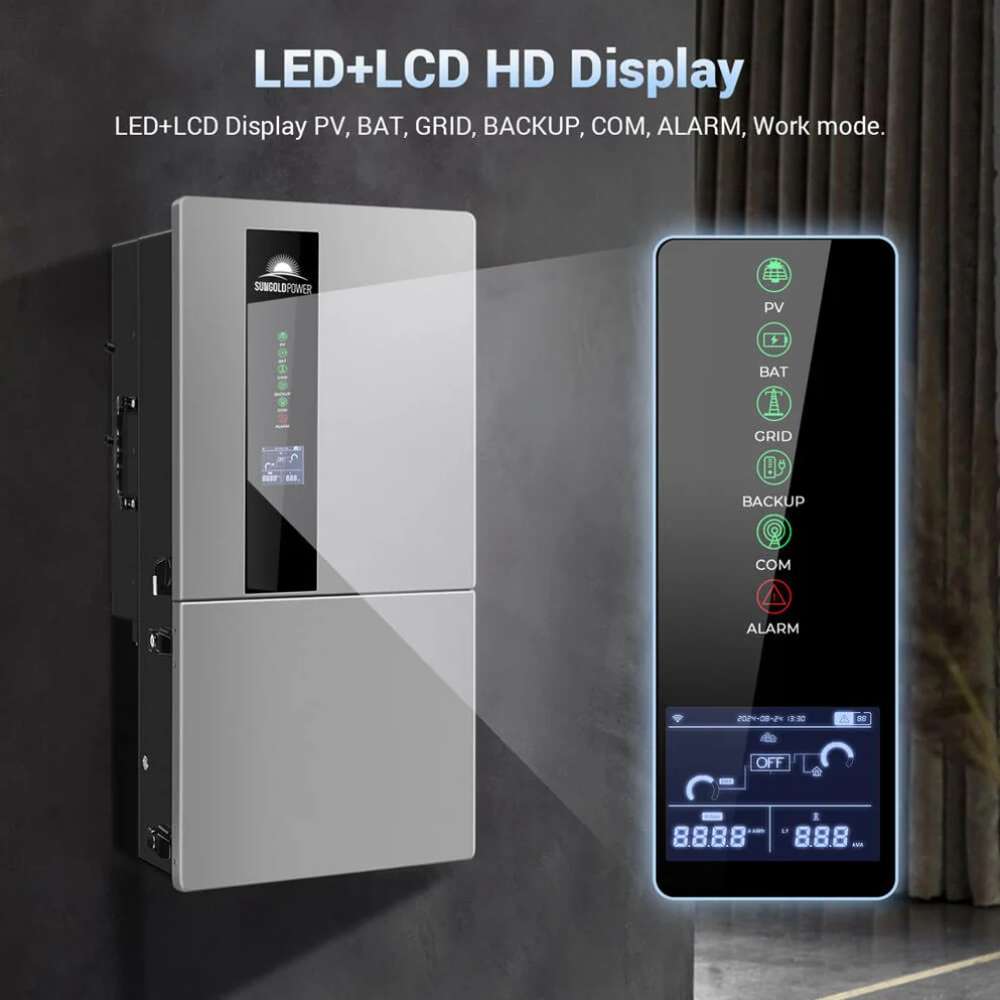

Monitor performance through the LCD display.

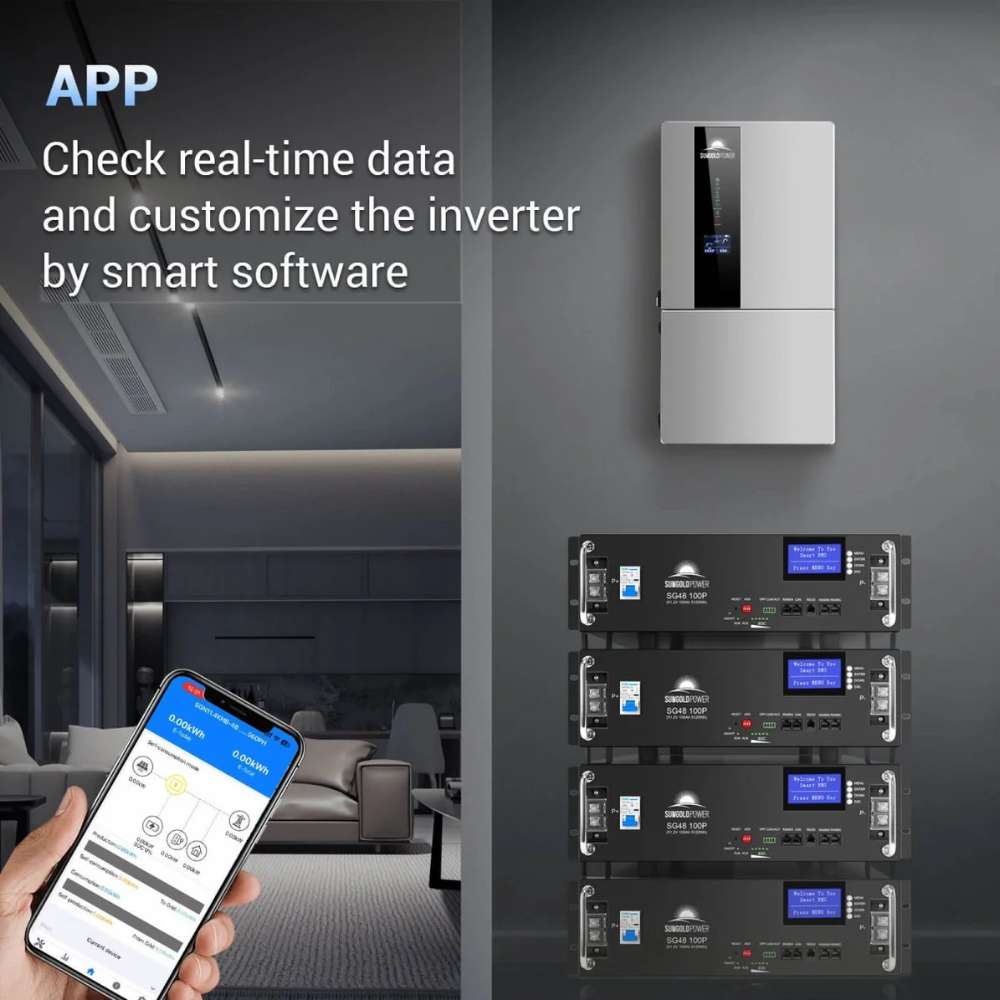

Manage settings using the mobile app.

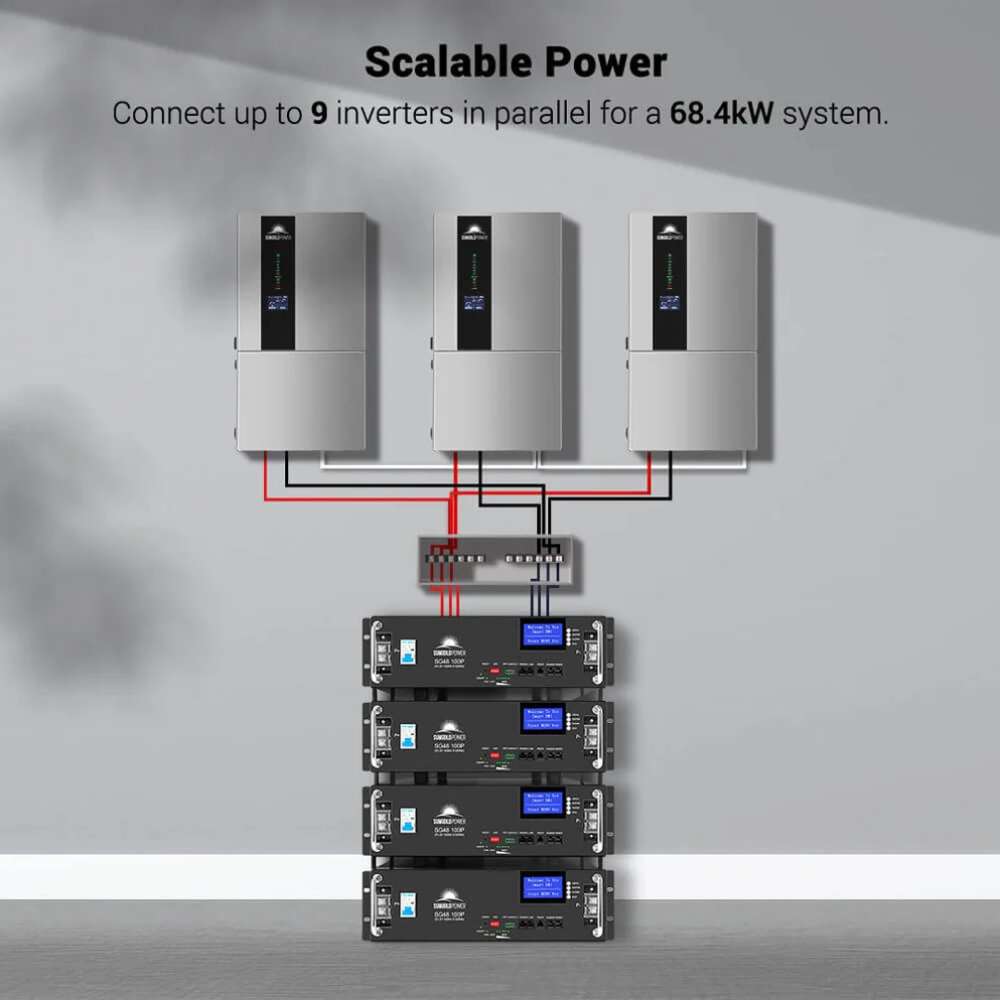

Connect up to nine inverters in parallel.
Handles high-capacity solar array input.
Wall-mounted design saves installation space.
IP65-rated enclosure resists outdoor conditions.
Certified to UL 1741 safety standards.

Why Choose It?

Sun Gold Power 7.6kW Hybrid Inverter 48V Split Phase combines hybrid operation, split-phase output, and battery backup in one system. It also supports parallel expansion and high-capacity solar charging for flexible energy management.

Recommended For

Residential solar systems
Whole-home backup power
Off-grid homes
Remote cabins
Tiny homes
Workshops
Garages
Solar battery storage systems
Hybrid solar installations
Grid-tied solar systems with battery backup

Comfortably Powers

Refrigerators and freezers
LED lighting circuits
Televisions and entertainment systems
Desktop computers and laptops
WiFi routers and networking equipment
Microwaves
Coffee makers
Washing machines
Dishwashers
Power tools
Sump pumps
Window air conditioners
Mini split air conditioners
Well pumps
Multiple household appliances simultaneously within the 7,600W continuous output limit

Where It Falls Short:

This solar inverter is designed specifically for 48V battery systems. It should be sized to match your home's power demands and solar array.

Requires a 48V battery bank and is not compatible with 12V or 24V battery systems.
7,600W continuous output may not support every high-power appliance running simultaneously.
Installation requires a split-phase electrical setup to use its full output capability.
Parallel expansion requires additional compatible inverter units.
Remote monitoring depends on the included WiFi communication module and a network connection.
Designed for stationary residential and solar installations, not portable power applications.
