Flexible Split Phase Power With Smart Solar Energy Management

Sun Gold Power 6500W 48V Split Phase Solar Inverter is a hybrid solar inverter designed for off-grid homes, backup power, and residential battery storage systems.

This pure sine wave inverter combines an inverter charger, dual MPPT charging, split-phase output, WiFi monitoring, parallel expansion, and broad battery compatibility for efficient, scalable, and reliable energy management.

What's Included:

1 x Sun Gold Power 6500W 48V Split Phase Solar Inverter
1 x Warranty card
1 x Communication Cable
1 x Parallel COM cable
WiFi Module
Cable lugs and screws
User Manual
UL1741 Certification

Specifications

Continuous Power: 6500W
Surge Power: 13,000VA
DC Input Voltage: 48V
DC Input: 48V Battery System
AC Output Voltage: 120V/240V Split Phase or 120V Single Phase
Waveform: Pure Sine Wave
Frequency: 50Hz / 60Hz

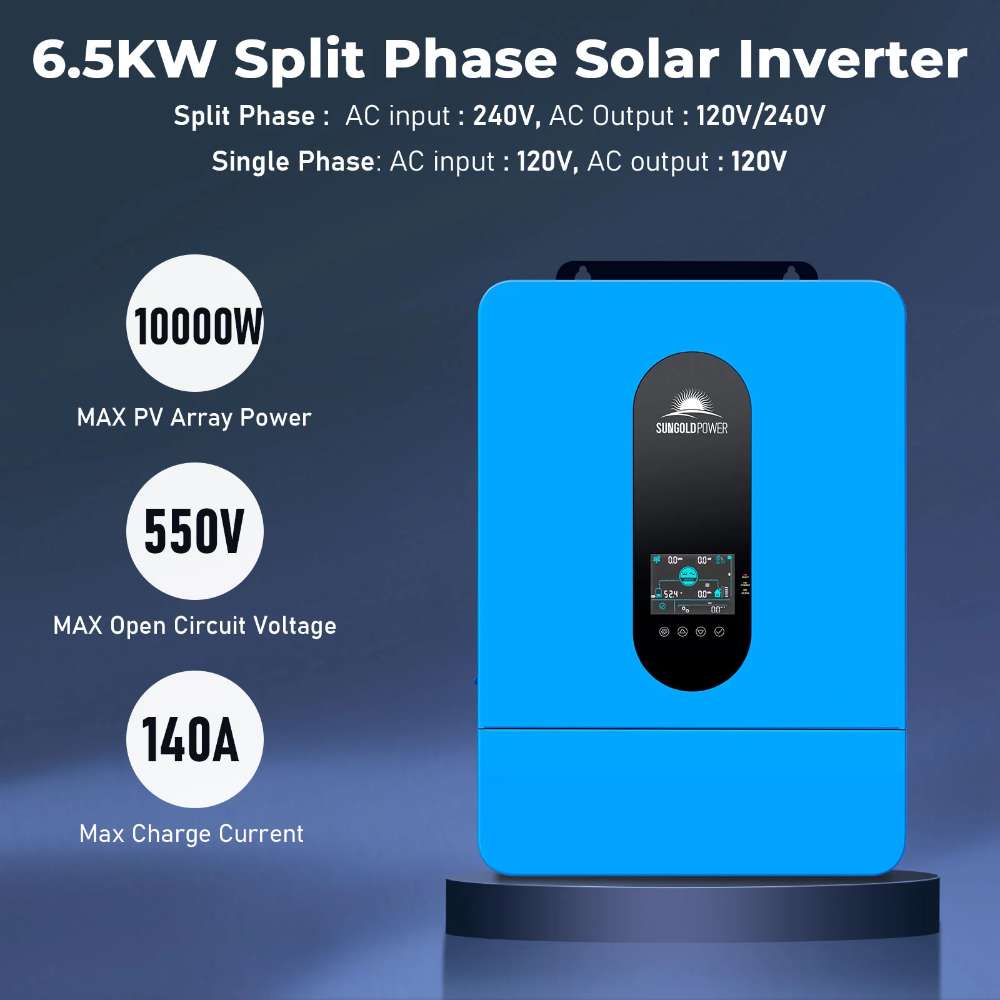

Maximum PV Array Power: 10,000W
Maximum Open Circuit Voltage: 550V DC
MPPT Solar Charge Controller: Dual MPPT
Maximum Charging Current: 140A

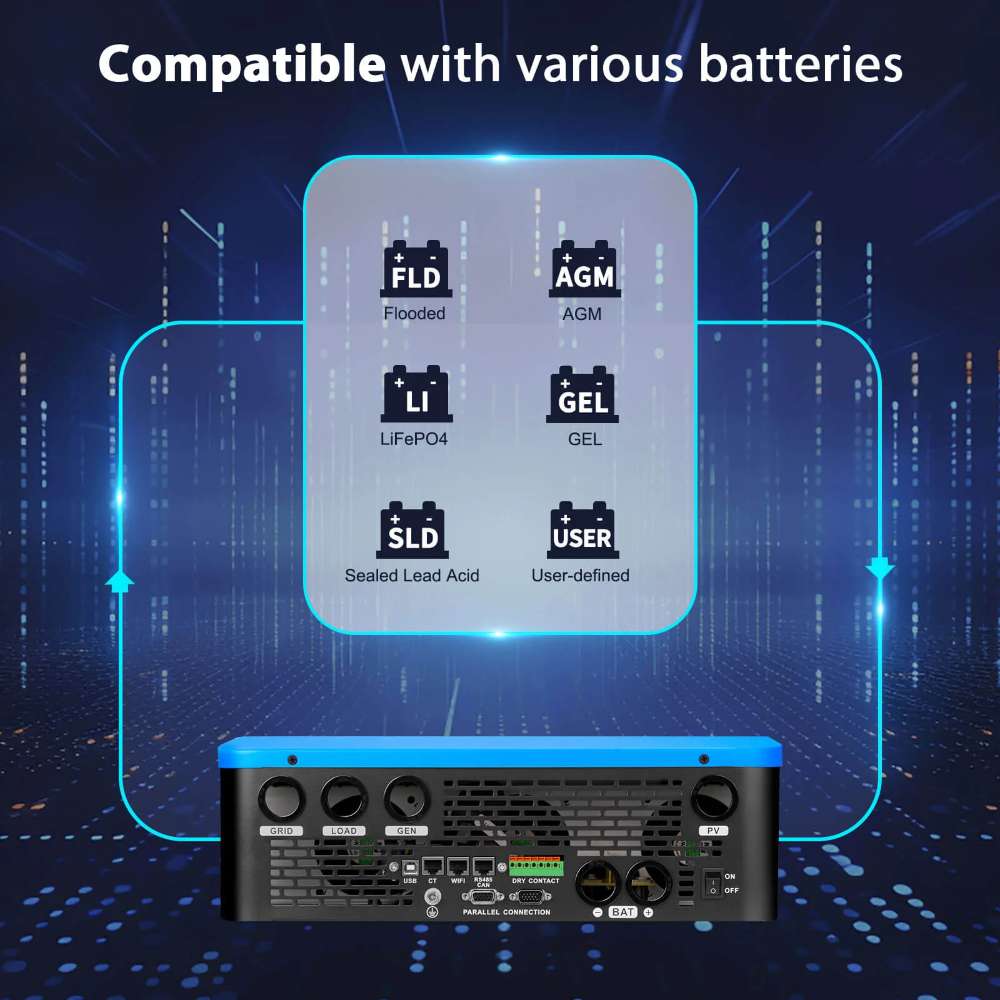

Battery Compatibility: AGM, Sealed Lead Acid, Gel, Flooded, LiFePO4 (Lithium), User-Defined Mode, Battery-Free Operation
Parallel Capability: Up to 6 Units
Display: LCD HD Display
Monitoring: WiFi Module Included
Communication Ports: CAN, RS485, USB, Dry Contact
Protection Rating: PV Input Over-Voltage/Current, AC Input Over-Voltage, Battery Over-Voltage, Overload Protection
Certification: UL 1741 by ETL

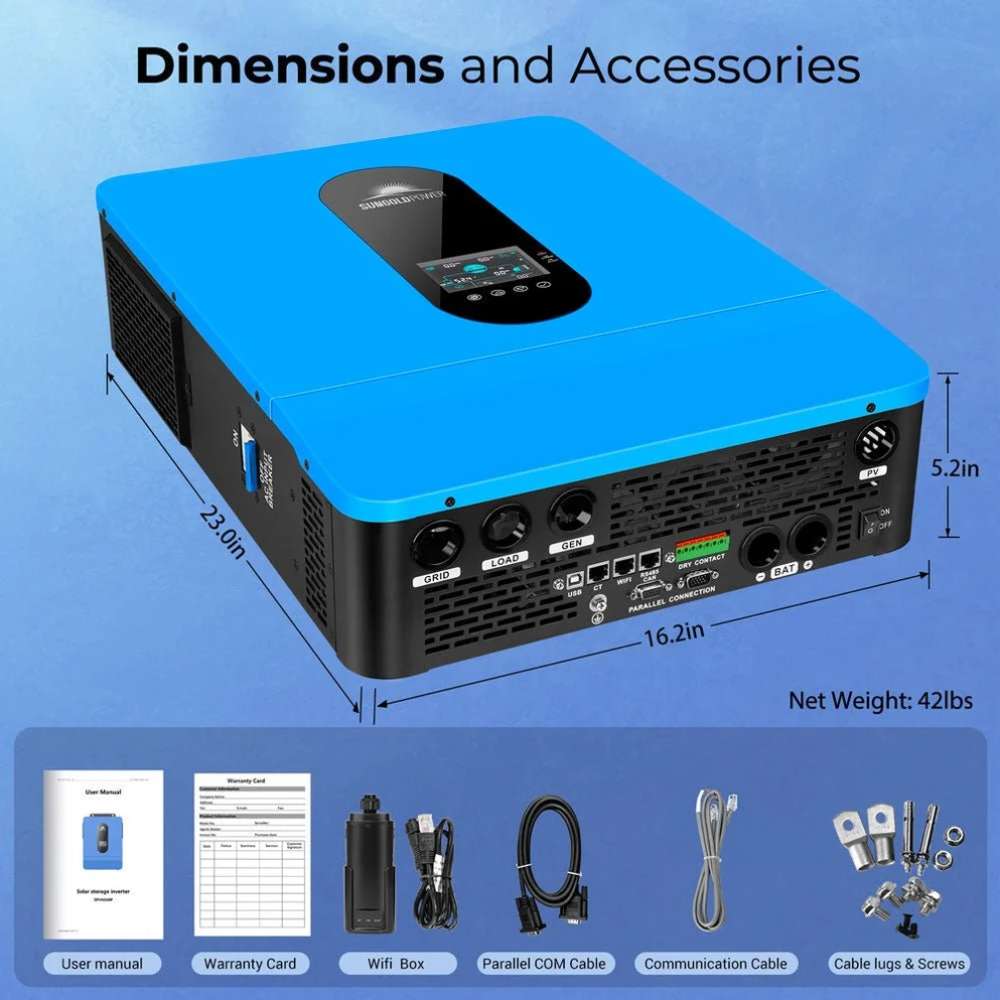

Dimensions: 23.0 × 16.2 × 5.2 in (584 × 411 × 132 mm)
Net Weight: 42 lb (19 kg)

Features

Pure sine wave output protects sensitive electronics.
Built-in dual MPPT solar charge controllers.
Supports split-phase and single-phase output.
WiFi monitoring through a mobile app.

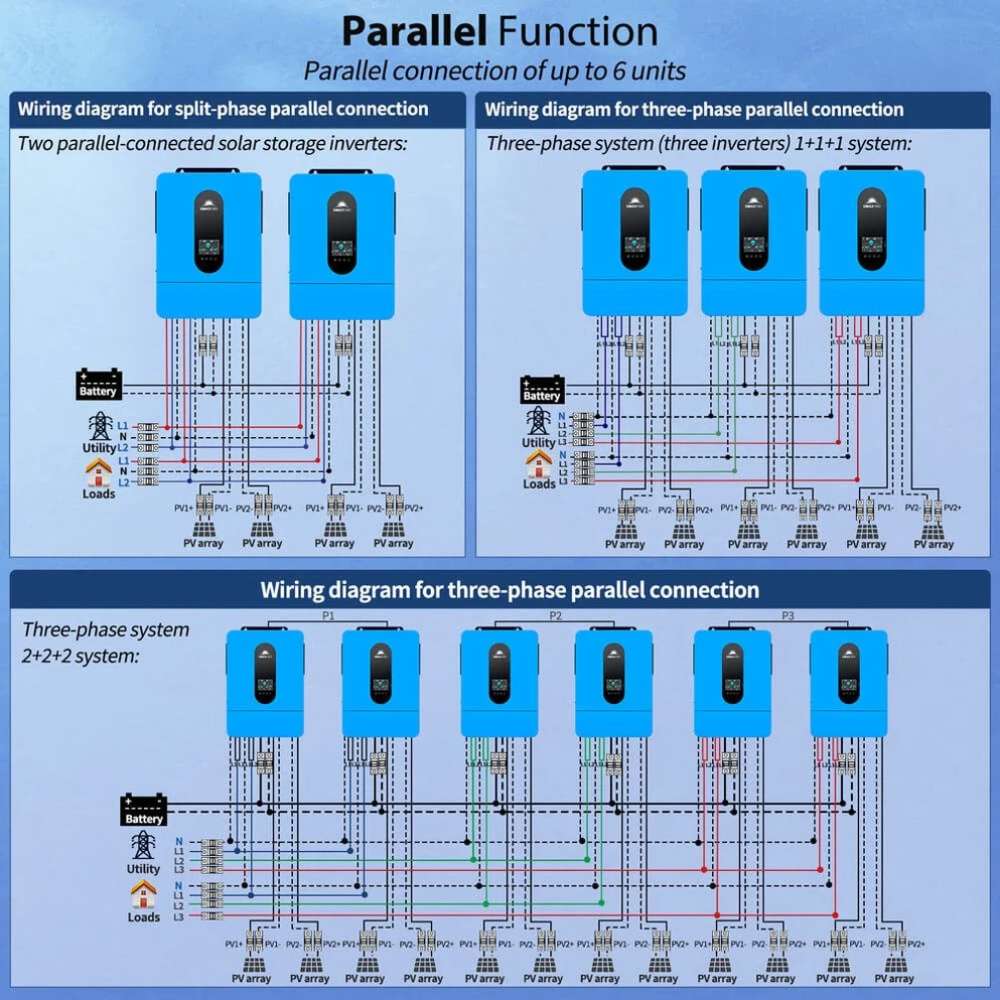

Parallel up to six inverters.

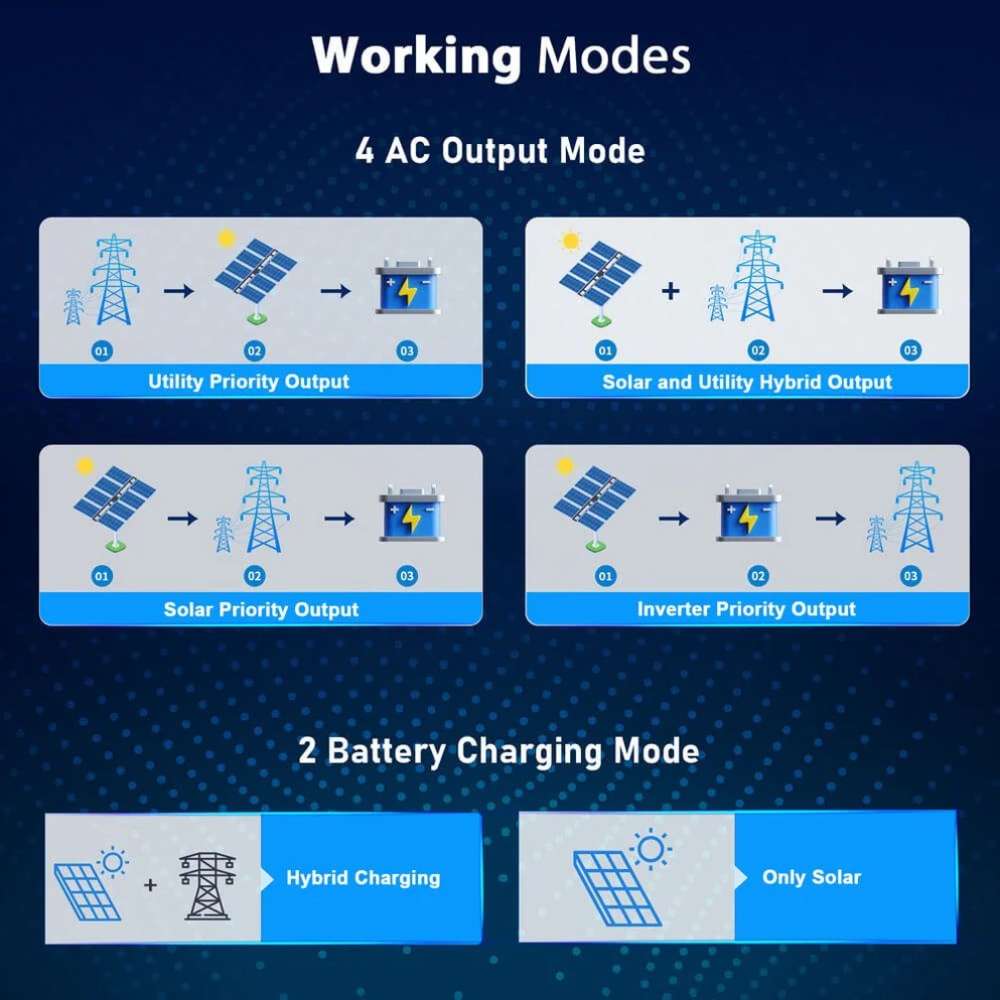

Four selectable charging modes.
Four configurable AC output modes.

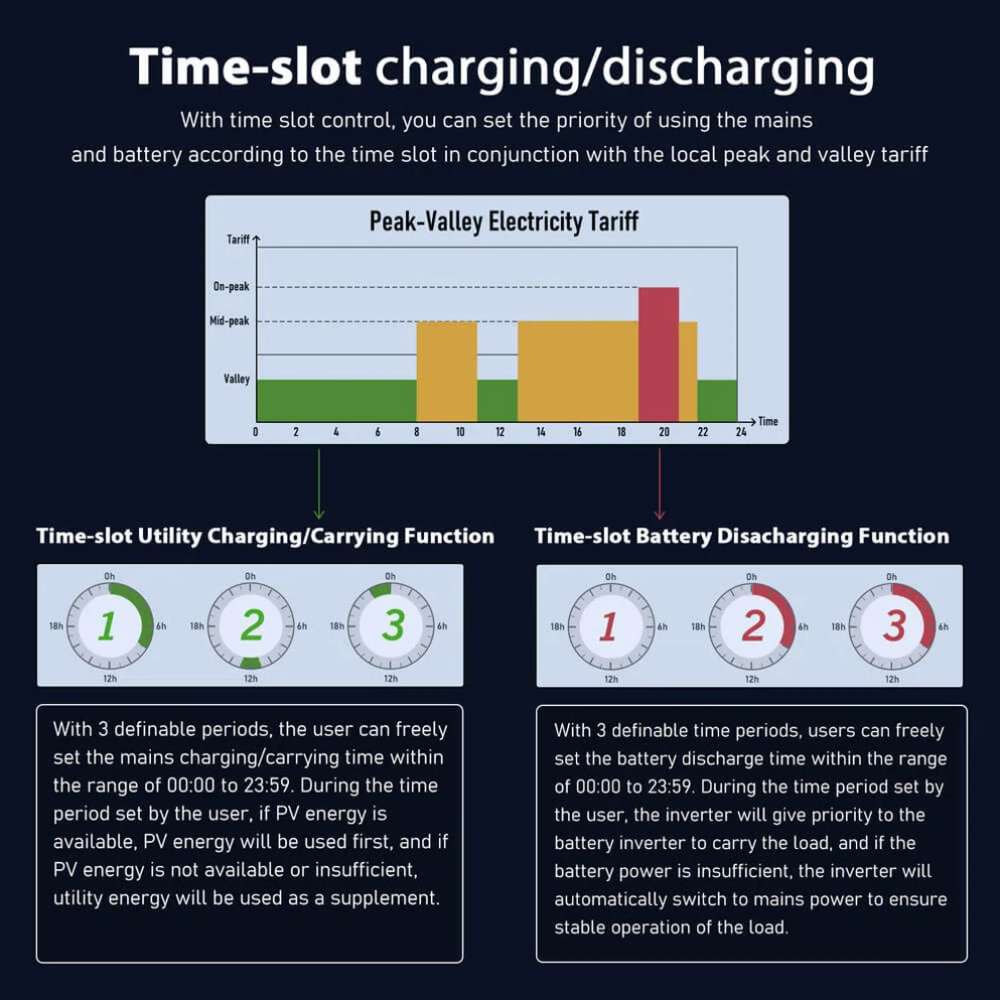

Time-slot charging and discharging settings.
Compatible with multiple 48V battery types.
Supports battery-free startup from solar or grid.
Generator compatible for added backup flexibility.
Smart protection for safer system operation.

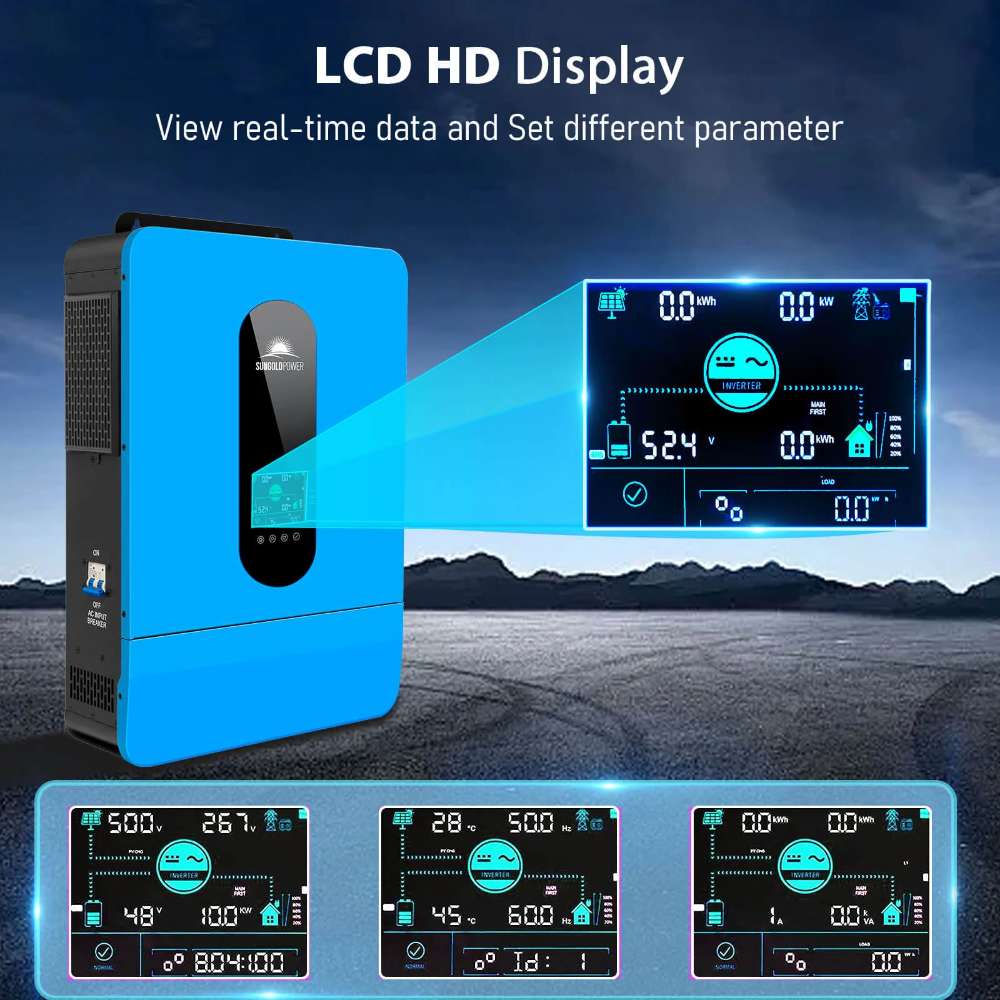

LCD display provides real-time system information.
Supports CAN and RS485 battery communication.
UL 1741 certified for off-grid solar systems.

Why Choose It?

Sun Gold Power 6.5KW 48V Split Phase Solar Inverter SPH6548P combines split-phase output with dual MPPT charging for flexible solar installations. It also supports parallel expansion, WiFi monitoring, and multiple battery types for reliable energy management.

Recommended For

Off-grid homes
Home backup power systems
Solar battery storage systems
Tiny homes
Workshops
Garages
Cabins
Farms
Small businesses
Residential solar installations

Comfortably Powers

Refrigerators and freezers
LED lighting
Televisions
Desktop computers
Laptops
WiFi routers and networking equipment
Microwaves
Washing machines
Coffee makers
Power tools
Ceiling and pedestal fans
Small air compressors
Sump pumps
Battery chargers
Multiple household appliances at the same time within the 6,500W continuous output limit

Where It Falls Short:

This inverter is designed for 48V battery systems only. It also requires parallel installation for higher power output.

Limited to 6,500W continuous output for a single unit.
Requires a 48V battery bank for normal operation.
Maximum solar input is limited to 10,000W PV.
AC output is limited to 120V/240V split phase or 120V single phase.
Parallel expansion requires additional compatible inverter units.
Designed for fixed installation rather than portable use.
Battery charging current is capped at 140A.
Supports up to six units in parallel, which limits maximum system expansion.
