Sun Gold Power 3000W 24V Solar Inverter Charger [PV120-450V/MPPT120- 400V]

Name: Sun Gold Power 3000W 24V Solar Inverter Charger [PV120-450V/MPPT120- 400V]
Brand: Sun Gold Power
SKU: SPH302480A
Price: 459.00 USD
Availability: InStock

SKU SPH302480A

Save $115.00

$574.00

$459.00

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

High Voltage MPPT for Smarter Off Grid Solar Performance

Sun Gold Power 3000W 24V Solar Inverter Charger [PV120-450V/MPPT120- 400V] is an all-in-one solar inverter built for off-grid homes, cabins, workshops, and reliable backup power systems.

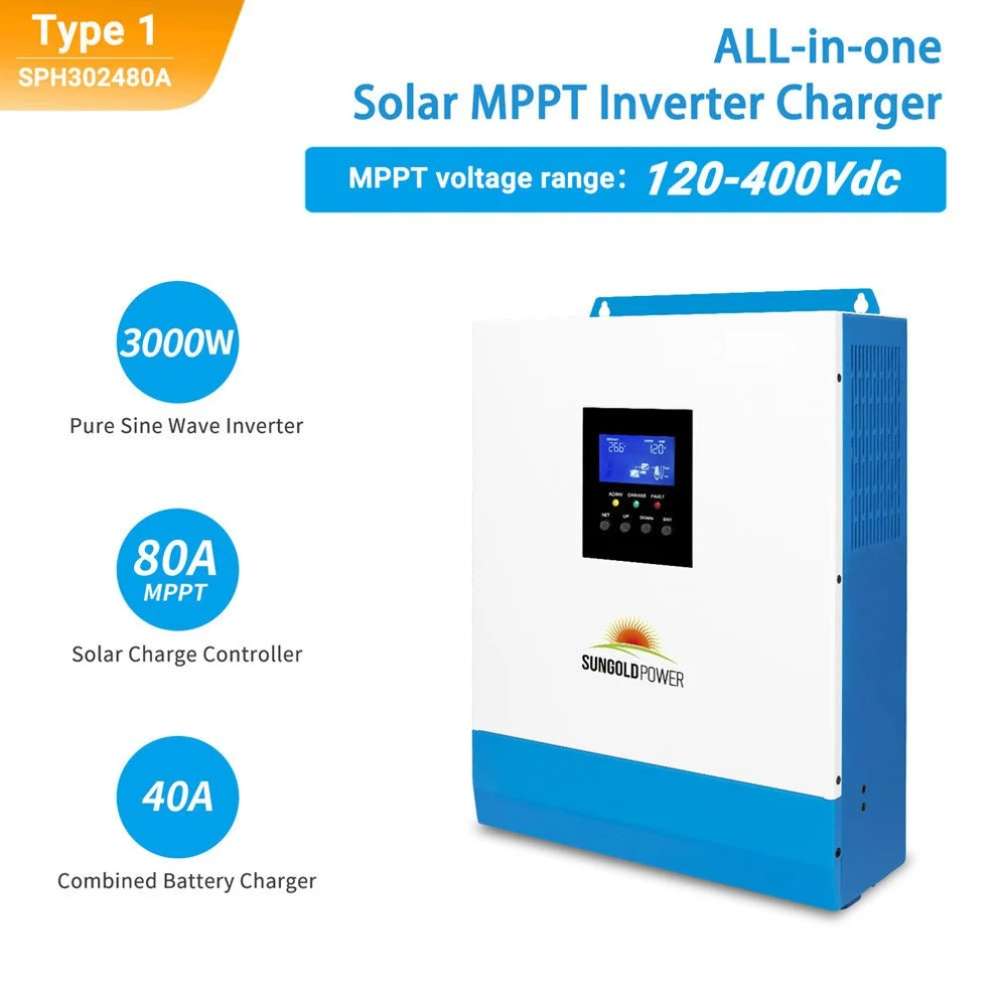

This hybrid solar inverter combines a pure sine wave inverter, 80A MPPT controller, 40A inverter charger, fast UPS transfer, LCD display, and broad battery compatibility to deliver dependable, efficient energy from solar, utility, or a generator.

What's Included:

1 x Sun Gold Power 3000W 24V Solar Inverter Charger
1 x Warranty card
Mounting screws and hardware
User Manual

Specifications

Continuous Power: 3000W / 3000VA
Surge Power: 6000VA
DC Input Voltage: 24VDC (minimum start-up voltage 22V)
DC Input: 24VDC
AC Output Voltage: 120VAC
Waveform: Pure sine wave
Efficiency: >92% (inverter mode)
Frequency: 50Hz / 60Hz selectable
Battery Charger Rating: 40A Smart AC Charger
Transfer Switch: 10ms automatic transfer time
Battery Compatibility: AGM/Sealed, Gel, Flooded, Lithium, and User Mode batteries
Maximum Charging Current: 80A PV charging / 40A AC charging
MPPT Solar Charge Controller: Built-in 80A MPPT

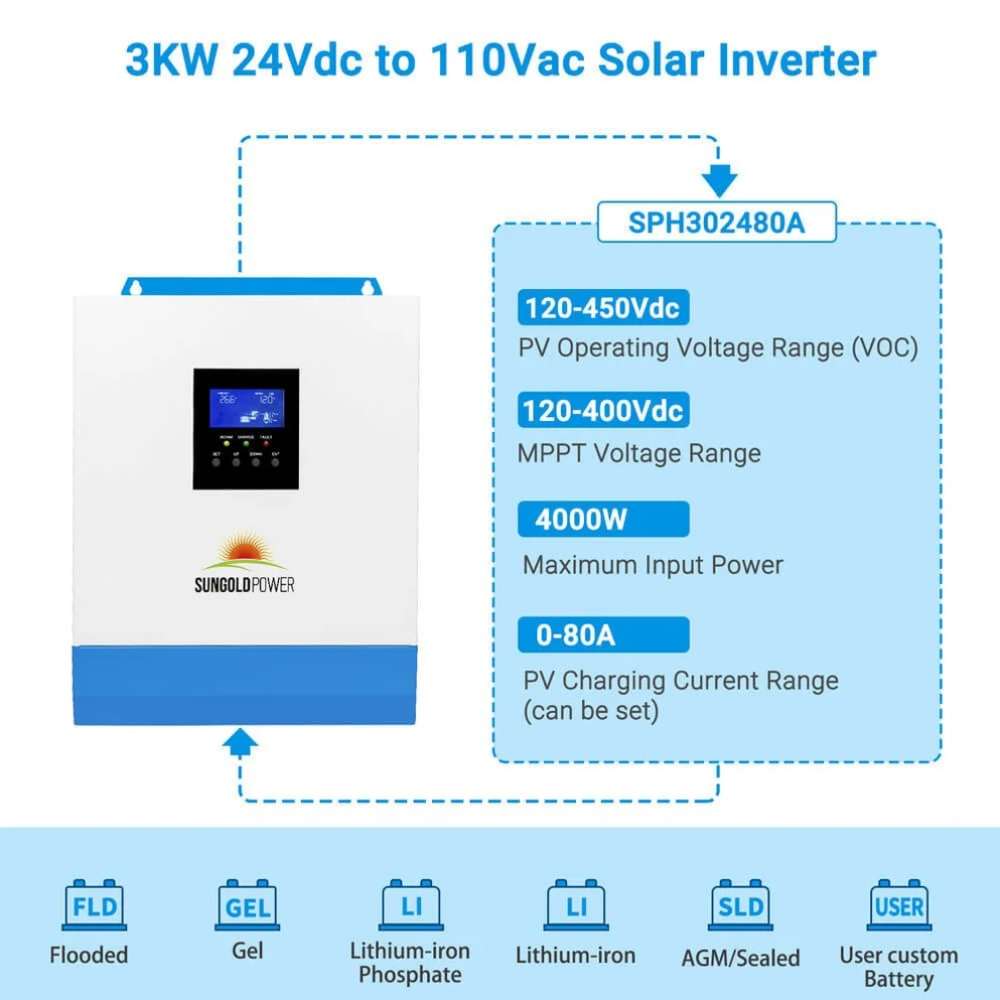

Maximum PV Input Power: 4000W
PV Operating Voltage Range: 120–450VDC
MPPT Voltage Range: 120–400VDC
Maximum PV Open Circuit Voltage: 450VDC
AC Input Voltage: 110VAC (90–140VAC input range)
Bypass Breaker Current: 40A
Charging Voltage Range: 20–33VDC
Protection: Short circuit, overload, overcharge, over-discharge, over-voltage, under-voltage, and reverse polarity protection

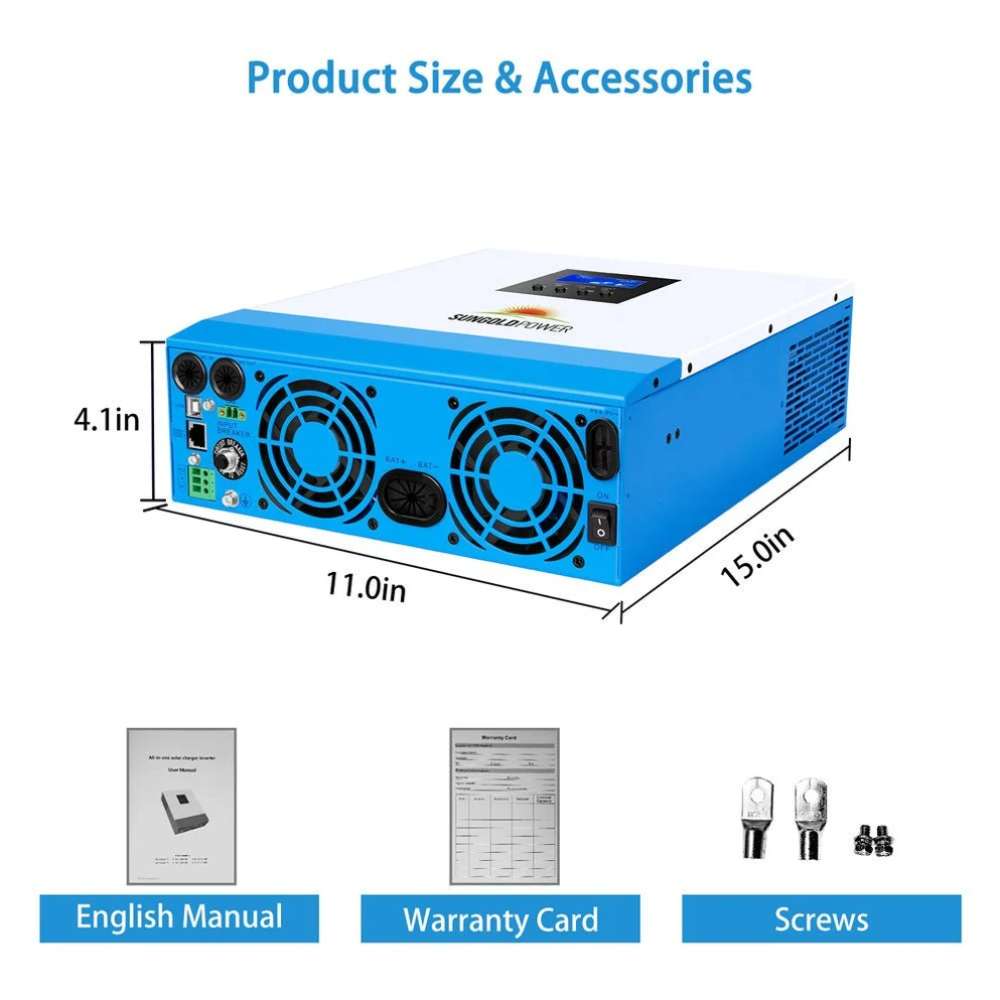

Dimensions: 15.0 × 11.0 × 4.1 in (381 × 279 × 104 mm)
Weight: 16.8 lb (7.62 kg)
Cooling: Intelligent cooling fan
Operating Temperature: 5°F to 131°F (-10°C to 55°C)

Features

Pure sine wave output protects sensitive electronics.
Built-in 80A MPPT solar charge controller.
Integrated 40A smart battery charger.

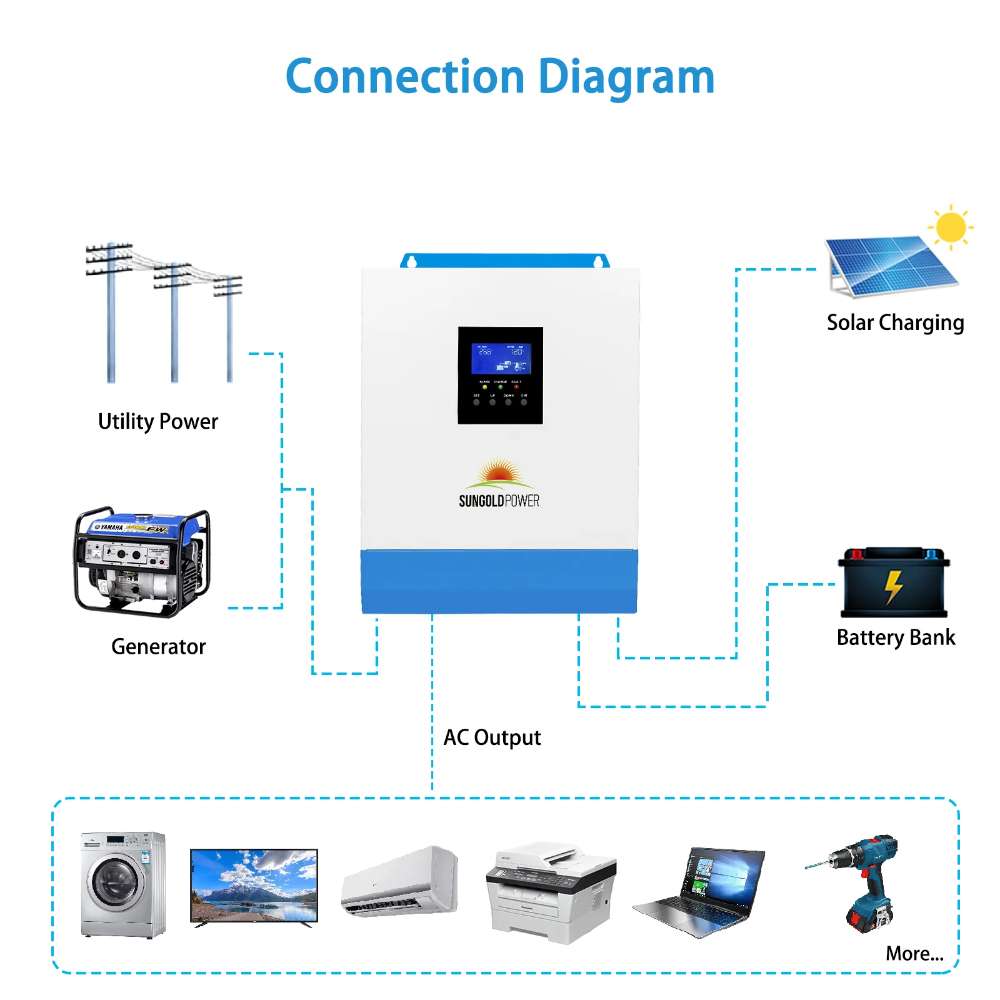

Supports solar, utility, and generator charging.
Compatible with lithium and lead-acid batteries.
Fast 10ms automatic transfer switching.

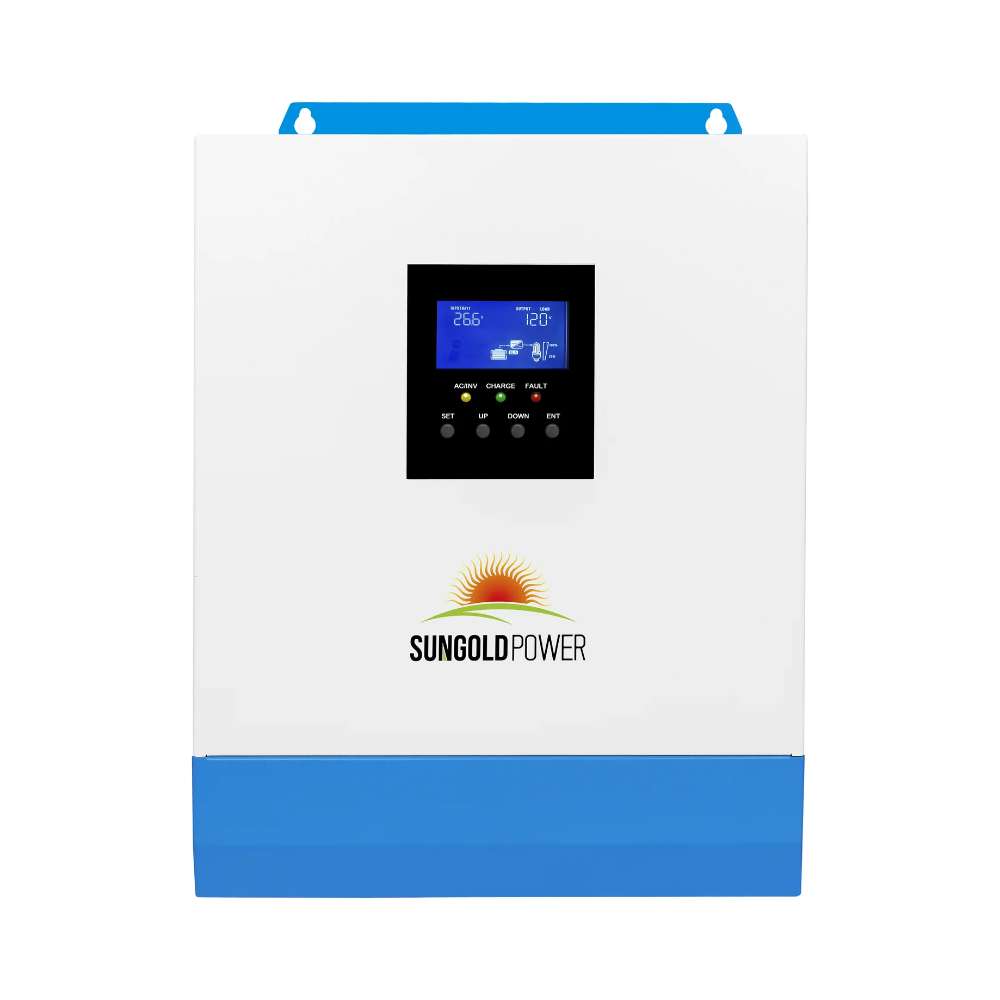

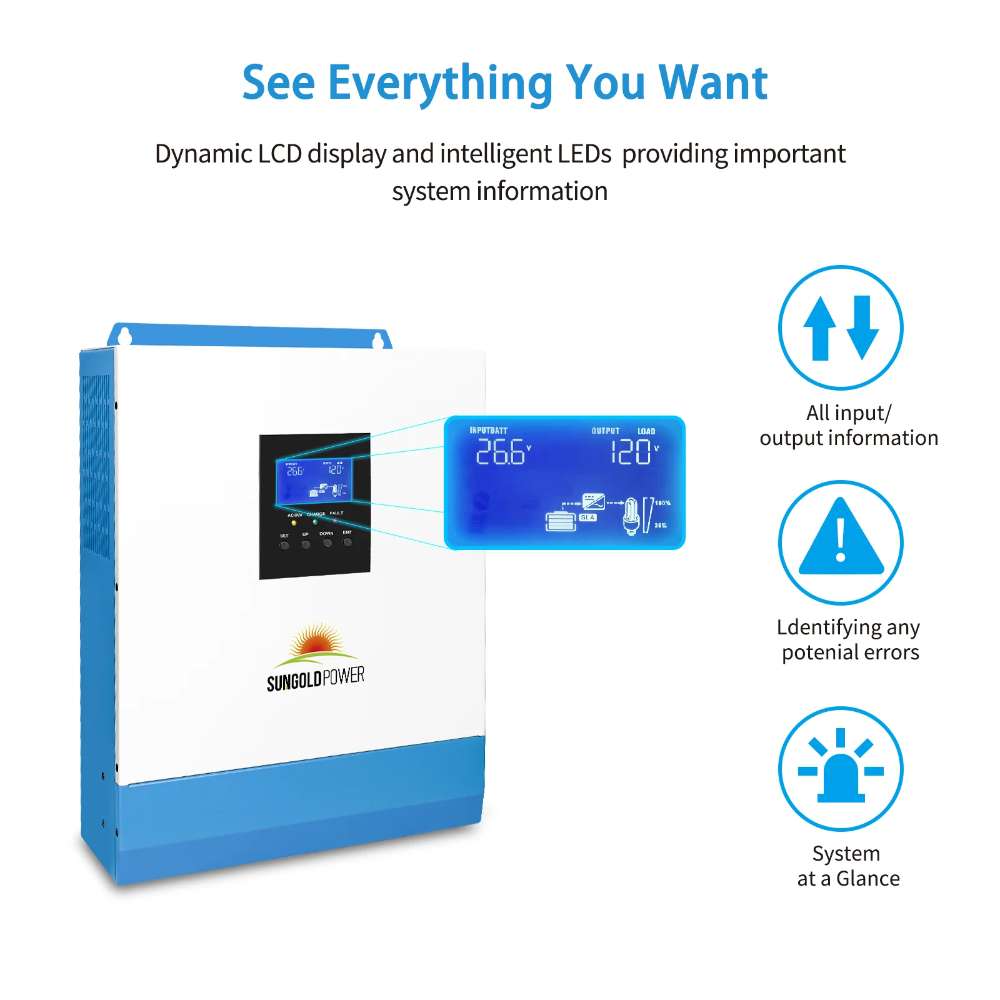

LCD display provides real-time system monitoring.

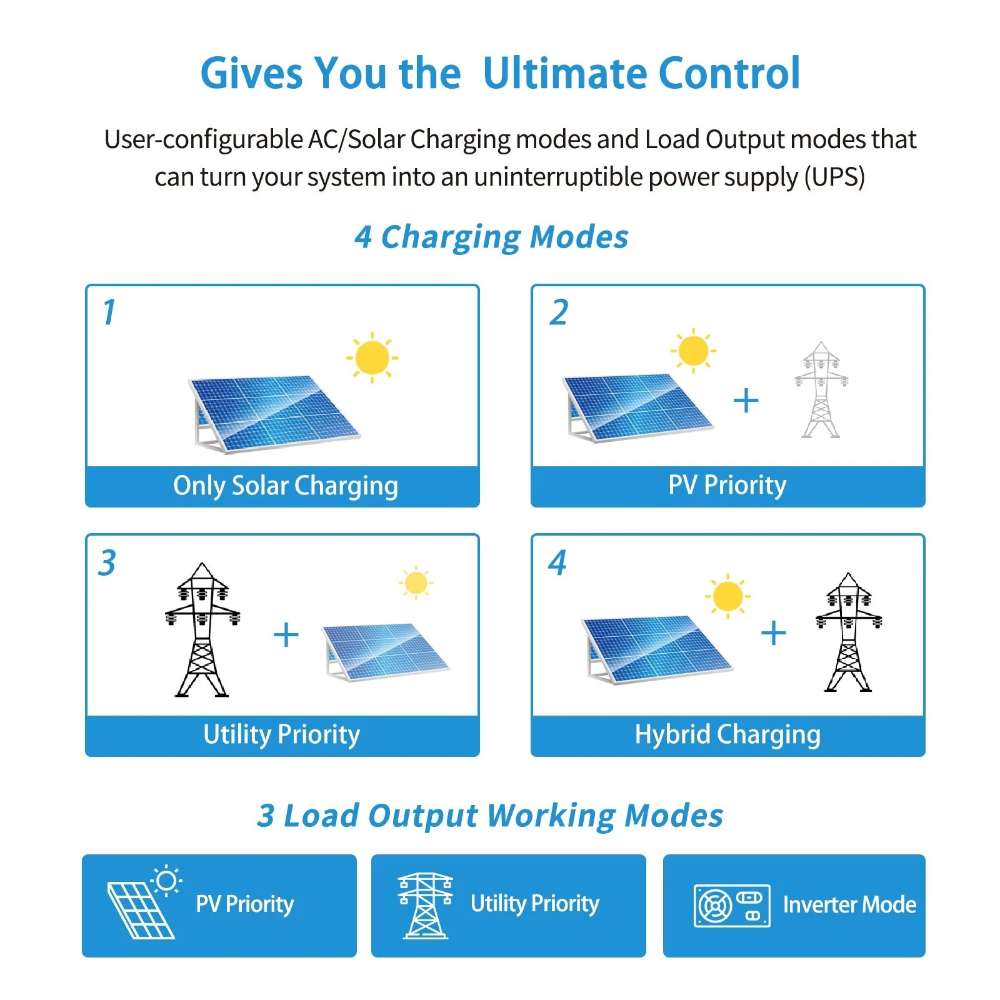

Four selectable charging modes.
Three configurable load output modes.
Intelligent cooling fan improves reliability.
Multiple built-in safety protections.
Compact wall-mount design saves space.

Why Choose It?

Sun Gold Power 3000W 24V Solar Inverter Charger combines solar charging, battery charging, and power conversion in one unit. It delivers clean pure sine wave power with flexible charging options for reliable off-grid and backup use.

Recommended For

Off-grid homes
Cabins
Tiny homes
Workshops
Home backup systems
Solar energy systems
Battery storage systems
Generator-assisted backup power
Lithium and lead-acid battery banks

Comfortably Powers

Refrigerators and freezers
LED lighting
Televisions
Laptops and desktop computers
Wi-Fi routers and networking equipment
Small kitchen appliances
Coffee makers
Microwaves
Power tools within the 3000W limit
Fans
CPAP machines
Battery chargers for portable devices

Where It Falls Short:

This inverter is designed for 24V battery systems only. It also provides a single-phase 120V AC output.

Limited to 3000W continuous output, so it is not suitable for higher-power loads.
Requires a 24V battery bank and is not compatible with 12V or 48V systems.
Delivers 120V AC output only, making it unsuitable for applications requiring split-phase 120/240V power.
The 40A AC charger may recharge large battery banks more slowly than higher-amperage chargers.
Solar input requires a high-voltage PV array (120–450VDC), so it is not intended for low-voltage solar panel configurations.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
