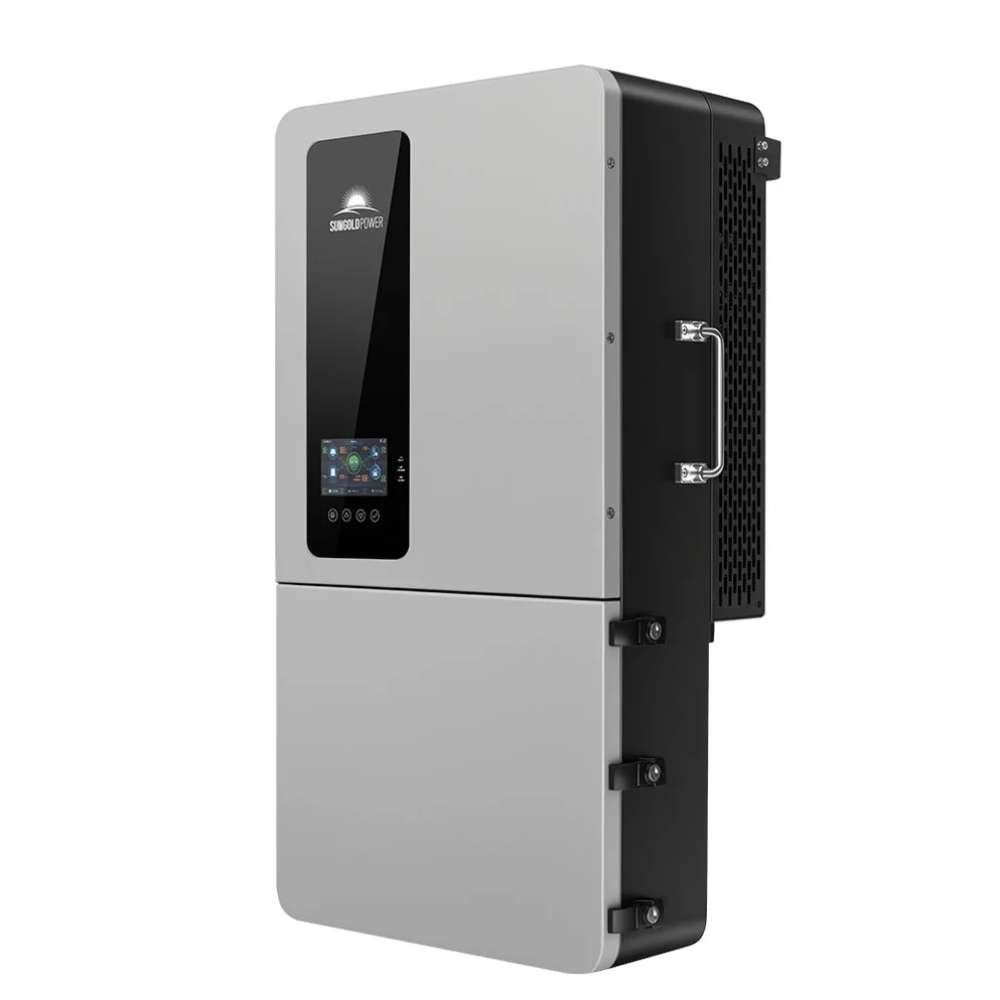

Angled front view of Sun Gold Power 12000W 48V All-in-One Hybrid Solar Inverter showing its slim enclosure, display screen, and side cooling vents

Sun Gold Power 12000W 48V All-in-One Hybrid Solar Inverter

SKU SGS-12K18MAX
Save $788.00
$3,938.00
$3,150.00
Freedom Room product specialist

We Beat Any Price

Found it cheaper somewhere else? Send us a quote request and we'll beat it.

512-777-0154 sales@freedomroom.com

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Whole Home Backup With Smart Hybrid Energy Control

Sun Gold Power 12000W 48V All-in-One Hybrid Solar Inverter is a hybrid solar inverter for homes, farms, and small businesses needing dependable backup power and flexible on-grid or off-grid operation. It combines solar, battery storage, and grid power in one system.

With dual MPPTs, WiFi monitoring, generator and battery compatibility, parallel expansion, and split-phase or three-phase output, this solar inverter and inverter charger delivers efficient energy management and reliable whole-home backup.

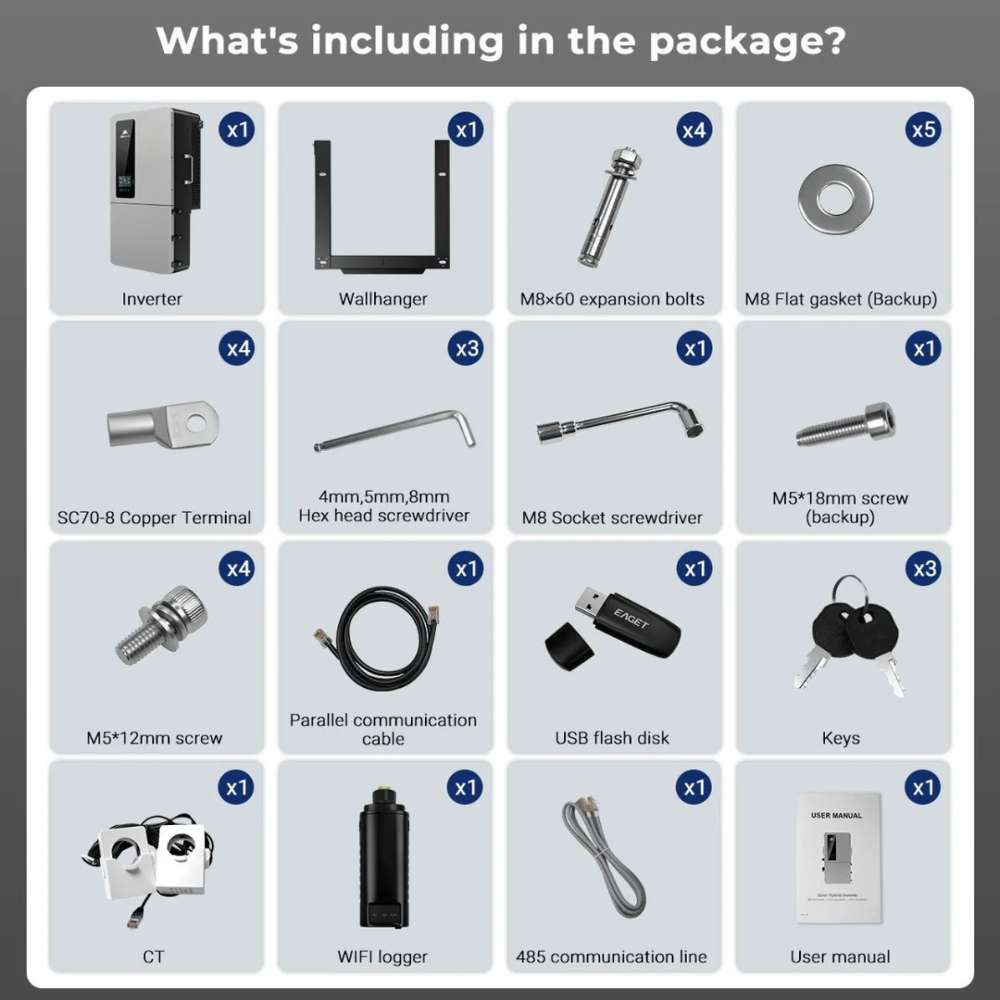

What's Included:

  • 1 x Sun Gold Power 12000W 48V All-in-one Hybrid Solar inverter
  • 1 x Wall Hanger
  • 4 x M8 × 60 Expansion Bolts
  • 5 x M8 Flat Gaskets (Backup)
  • 4 x SC70-8 Copper Terminals
  • 3 x Hex Head Screwdrivers (4 mm, 5 mm, and 8 mm)
  • 1 x M8 Socket Screwdriver
  • 1 x M5 × 18 mm Screw (Backup)
  • 4 x M5 × 12 mm Screws
  • 1 x Parallel Communication Cable
  • 1 x USB Flash Disk
  • 3 x Keys
  • 1 x CT
  • 1 x WiFi Logger
  • 1 x 485 Communication Line
  • User Manual
  • UL1741 Certification

Specifications

  • Continuous Power: 12,000W
  • DC Input Voltage: 48V
  • AC Output Voltage: 120/240V Split Phase, 120/208V Three Phase
  • Waveform: Pure Sine Wave
  • Maximum Efficiency: 97.6%
  • Frequency: 50Hz / 60Hz

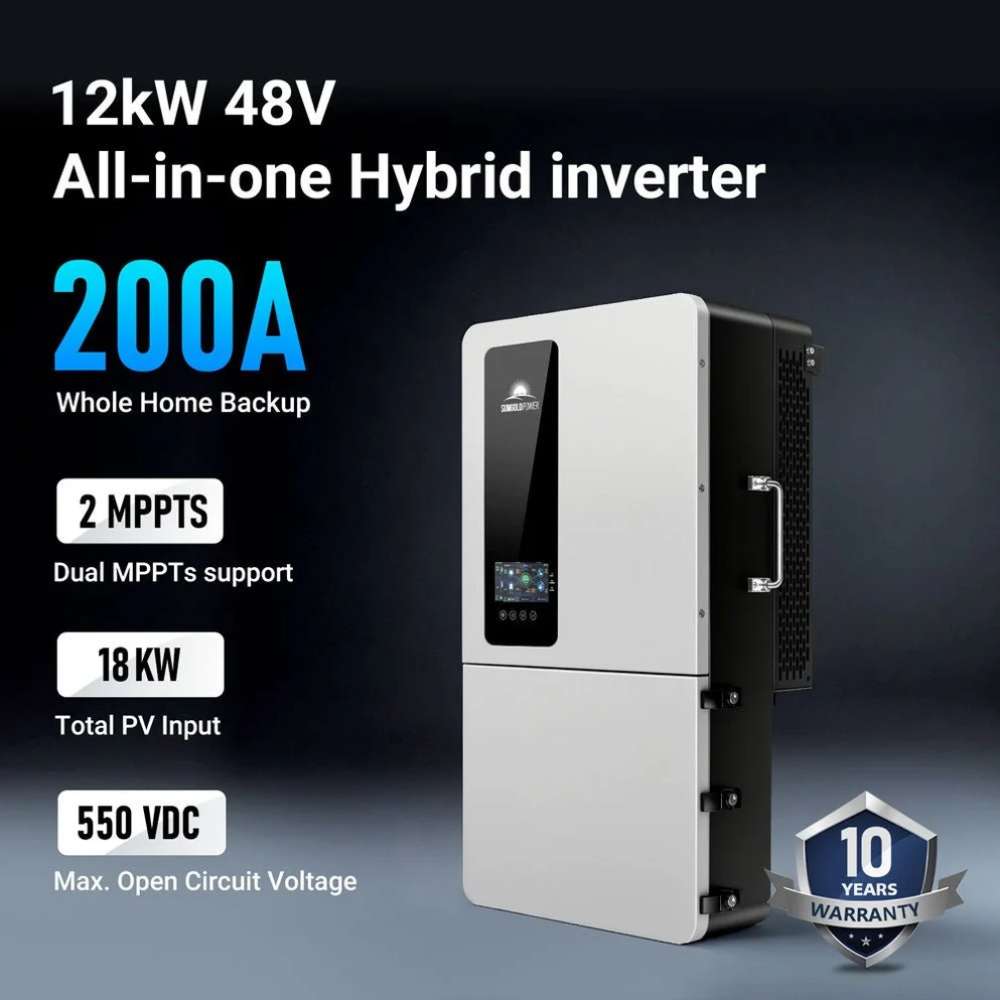

  • Maximum PV Input: 18kW
  • Maximum Open Circuit Voltage: 550VDC
  • MPPT: Dual MPPT Solar Charge Controllers
  • Maximum Pass-Through Current: 200A

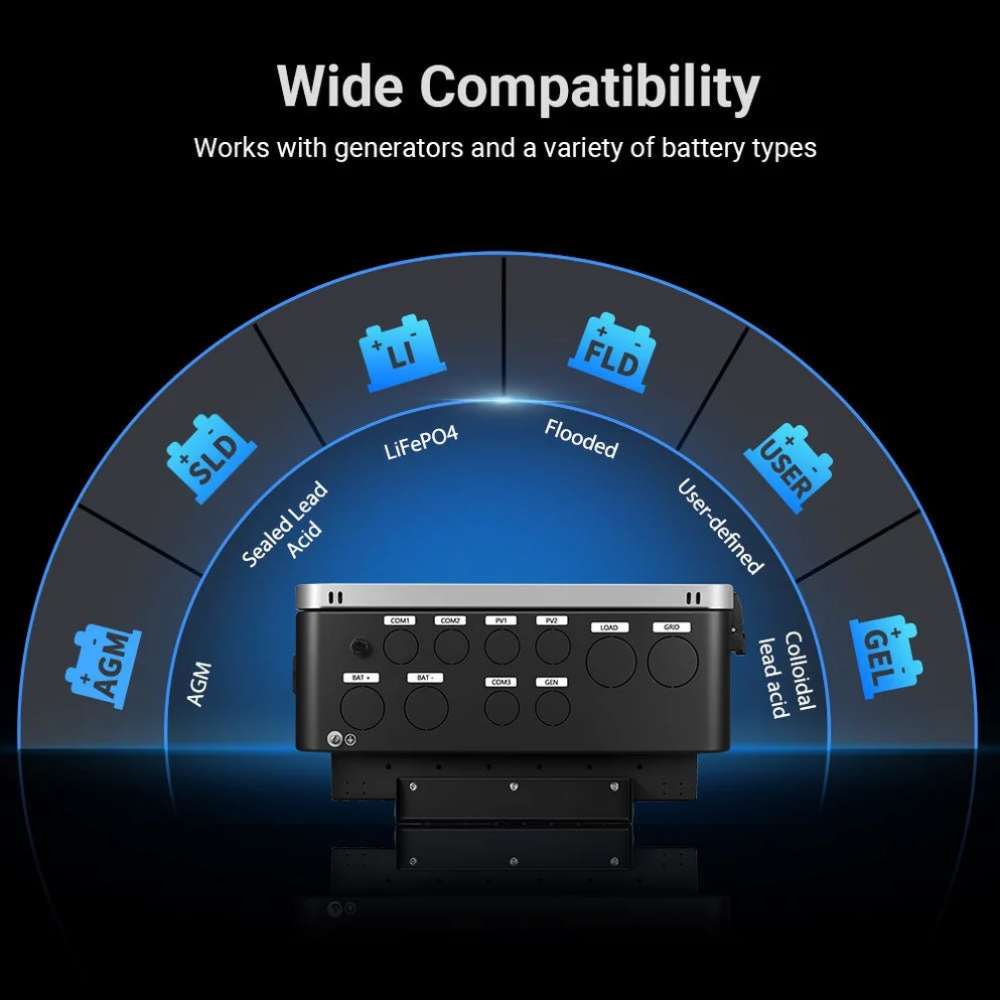

  • Battery Compatibility: 48V Lithium Batteries and Other Compatible Battery Systems

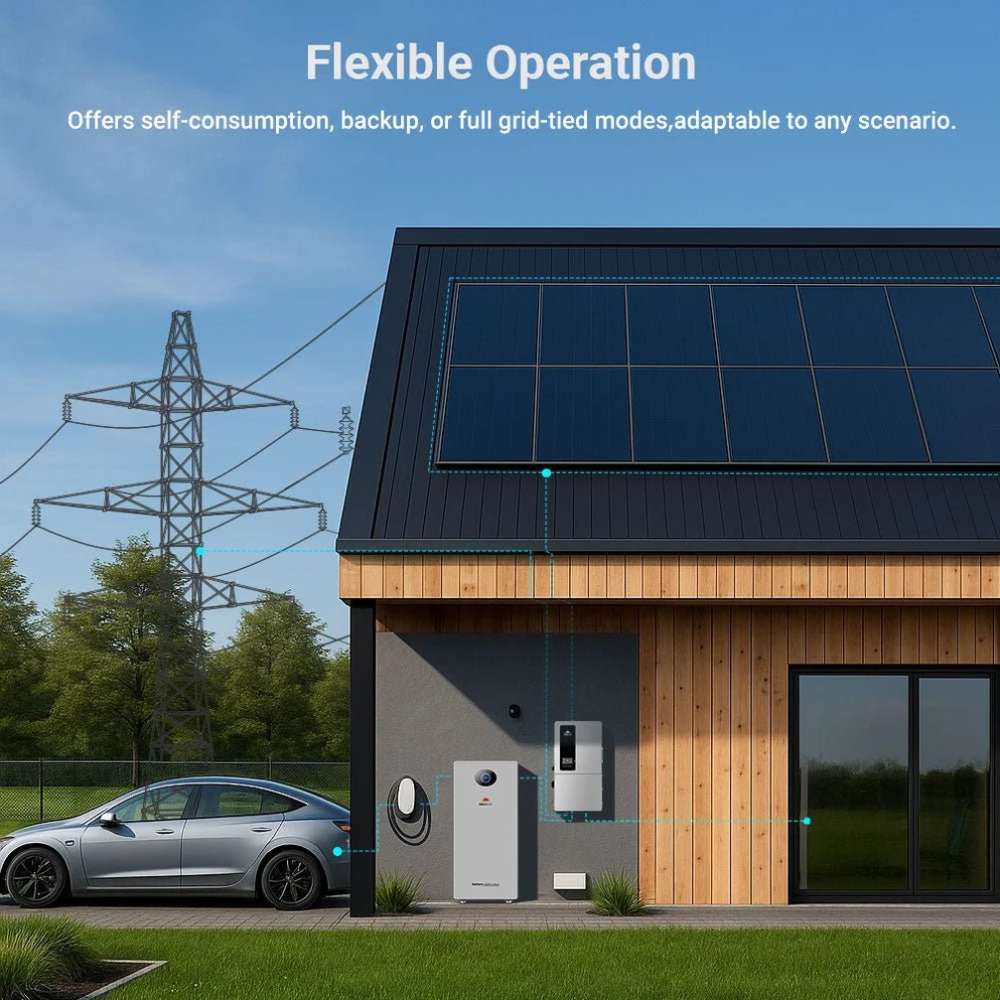

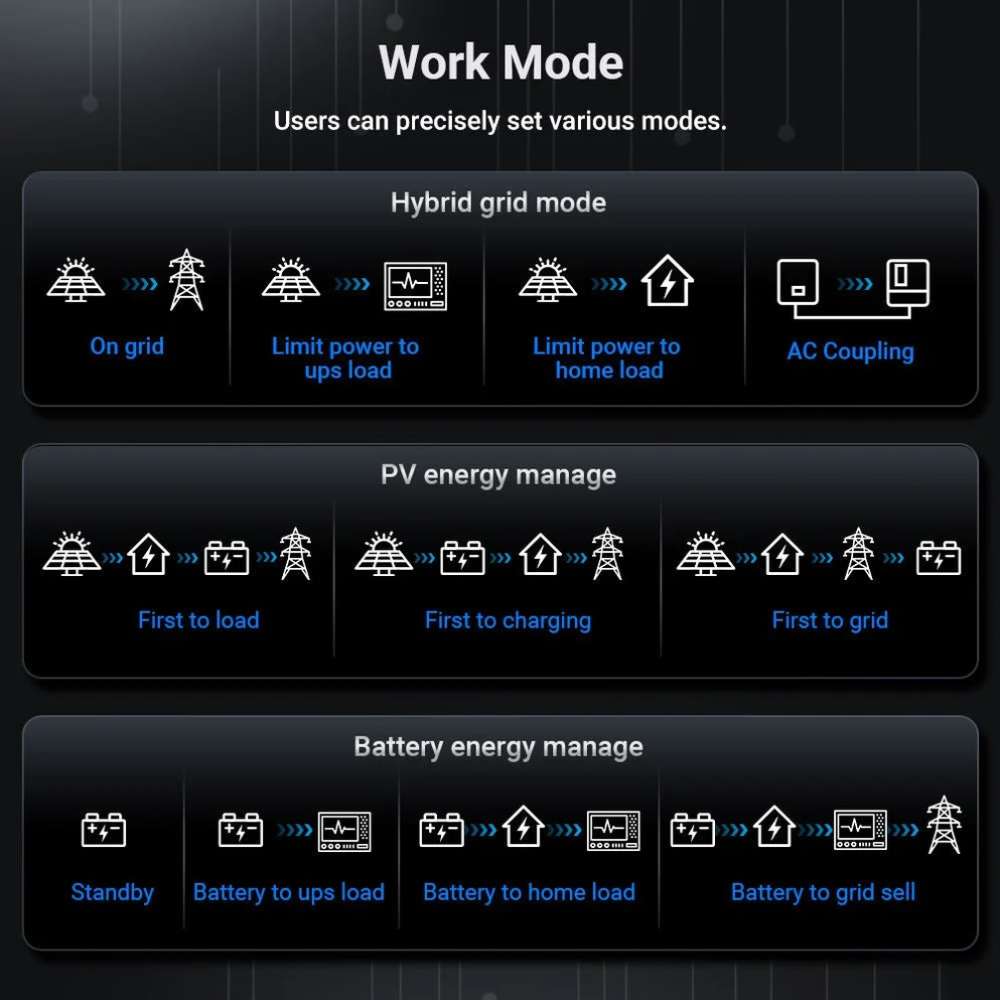

  • Operating Modes: On-Grid, Off-Grid, and Hybrid
  • Parallel Capability: Up to 6 Units (72kW Total Output)

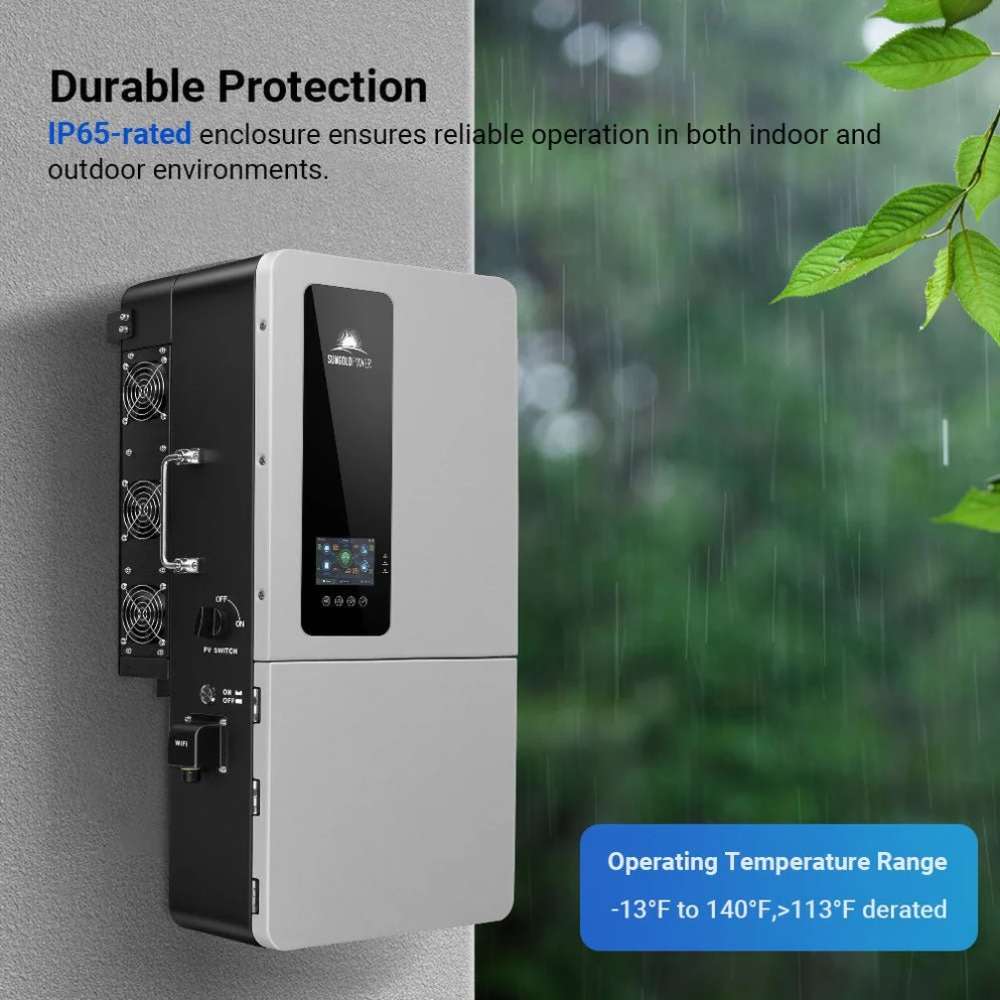

  • Protection Rating: IP65
  • Operating Temperature: -13°F to 140°F (-25°C to 60°C), Derated Above 113°F (45°C)

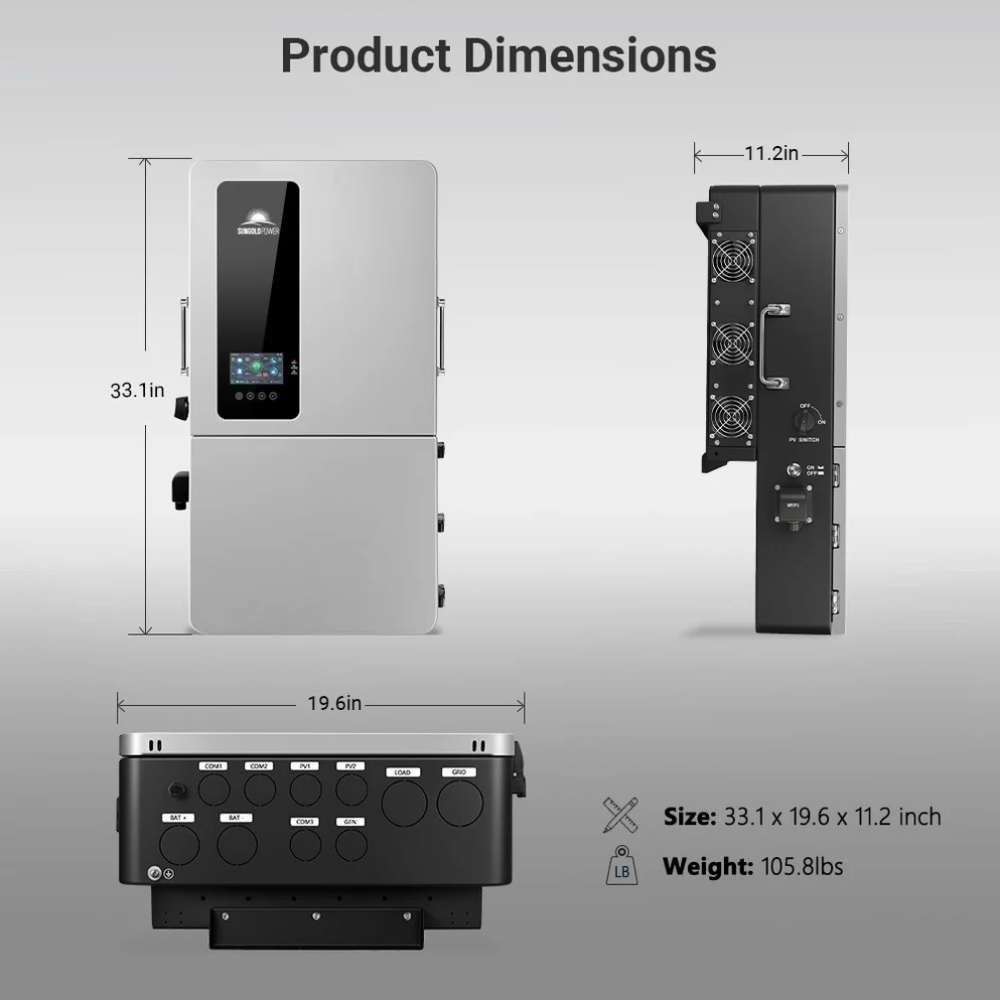

  • Dimensions: 33.1 × 19.6 × 11.2 in (840 × 498 × 285 mm)
  • Weight: 105.8 lb (48 kg)
  • Monitoring: WiFi Monitoring
  • Generator Compatibility: Supported
  • DC Input: 48V Battery System

Features

  • Pure sine wave output for stable, clean power.
  • Supports on-grid and off-grid operation.
  • Combines solar, battery, and grid power.
  • Dual MPPTs maximise solar energy harvest.
  • Delivers whole-home backup capability.
  • Supports split-phase and three-phase output.
  • Parallel up to six units.
  • Built-in WiFi for remote monitoring.
  • Compatible with generators for added backup.
  • Works with compatible 48V battery systems.
  • IP65-rated enclosure for indoor or outdoor installation.
  • Smart energy management optimises power usage.

Why Choose It?

Sun Gold Power 12kW 48V All-in-One Hybrid Solar Inverter combines high output with flexible energy management. It supports whole-home backup, hybrid operation, and future system expansion.

Recommended For

  • Whole-home backup systems
  • Off-grid homes
  • Grid-tied solar systems
  • Hybrid solar installations
  • Residential solar systems
  • Small business backup power
  • Workshops and garages
  • Farms and agricultural buildings
  • Battery storage systems
  • Generator-assisted power systems

Comfortably Powers

  • Refrigerators and freezers
  • LED lighting circuits
  • TVs and home entertainment systems
  • WiFi routers and networking equipment
  • Desktop computers and laptops
  • Kitchen appliances
  • Microwaves
  • Washing machines
  • Dishwashers
  • Air conditioners within capacity
  • Water pumps
  • Power tools
  • Electric ovens within available capacity
  • Multiple household appliances simultaneously

Where It Falls Short:

This hybrid inverter is designed for larger residential energy systems. It requires professional installation and a compatible 48V battery system.

  • Requires a 48V battery bank for operation.
  • Best suited for permanent installations rather than portable use.
  • Professional installation is recommended due to its size and electrical requirements.
  • Weighs 105.8 lb (48 kg), making it difficult to install alone.
  • Requires sufficient wall space for mounting.
  • Maximum PV input voltage is limited to 550VDC.
  • Battery system must be compatible with the inverter.
  • Parallel expansion is limited to a maximum of six units.

About Sun Gold Power Home Solar Energy Solutions

Sungold Home Solar Energy Solution empowers homes and businesses with dependable renewable energy systems designed for long-term performance. Inspired by a mission to make clean energy more accessible, the company envisions sustainable communities powered by solar technology.

Its products include solar panels, lithium batteries, hybrid inverters, and integrated energy storage solutions for various applications.
