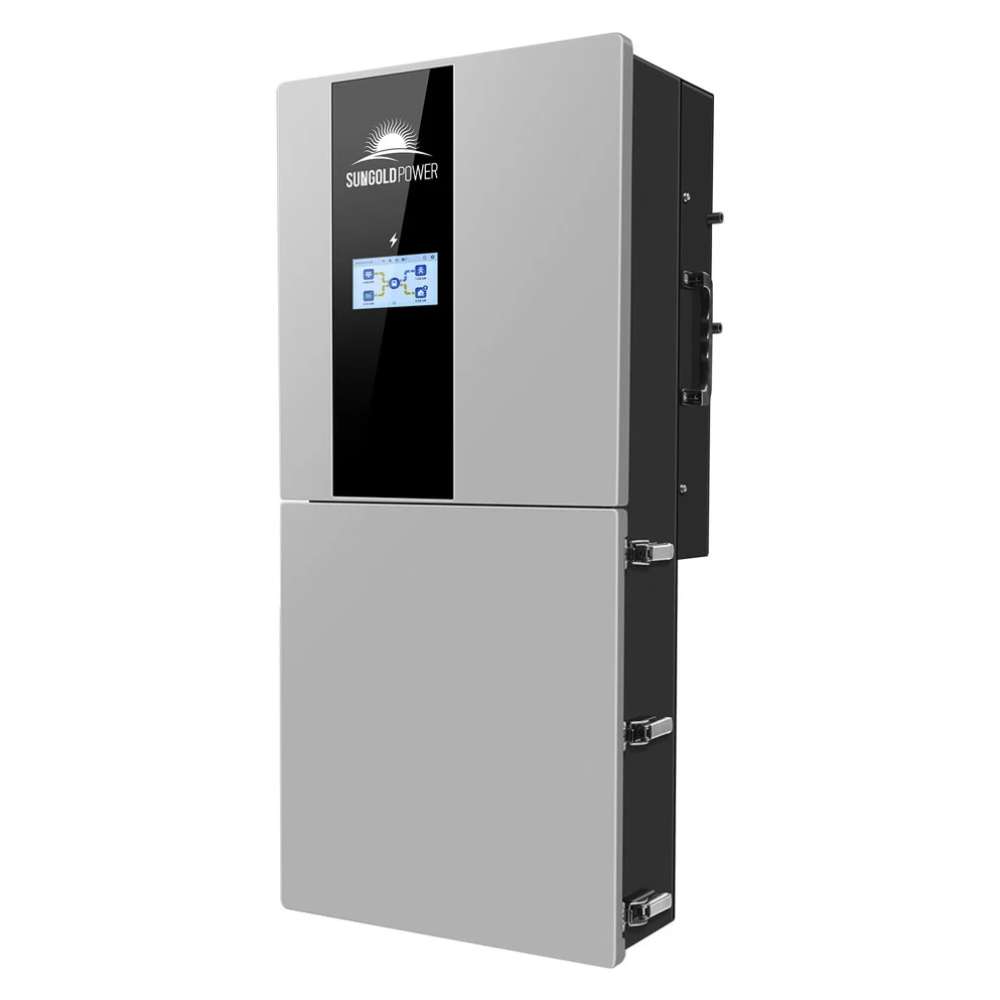

Front view of Sun Gold Power 11400W 48V Split Phase Hybrid Solar Inverter with a slim wall-mounted design and built-in LCD display

Sun Gold Power 11400W 48V Split Phase Hybrid Solar Inverter

SKU SGN-11K15PRO
Save $886.00
$3,986.00
$3,100.00
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Get Reliable Off-Grid Power With The Sun Gold Power 11.4kW Inverter

Sun Gold Power 11400W 48V Split Phase Hybrid Solar Inverter is a hybrid solar inverter designed for residential solar systems, whole-home backup, and off-grid or grid-connected applications. It combines solar generation, battery storage, and utility power in one efficient solution.

This pure sine wave inverter features an integrated inverter charger, split-phase output, dual MPPT solar charging, app monitoring, generator compatibility, and support for multiple battery types. With parallel capability and intelligent operating modes, it delivers dependable backup power while helping homeowners maximise solar energy use.

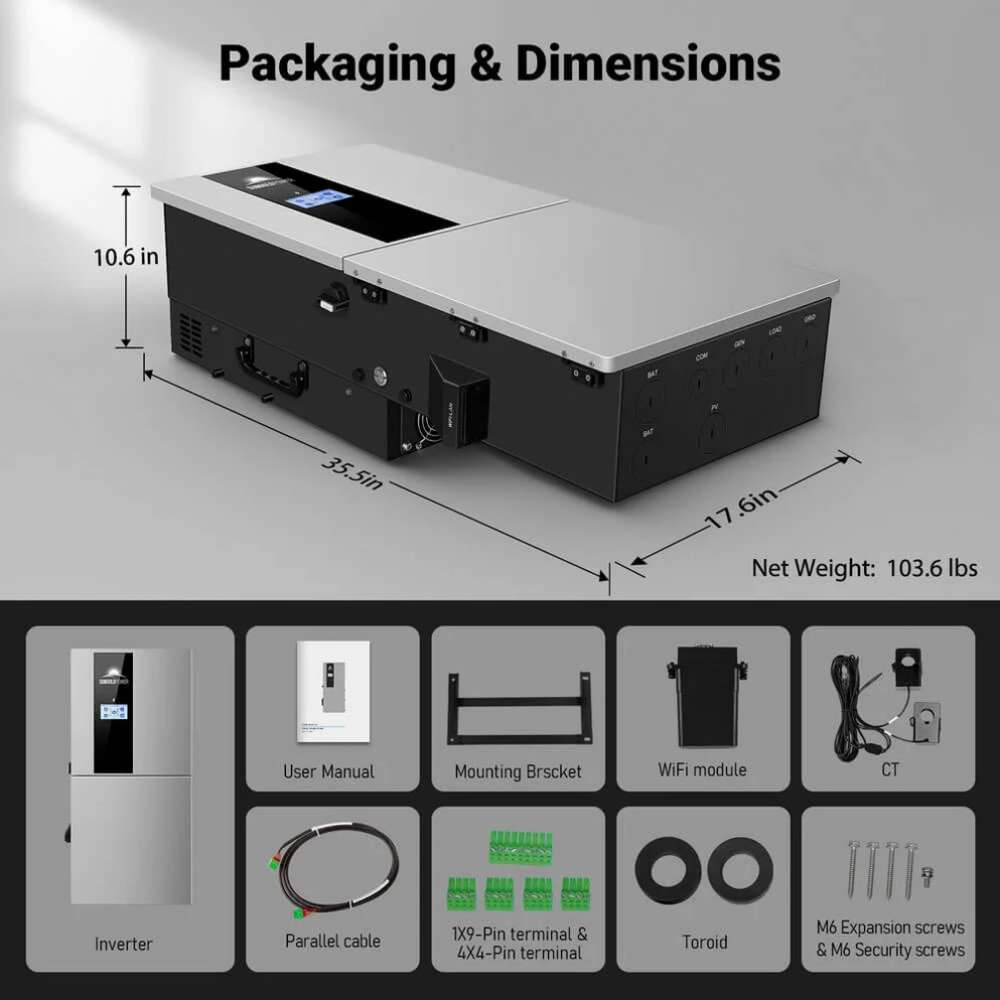

What's Included:

  • 1 x Sun Gold Power 11400W 48V Split Phase Hybrid Solar Inverter
  • 1 x Mounting Bracket
  • 1 x WiFi Module
  • 1 x CT
  • 1 x Parallel Cable
  • 1 x 9-Pin Terminal
  • 4 x 4-Pin Terminals
  • 2 x Toroids
  • 4 x M6 Expansion Screws
  • 4 x M6 Security Screws
  • User Manual
  • UL1741 Certification

Specifications

  • Continuous Power: 11,400W
  • Peak AC Output Power: 12,540W
  • DC Input Voltage: 48V nominal (51.2V nominal battery)
  • DC Input: Battery voltage range 40–64V

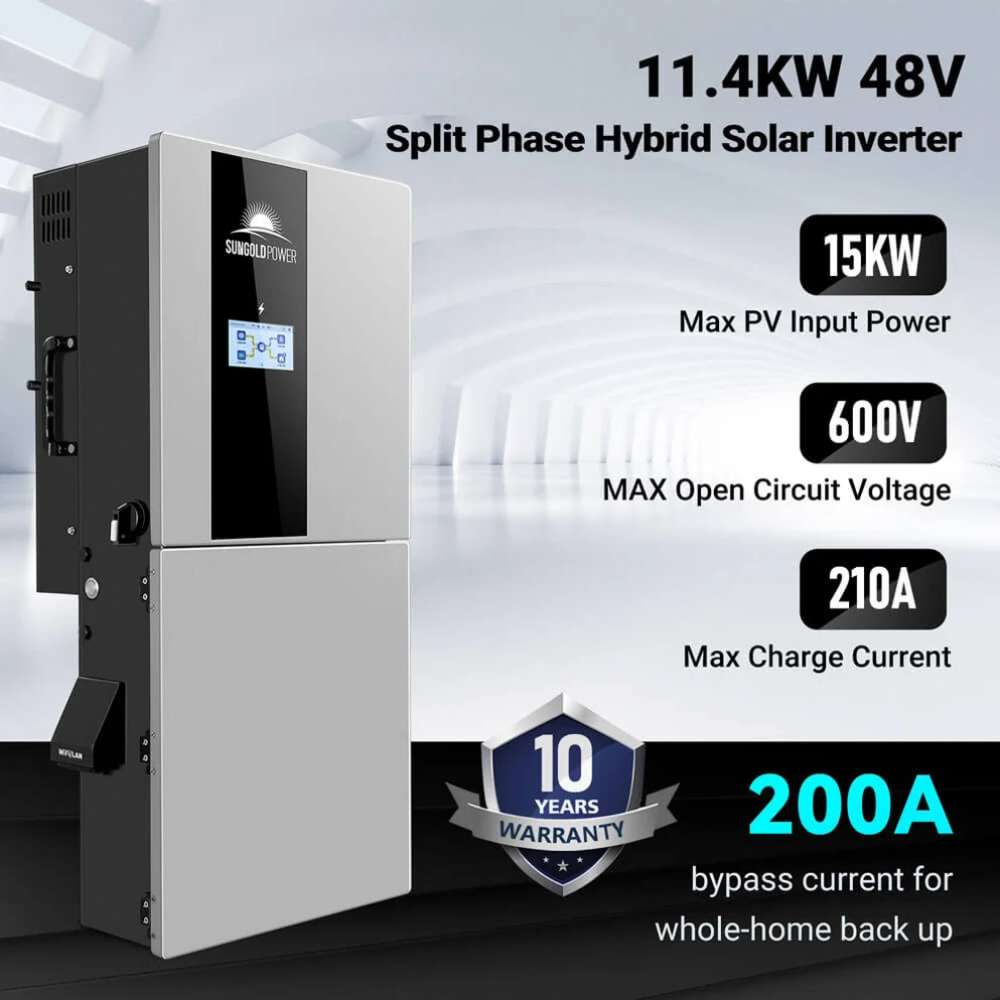

  • Maximum PV Input Power: 15,000W
  • Maximum PV Voltage: 600V DC
  • MPPT Voltage Range: 70–540V DC
  • Number of MPPTs: 3
  • Maximum Input Current: 30A / 22A / 22A per MPPT
  • AC Output Voltage: Split Phase 120/240V AC
  • Output Frequency: 50Hz / 60Hz
  • Waveform: Pure sine wave
  • Maximum Efficiency: 97.6%
  • CEC Efficiency: 96.5%

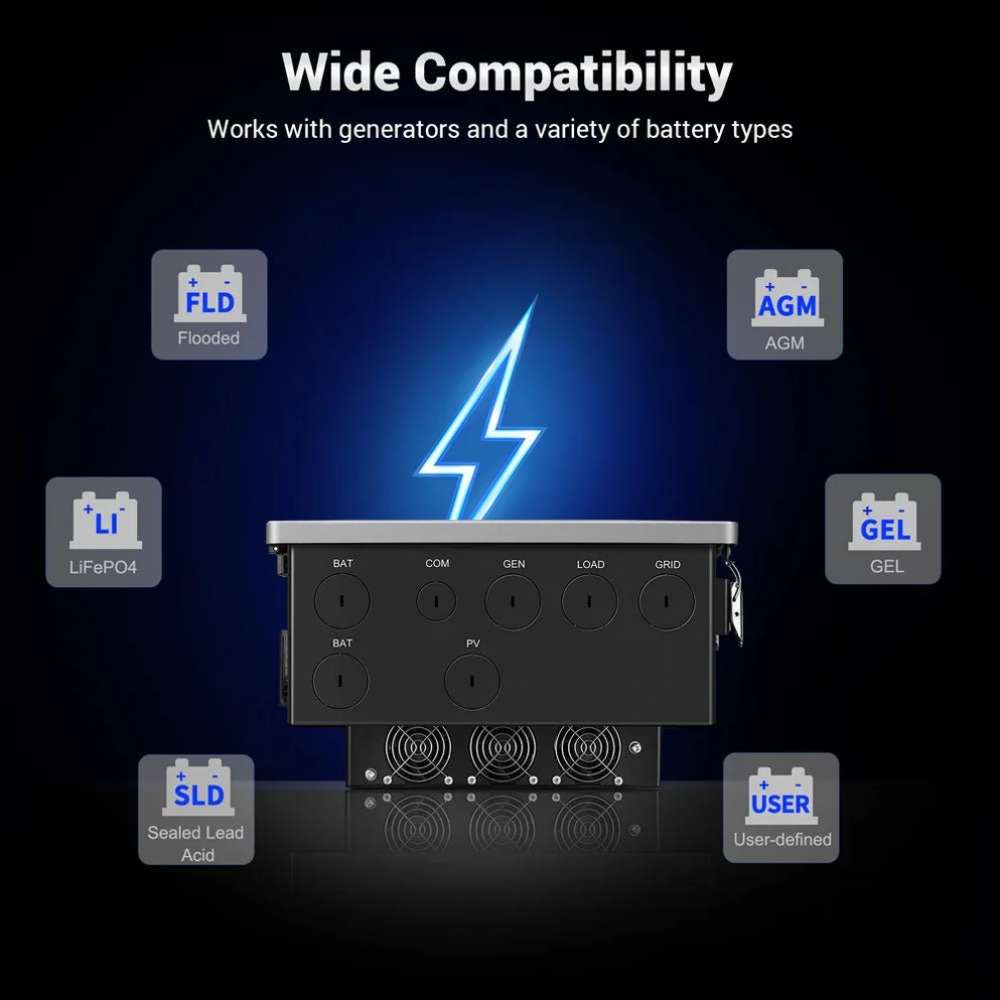

  • Battery Compatibility: Lithium-ion and Lead-acid
  • Maximum Charging Current: 210A
  • Maximum Discharging Current: 210A
  • Battery Charge Power: 10,000W
  • Transfer Switch: 200A whole-home backup bypass
  • Generator Compatibility: Supported
  • Parallel Capability: Up to 6 units

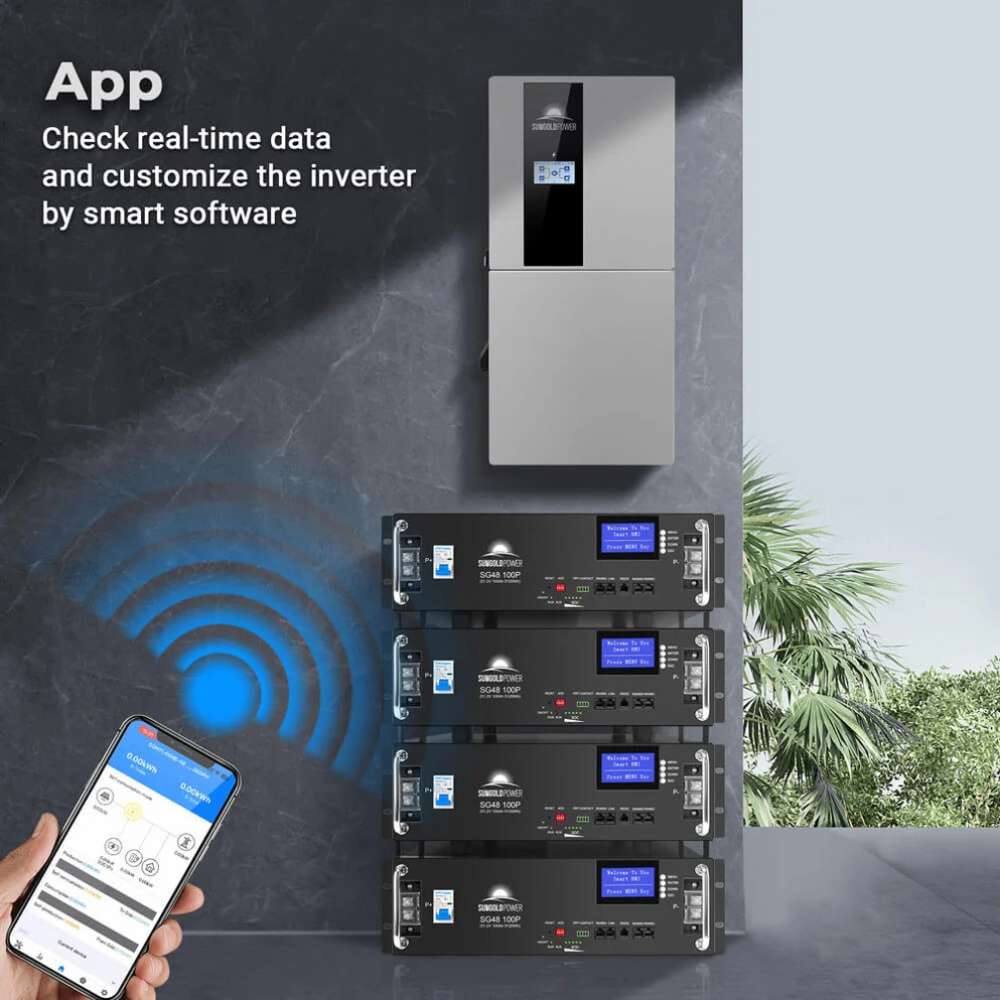

  • Monitoring: WiFi app monitoring
  • Protection Rating: IP65
  • Cooling: Smart air cooling
  • Dimensions: 690 × 420 × 233 mm (27.2 × 16.5 × 9.2 in)
  • Weight: 48 kg (105.8 lb)

Features

  • Hybrid operation for grid-tied and off-grid systems.
  • Delivers clean pure sine wave AC power.
  • Supports whole-home backup with 200A bypass.
  • Three MPPTs maximise solar energy harvesting.
  • AC coupling supports existing solar systems.
  • Compatible with lithium and lead-acid batteries.
  • Monitor and manage the system with WiFi.
  • Generator compatible for added backup flexibility.
  • Parallel multiple units for larger systems.
  • IP65 enclosure suits indoor and outdoor installation.

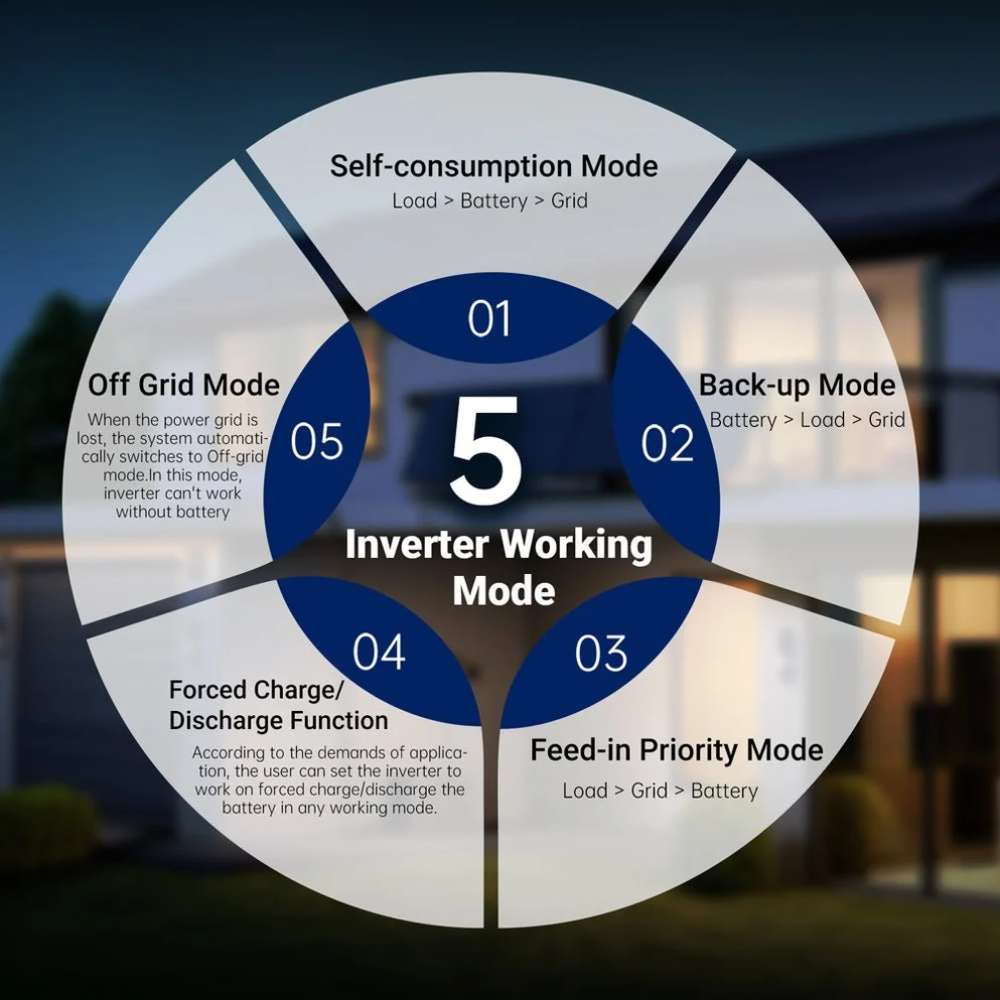

  • Intelligent energy management with multiple operating modes.
  • Wall-mounted design saves installation space.

Why Choose It?

Sun Gold Power 11400W 48V Split Phase Hybrid Solar Inverter combines hybrid operation with whole-home backup. It offers split-phase output, three MPPTs, WiFi monitoring, and support for multiple battery types.

Recommended For

  • Whole-home backup systems
  • Residential solar installations
  • Off-grid homes
  • Grid-tied solar systems with battery storage
  • Hybrid solar power systems
  • Workshops
  • Garages
  • Small farms
  • Remote properties
  • Generator-assisted backup systems

Comfortably Powers

  • Refrigerators and freezers
  • LED lighting throughout a home
  • Televisions and entertainment systems
  • Desktop computers and laptops
  • WiFi routers and networking equipment
  • Microwave ovens
  • Washing machines
  • Dishwashers
  • Coffee makers and kettles
  • Power tools
  • Air compressors
  • Well pumps
  • Electric ovens
  • Central air conditioners within the inverter's capacity
  • Multiple household appliances running simultaneously

Where It Falls Short:

This inverter is designed for larger solar power systems. It may be more than smaller homes or light-duty applications require.

  • Requires a 48V battery bank and is not compatible with 12V or 24V systems.
  • Designed for split-phase 120/240V installations rather than single-voltage systems.
  • The 15kW PV input capacity is best suited to larger solar arrays.
  • Weighs 48 kg (105.8 lb), so installation typically requires adequate wall support.
  • Parallel operation is supported, but additional units are required to increase system capacity.
  • Battery storage is not included and must be purchased separately.
  • WiFi monitoring requires the included WiFi module and compatible network access.
  • The 200A whole-home backup feature is intended for homes with compatible electrical service.
