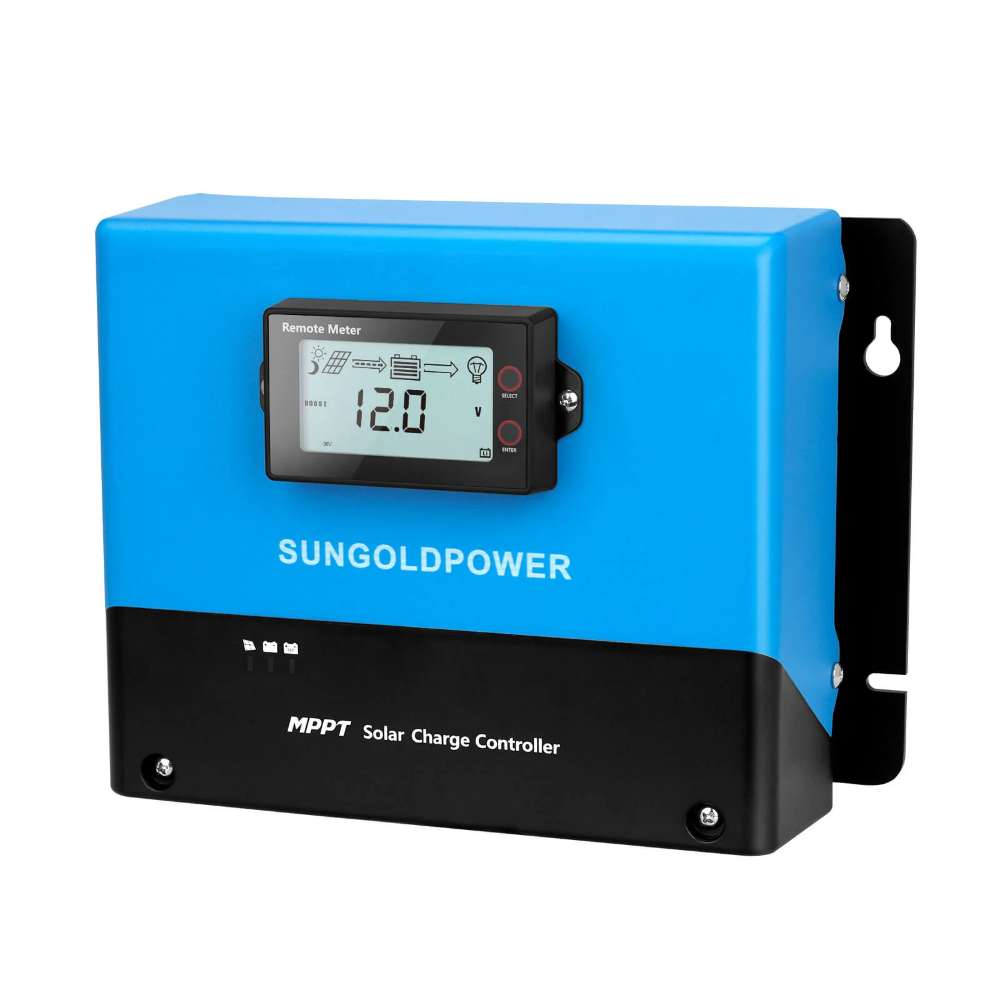

Front view of Sun Gold Power 100 Amp MPPT Solar Charge Controller with an LCD display and wall-mount design

Sun Gold Power 100 Amp MPPT Solar Charge Controller

SKU SGC4825100A
Save $30.00
$525.00
$495.00
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Get More From Your Hybrid Solar Inverter Kit With Sun Gold Power 100A

Sun Gold Power 100 Amp MPPT Solar Charge Controller is built for off-grid homes, RVs, cabins, marine systems, and residential solar installations that need efficient battery charging and dependable energy management.

Its advanced MPPT technology helps capture more solar energy, while built-in Bluetooth, an LCD display, parallel capability, and broad battery compatibility make monitoring and expanding your hybrid solar system simple and convenient.

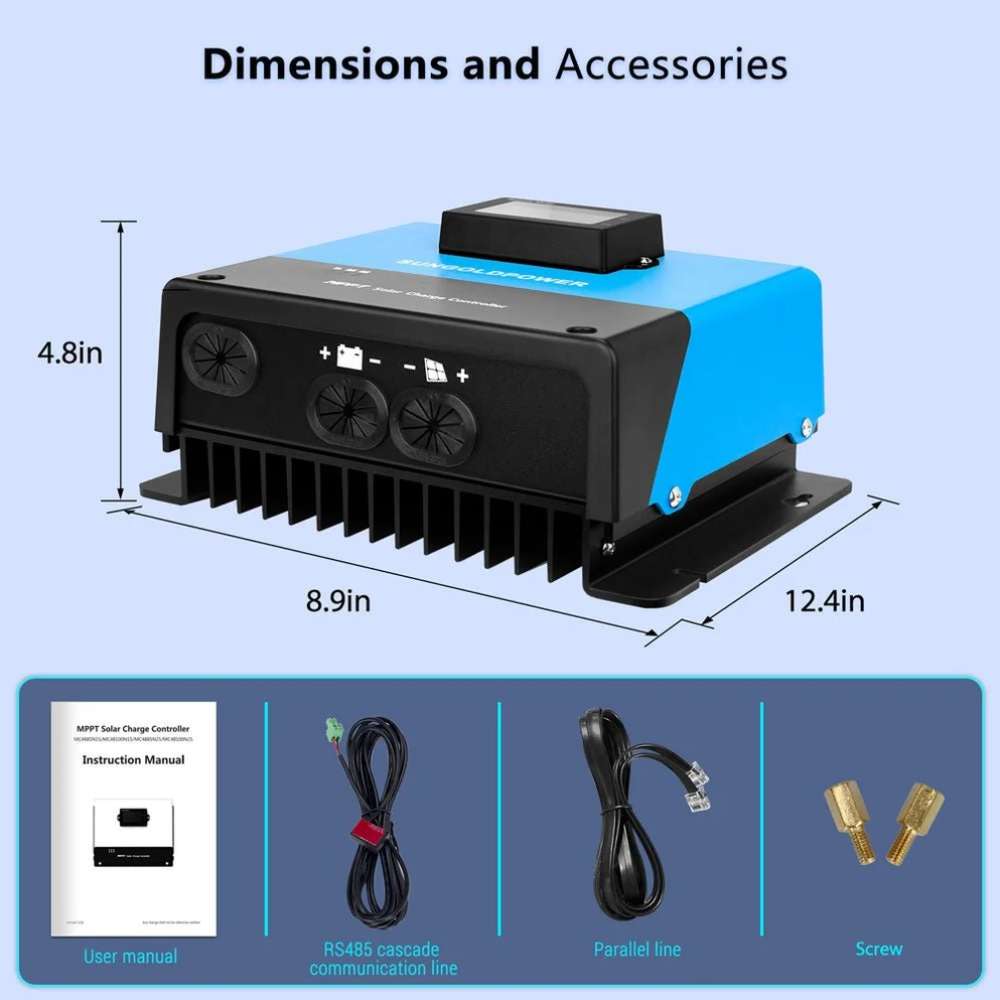

What's Included:

  • 1 x Sun Gold Power 100 Amp MPPT Solar Charge Controller
  • 1 x User Manual
  • 1 x RS485 cascade communication cable
  • 1 x Parallel communication cable
  • 2 x Mounting screws

Specifications

  • Rated Charge Current: 100A
  • System Voltage: 12V / 24V / 36V / 48V DC (auto detection)
  • Maximum PV Open-Circuit Voltage: 250V
  • Maximum PV Input Power: 1320W (12V), 2640W (24V), 3960W (36V), 5280W (48V)
  • MPPT Tracking Efficiency: Greater than 99%
  • Battery Voltage Range: 9V–64V

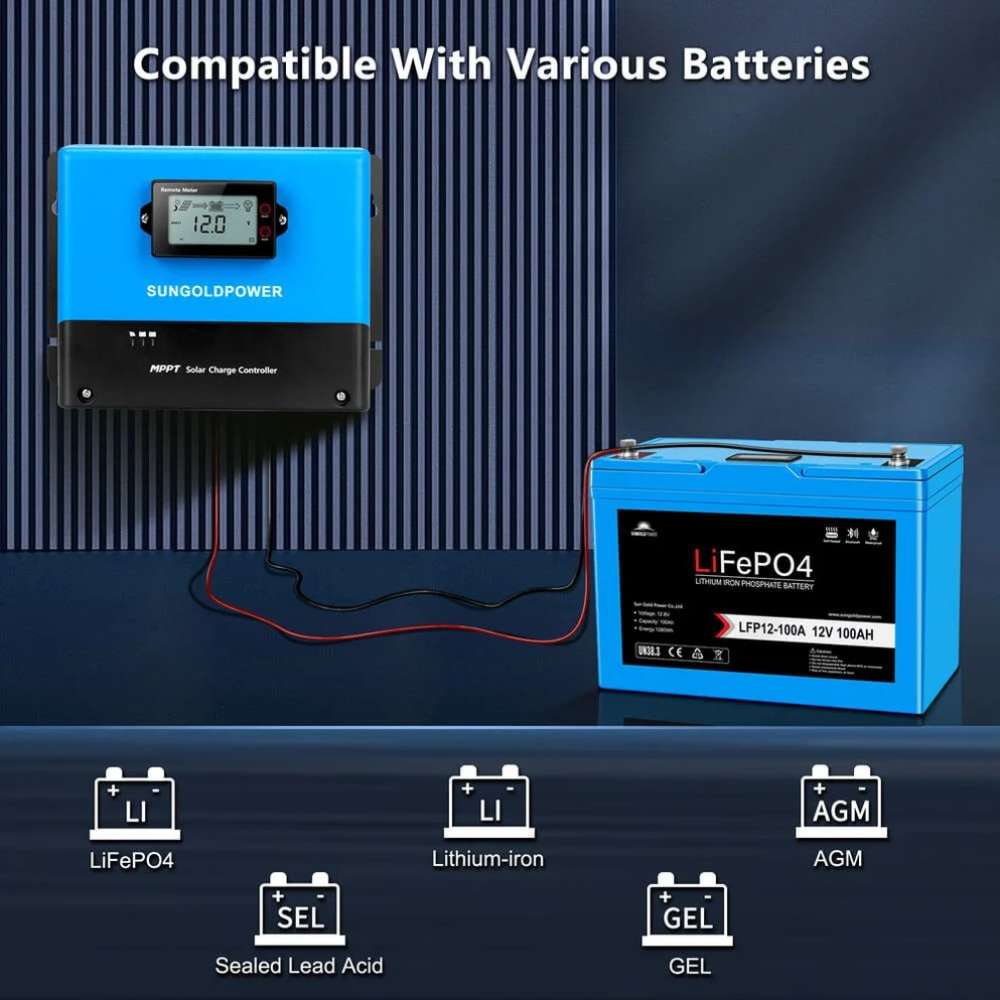

  • Compatible Battery Types: Lithium, Sealed Lead Acid, AGM, and User-Defined
  • Communication: TTL / Isolated RS485
  • Bluetooth: Built-in Bluetooth 4.0 BLE
  • Display: LCD display
  • Protection Rating: IP32
  • Operating Temperature: -35°C to +65°C
  • Temperature Compensation: -3mV/°C/2V (default)
  • Self-Consumption: 0.54W
  • Parallel Operation: Supported
  • Product Dimensions: 12.4 × 8.9 × 4.8 in
  • Weight: 12.5 lb

Features

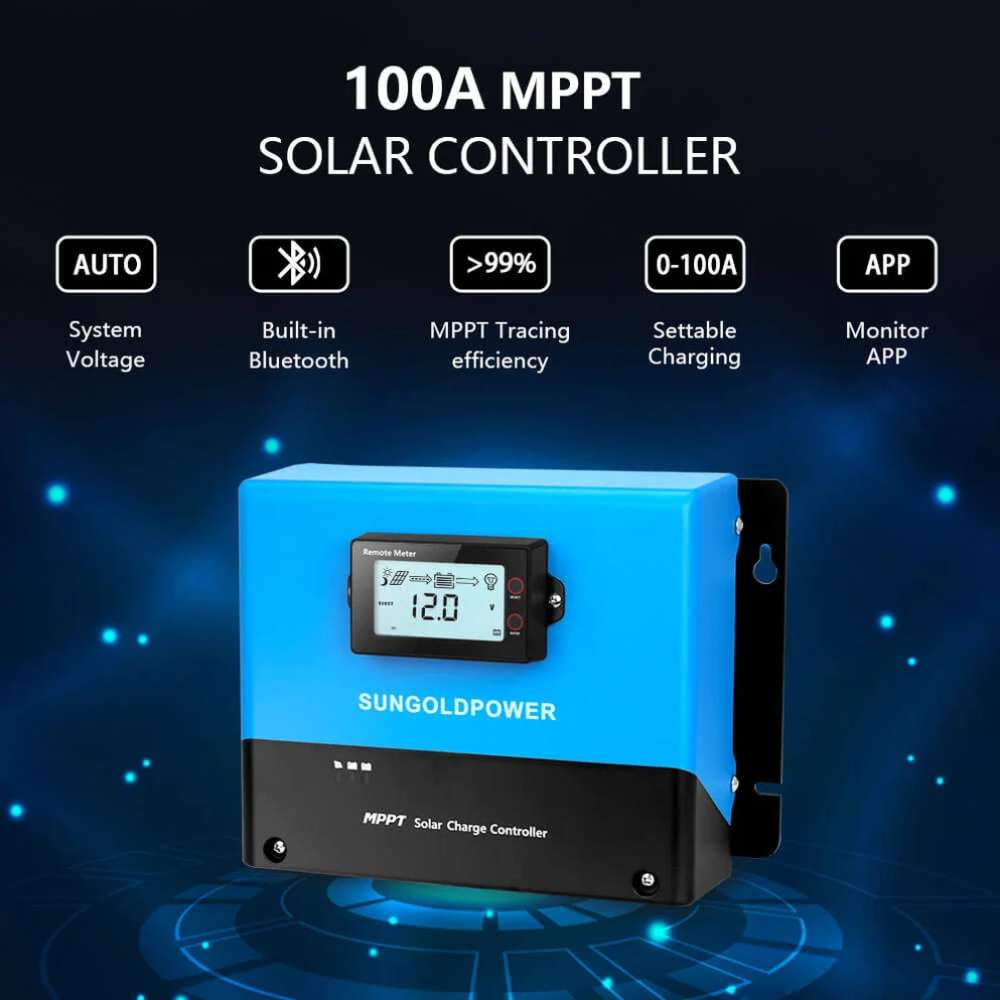

  • Automatically detects 12V, 24V, 36V, and 48V systems.
  • Maximizes solar energy with MPPT technology.
  • Supports lithium, AGM, and sealed batteries.
  • Allows custom battery settings.

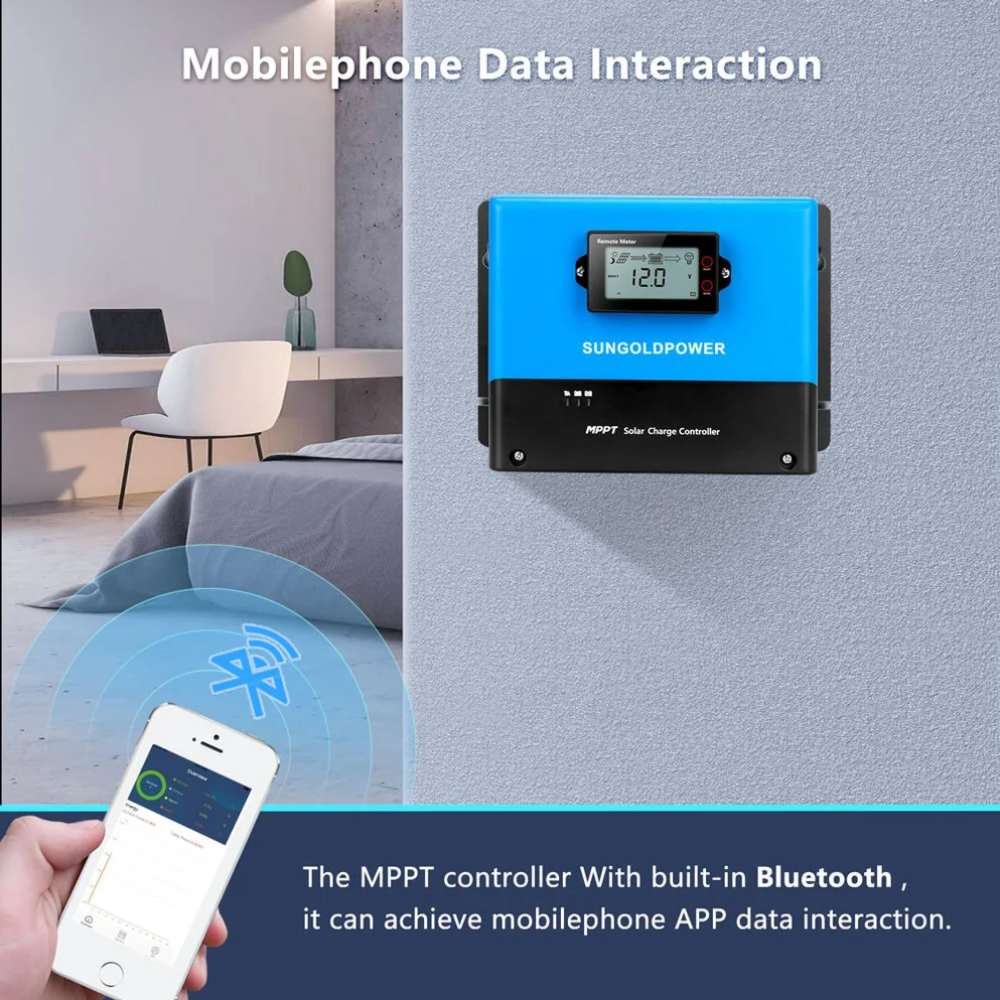

  • Built-in Bluetooth enables mobile app monitoring.
  • LCD screen displays real-time system status.
  • Supports parallel operation for system expansion.

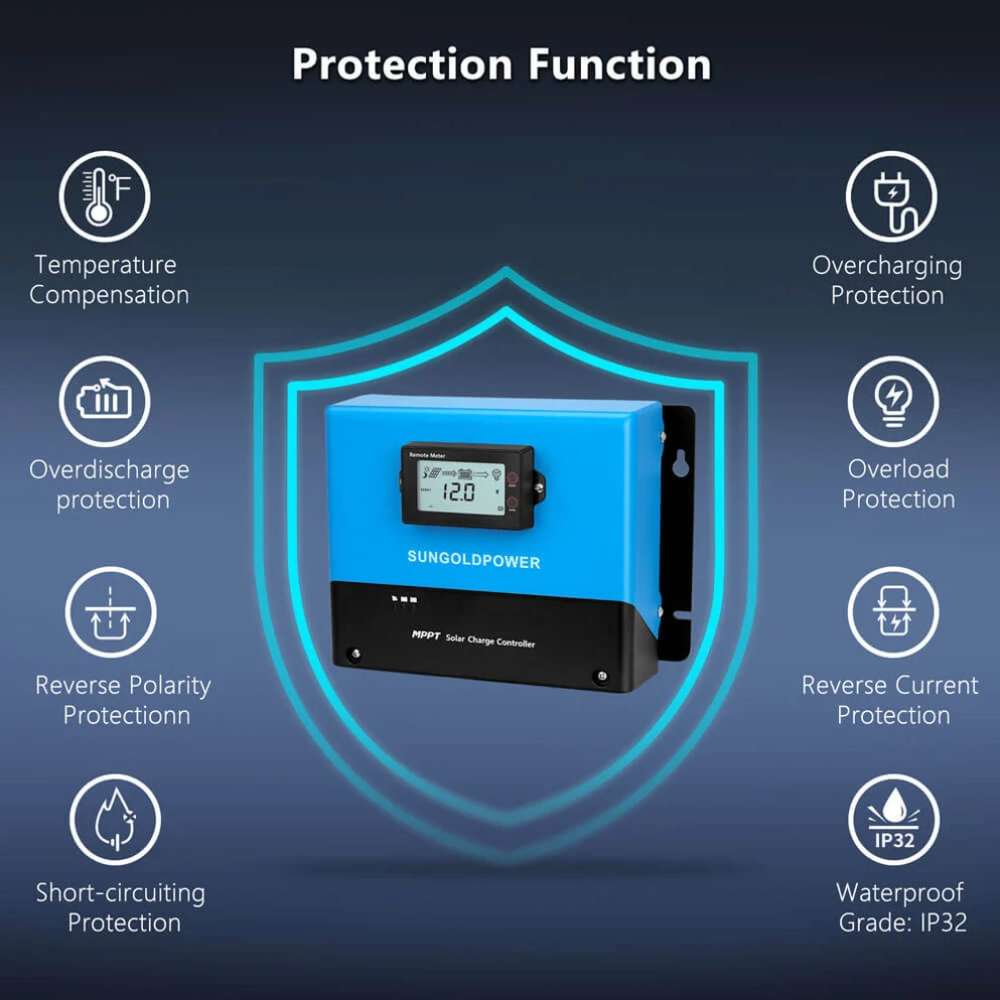

  • Includes over-temperature protection.
  • Features current-limited charging.
  • Displays customizable parameters and error codes.
