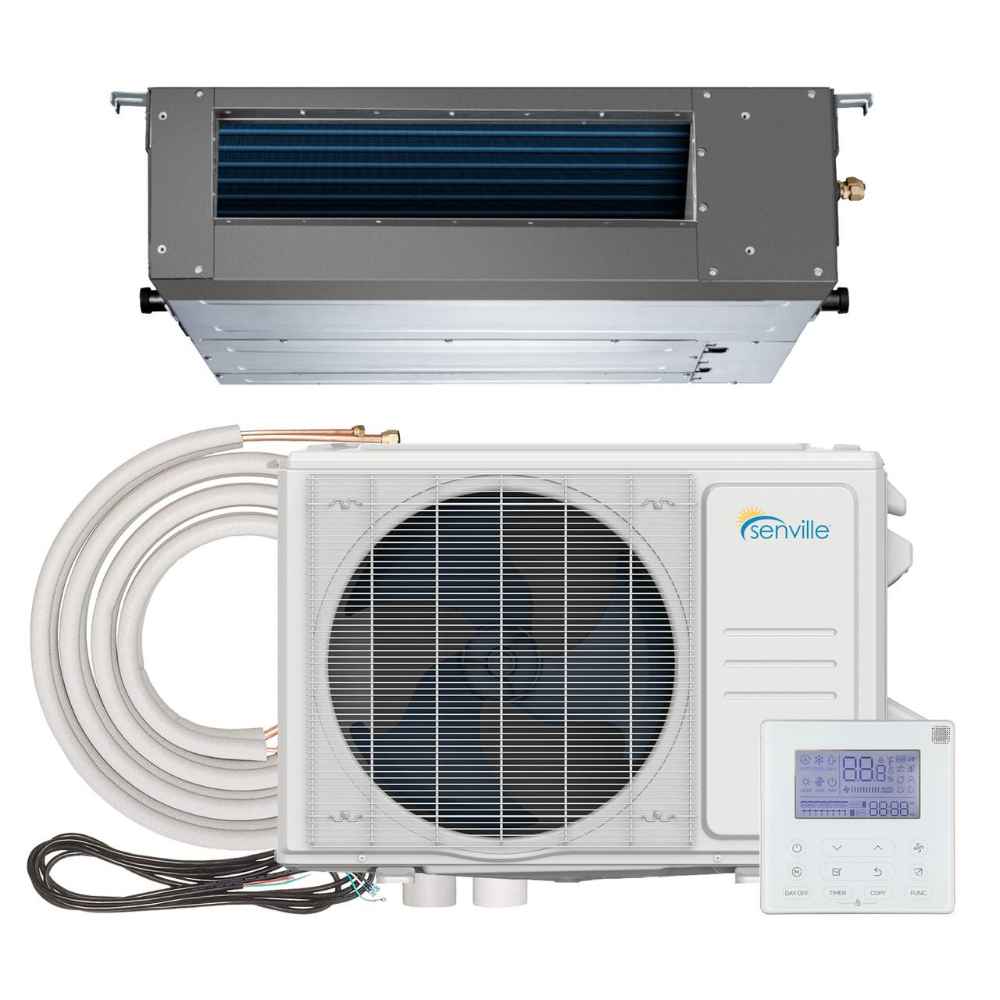

Complete set of Senville 9000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA09HFID, including the indoor unit, outdoor compressor, connecting cables, and a digital wall-mounted control panel

Senville 9000 BTU Concealed Duct Air Conditioner - SENA/09HF/ID

Save $219.01
$1,319.00
$1,099.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 9000 BTU Concealed Duct Air Conditioner is a climate control appliance that functions as both an air conditioner and a heat pump. This SENA/09HF/ID model is a mini split air conditioner designed for discreet installation within ductwork. It is available with multiple installation kit options, including 16ft, 25ft, and 50ft lengths, or without a kit. This unit is suitable for homeowners seeking a concealed heating and cooling solution for individual rooms or zones.
FREE Shipping

2 Weeks Delivery

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Heating and Cooling Made Sleek and Seamless

Senville 9000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID is a powerful yet discreet system designed to deliver year-round comfort without taking up visible space. Its slim concealed duct design allows seamless installation in ceilings or walls, offering quiet operation, consistent airflow, and a clean, modern look for any home or office.

What's Included?

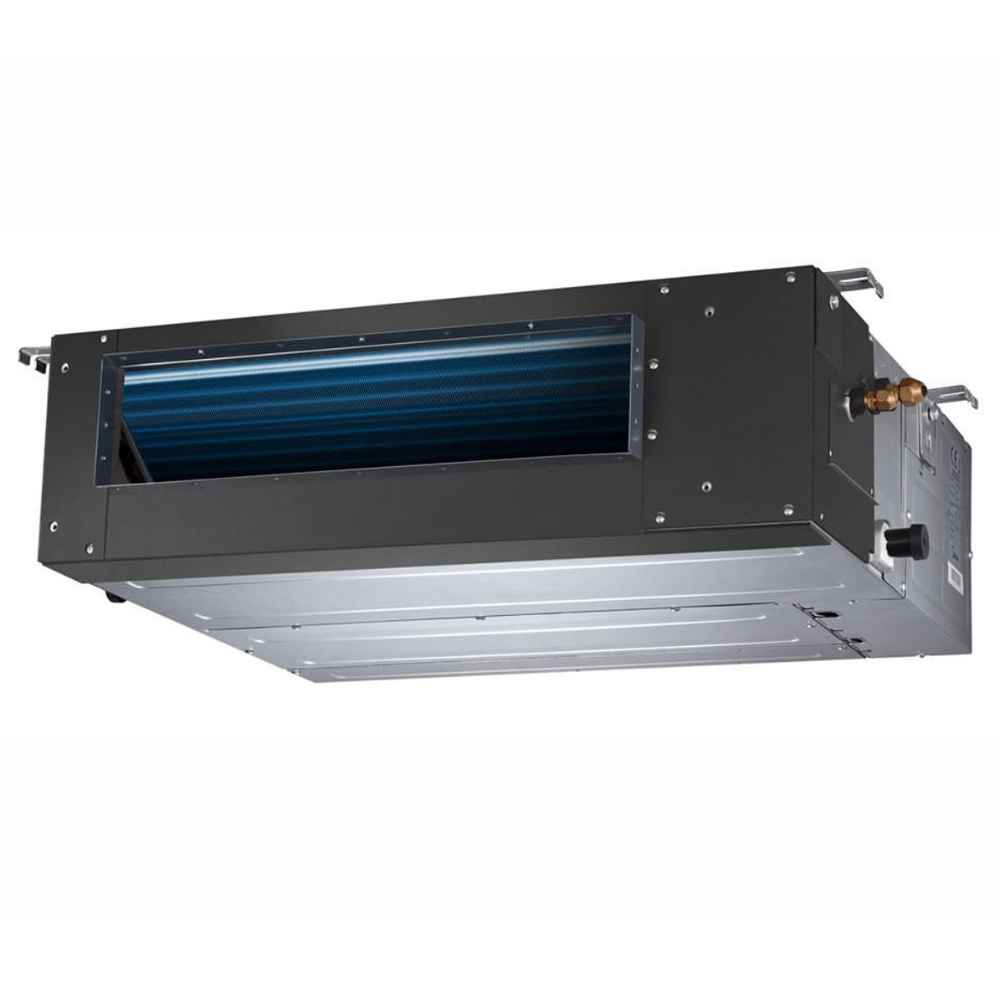

  • Indoor Unit

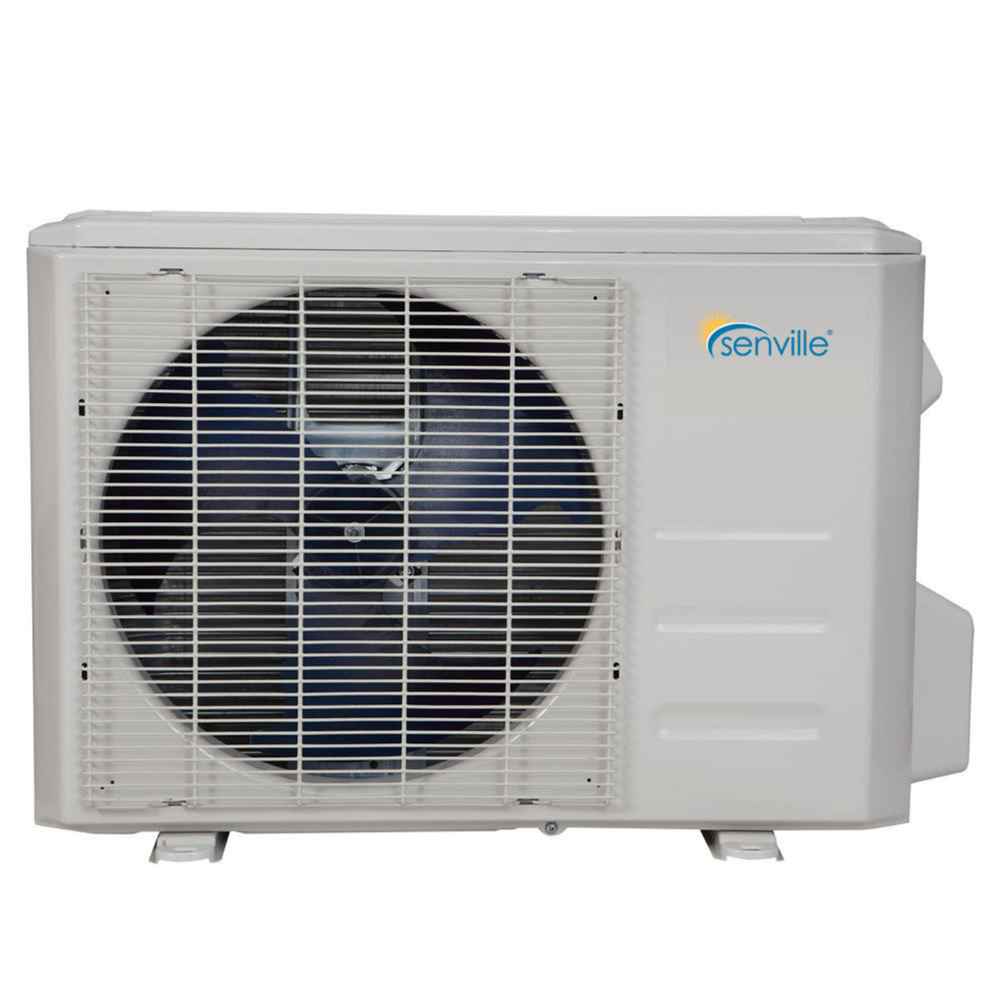

  • Outdoor Unit
  • Wireless Remote Control
  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty

Technical Specs

  • Style: Concealed Duct Mini Split AC With Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 21.4
  • EER2: 13.4
  • Cooling Capacity (BTU): 9000
  • Cooling Range (BTU): 3400~13500
  • Cooling Input Range (W): 145~1200
  • Cooling Current Range (A): 1.3~5.5
  • Heating Capacity (BTU): 10000
  • Heating Range (BTU): 3800~16200
  • Heating Input Range (W): 260~1450
  • Heating Current Range (A): 1.9~6.5
  • HSPF2-4: 12.5
  • HSPF2-5: 9.7
  • COP W/W: 3.53
  • Minimum Circuit Ampacity (A): 15
  • Max. Fuse (A): 15
  • Indoor Air Flow (Turbo/H/M/L) CFM: 400.2 / 323.7 / 264.9 / 176.6
  • Indoor Noise Level (/H/M/L) dB: 32.5 / 31 / 29.5
  • Indoor Dimensions (WxDxH) (in.): 27.56 x 19.92 x 7.87
  • Indoor Weight: 39.46 Lbs
  • Outdoor Air Flow (Max) CFM: 1470.6
  • Outdoor Noise Level dB: 56
  • Outdoor Dimensions (WxDxH) (in.): 31.69 x 12.99 x 21.81
  • Outdoor Weight: 72.75 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge oz: R454B / 35.27
  • Refrigerant Pre-charge: 25 Ft.
  • Connection Wiring: 14*4 AWG
  • Thermostat Type: Wired Control
  • Alexa: Enabled
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

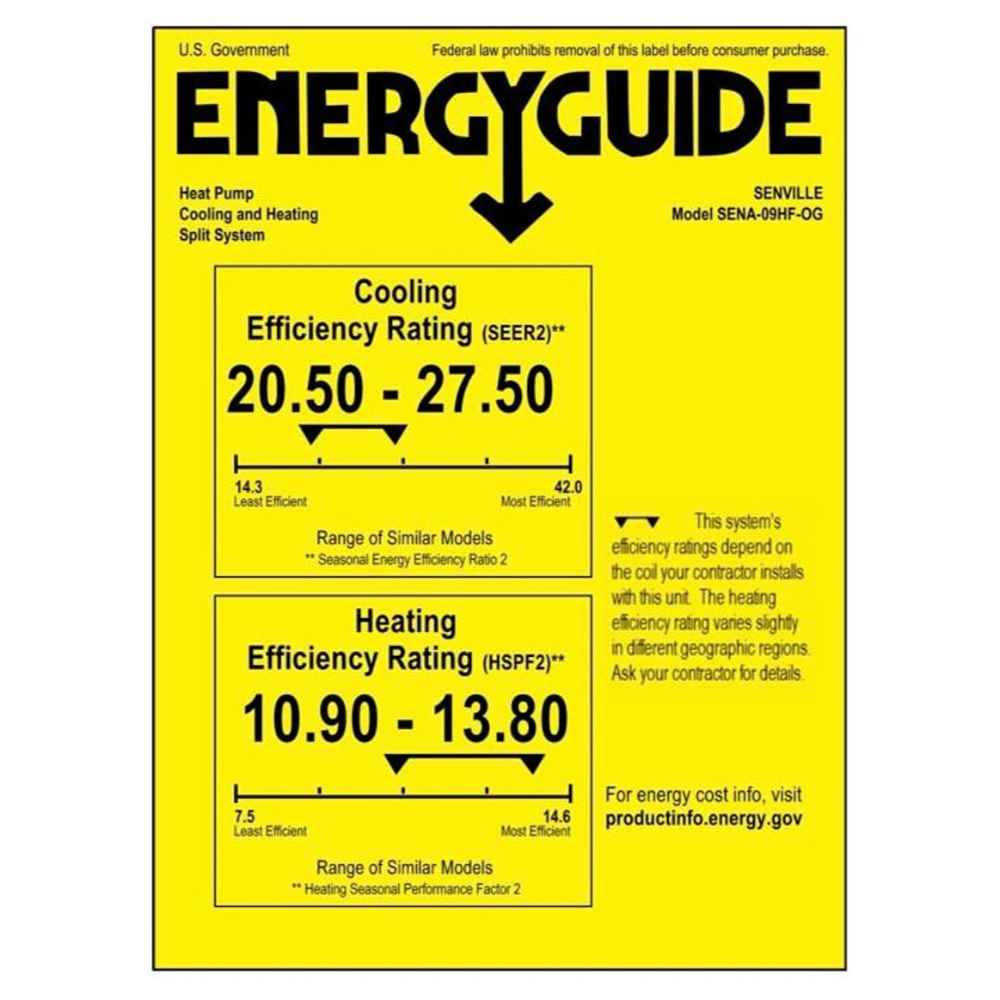

  • 21.4 SEER2 ENERGY STAR: This unit is ENERGY STAR certified with an impressive 21.4 SEER2 rating, giving you powerful performance while saving money on energy bills.
  • Heating Down to -30°C (-22°F): Built for extreme climates, it delivers reliable heating even in freezing temperatures, making it ideal for cold winters.
  • Cold Climate Heat Pump: Designed for efficiency in all seasons, this system ensures dependable heating and cooling year-round, even in harsh conditions.
  • Diagnostics & Leak Detection: Advanced technology continuously monitors system performance, helping detect issues early and keeping maintenance simple.
  • Compact Concealed Design: Installed in ceilings or walls, the unit stays hidden while delivering powerful airflow, keeping your home sleek and modern.
  • Quiet Operation: Engineered for whisper-quiet performance, it lets you enjoy comfort without the noise of traditional systems.
  • Consistent Comfort: With precise airflow control, it evenly cools and heats every corner of your space for maximum comfort.
  • Professional Installation: Designed for expert setup, it ensures long-lasting efficiency, performance, and peace of mind from day one.

Documentations & Certifications

  • ENERGY STAR Certified
  • Green Energy Pledge Friendly

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
