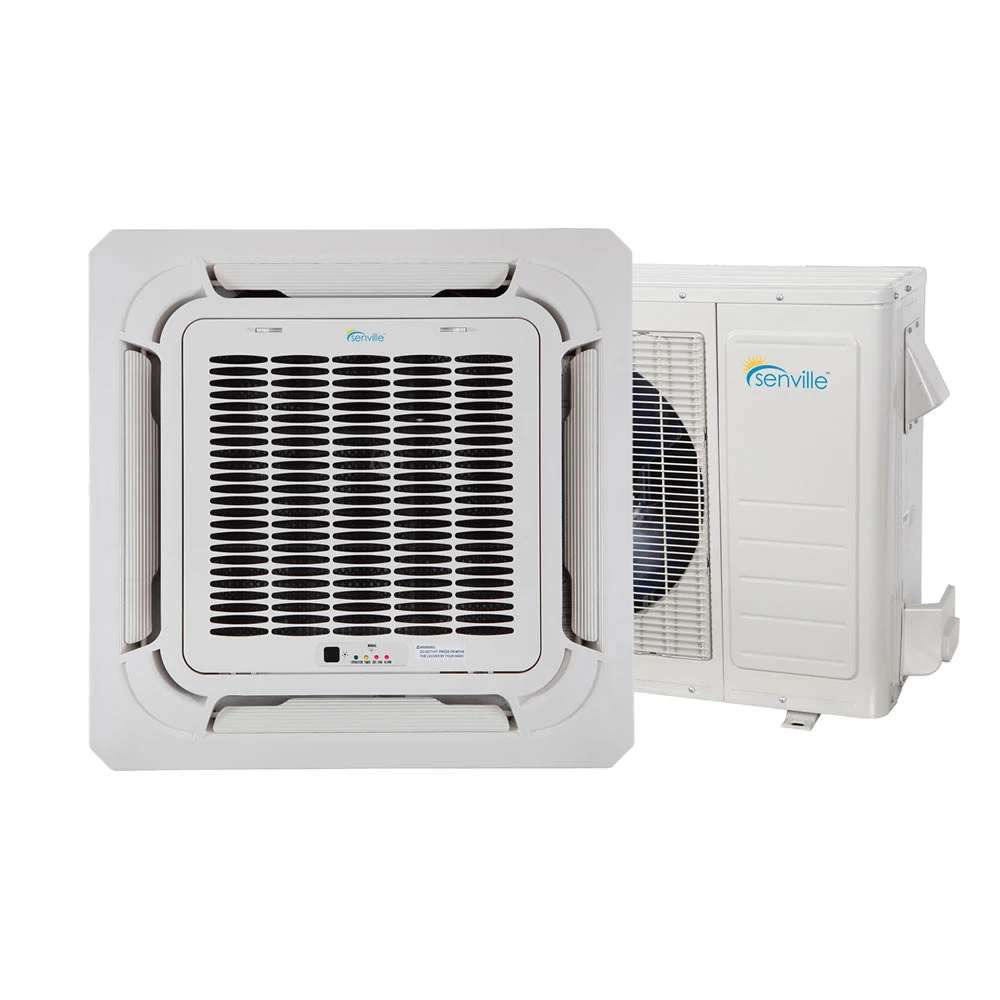

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC indoor cassette and outdoor condenser system shown together

Senville 24000 BTU Ceiling Cassette AC/Heat - SENA/24HF/IC

Save $360.00
$2,129.99
$1,769.99
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

The Senville 24000 BTU Ceiling Cassette Air Conditioner is a mini split air conditioner and heat pump system designed for climate control. This SENA/24HF/IC model provides both cooling and heating functions for household environments. It is available with multiple installation kit options, including 16ft, 25ft, and 50ft lengths, or can be purchased without a kit. This unit is perfect for homeowners seeking a ceiling-mounted solution for temperature regulation in large rooms.
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Enjoy Energy Efficient Comfort With The Senville 24K BTU AC System

Senville 24000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/24HF/IC is a ceiling-mounted AC system made for powerful cooling and heating. Its 24000 BTU capacity works well for larger rooms, offices, and open spaces. The heat pump design helps provide year-round comfort, while the ceiling cassette style keeps the unit neat and space-saving.

What's Included?

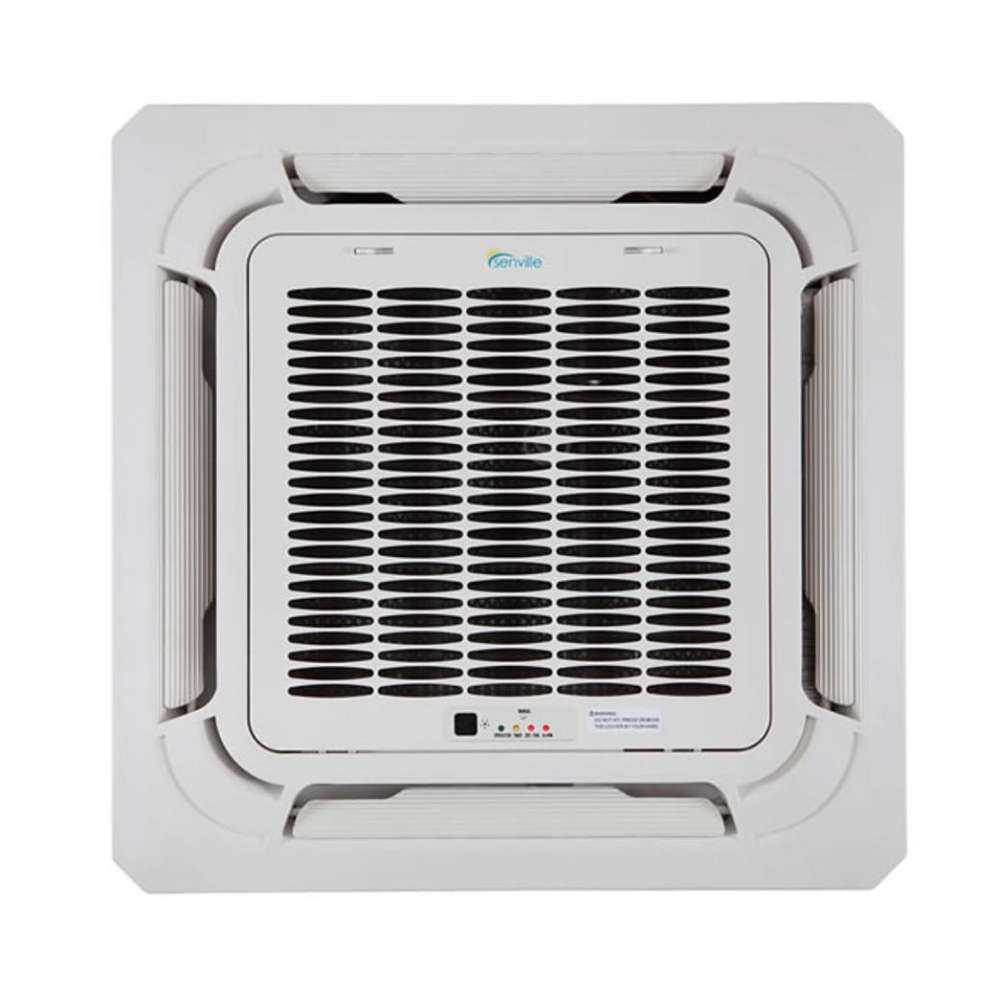

  • Indoor Unit (Ceiling Cassette)

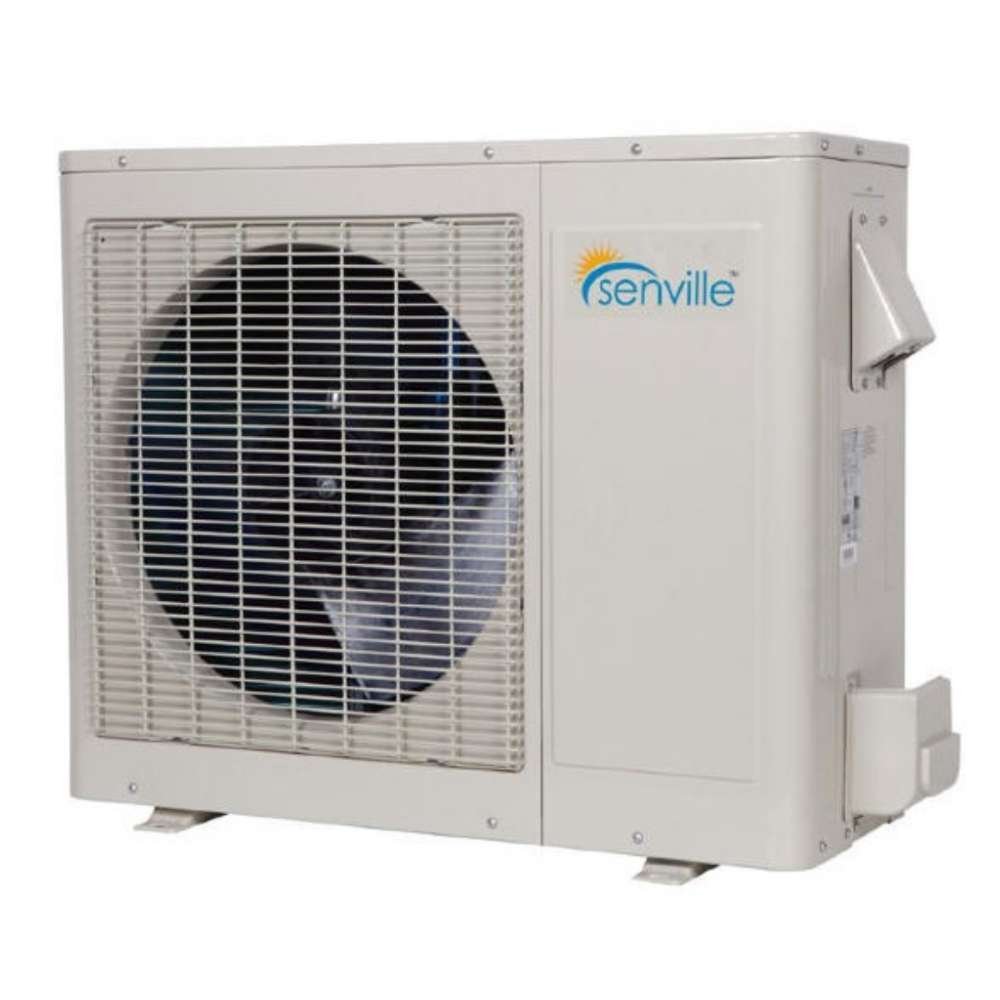

  • Outdoor Unit

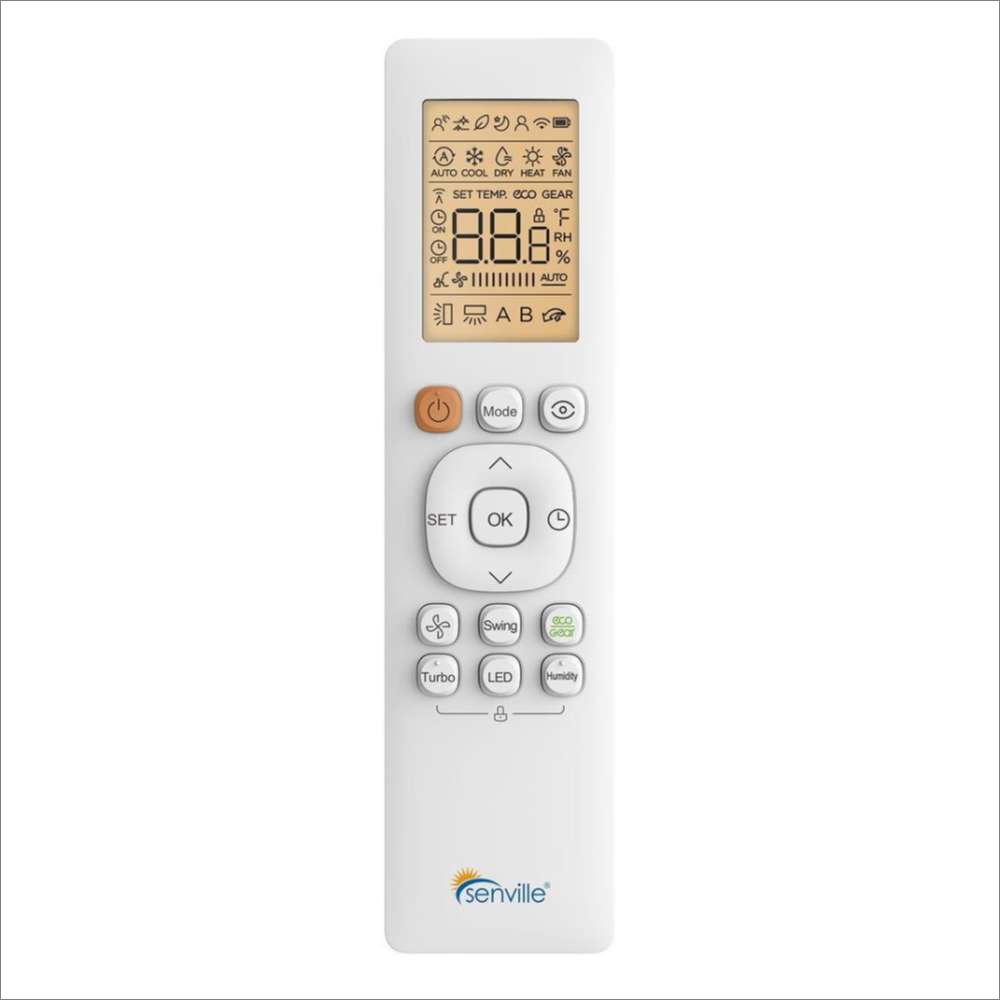

  • Wireless Remote Control
  • 16 ft. Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty

Technical Specs

  • Style: Ceiling Cassette Mini Split AC With Heat Pump
  • Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
  • Voltage Range: 187-253
  • SEER2: 20.7
  • EER2: 12
  • Cooling Capacity (BTU): 23400
  • Cooling Range (BTU): 128000~26200
  • Cooling Input Range (W): 960~2300
  • Cooling Current Range (A): 4.3~10.1
  • Heating Capacity (BTU): 25000
  • Heating Range (BTU): 11500~30700
  • Heating Input Range (W): 695~2490
  • Heating Current Range (A): 3.8~10.9
  • HSPF2-4: 11.6
  • HSPF2-5: 9.2
  • COP W/W: 3.54
  • Minimum Circuit Ampacity (A): 25
  • Max. Fuse (A): 25
  • Indoor Air Flow (Turbo/H/M/L) CFM: 765.2 / 706.3 / 635.7 / 547.4
  • Indoor Noise Level (Turbo/H/M/L) dB: 48.5 / 45.0 / 42.5 / 33.5
  • Indoor Dimensions (WxDxH) (in.): 32.68 x 32.68 x 8.07
  • Indoor Weight: 47.18 Lbs.
  • Moisture Removal (L/H): 2.36
  • Outdoor Air Flow (Max) CFM: 2236.7
  • Outdoor Noise Level dB: 61.5
  • Outdoor Dimensions (WxDxH) (in.): 37.24 x 16.14 x 31.89
  • Outdoor Weight: 130.29 Lbs
  • Minimum Outdoor Heating Temperature: -22°F / -30°C
  • Refrigerant Type / Charge oz: R454B / 63.49
  • Refrigerant Pre-charge: 25 Ft.
  • Connection Wiring: 14*4 AWG
  • Thermostat Type: Remote Control
  • Warranty: 10 Years Compressor / 5 Years Parts

Features

  • 20.7 SEER2 ENERGY STAR: High-efficiency ceiling cassette AC helps lower energy costs by up to 40% annually.
  • Cold Climate Heating: Heat pump system delivers reliable heating in temperatures down to -30°C (-22°F).
  • Ultra Quiet Operation: Quiet ceiling cassette air conditioner works well in bedrooms, offices, and living spaces.
  • Professional Installation Required: Professional HVAC installation helps maintain warranty coverage and peak system performance.
  • ENERGY STAR Certified: ENERGY STAR certified mini split system provides efficient heating and cooling for homes and businesses.
  • Cold Climate Heat Pump Technology: Advanced heat pump delivers dependable winter heating with up to 75% efficiency in cold climates.
  • Diagnostics and Leak Detection: Built-in diagnostics and refrigerant leak detection support easier maintenance and long-term efficiency.
  • 10 Year Warranty Coverage: Ceiling cassette heat pump includes a 10-year compressor warranty and 5-year parts coverage.
  • Installation Kit and Accessories Included: Mini split AC system includes installation accessories and pre-charged R454B refrigerant for up to 25 feet.

Documentations & Certifications

About Senville Heating and Cooling Products

Born from a passion for comfort and efficiency, Senville has been crafting high-quality heating and cooling solutions since 2001. Blending innovation with reliability, they deliver energy-efficient systems designed to keep homes perfectly comfortable, season after season.
