Senville 12000 BTU Mini Split AC/Heat - ELITE Series

The Senville 12000 BTU Mini Split Air Conditioner from the ELITE Series functions as both a cooling unit and a heat pump for climate control. This household appliance is available with multiple installation kit lengths, including 16-foot, 25-foot, and 50-foot options, or can be purchased without a kit. Customers may also choose to include an installation quote with their order. It is a versatile choice for homeowners looking to regulate indoor temperatures throughout the year using a dedicated split system.

Senville 12000 BTU Mini Split Air Conditioner - Heat Pump - ELITE Series is a ductless mini split AC and heat pump built for efficient cooling and heating. It offers 12000 BTU performance, inverter technology, smart control, and quiet operation for bedrooms, living rooms, offices, or other small spaces. This heating and cooling system is a practical choice if you want year-round comfort, lower energy use, and a clean wall-mounted design.

Key specs

• Style: Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187–253

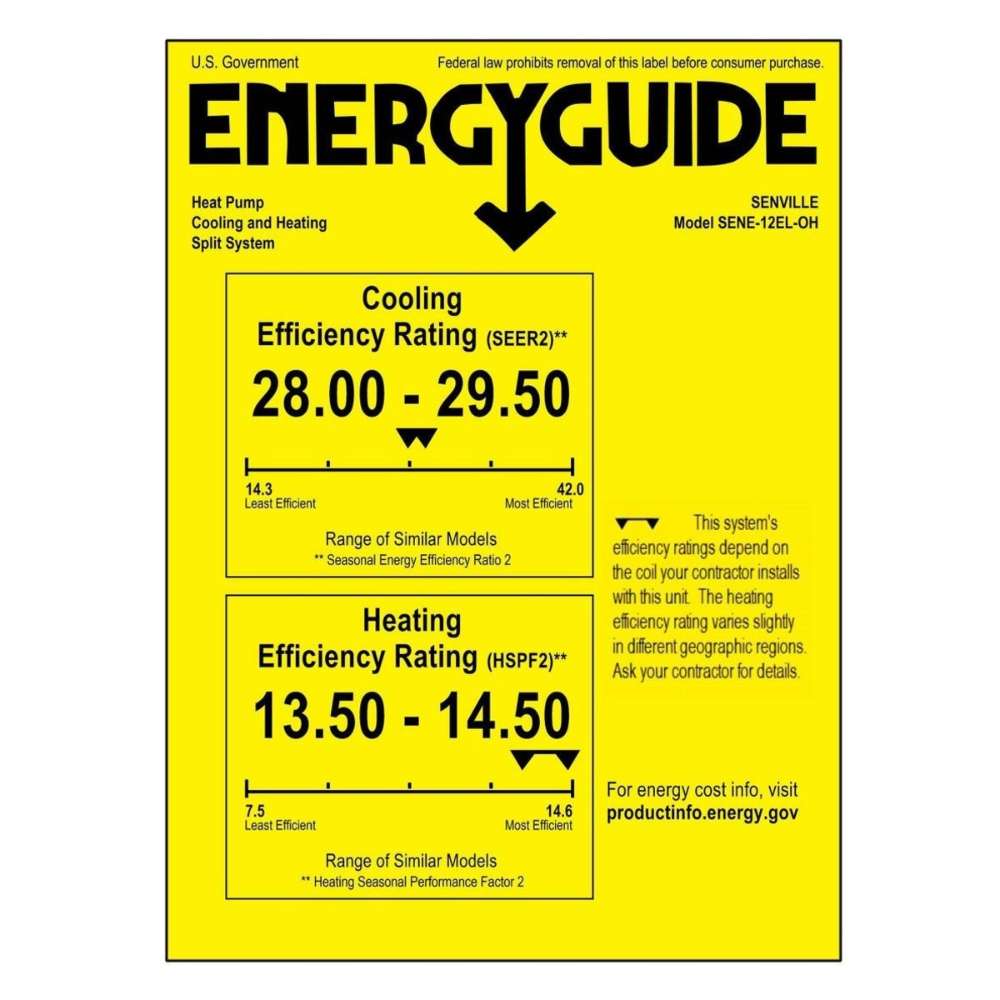

• SEER2: 29.4
• EER2: 14.2
• Cooling Capacity (BTU): 12000
• Cooling Range (BTU): 3100~16500
• Cooling Input Range (W): 180~1380
• Cooling Current Range (A): 1.2~6.2
• Heating Capacity (BTU): 12000
• Heating Range (BTU): 4100~17200
• Heating Input Range (W): 200~1585
• Heating Current Range (A): 1.1~7.2
• HSPF2-4: 14.5
• COP W/W: 3.60
• Minimum Circuit Ampacity (A): 3.0
• Max. Fuse (A): 15
• Indoor Air Flow (Turbo/H/M/L) CFM: 559.2 / 423.8 / 211.9 / 153.0
• Indoor Noise Level (Turbo/H/M/L) dB: 41.5 / 41.5 / 33 / 23
• Indoor Dimensions (WxDxH): 40.04 x 9.53 x 12.56 in
• Indoor Weight: 28.22 lb
• Moisture Removal (L/H): 0.5
• Outdoor Air Flow (Max) CFM: 1470.6
• Outdoor Noise Level dB: 57
• Outdoor Dimensions (WxDxH): 35.04 x 13.46 x 26.50 in
• Outdoor Weight: 99.65 lb
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge: R454B / 44.09 oz
• Refrigerant Pre-charge: 24.67 ft
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Alexa: Enabled
• Warranty: 10 Years Compressor / 10 Years Parts

Features

• Elite Series Performance: High-efficiency 12,000 BTU mini split air conditioner delivers powerful heating and cooling with quiet operation.
• 29.4 SEER2 Efficiency: ENERGY STAR certified mini split heat pump helps lower energy bills by up to 58% annually.
• Cold Climate Heating: Advanced heat pump technology provides reliable heating down to -22°F for year-round comfort.
• Alexa Smart Control: Control your ductless mini split with Alexa voice commands or a smartphone app from anywhere.
• Ultra-Quiet Operation: Low-noise air conditioning system creates a comfortable environment for bedrooms, offices, and living spaces.
• 500-750 Sq. Ft. Coverage: 12,000 BTU heating and cooling system is ideal for medium-sized rooms and open areas.
• Smart Home Integration: WiFi-enabled climate control allows remote temperature adjustments, scheduling, and energy management.
• Auto Diagnostics Protection: Built-in diagnostics and refrigerant leak detection help maintain efficient system performance.
• 10-Year Warranty Coverage: Backed by a 10-year compressor warranty and 10-year parts warranty for long-term peace of mind.

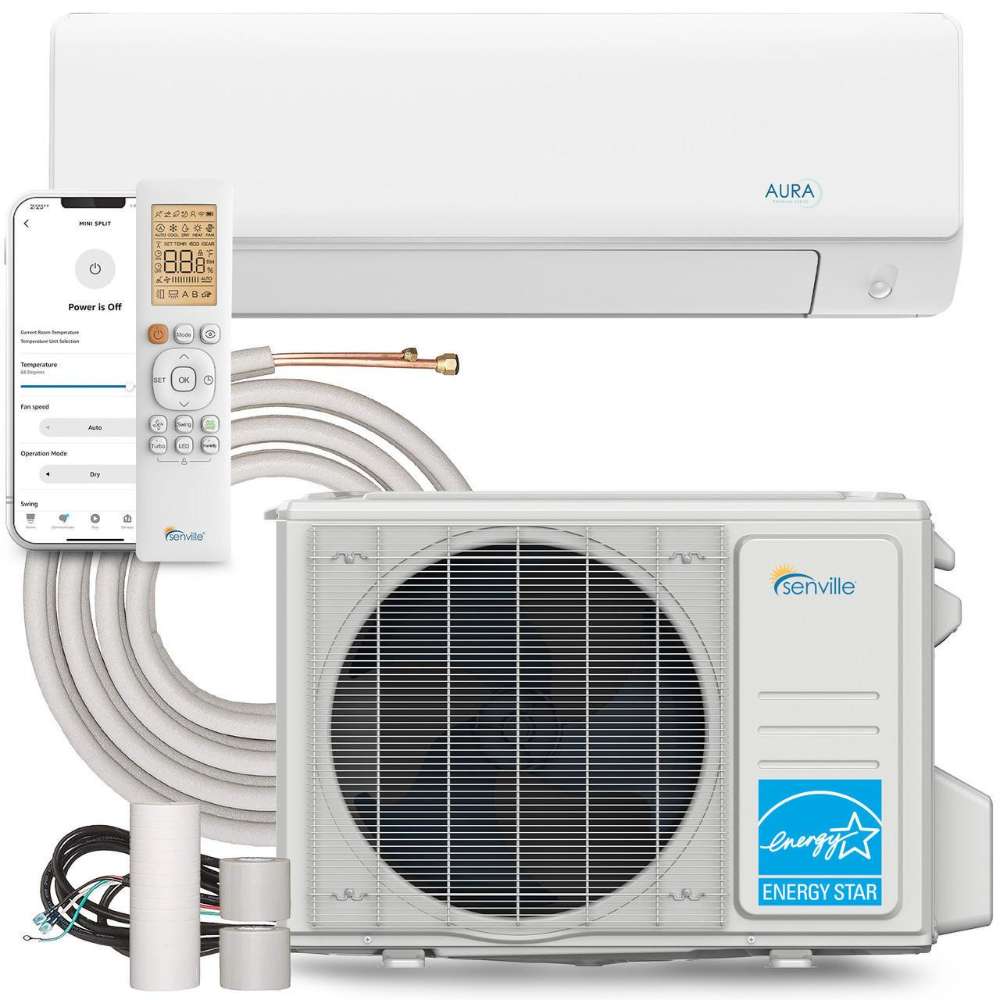

What's included

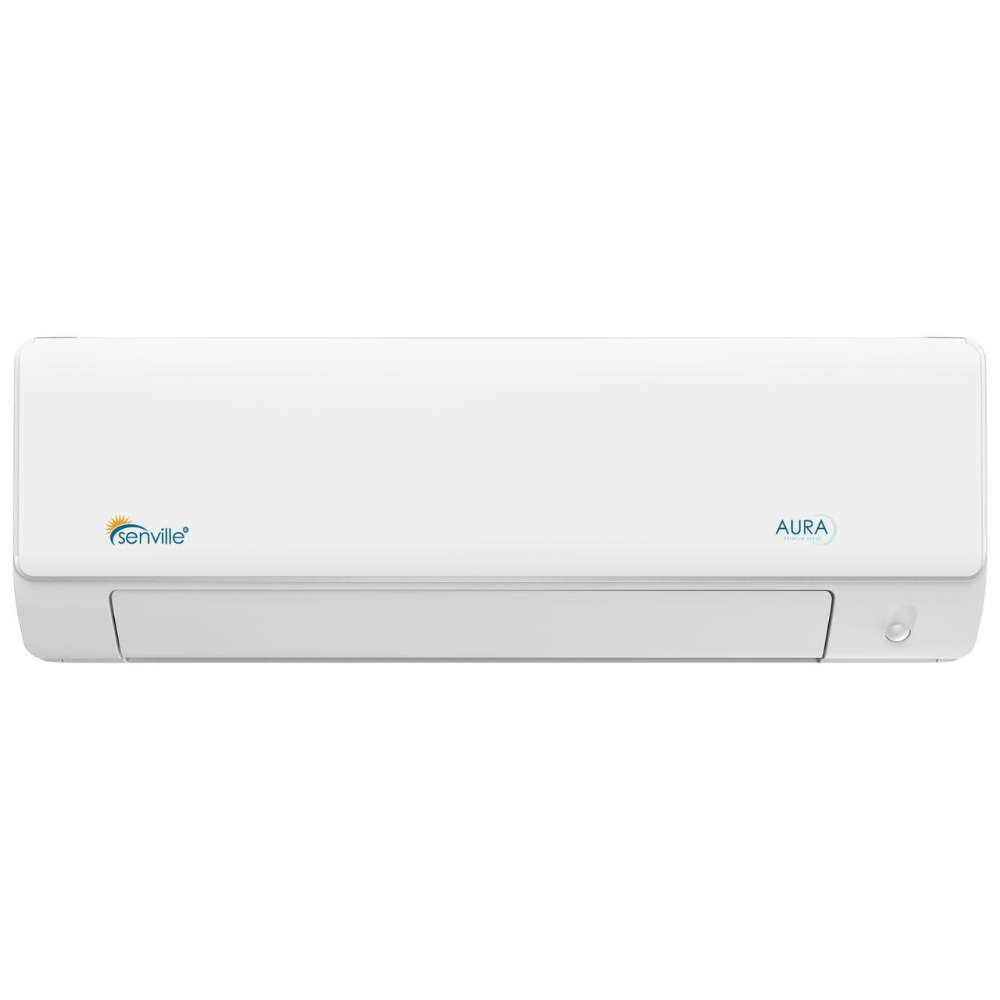

• Indoor unit

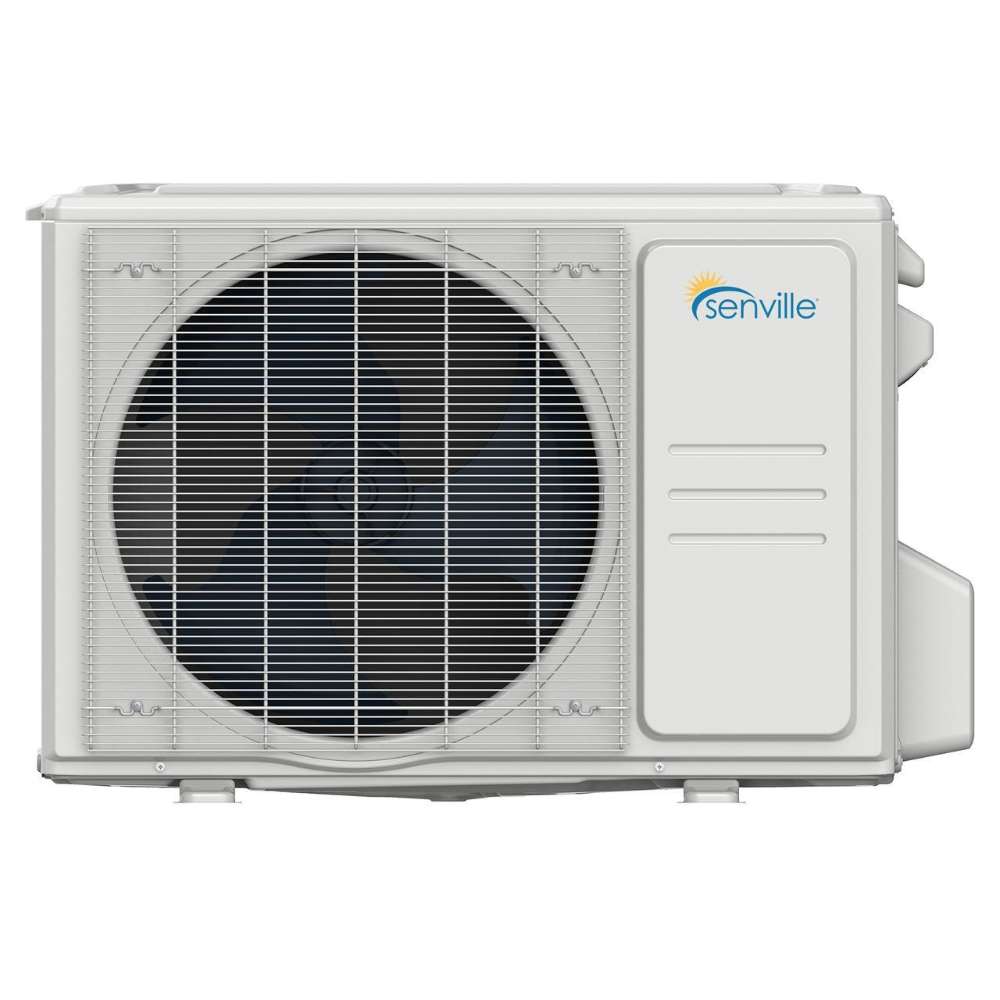

• Outdoor unit

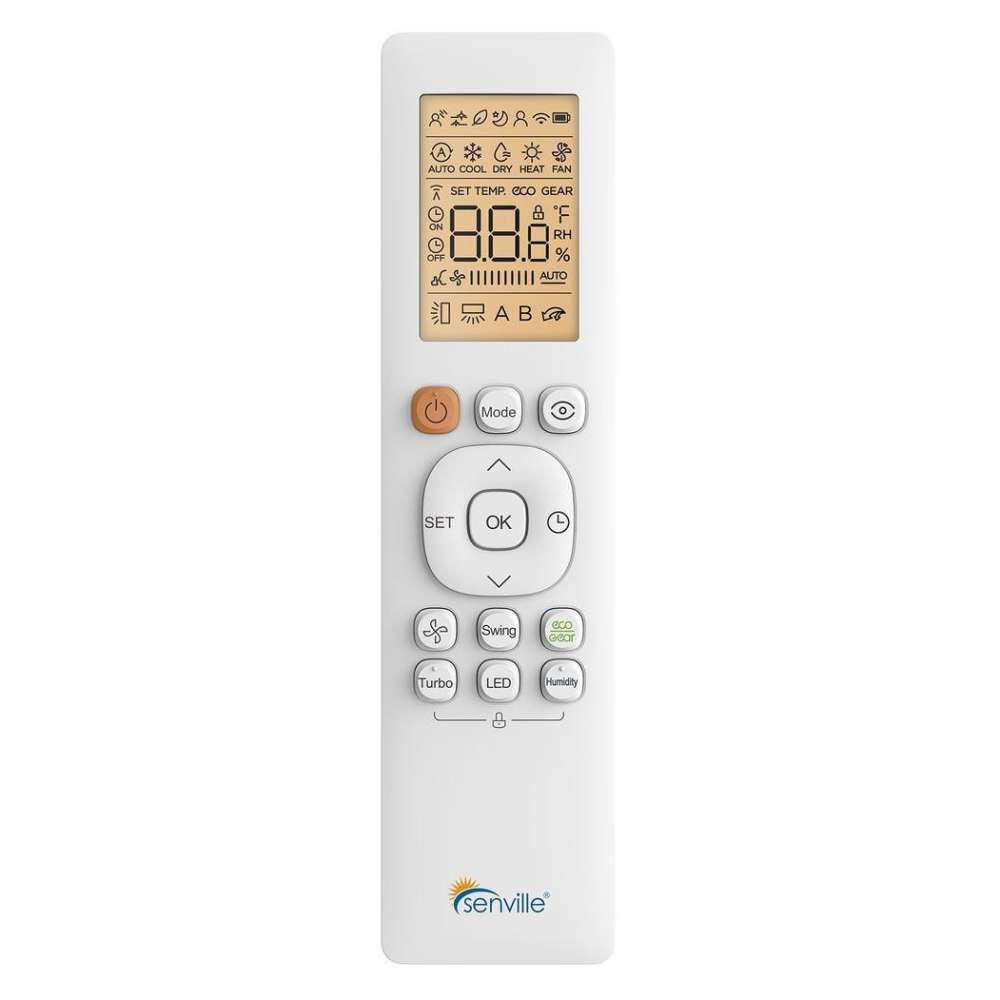

• Wireless remote control
• Alexa USB kit
• 16 ft installation kit
• Indoor/outdoor connection wiring
• Installation guide
• User manual
• 10-year manufacturer warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
