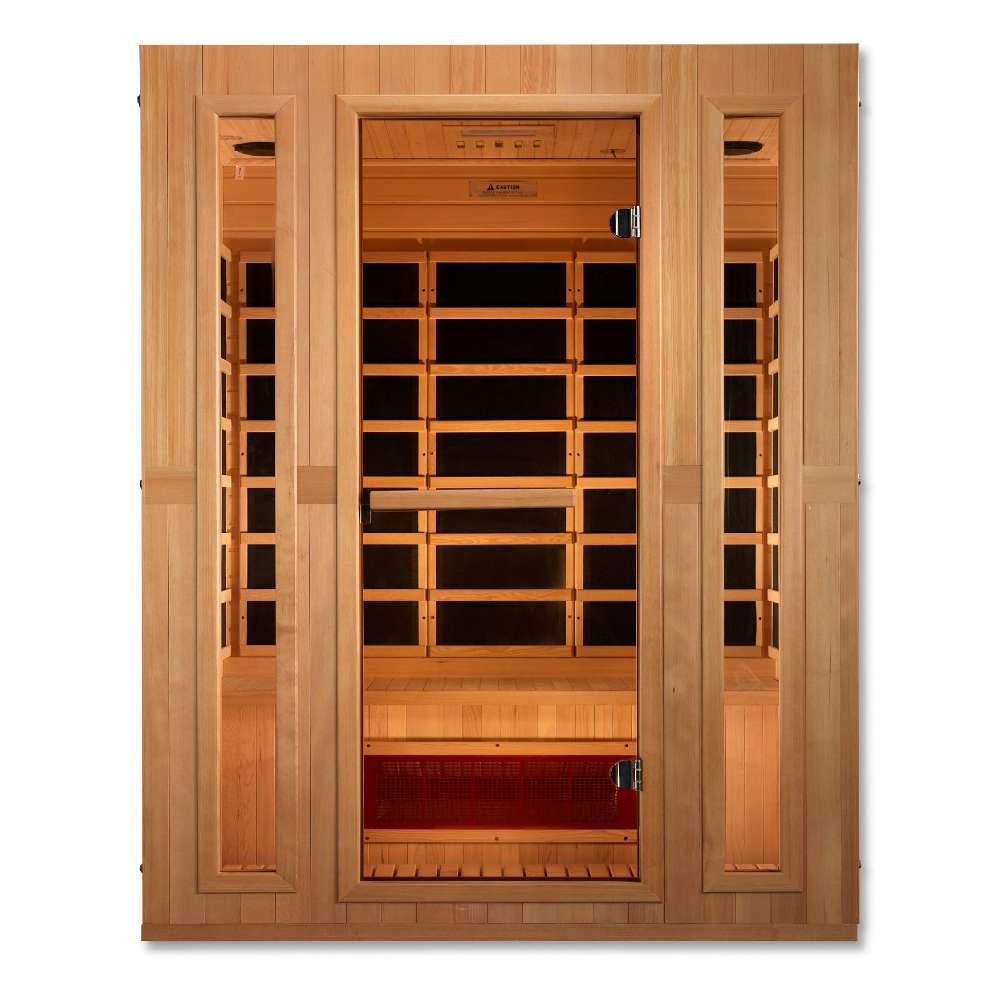

Front view of Golden Designs Maxxus Trinity Dual Tech 3 Person Low EMF Far Infrared Sauna showing a hemlock cabin, clear glass door and a glowing heater below the bench

Maxxus Trinity Dual Tech 3 Person Low EMF Far Infrared Sauna

SKU MX-LS3-01
Save $1,700.00
$6,699.00
$4,999.00
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Health Benefits:

  • Dual Tech heat may help warm tired legs and feet
  • May help ease tension after a demanding day
  • Can support a gentle detox-style sweat
  • May help you breathe slower and relax
  • May help promote a refreshed, clear-headed feeling
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

From Solo Sessions to Shared Evenings, the Maxxus Trinity Fits Your Routine

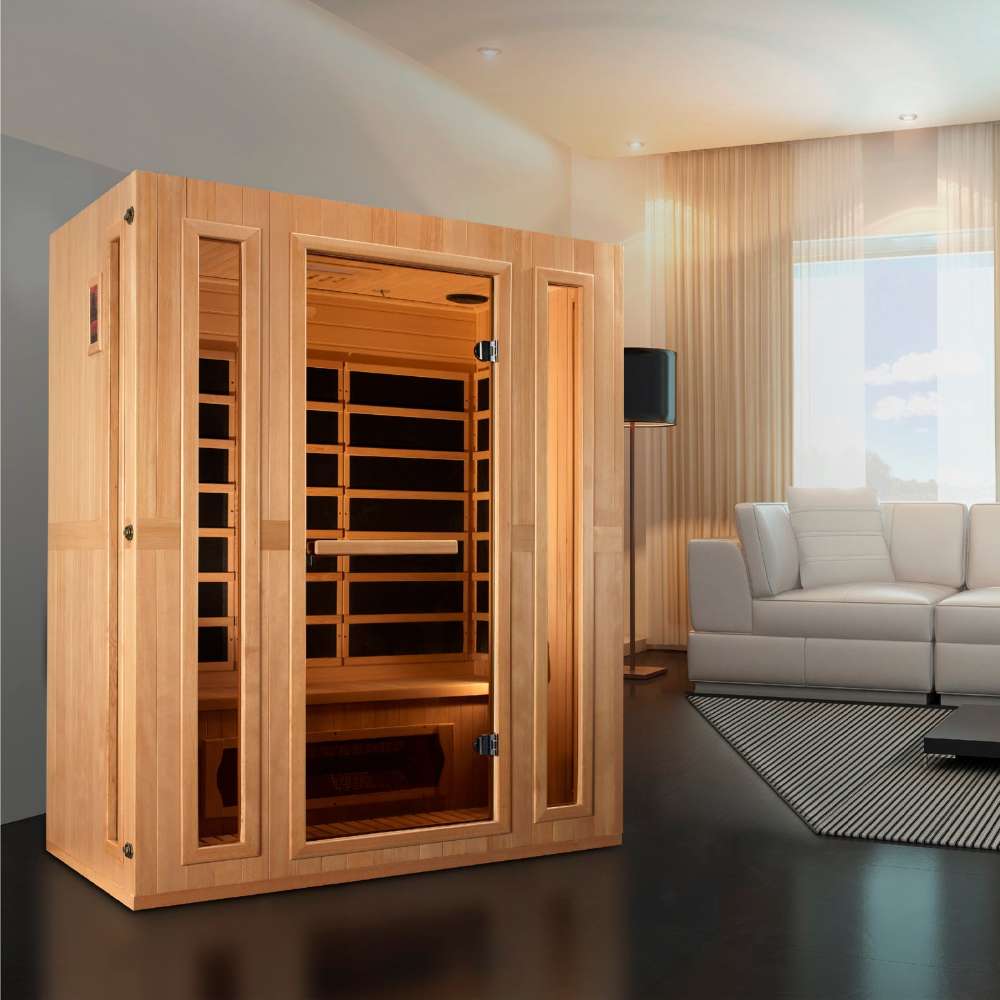

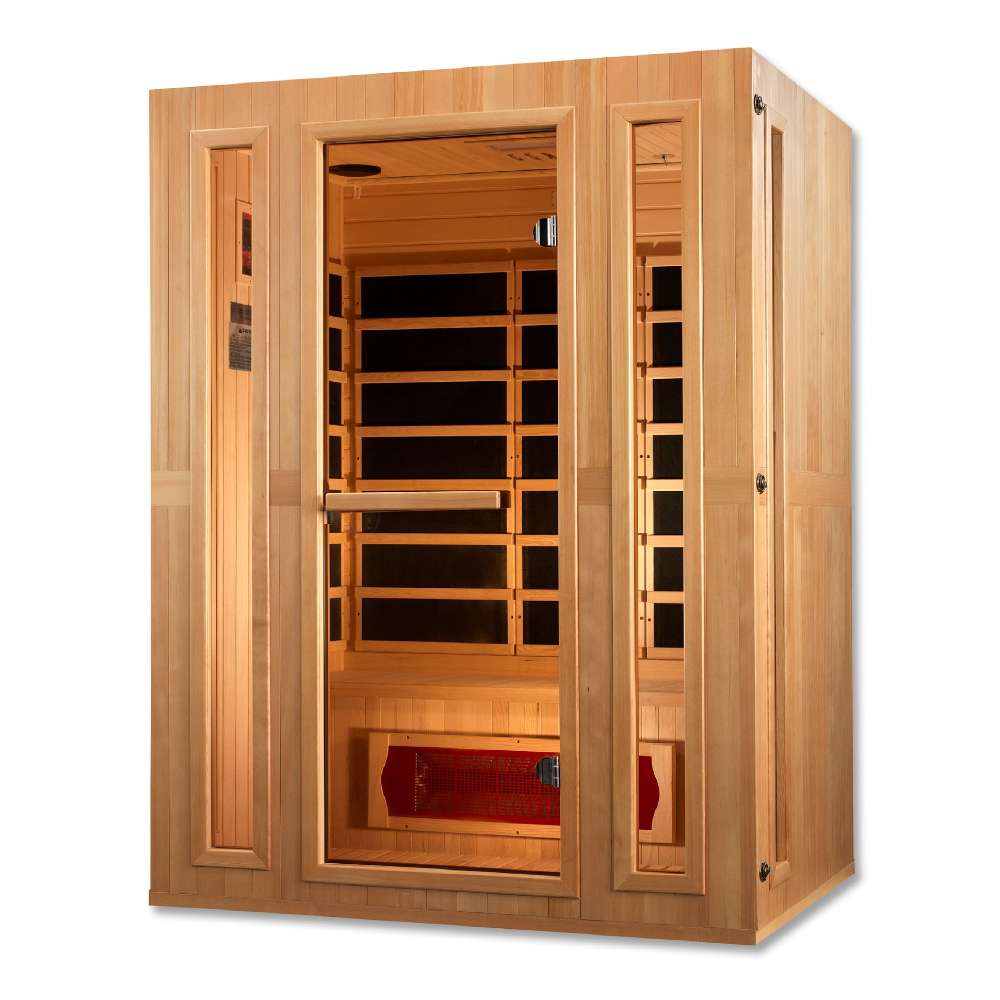

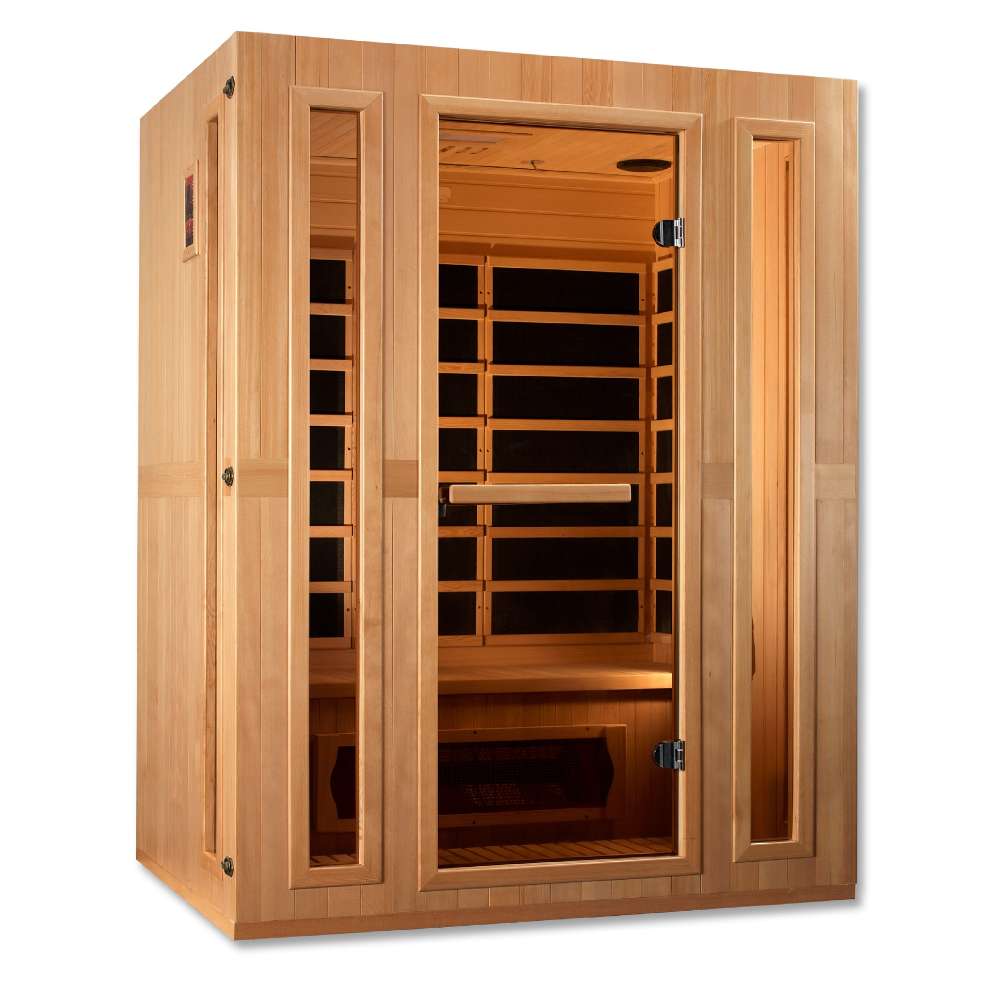

Golden Designs Maxxus Trinity Dual Tech 3 Person Low EMF Far Infrared Sauna is a three person home sauna that pairs ceramic and carbon far infrared heaters. Its seven Dual Tech Low EMF heaters measure 5–10 mG at 2–3 inches away. The natural reforested Canadian hemlock cabin has a clear tempered glass door. Chromotherapy lighting with red light therapy, interior and exterior LED control panels and Bluetooth and MP3 connection with built-in speakers are included. It needs a dedicated 120V / 20 amp circuit and ships in 3 boxes.

What's Included?

  • 1 Front Panel with Glass Door
  • 1 Rear Panel
  • 1 Left Side Panel
  • 1 Right Side Panel
  • 1 Roof Panel
  • 1 Roof Cover
  • 1 Bench
  • 1 Bench Heat Emitter Panel
  • 1 Floor Panel
  • 1 Floor Emitter Panel
  • 1 Temperature Sensor

Specifications

  • Model: MX-LS3-01
  • Capacity: 3 person
  • Exterior Dimensions: 55" W x 42" D x 75" H (139.7 x 106.7 x 190.5 cm)
  • Interior Dimensions: 51" W x 38" D x 68" H (129.5 x 96.5 x 172.7 cm)

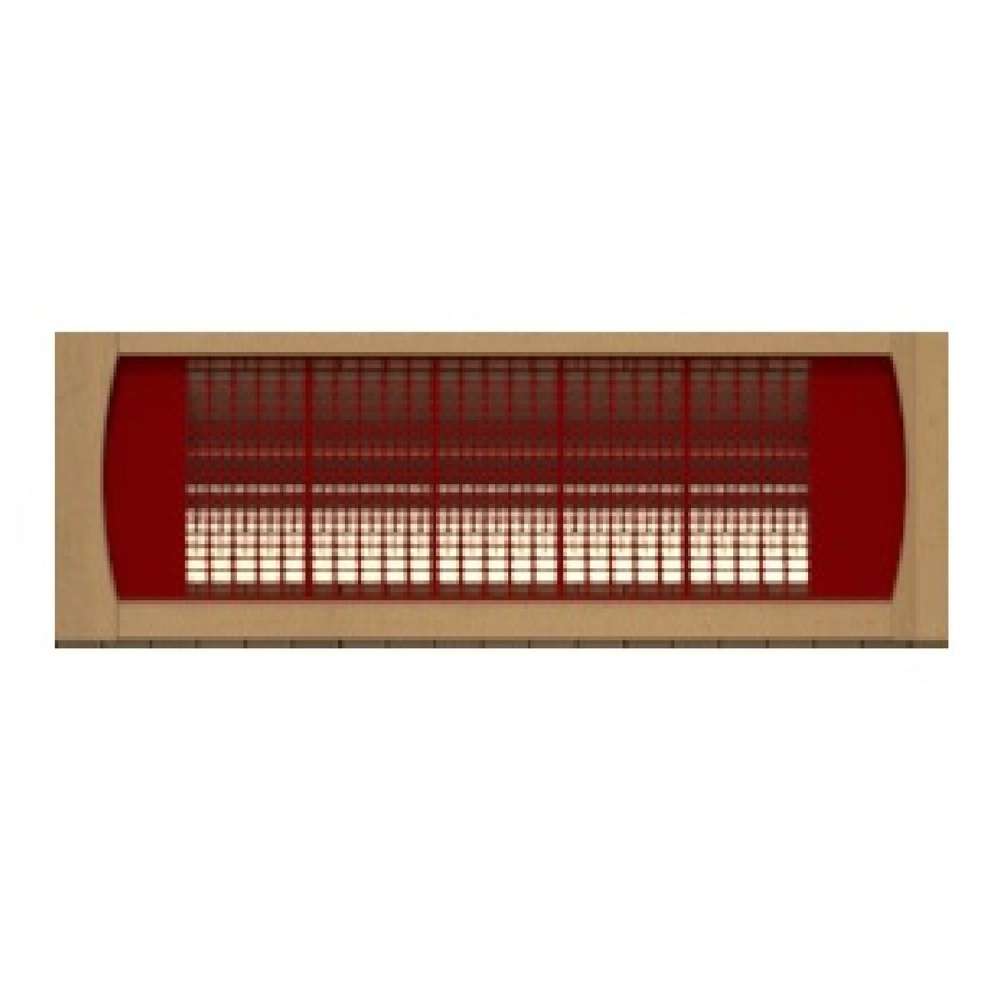

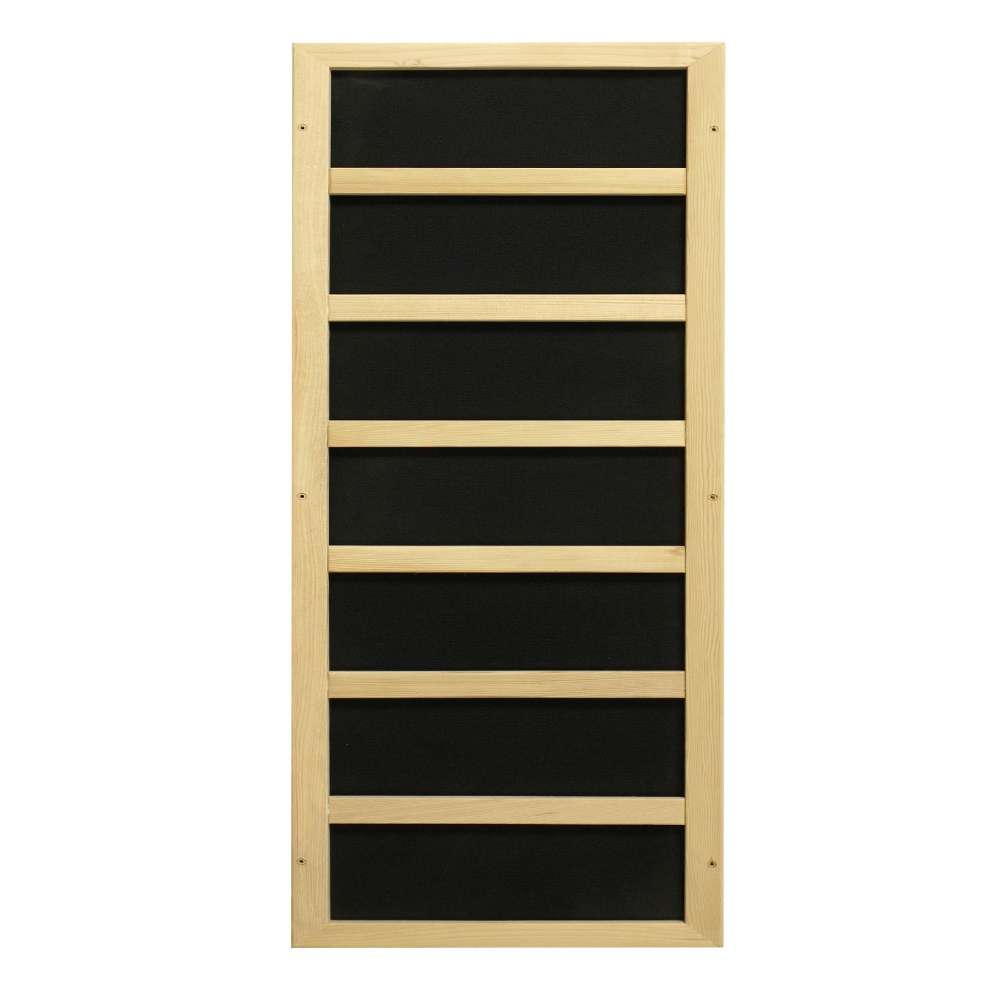

  • Heaters: 7 Dual Tech ceramic and carbon Low EMF far infrared heaters (5–10 mG at 2–3" from the panels)
  • Wood: Natural reforested Canadian hemlock
  • Door: Clear tempered glass door

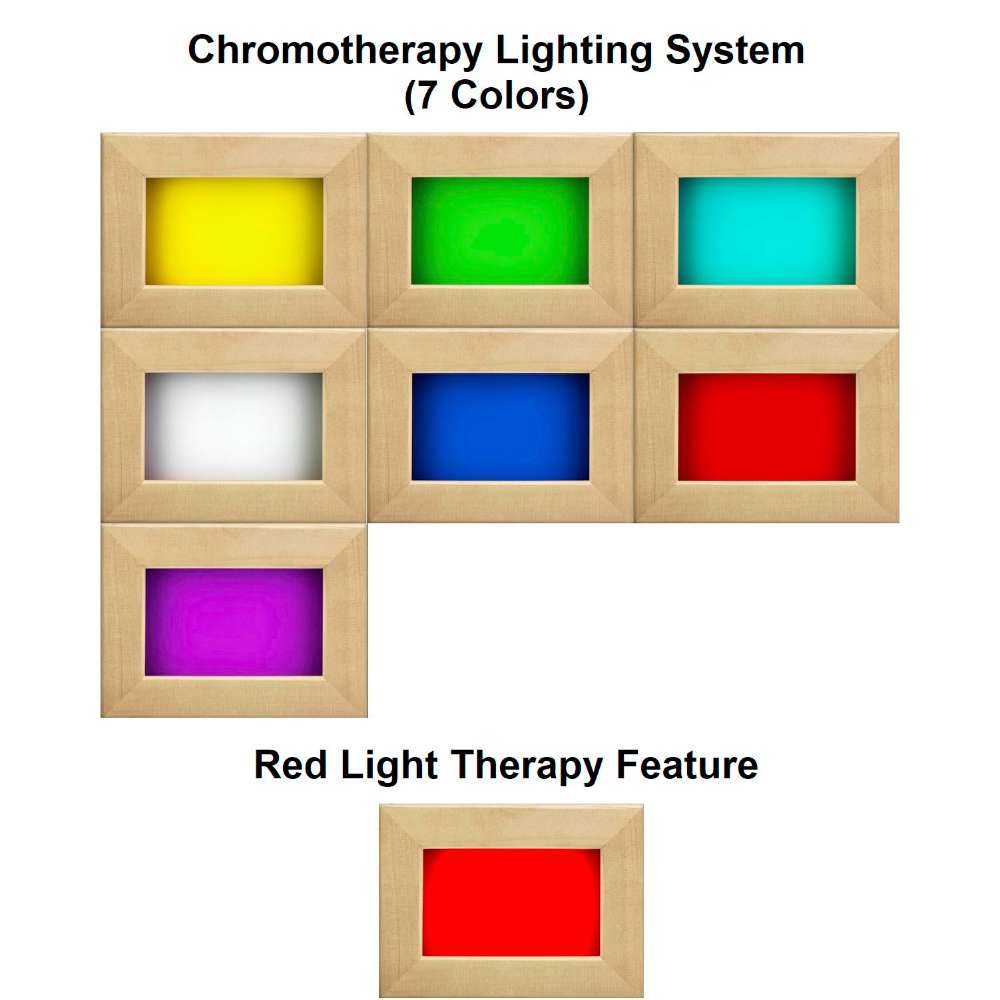

  • Lighting: Interior chromotherapy color lighting with red light therapy
  • Controls: Interior and exterior LED control panels
  • Audio: Bluetooth and MP3 auxiliary connection with built-in speakers
  • Ventilation: Roof vent
  • Temperature: Ideal range 118–132°F (48–56°C); heats up to 140°F (60°C)

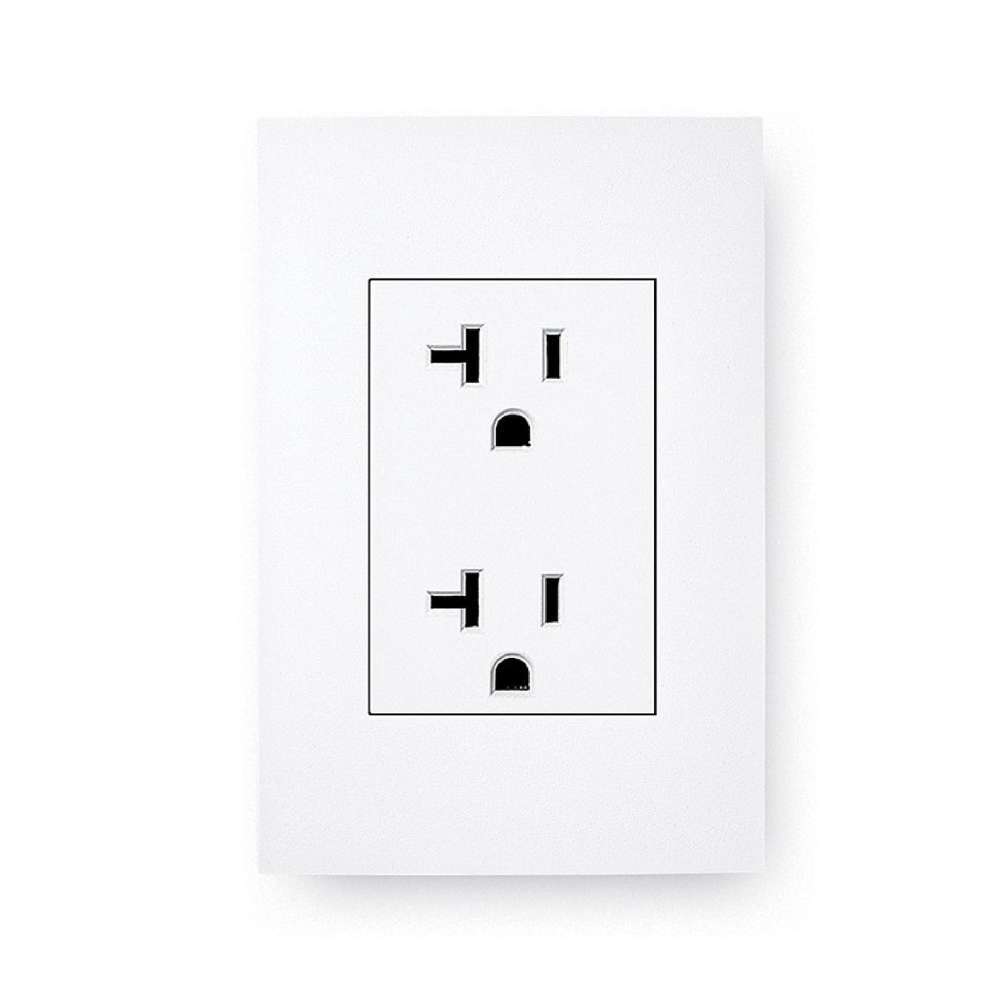

  • Electrical: 120V / 20 amp non-GFCI dedicated receptacle and breaker (not 220/240V); consult a certified electrician
  • Assembly: Clasp-together panels
  • Use: Indoor use only
  • Weight Capacity: 300 lbs (136.1 kg) per person; 600 lbs (272.2 kg) total
  • Sauna Weight: 350 lbs (158.8 kg)
  • Shipping Weight: 410 lbs (186.0 kg); ships in 3 boxes
  • Warranty: Heaters and electronics 5 years residential (1 year commercial); wood structure and glass 1 year; parts only; register within 60 days

Features

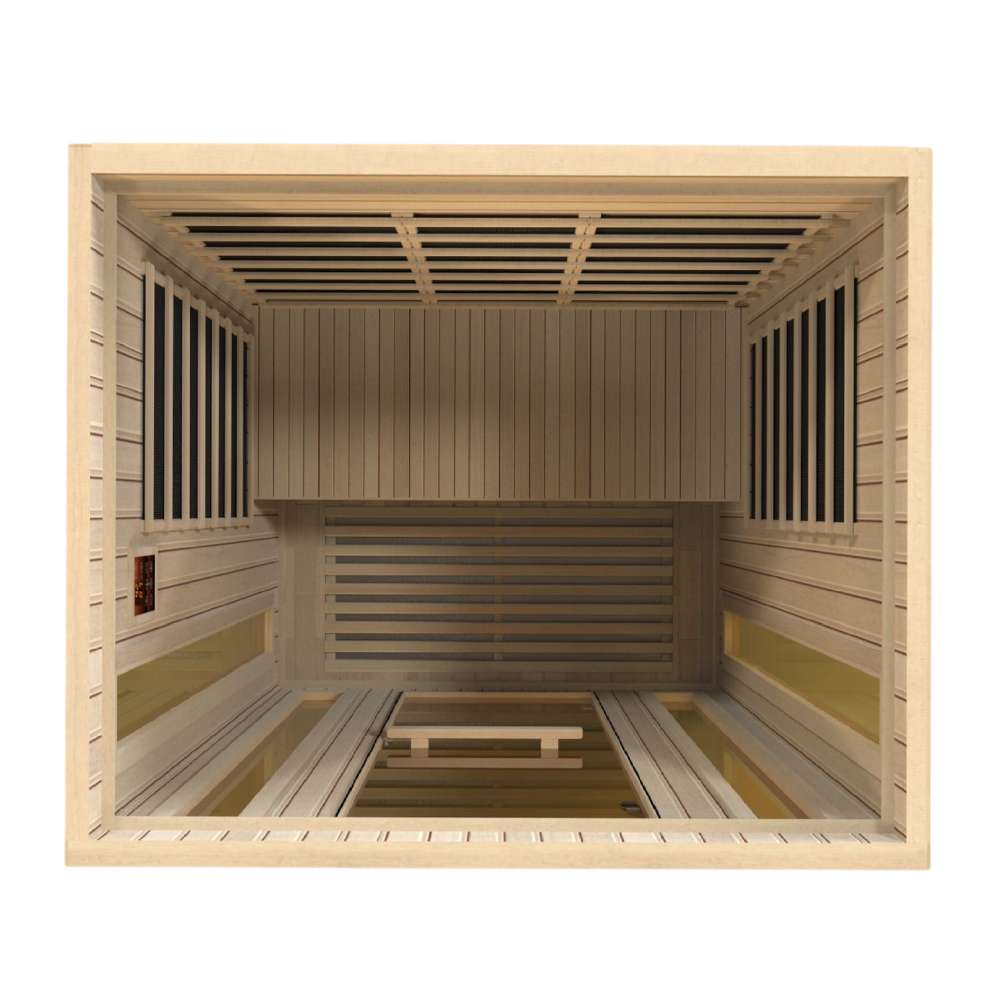

  • Three person sauna with room to share a session indoors.

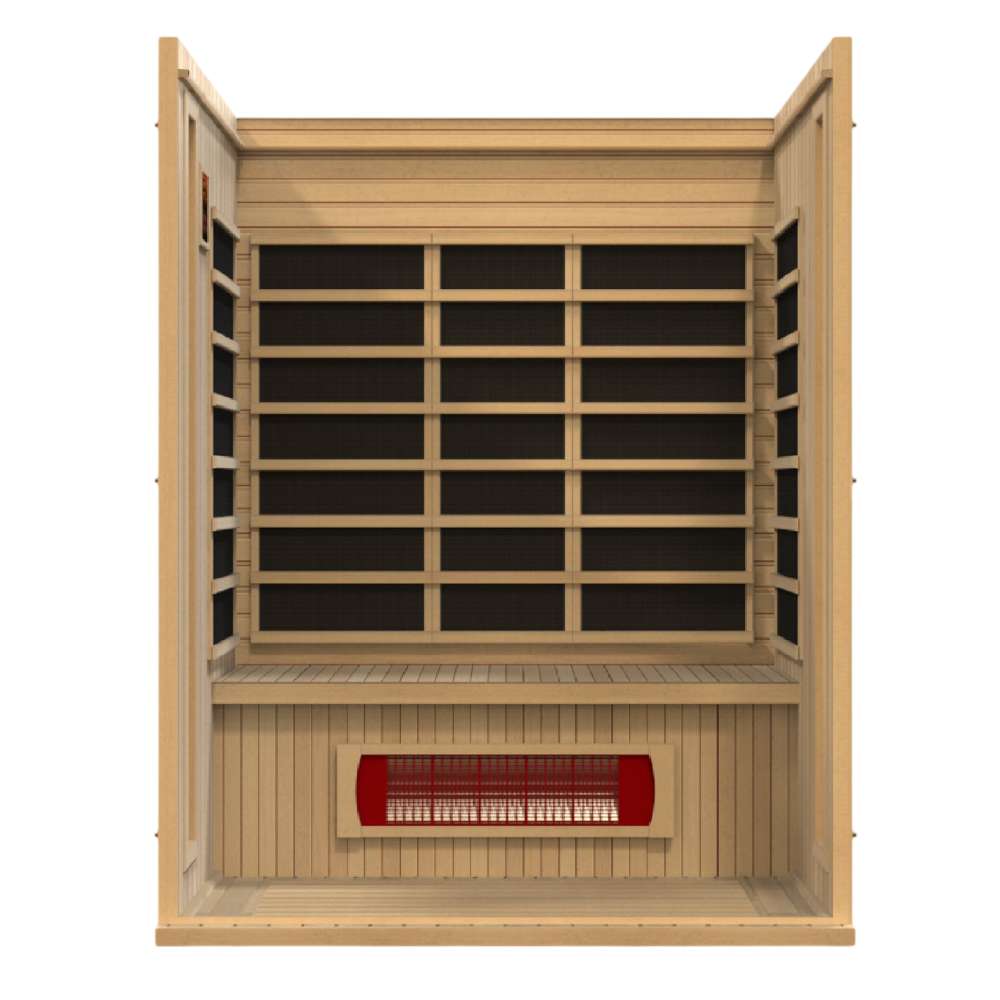

  • 7 Dual Tech heaters combine ceramic and carbon far infrared technology for three.
  • Low EMF heaters measure 5–10 mG at 2–3 inches away.
  • Natural reforested Canadian hemlock gives the sauna a warm, clean finish.
  • Clear tempered glass door lets light in and keeps the space open.
  • Chromotherapy color lighting with a red light therapy feature sets the mood.
  • Bluetooth and MP3 auxiliary connection play music through built-in speakers.
  • Interior and exterior LED control panels make it easy to set the temperature, timer and lights.
  • Roof vent helps keep fresh air moving during sessions.
  • Heats to an ideal 118–132°F range, with a maximum of 140°F.
  • Runs on a dedicated 120V / 20 amp circuit, not 220/240V.
  • Clasp-together panels make assembly simple for two adults.

How To Use

  1. Place the sauna indoors on a dry, level surface away from water, leaving 1–2 inches around it and 10–12 inches above it.
  2. Have a certified electrician install a dedicated 120V / 20 amp non-GFCI receptacle and breaker, and never use an adapter, surge protector or extension cord.
  3. Assemble the sauna with two adults using a Phillips screwdriver and a ladder, in this order: floor, front and side panels (buckled), rear, floor emitter, bench heat emitter and bench, roof and labeled plugs, temperature sensor, then the roof cover.
  4. Press the power button, then set the temperature with the up and down buttons (1° per press, or hold 3 seconds to change faster); 118–122°F is common, and the Heat light turns off once the set temperature is reached.
  5. Set the timer between 5 and 60 minutes; heating stops when the timer ends, and the sauna shuts off fully after 75 minutes without a button press.

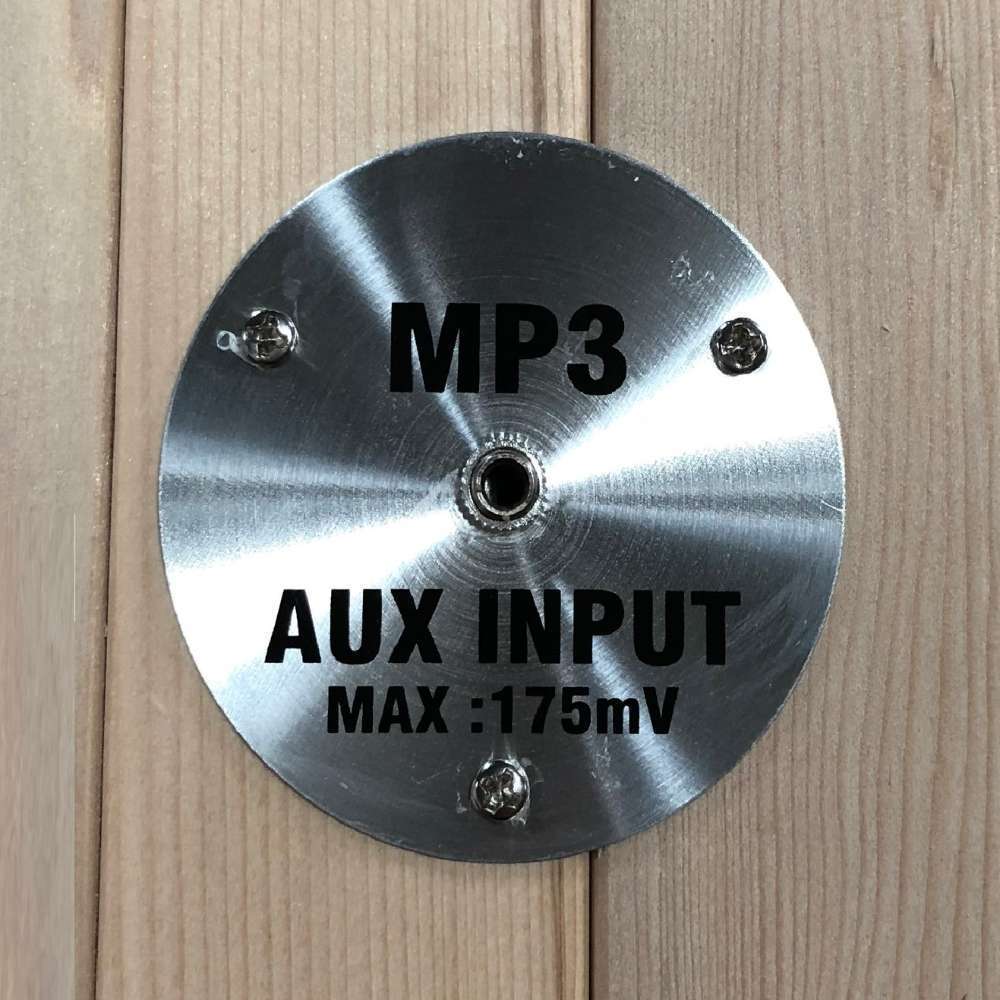

  6. Hold the light button 2 seconds (the display shows 2n) to cycle chromotherapy colors, press the red light therapy button for red light, and pair your phone to Bluetooth BT-SAUNA or use the AUX jack in the ceiling.
  7. Wait 30 minutes after strenuous exercise, avoid alcohol and drugs, never sleep inside, and exit immediately if you feel dizzy, sleepy or any discomfort.
  8. After 3 hours of continuous use, turn the sauna off for 1 hour, and cool down for about 15 minutes before showering.
  9. Unplug the sauna before cleaning, wipe the interior with plain water and a soft damp cloth, never use chemical cleaners, and keep the floor heater free of debris and towels.
