Sun Gold Power 5000W 48V Solar Charger Inverter [Parallel, 100A MPPT]

Name: Sun Gold Power 5000W 48V Solar Charger Inverter [Parallel, 100A MPPT]
Brand: Sun Gold Power
SKU: SPH5048P
Price: 750.00 USD
Availability: InStock

SKU SPH5048P

Save $188.00

$938.00

$750.00

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Quantity

Fast shipping

Items ship in 3-5 days

Text Us!

Talk to person in USA!

512-777-0154

Trusted Power

Clean Energy Solutions

Reliable

Built for the Long Run

Powerful Hybrid Solar Backup With Expandable Parallel Performance

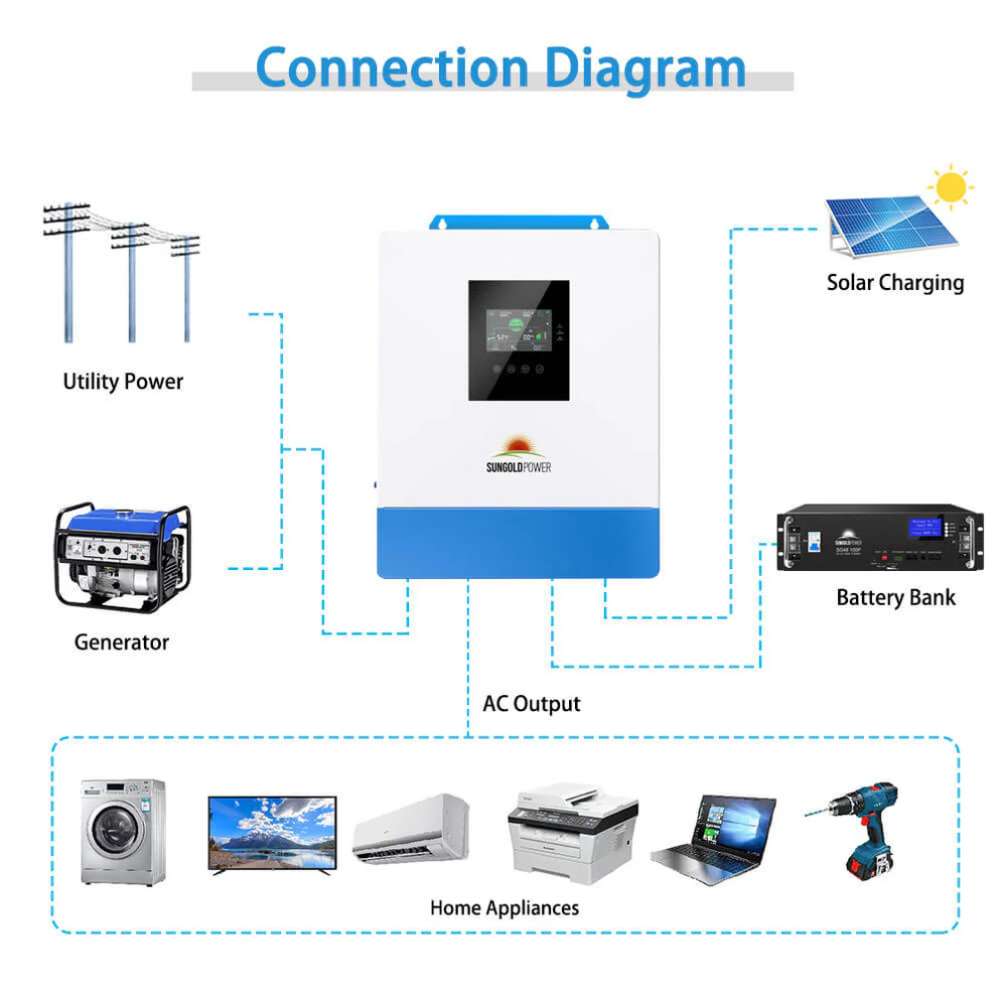

Sun Gold Power 5000W 48V Solar Charger Inverter [Parallel, 100A MPPT] is an all-in-one solar inverter built for off-grid homes, cabins, workshops, and dependable backup power systems. It combines a pure sine wave inverter, inverter charger, and 100A MPPT solar charging in one compact unit.

This hybrid solar inverter supports parallel operation for larger systems, works with multiple battery types, and offers flexible charging modes with an easy-to-read LCD display. The result is a reliable backup power inverter that can grow with your energy needs while helping maximise solar production.

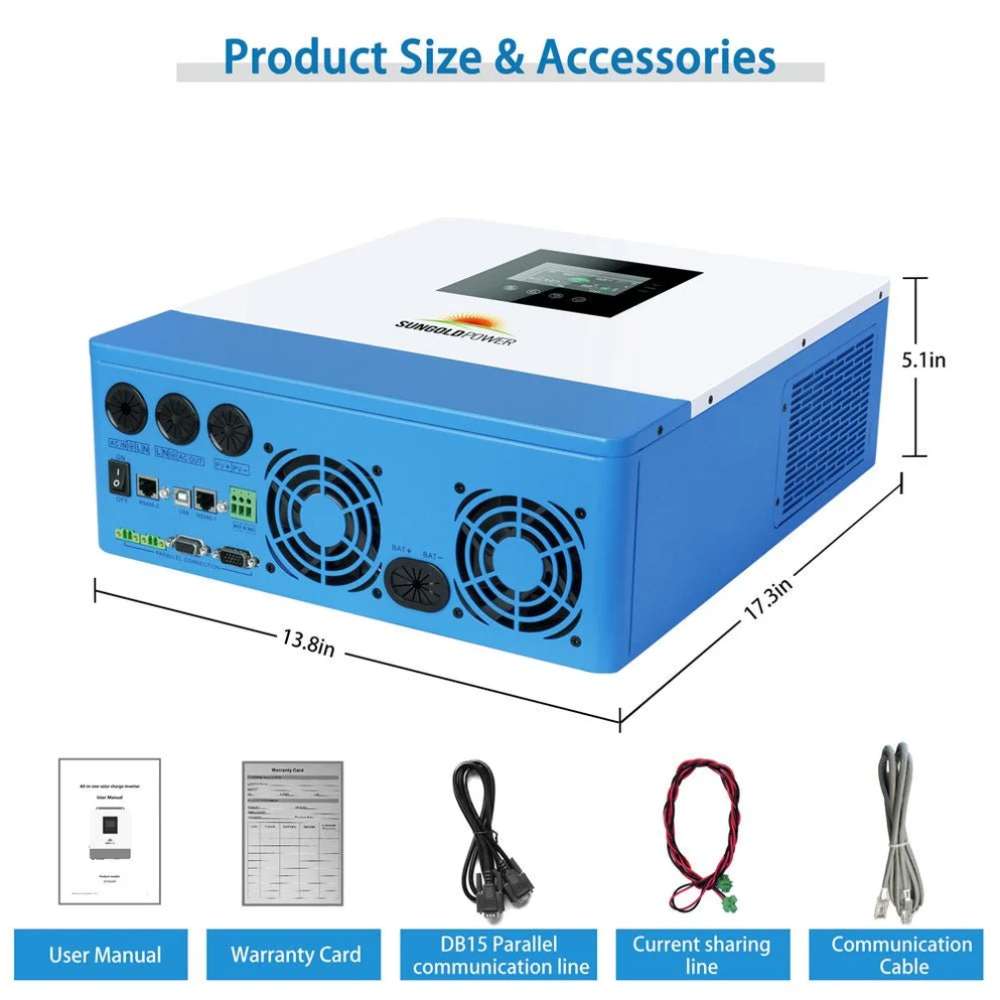

What's Included:

1 x Sun Gold Power 5000W 48V Solar Charger Inverter
1 x Warranty card
1 x DB15 Parallel Communication Cable
1 x Current Sharing Cable
1 x USB Communication Cable
User Manual
UL1741 Certification

Specifications

Continuous Power: 5000W
Surge Power: 10000VA
DC Input Voltage: 48V DC
DC Input: 48V battery system (minimum starting voltage 44V)
AC Output Voltage: 120V AC
AC Output Frequency: 50Hz / 60Hz
Waveform: Pure sine wave
Maximum Output Current: 41.7A
Maximum PV Input Power: 5500W
Maximum PV Open Circuit Voltage: 500V DC

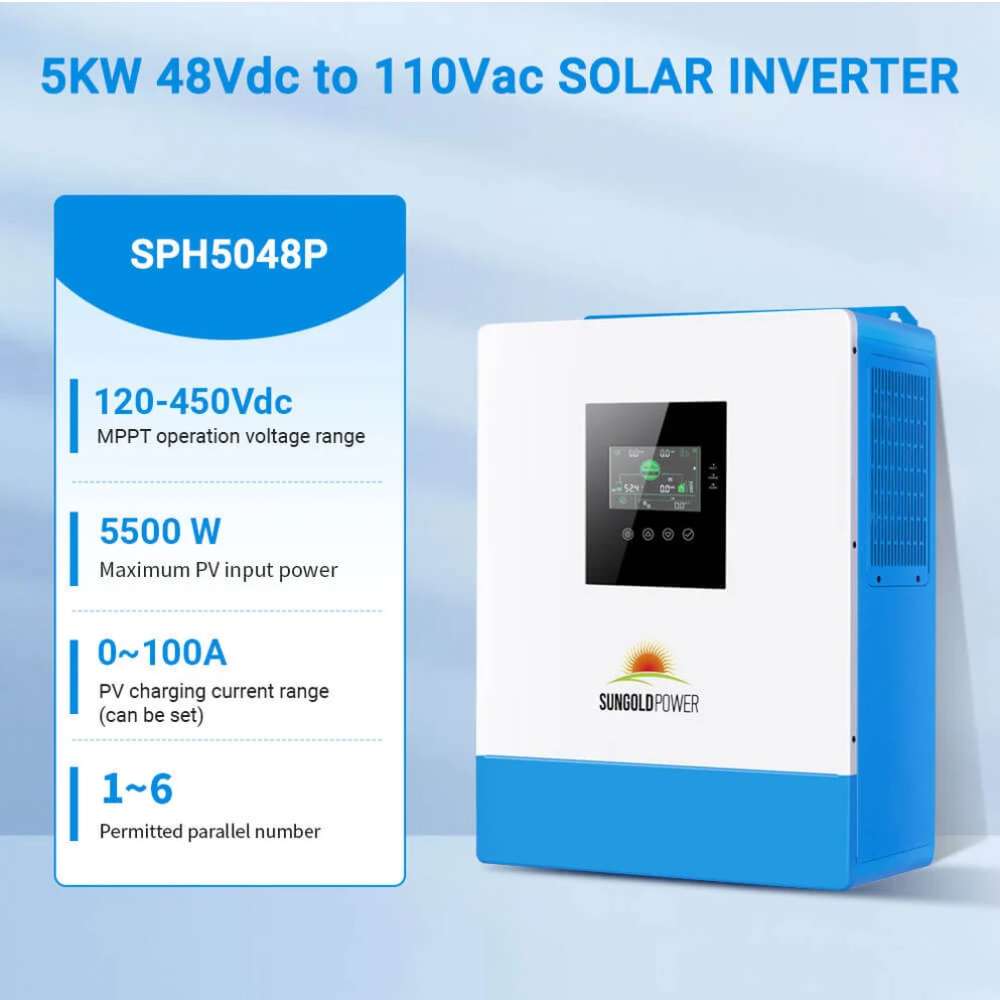

MPPT Operating Voltage Range: 120–450V DC
PV Operating Voltage Range: 120–500V DC
Maximum Solar Charging Current: 100A (adjustable)
Battery Charger Rating: 40A AC charger (adjustable 0–40A)
Battery Charging Voltage Range: 40–58V DC (AC charging)
Battery Voltage Range (PV Charging): 40–60V DC

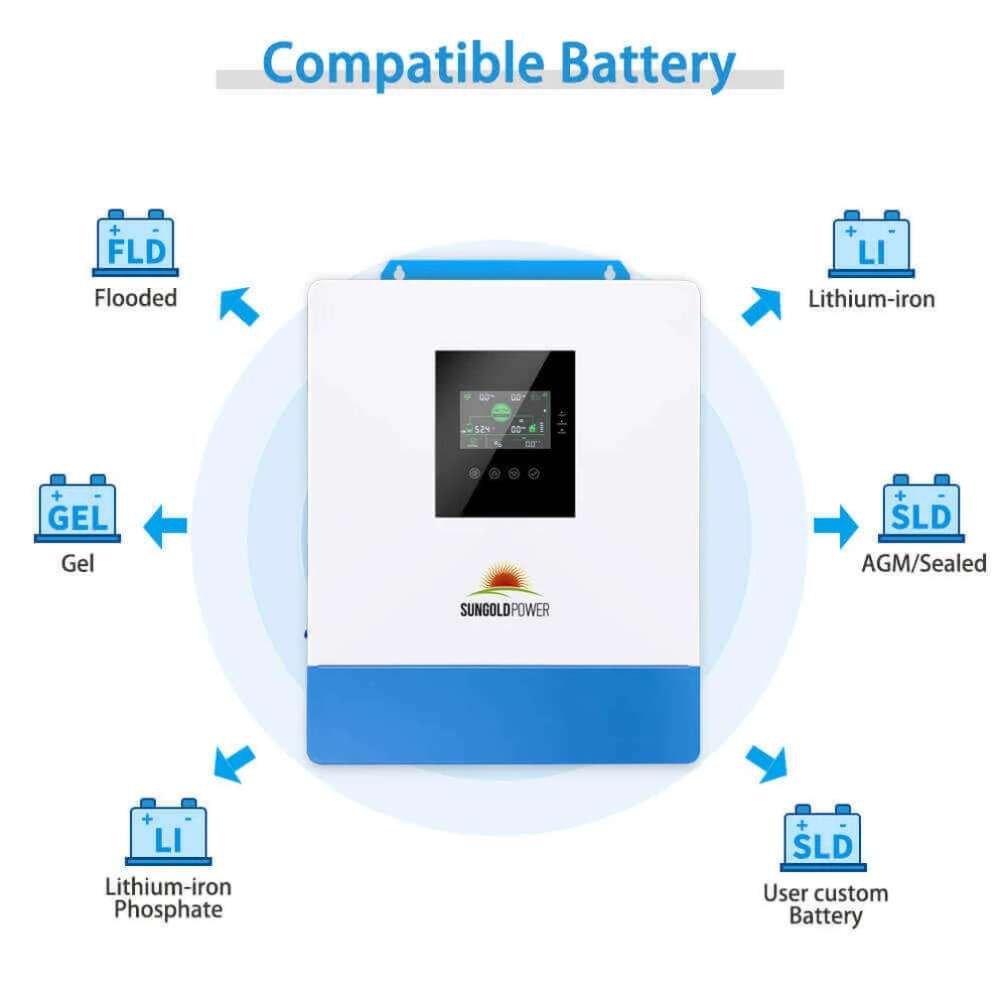

Battery Compatibility: AGM/Sealed, Gel, Flooded, Lithium, User-Defined

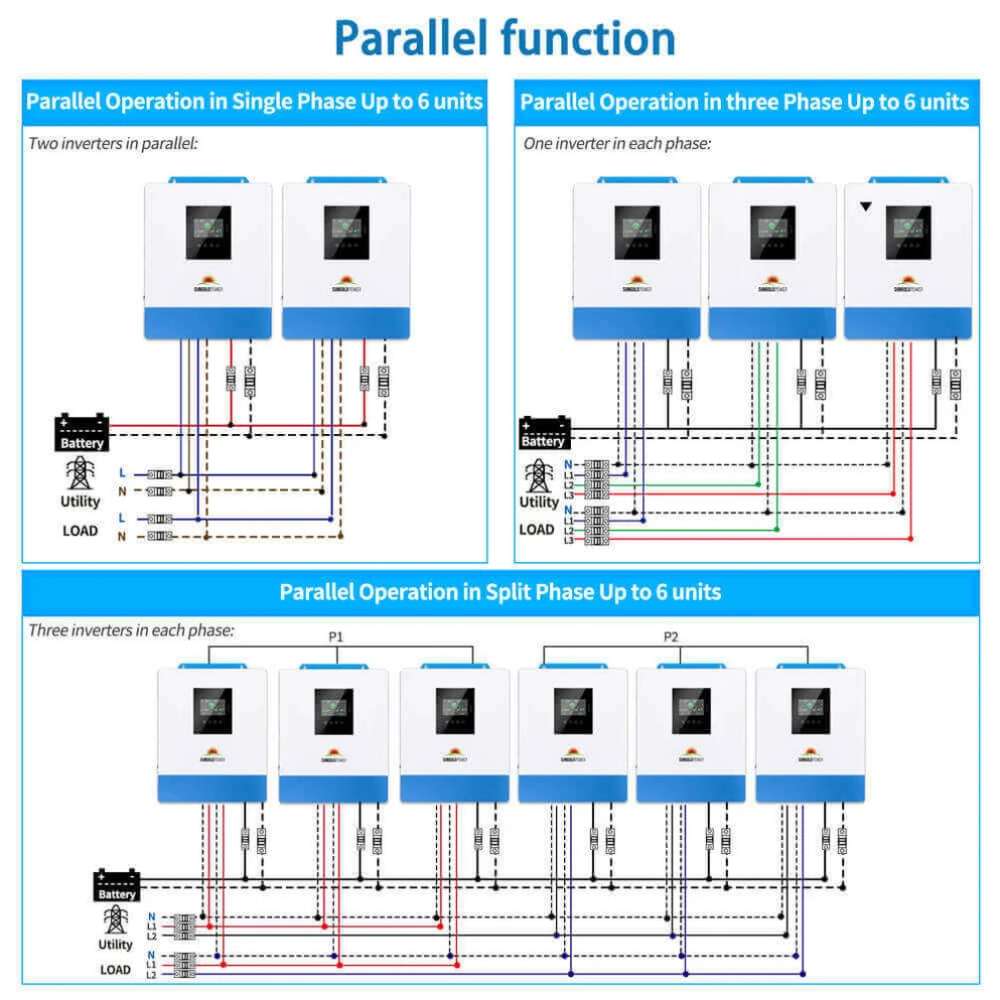

Parallel Capability: Up to 6 units
Output Configurations: 120V Single Phase, 120/240V Split Phase, 208V Three Phase (parallel configurations)
Motor Starting Capacity: Up to 4HP
Protection: Circuit breaker, blown fuse, overload protection, overcharge protection

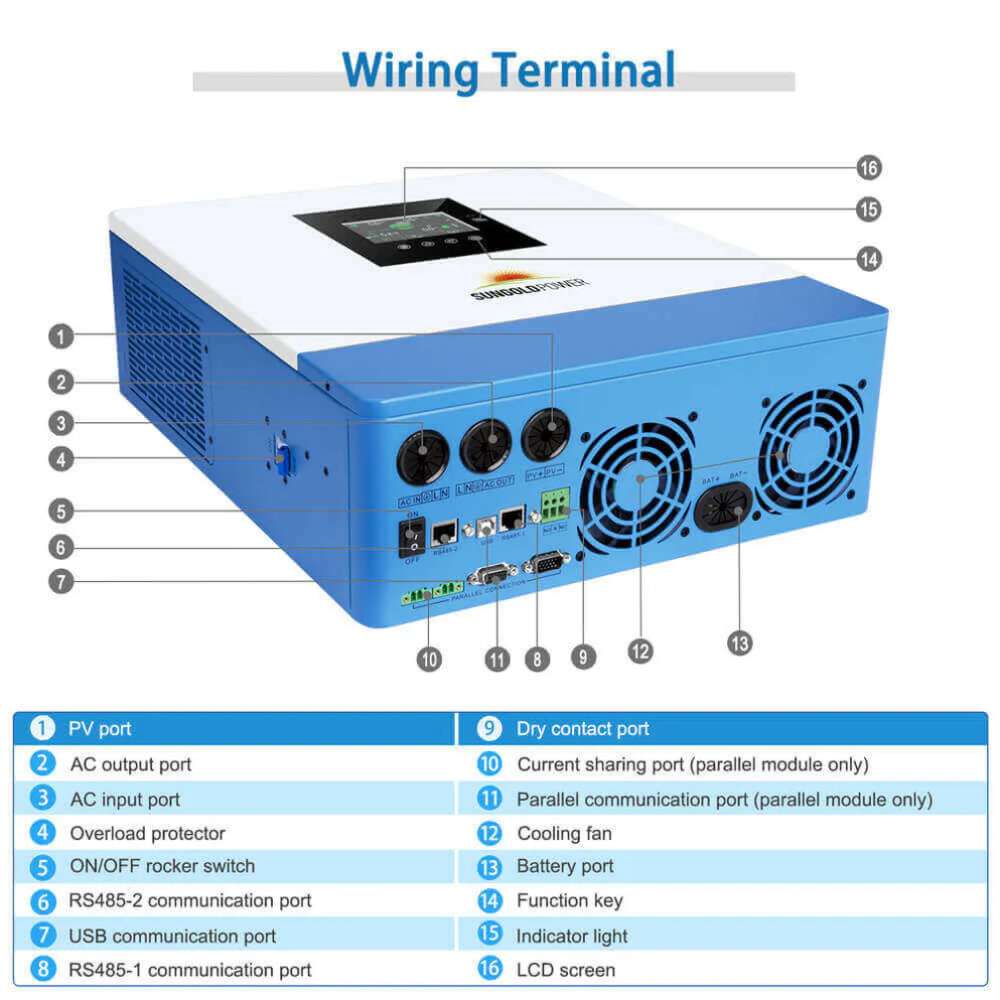

Communication Ports: USB, RS485, Dry Contact

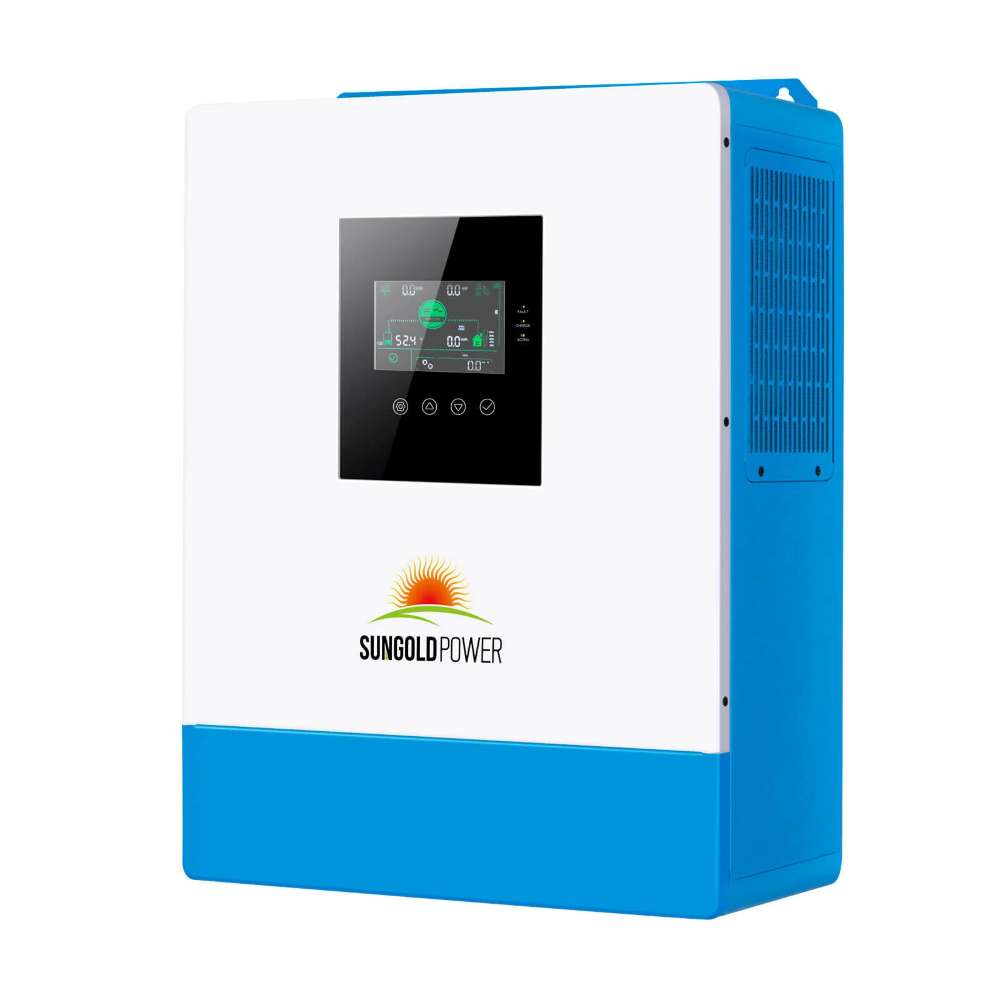

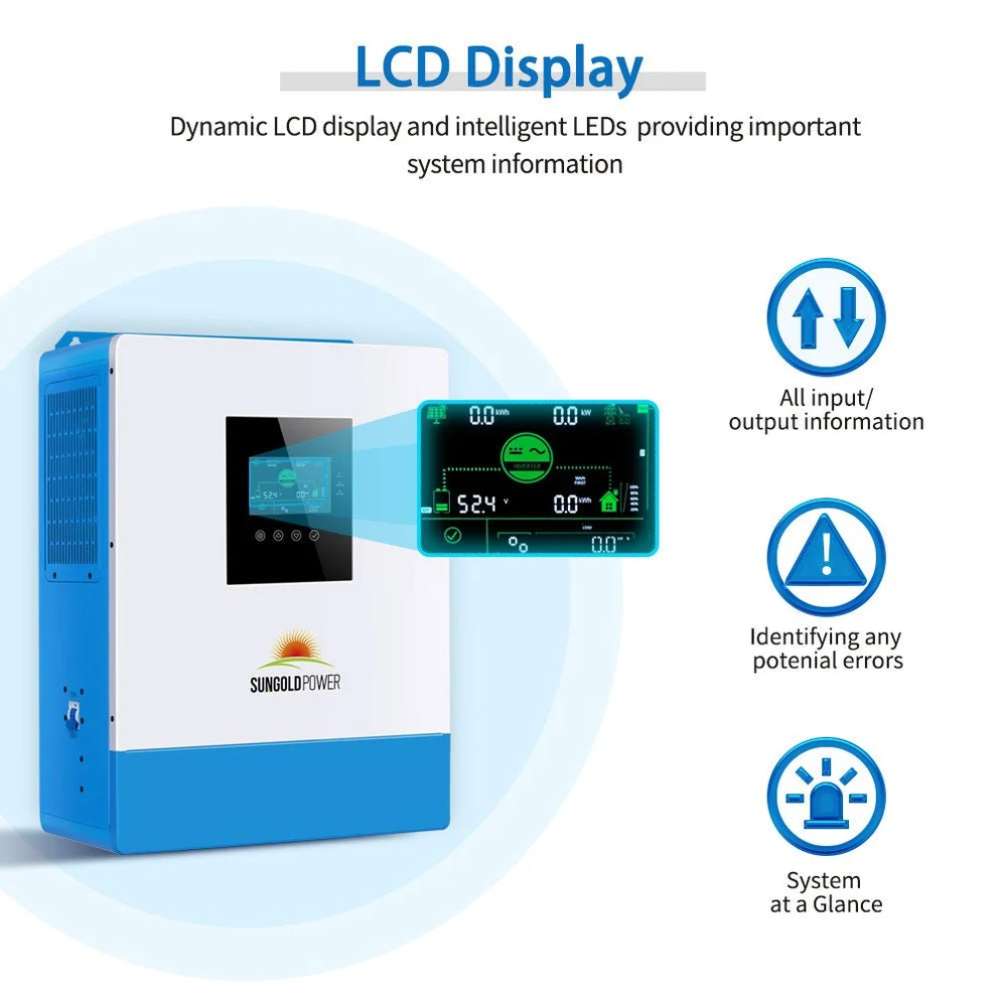

Display: LCD screen with LED indicators
Dimensions: 17.3 × 13.8 × 5.1 in (440 × 350 × 130 mm)

Features

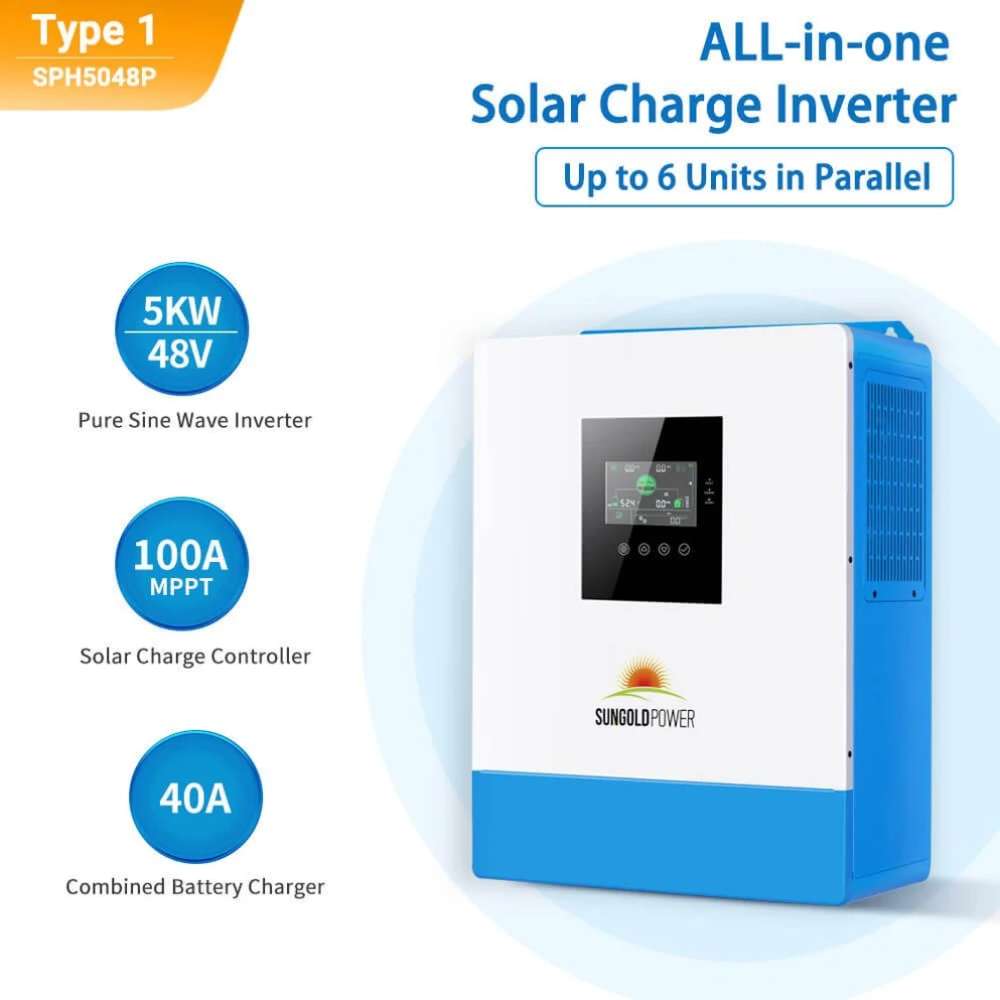

All-in-one hybrid solar inverter design.
Delivers clean pure sine wave power.
Supports up to six parallel units.
Works with on-grid and off-grid systems.
Offers four flexible charging modes.
Includes four selectable output modes.
Built-in 100A MPPT solar charging.
Compatible with multiple battery types.
Supports RS485 communication for battery management.
Overload protection enhances system safety.
Powers motor-driven appliances up to 4HP.
LCD display provides clear system monitoring.

Why Choose It?

Sun Gold Power 5000W 48V Solar Charger Inverter is built for reliable off-grid and backup power. Its parallel capability, pure sine wave output, and 100A MPPT charger provide flexible system expansion.

Recommended For

Off-grid homes
Backup power systems
Solar energy systems
Cabins
Tiny homes
Workshops
Garages
Farms
Sheds
Battery storage systems

Comfortably Powers

Full-size refrigerators and freezers
LED lighting circuits
Televisions
Desktop computers
Laptops
WiFi routers and networking equipment
Microwave ovens
Coffee makers
Washing machines
Power tools up to 4HP motor capacity
Fans
Small water pumps
Home office equipment
Battery charging stations
Multiple household appliances within the 5000W continuous output limit

Where It Falls Short:

This inverter is designed for 48V battery systems only. It also provides a 120V AC output from a single unit.

Requires a 48V battery bank and is not compatible with 12V or 24V systems.
A single inverter outputs 120V AC only.
Split-phase 120/240V and three-phase output require parallel installation.
AC battery charging is limited to 40A maximum.
Solar charging requires a PV input voltage between 120V and 450V MPPT.
Supports motor loads up to 4HP, making it unsuitable for larger motors.
System expansion beyond six units is not supported.
