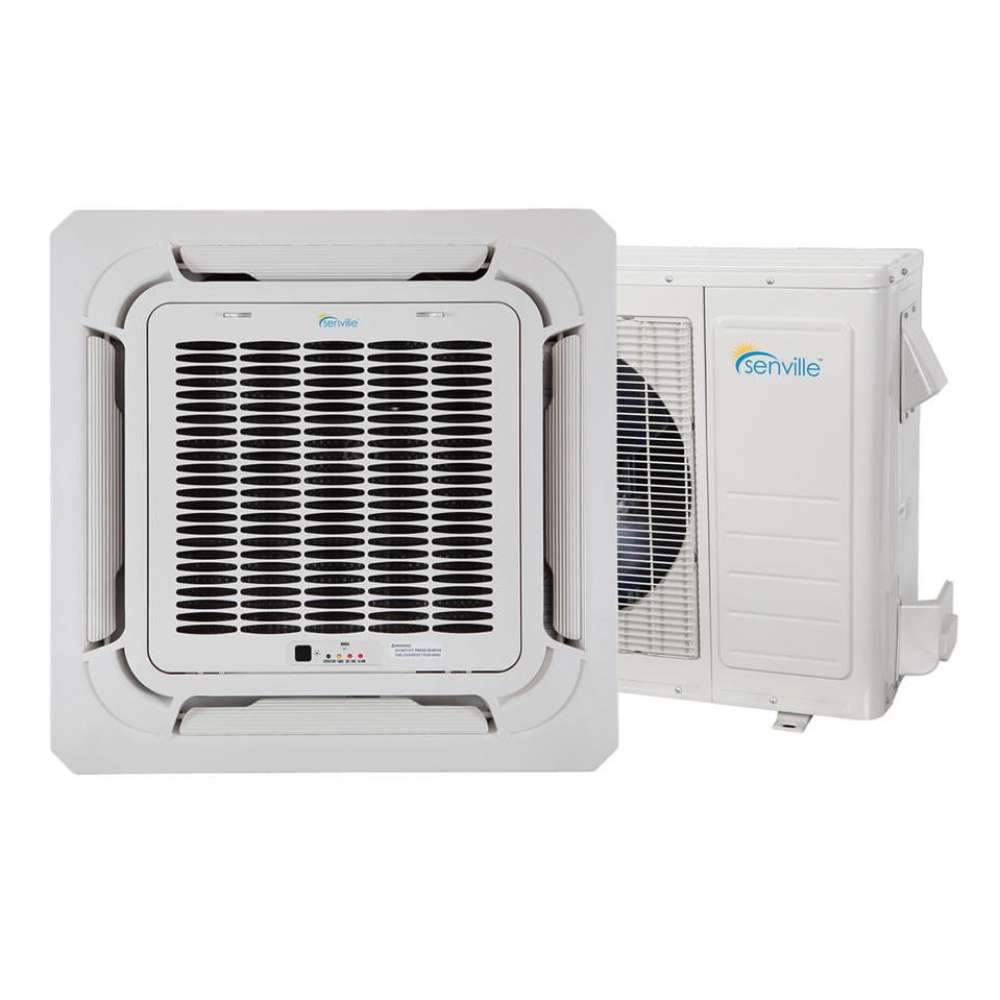

Senville 18000 BTU Ceiling Cassette AC/Heat - SENA/18HF/IC

The Senville 18000 BTU Ceiling Cassette Air Conditioner is a mini split climate control system designed for heating and cooling. This SENA/18HF/IC model functions as a heat pump and installs directly into the ceiling to provide temperature regulation. Available configurations include an optional installation kit in lengths of 16ft, 25ft, or 50ft, and shoppers can choose to include an installation quote. This unit is perfect for homeowners or contractors looking for a high quality recessed air conditioning solution with flexible piping options.

Senville 18000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/18HF/IC is a space-saving heating and cooling system for year-round comfort. This 18,000 BTU ceiling cassette air conditioner works as a heat pump, making this HVAC useful for both cooling and heating. Its ceiling-mounted design helps spread air evenly while keeping wall space clear.

Key specs

• Style: Ceiling Cassette Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253
• SEER2: 20
• EER2: 12.5
• Cooling Capacity (BTU): 16000
• Cooling Range (BTU): 7000~18500
• Cooling Input Range (W): 320~1640
• Cooling Current Range (A): 2.3~7.2
• Heating Capacity (BTU): 19000
• Heating Range (BTU): 8700~20000
• Heating Input Range (W): 500~1950
• Heating Current Range (A): 3.5~12.0
• HSPF2-4: 12.3
• HSPF2-5: 9.5
• COP W/W: 3.18
• Minimum Circuit Ampacity (A): 19
• Max. Fuse (A): 20
• Indoor Air Flow (Turbo/H/M/L) CFM: 447.3 / 388.5 / 317.8 / 194.2
• Indoor Noise Level (Turbo/H/M/L) dB: 48 / 44.5 / 41.0 / 27.5
• Indoor Dimensions (WxDxH) (in.): 22.44 x 22.44 x 9.65
• Indoor Weight: 35.27 Lbs.
• Moisture Removal (L/H): 2
• Outdoor Air Flow (Max) CFM: 1765.8
• Outdoor Noise Level dB: 57.5
• Outdoor Dimensions (WxDxH) (in.): 35.04 x 13.46 x 26.50
• Outdoor Weight: 99.87 Lbs
• Minimum Outdoor Heating Temperature: -22°F / -30°C
• Refrigerant Type / Charge oz: R454B / 55.38
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Warranty: 10 Years Compressor / 5 Years Parts

Features

• 18000 BTU Performance: Delivers powerful 18,000 BTU heating and cooling for year-round indoor comfort.
• 20 SEER2 Efficiency: High-efficiency mini split system helps lower energy bills with a 20 SEER2 rating.
• ENERGY STAR Certified: ENERGY STAR-certified heat pump can reduce annual energy costs by up to 40%.
• Cold Climate Heating: Provides reliable heat pump performance in temperatures as low as -30°C (-22°F).
• Ultra-Quiet Operation: Quiet ceiling cassette air conditioner is ideal for bedrooms, offices, and commercial spaces.
• Smart Diagnostics: Built-in self-diagnostics and leak detection help maintain peak HVAC system performance.
• 10-Year Compressor Warranty: Backed by a 10-year compressor warranty and 5-year parts warranty for added peace of mind.
• Ceiling Cassette Design: Flush-mount ceiling cassette delivers even airflow while maximizing wall and floor space.

What's included

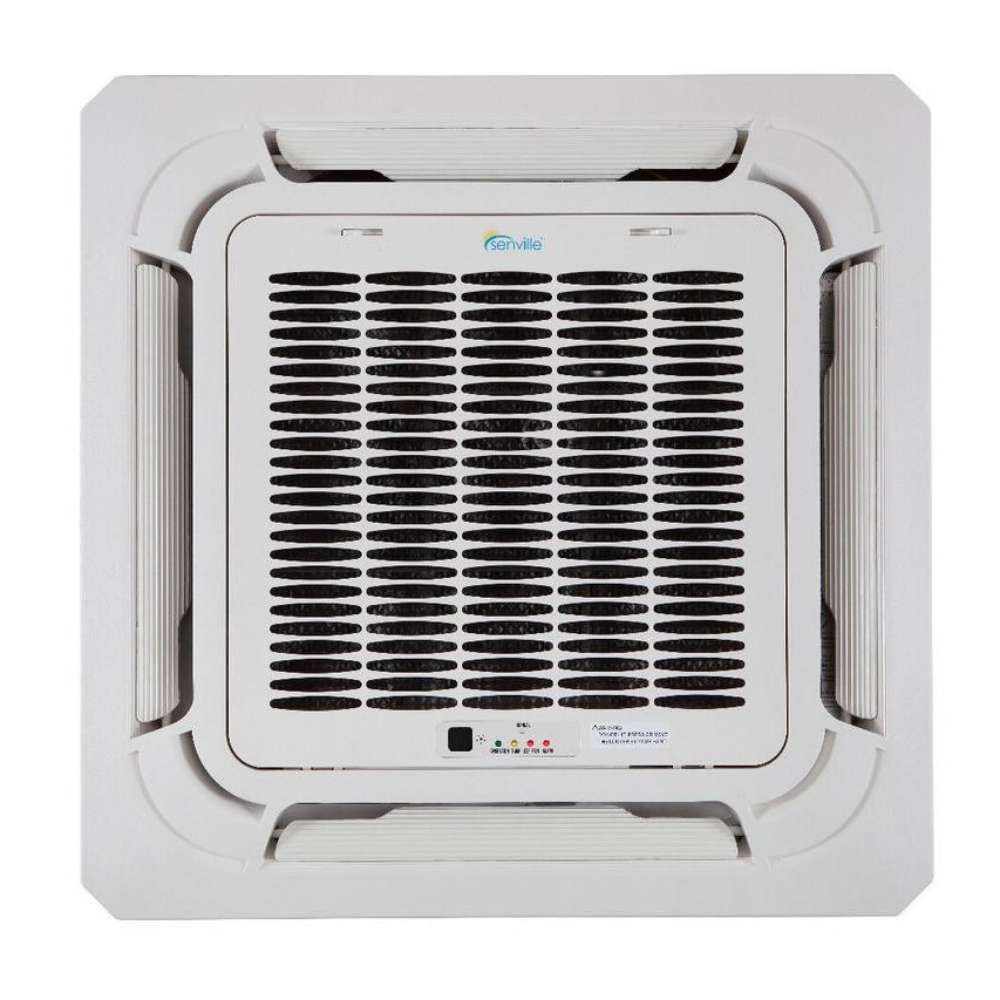

• Indoor Unit (Ceiling Cassette)

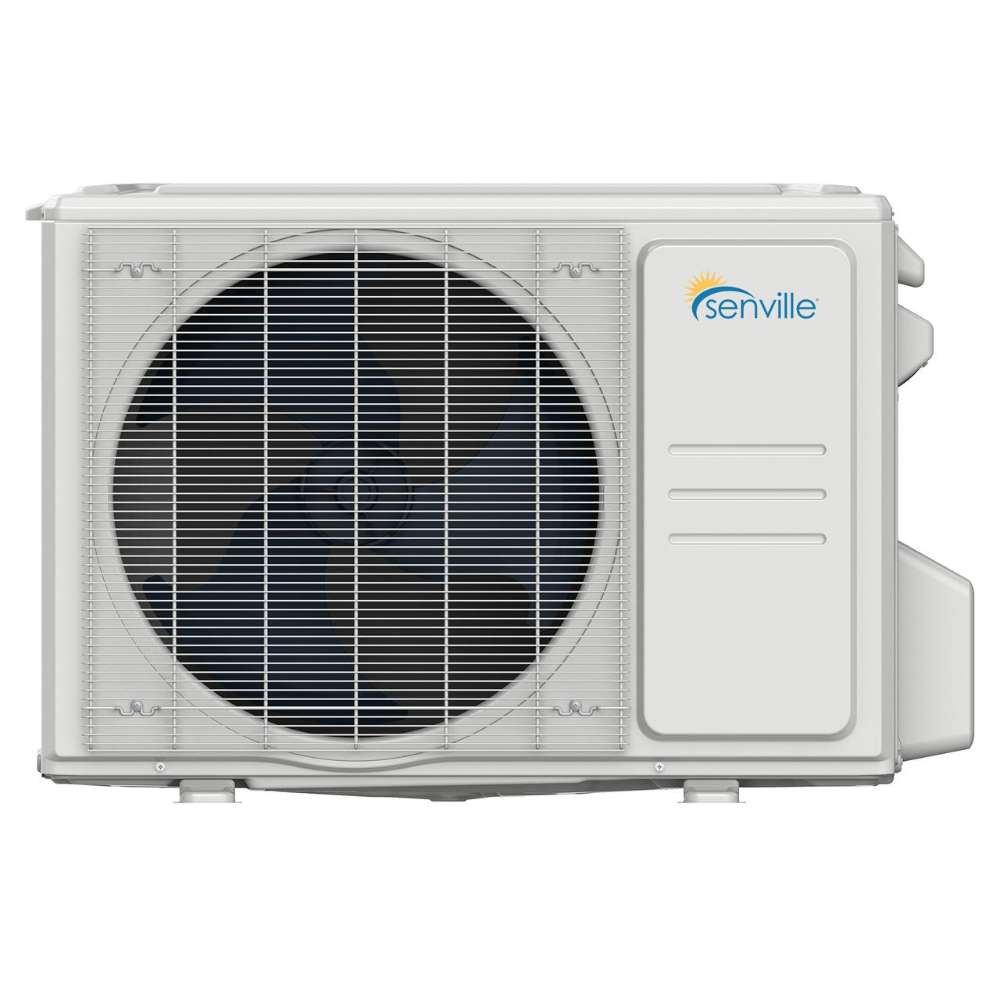

• Outdoor Unit

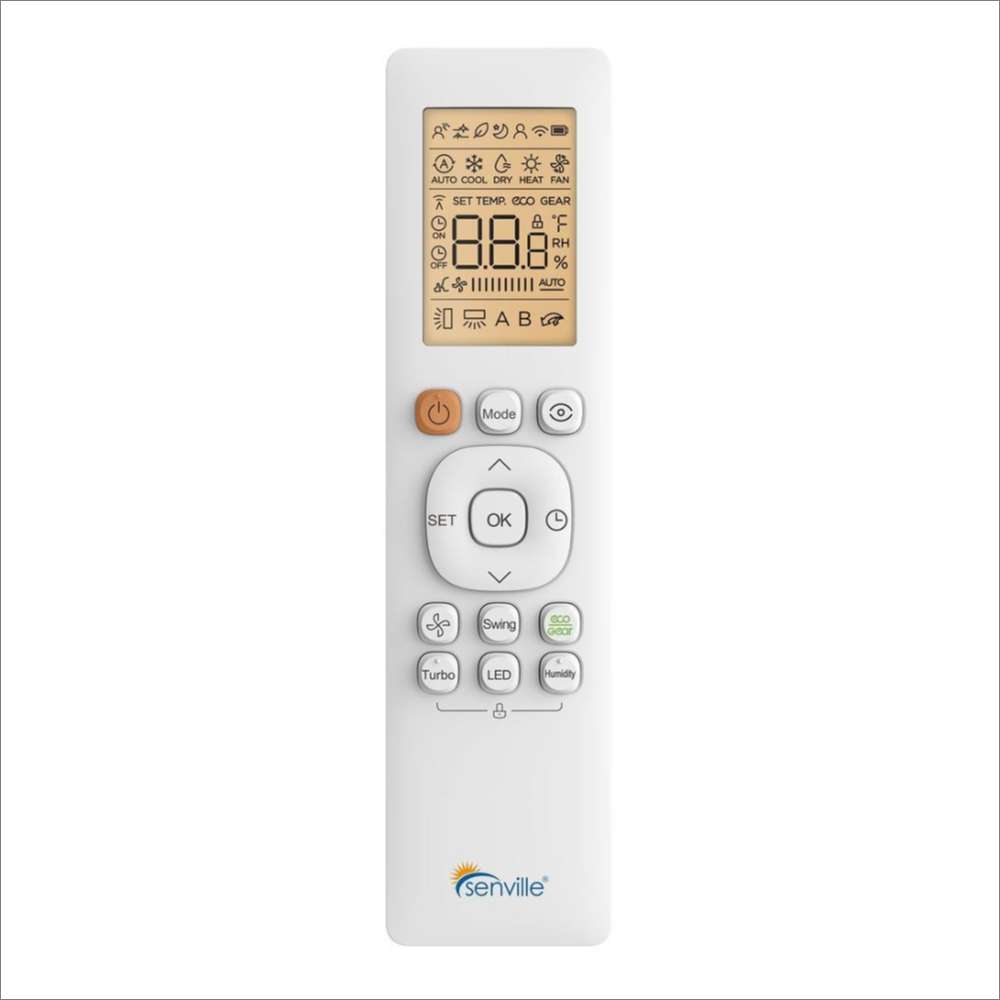

• Wireless Remote Control

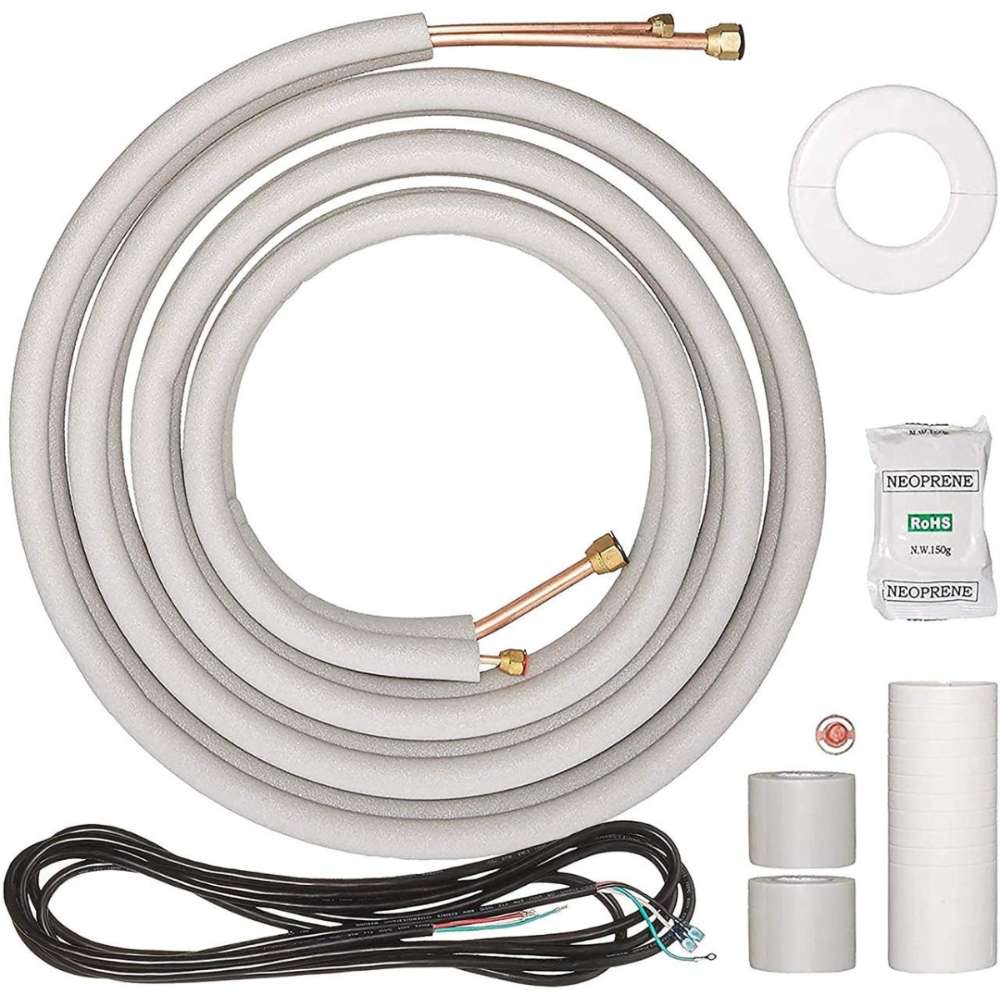

• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Options

• Installation Kit: None, 16ft, 25ft, 50ft
