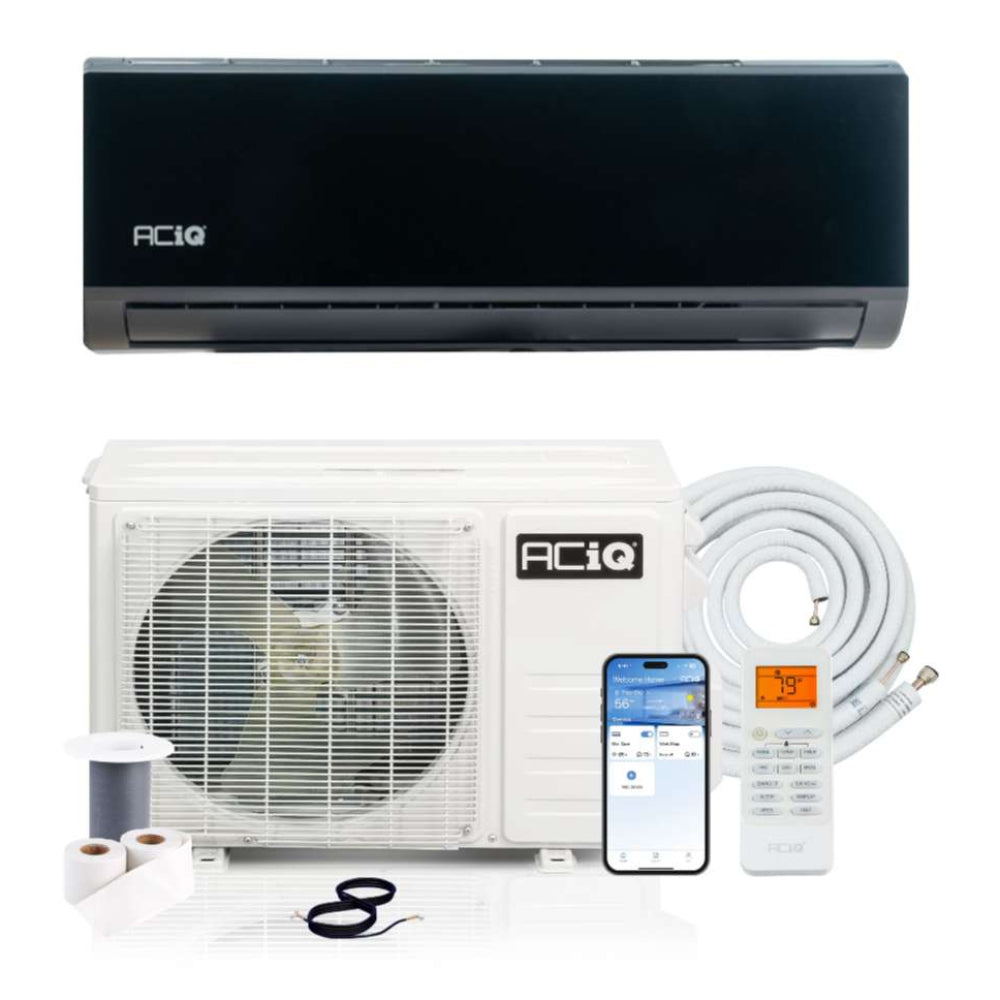

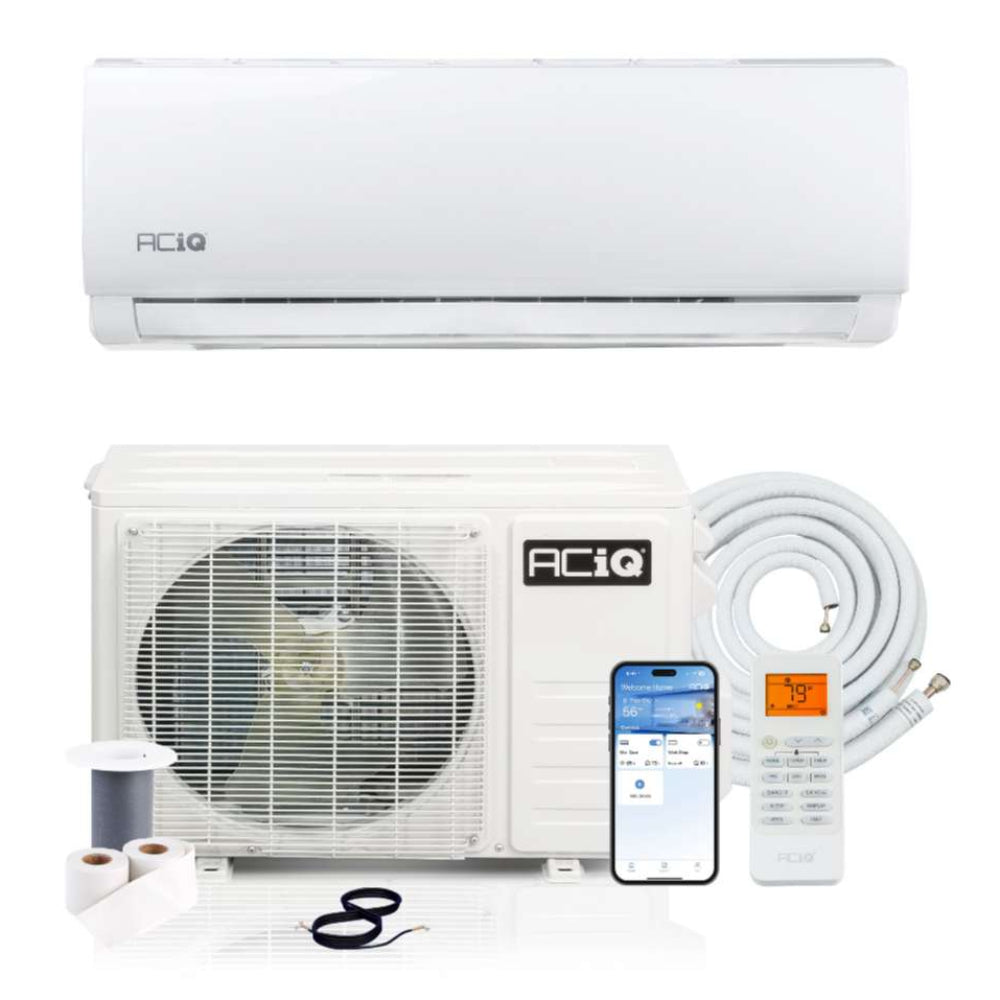

ACiQ 9000 BTU Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is shown with its indoor unit, condenser, remote, smartphone controls, line set, and installation accessories

ACiQ 9000 BTU Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System

Save $248.56
$1,080.00
$831.44
Freedom Room product specialist

Have a question?

Not sure where to start? Schedule a free consultation and we'll break it down

512-777-0154 sales@freedomroom.com Schedule Free Consultation

Notify me when back in stock

Designed for spaces up to about 400 square feet.

Single Room Applications:

  • Bedrooms
  • Guest rooms
  • Home offices
  • In-law suites

Supplemental Home Locations:

  • Attics
  • Basements
  • Garages
  • Sunrooms
FAST Shipping

Item ships in 1-3 Week(s)

Undecided?

Call Us!

512-777-0154

Financing Available

Pay Over Time

Premium Quality

Guaranteed!

Bring Efficient Climate Control Home With the ACiQ 9000 BTU 21 SEER2 Mini Split

ACiQ 9000 BTU Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a compact ductless heating and cooling solution for rooms up to 400 square feet. Its 21 SEER2 efficiency rating helps reduce energy use while keeping bedrooms, offices, and other small spaces comfortable year-round. Built-in WiFi control makes it easy to adjust the mini-split air conditioner from a compatible device, while quiet operation helps limit indoor noise.

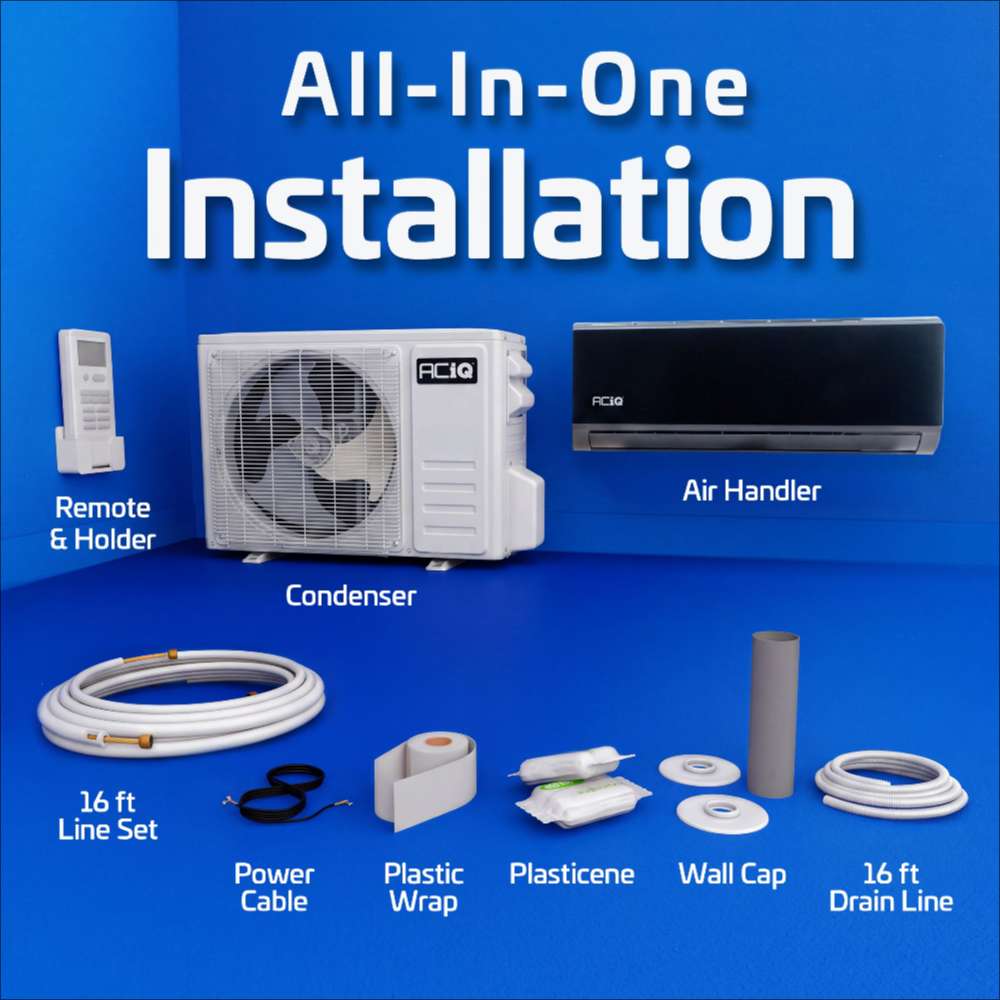

What's Included?

  • Air Handler
  • Drain Elbow
  • Rubber Feet
  • 16 ft Line Set
  • Remote Mount
  • Plastic Wrap
  • Plasticene
  • Wall Cap
  • Condenser
  • Mounting Plate
  • Remote Control
  • 2 AAA Batteries
  • Power Cable
  • Screws
  • Screw Anchors
  • Drain Line

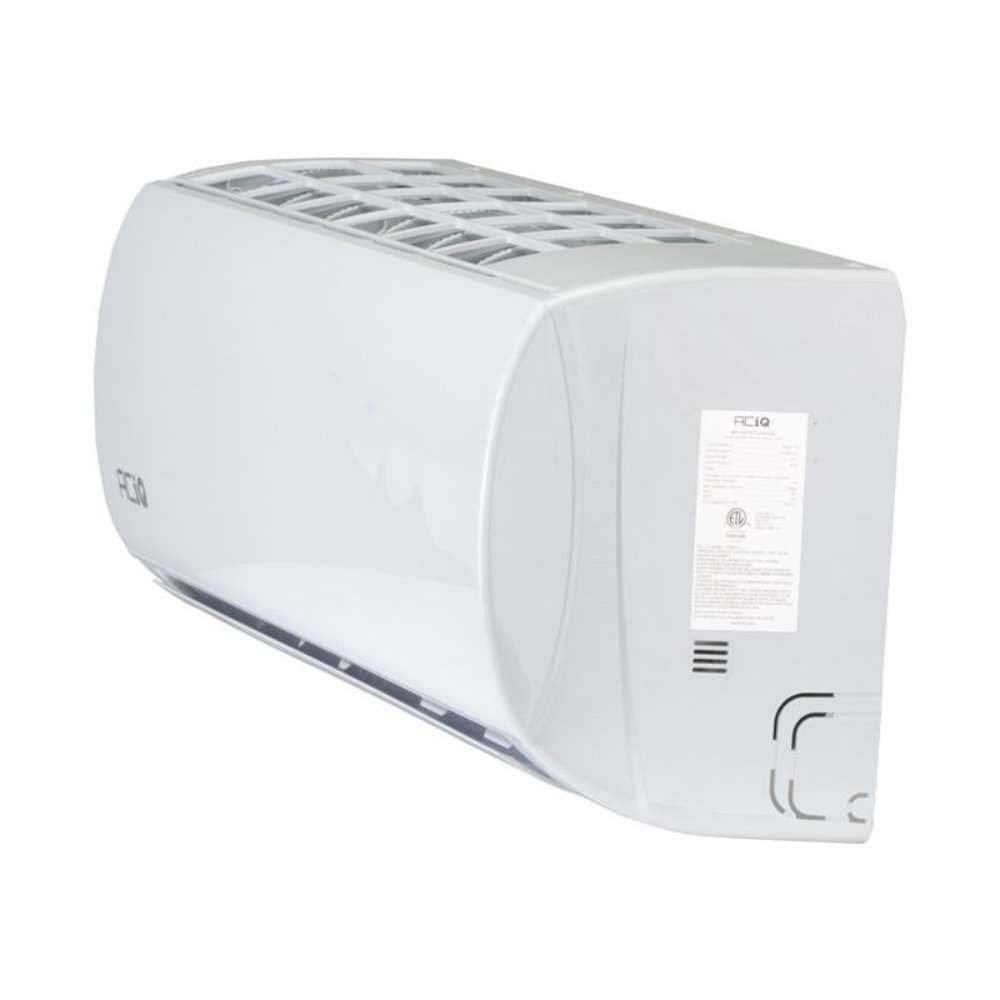

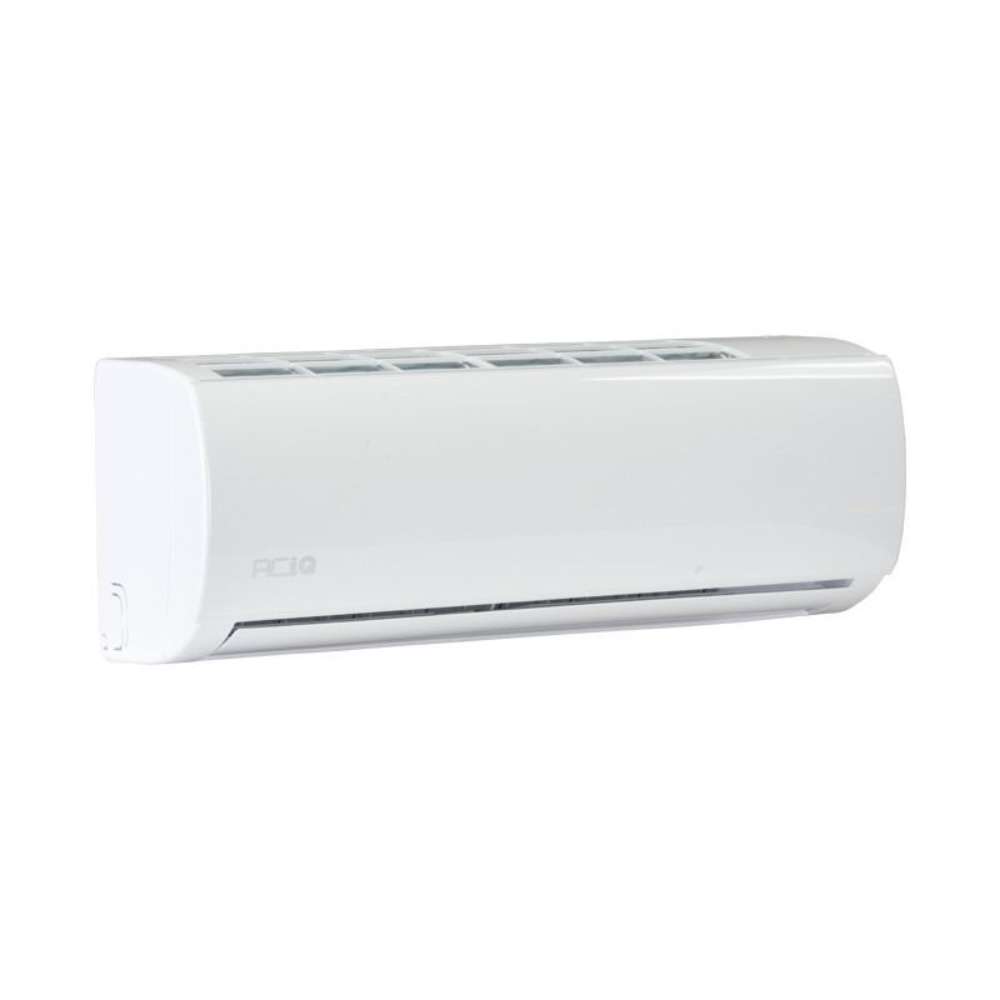

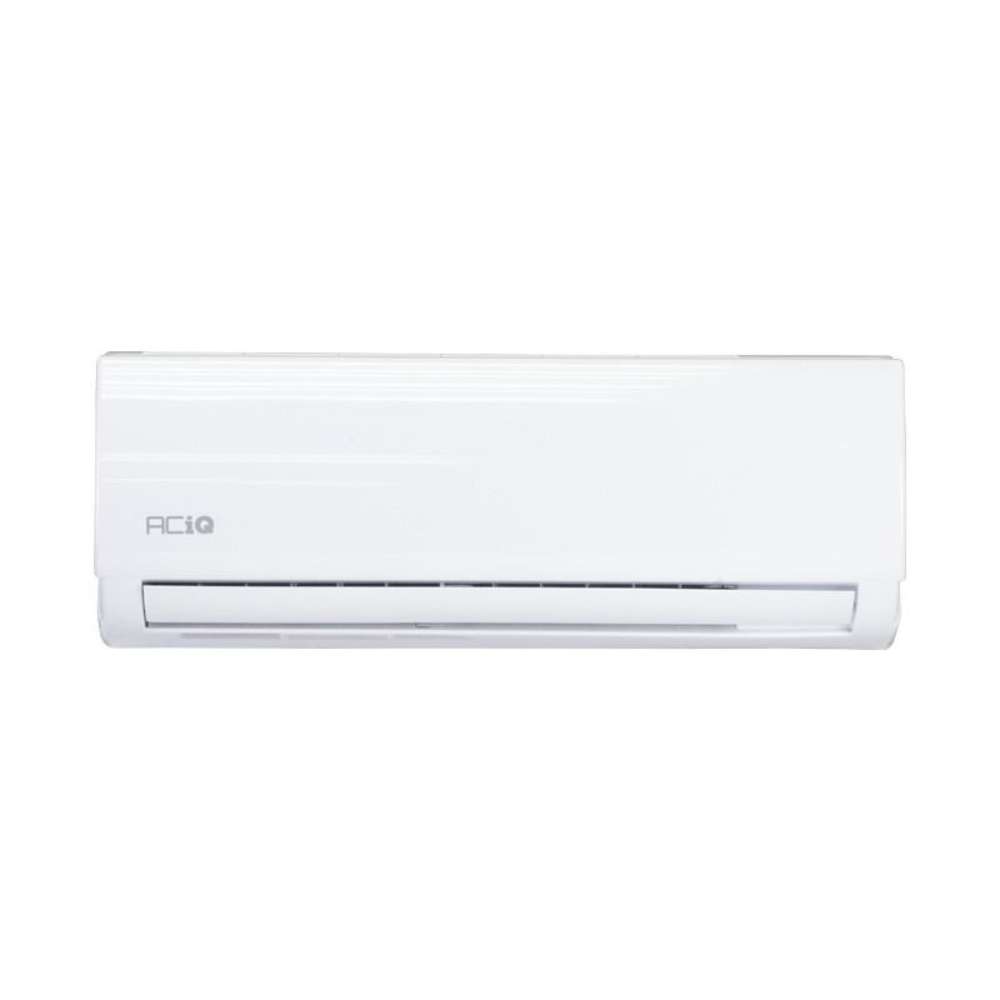

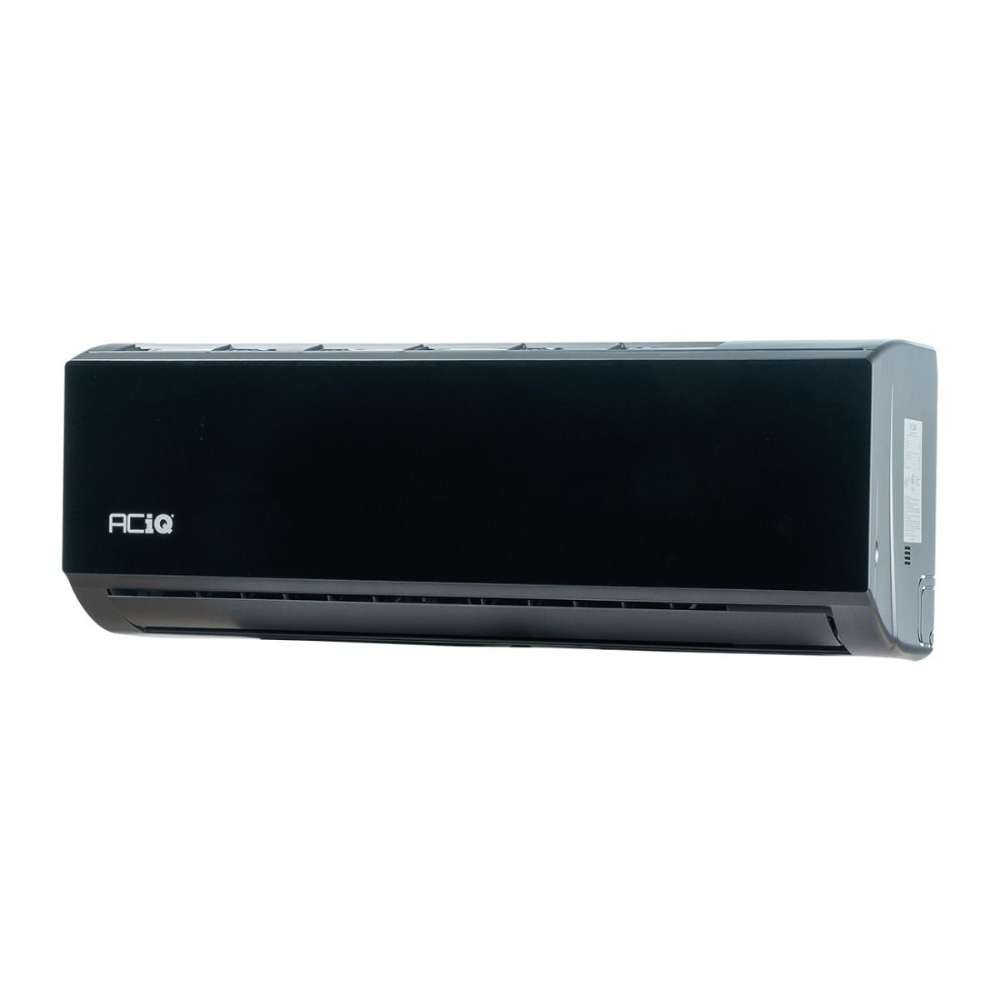

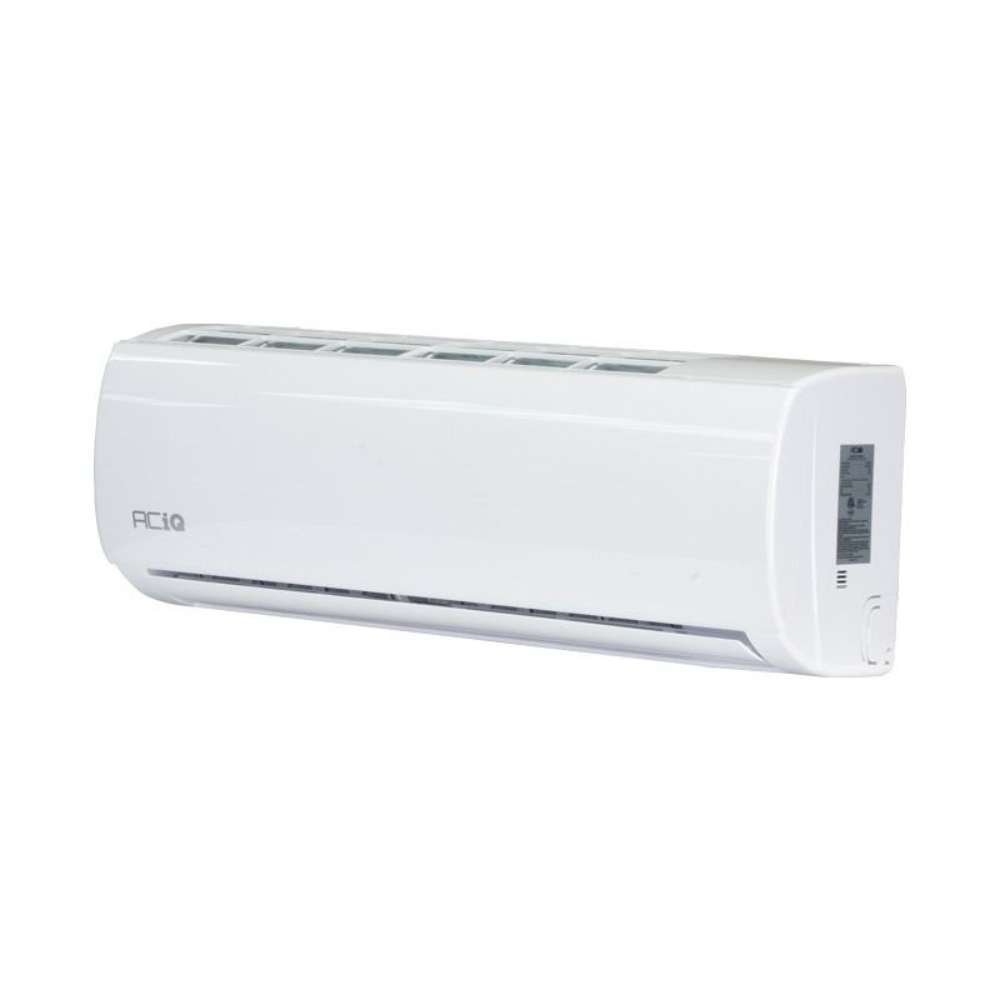

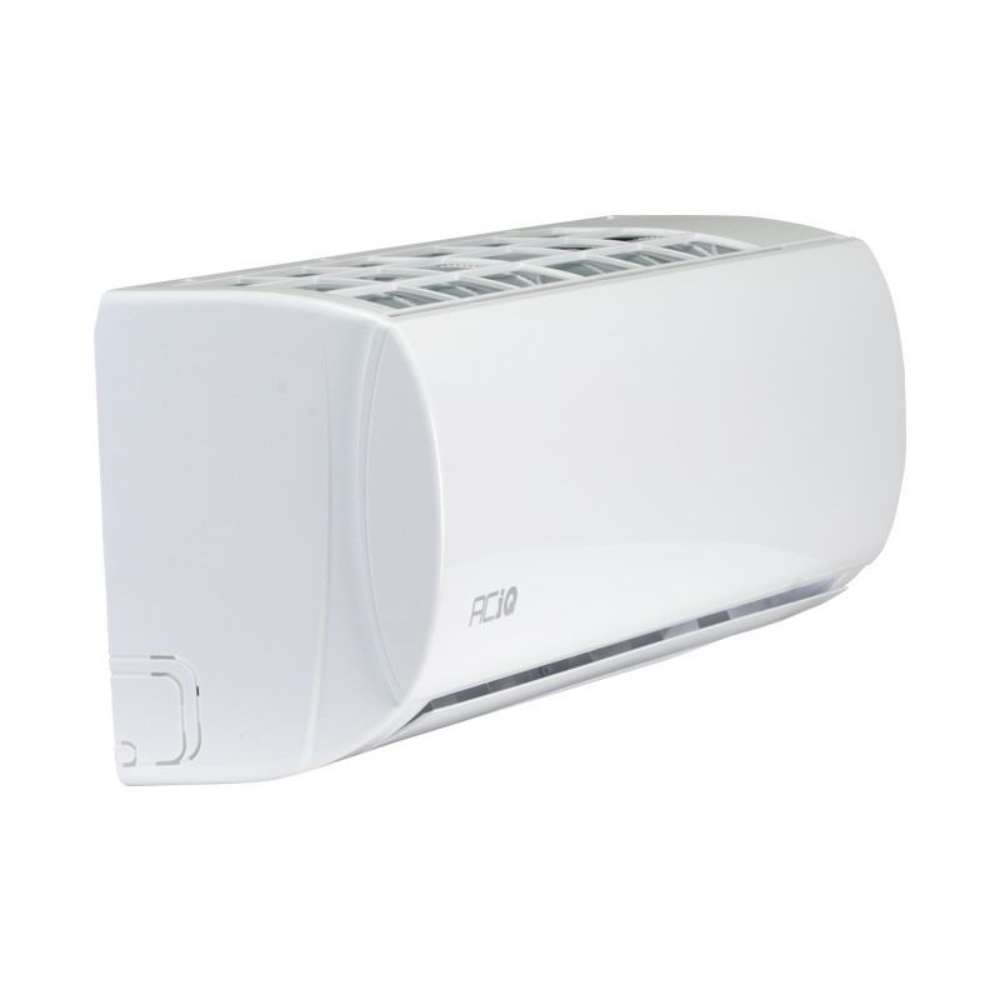

Air Handler Specs

  • Weight: 24.3 lbs
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K09W-W-HP230B
  • UPC: 810175551951
  • Controller: Included
  • Cooling BTU: 9,000 BTU
  • Heating BTU: 10,000 BTU
  • Maximum CFM: 335 Turbo / 312 High / 282 Medium / 265 Low
  • Decibel Level: 28–42 dBA
  • Refrigerant: R32
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • BTU/Tonnage: 9,000 BTU / 0.75 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

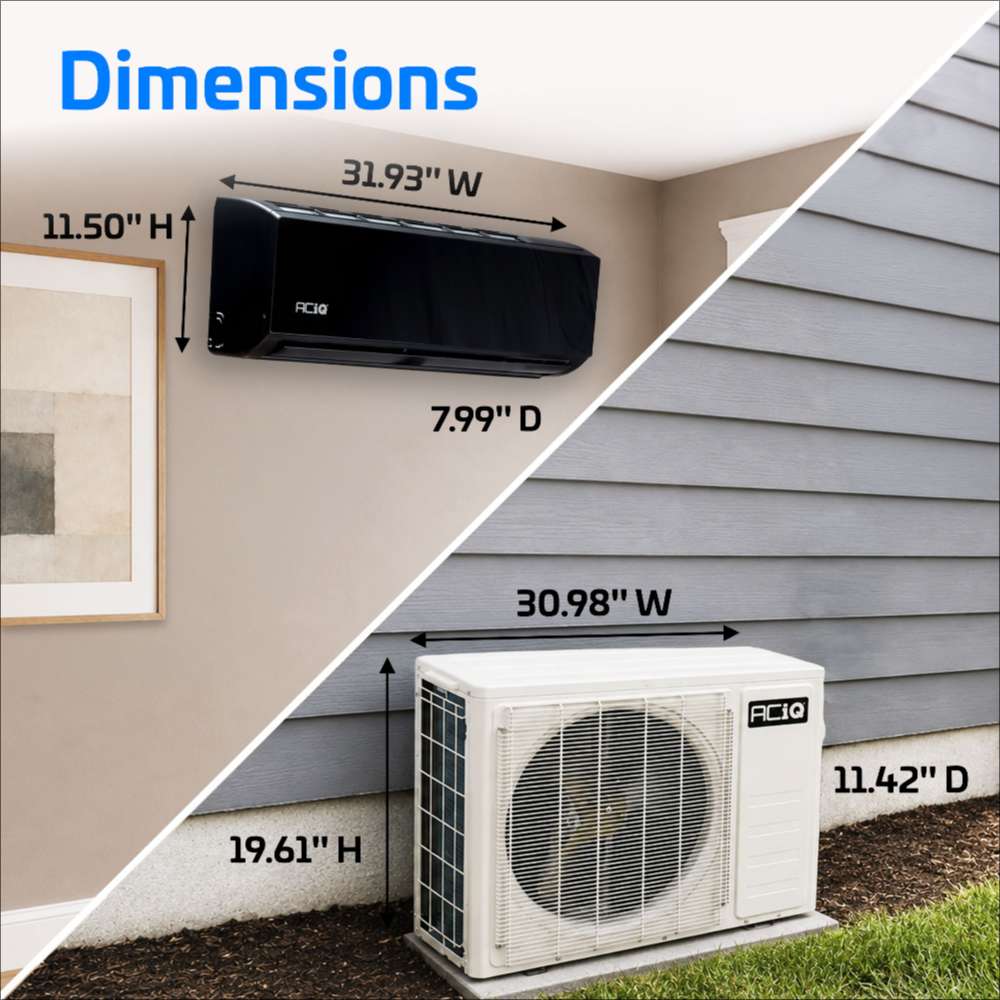

  • Height: 11.50"
  • Width: 31.93"
  • Depth: 7.99"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

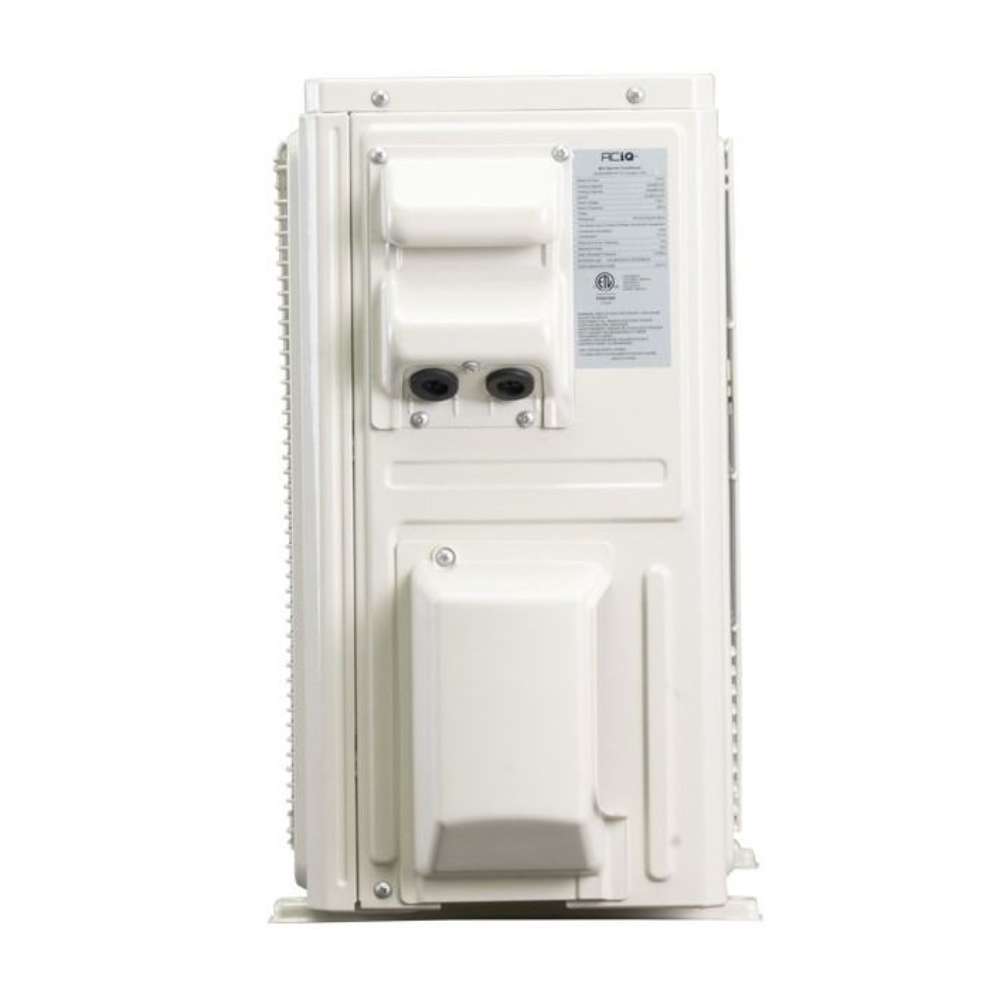

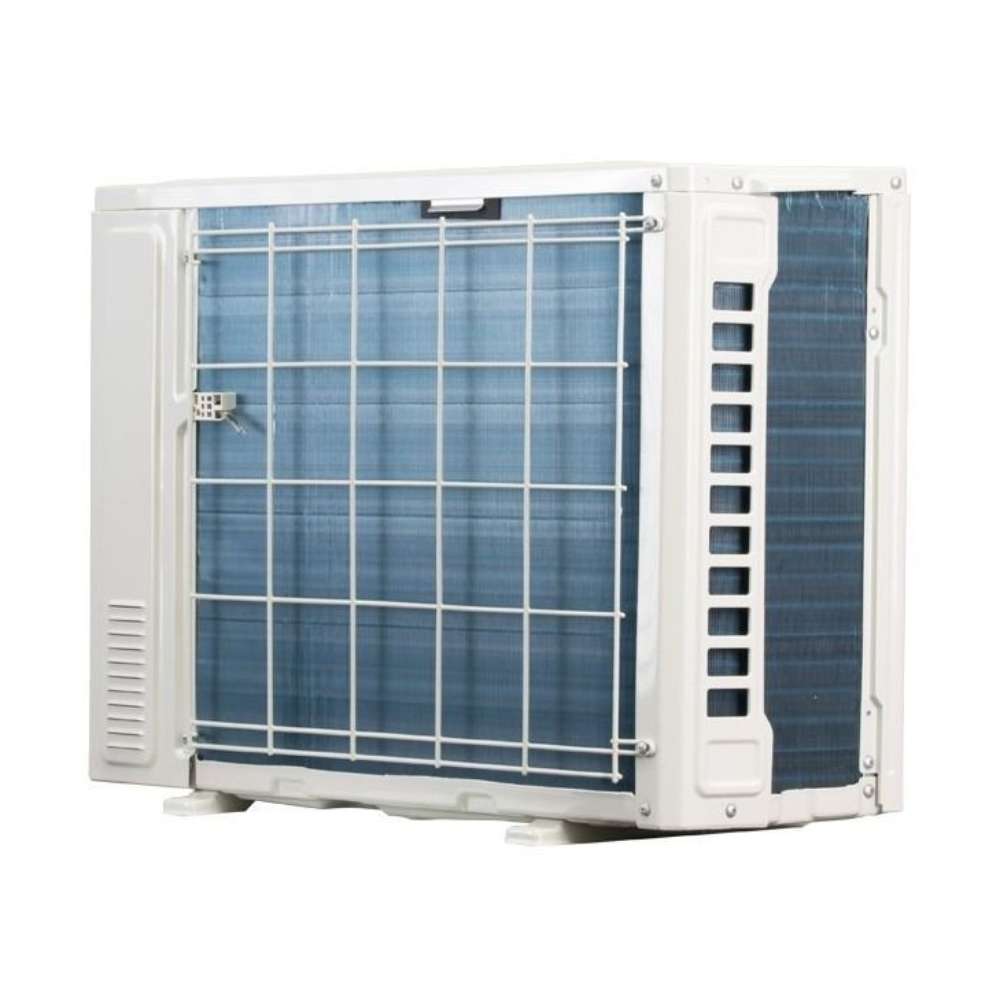

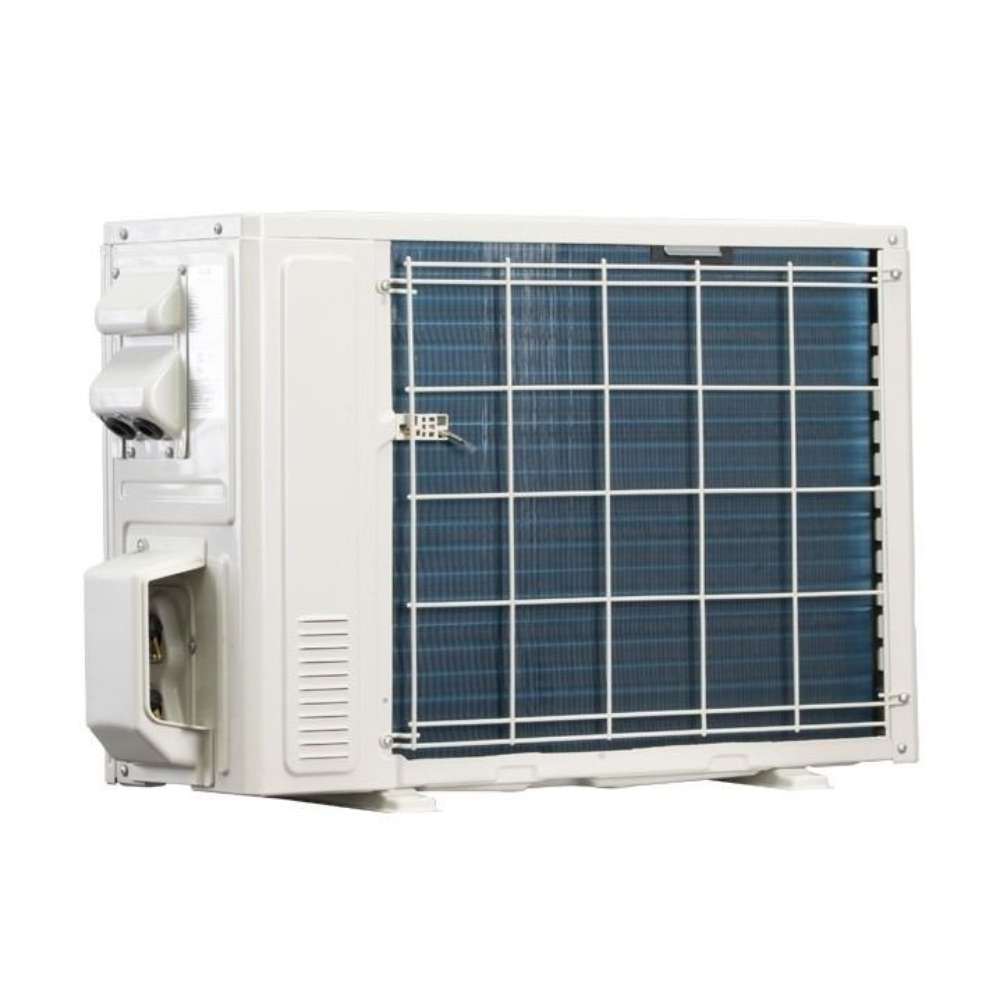

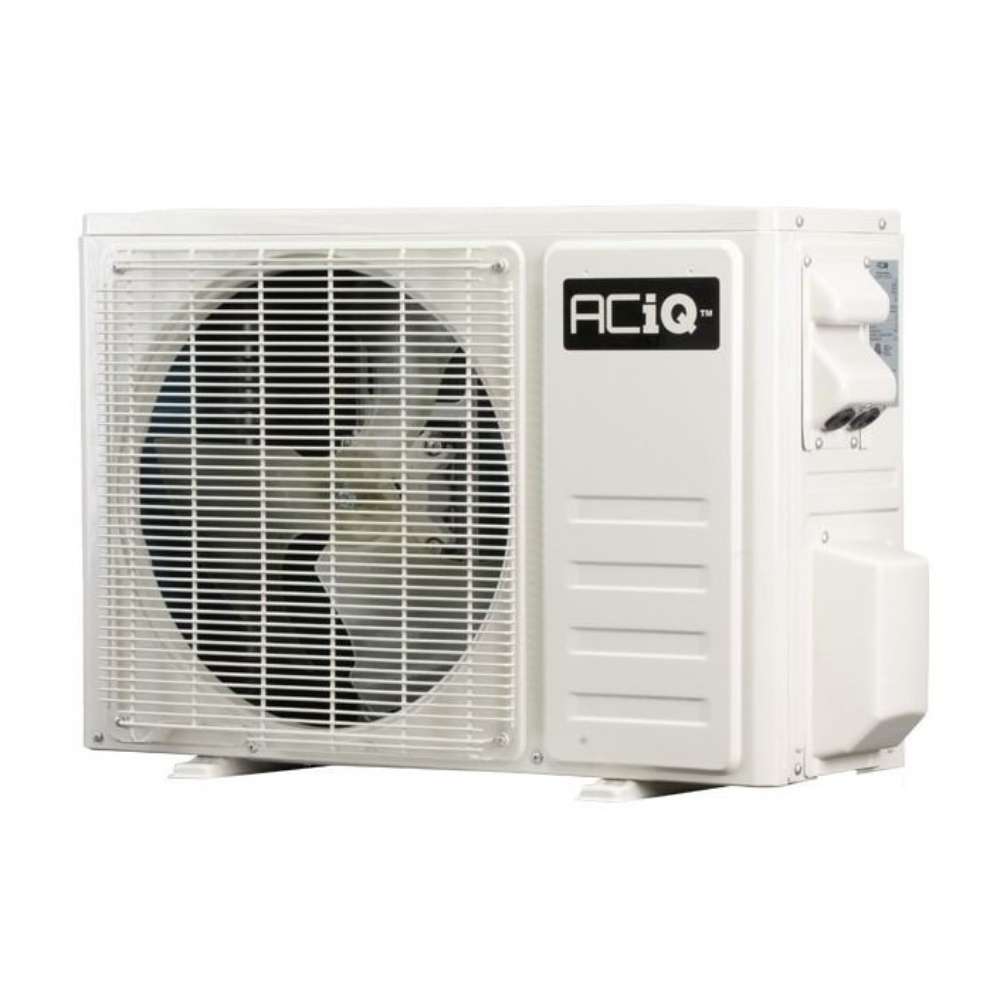

Heat Pump Condenser Specs

  • Refrigerant Charge: 1.3 lbs, pre-charged for 16 ft line set
  • Weight: 62.8 lbs
  • AHRI Certificate Number: 218451494, 218157783
  • Brand/Manufacturer: ACiQ
  • Replaces: ACIQ-K09Z-HP230B
  • UPC: 810175552095
  • Cooling BTU: 9,000 BTU
  • Heating BTU: 10,000 BTU
  • Decibel Level: 53 dBA
  • Refrigerant: R32
  • HSPF2: 8.1
  • SEER2 Efficiency: 20
  • EER2: 12.5
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 208/230V | 1 Phase | 60 Hz
  • Max Breaker Size: 15 Amps
  • Min. Breaker Size: 10 Amps
  • BTU/Tonnage: 9,000 BTU / 0.75 Ton
  • Outdoor Heating Temperature Range: -4°F to 75°F
  • Outdoor Cooling Temperature Range: 5°F to 127°F
  • Zone Compatibility: Single Zone
  • Height: 19.61"
  • Width: 30.98"
  • Depth: 11.42"
  • Warranty: 6-Year Compressor / 4-Year Parts Warranty with Online Registration

Features

  • Delivers 9,000 BTU cooling and 10,000 BTU heating for rooms up to 400 square feet.
  • High-efficiency performance helps reduce energy use and keep utility costs under control.
  • Built-in WiFi lets you adjust temperature and settings from a compatible smart device.
  • Auto Mode and I FEEL temperature sensing help maintain more consistent room comfort.
  • Turbo Mode provides faster heating or cooling when you need quick temperature changes.
  • ECO Mode helps lower energy use while maintaining comfortable indoor conditions.
  • Multi-directional airflow helps distribute heated or cooled air more evenly across the room.
  • Quiet operation with Sleep Mode and MUTE makes it suitable for bedrooms, offices, and other quiet spaces.
  • Online registration includes a 6-year compressor warranty and a 4-year parts warranty.

Documents

About ACiQ Mini Split Systems

ACiQ is a heating and cooling brand focused on smart, energy-efficient HVAC solutions for homes, offices, and commercial spaces.

Its product range includes ductless mini-splits, central air conditioners, heat pumps, furnaces, inverter systems, rooftop units, and PTACs, all designed to deliver reliable comfort, quiet operation, and strong value. ACiQ also incorporates advanced features such as variable-speed technology, Wi-Fi connectivity, and cold-climate performance to support efficient year-round heating and cooling.
